Thread: What do you write on drop chart?

  1. #1
    Member
    Join Date
    Jan 2019
    Location
    Prebbleton (Christchurch)
    Posts
    651

    What do you write on drop chart?

    I've been using the Federal app on my phone when hunting however thinking I'll make laminated chart rather than use it as takes a while to grab phone, access app, check numbers, etc. Slow and bright screen in low light.
    But what do I put on the drop card? A single set of range and MOA or clicks?
    Or do I have a few sets of data for altitude, temperature, wind, etc?

  2. #2
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,178
    I usually do distance at 50 yard intervals, MOA value and clicks value.
    This will be a personal preference so your likely to get a million different opinions.
    I rarely use it though it's just there as a back up, if my phone dies.
    uk_exile likes this.
    #DANNYCENT

  3. #3
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,301
    Anniversary
    Wife's Birthday
    Wife's mother's birthday

    And use strelok for everything else
    270 is a harmonic divisor number[1]
    270 is the fourth number that is divisible by its average integer divisor[2]
    270 is a practical number, by the second definition
    The sum of the coprime counts for the first 29 integers is 270
    270 is a sparsely totient number, the largest integer with 72 as its totient
    Given 6 elements, there are 270 square permutations[3]
    10! has 270 divisors
    270 is the smallest positive integer that has divisors ending by digits 1, 2, …, 9.

  4. #4
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,178
    Quote Originally Posted by Phil_H View Post
    Haven't done one yet but with developing two loads, both of which I can load up with equal ease in the field as I have a single shot, I will be creating one soon.

    Basically I will set my primary load to zero at Point Blank Range and record the the drop at 50 meter increments thereafter to 400 meters - my self imposed limit.

    My secondary load I will record the drop in 50 meters increments past its Point Blank Range with a note of any variation left or right of the centre aim-point.....hopefully going well it won't be excessive.

    I don't at this time do the dial-up-twiddle stuff and only use hold over. I accept that I might need to consider such things in the future but for now, I like to keep it simple.

    I watch this thread with interest to see what others do and what I can learn.

    An as to @dannyb's comment....in case my phone dies......phone in the field???? Anathema to my ears.....but I accept I am probably just an old Curmudgeon Luddite......

    Cheers
    Phil
    Phone is only there to use my ballistics app (digital drop chart if you like, it's important if your dialing) and record memories with the camera, also handy if you get in the shit
    It's not for anything else, when I'm hunting that is my sole focus
    Phil_H and uk_exile like this.
    #DANNYCENT

  5. #5
    Member mawzer308's Avatar
    Join Date
    Nov 2015
    Location
    Central Plateau
    Posts
    1,547
    Generally speaking when shooting at distance you've got a bit of time but I never trust apps. I use 25yd increments from 100 (my zero) out to 600yds. Have a bigger Dope sheet that goes to 1000 in the bino bag. Moa/mil up rounded up or down as required. Wind full value at 10mph in moa/mil, easy to halve or add as required, rounded to nearest value. My Binos give me TBR so no need for an angle conversion table. All created on Microsoft excel, laminated, then taped to my rifle.

  6. #6
    Member
    Join Date
    Jan 2019
    Location
    Prebbleton (Christchurch)
    Posts
    651
    Extra info: Have bagged plenty of bunnies with 22 however I’m a venison virgin using factory Federal 150 grain blue box ammo in T3X Superlite 7mm rem mag with gunworks suppressor and 3-15 Nikon Monarch 5 scope.
    Don’t know actual speed so reliant on what it says on box, hence using the Federal app as basis for drop chart.
    Got zero at 200m so approx. 40-45mm high at 100m.
    I’m tending towards Keep It Simple Stupid and just write down drop and click values in 50m increments for altitude of hunt area, 15deg temp, no wind. Seems reasonable?
    Have set a self imposed 400m limit. Kind of look like it’s don’t even need to think about it if 250m or less, but need to in range 300-400m
    Name:  drop chart.jpg
Views: 545
Size:  28.0 KB
    Phil_H likes this.

  7. #7
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,468
    What it says on my dial, i cant be arsed counting clicks when its all there in moa
    Name:  6D155051-3D1B-4E19-BEC3-295F30B589C7.jpeg
Views: 774
Size:  4.21 MB
    outdoorlad, Trout, nickbop and 1 others like this.

  8. #8
    Member mawzer308's Avatar
    Join Date
    Nov 2015
    Location
    Central Plateau
    Posts
    1,547
    Dont bother with writing the clicks down, just use Moa less info and less confusion. Velocity values are always slower than what's on the box, try to borrow a chronograph or, shoot out to you required distances and record the drop and corrections made to get you central on target.

  9. #9
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Location
    UK
    Posts
    7,916
    Quote Originally Posted by Ryan_Songhurst View Post
    Anniversary
    Wife's Birthday
    Wife's mother's birthday

    And use strelok for everything else
    Missed again!
    Die ya bugger!
    I was aiming for the other one!
    Would have hit that if I had more ammo!
    It's all fun and games till Darthvader comes along
    I respect your beliefs but don't impose them on me.

  10. #10
    Member outdoorlad's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch
    Posts
    3,006
    Same as Gibo, except I do one column for wind in MOA (10mph) and one for it in inches in case I need to hold for wind.
    Gibo likes this.
    Shut up, get out & start pushing!

  11. #11
    Member
    Join Date
    Dec 2011
    Location
    Southern Alps
    Posts
    4,548
    Moa covers the distance quicker and quarters yr counting until the last inch.

  12. #12
    Member
    Join Date
    Jun 2014
    Location
    CNI
    Posts
    5,904

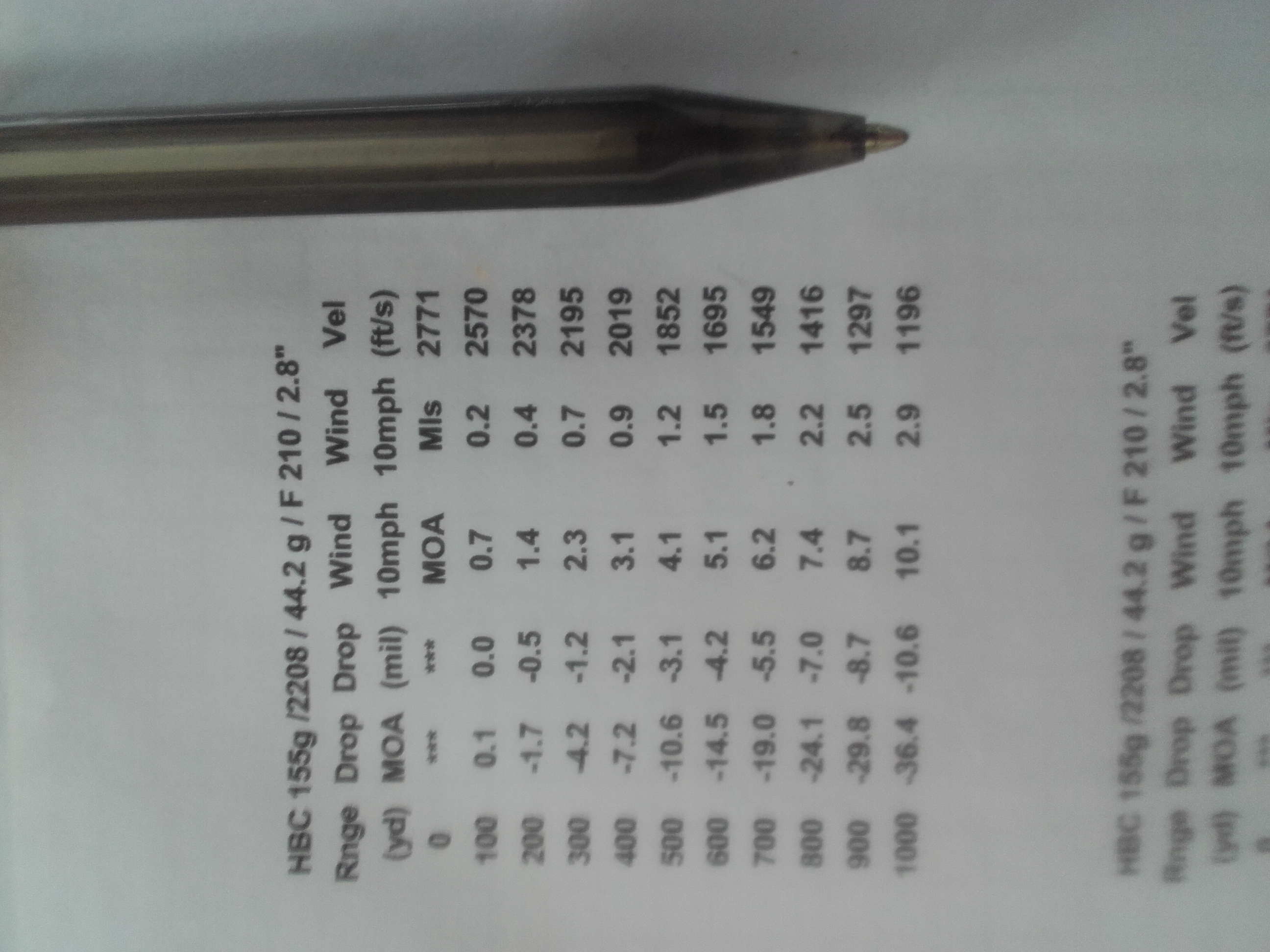

    I modify ballistics print-out and reduce size. Then I attach to rifle stock .Name:  20201222_120315.jpg
Views: 544
Size:  1.51 MB
    I use double sided rego labels and on top use cellophane sealed with wifeys fingernail polish.
    Last edited by Woody; 22-12-2020 at 12:23 PM.
    uk_exile likes this.
    Summer grass
    Of stalwart warriors splendid dreams
    the aftermath.

    Matsuo Basho.

  13. #13
    Member
    Join Date
    Jan 2019
    Location
    Prebbleton (Christchurch)
    Posts
    651
    Interesting mix. MOA only because scope says so. Others distance or clicks. Some combos of these. Then there's wind, if I can guesstimate wind in first place. Nothing about temp or altitude, or uphill, downhill. Starting to think it's all too complicated and I should take up duck shooting ;-)
    Phil_H likes this.

  14. #14
    Member
    Join Date
    Feb 2020
    Location
    Scotland
    Posts
    1,204
    Rangefinders with adaptive ballistic functions (varies with conditions) have nearly negated drop charts (fixed data), but always good to have a backup.

    I write what load/ammo I have zeroed the rifle with onto the synthetic stock with a waterproof paint pen.

    Wipe off with a solvent later if load changes, simple!
    Phil_H and uk_exile like this.

  15. #15
    Pav
    Pav is offline
    Member
    Join Date
    Jul 2020
    Location
    Waikato
    Posts
    144
    For someone relatively new to the whole hunting scene, this is what I have found works for me so far...
    Name:  20201011_145545-02.jpeg
Views: 483
Size:  501.8 KB
    Admittedly I have actually only had to dial up for 1 deer out of 6 shot so far this year, a 6pt Red stag shot at 325m in the Ruahines back in October.

    I originally had a more complicated version but soon discovered that I had a significant variation in recommended dial up using different ballistic apps without using a chronograph first. I now only use those as I have been able to check physical drop by shooting a fair amount of targets at those distances from 200-600yds. I've also found that my accuracy drops jumping from 500 to 600 out of my 18.5" barrel Tikka .308
    I am confident of securing game cleanly at 500 so that's my own self imposed limit for the rifle using that particular ammo at the present
    Tuidog and uk_exile like this.
