Certainly like what you have done Makka very nice you could always add other calibres if required I had the 12g plus .22 rimfire all it took was simple offset barrel holder and a bit of time.Attachment 269439Attachment 269440 looking forward to seeing how the checkering goes so far the gun looks a smasher.
If I could find some more barrels then I would definitely build up some more calibres, but that seems easier said than done!
I have a 308 barrel sitting there ready to machine down when I do find another Baikal barrel
If every Baikal 12g barrel fitted the same could be offering different calibres for owners, the one I showed had the barrel offset but the last one I did was concentric but I had the firing pin hole offset and had the firing pin offset to the rest if the pin, was also able to utilise the extractor but doing it that way I had to for go the 12g. One of the forum guys had a stack of unused still in grease 16.1mm diameter Anschutz.22 barrels just over 16” in length, wish I had got a few I would do a few more, the one piece holder could be aluminium and just the lock need be steel, rattle a few out at a time. Still have drawings if anyone wants them. I still like the single shot aspect.
I'd be interested to see the drawings for sure
Attachment 269521Attachment 269522Attachment 269523Attachment 269524Attachment 269525
.22 and .17 could be quick interchangeable barrel pinned in barrel, the drawing was just a quicky for my job making it and shows it being offset the photos show the concentric one just using 12g barrel which was up and firing in a couple of days, I would have made a proper holder for it but I had a few hares to quickly dispatch.
Looks good! Maybe I could just make a monoblock instead of finding old barrels to stub.

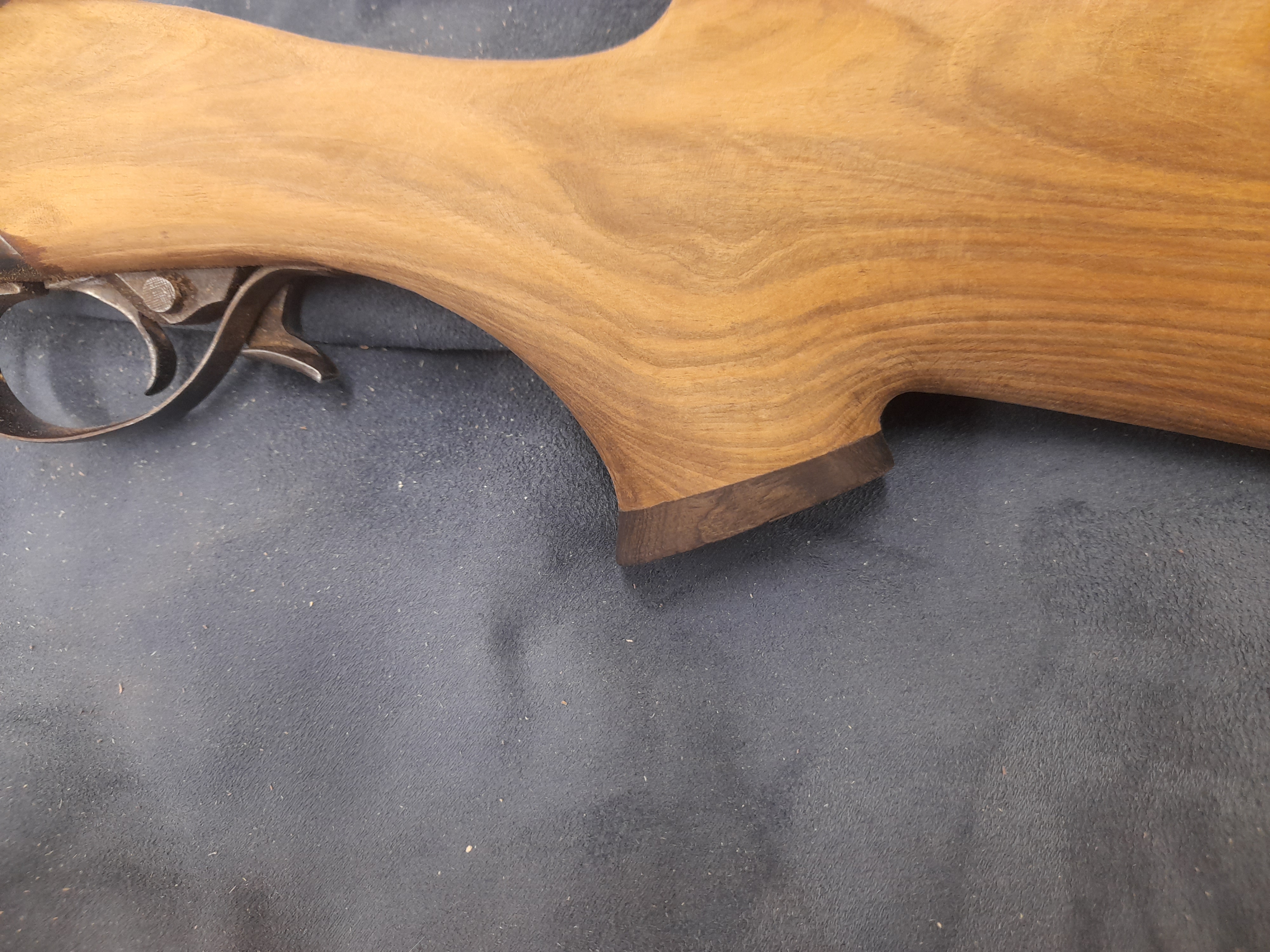

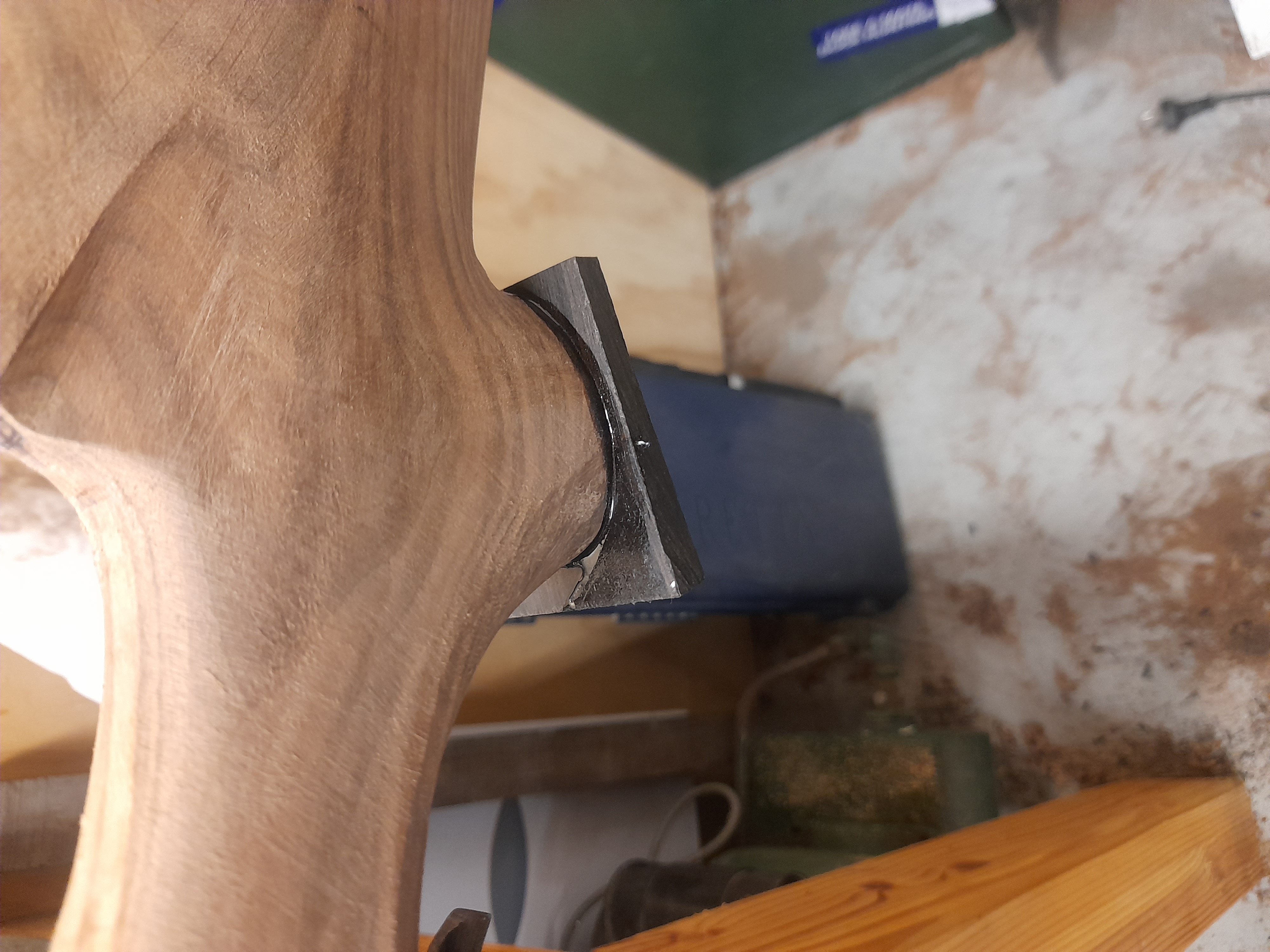

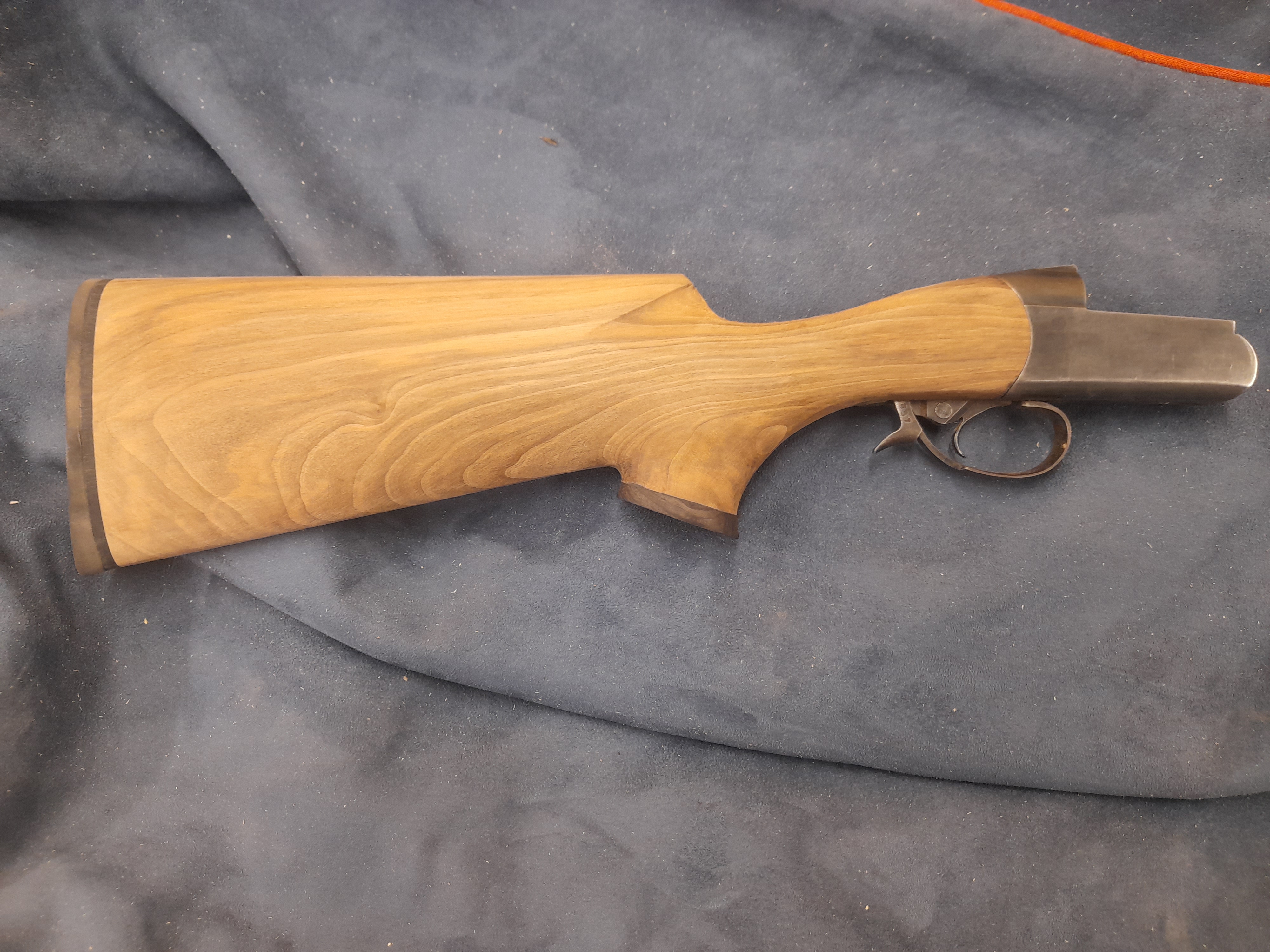

A bit more progress, I glued on and shaped the ebony grip cap, just need to round it over now.
Attachment 269545
Attachment 269546
Attachment 269547
Attachment 269548

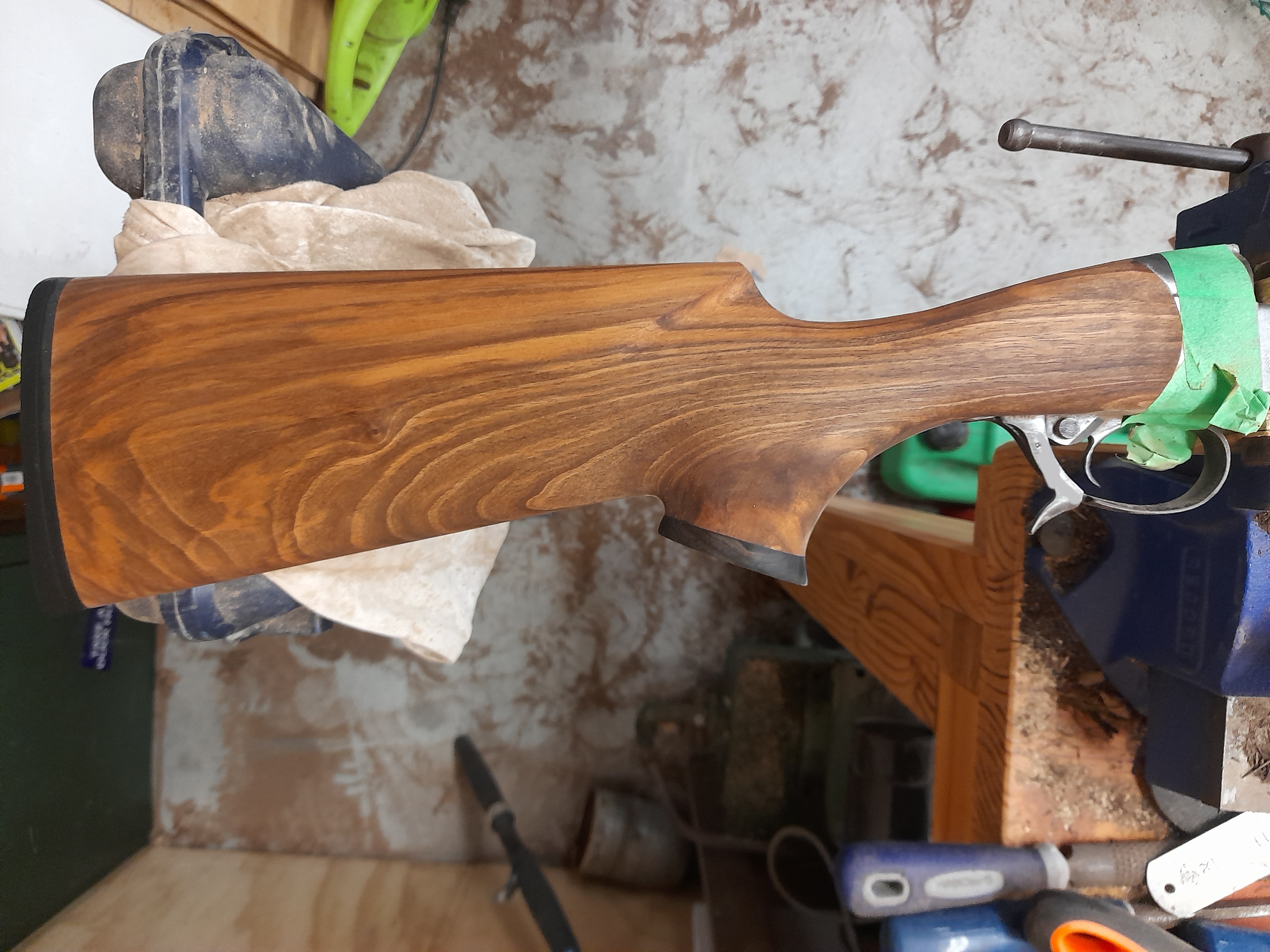

More sanding and some water to raise the grain
Attachment 269836
Attachment 269837

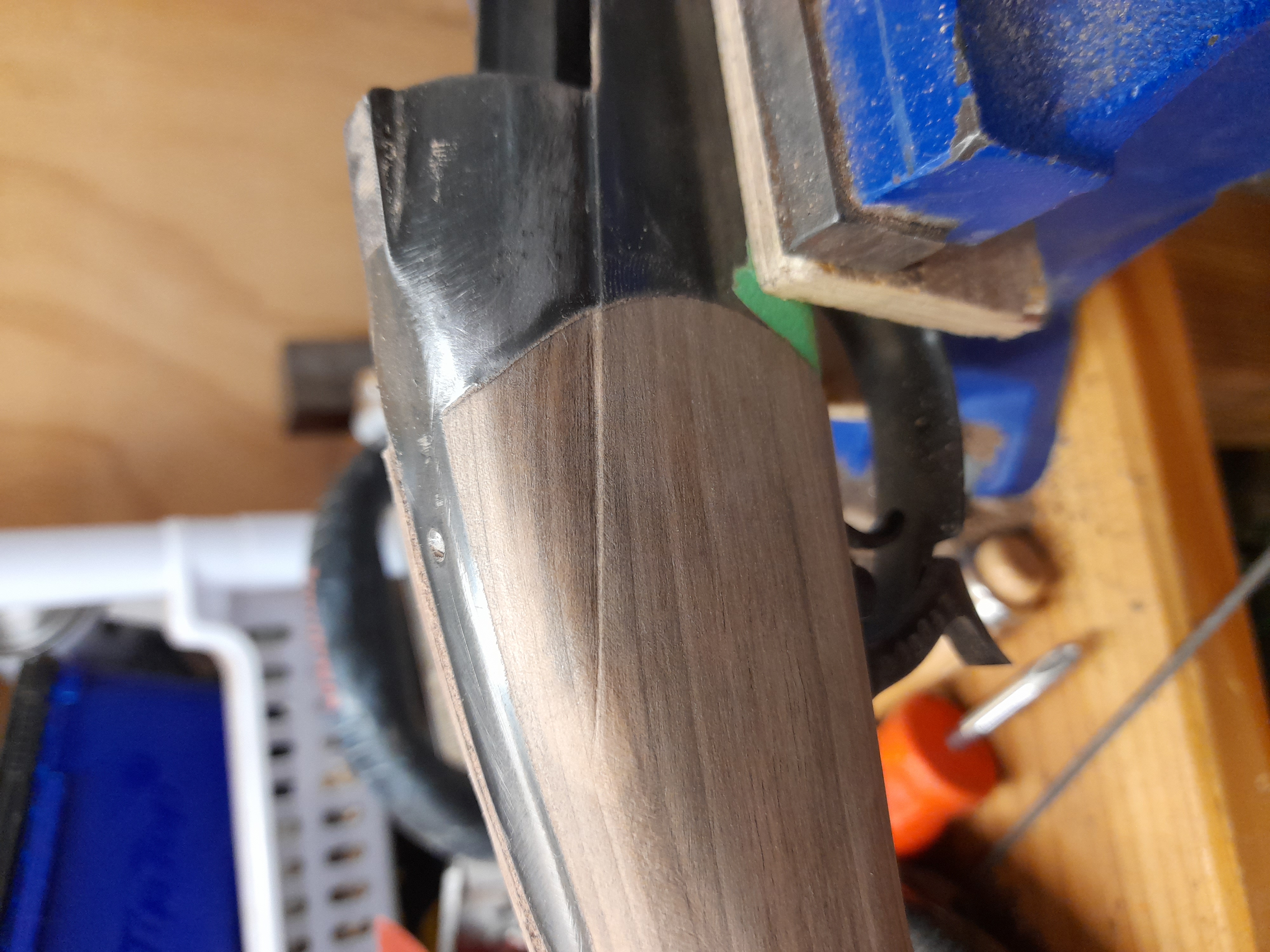

Time for a few of the finishing touches before I get into the fine sandpaper, I wasn't quite sure what to do with the step in the action but I think this'll end up looking ok
Attachment 270466

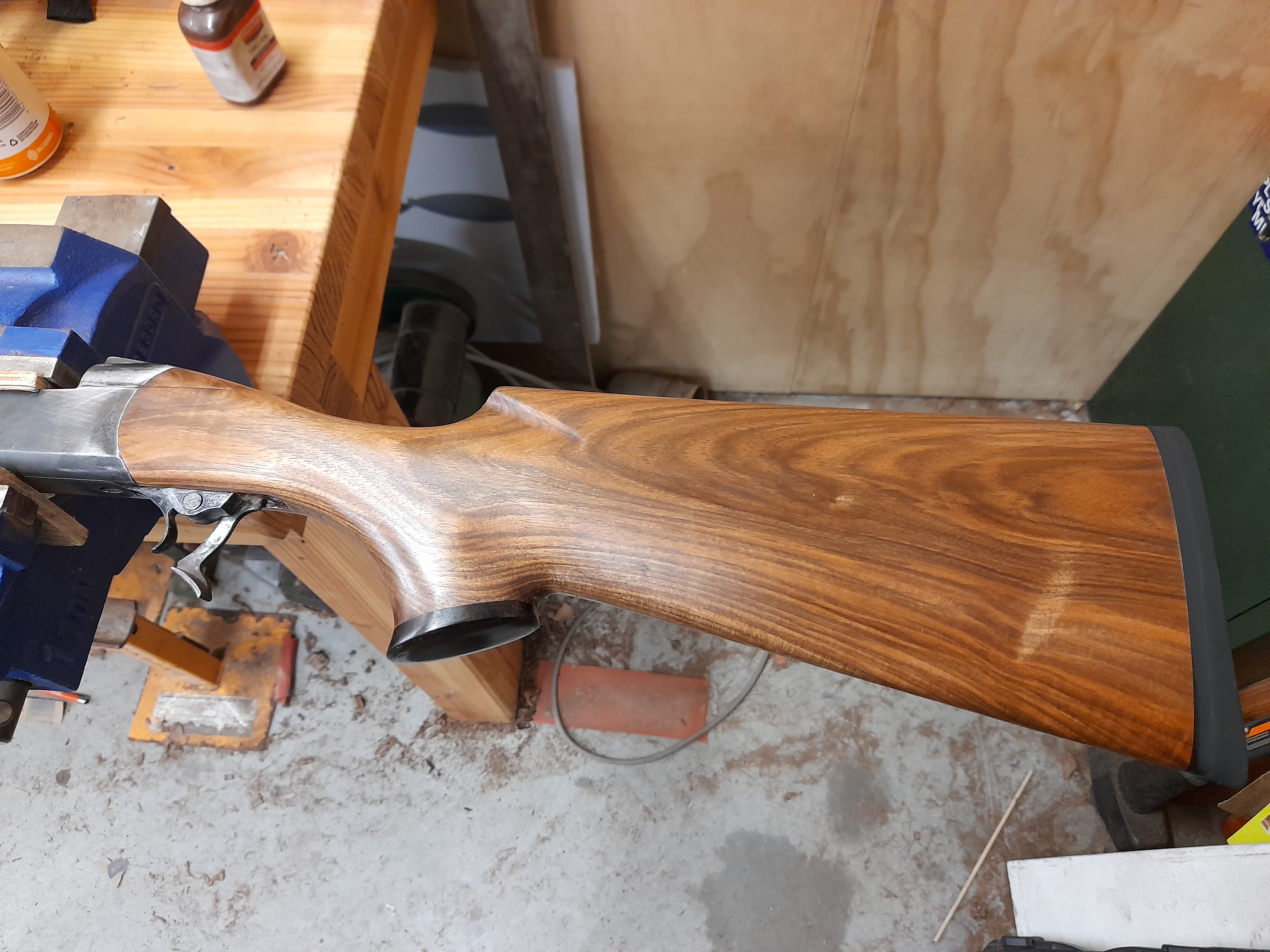

Sealer coat of oil on
Attachment 271010
Attachment 271011
But how does it shoot????
not as well as I had hoped with the 75eldm's but I knew they would be a stretch with q 1:9 barrel.Quote:
Originally Posted by Micky Duck
I have just loaded up some 73elds's and 62gn Gold Dots to test and have to pick up some 74gn Targex's off Tahr at some stage to try as well.
I would back the Targex. Gold Dots are dodgy things to get to shoot.
