Thread: AK-47 bolt action conversion

  1. #1
    Member
    Join Date
    Mar 2014
    Location
    Kapiti
    Posts
    68

    AK-47 bolt action conversion

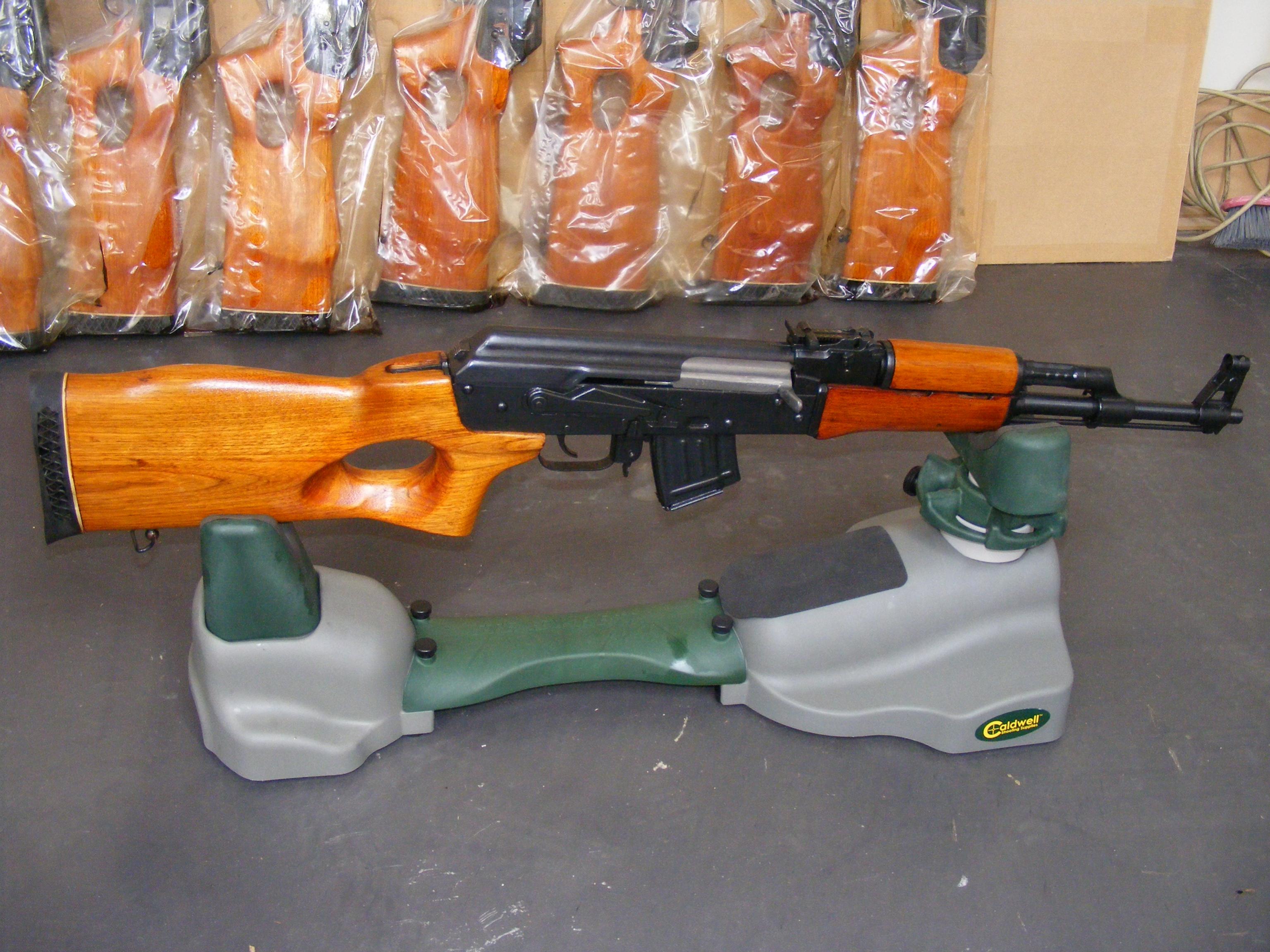

    It starts out as a standard Chinese AK (NHM90).
    Name:  DSCF0013.jpg
Views: 6149
Size:  757.7 KB

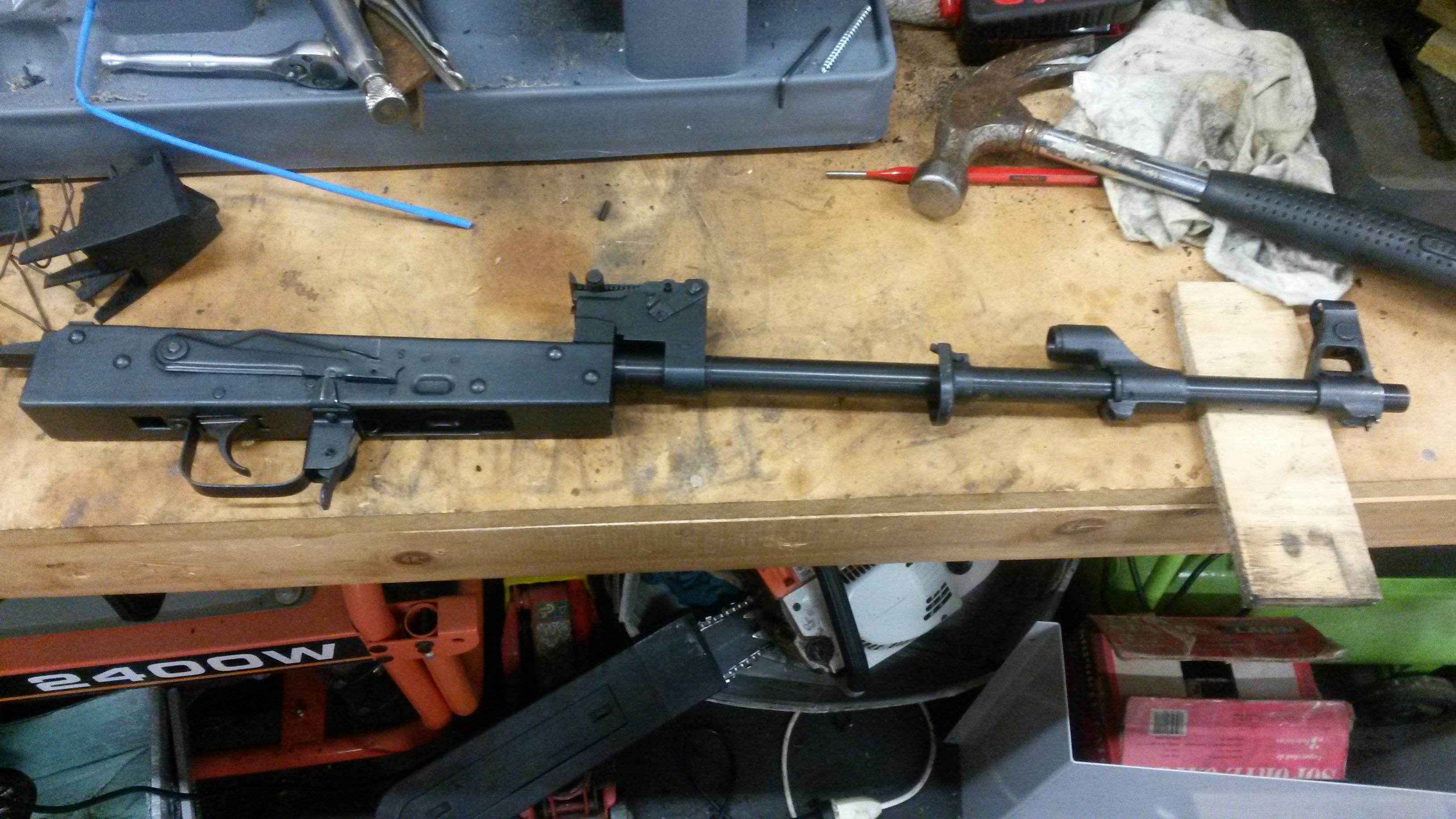

    This one had a canted gas tube - the only problem one from our last batch. Instead of using it as a parts gun a mate suggested to make it into a single pull gun.

    Name:  20151018_201204.jpg
Views: 6249
Size:  584.4 KB

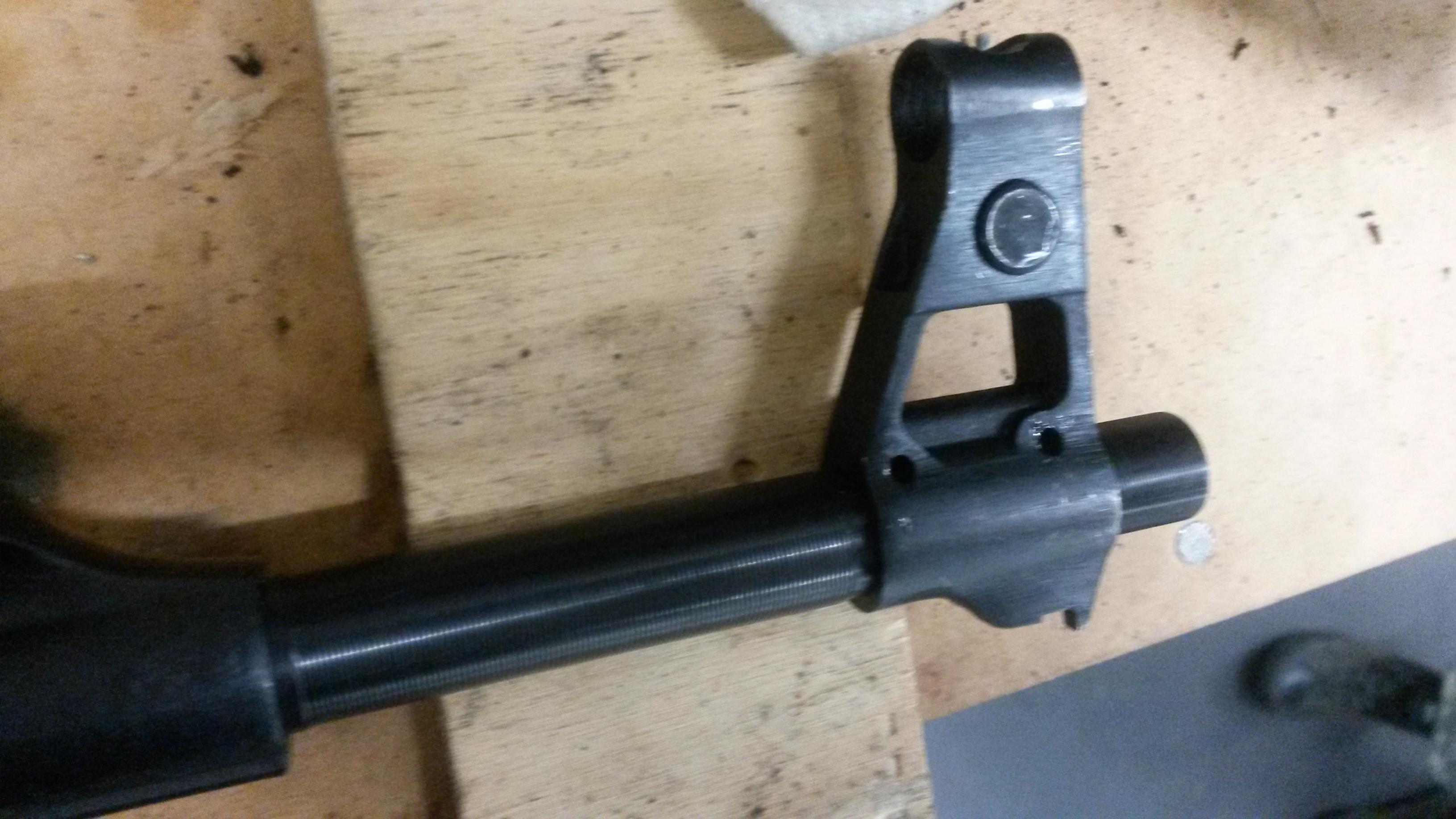

    Front sights have to be removed to get to the gas block.

    Name:  20151018_201212.jpg
Views: 2618
Size:  451.2 KB

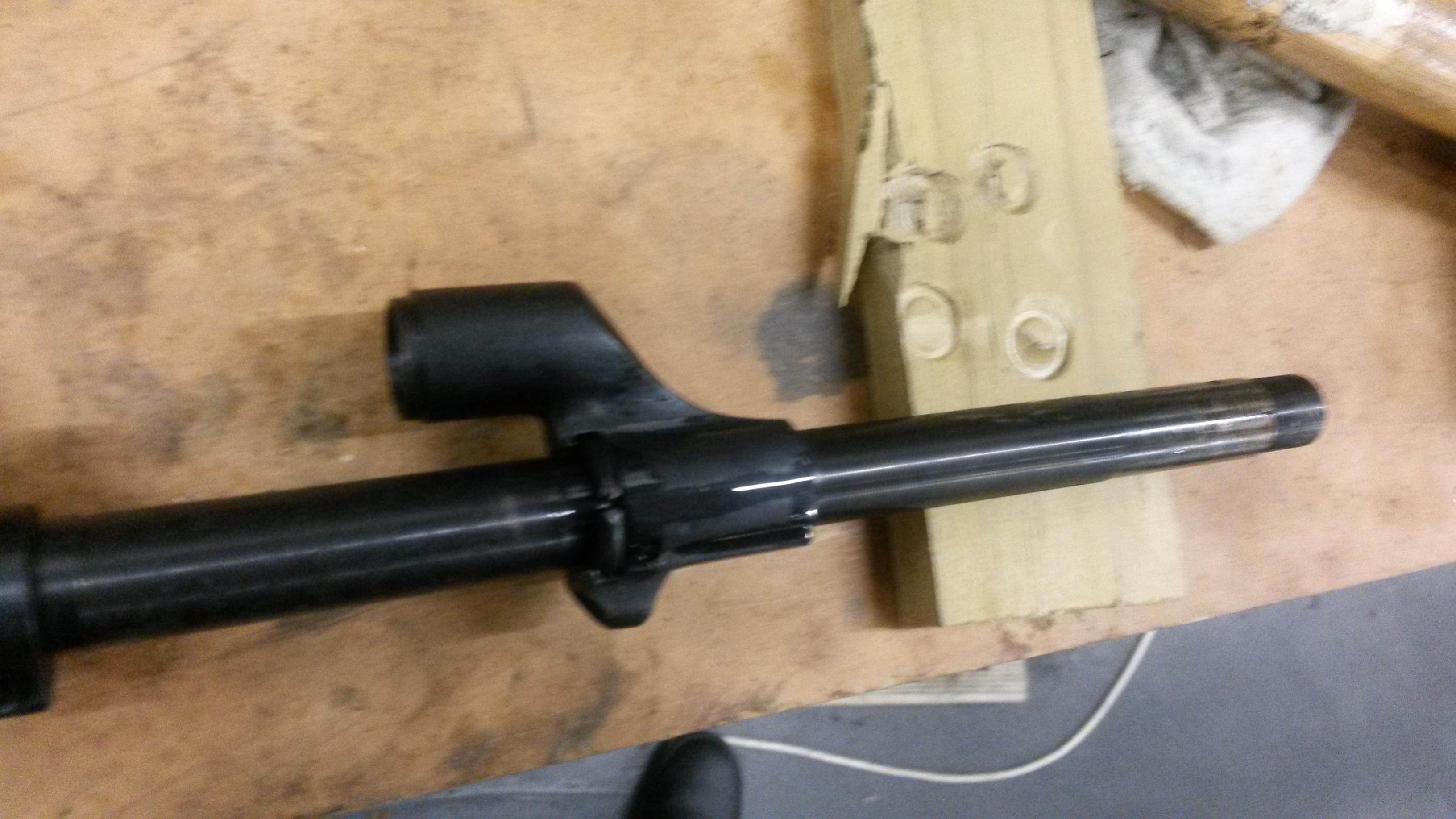

    NHM90s tend to be very tightly put together.

    Name:  20151018_203218.jpg
Views: 2957
Size:  488.1 KB

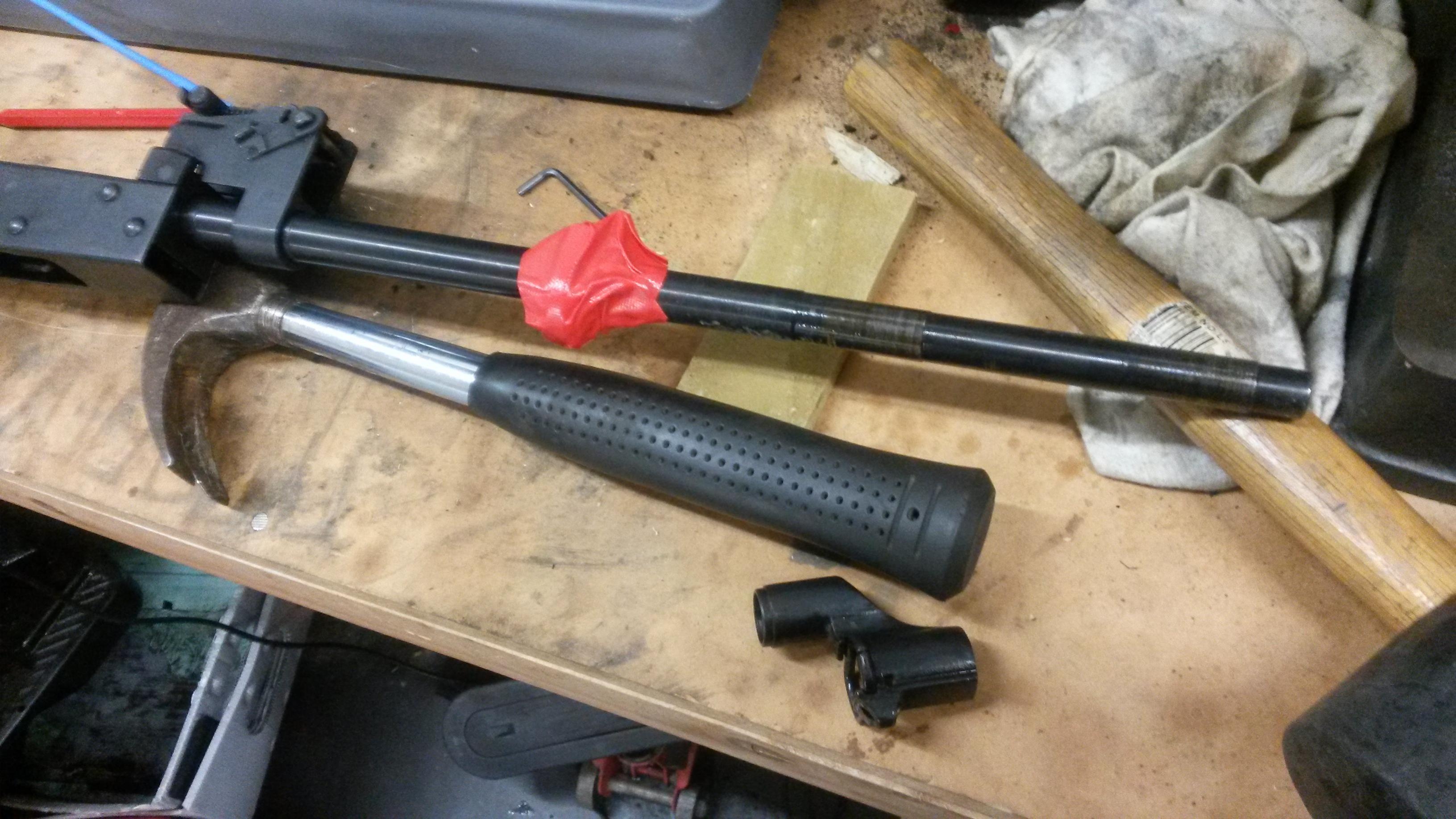

    Some tape to protect the barrel is always a good idea.

    Name:  20151018_203859.jpg
Views: 2699
Size:  580.8 KB

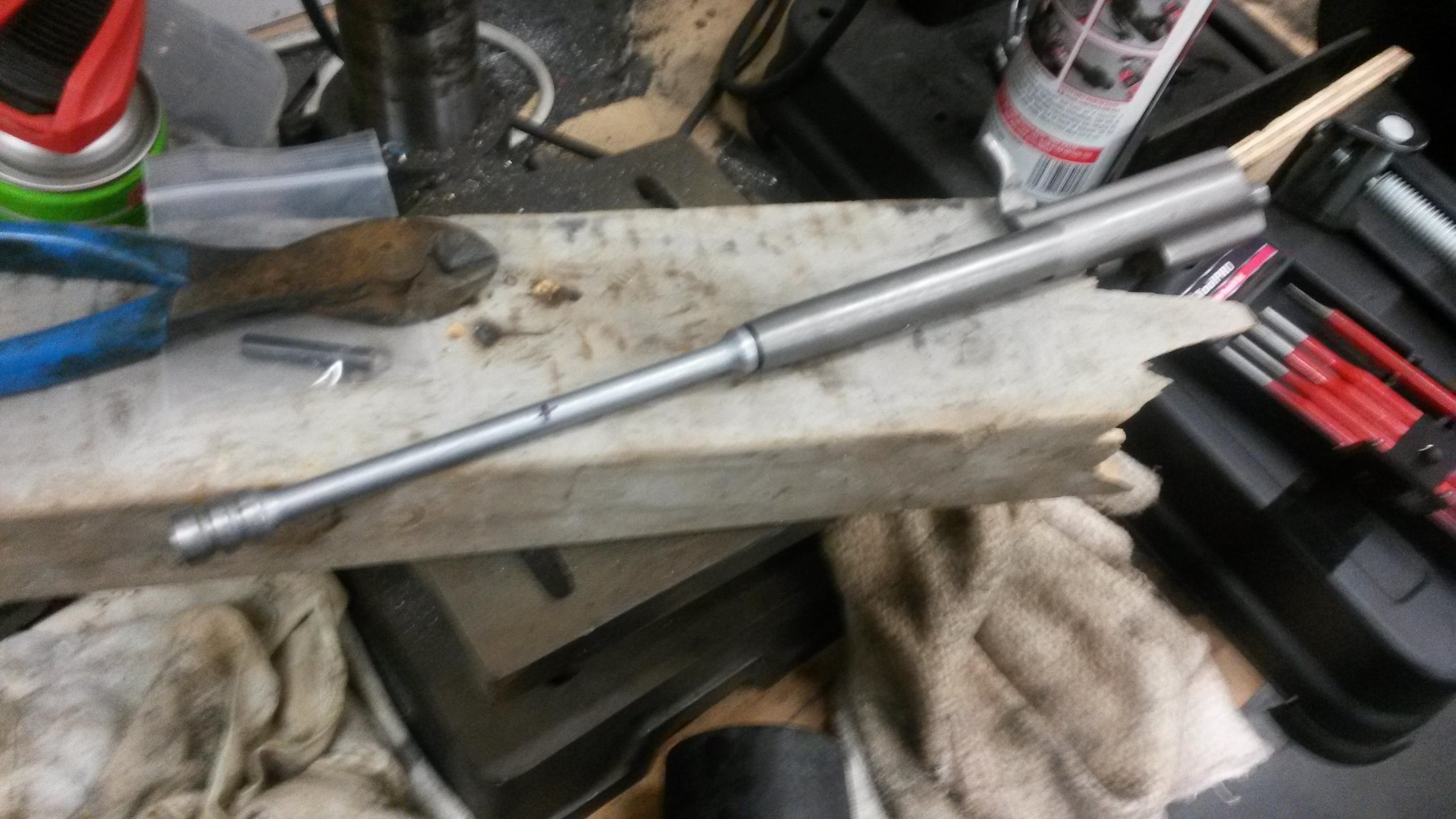

    Bolt removed and marked for cutting. After cutting I rounded it on the bench grinder.

    Name:  20151018_203910.jpg
Views: 2405
Size:  534.9 KB

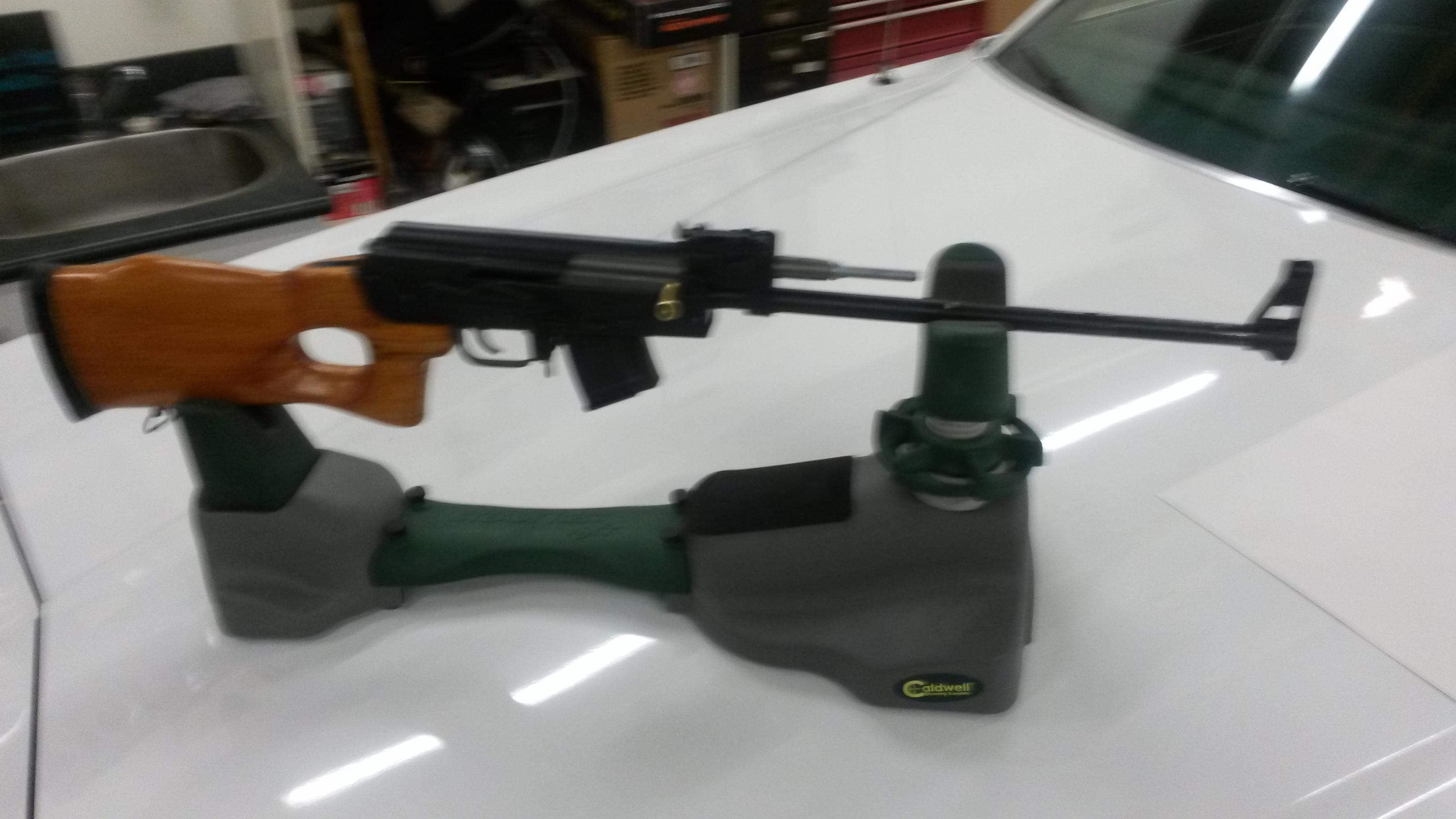

    Cut down bolt refitted with guide tube removed.

    Name:  20151018_212557.jpg
Views: 2616
Size:  330.2 KB

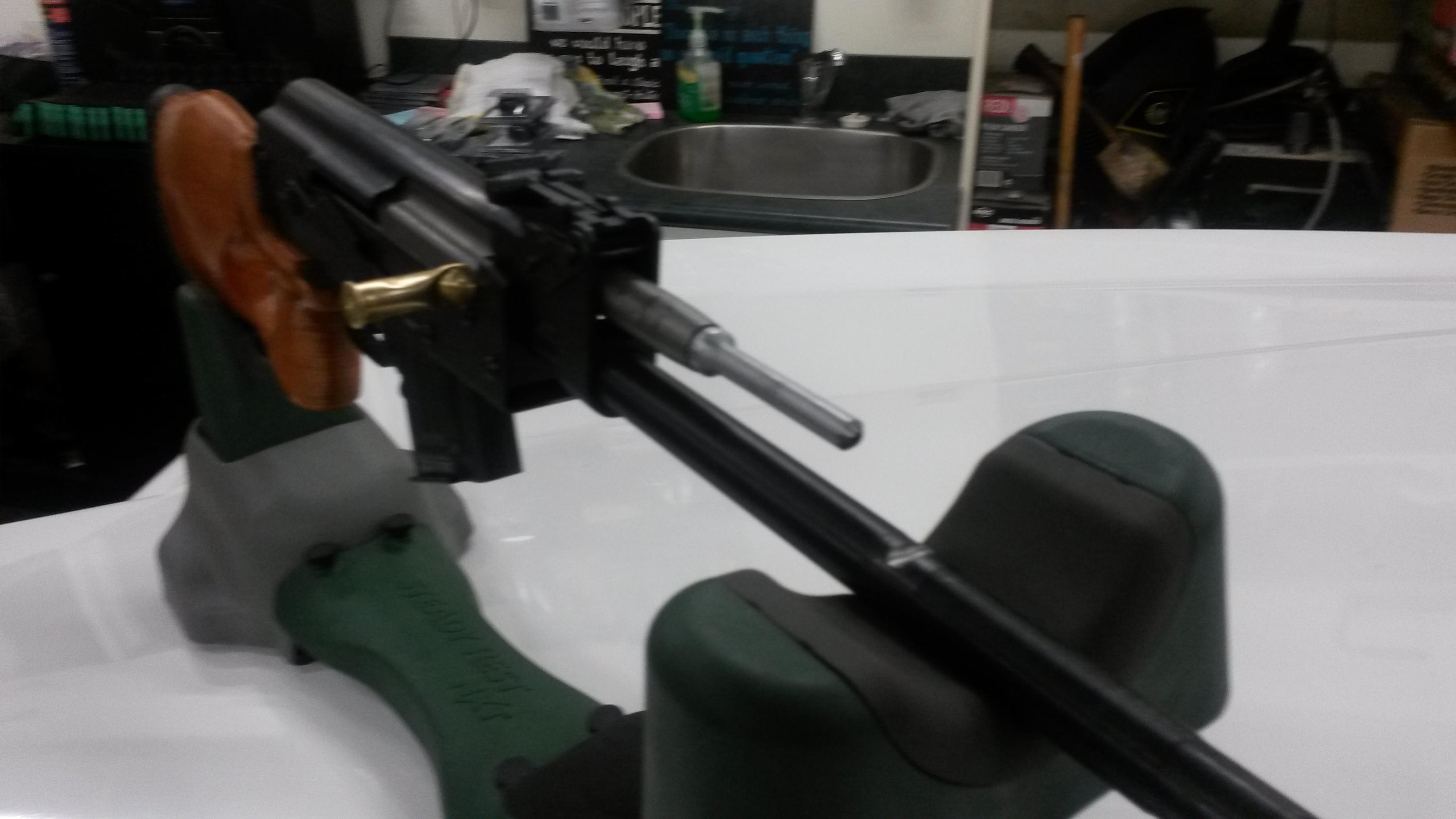

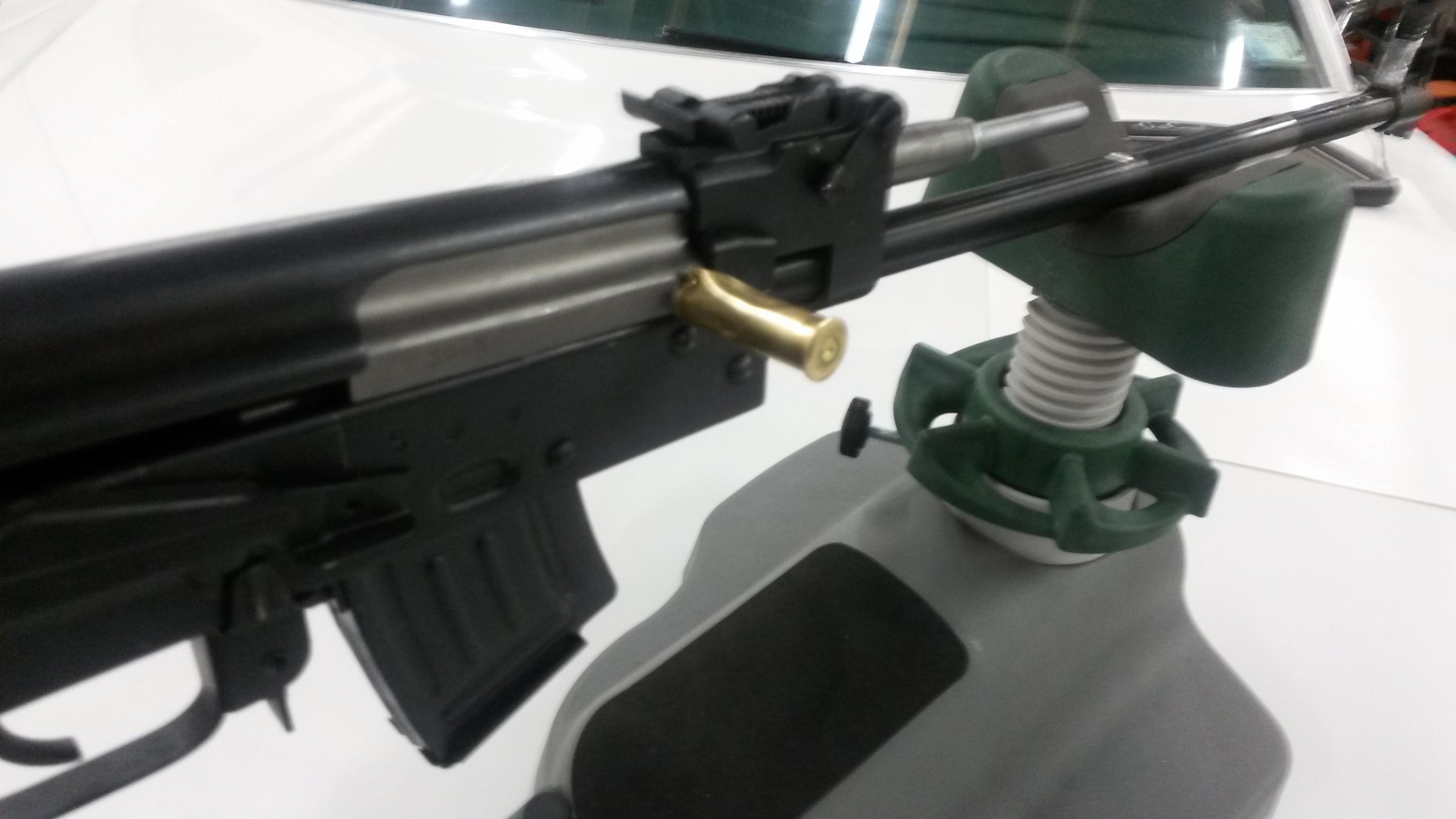

    54R shell makes a perfect extended bolt handle (temporary).

    Name:  20151018_212604.jpg
Views: 4355
Size:  321.4 KB

    Name:  20151018_212614.jpg
Views: 2414
Size:  307.0 KB

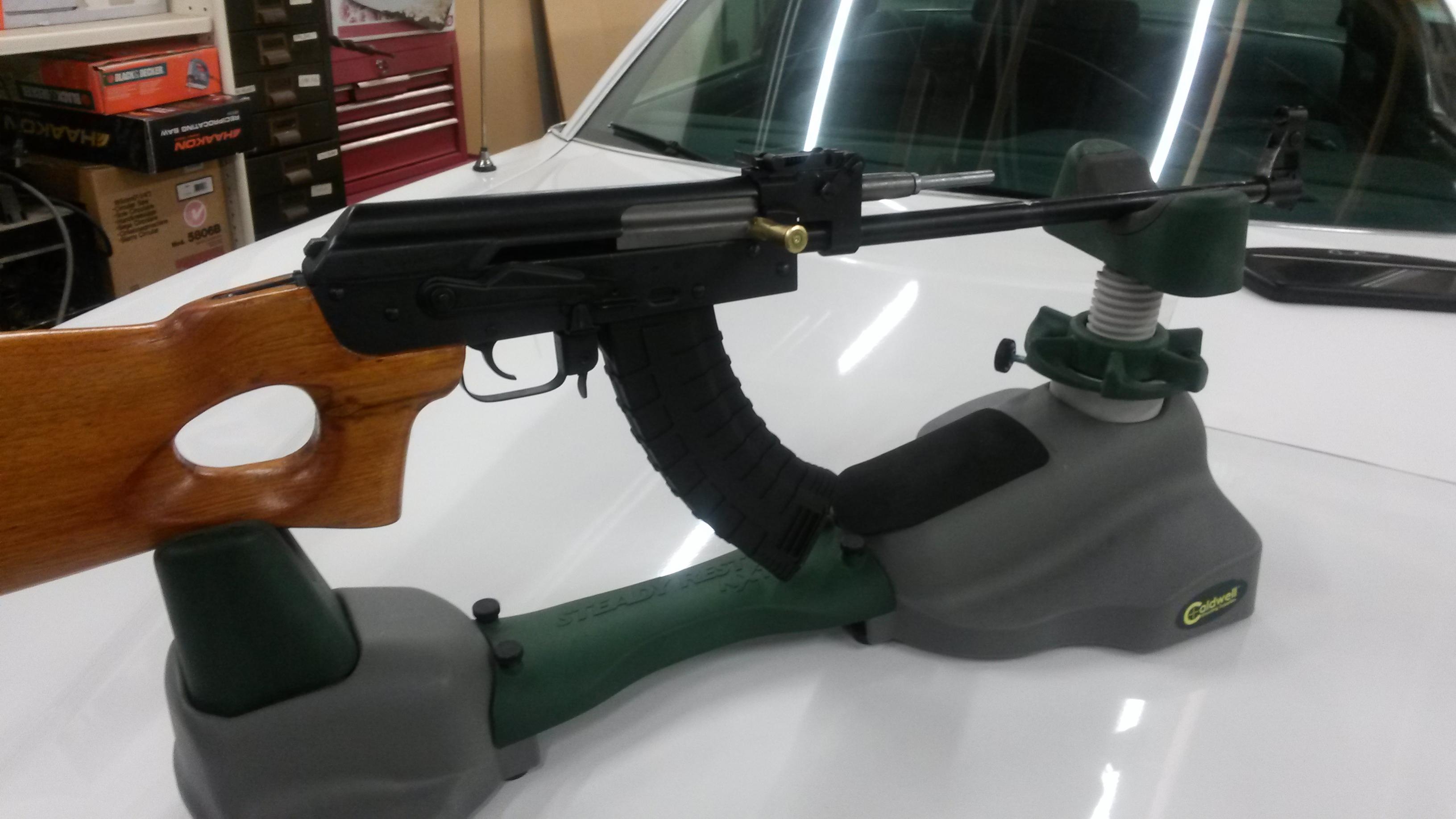

    Now it can legally have a proper size magazine fitted.

    Name:  20151018_212719.jpg
Views: 2580
Size:  352.2 KB

    And also a decent adjustable stock and pistol grip. This one is an Israeli Fab Defense.

    Name:  20151021_112558.jpg
Views: 2998
Size:  286.7 KB

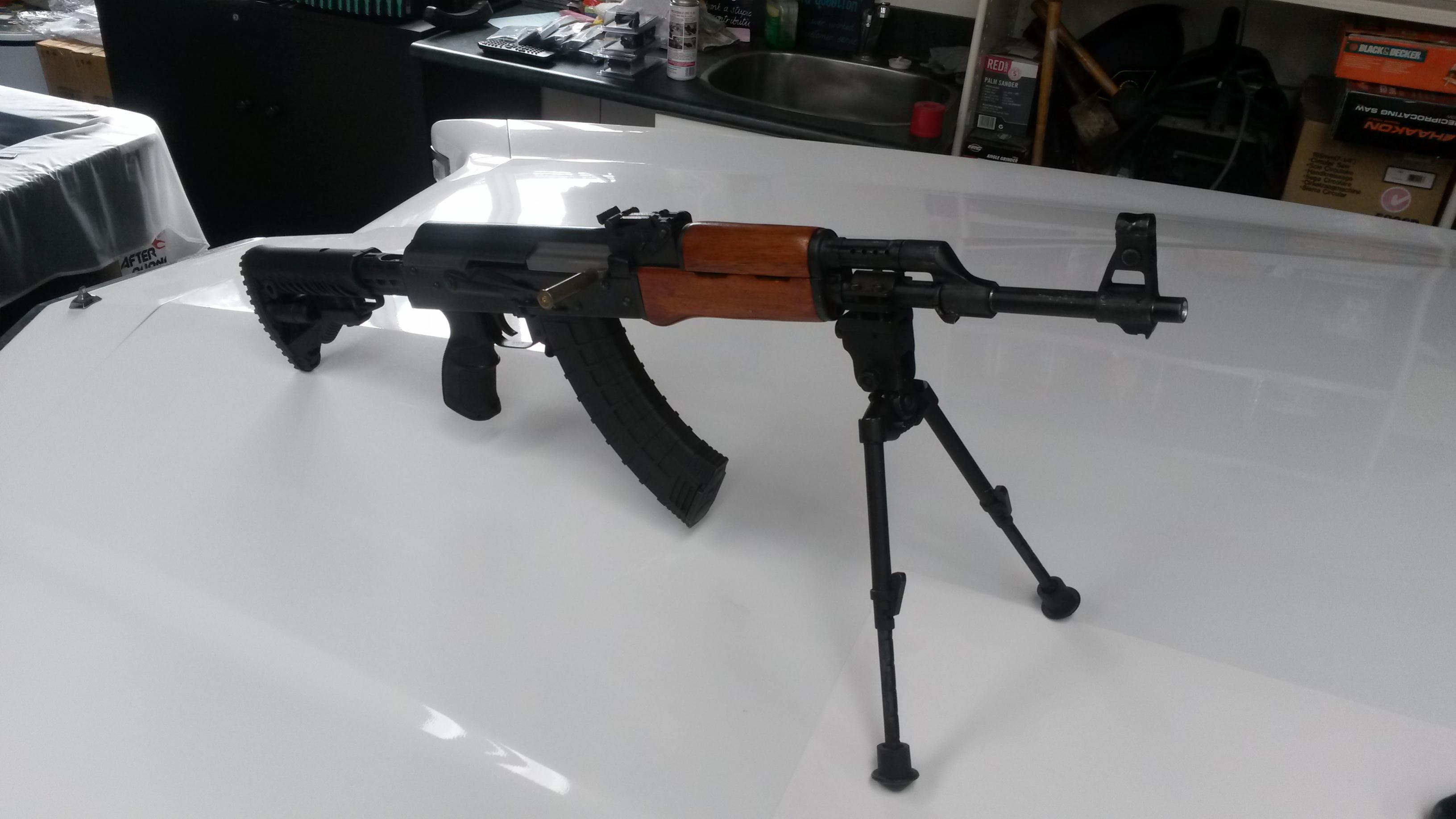

    Wooden furniture refitted with a cheap bipod to make a cool A-cat goat gun.

    Name:  20151021_112649.jpg
Views: 3058
Size:  310.6 KB
    kimjon, Scouser, Bernie and 2 others like this.

  2. #2
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    6,530
    That is pretty sweet, good idea! Might even make it a tad more accurate too

  3. #3
    Member Beavis's Avatar
    Join Date
    Dec 2011
    Location
    Taupo
    Posts
    4,890
    Convert it to left hand charging
    AzumitH and res like this.

  4. #4
    Member
    Join Date
    Mar 2014
    Location
    Kapiti
    Posts
    68
    They are already quite accurate for what they are and the customer is a lefty.

  5. #5
    Member 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    NZISTAN
    Posts
    5,232
    If they want to tread it, it will make a good sub-sonic ammo rifle. I made subs for my 56s back in the day and they worked well except that it wouldn't cycle.

  6. #6
    DKR
    DKR is offline
    Member
    Join Date
    Oct 2015
    Location
    Horowhenua
    Posts
    10
    Not something you see everyday!

  7. #7
    Member
    Join Date
    Mar 2014
    Location
    Kapiti
    Posts
    68
    I'm told they have to do this to them in the UK, or make them non-firing.

  8. #8
    Member
    Join Date
    Oct 2015
    Location
    Waikato
    Posts
    62
    I spent a bit of time in England and went to a couple of ranges while there, most of the AKs (lots of interesting euro variants we don't get here) had a machined plug in the gas block so they couldn't just swap out the piston and have a semi auto again.
    what does your local arms officer reckon about your conversion?

  9. #9
    Member vorno's Avatar
    Join Date
    Dec 2014
    Location
    Northland
    Posts
    60
    That, is a very nice conversion mate! Will be great to hear how it goes!

  10. #10
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    9,479
    Quote Originally Posted by Beavis View Post
    Convert it to semi auto and E endorsed

    Fixed
    Savage1 likes this.

  11. #11
    Member Jexla's Avatar
    Join Date
    Jan 2015
    Location
    Napier
    Posts
    877
    Quote Originally Posted by leighos View Post
    what does your local arms officer reckon about your conversion?
    Saw Steve say this on facebook: "(Customer) ...said the AO was very happy with it when he inspected it."
    res likes this.

  12. #12
    Member
    Join Date
    Mar 2014
    Location
    Kapiti
    Posts
    68
    Yes, local AO was quite pleased with it and authorised Customs to release the Tapco 30 rd mags the customer had ordered for it.

    The release of the mags was the only reason for showing it to the AO. I think the plan is to now fit a flash hider and two or three bayonets to it - more pictures to follow when done!

    Customer says it shoots very nicely and he's already started taking Spring rabbits with it. An Old Codger at the range gave him a lecture but that always happens when you take an AK.
    res and Skatieguy like this.

  13. #13
    Member
    Join Date
    Mar 2014
    Location
    Kapiti
    Posts
    68

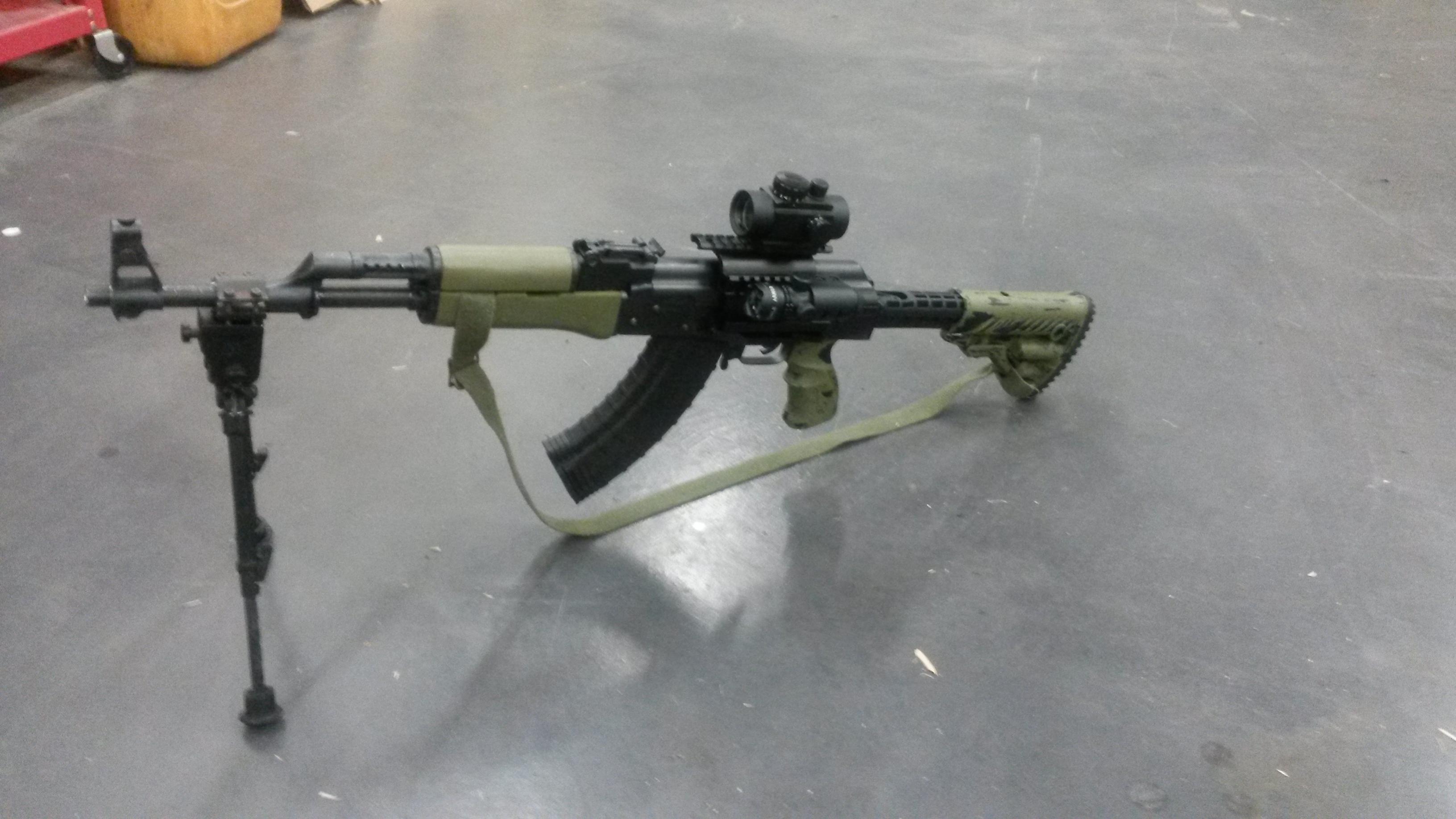

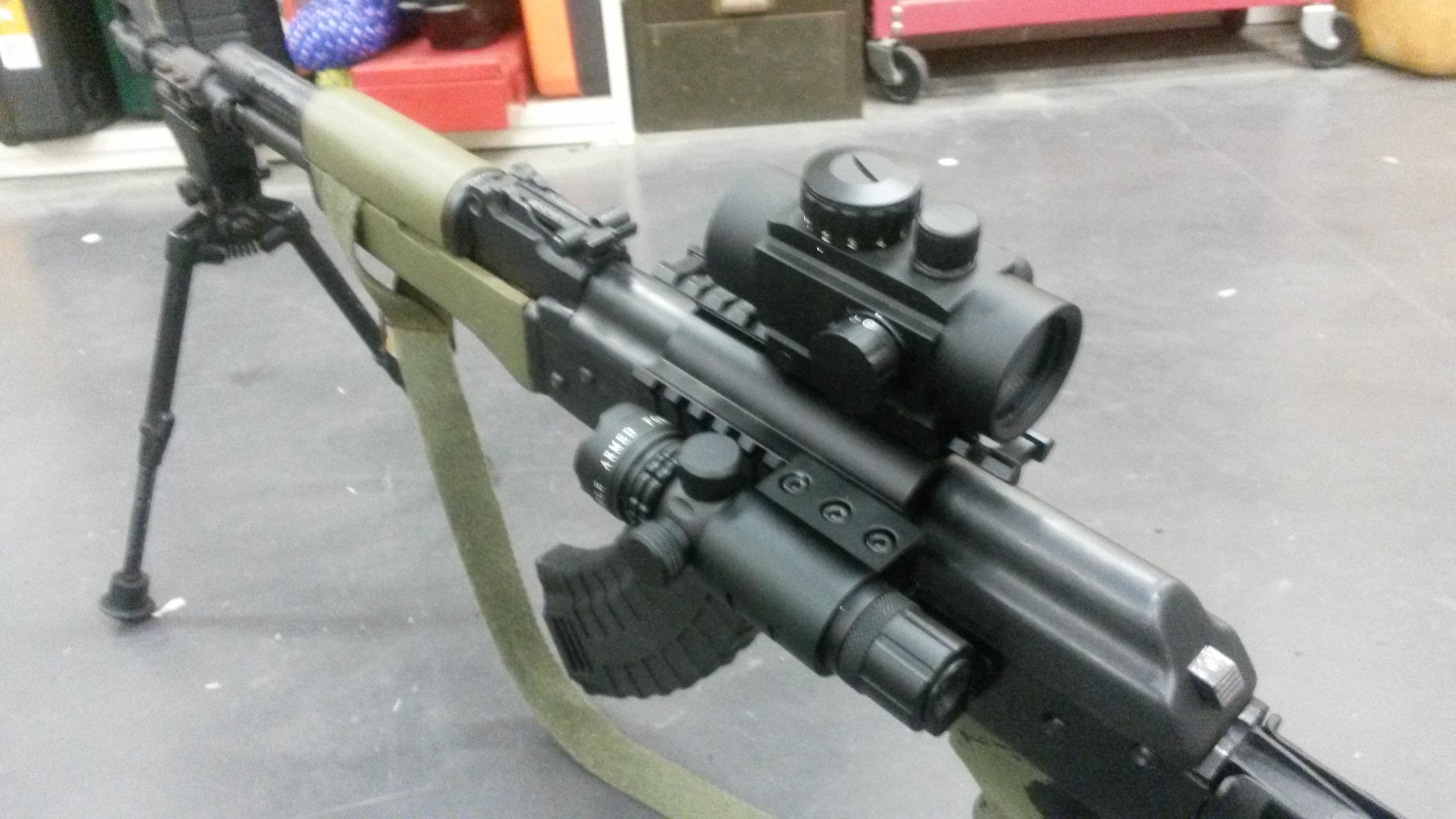

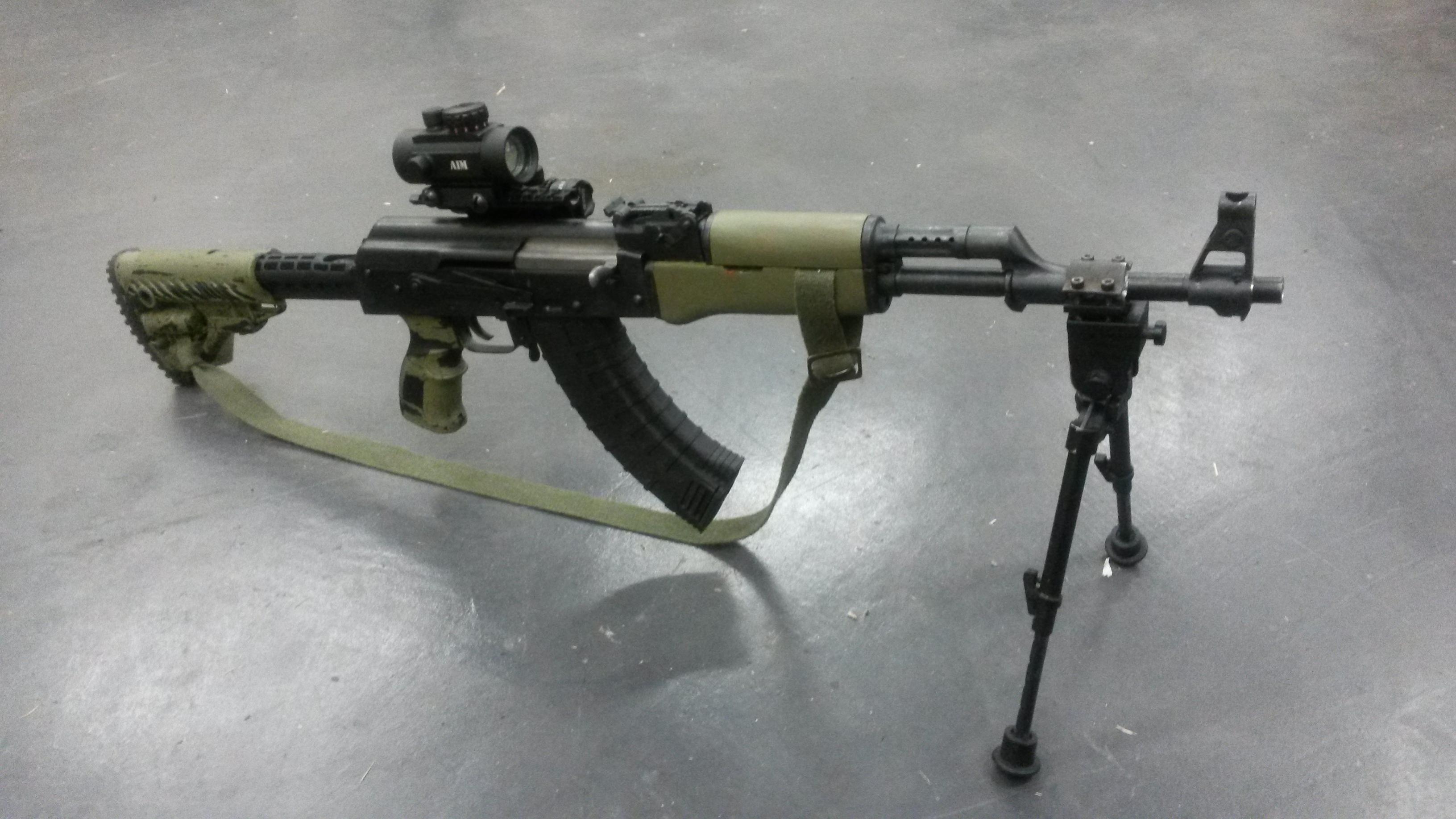

    Fab Defense stock decorated in house paint, scope mount and Aim Sport red/green dot scope fitted, plus spotting green laser.

    Name:  20151119_204120.jpg
Views: 2746
Size:  496.8 KB

    Name:  20151119_204129.jpg
Views: 2118
Size:  474.9 KB

    Name:  20151119_204147.jpg
Views: 3227
Size:  536.6 KB

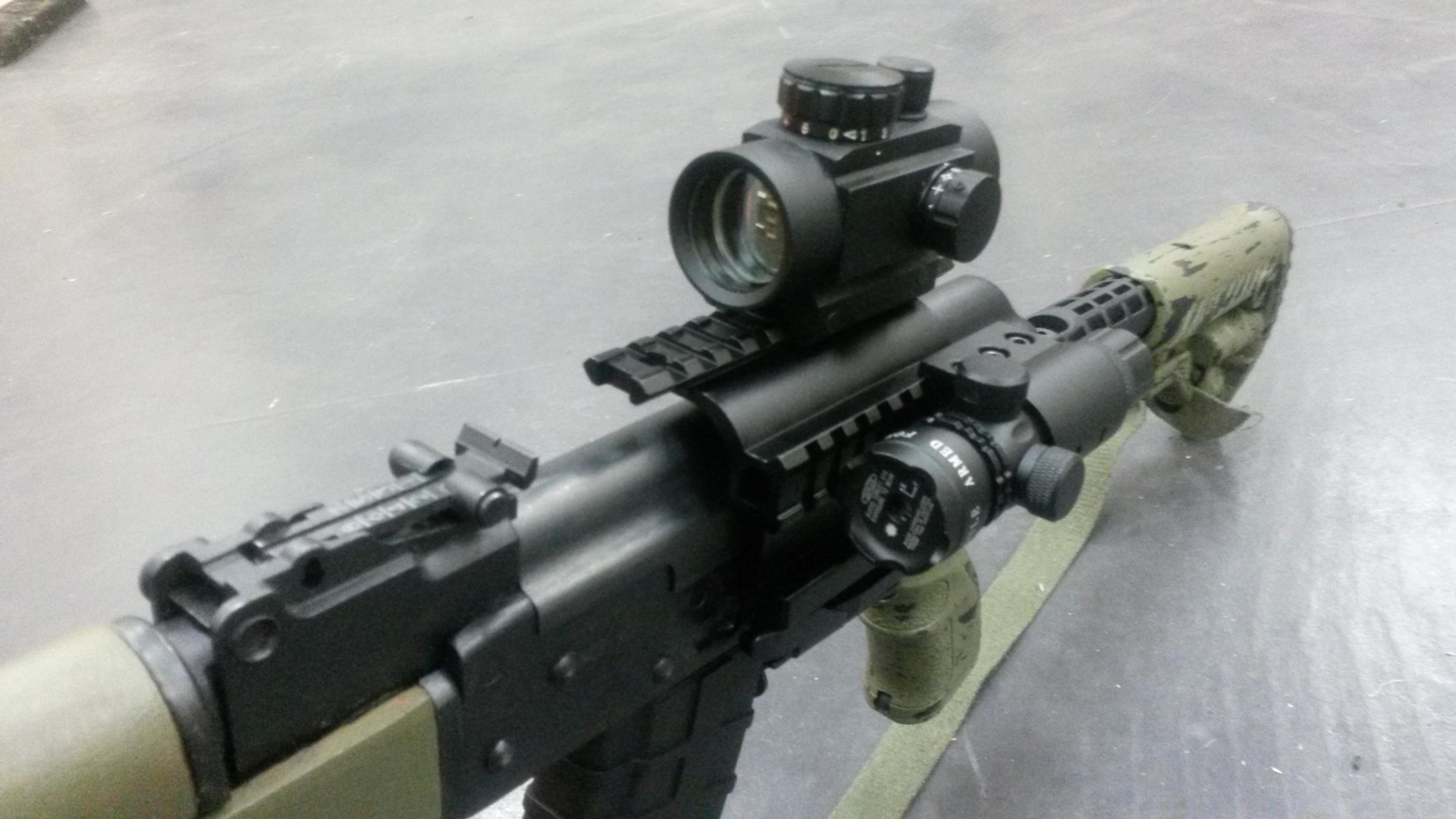

    Dovetail side mount with dual rail QD scope rails.

    Name:  20151119_204159.jpg
Views: 1837
Size:  422.8 KB

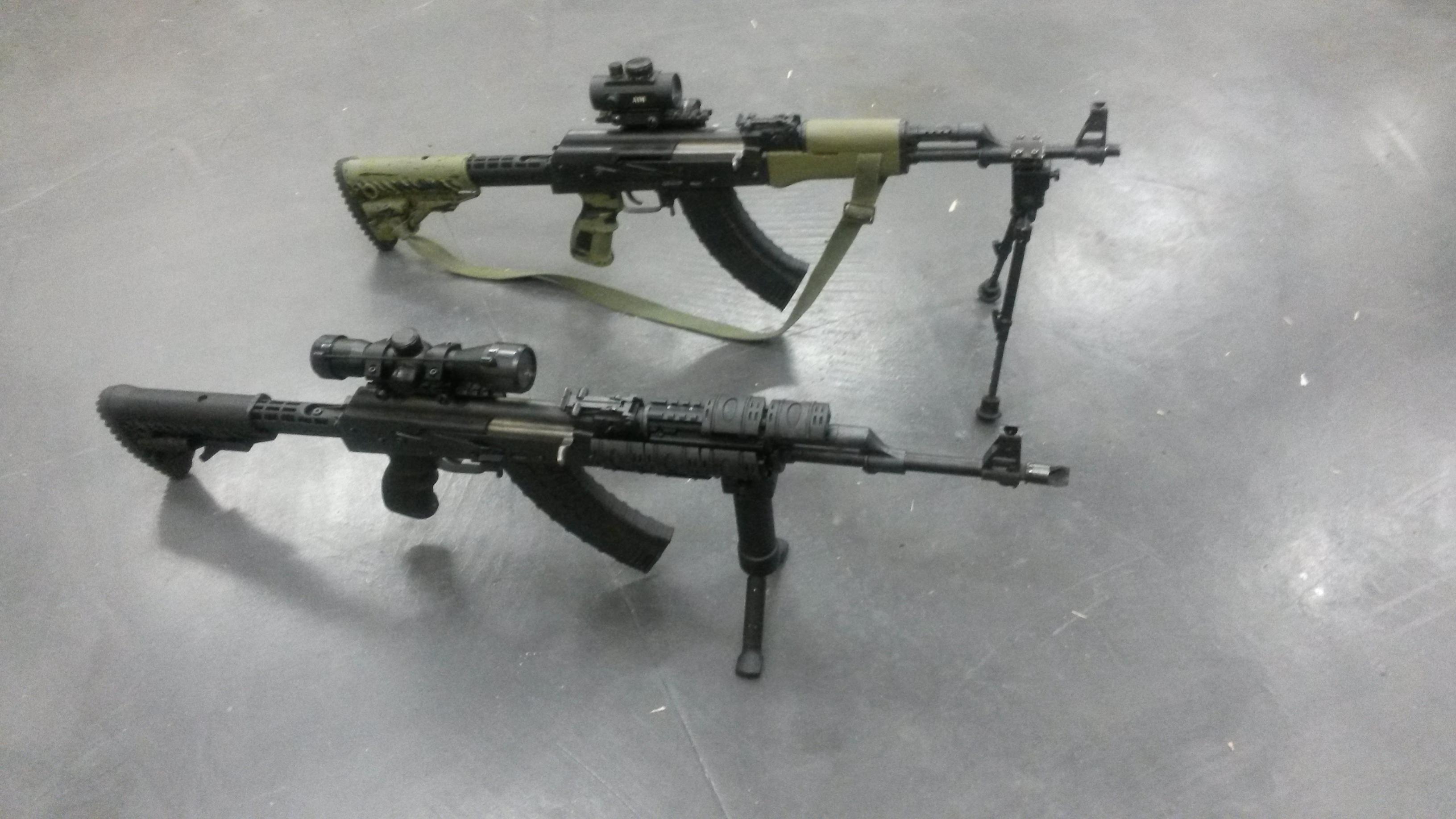

    The black one with scope is an evil E-cat, at rear is the friendly A-cat weekend hunting rifle.

    Name:  20151119_204602.jpg
Views: 2128
Size:  494.7 KB

    They both have the same stock, magazines and scope mounts fitted.

    Name:  20151119_204630.jpg
Views: 2147
Size:  478.1 KB

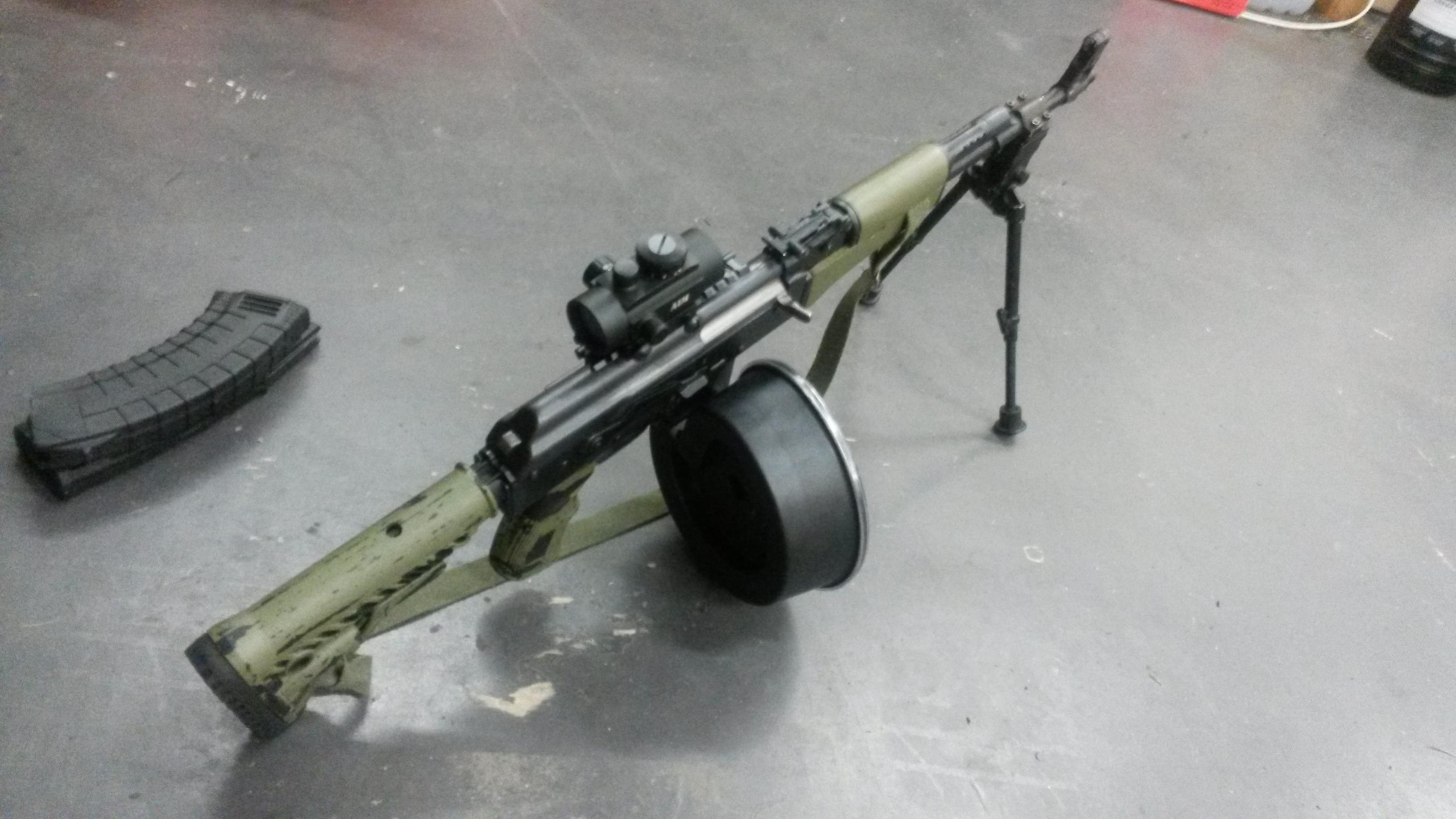

    A-cat AK with drum mag.

    Name:  20151119_210609.jpg
Views: 3641
Size:  441.9 KB

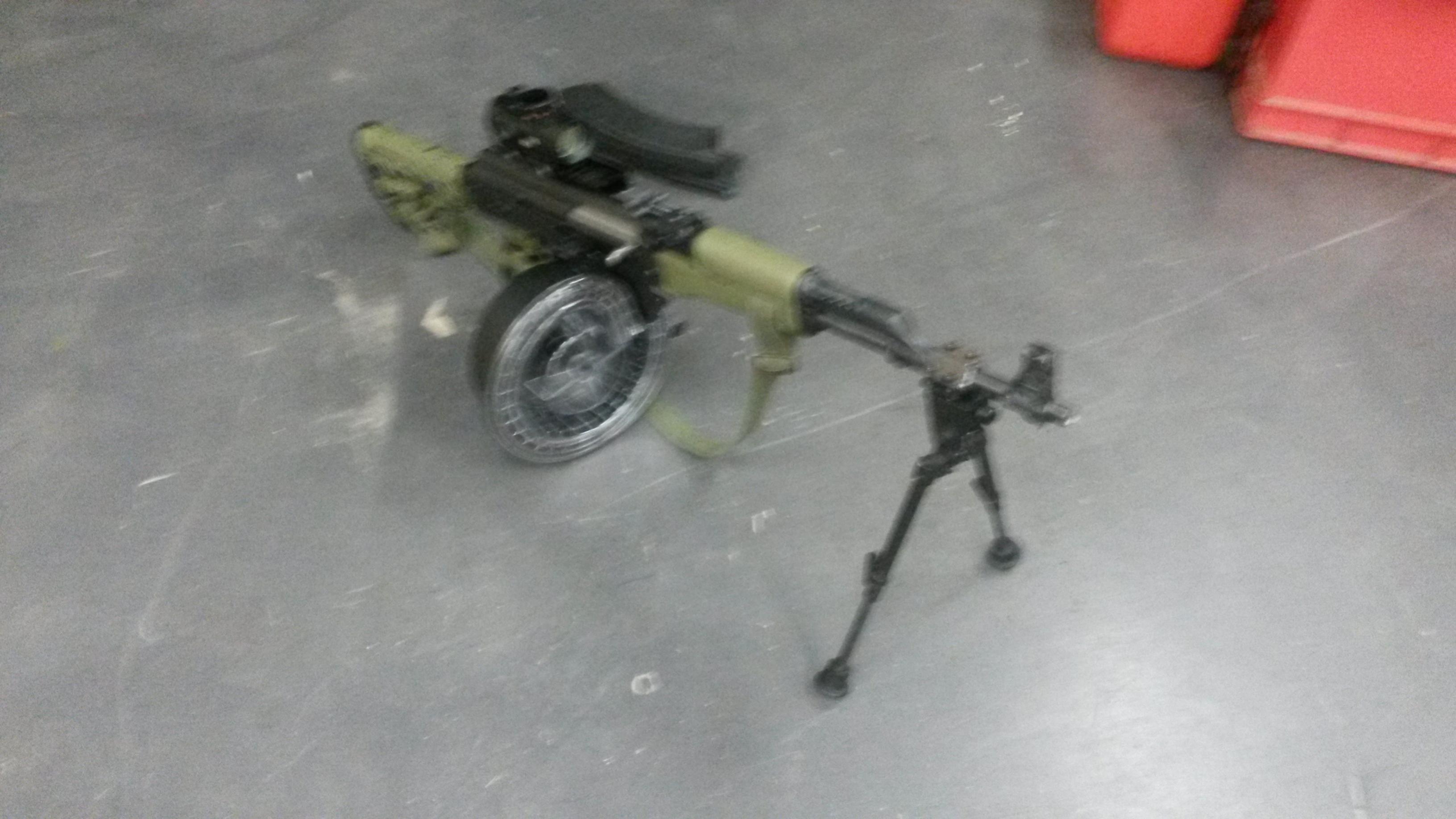

    Just because you can.

    Name:  20151119_210618.jpg
Views: 1856
Size:  455.0 KB
    Bernie likes this.

  14. #14
    res
    res is offline
    Member res's Avatar
    Join Date
    Apr 2014
    Location
    Quebec
    Posts
    3,379
    Seriously, what's with the out the side drum-there are plenty of awsome ak drums out there without having to put something so shit for handling on! Hell if customs had to release 30 round mags due to strait pull then they have to let a drum in so it only us $130 not the $600 they go for in NZ.
    Using Tapatalk

  15. #15
    Member
    Join Date
    Mar 2014
    Location
    Kapiti
    Posts
    68
    Yup, the drums mags for this AK are an A-cat part and don't require an import permit.
