Thread: Another 9mm bolt action

  1. #1
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    396

    Another 9mm bolt action

    hey guys, i have posted sometime ago a 9mm project we were working on and i made it become available to the public. we are almost sold out to be honest.
    this one is, however, based on a Rem 700 footprint (also a 9mm). just the action for now.
    it uses AICS mags made by us as you can see in the images. bolt nose, bolt and shroud can be disassembled without tools.
    we have plans to make them all black nitrided for the looks too.
    it's missing in the images the ejector of the shells, sako extractor and ball bearing for the cocking piece. bolt nose will be fixed as it has a bevel on the firing pin hole.
    it's really just a prototype.
    hope you guys like it and let me know your thoughts.
    mfg

    www.marshalprecision.com

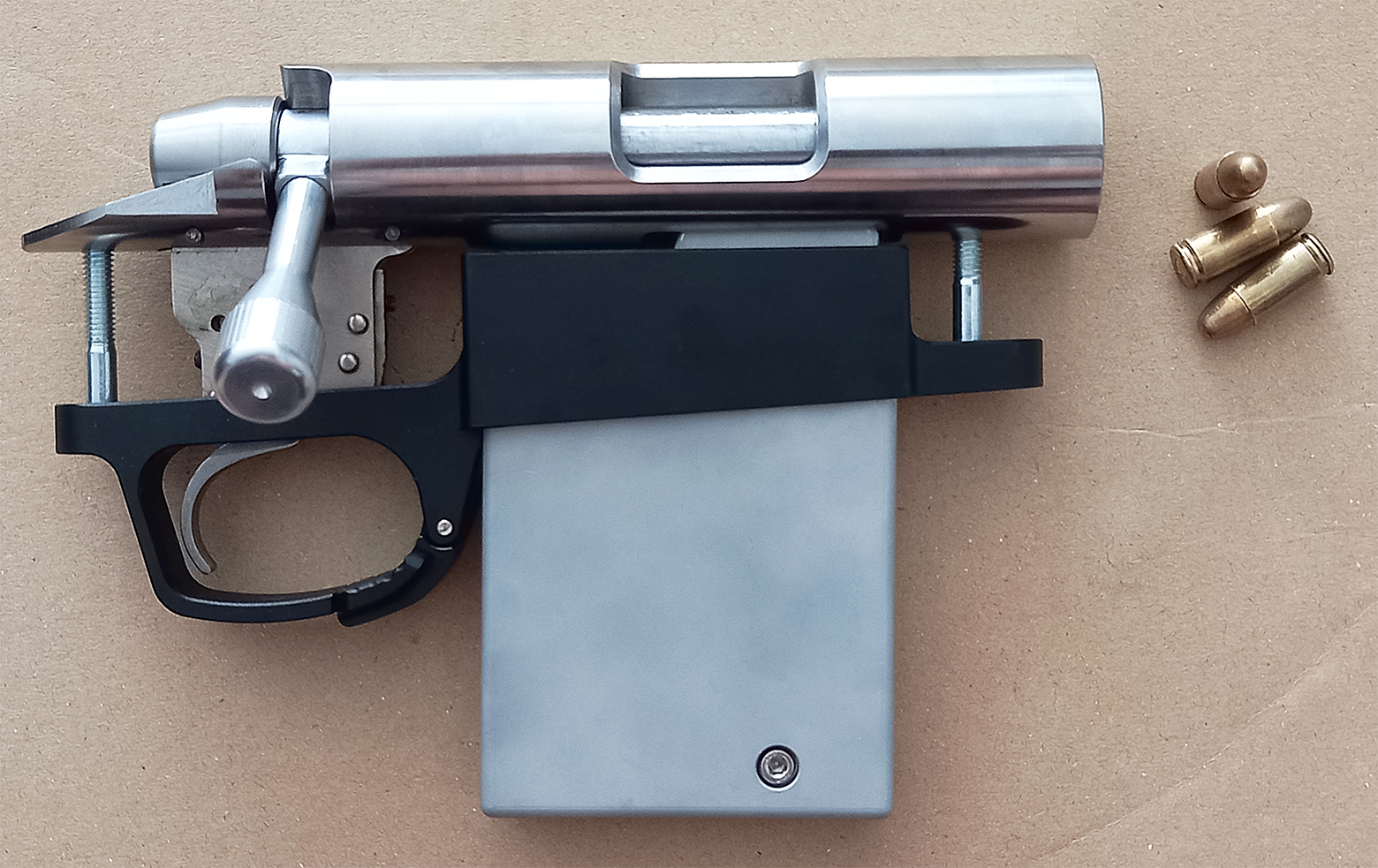

    Name:  marshal_right_closed.jpg
Views: 2256
Size:  997.8 KB

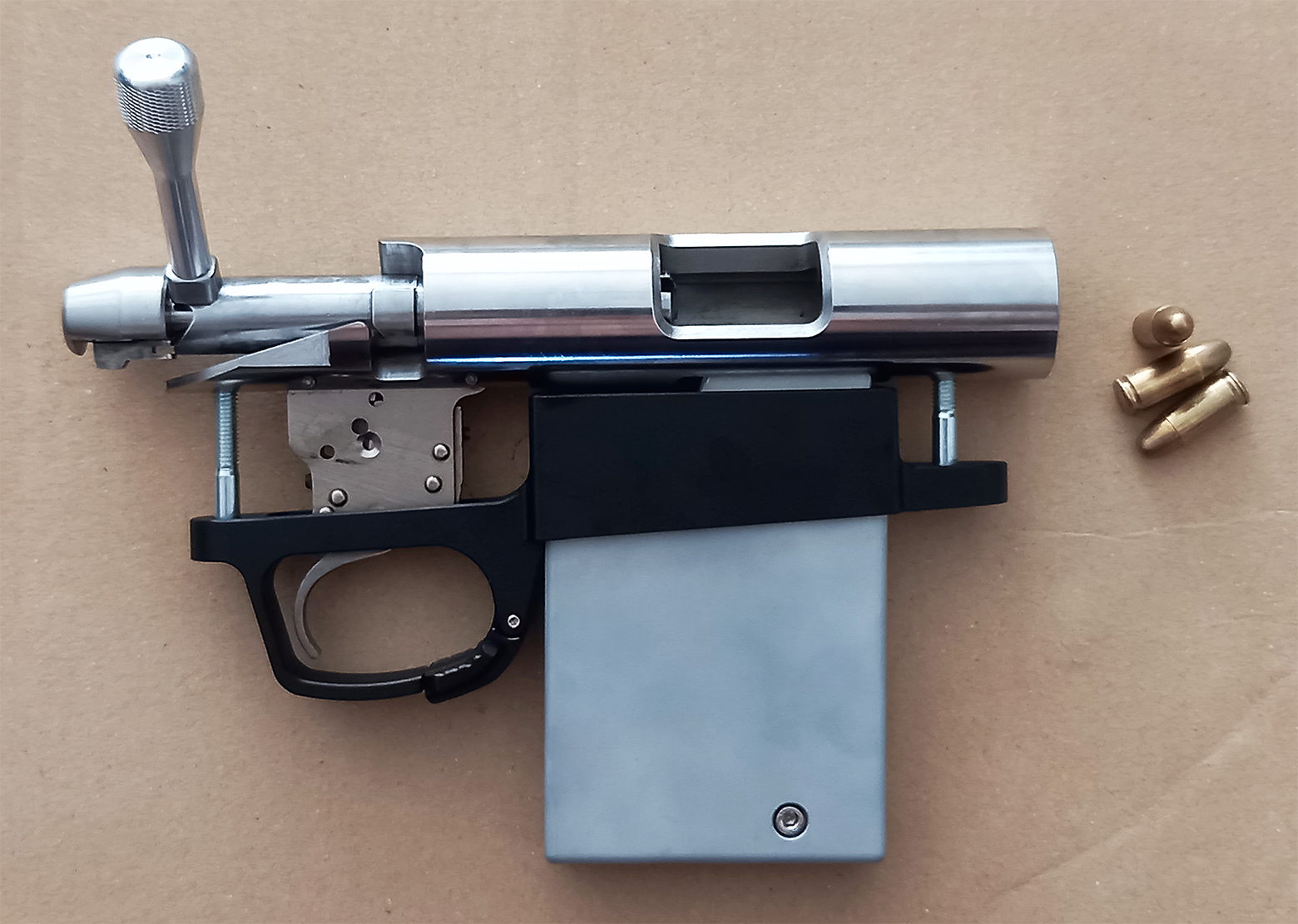

    Name:  marshal_right_open.jpg
Views: 1553
Size:  915.2 KB

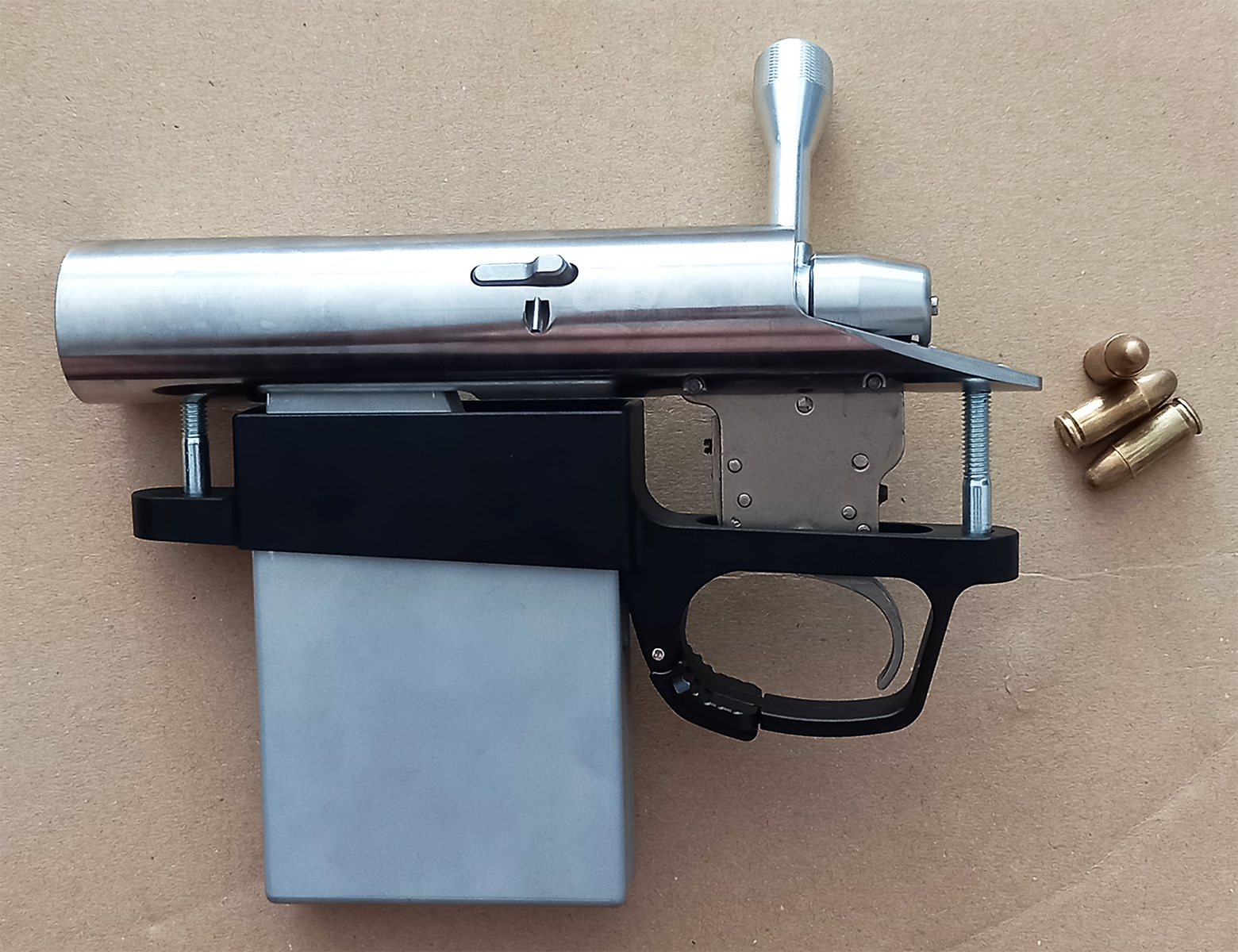

    Name:  marshal_left.jpg
Views: 1408
Size:  1.04 MB

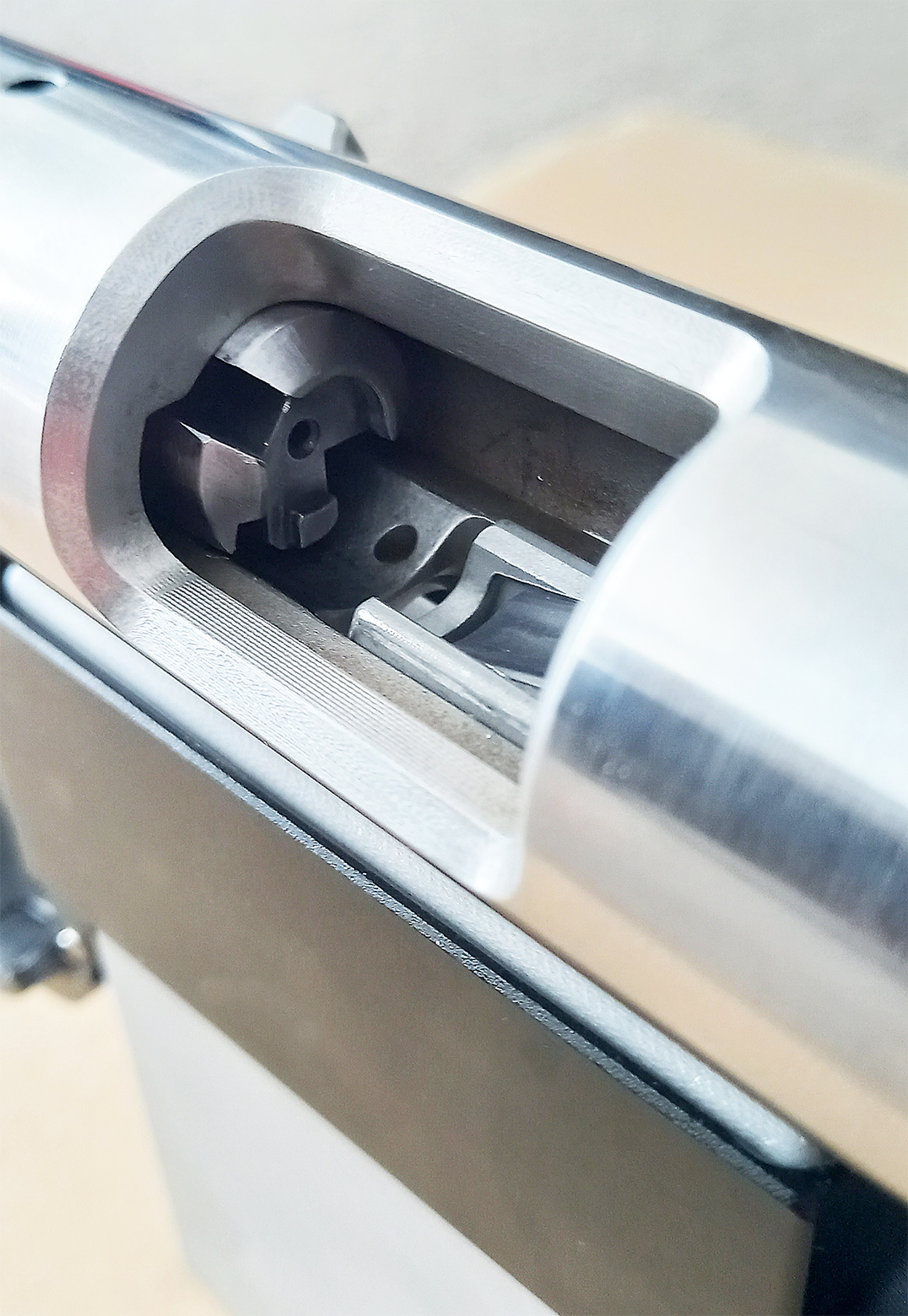

    Name:  marshal_ejec_window.jpg
Views: 1399
Size:  1.20 MB

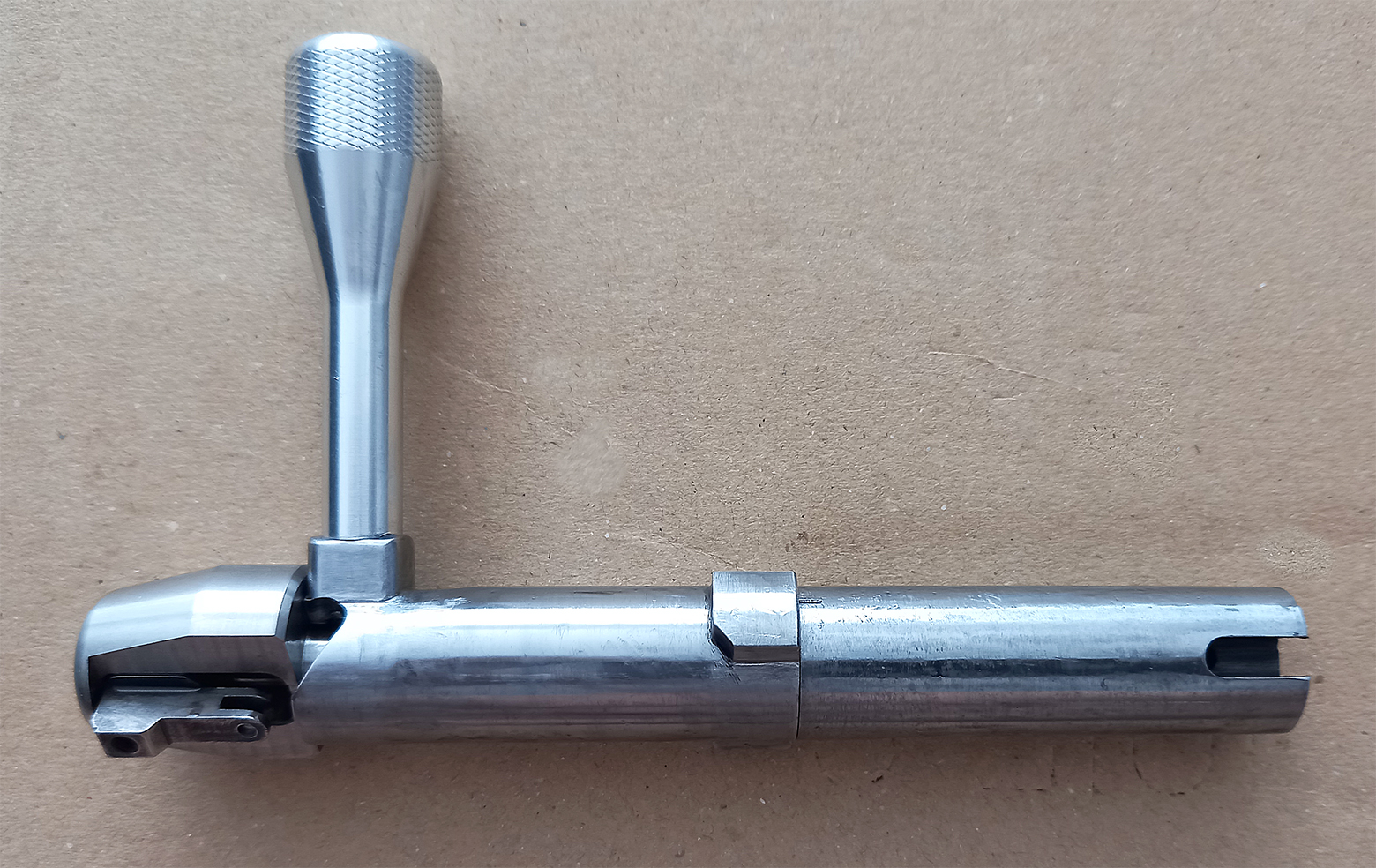

    Name:  marshal_bolt.jpg
Views: 1389
Size:  1.00 MB

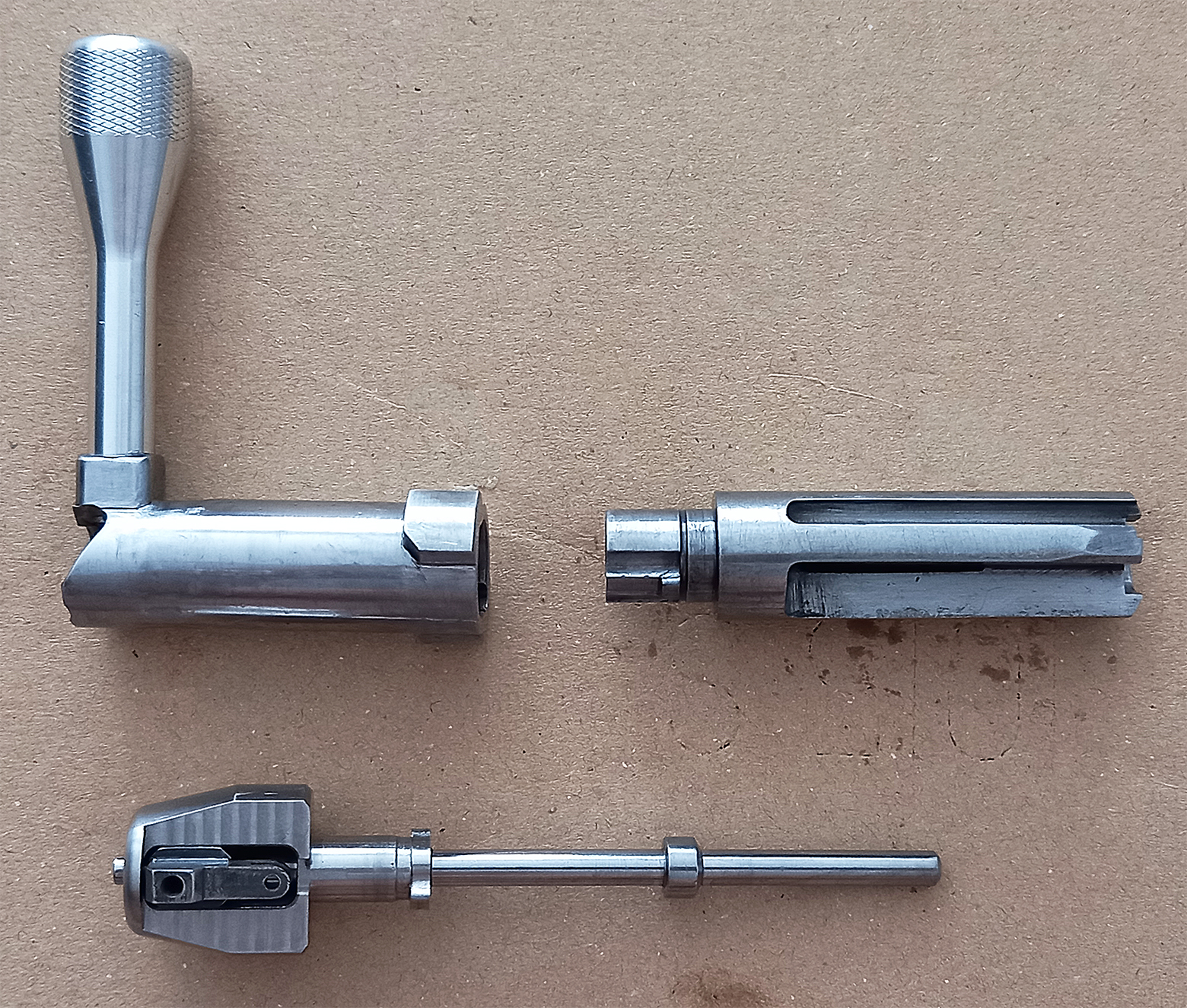

    Name:  marshal_bolt_dis.jpg
Views: 1443
Size:  1.68 MB

    Name:  marshal_mag.jpg
Views: 1339
Size:  1.74 MB

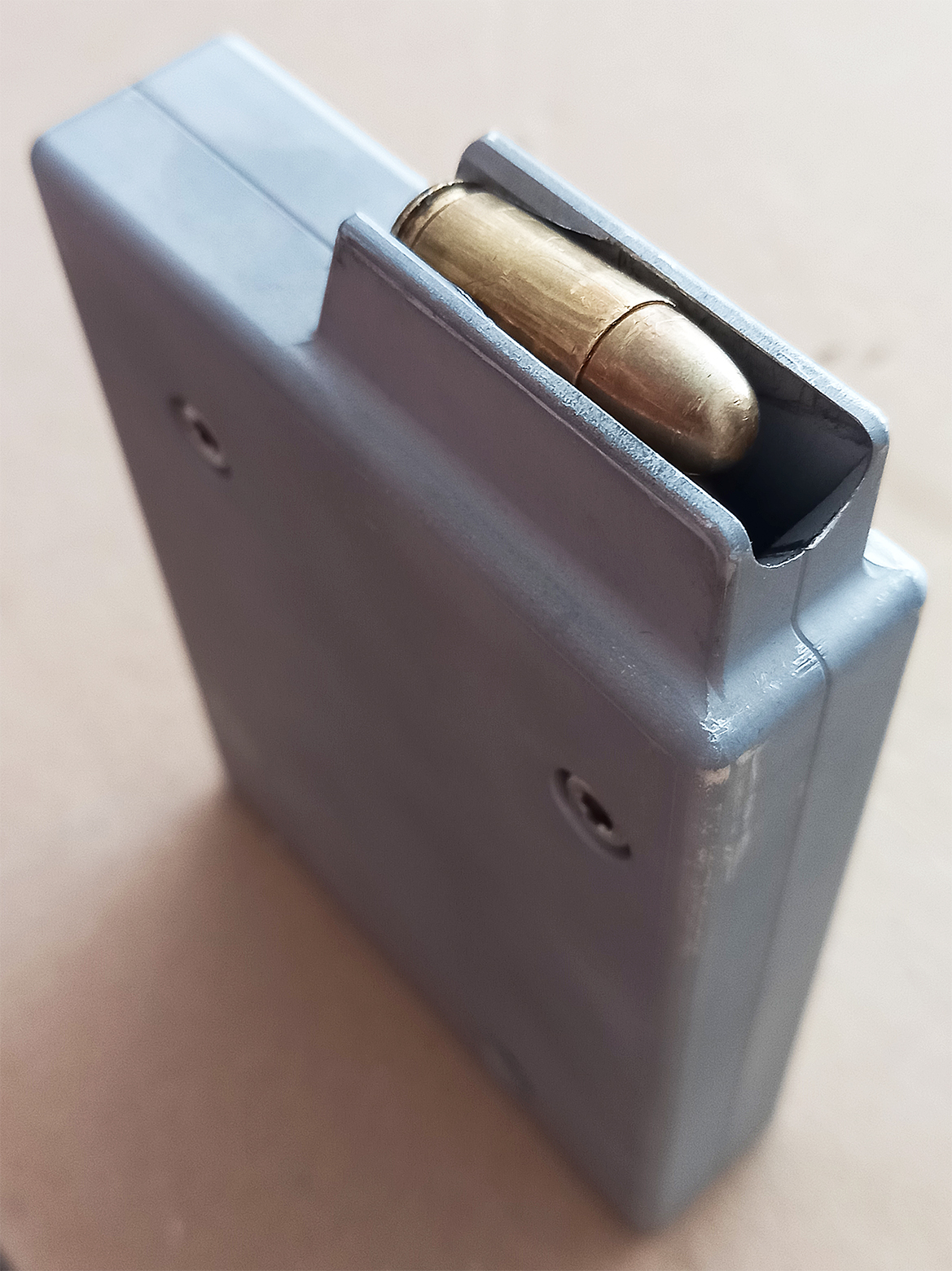

    Name:  Marshal_mag1.jpg
Views: 1305
Size:  1.00 MB

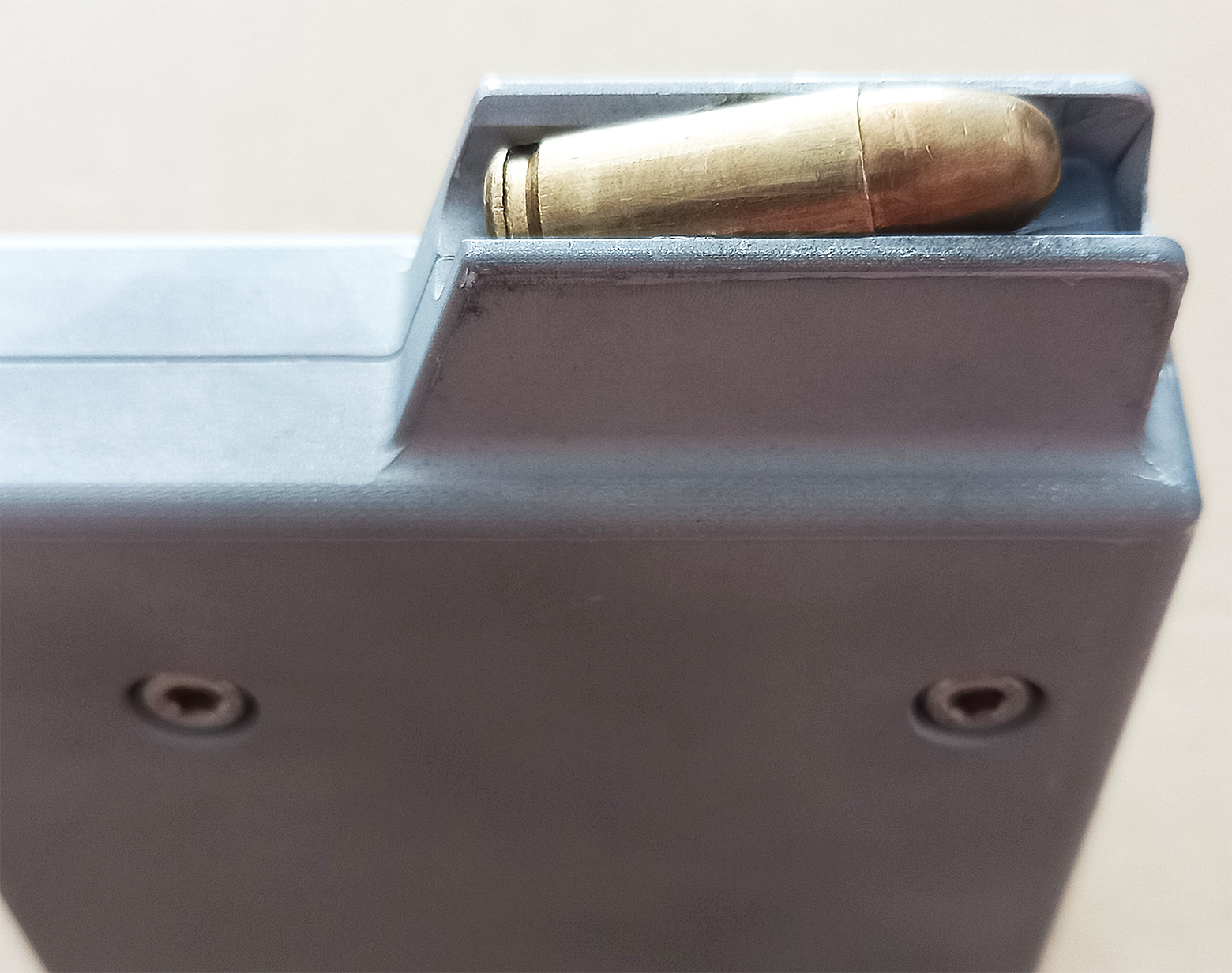

    Name:  Marshal_mag2.jpg
Views: 1303
Size:  1.03 MB

  2. #2
    Member
    Join Date
    Jan 2016
    Location
    Kapiti Coast
    Posts
    984
    Love it! I need one

  3. #3
    Member
    Join Date
    Jul 2013
    Location
    Godzone, South Island
    Posts
    1,705
    Weight? projected retail cost? and how soon will they be available?

  4. #4
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,259
    Nice work but I am not happy with the countersunk firing pin hole. Is it an optical illusion or a prototype piece?

  5. #5
    Member Sh00ter's Avatar
    Join Date
    Apr 2017
    Location
    Pahiatua
    Posts
    608
    It needs to be suppressed like a modern day De Lisle, that would be very cool.

    Why did you switch from a pistol mag to the AI, is that so it will take Rem 700 stocks and accessories?
    Hit the hills, live the BushLife!

    https://bushlifenz.com

  6. #6
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    396
    thanks guys!
    @Husky1600 - we don't have any answers yet, but we will try to make a first batch in 3 months or so. we really need to try this first and sort out any issue that comes up. because of that, price may change and weight may change due to design changes so I prefer not saying anything right now. surely, it'll be way more affordable than if you were going to import one in.
    @gundoc - yes, the manufacturer will swap it out for one without the chamfer. it must not have a chamfer there.
    @Sh00ter - yes, mostly to fit Rem 700 stocks and also for the looks of it. also, our mags feeds WAY better that the 1911 ones. there's no way to install a mag release inside of the Rem stocks as it would end up inside (upper part) of it. lots of mods to the stocks and we don't want that. a few other minor reasons too.
    Micky Duck, Sh00ter and rewa like this.

  7. #7
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    9,478
    Would buy

  8. #8
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,471
    Very interested

  9. #9
    Member 40mm's Avatar
    Join Date
    May 2017
    Location
    North Auckland
    Posts
    5,921
    How about something with a bit more sub sonic oomph, for that modern day De Lisle??

    Otherwise very cool
    Use enough gun

  10. #10
    Member Dan88's Avatar
    Join Date
    Aug 2015
    Location
    wellington
    Posts
    570
    One chambered in .50AE or .500 magnum? Could be downloaded with a nice heavy projectile. Or just do it in the classic .45ACP

    Sent from my SM-A505GN using Tapatalk
    257weatherby and 40mm like this.

  11. #11
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,634
    30m1 would be interesting.....the options are endless I guess it all depends if customer wants to pay for it.

  12. #12
    Member Driverman's Avatar
    Join Date
    Apr 2013
    Location
    HUTT VALLEY
    Posts
    461
    Make them at the right price and the world willbuy them. Me included. Put a barrrel and a stock on that action and we are away.

  13. #13
    Member
    Join Date
    Jun 2015
    Location
    Bay of plenty
    Posts
    746
    Quote Originally Posted by Micky Duck View Post
    30m1 would be interesting.....the options are endless I guess it all depends if customer wants to pay for it.
    I would second that. My favourite little cartridge

  14. #14
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland (Dunedin)
    Posts
    5,522
    Nice to see a screw-in bolt handle, I'd replace yours with a back-swept one like on a P-17 to allow you to trigger from the bolt.

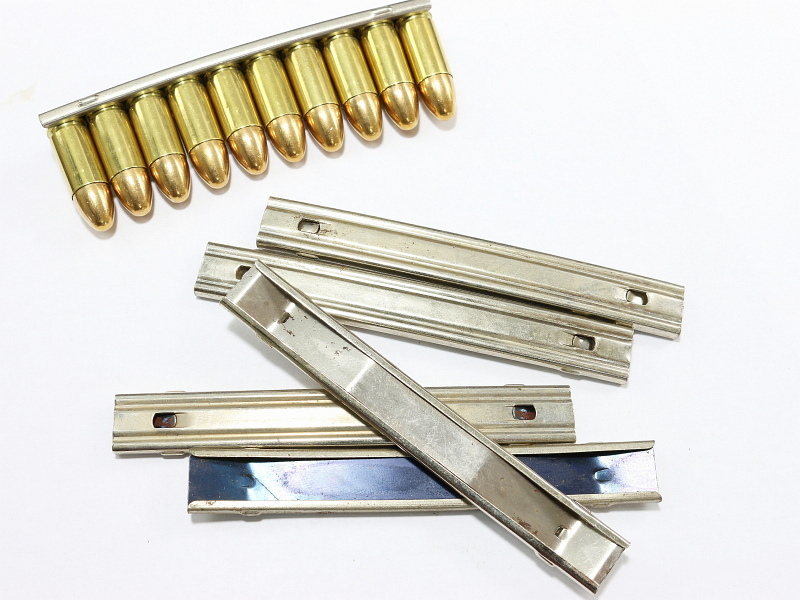

    Your magazine solution seems unnecessarily complex. Use a .223 magazine as basis for a double-stack, double-feed, 9mm mag. Would allow you to use standard .223 10-round stripper clips to load 9mm - like the broomhandle Mauser, here the mauser 9mm stripper clips shown, but the .223 clips are cheaper than dirt.

    Name:  C96.sc.s.jpg
Views: 807
Size:  208.1 KB
    40mm likes this.
    An itch ... is ... a desire to scratch

  15. #15
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    396
    thanks for all the tips! we thought about the 9mm as its the easiest ammo to be found and to be cheap as. next one will be 45 and we have a couple bolt noses being made for our actual web version. we probably will offer both the old style rifle and the new action. not sure yet.
    about the magazine for the 9mm, its not that easy. first, a feeding ramp must be somewhere and its located on the barrel and mag. if you try to feed a 9mm located on the back of the mag, it will jump up and jam somewhere in the action. it should be as close as possible to the barrel. there's a mechanism to that.
    we are going for the looks of it too.
    sorry for the tardy reply. i was really busy chilling out

    we may have a 22LR for the Rem 700 platform on the go. have a look: 22LR Rem 700 footprint
