This years project is rebuilding a Honda Trx. I’ve done a couple now and have enough parts to do this last one, which I said two of them ago.
Anyway got all the bits back from being galvanised, so a few nights in the shed coming up:)
Attachment 111863
Attachment 111864
Attachment 111865
Attachment 111866
nice hot dip or electrogalve? Will you/can you paint or powdercoat the frame over the galv?
Good shit Ross. I'm thinking of buying a shitter and rebuilding it as a project too. Might need to pick your brains at some point.
I'm following this with great interest. How do you go about welding galvi?
Bloody hell, you're keen Ross. Top effort keeping the old Honda's alive.
Terrible hard to kill, the TRX 300's.
Preferably in a stiff breeze :PQuote:
Originally Posted by Ooops
Hot dipped. Just leave it silver.Quote:
Originally Posted by yerimaginaryM8
Quote:
Originally Posted by Ooops
All welding is done before being dipped.
Gottcha. So that first photo is a giant bolt together jigsaw, great projectQuote:
Originally Posted by Shootm
Looks a bit of a project alright! Here is mine 1973 Honda st90.
We had a green one on the farm, great bikes. I had a fox terrier that rode on the seat with me & shotgun, we clocked up heaps of kms around the district cleaning up hares & rabbits. Never let me down.Quote:
Originally Posted by bully
Sent from my SM-A530F using Tapatalk
Got a link? I think maybe your talking ct70.Quote:
Originally Posted by muzza
Cool, they are kind of like ct90. But fairly rare, probably more so in nz. Only made from 73-75.Quote:
Originally Posted by Mathias
Been doing a bit more. Most of it clean up work. But some progress on putting the jigsaw back together.
Attachment 112524
Attachment 112525

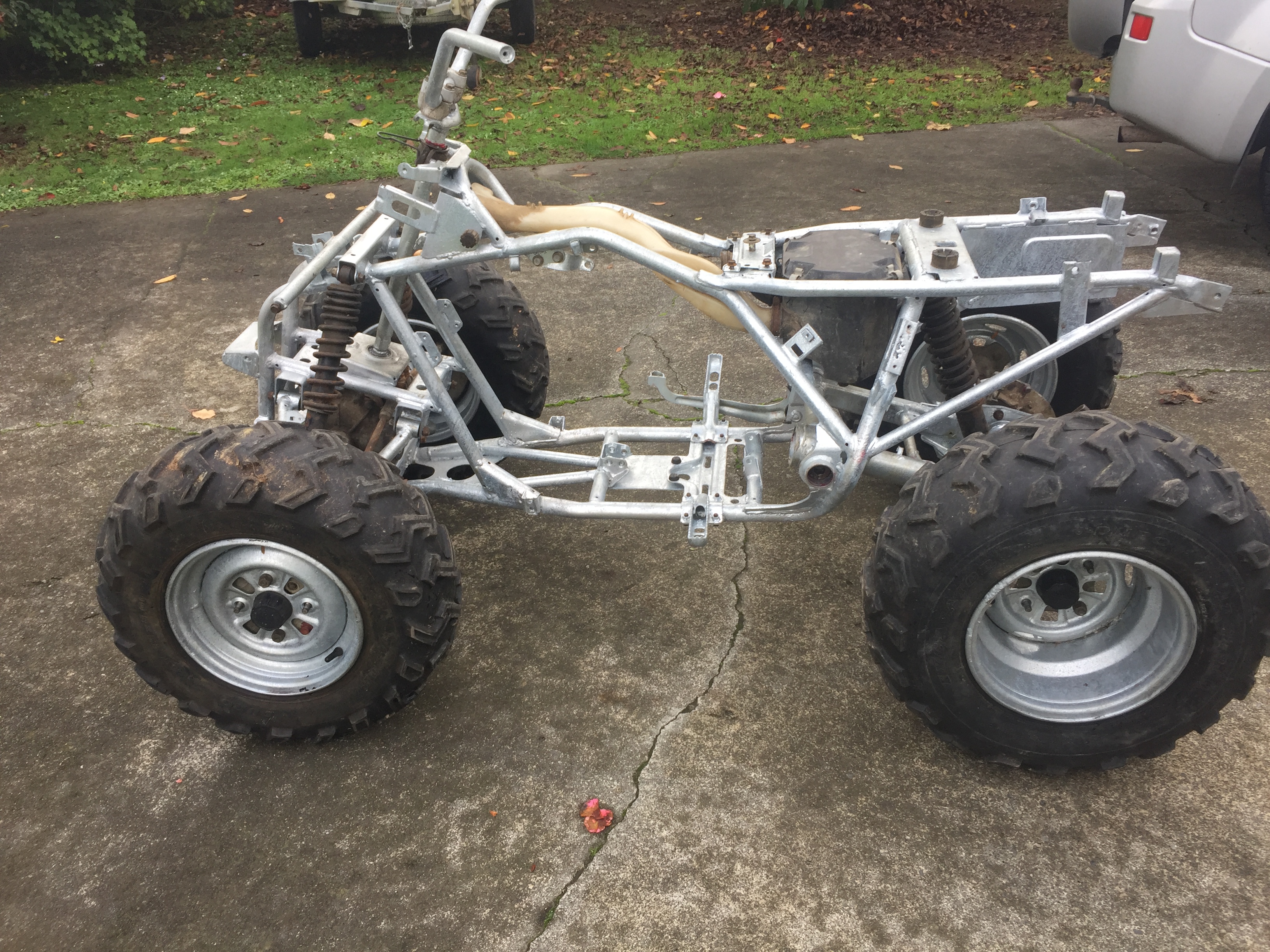

Got it back on her feet.
Attachment 112539
If it wasn’t for a broken exhaust stud that I had forgotten about I reckon it would be just about rideable by tomorrow :(
Hopefully get it all done next week.
Attachment 112540
What's your approach regarding those welded on nuts that are now filled with Galv?
Tap them out, hence all the clean up work.Quote:
Originally Posted by Got-ya
Is it just a re-galv on otherwise sound parts @Shootm or are you replacing bits of the frame? I see heaps of second hand ones for sale with rusted out frames, wondering if they might be salvageable (your next winter project ;) )
Try and start with a reasonable frame and cut out any rust. Worst I’ve done is replace the whole bottom of a frame, never again it is to much work cutting, bending etc. Half the second hand ones have frames that are buggered, most are over 20 years old though.Quote:
Originally Posted by Dorkus
Guys like Farm & Trail (wreckers) used to do lower frames sections made off jigs, so cut out and weld straight in. Not sure if there's much call for the older stuff now tho', as you say 20+ yrs old.Quote:
Originally Posted by Shootm
A bit more progress tonight. New exhaust stud in so all systems go from here.
Attachment 113098
Don't forget to remove rear axle and lube splines if you don't already know about this. Saves splines stripping and wrecking diff as well. Looking real good. Great effort.
Richard yep done that.Quote:
Originally Posted by BSA270

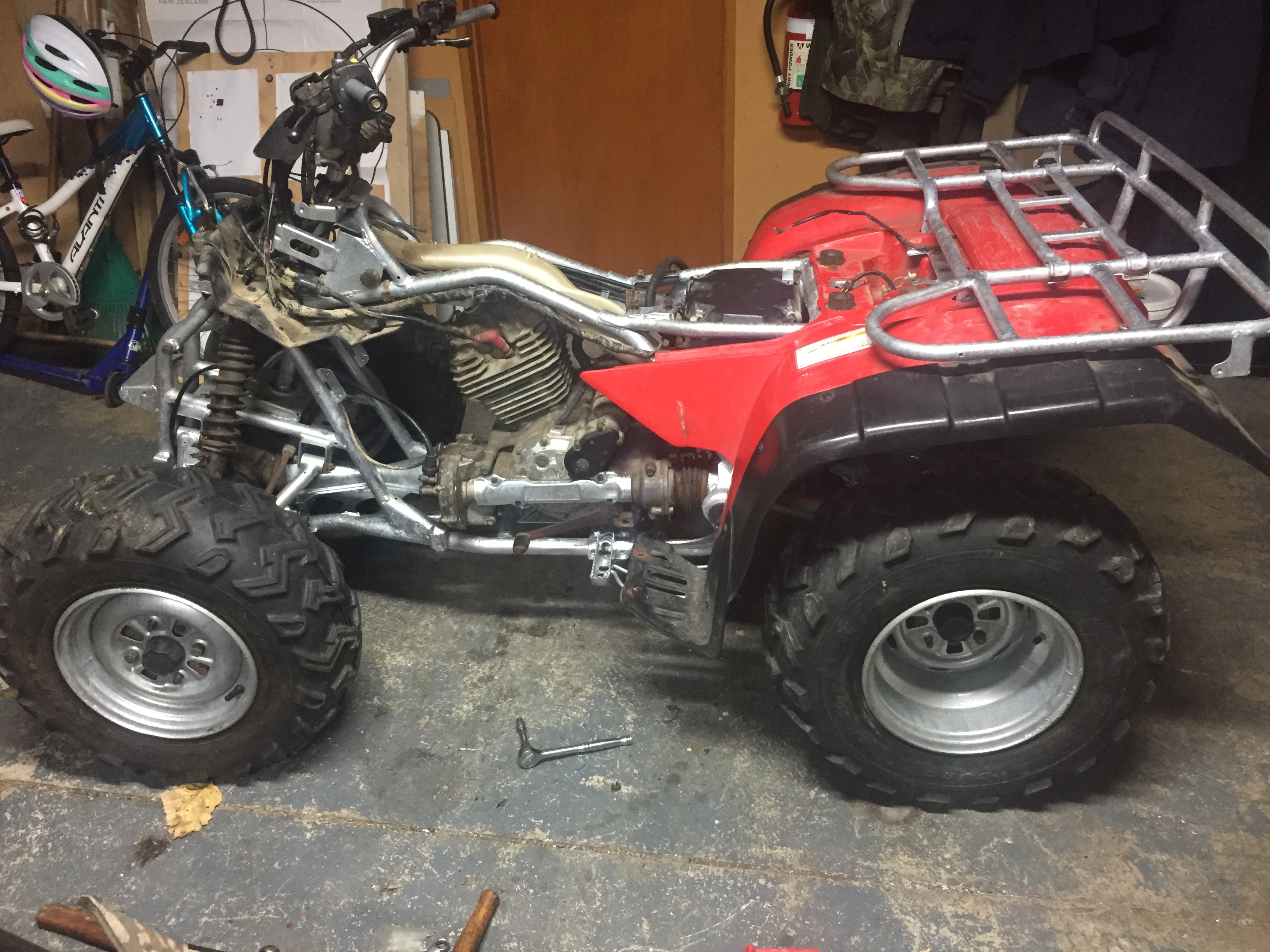

A bit more done over the weekend. Just little bits to do like bleed the front brakes, change the oils, air cleaner and spark plug, recover the seat and buy a new battery.
Attachment 113502
I had a ct70 as a kid, great little bike. Carb was shagged though and couldn’t get parts in those days before trademe/eBay.Quote:
Originally Posted by bully
Would love to get one of these sorts of projects to Cerakote, have a trail bike frame coming and have done plenty of bike parts but not a full frame and parts yet... reckon it'd look great for a custom finish
Awesome job by the wat as well, come up well.
What are you going to do with it @Shootm?
I’ll be selling it when it’s finished.Quote:
Originally Posted by Flyblown

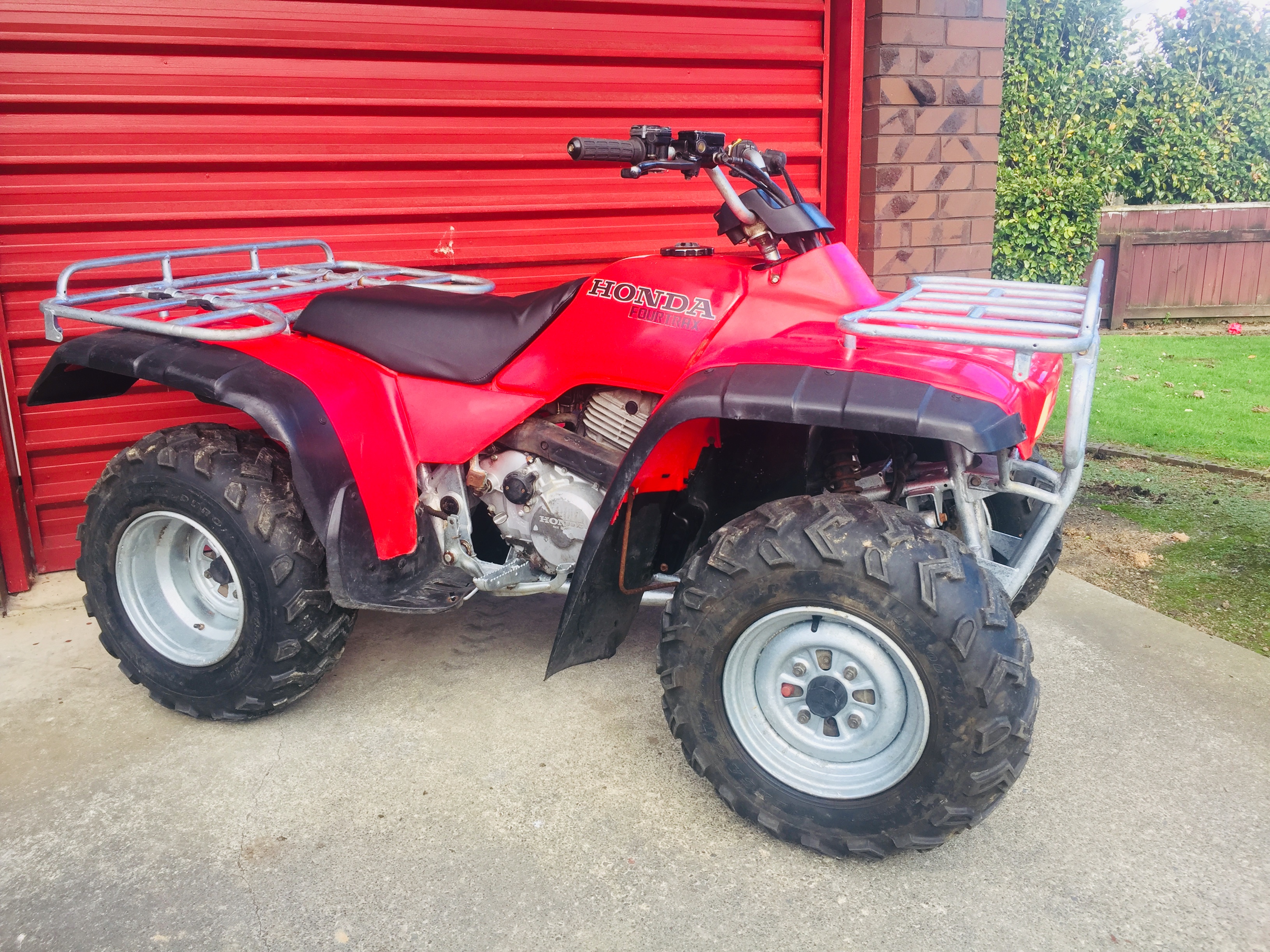

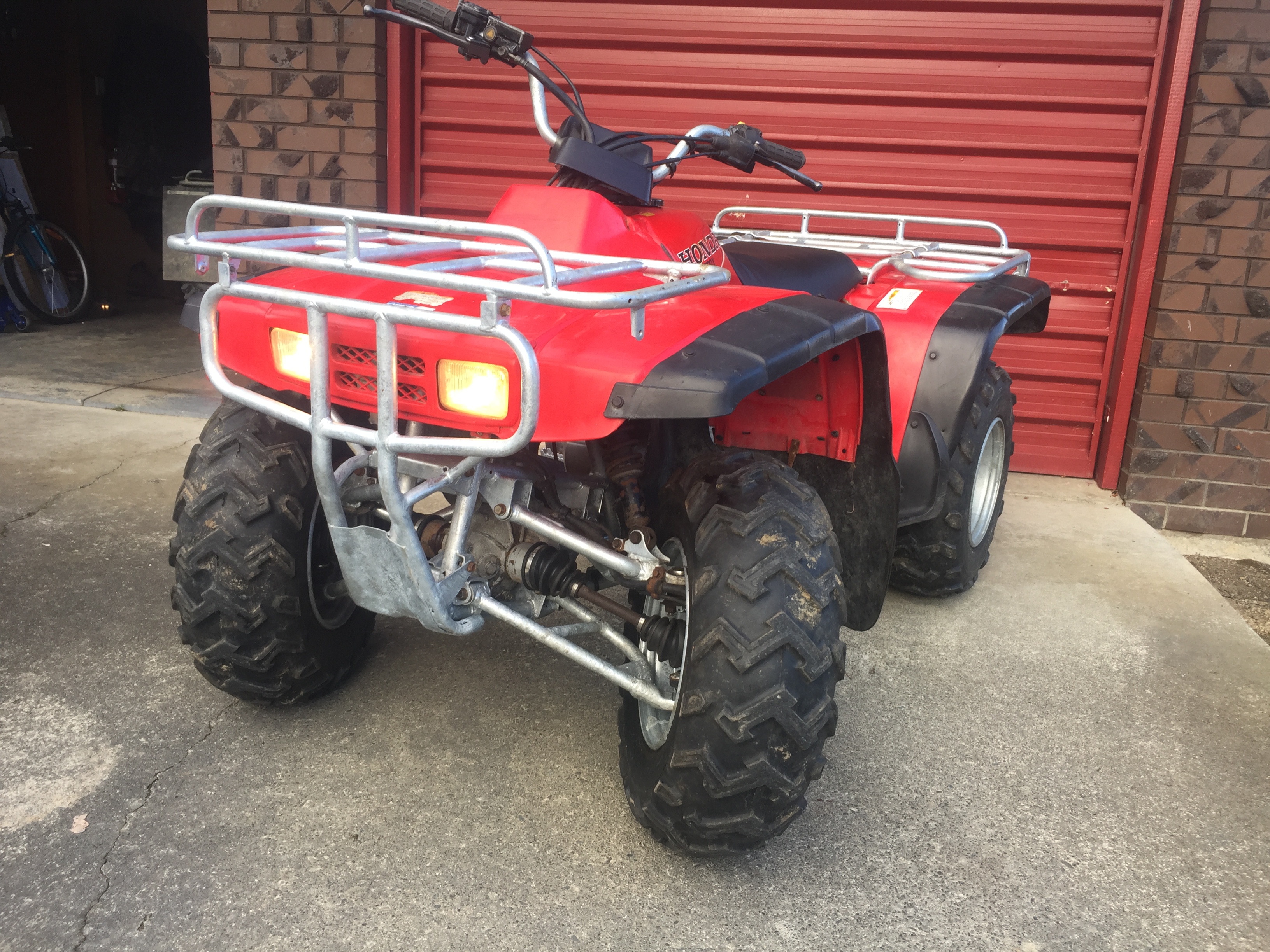

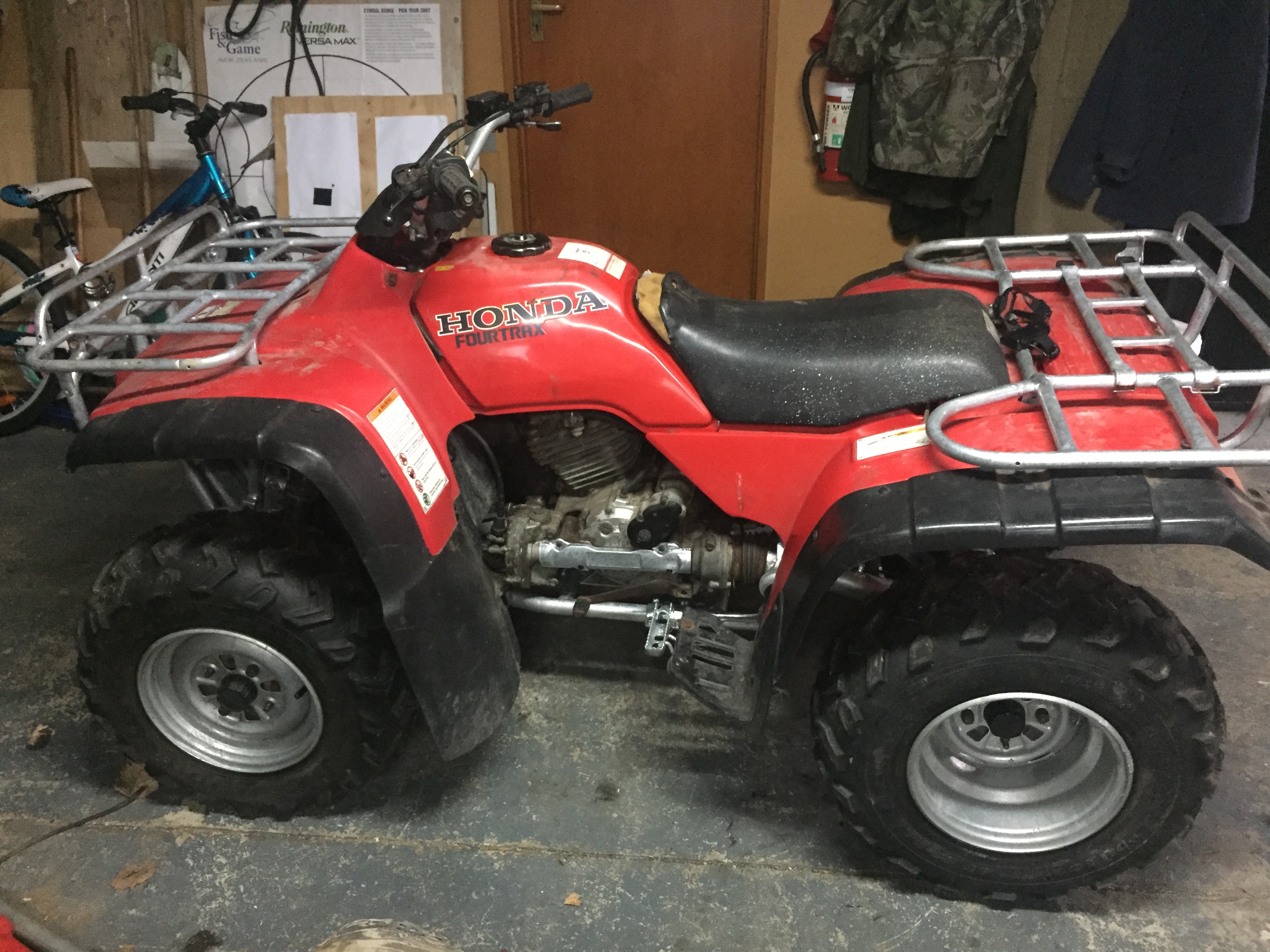

Just finished this project today!!
Attachment 114959
Attachment 114960
Attachment 114961

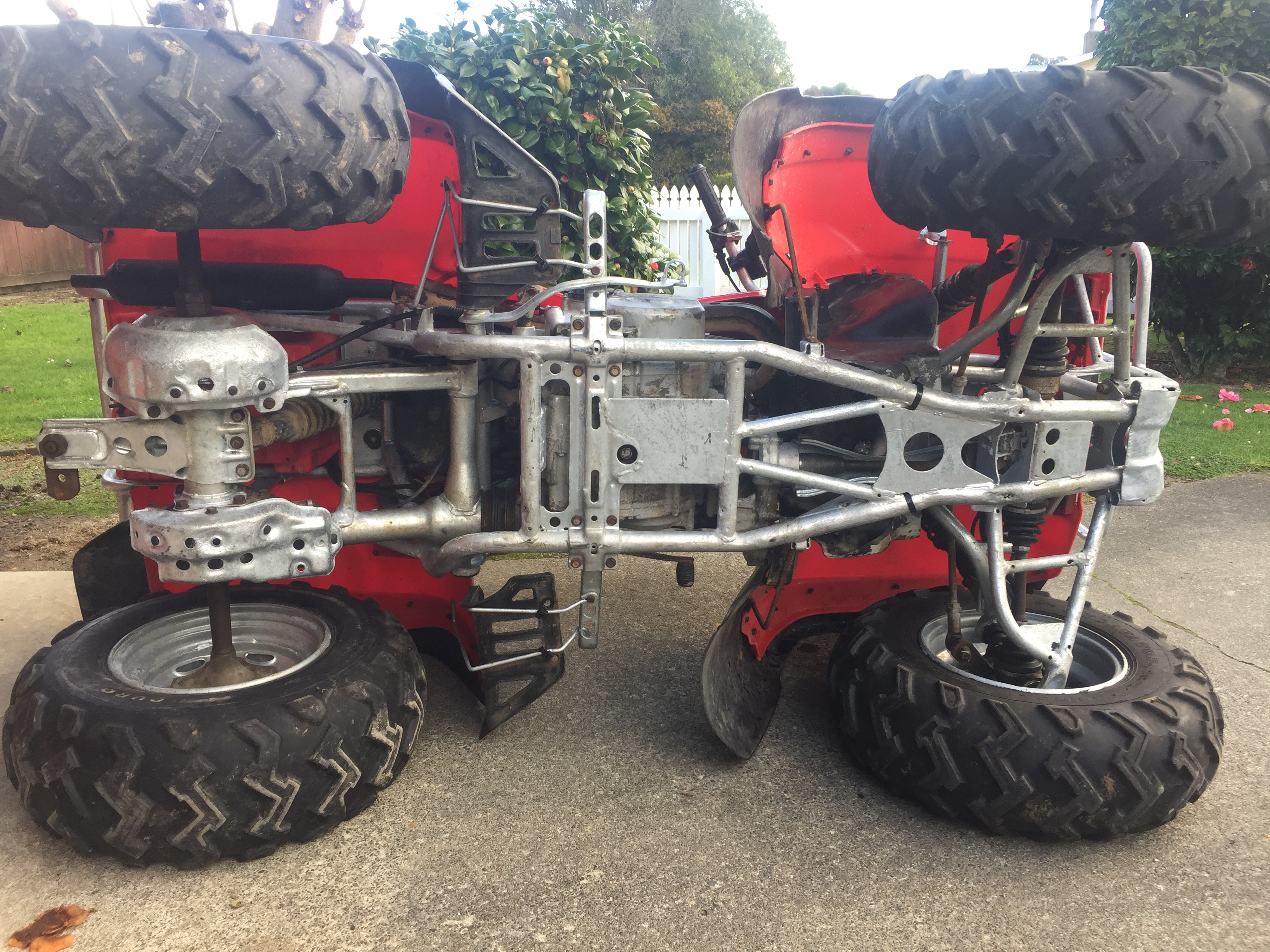

Looks legit ross... Except you managed to roll it on flat ground, can't be very good in the rough stuff.
Nice one Ross, that looks bloody good, great bikes these. My mum has a 89' TRX300 "Bigred" thats only done about 4000kms since new, shes only ever used it to potter round the home orchard and ferry a bit of firewood from the house to the shed, its literally like new but no amount of begging or money will take it off her - I've tried! So looks like im gonna have to wait a few years and ship her off to a rest home, thats the plan at the moment anyhow haha.
Theyre bloody good bikes and if I were in the market for a runaround this would be bloody ideal.

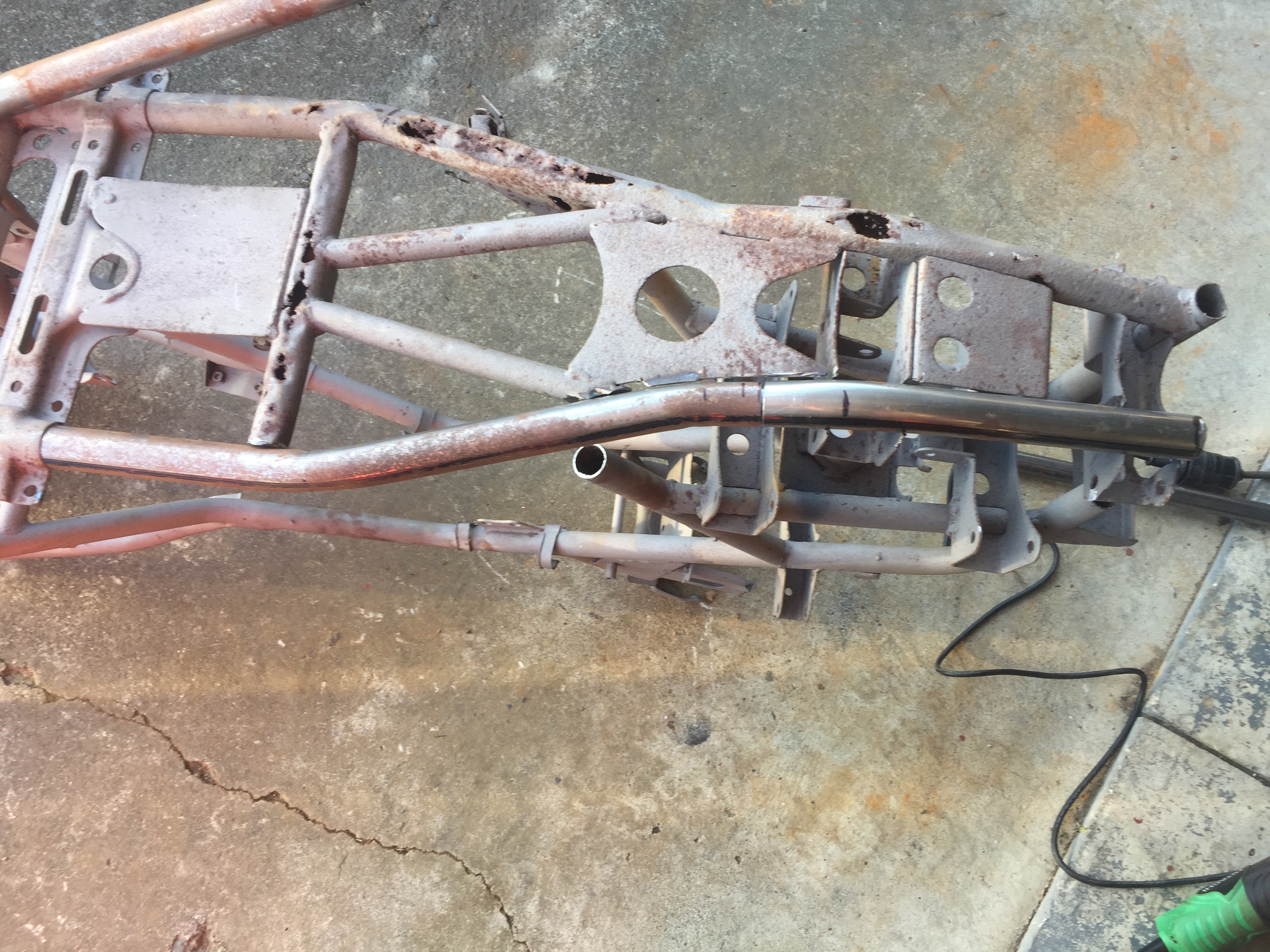

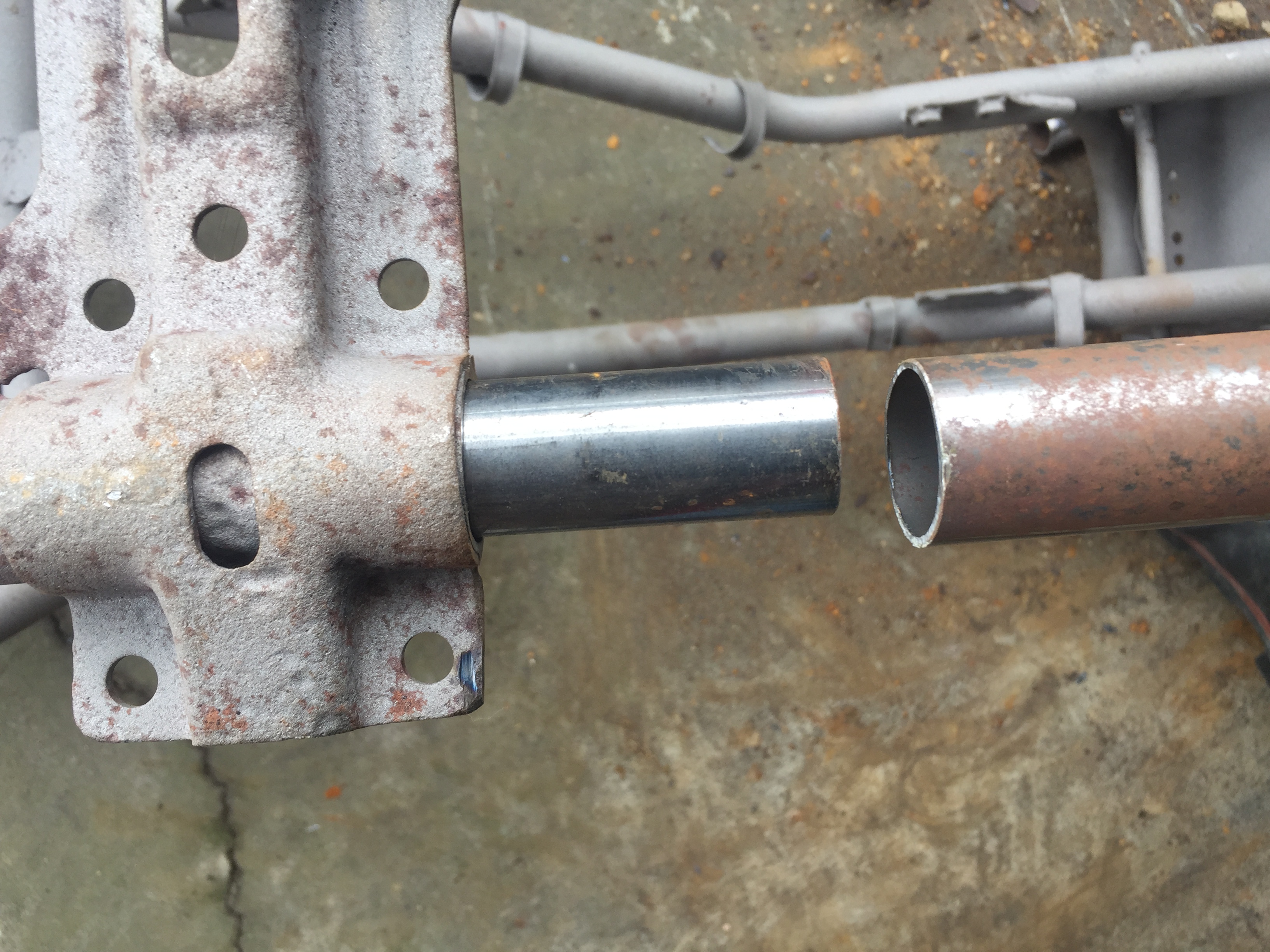

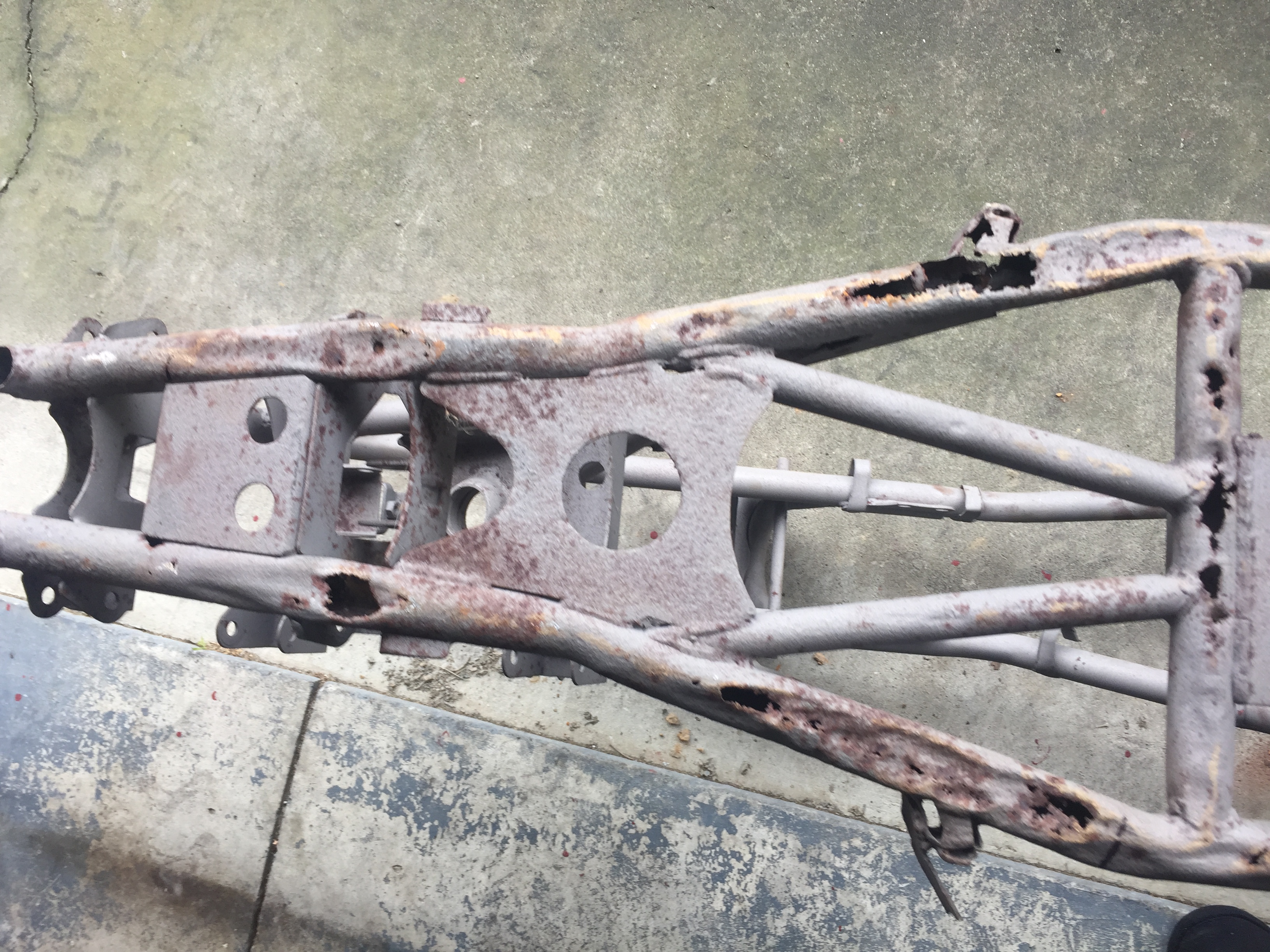

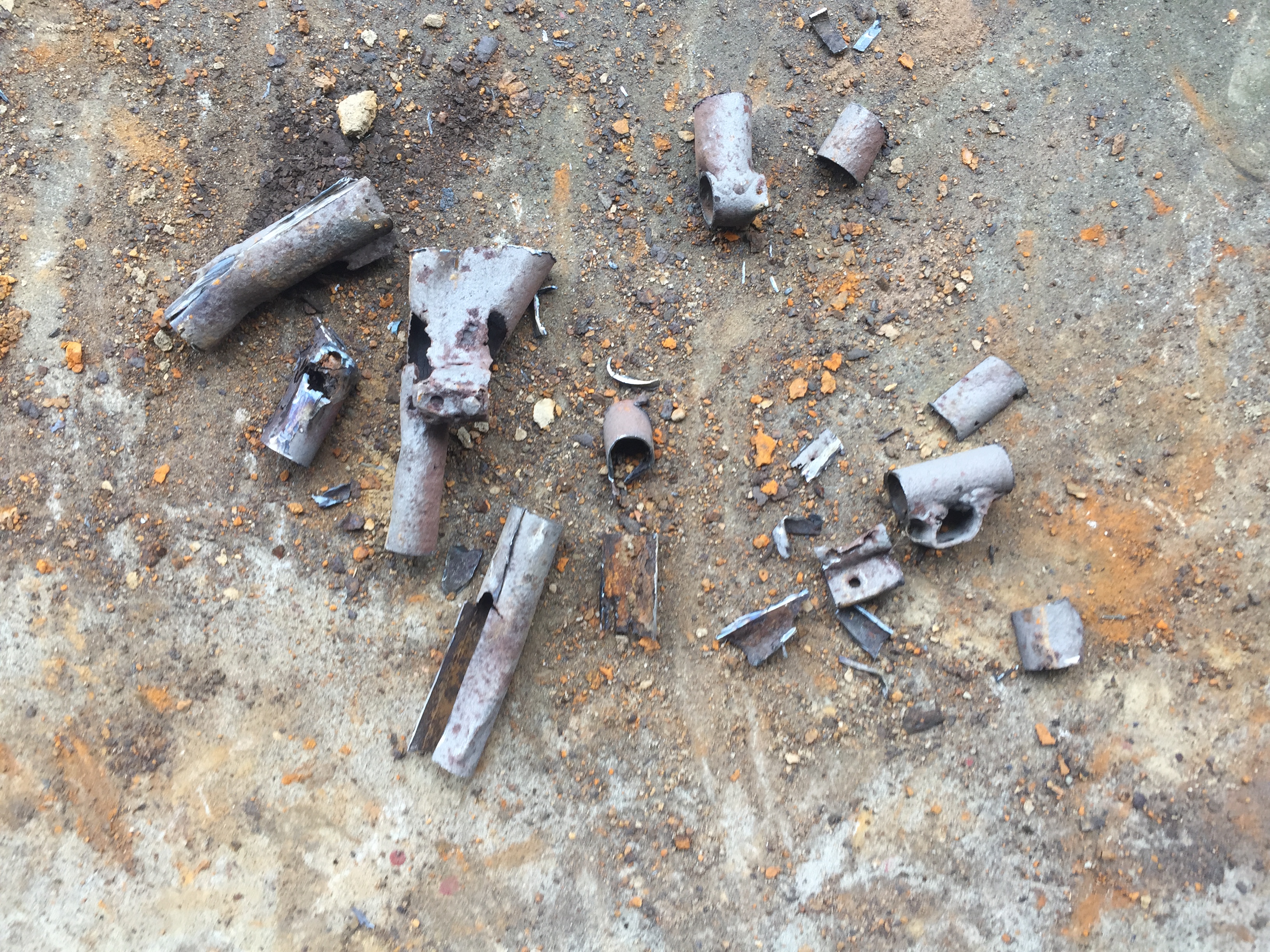

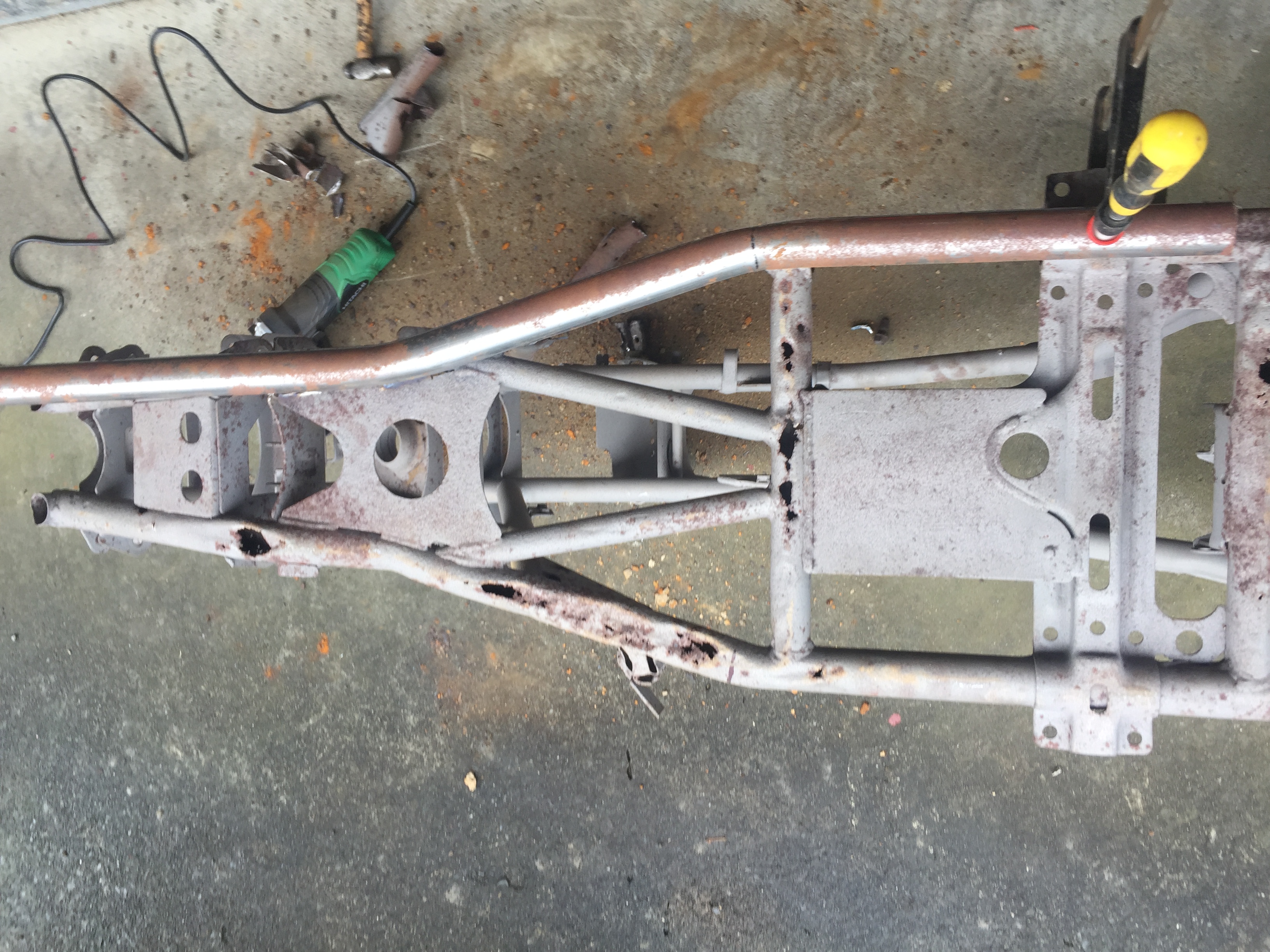

As you do on a Sunday morning, shuffling around in the shed I was looking up in the rafters for something else. I found a project I started awhile ago and thought I’d do a bit more on it.
Attachment 116932
Attachment 116933
Attachment 116934
Attachment 116935
Need to use the pipe bender at work to continue, at least I’ve started it :)
Too much time on your hands mate... Need to go fishing!
Did that last one sell?
Yep sold it.Quote:
Originally Posted by Dorkus
If the weather wasn’t so shit I would go hunting. The West Coast here will be rubbish as it’s been blowing its tits off since Friday morning.

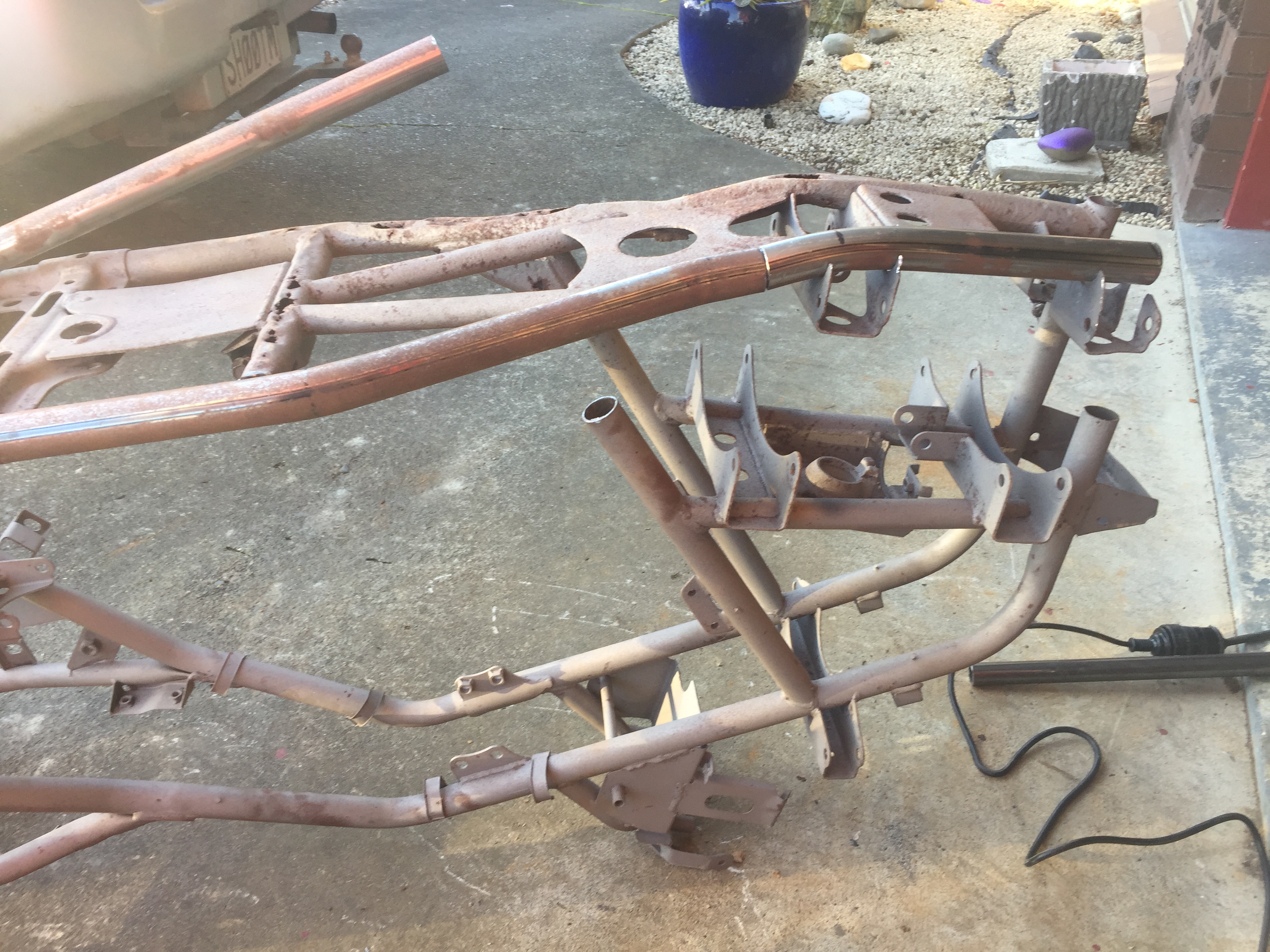

A bit more done. Just got to do some glueing together, then start the other side.
Attachment 117010
