Carbon / Aluminium Chassis Build
Hi Folks,

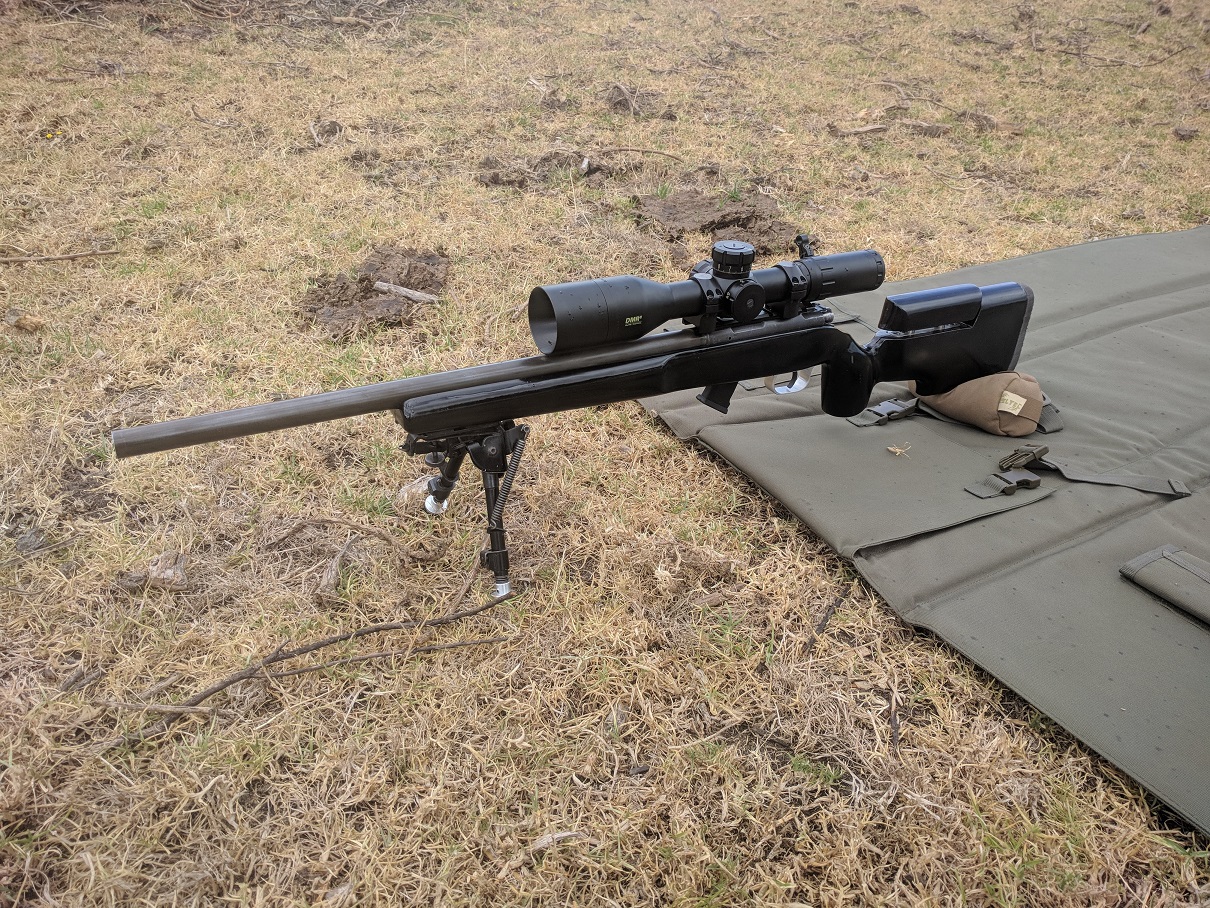

This is a re-work of a 22lr target rifle I put together a while back, which you can read about here:
https://www.nzhuntingandshooting.co....no-22lr-39671/
Attachment 134421
I found that this rifle was not being used at all as is was too heavy, not really much more accurate than my CZ452 and the bolt was quite gritty, which made for unpleasant shooting.
I have been shooting at the Howick indoor range for the last couple of years and have hit a plateau on my scores and I believe it is somewhat gear related. So I decided to design and build a fully adjustable chassis stock for this rifle so that I can experiment with different lengths of pull, buttpad height and rotation, cast on or off, and can change grip shapes easily. Researching this led me to David Tubbs Tubb2000 rifle which was developed for NRA High Power competition and is fully adjustable in the ways I wanted so I have copied a lot of his ideas. I got to work on Solidworks and came up with something that was feasible for me to make, I liked the look of, and would do the job (hopefully)
Attachment 134358

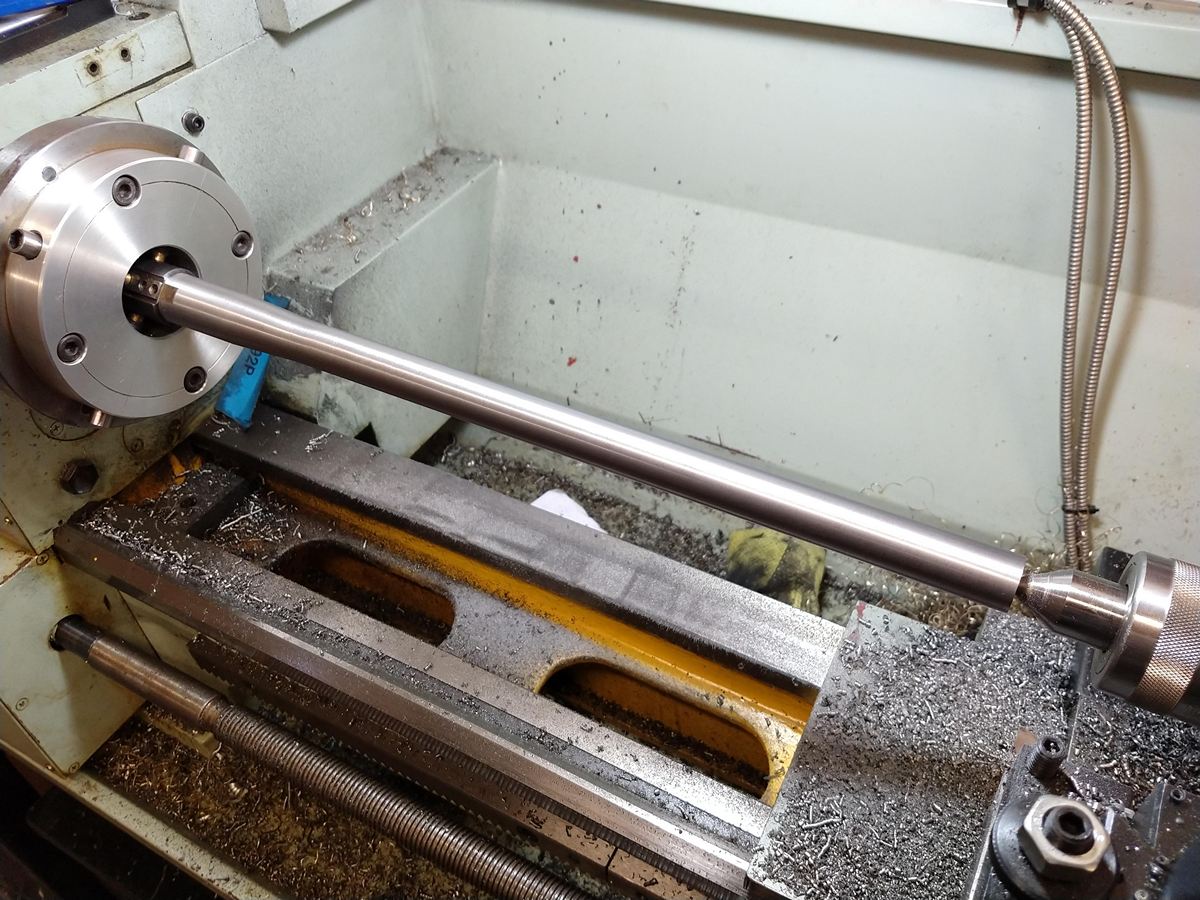

I started with nearly 2.2kg of barrel and action, so decided to cut the barrel length down and also turn the profile down as the current straight taper was way overkill.
Attachment 134359
Attachment 134360
Attachment 134364

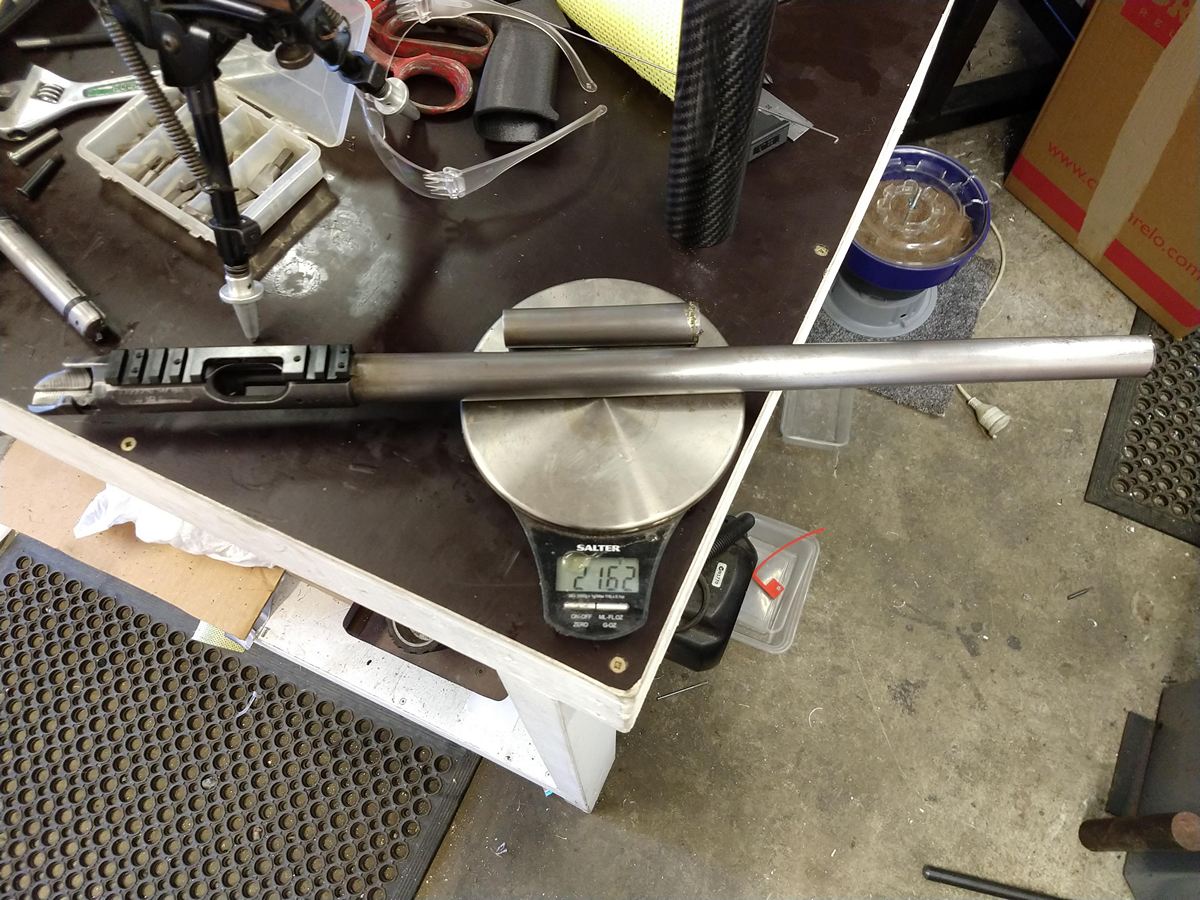

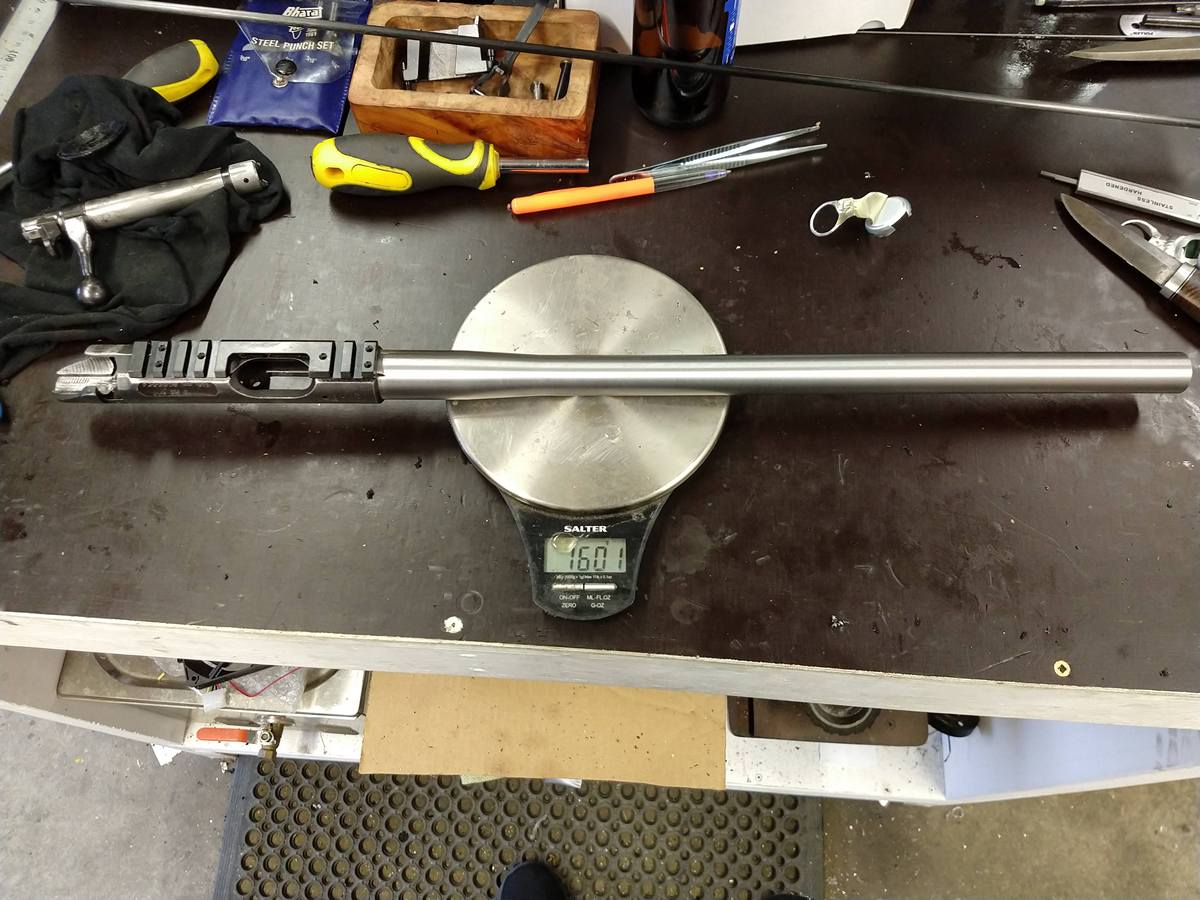

The result was still a decent profile barrel, but now down to 1.6kg. Using the CAD model, I had estimated this would result in a rifle with a scoped weight of around 4.1kg. Certainly not a mountain rifle but light enough for positional shooting.

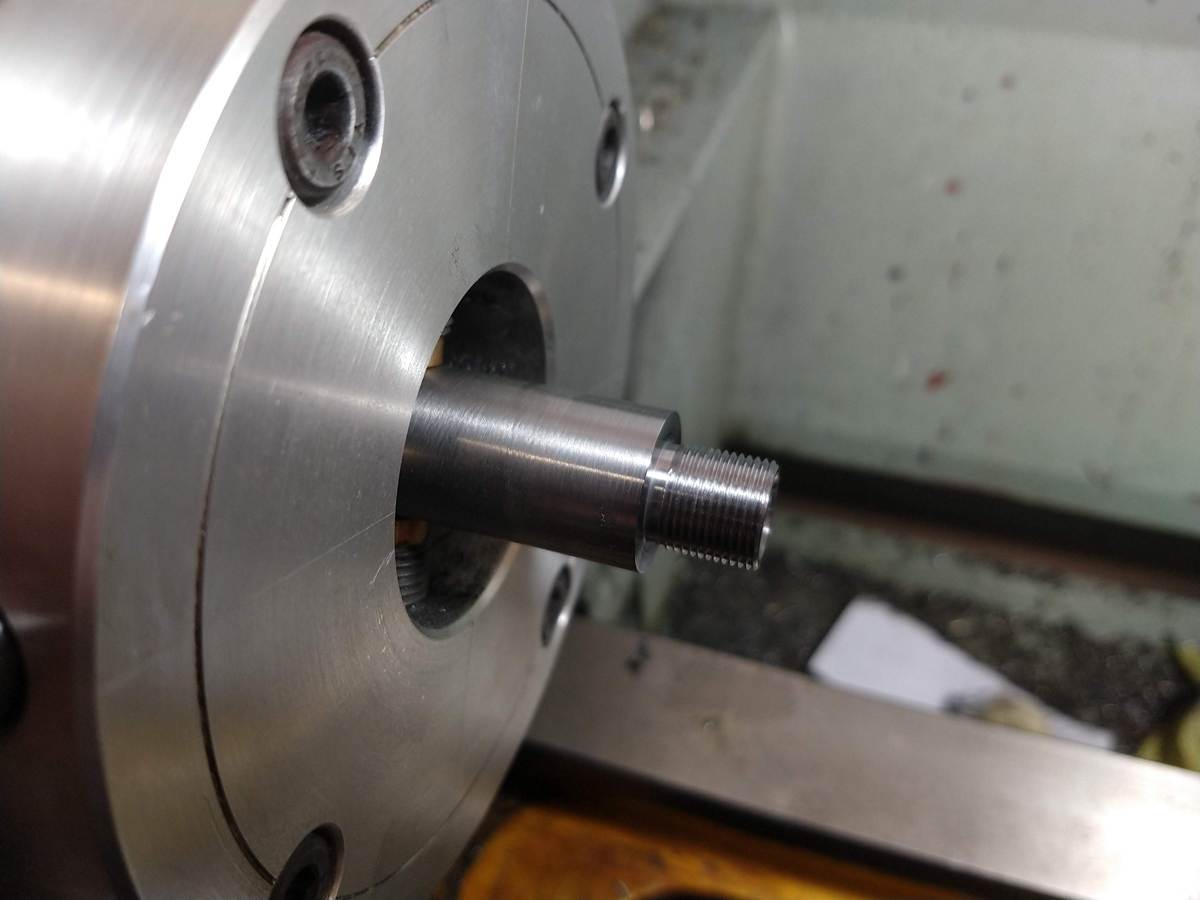

I crowned and threaded the muzzle for M14x1.0

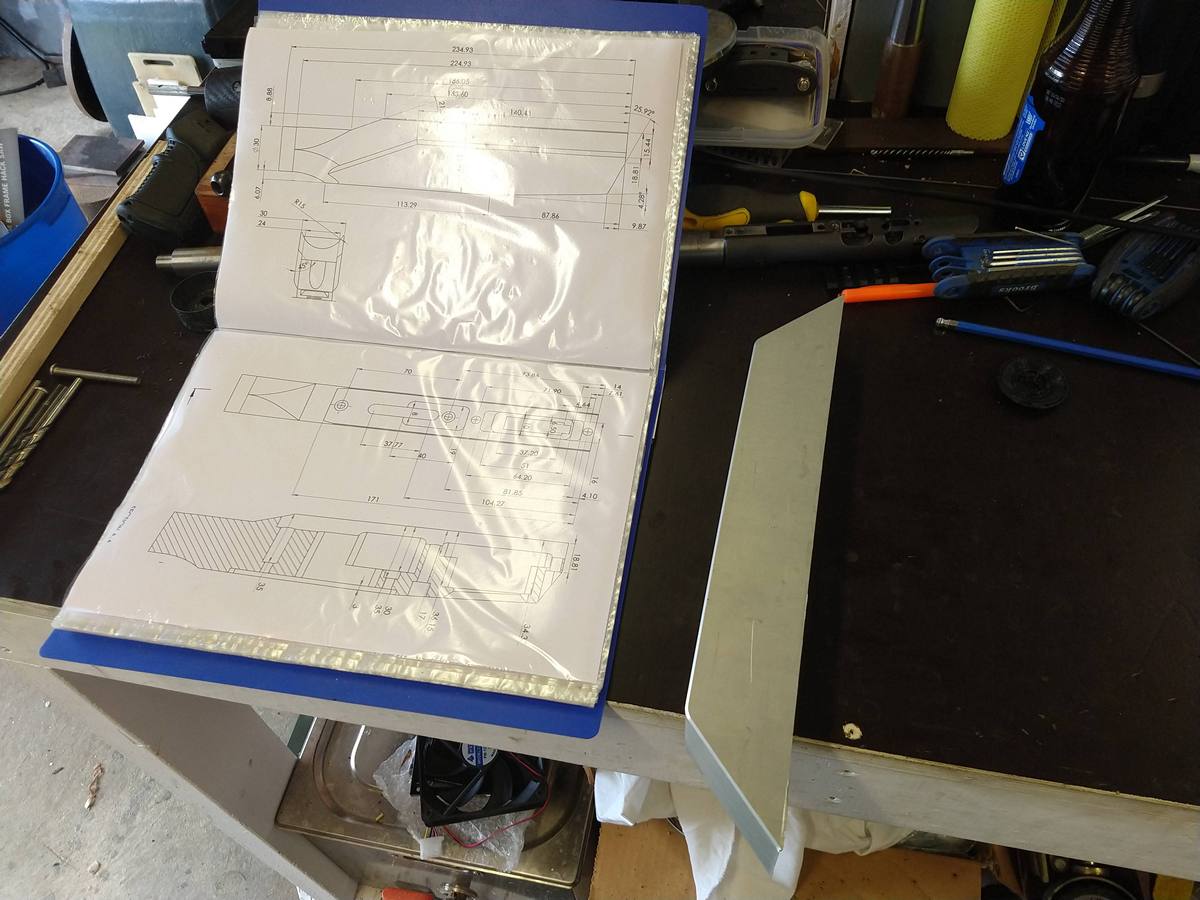

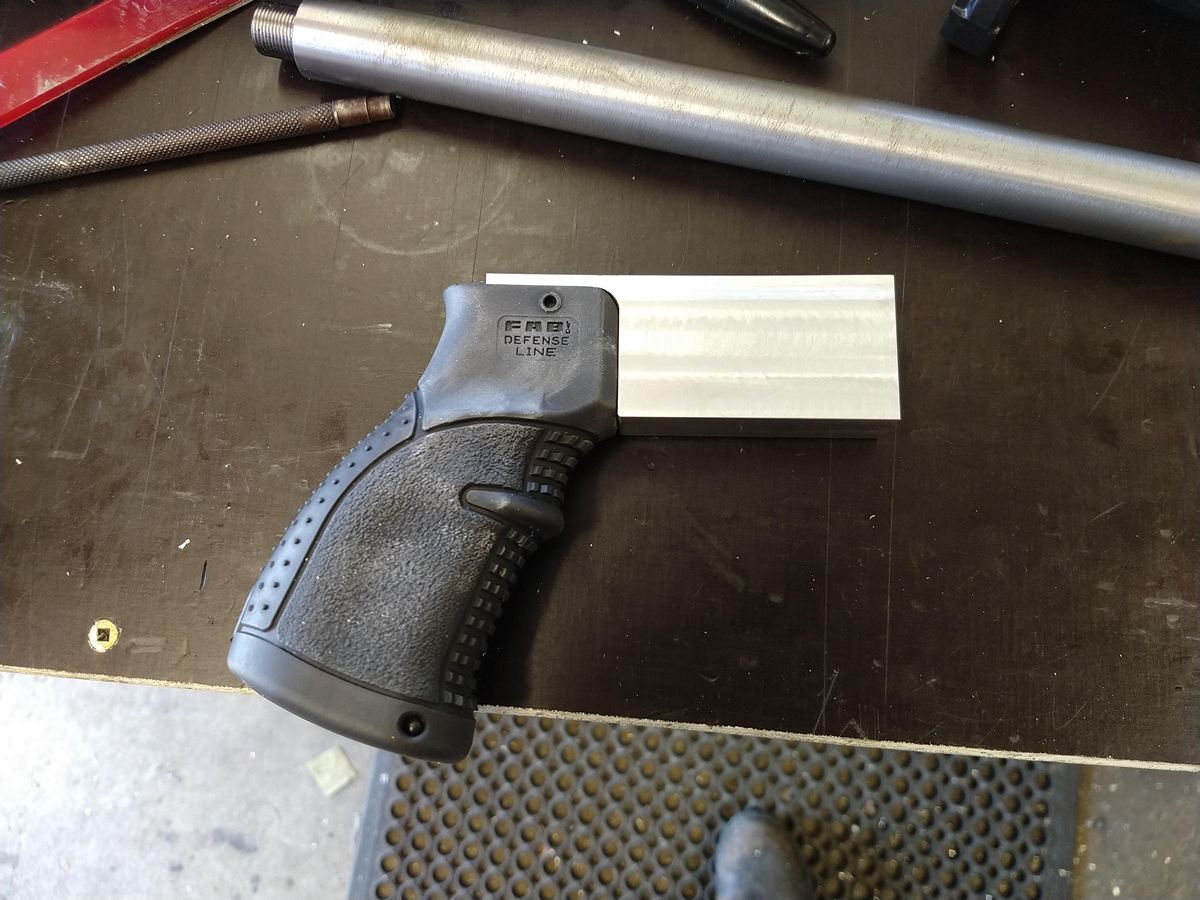

Next, I started on the Chassis, starting with the main block. I designed this without a built in trigger guard as it reduced the size of raw stock I needed considerably. The trigger guard is made separately and bolted on. This also had the benefit of allowing me to change from an AR-15 pattern pistol grip to something else if plod decides they are too dangerous for civilians.
Attachment 134367
Attachment 134368
Attachment 134369

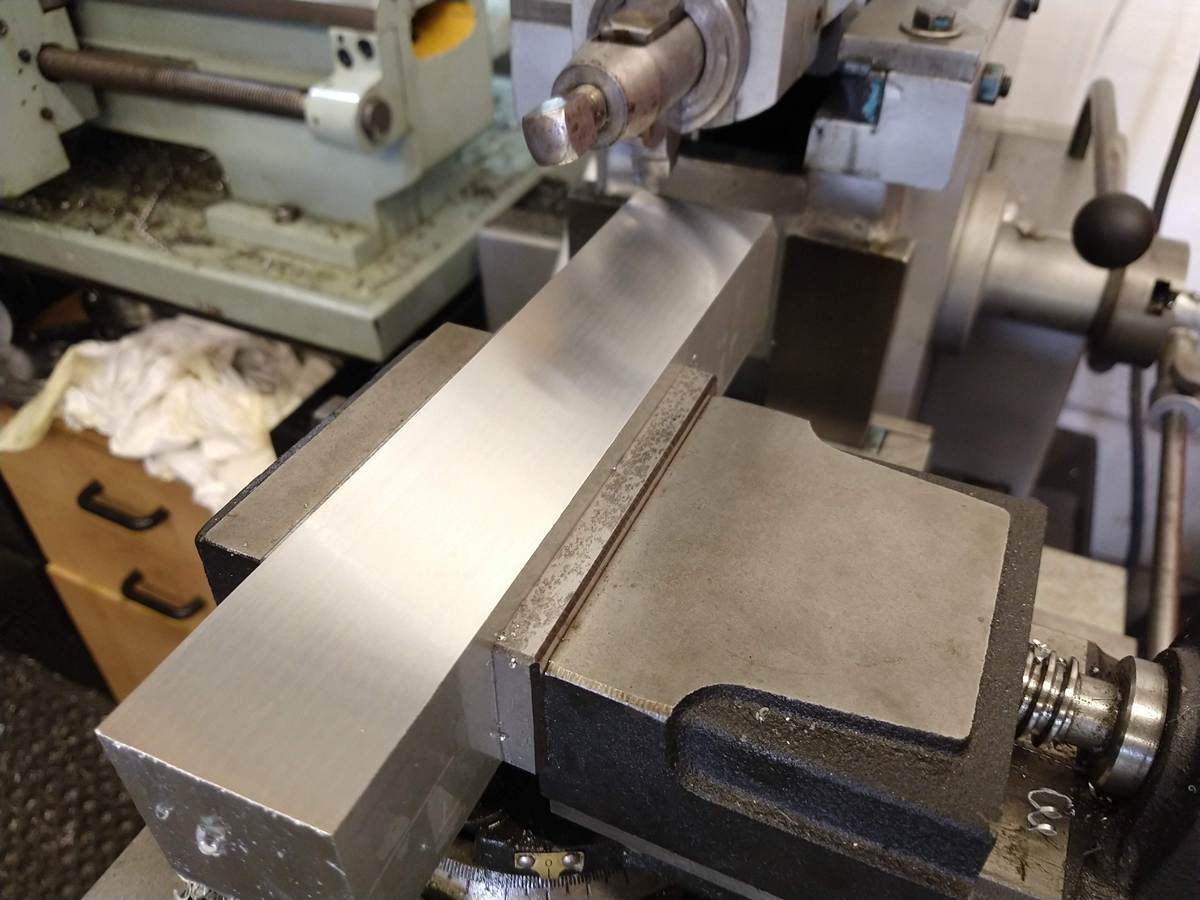

I started on the shaper as it hadnt been used for a while but quickly gave up and moved to the mill as I had about 15mm of thickness to remove and my shaper is only capable of around 0.8mm per pass in aluminium.
Attachment 134370
Attachment 134371

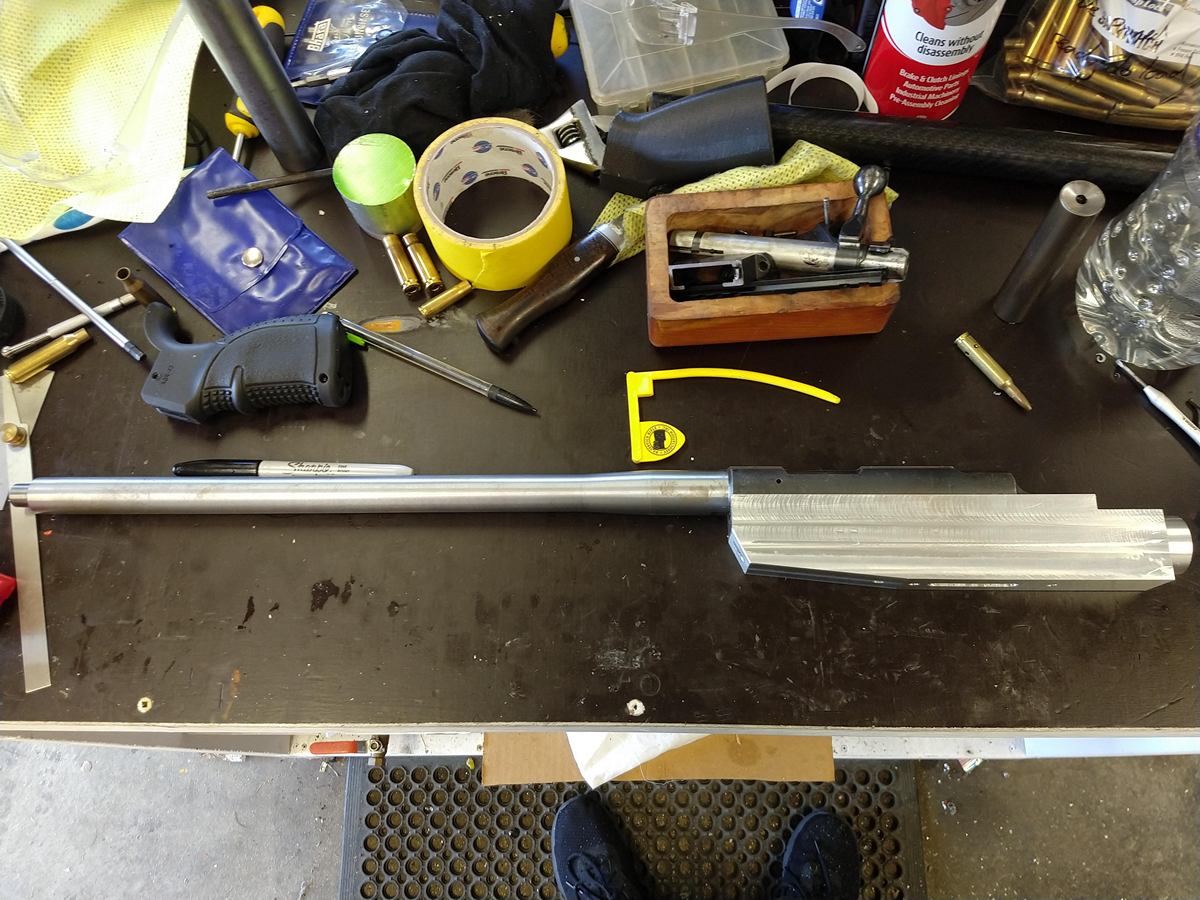

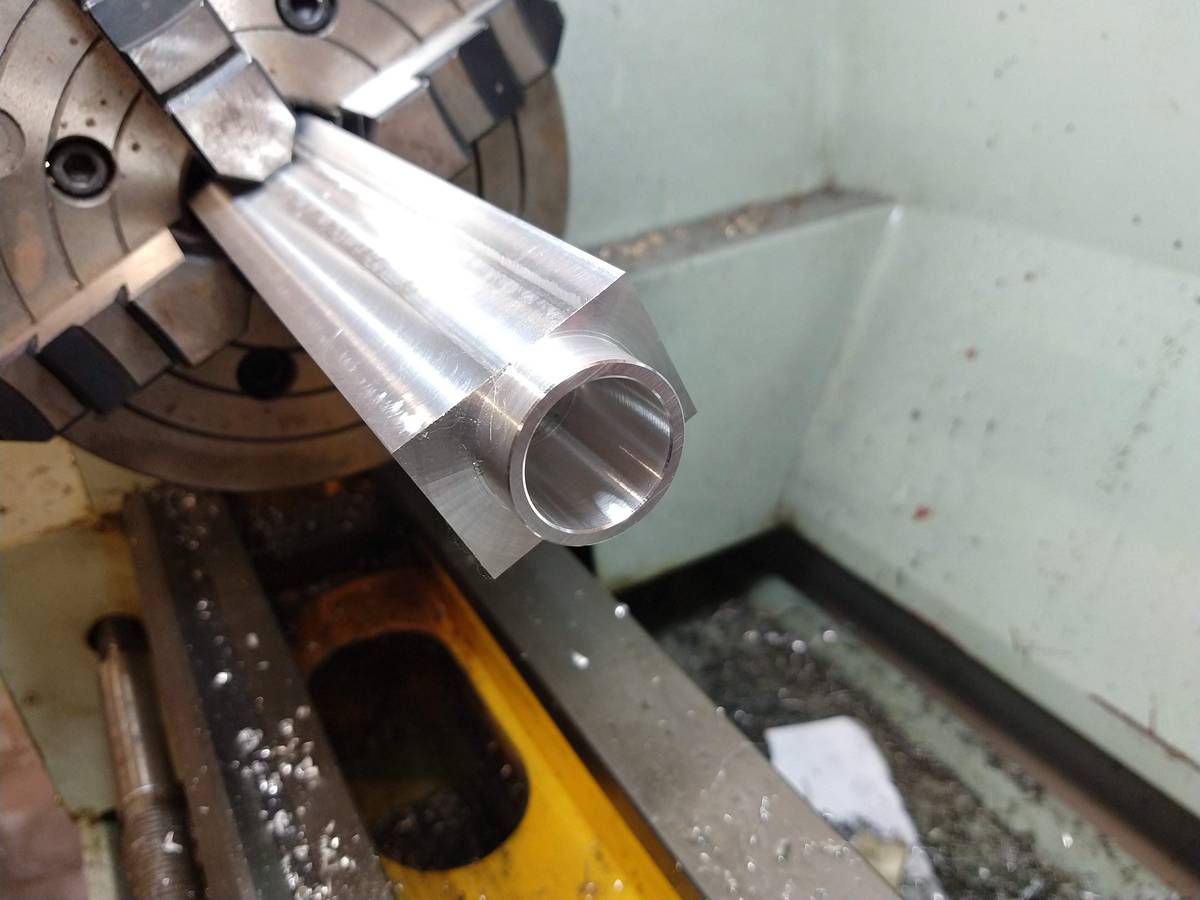

Once the block was squared up, I put it in the lathe to turn the end down where it would join with the stock. In hindsight I should have threaded this and the stock rather than using a grub screw.
Attachment 134372
Attachment 134373
Attachment 134374

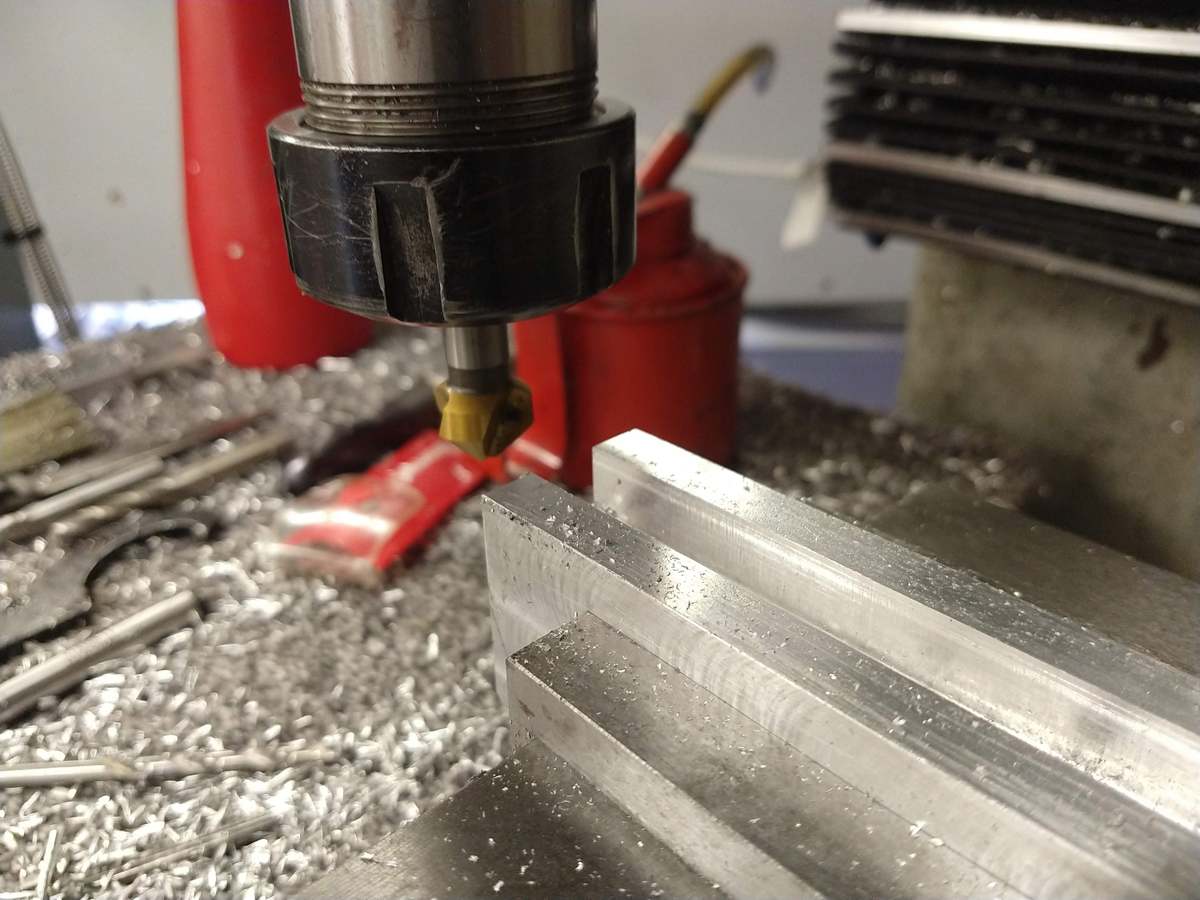

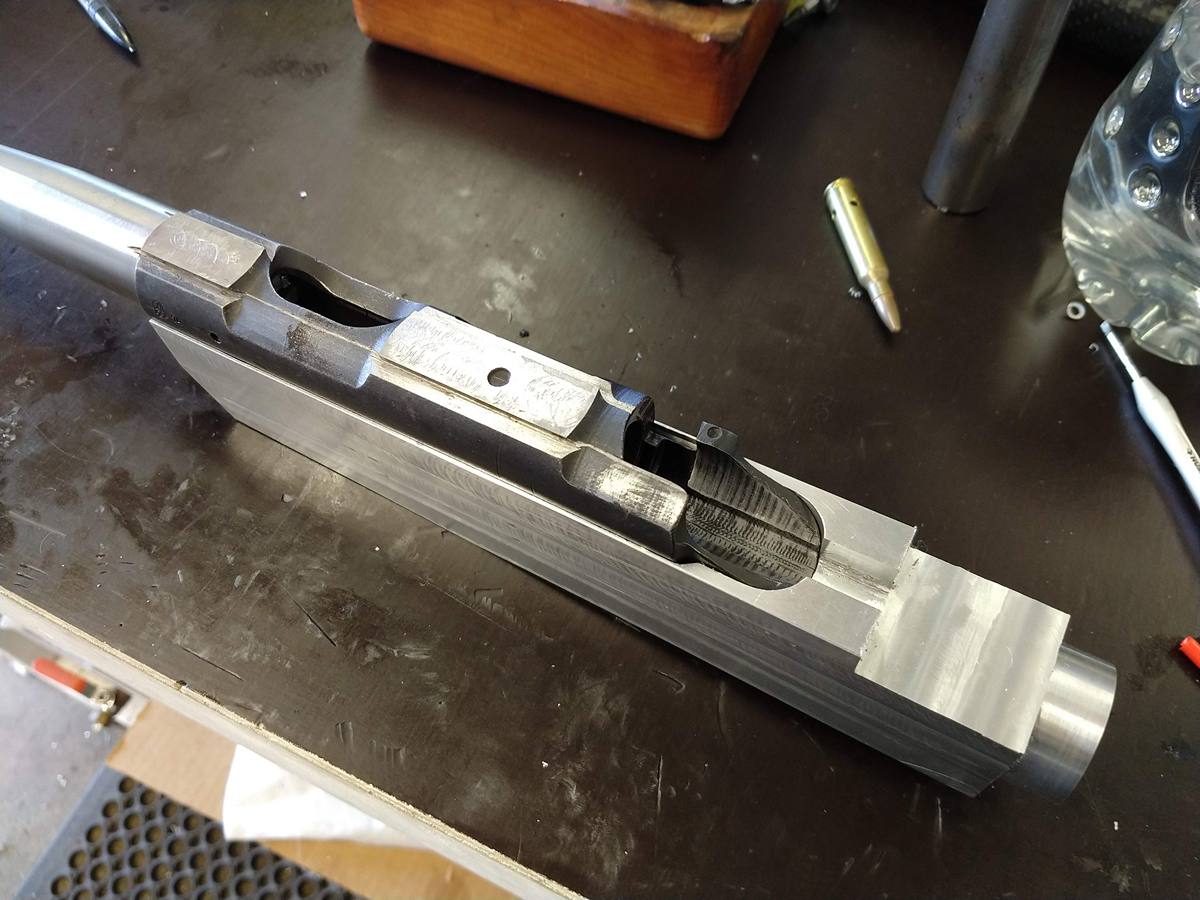

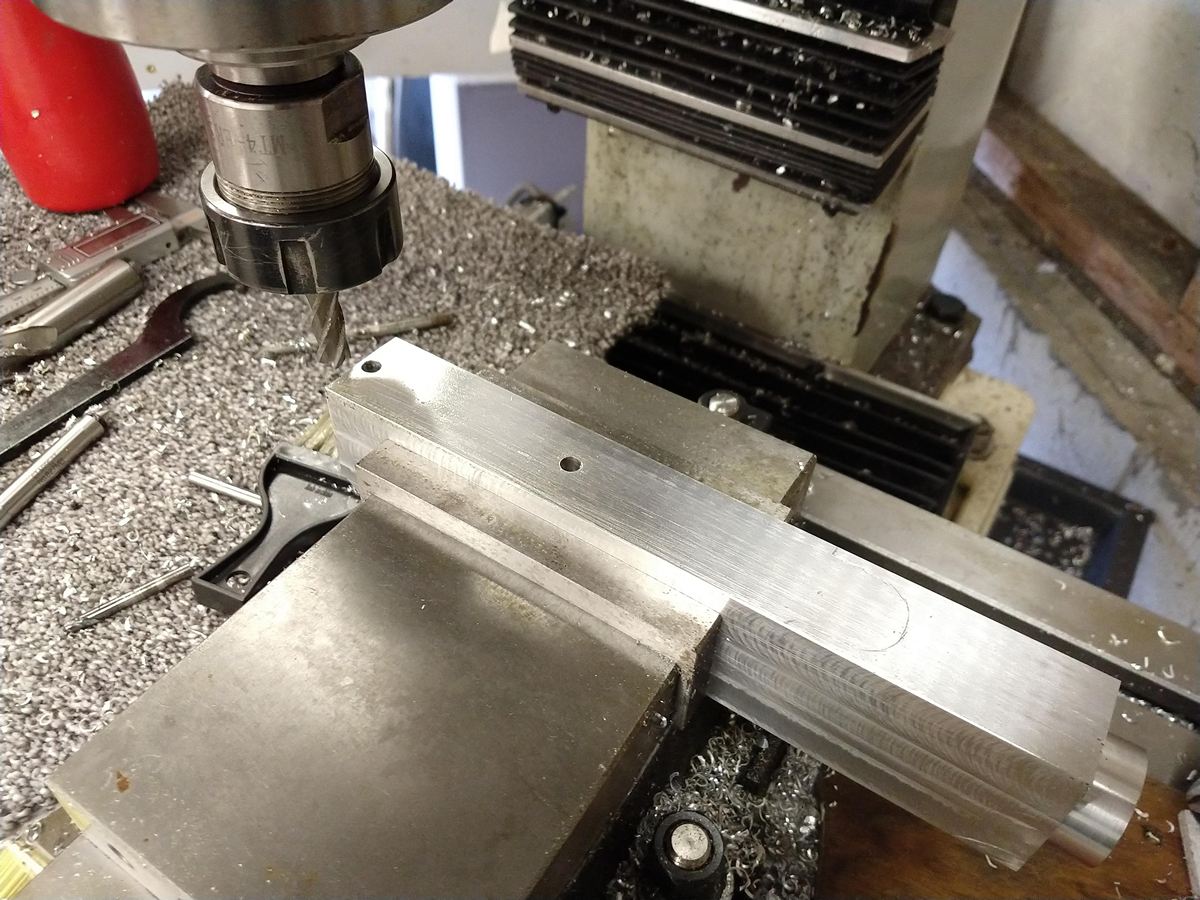

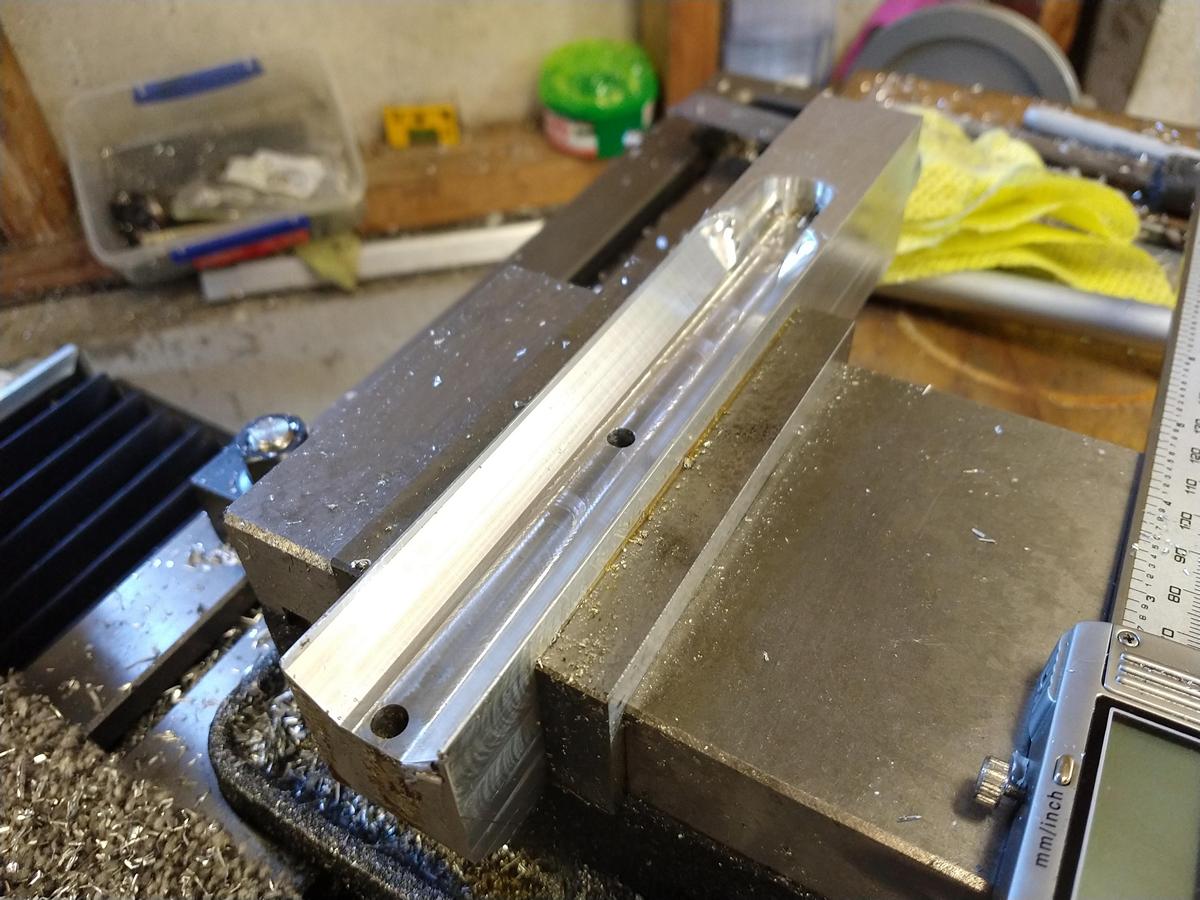

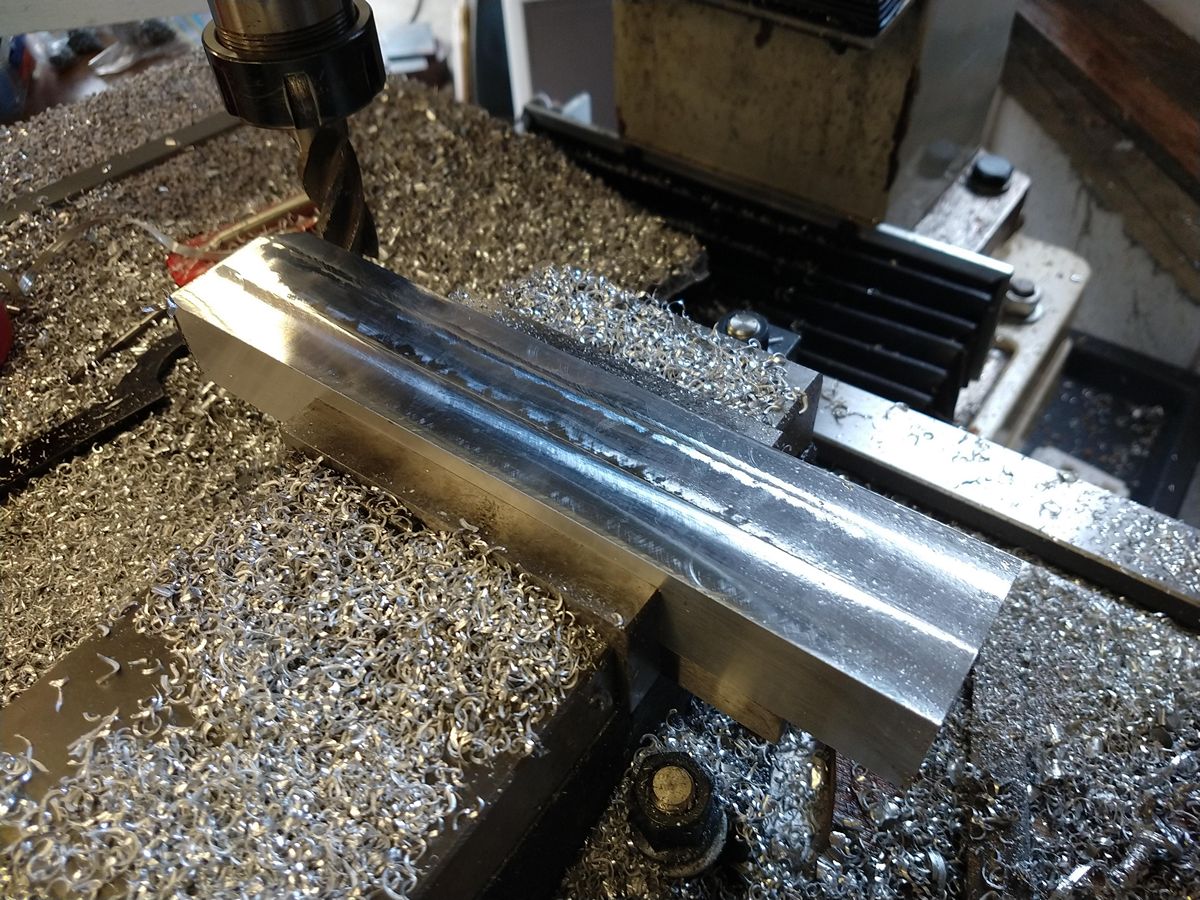

I cut the action channel by milling a slot and then chamfering the sides with a countersink bit (sounded horrible and took ages) This resulted in a V-block arrangement for the round action to pull down into.
Attachment 134375
Attachment 134376

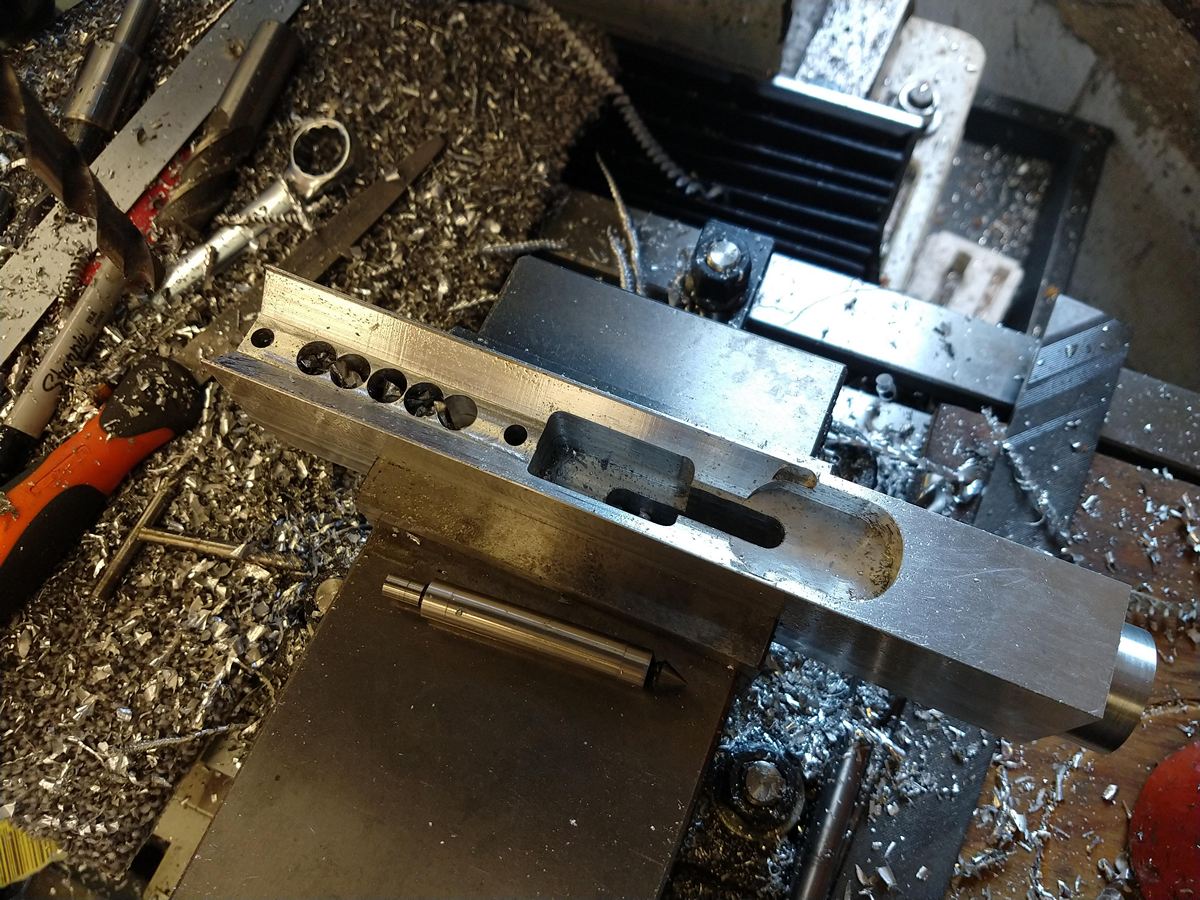

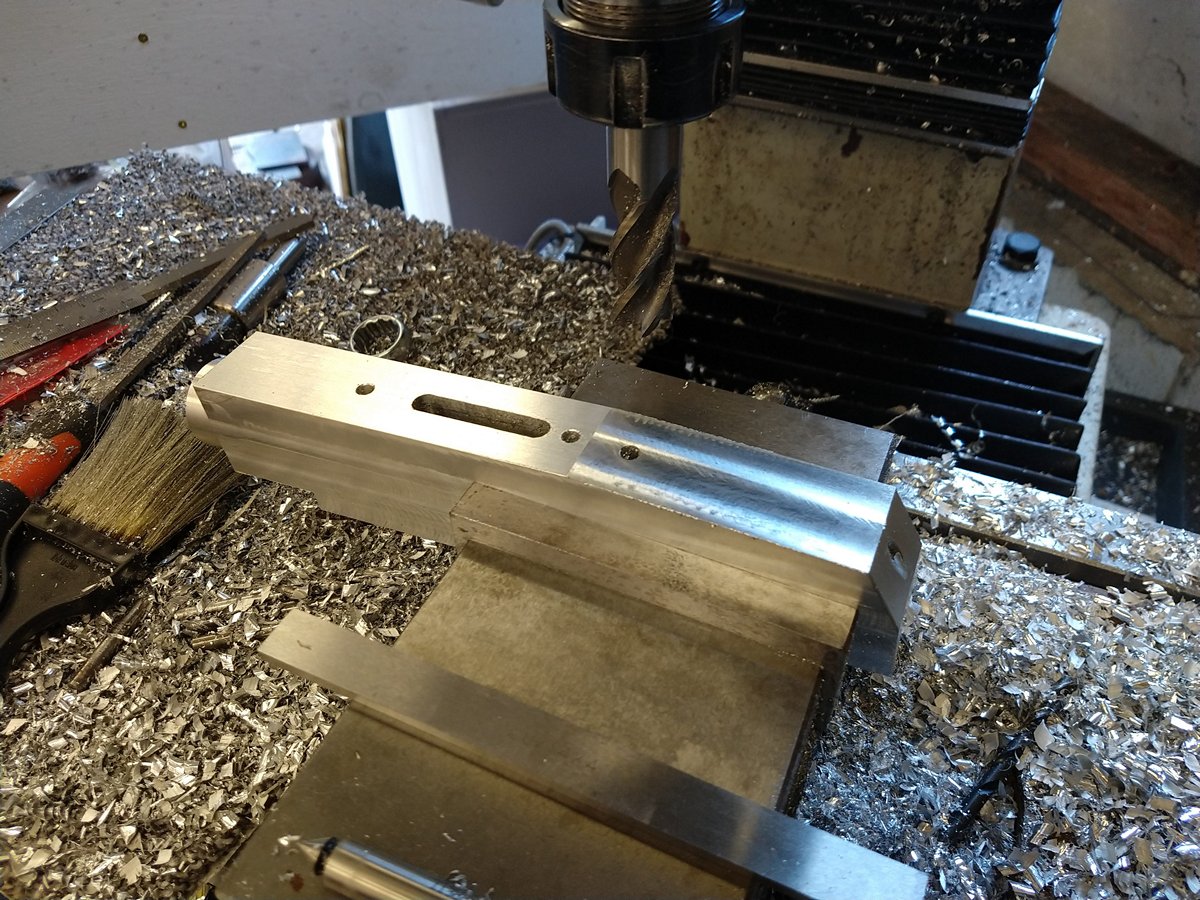

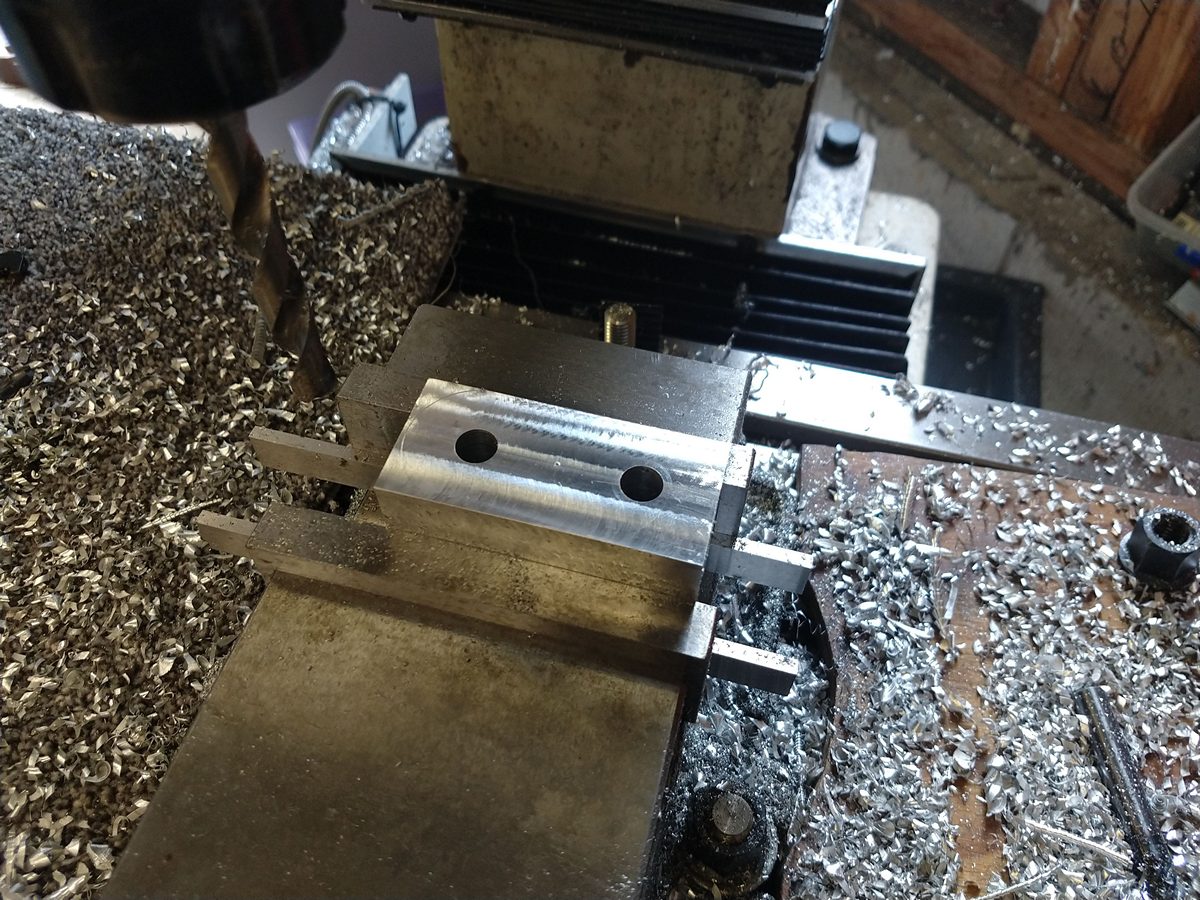

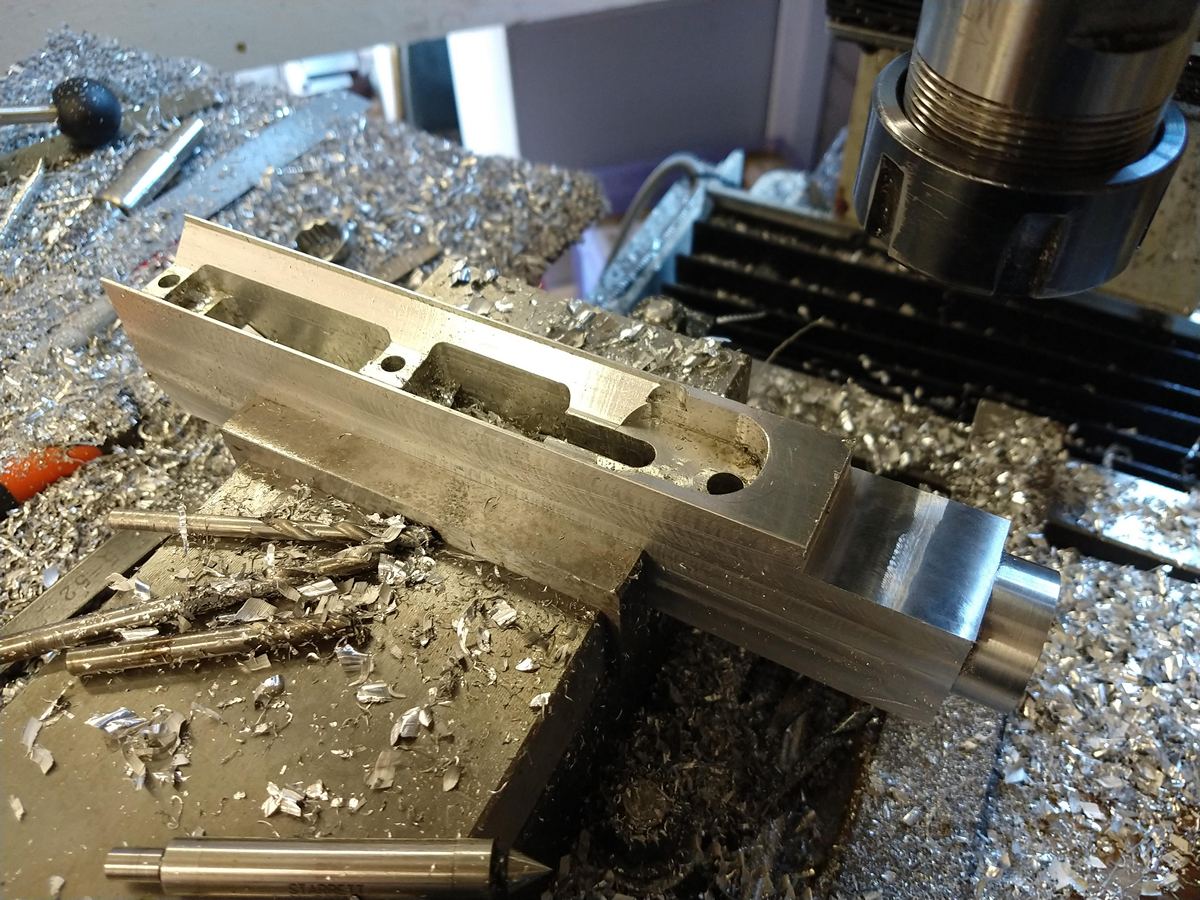

I then moved onto cutting the trigger and magwell pockets, drilling some material out first to reduce the load on the endmill and to allow chips to get out.
Attachment 134377
Attachment 134378
Attachment 134379
Attachment 134380

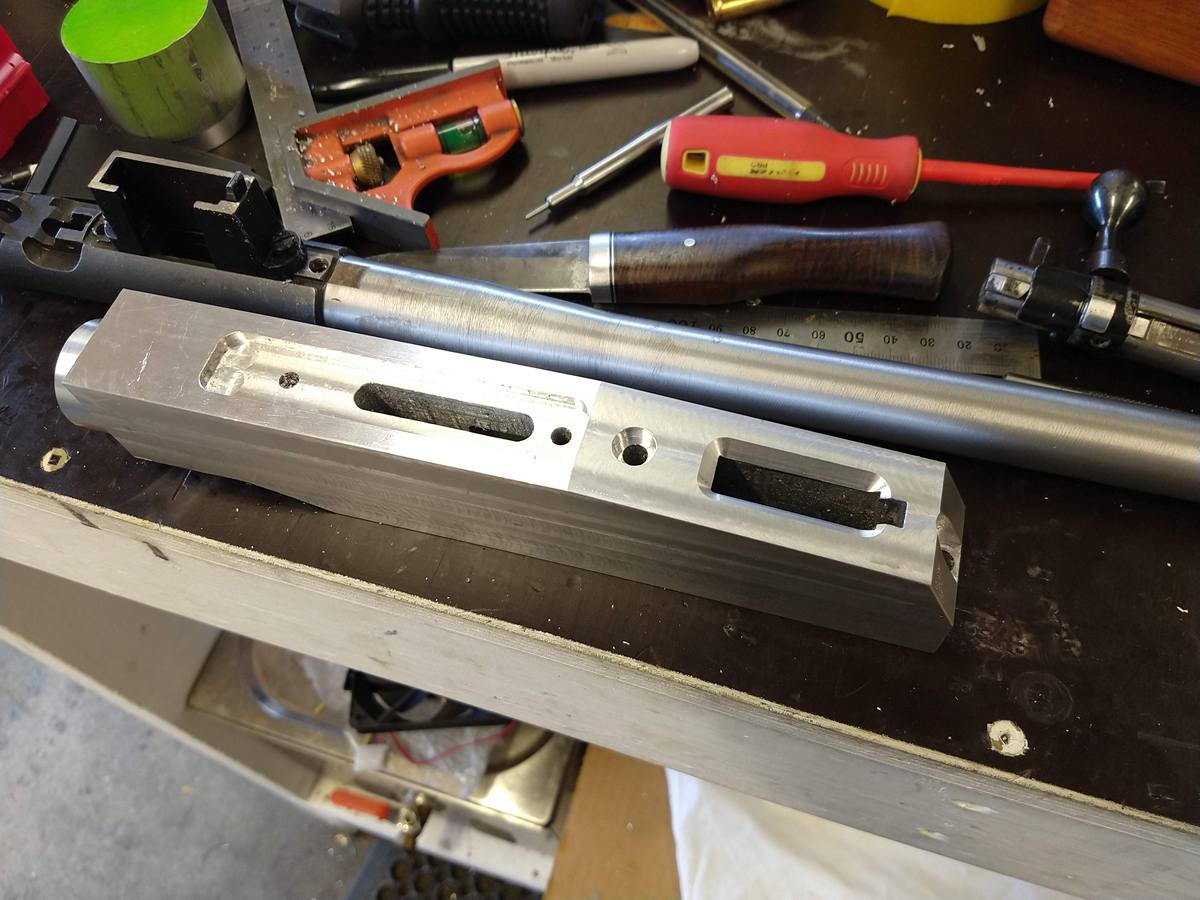

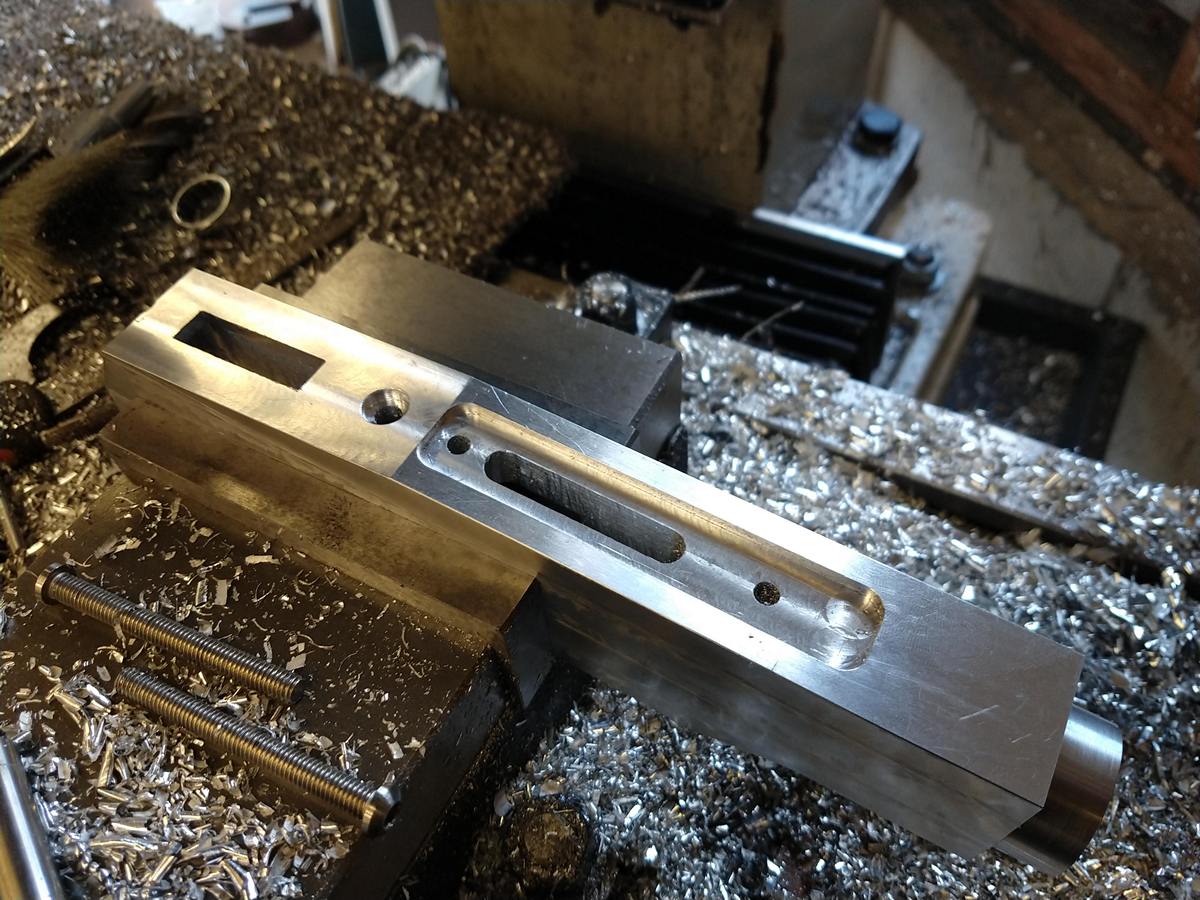

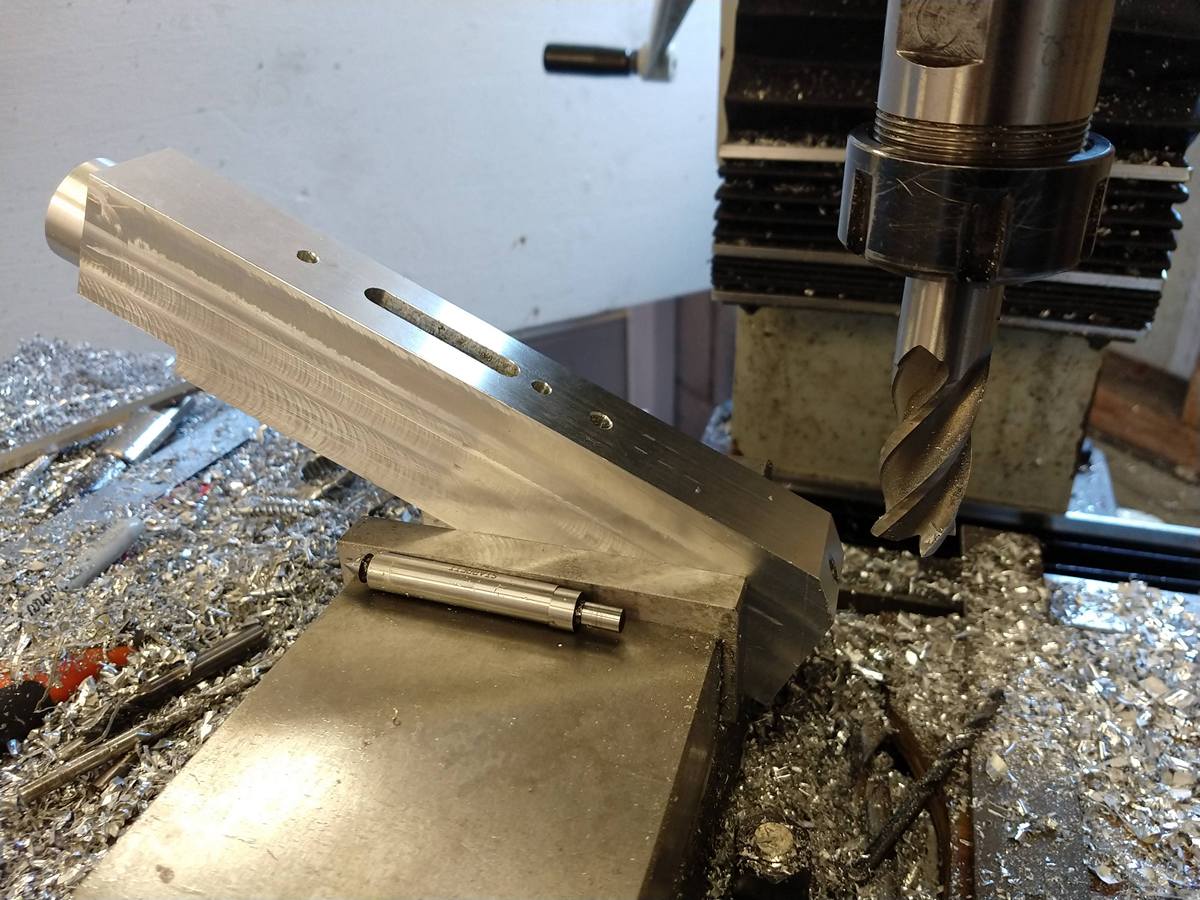

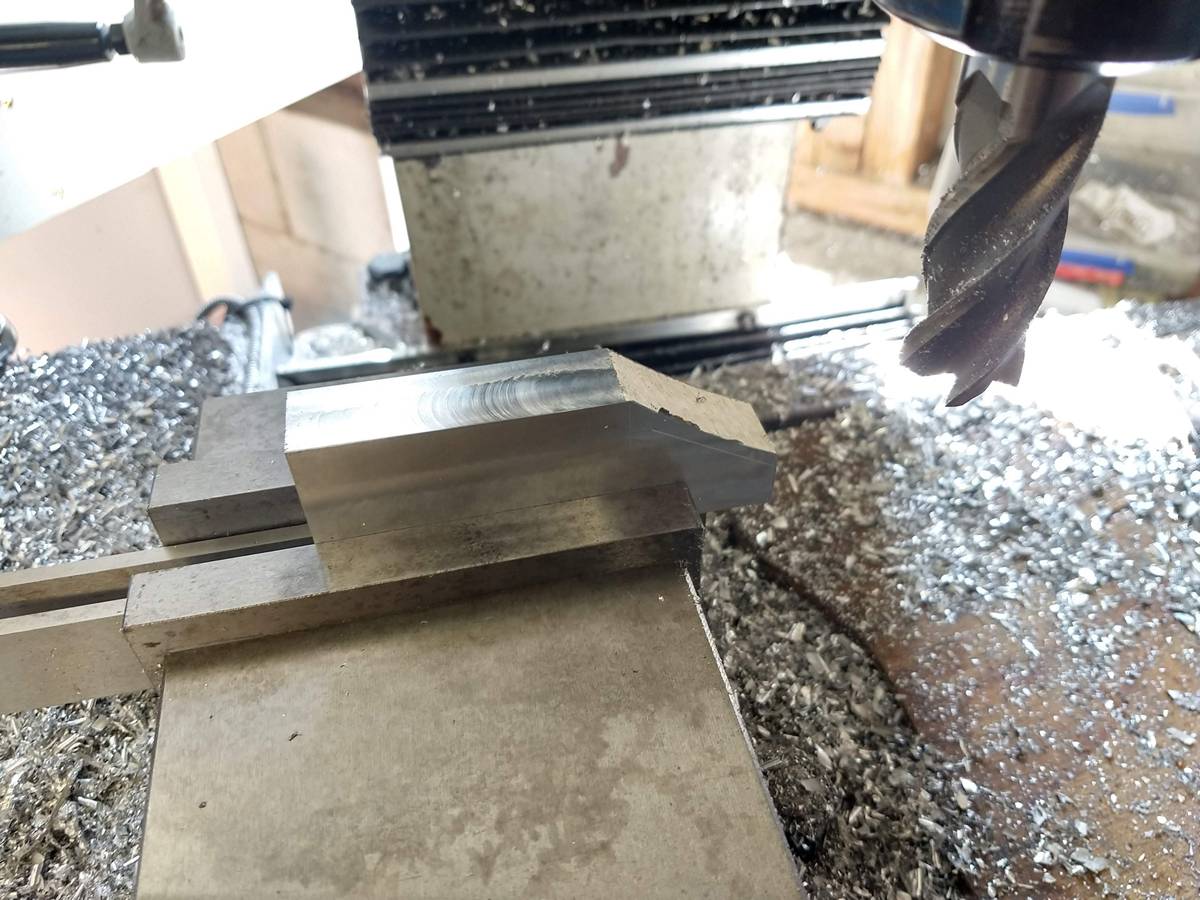

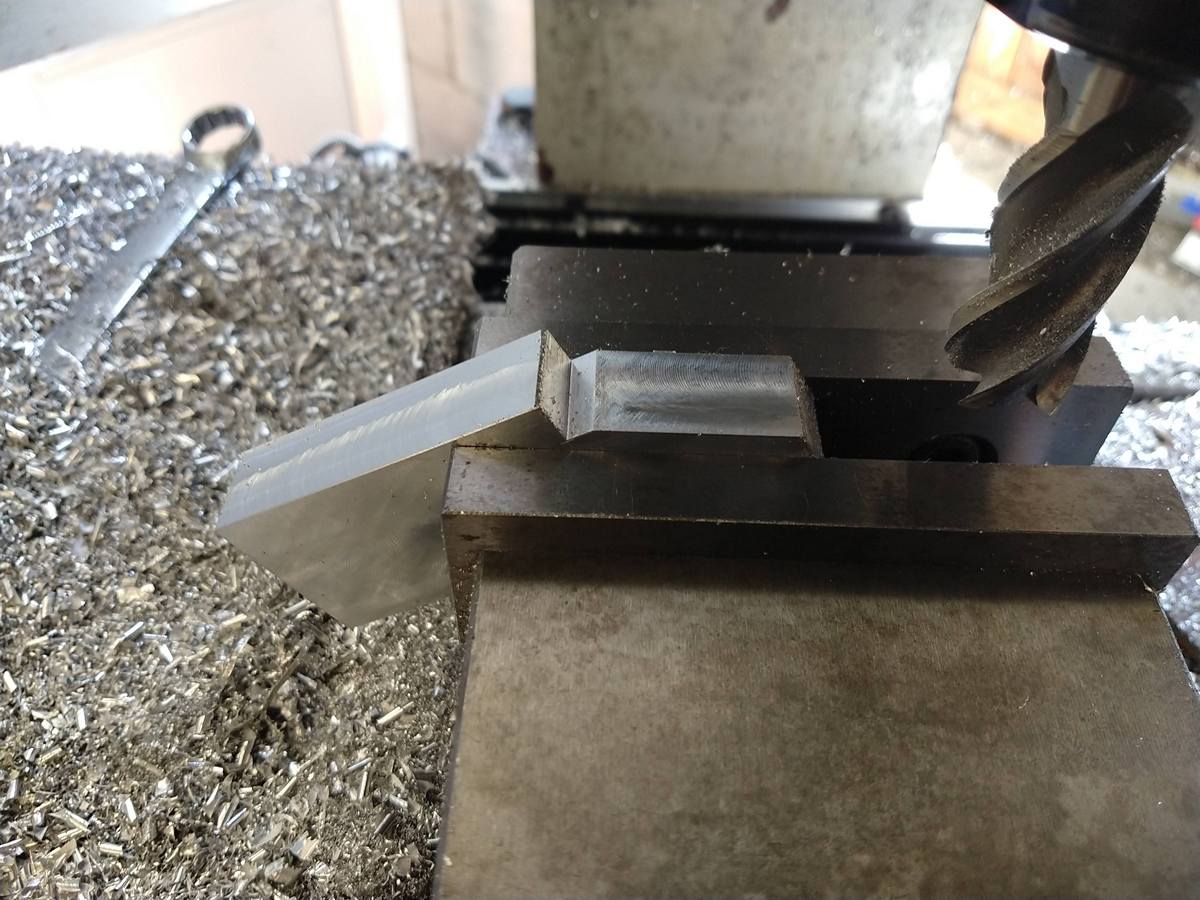

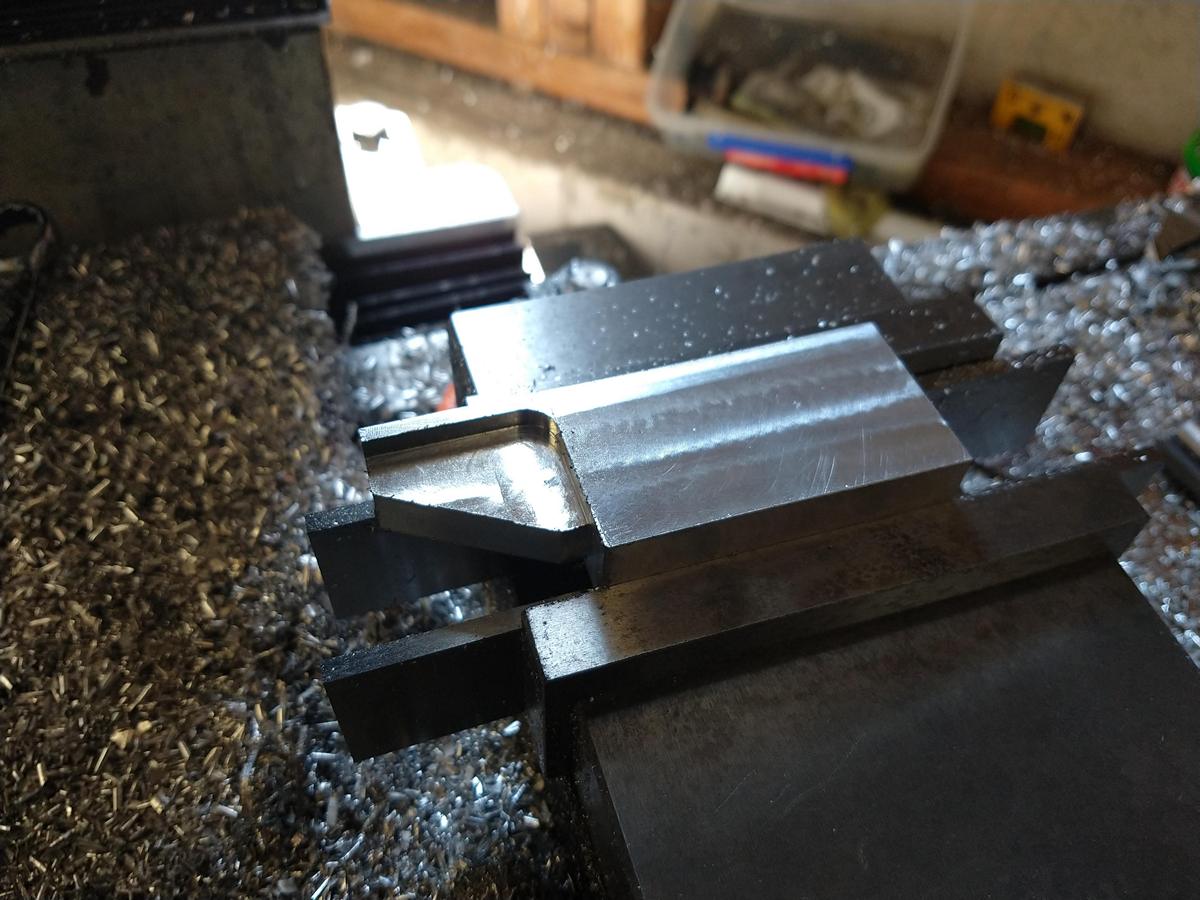

I then cut the various angles and flat surfaces. I designed the chassis specifically to be simple to machine like this.
Attachment 134381
Attachment 134382
Attachment 134383

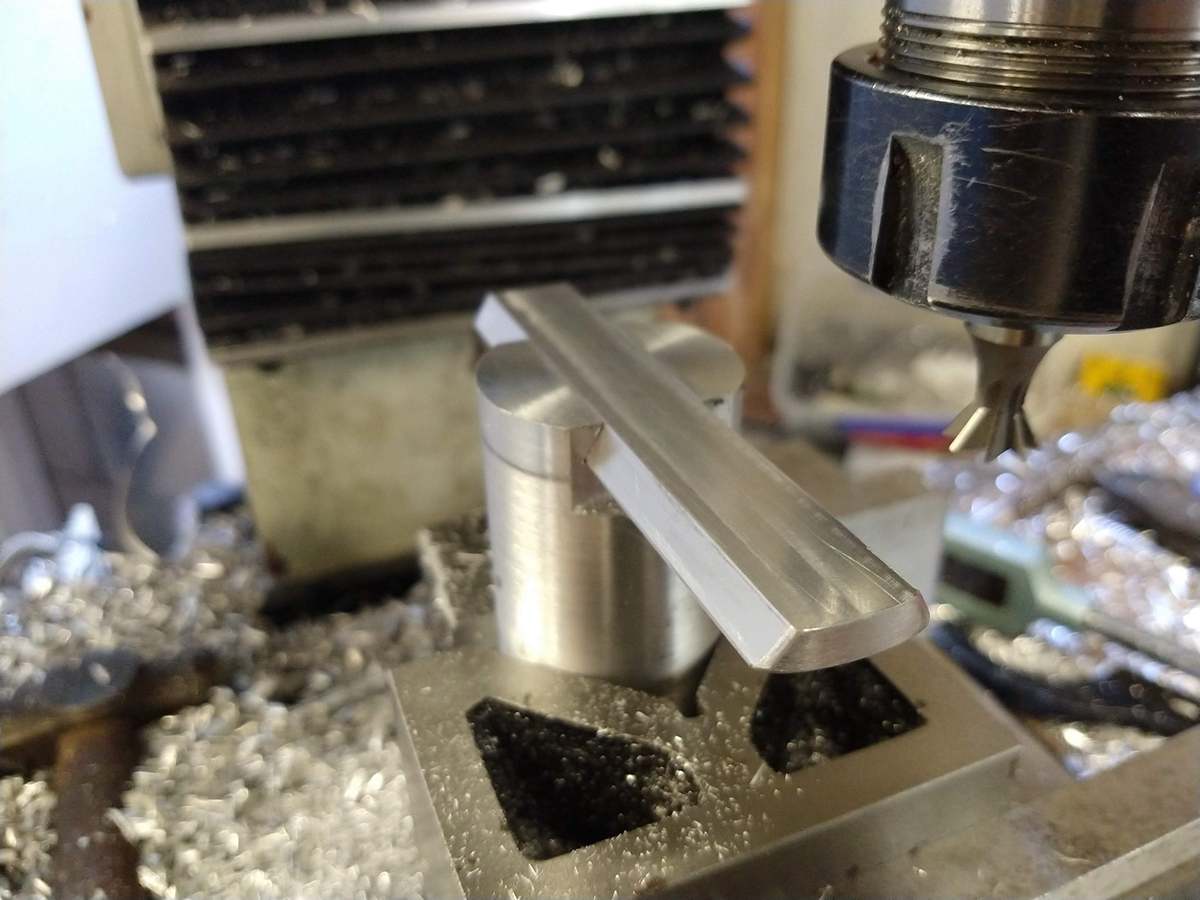

I cut the magwell and trigger guard recess. I put as large a chamfer around the magwell as I could to allow for easy mag changes.

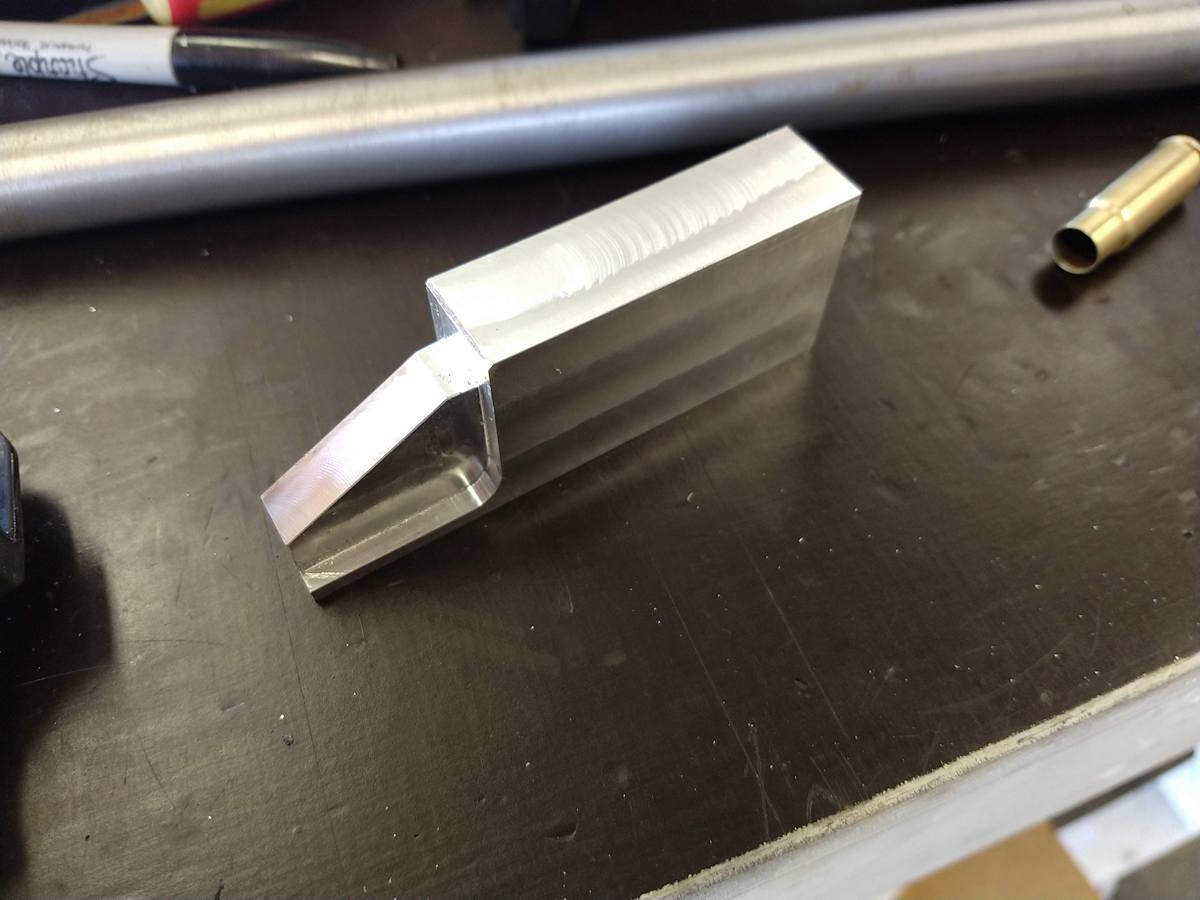

Next was the trigger guard.
Attachment 134384
Attachment 134385
Attachment 134386
Attachment 134387
Attachment 134388
Attachment 134389
Attachment 134390
Attachment 134391
Attachment 134392

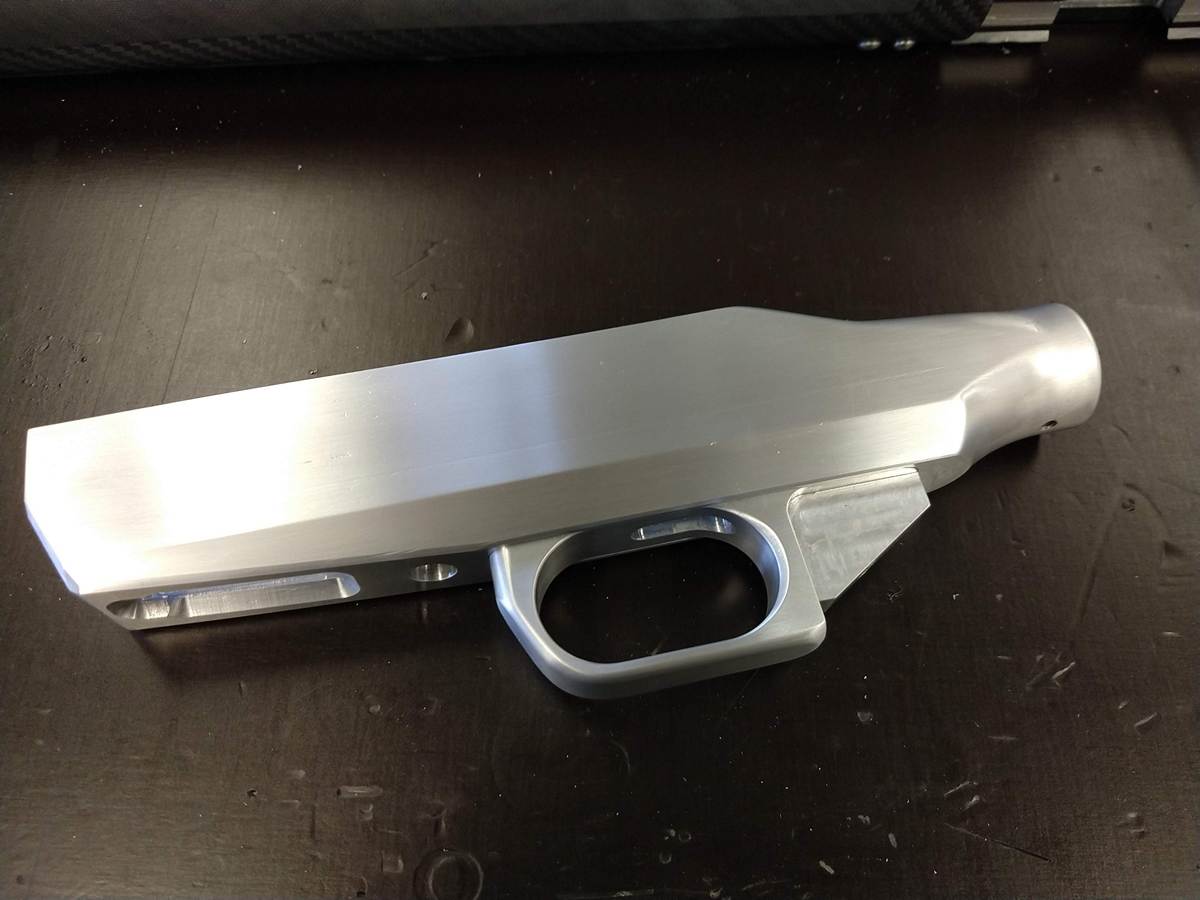

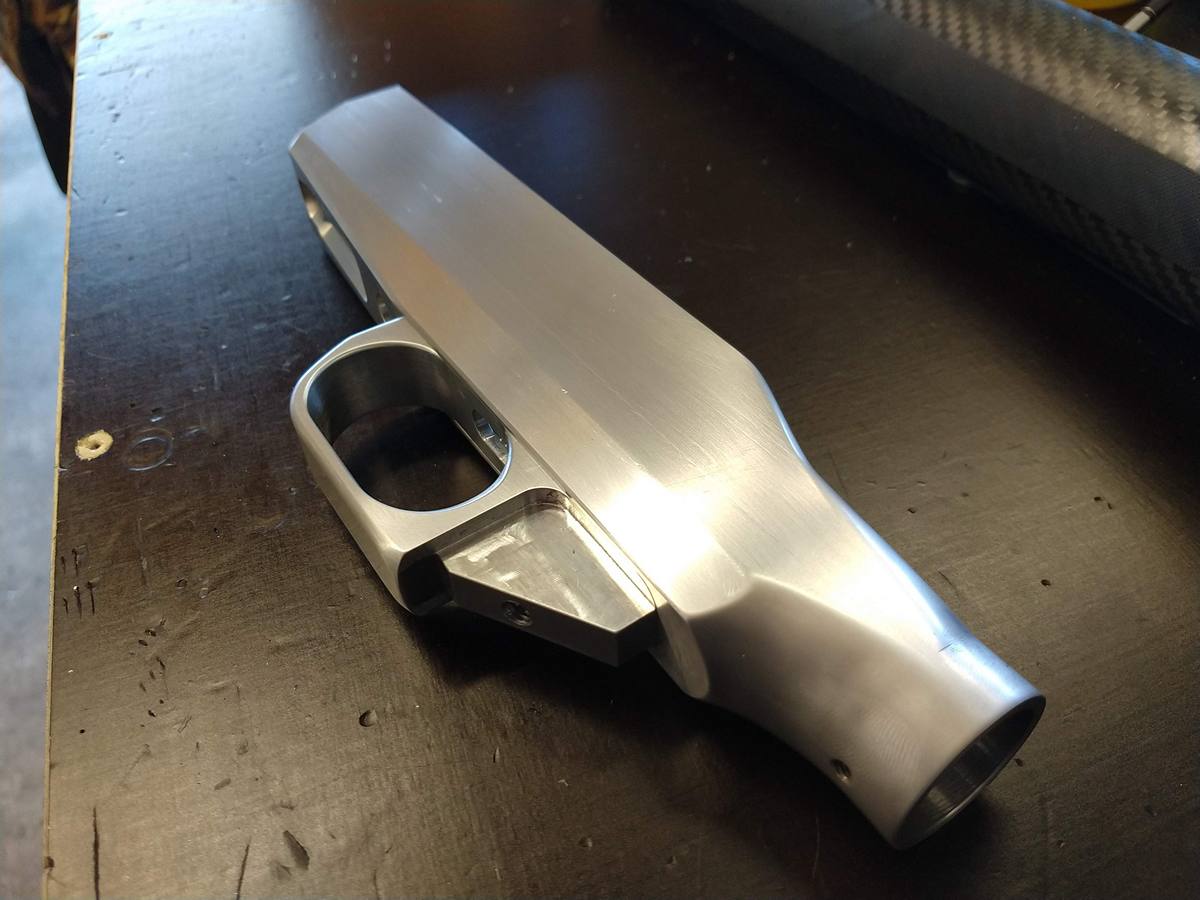

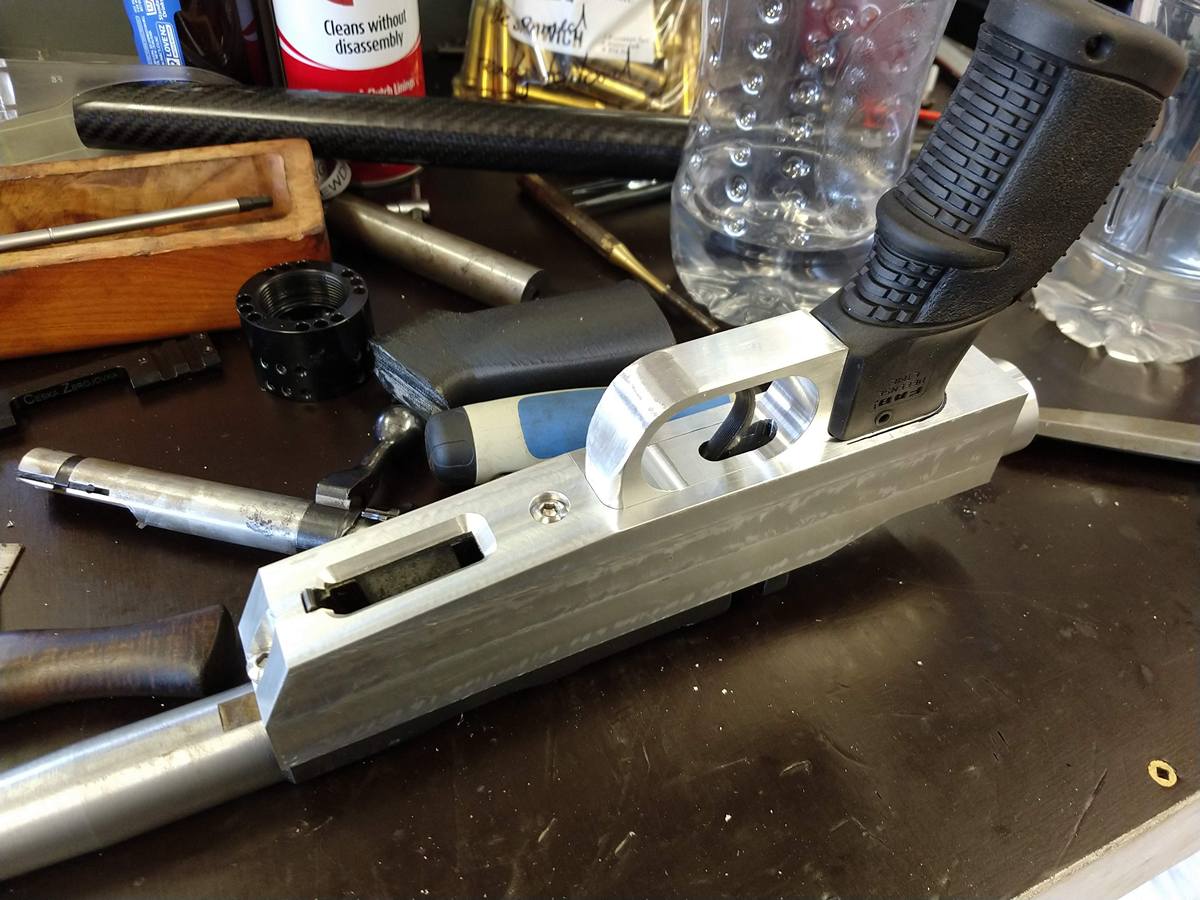

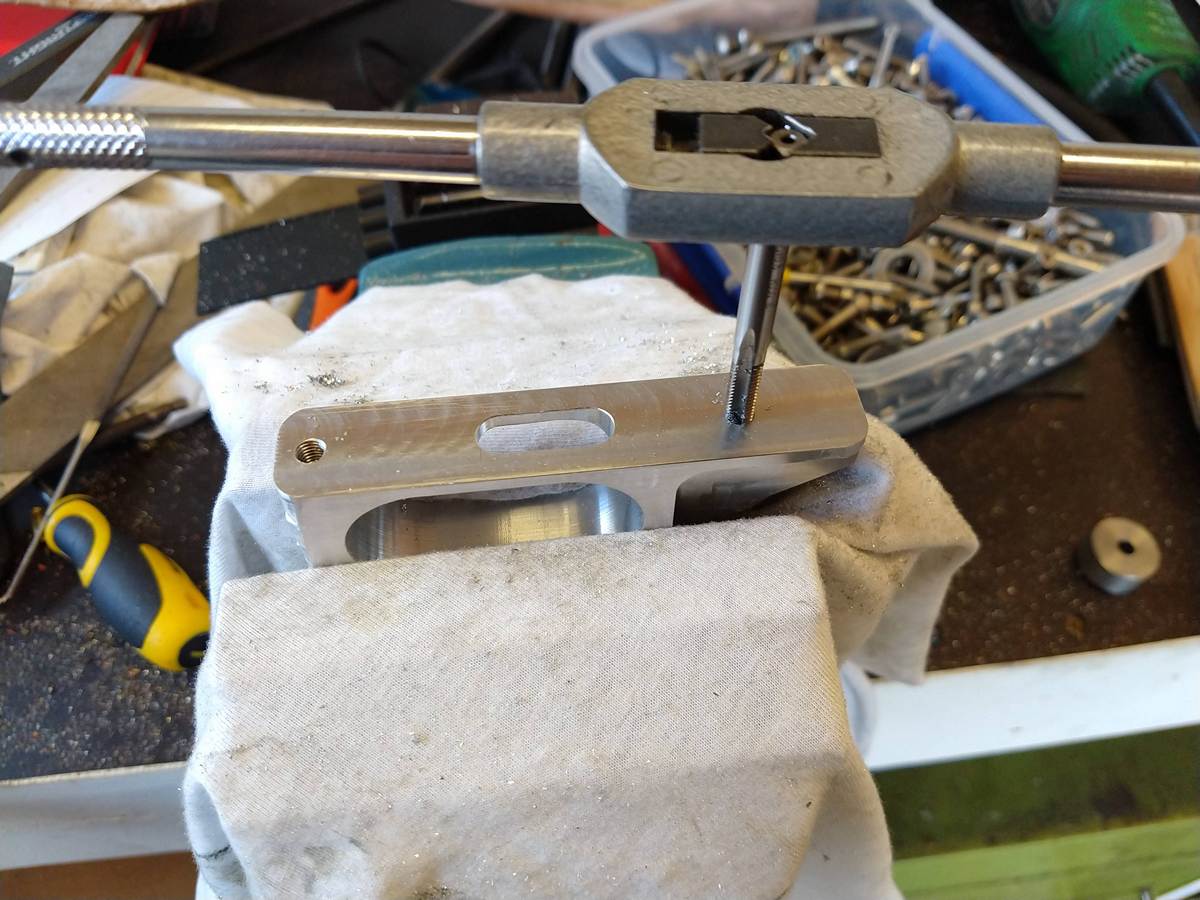

I trigger guard bolts in from the inside as well as being a press fit into the pocket in the chassis block. I thought it came out rather well.
The next stage was to start making the various components that make up the stock.
I am using chinese carbon tube from ebay for the stock connectors, which is actually not bad.
Attachment 134393
Attachment 134394
Attachment 134395
Attachment 134396
Attachment 134397
Attachment 134398

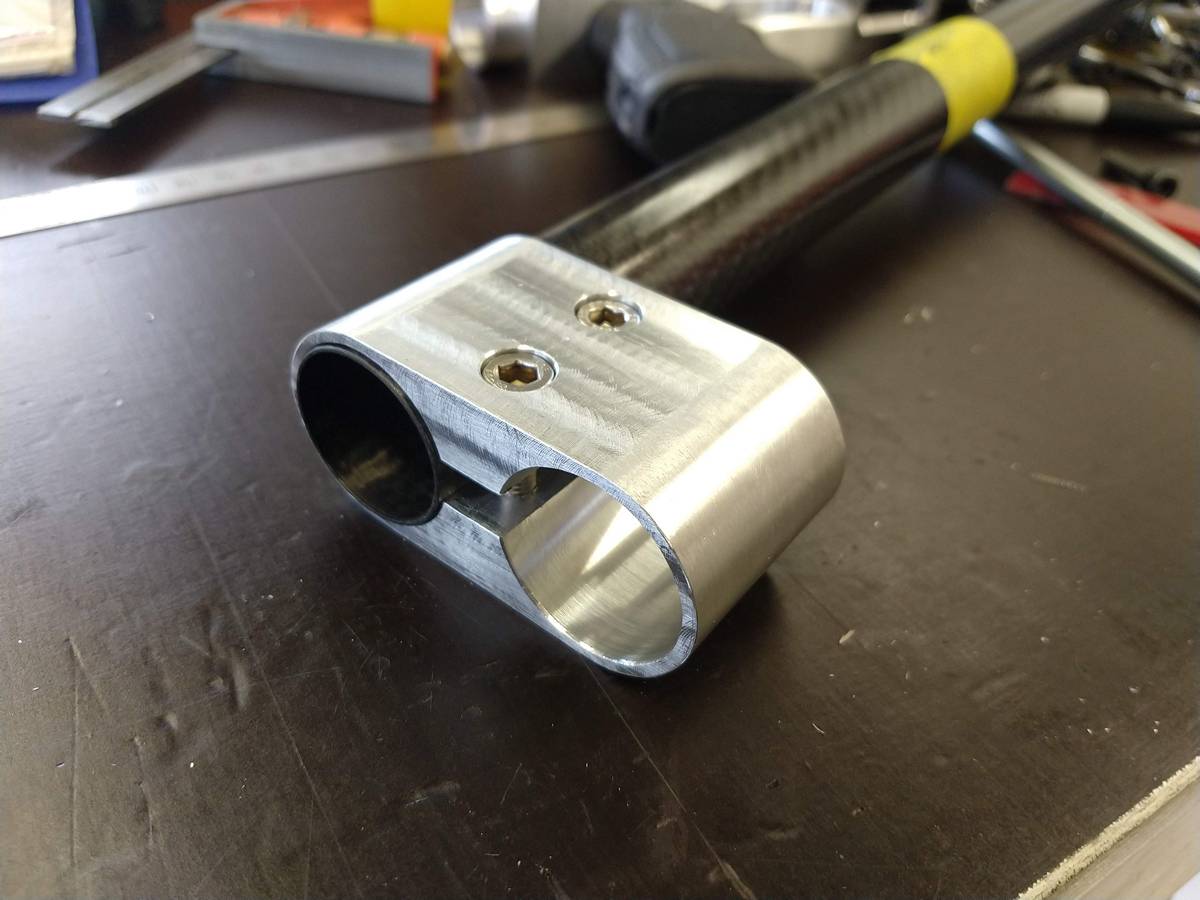

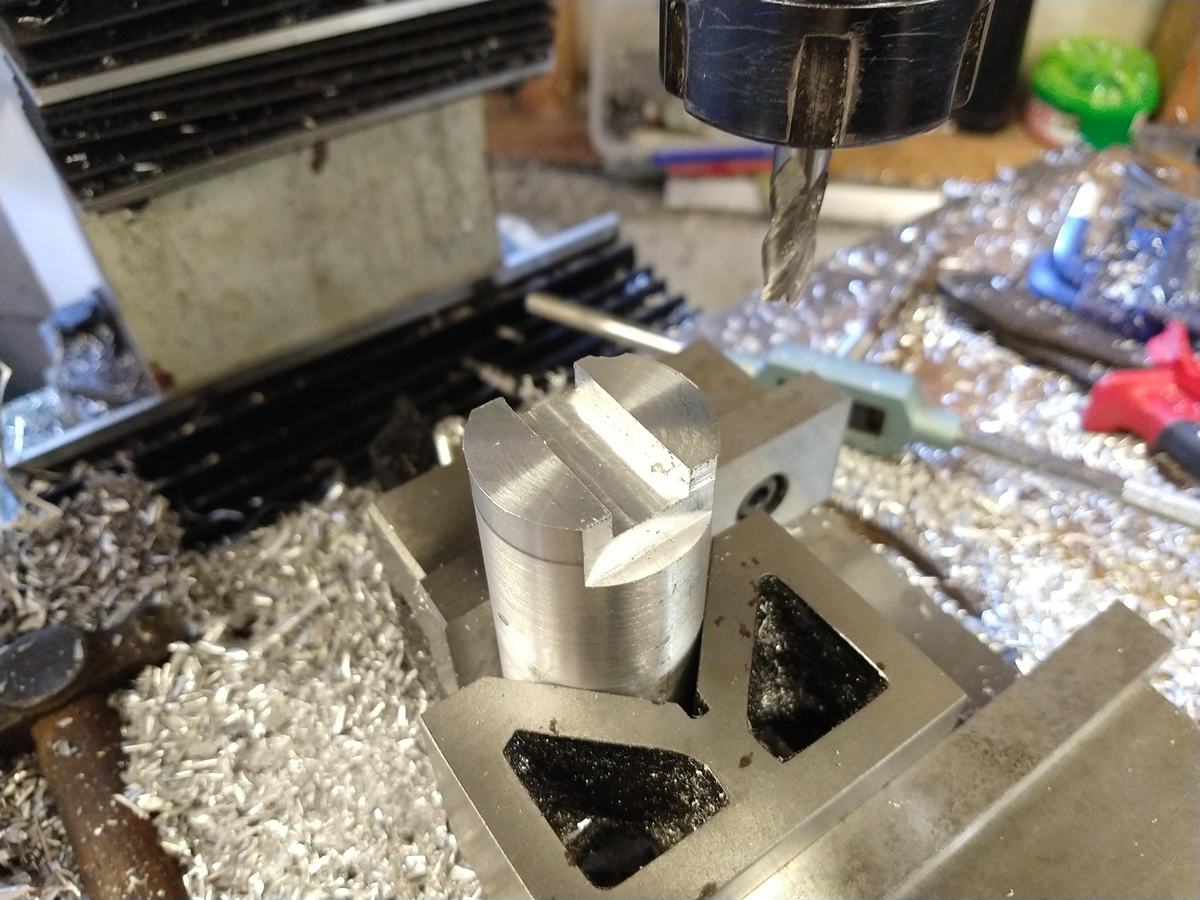

I first made the part that allows adjustment for length of pull, buttstock rotation, as well as cast on/off.

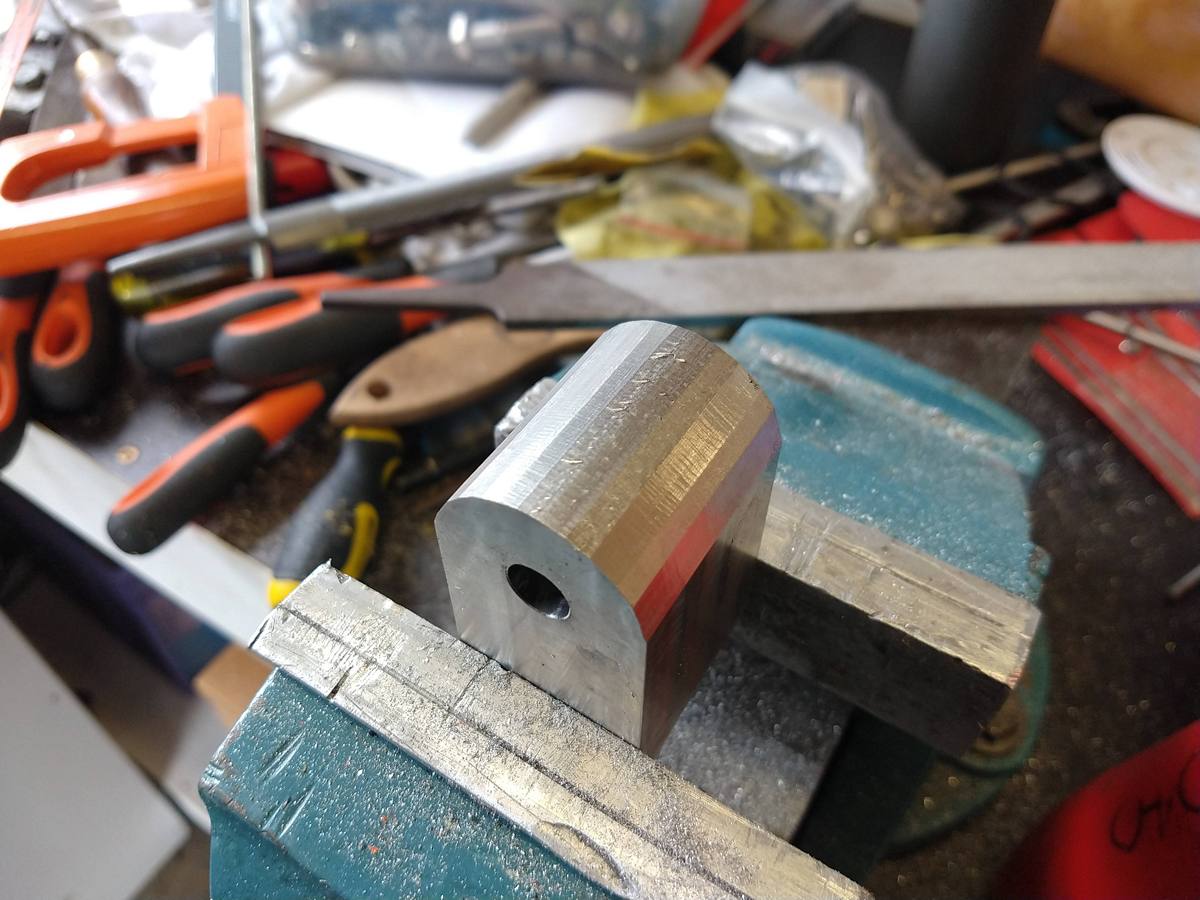

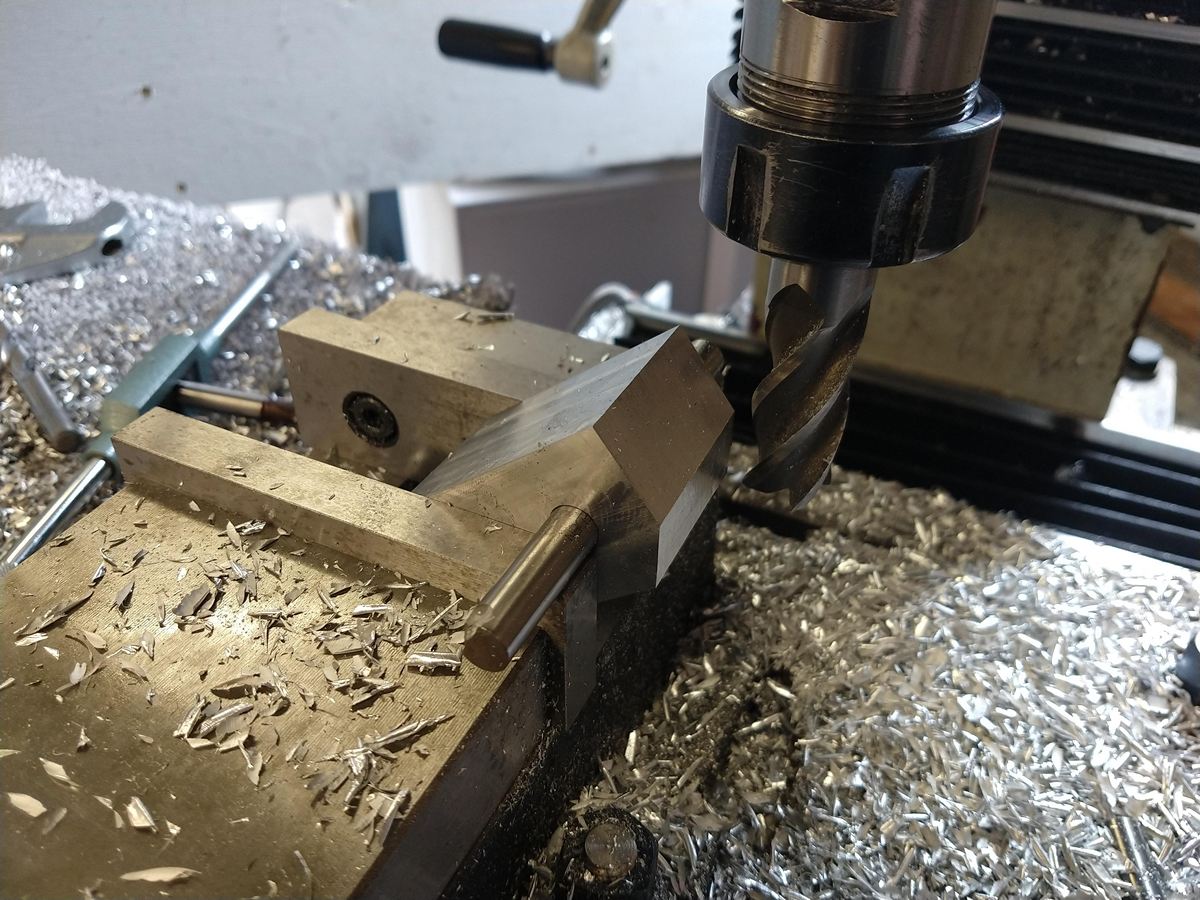

The method of machining the outside radius is very handy for non precision work, saves the hassle of rotary tables and all the clamping joy that goes along with them.

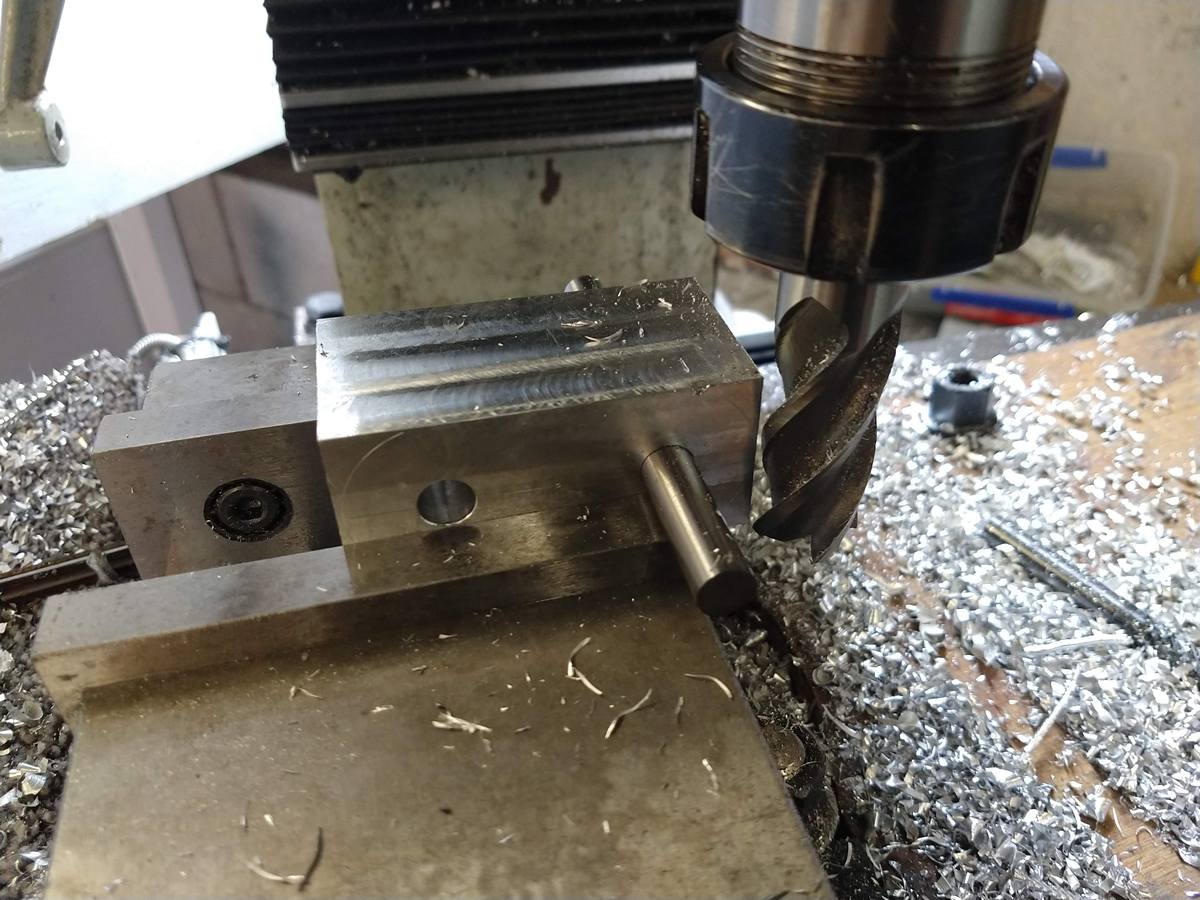

Basically, you drill a center hole to the same diameter for a pin you already have (I think I used 8mm here) and then you line the pin up with the edge of the vice and take a cut, rotate around a small amount, line the pin up again and take a cut. Continue like this until you have something closer to a circle than a square and then finish by hand with files and paper.

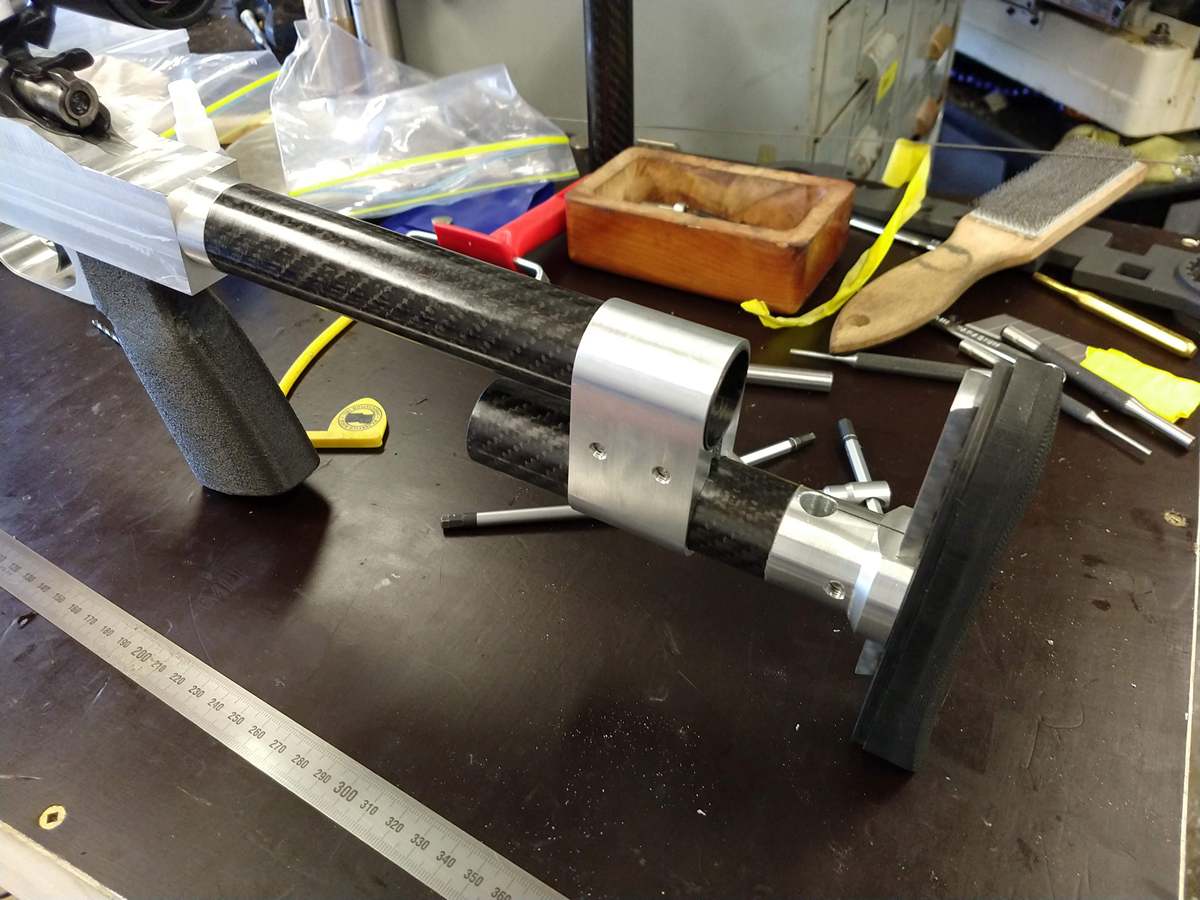

I lost a few photos here so I have to gloss over making the buttpad and clamping block, but basically, there is a dovetail rail bolted to the buttpad and then a matching dovetail clamp allows the buttpad to be adjusted for height.
Attachment 134399
Attachment 134400
Attachment 134409
Attachment 134410

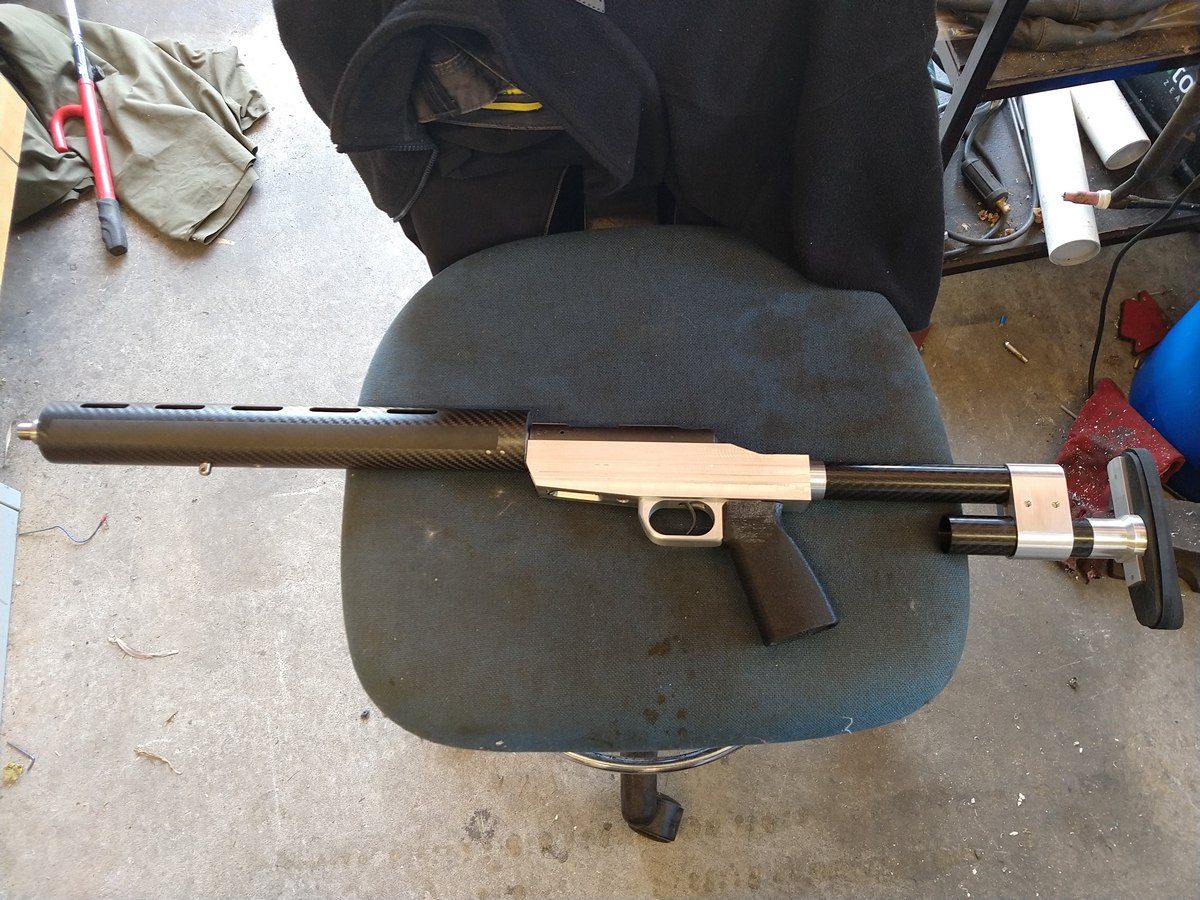

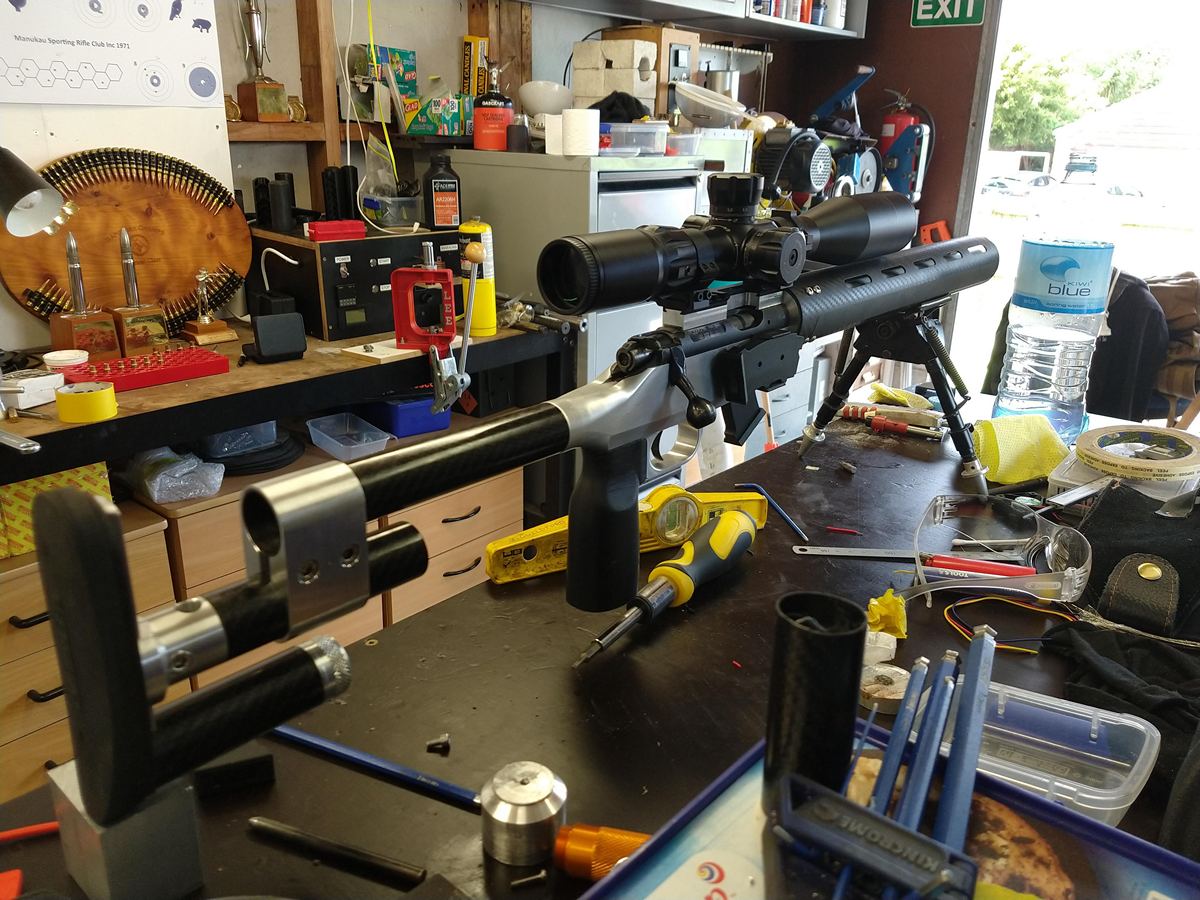

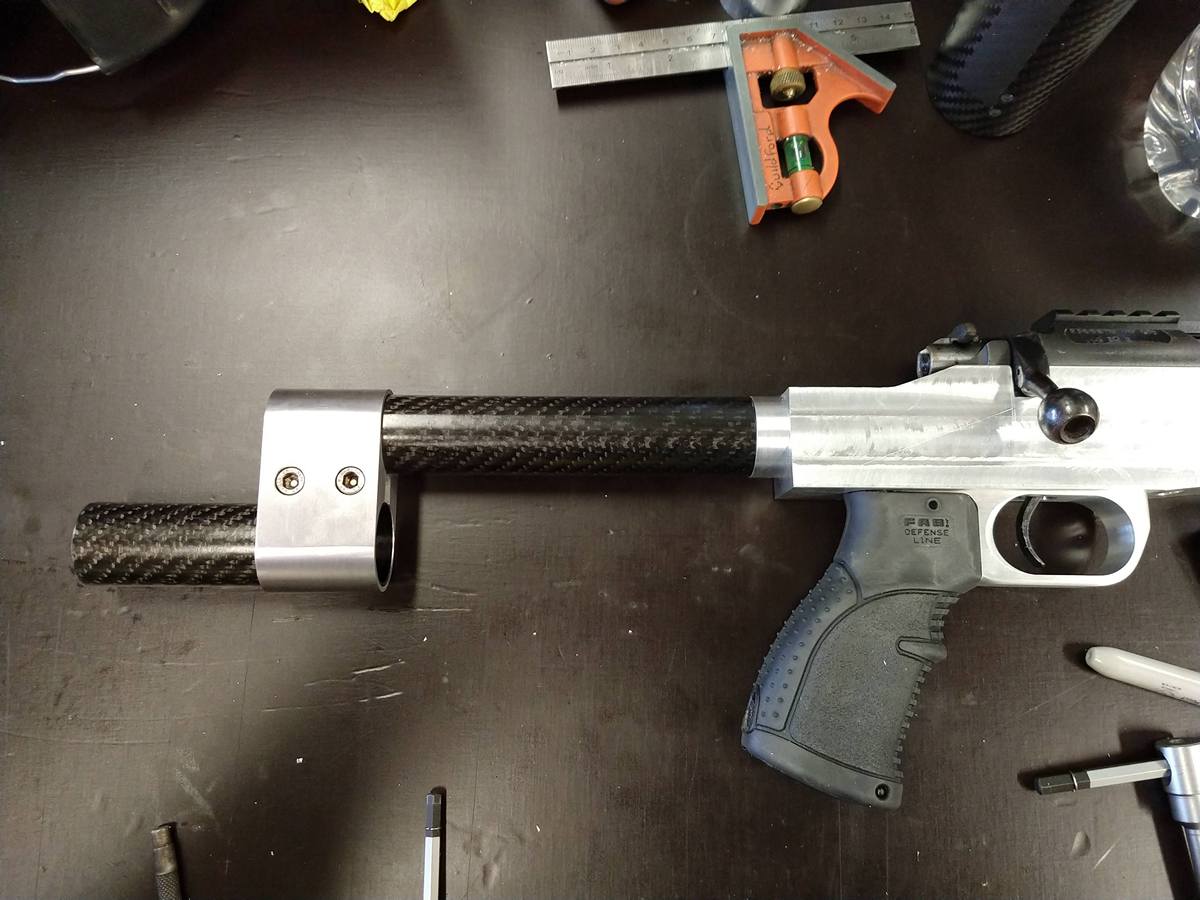

Its starting to look like a rifle. The forend was repurposed from the one I made for my AR-15. The forend bolts to a "barrel nut" that is simply held onto the barrel using a couple of grub screws (thanks Wingman for the idea)
Attachment 134411

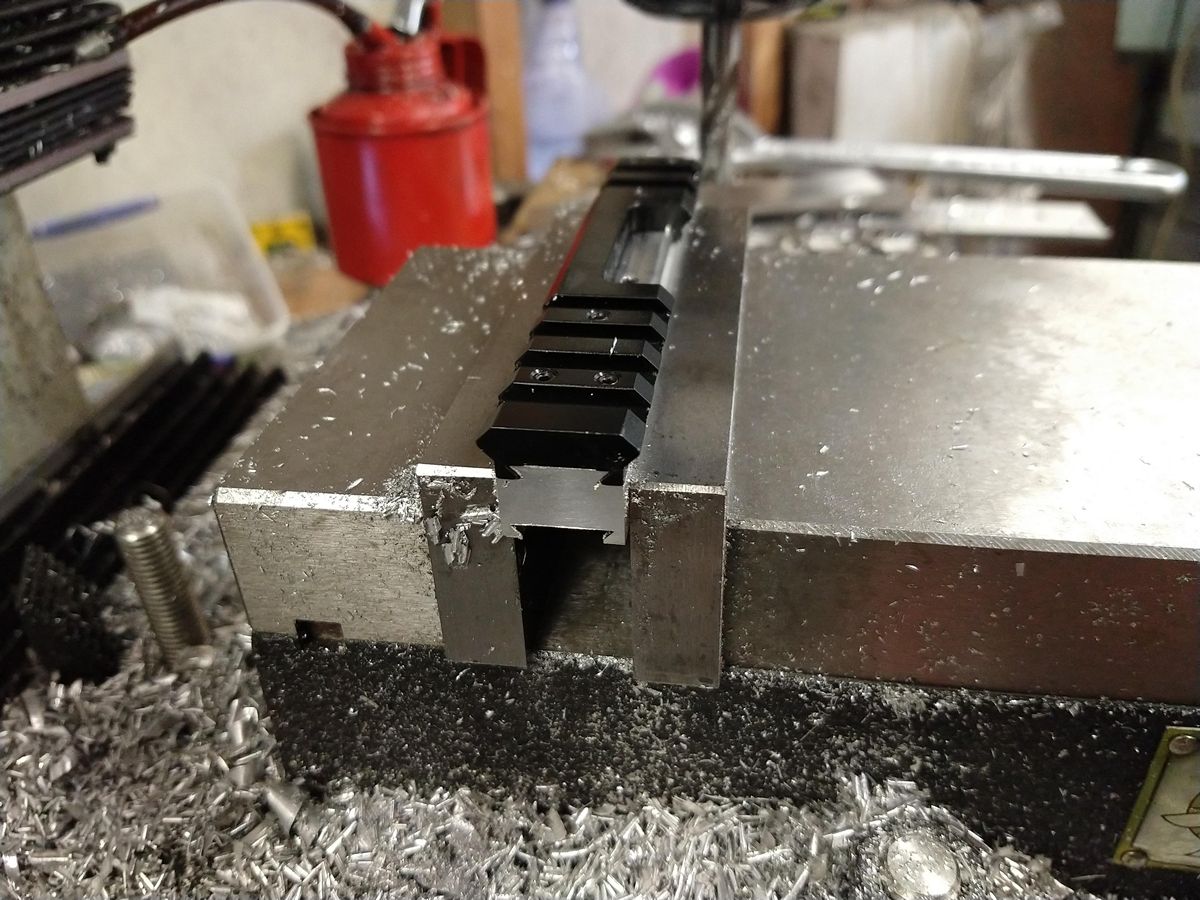

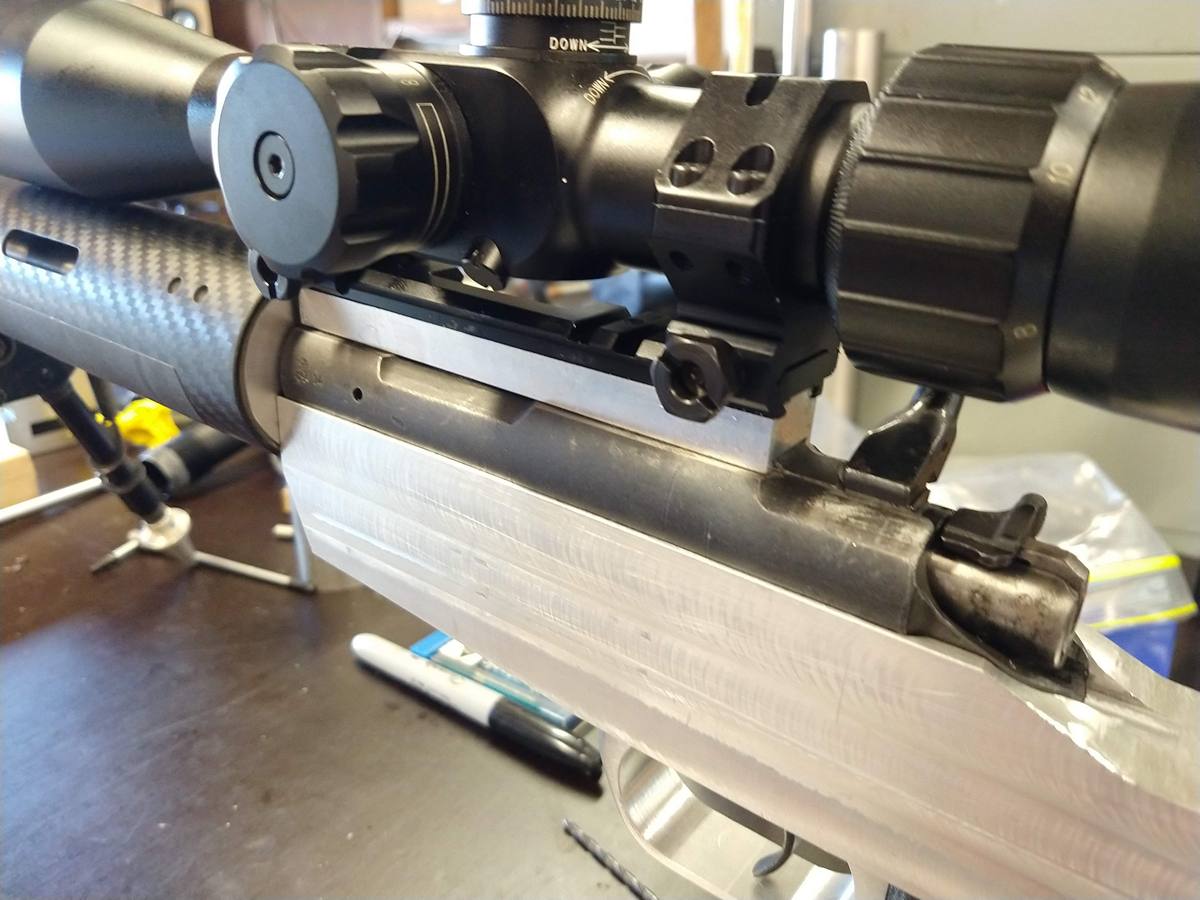

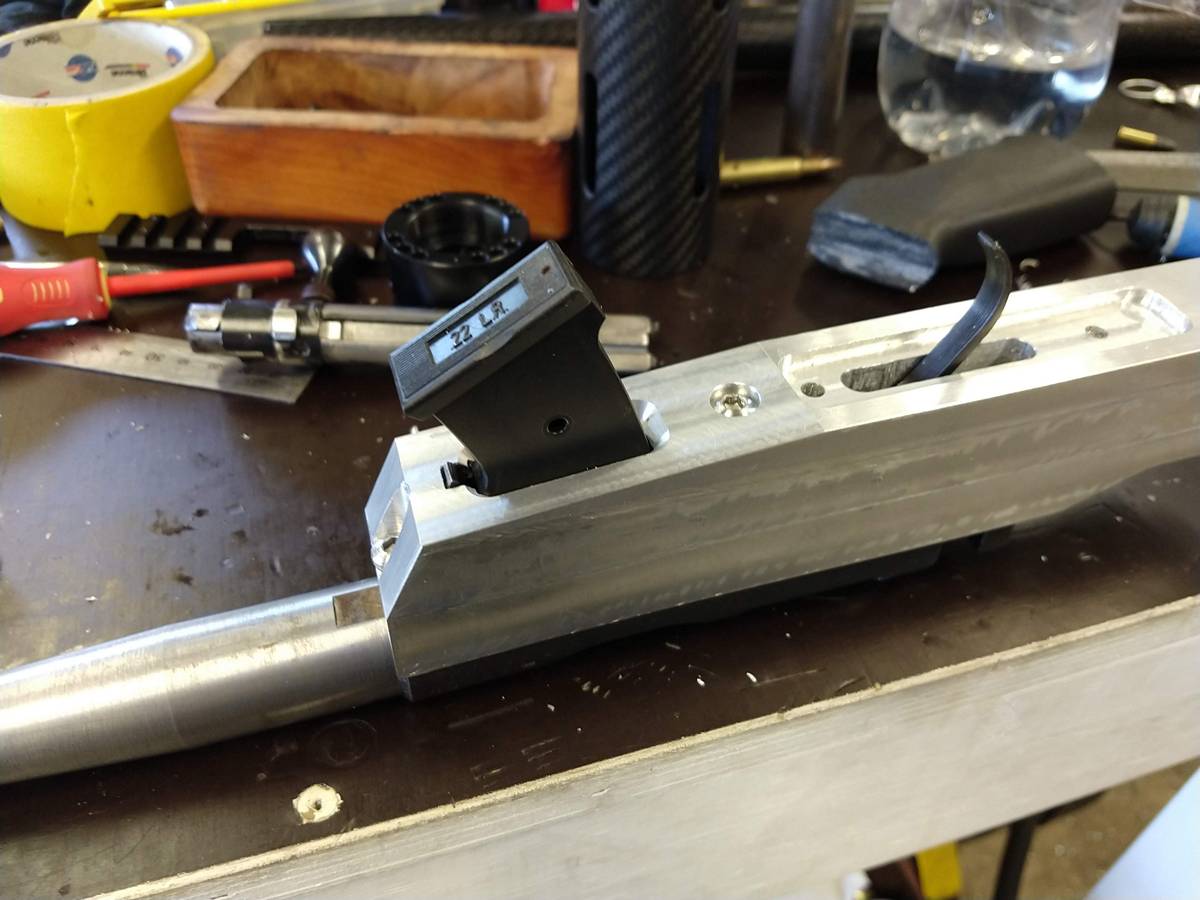

Once I had it mocked up, I could work out the height I would require for the rail riser so that I could use standard height rings rather than having to source new rings.
Attachment 134412
Attachment 134413

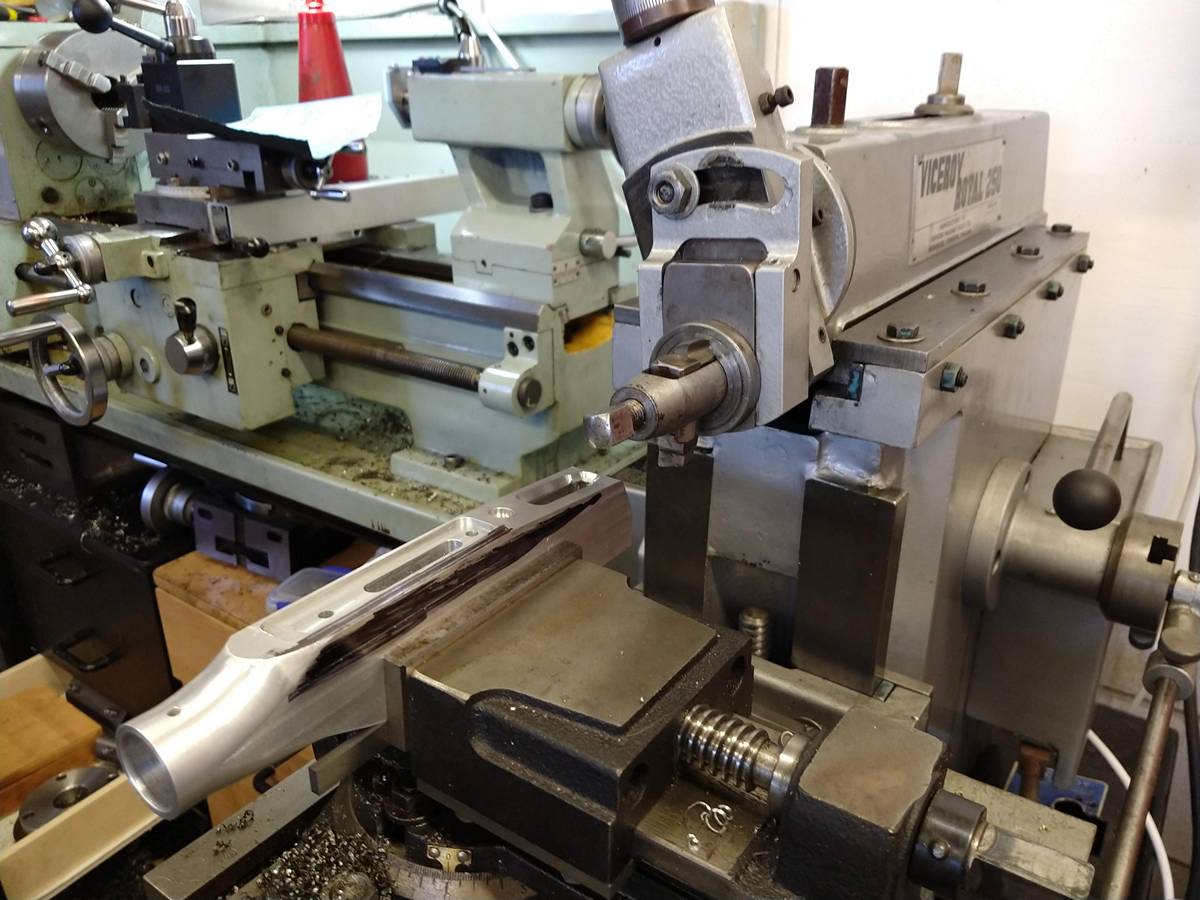

From here it was just a bunch of contouring and finishing to get everything looking professional.
My plan was to paint the aluminium parts with FDE duracoat but once I had it all assembled I decided I really liked the satin aluminium/carbon look.
Attachment 134414
Attachment 134415
Attachment 134416

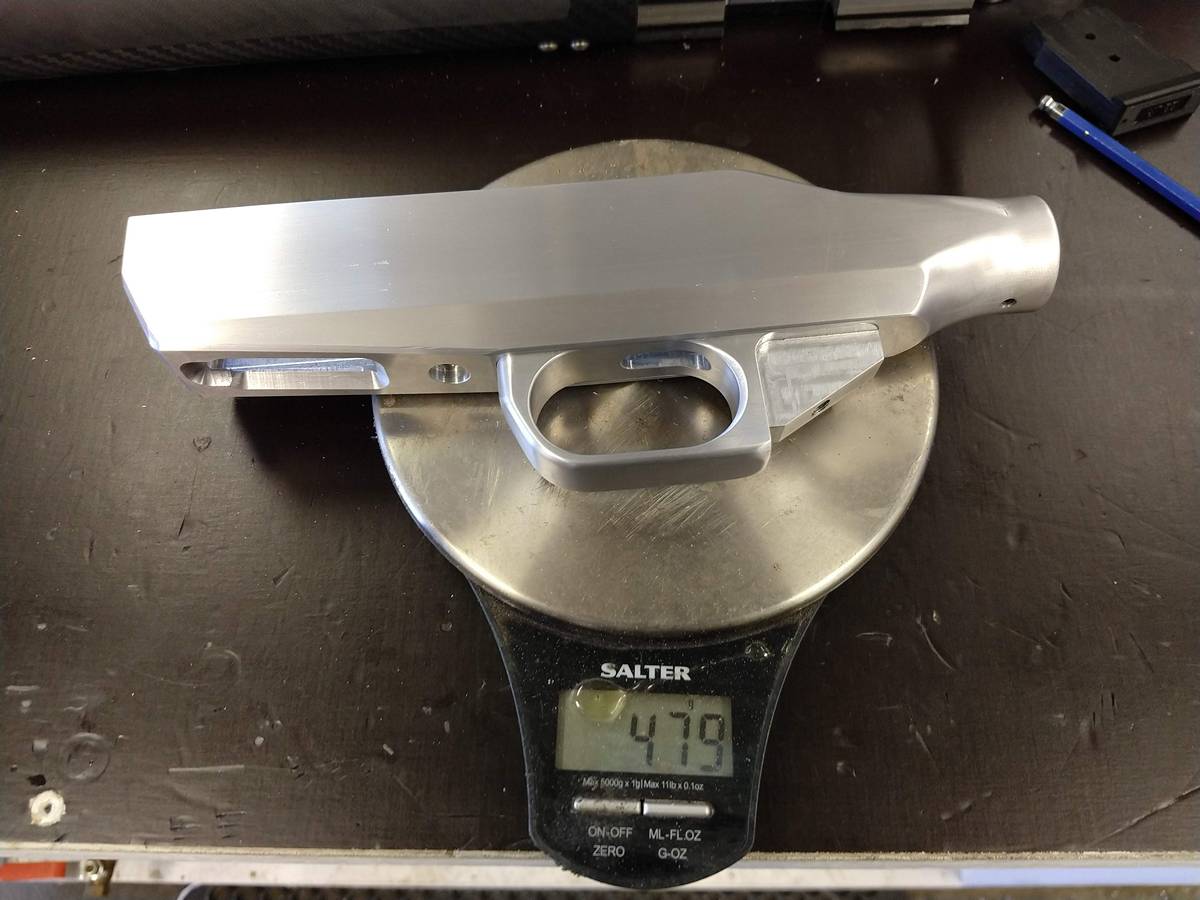

All polished and ready to go. It came out a little heavier than I would have liked, but this is a target rifle, so a little weight is not a bad thing.
Attachment 134417
Attachment 134418

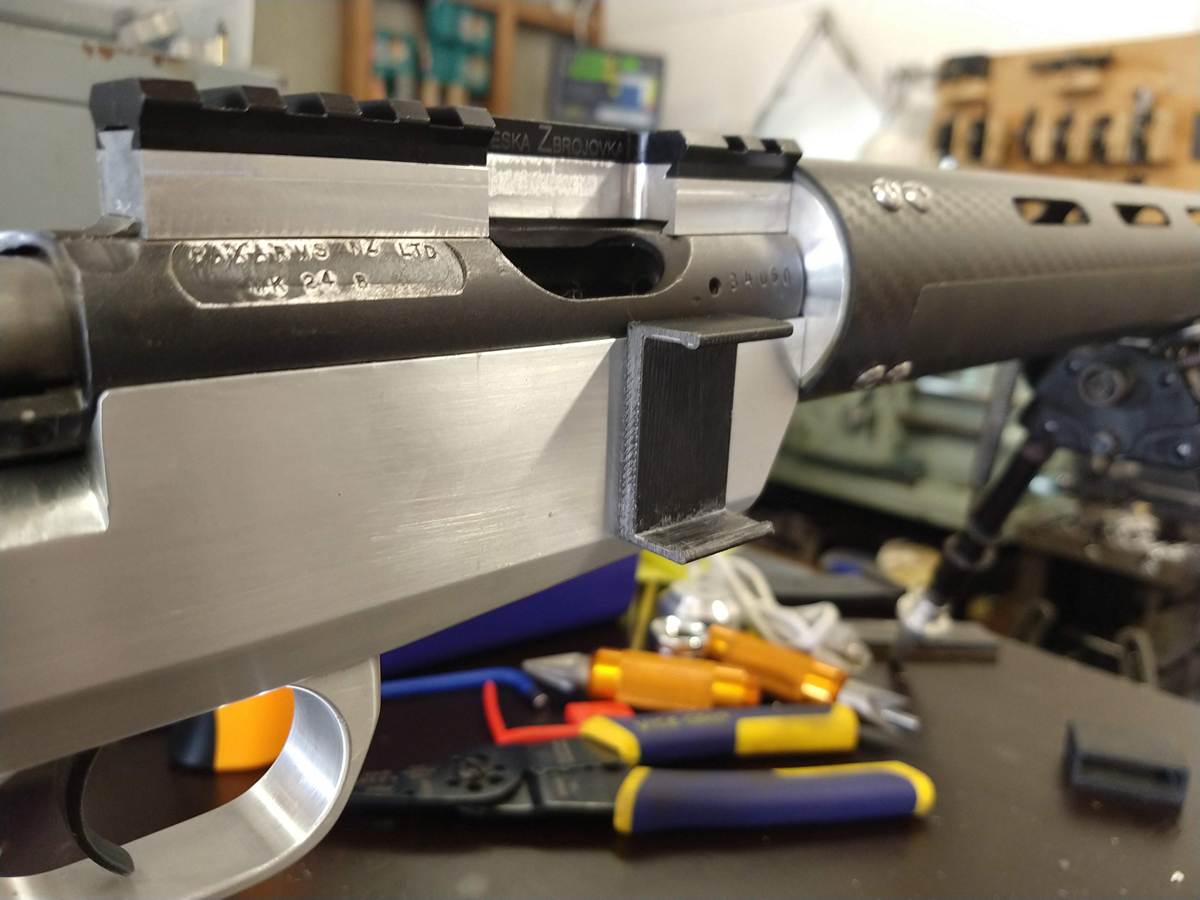

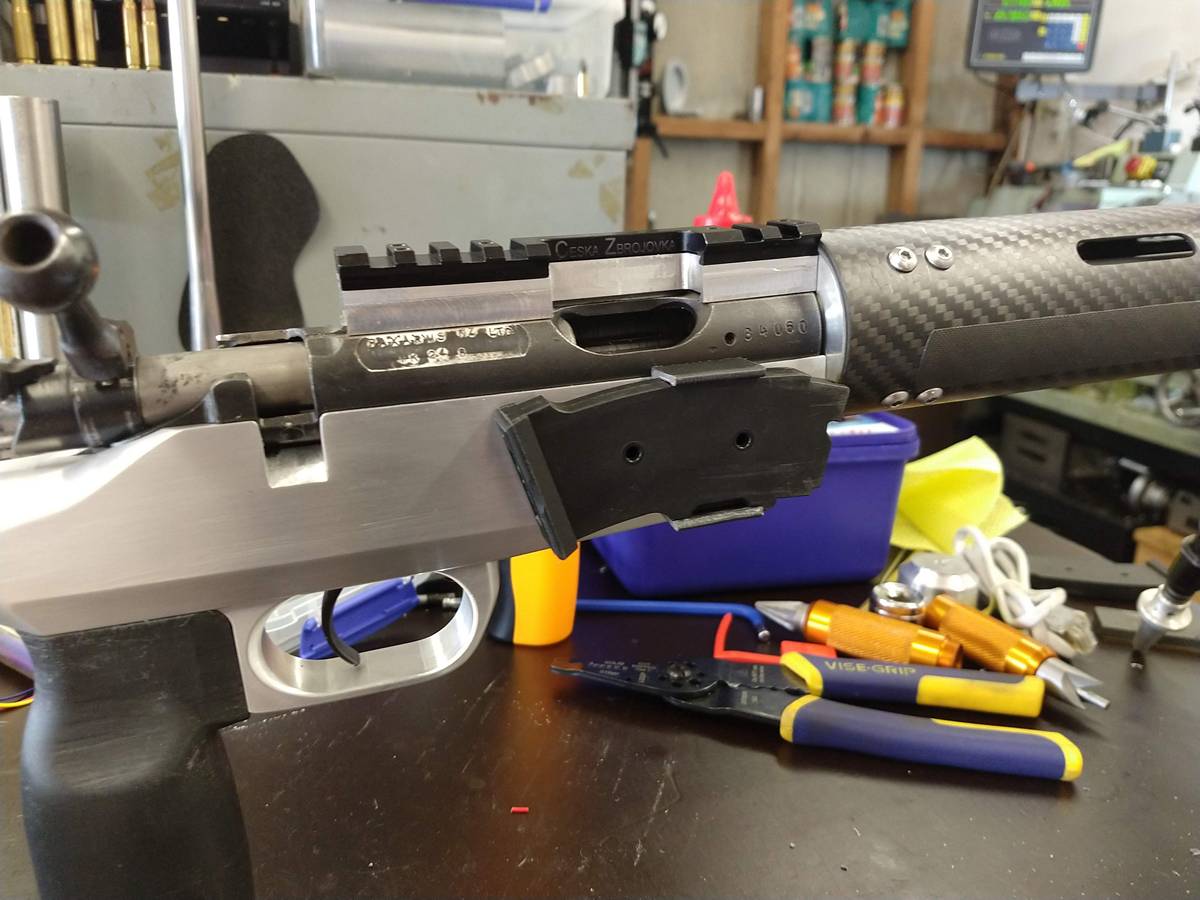

I had the idea to 3D print a small clip for a spare magazine. It is just double sided taped to the chassis and it works great.
Attachment 134419
Almost finished, just a cheek riser and some finishing work to go.
Attachment 134420

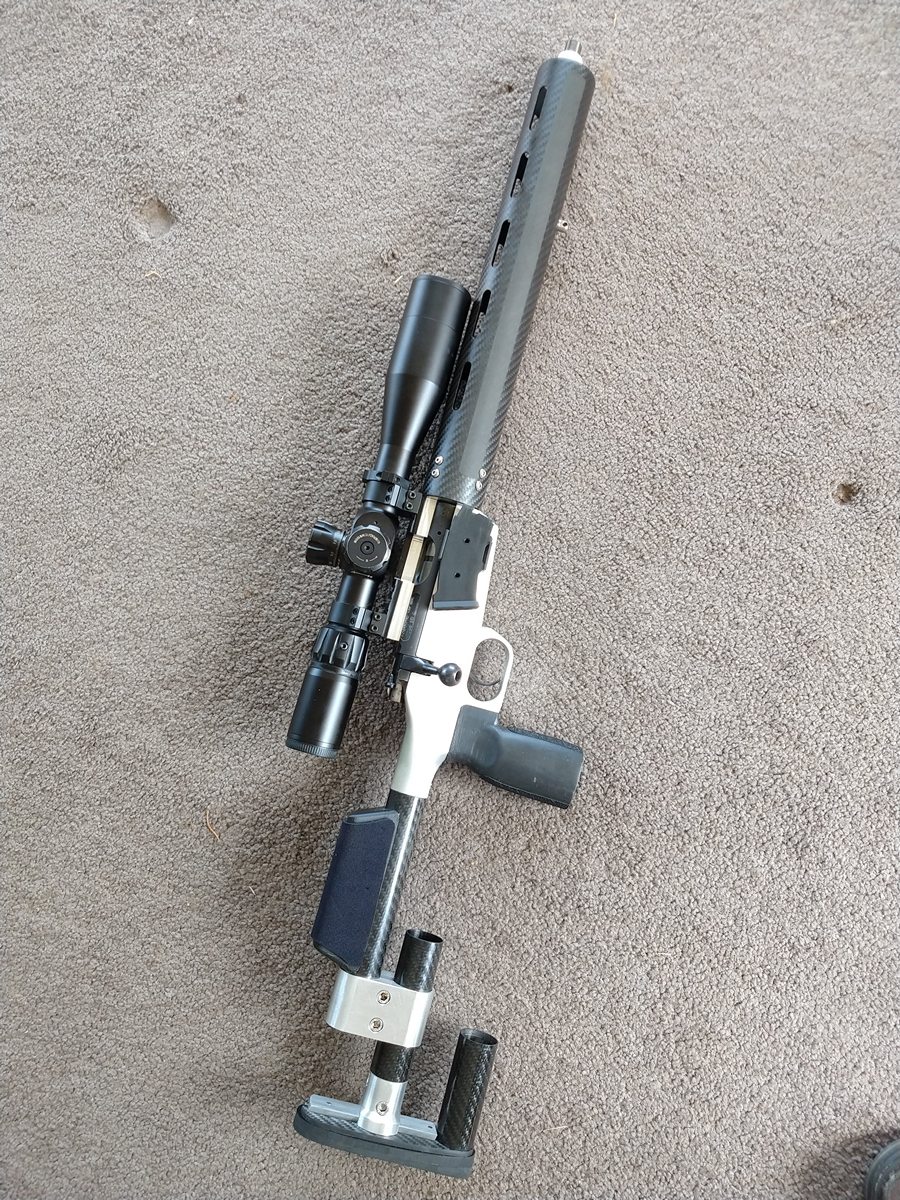

Done.
I had a competition coming up quickly that I wanted to shoot this rifle at and I did not have a cheek riser, so I 3d printed one and glued some neoprene to it, then double sided taped that to the stock, just to get me through the comp.
It worked really well and I have not changed it since.
The pistol grip is also 3D printed. It took me about 8 different designs to get the shape I wanted and im really happy with it now. I am planning to do a write up on how I made the pistol grips as I think people will be interested and it is quite simple.
I have been shooting this for a couple of months now and am very happy. It has become my go-to 22. Playing around with the adjustable stock allowed me to stabilize a couple of positions and having a vertical pistol grip really helps with sitting and kneeling positions. The extra weight in the barrel and round forend has also improved my standing shooting quite a bit. I still need to experiment with ammo for long range accuracy as CCI Std is not stellar at 100m.
Thanks for reading.
