Thread: Forge

  1. #1
    Member
    Join Date
    Feb 2016
    Location
    Bombay
    Posts
    1,042

    Forge

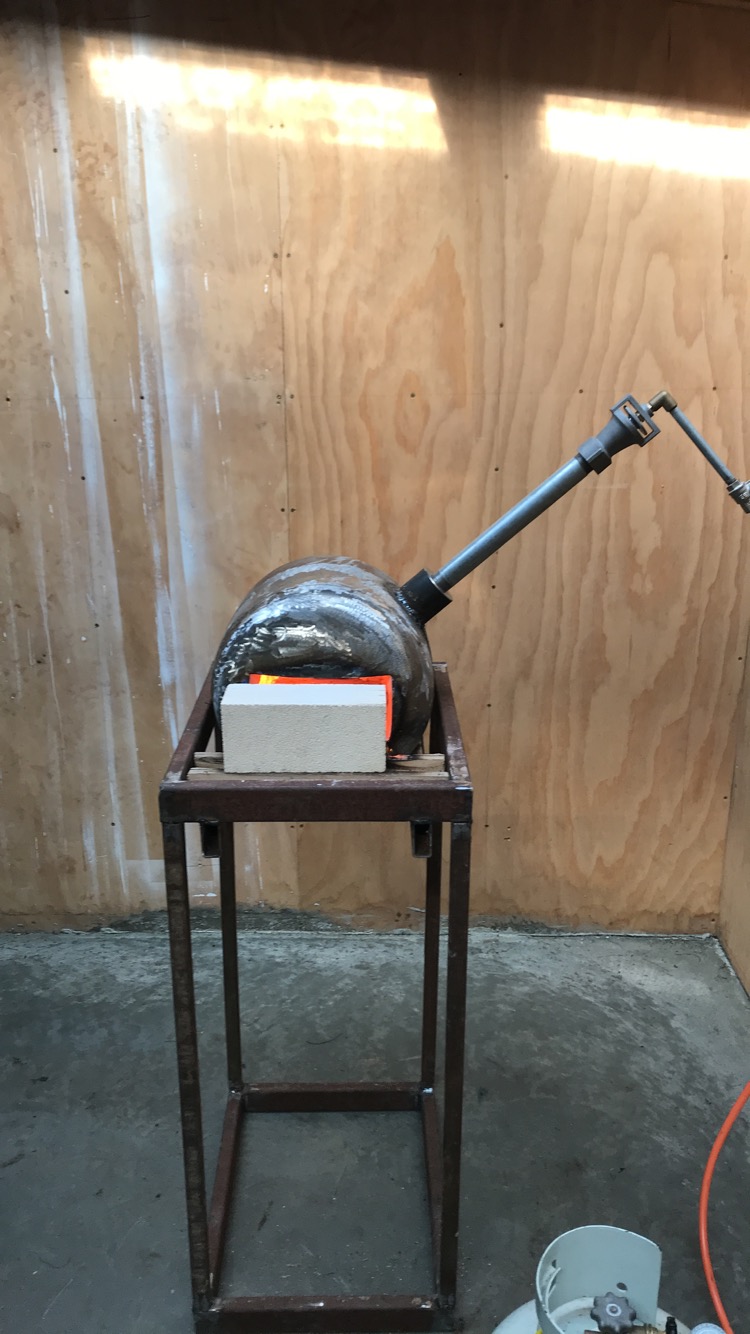

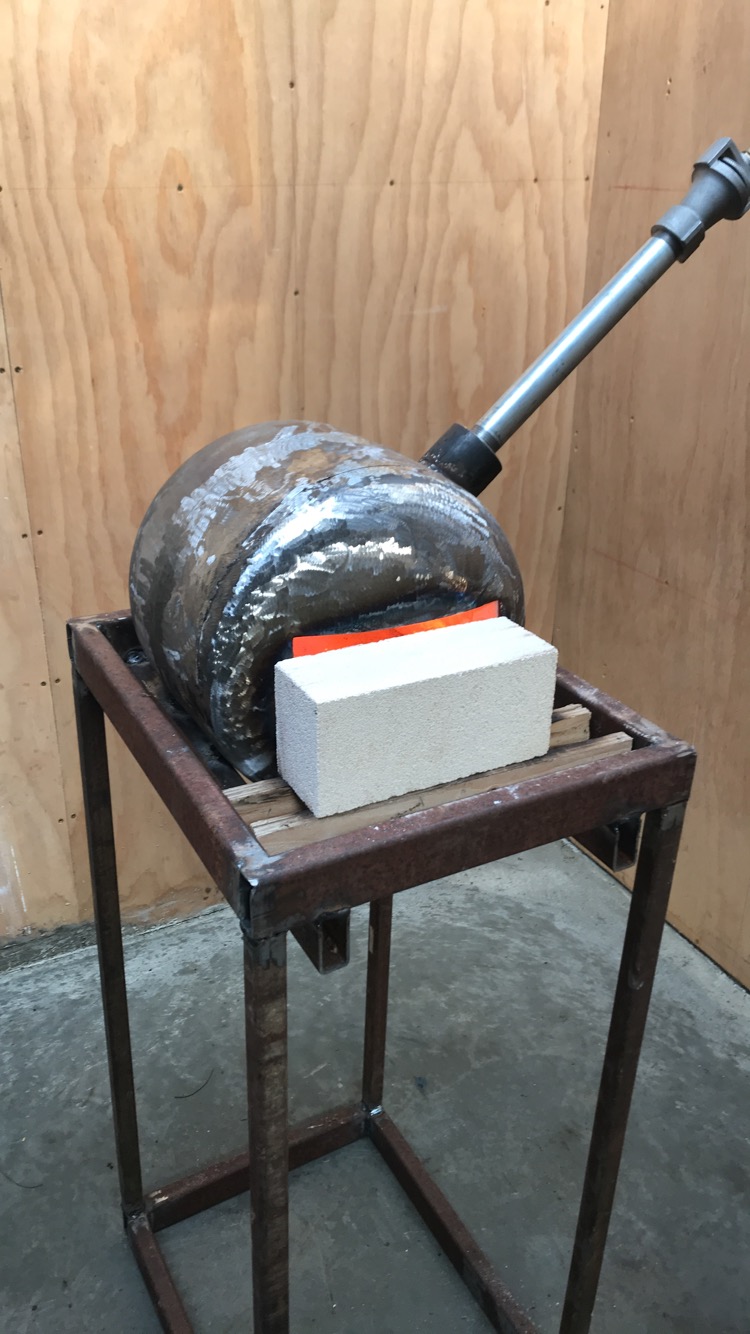

    Knocked this together with my brother. Still needs a paint and a shelf for the brick but I’m pretty stoked how it’s turned out.
    Name:  F7E32E84-C32D-4311-B84F-66D5C563B696.jpeg
Views: 439
Size:  194.2 KBName:  9CF23576-40E5-419E-B46C-742D004FF071.jpeg
Views: 459
Size:  205.4 KB
    hotbarrels, Shelley, viper and 1 others like this.

  2. #2
    SiB
    SiB is offline
    Member
    Join Date
    Oct 2012
    Location
    Invercargill
    Posts
    1,921
    I’m intrigued by the gas mix tube!

  3. #3
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,052

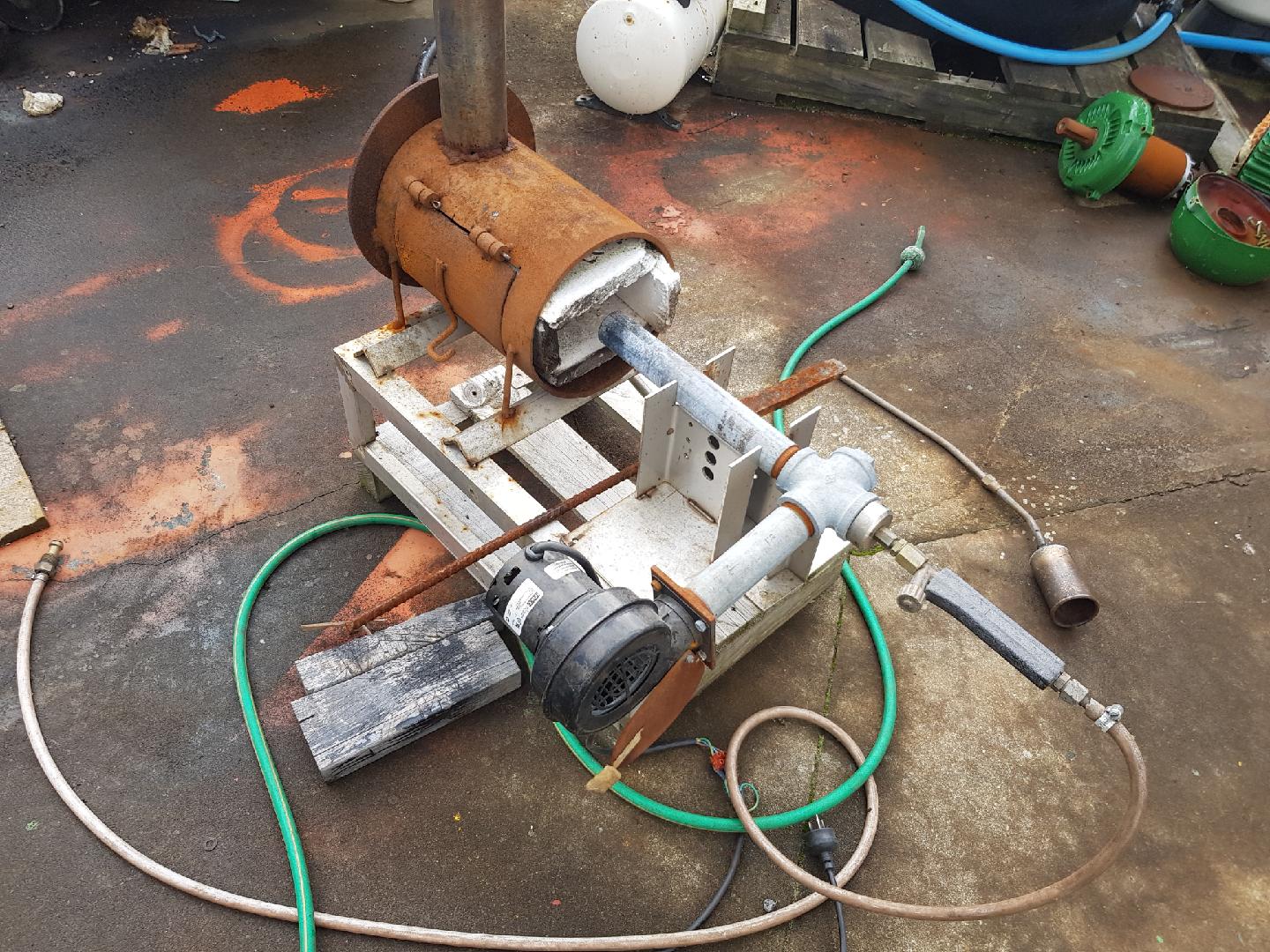

    Looks real similar to the feed tube on this one,

    I bought it ex Hawera . Tried but had no luck building one that would work

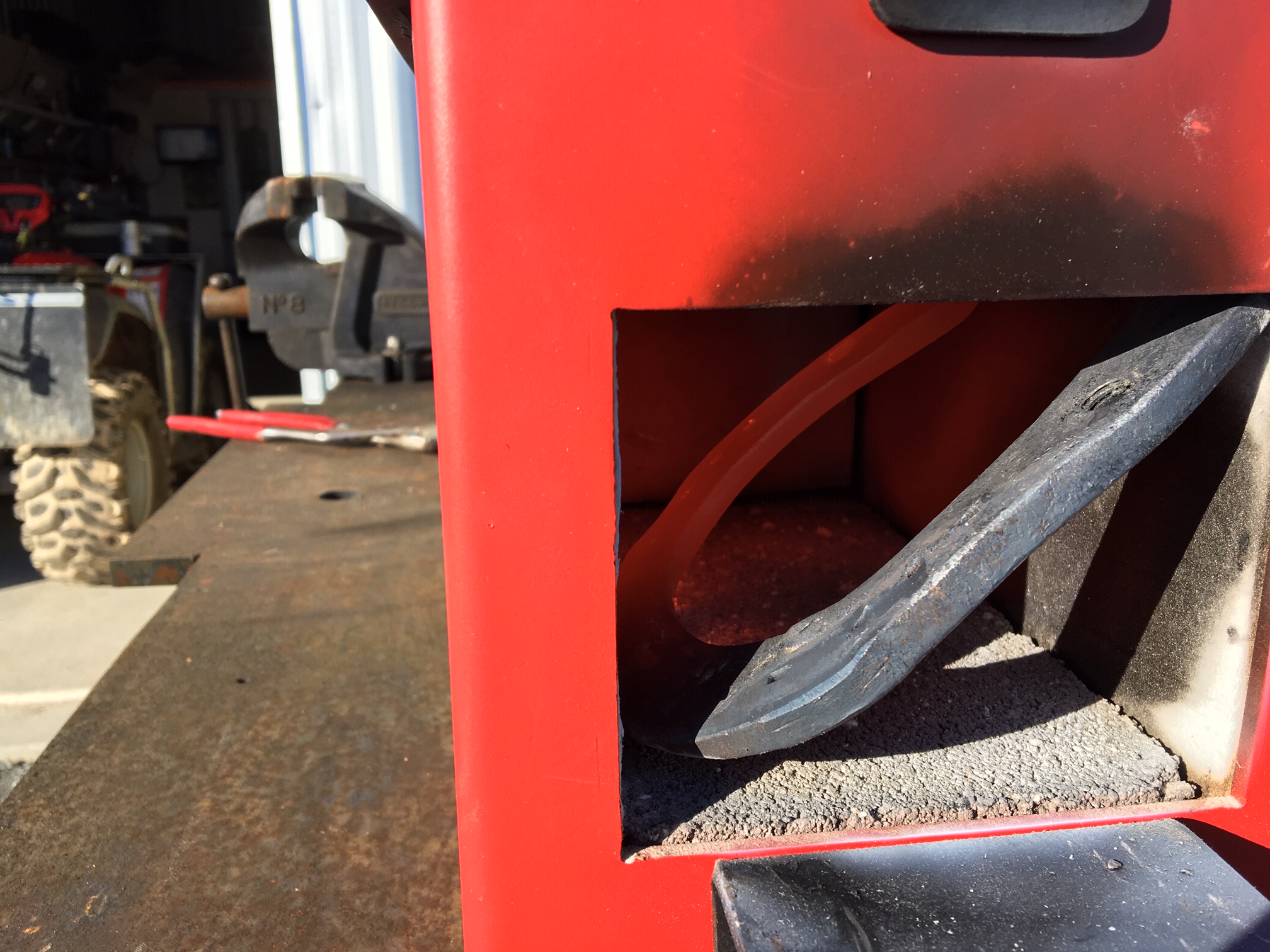

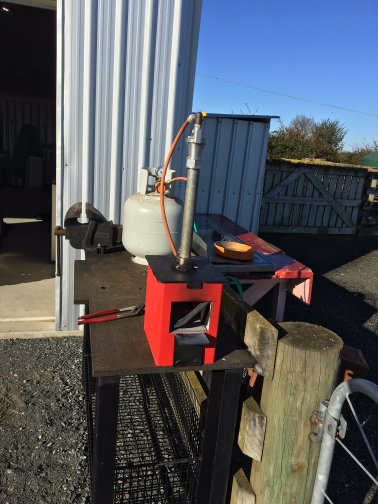

    The pro type Ooooh

    Name:  imagejpeg_2.jpg
Views: 468
Size:  345.9 KB

    Name:  Forge 1.JPG
Views: 425
Size:  879.7 KBName:  Forge 2.JPG
Views: 396
Size:  51.8 KB
    Tuckerbox likes this.
    "This is my Flag... Ill only have the one ..

  4. #4
    Member Sako851's Avatar
    Join Date
    Jun 2018
    Location
    Gore District
    Posts
    1,235
    Awesome.. how did you figure out the design?

  5. #5
    Member
    Join Date
    Feb 2016
    Location
    Bombay
    Posts
    1,042
    It’s was a design off the net. 9kg gas bottle shell.
    Happy likes this.

  6. #6
    Member
    Join Date
    Feb 2016
    Location
    Bombay
    Posts
    1,042

  7. #7
    Member Sako851's Avatar
    Join Date
    Jun 2018
    Location
    Gore District
    Posts
    1,235
    Nice

  8. #8
    Banned
    Join Date
    Nov 2018
    Location
    Auckland
    Posts
    1,030
    speaking of homemade furnaces
    back in my misspent youth ,we used to do "kerosene hangi's
    a piece of exhaust pipe about 2 meters long with a piece of brake pipe let into the side of it about halfway along,brake hose pushed onto that syphoning
    from the kero can at a steady drip,vacuum on blow at one end of exhaust pipe,other end into the side near the bottom of a 12 gallon drum full of brake blocks and hooks from trains.
    light a fire with newspaper in bottom of drum to get things going.
    In about 15-20 minutes contents of the drum would be just about white hot,push it over into the hole,plenty hot enough to cook a fair sized hangi in about 3 hours.
    no photographic evidence was collected at the time
    40mm likes this.

  9. #9
    Member hotbarrels's Avatar
    Join Date
    Aug 2012
    Location
    Auck
    Posts
    1,792

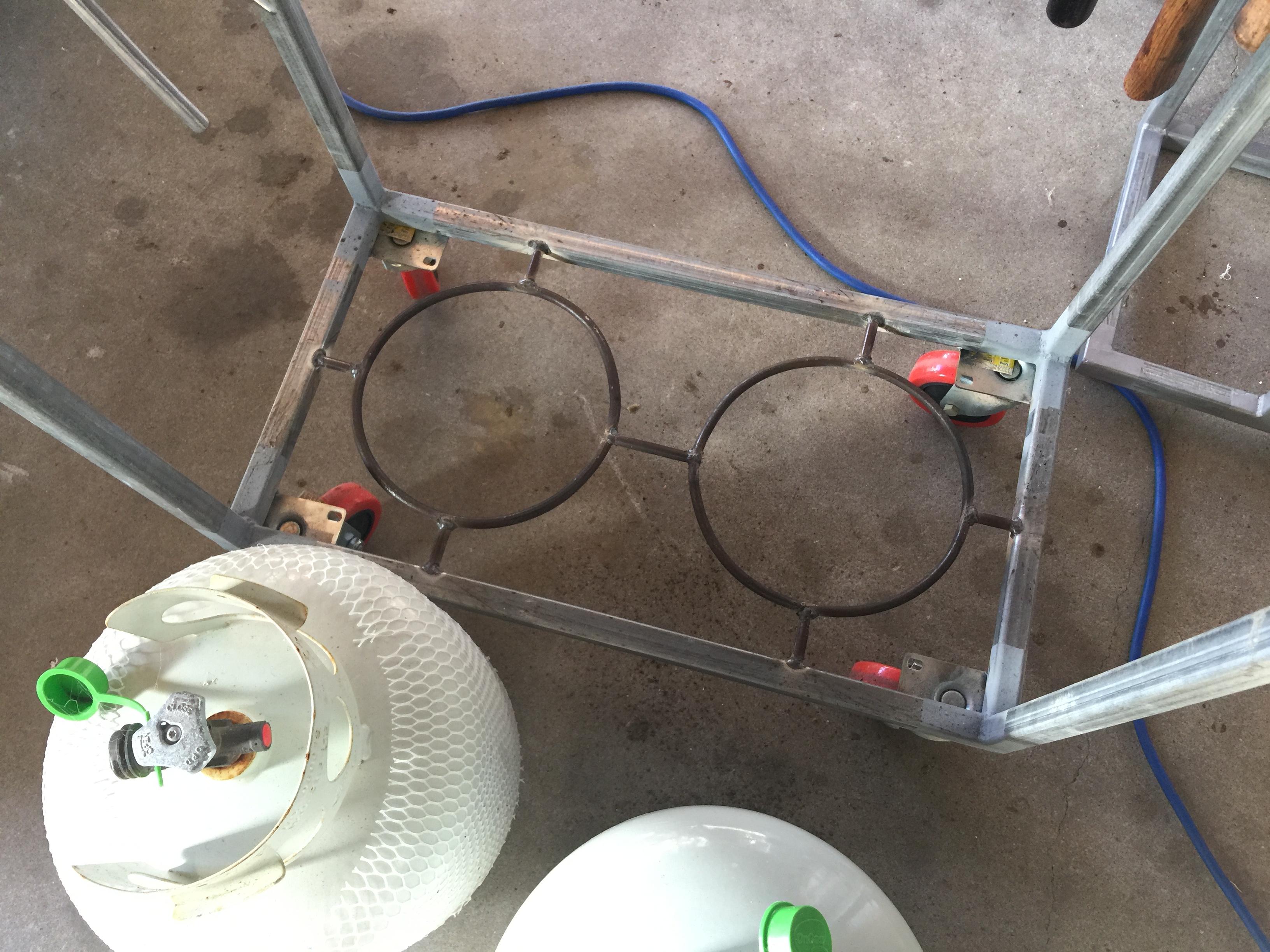

    Well done. I finally got around to putting my one onto a stand on the weekend as well. Got sick of having to pick it up to shift it. Now I can just wheel it around on the shed floor. Made up a hammer rack for the side, a tong hanger across the front, and put a double bottle storage underneath, mainly for ballast.

    So what are you going to make in the forge?

    Name:  2019-06-01 14.13.02.jpg
Views: 359
Size:  2.44 MB

    Name:  2019-06-01 14.13.18.jpg
Views: 397
Size:  2.42 MB

    Name:  2019-06-01 14.12.37.jpg
Views: 391
Size:  2.43 MB

    Name:  2019-06-02 14.49.01.jpg
Views: 372
Size:  2.24 MB

    Name:  2019-06-02 14.49.14.jpg
Views: 569
Size:  2.09 MB
    Tuckerbox, canross and 40mm like this.

  10. #10
    Member
    Join Date
    Aug 2014
    Location
    Auckland
    Posts
    719
    That’s a lot of hammers!

  11. #11
    Member
    Join Date
    Feb 2016
    Location
    Bombay
    Posts
    1,042
    Plan at the moment is knives. Dad wants to make wrought iron door handles. Sky’s the limit really.

  12. #12
    SiB
    SiB is offline
    Member
    Join Date
    Oct 2012
    Location
    Invercargill
    Posts
    1,921
    A man cannot have too many hammers!

    (Or guns or knives for that matter)
    Tuckerbox likes this.

  13. #13
    Member
    Join Date
    Jun 2015
    Location
    Hamilton
    Posts
    1,264
    Is it just me or does 2 lpg bottles sitting under a furnace seem kinda scarey?

  14. #14
    SiB
    SiB is offline
    Member
    Join Date
    Oct 2012
    Location
    Invercargill
    Posts
    1,921
    @matto1234
    You’ll find the radiated heat off the box to be surprisingly low. Remember the firebox is (if it’s like mine) fully lined with fireproof clay/fluff. The radiated heat that does come off does a brilliant job of helping prevent the regulators from icing up (the gas draw off can be sufficient to freeze them at times)
    matto1234 likes this.

  15. #15
    Member hotbarrels's Avatar
    Join Date
    Aug 2012
    Location
    Auck
    Posts
    1,792
    Quote Originally Posted by SiB View Post
    @matto1234
    You’ll find the radiated heat off the box to be surprisingly low. Remember the firebox is (if it’s like mine) fully lined with fireproof clay/fluff. The radiated heat that does come off does a brilliant job of helping prevent the regulators from icing up (the gas draw off can be sufficient to freeze them at times)
    All of the above.
    If you strap a couple of beersies to the lpg bottle it keeps them cool as well as the lpg bottle freezes up.
