Thread: Howa Mini action - Carbon Stock Project

The alternative title "A rough bastard learns about composite materials"

Background:
I've been thinking about making a CF stock for a couple of years. Reading books on fiberglass boat building and reading technical manuals on carbon fibre filled in many hours in the evening.

12 months ago I made a fibreglass stock from a plug of my own design, inspired by the good work of @Robojaz

For want of a better option I went about trying to fit it onto a JW15. That was a disaster, ended up heavier than the factory wooden stock with loads of pock marks and voids. They say you learn from mistakes so I must have learnt lots.

-----------------------------

The Howa Mini.
The factory stock has been described as a "fat heifer of a thing"
Like a few others have done I took to it with power tools and edited the shape.

Factory shape


Chop chop



Not being a savage from Southland, I glued the factory foreend back on.

Then went about making a mould. Cut the shape out of your parting board (melamine in this case, it was free)
Plug up all the edges with modelling clay. Doing this takes about 2 hours more then you would expect.

After reshaping








The wee pyramids are so the second half of the mould has something to locate onto.



Then the plug and parting board get waxed up to help prevent being glued together.
Cover the thing with a tooling gelcoat. The gelcoat I got came in a lovely shade of red.




Any abrupt edges I filled with a thickened resin. This is because fibreglass really hates going around sharp corners. I wanted the edges to be as neat and defined as possible.




When that's got to a nice tacky stage the layup of chopped strand mat could commence!
I only used about 4 layers of chopped mat in total. Lots of poking with the brush to get things together nice and firm. At this point I'm not worried at all about weight so used plenty of resin. From experience having a resin rich coat on top makes it much nicer to handle the mould without getting jabbed by any tiny bits of glass poking out.



Do one side, leave for 24hrs, pull the parting board off, apply another 6 coats of mould wax, tooling gelcoat, thickened resin, more chopped strand mat.
By this point you realise making mould's sucks. You also know it's the most important step really. Any fcuk ups here are really hard to fix later on...

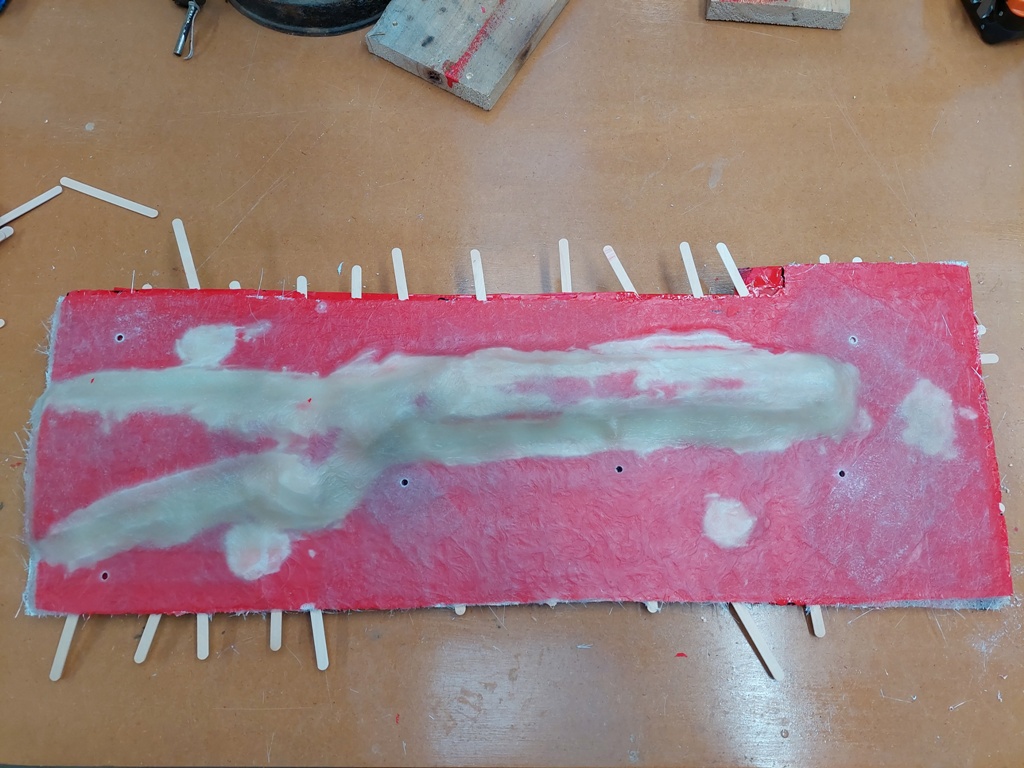

Eventually you end up with a stock encased in fibreglass.

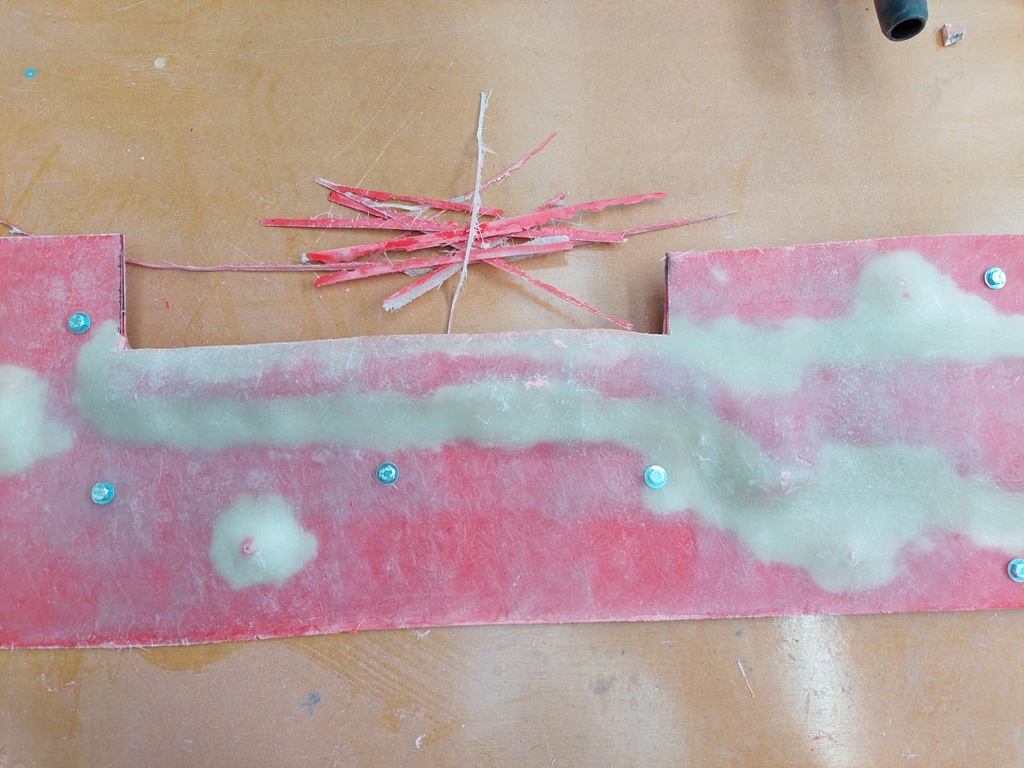

I managed to get the 2 halves apart with the use of some ice block sticks. Basically just slide/knock them in like wee wedges.
It's quite a relief when the mould finally cracks open without breaking anything!

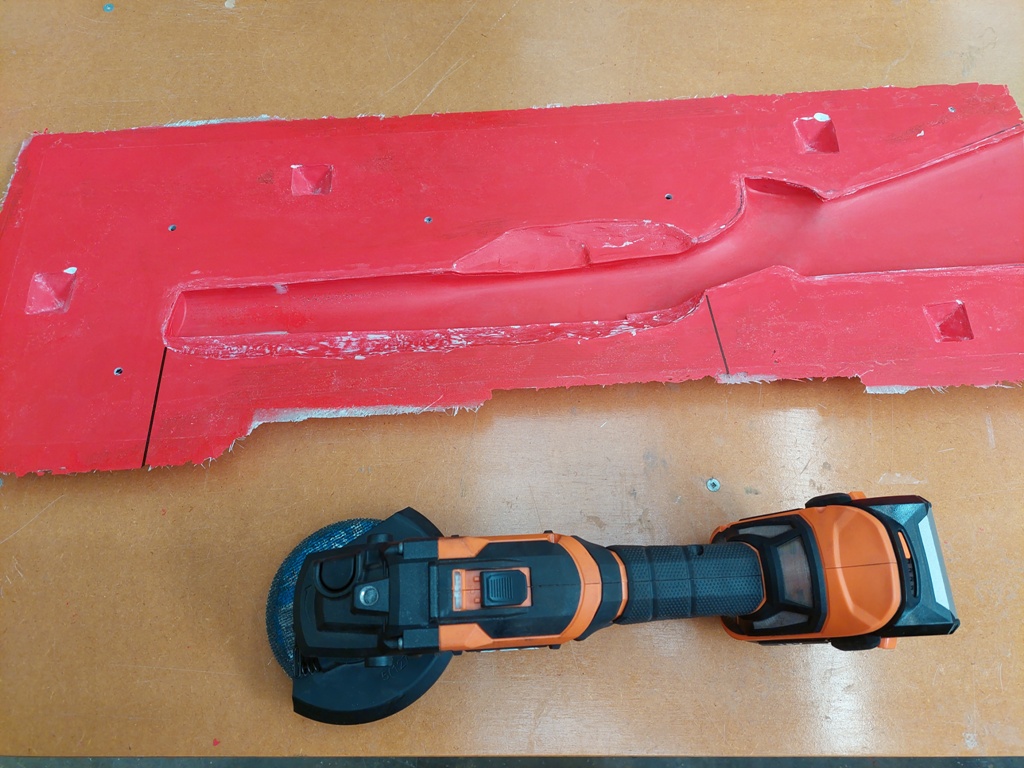

With the nice new mould I then took to it with the cutting disk on the grinder. This was to square up the edges and expose the action area. The exposed action area idea of mould making I got from @stug





Mould got cleaned up with hot soapy water then another 6 coats of release wax to each side before letting it sit overnight.

It's now carbon time!



I was given a can of spray adhesive from the local carbon fibre chap when I was having a beer with him and asking silly questions.

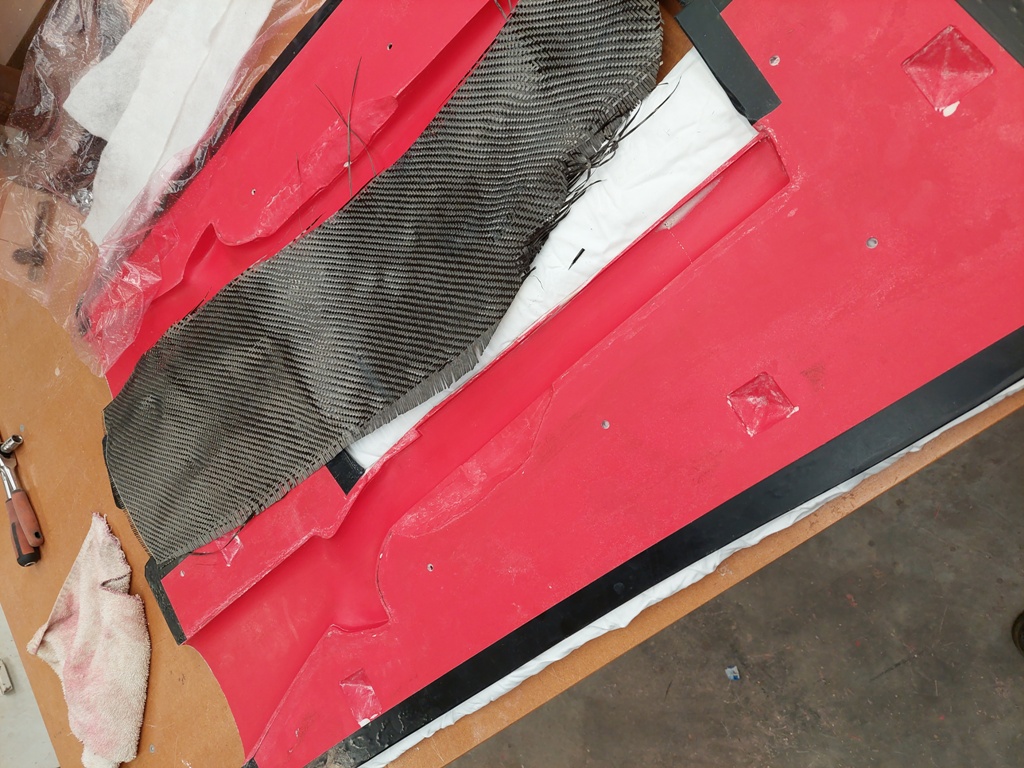

This made life bit easier with getting the carbon cloth in all the wee corners.
I was a bit rough at some point with the cloth and loosened the weave up on some areas. Oops.



I put in 2 layers of carbon cloth for the body and 4 layers around the grip/wrist area.

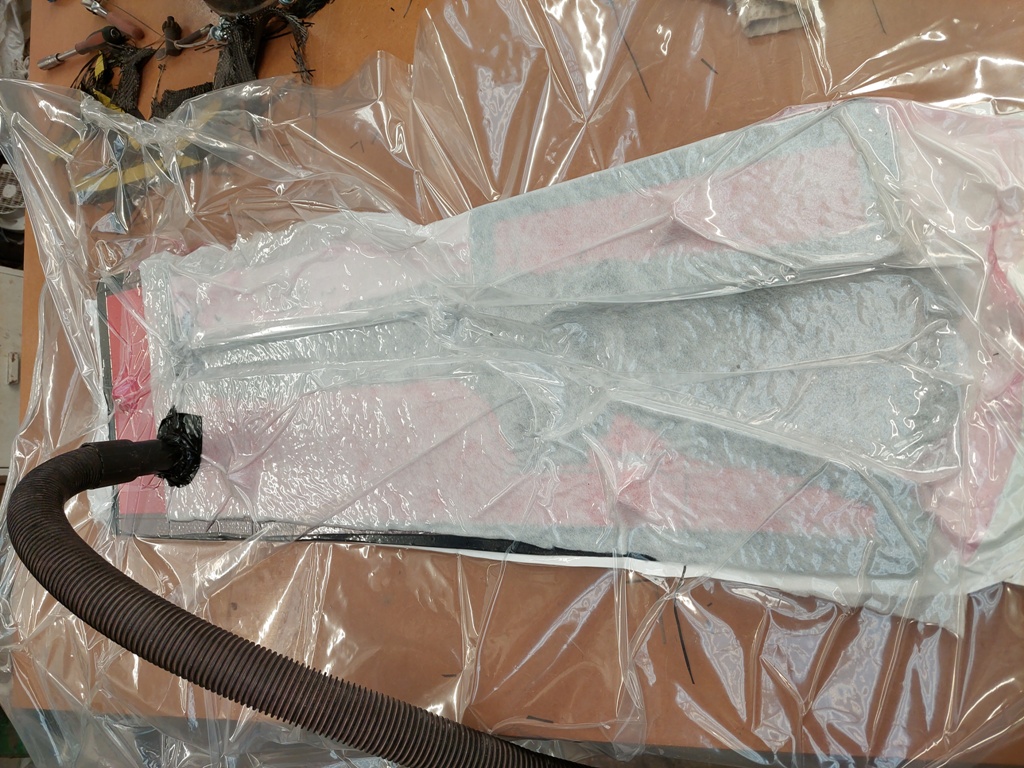

As I don't have a proper vacuum pump I used a big clothes storage bag. Layer of peel ply over the carbon, bleeder fabric then bagged up the whole mould.





This is the point I'll leave you waiting for the next instalment.

Looks like a great project, waiting in anticipation for the rest of the build.

Looks bloody good. When I was making mine I did 4 layers of 200gsm carbon fibre and another 3 layers through the pistol grip area.

Awesome work, what is your plan for joining the two halves together? Are you going to do any fill in the buttstock/forend areas to reduce to hollow sound?

Originally Posted by SixtyTen

Awesome work, what is your plan for joining the two halves together? Are you going to do any fill in the buttstock/forend areas to reduce to hollow sound?

best thing would be to glue a hip flask in the butt stock, fill to the brim of the spirit of your choosing and enjoy. just need to make sure you finish it all so it doesn't slosh!

Originally Posted by SixtyTen

Awesome work, what is your plan for joining the two halves together? Are you going to do any fill in the buttstock/forend areas to reduce to hollow sound?

The 2 halves of the mould are bolted together and then 2 layers of cloth laid over the join. I think I've cocked up here but will see what happens.

I'll fill the hollow shell with spray can expanding foam. I know there are better products to use that will make a nice chemical bond with the epoxy.
In this case I'm relying on it being encased and having a mechanical bond inside the stock. From my first attempt I found filling the hollow areas with foam makes a world of difference.

I used Sika boom expanding foam to fill the butt and fore-end. It has no structural value just sound deadening. Run a bit of water around inside the butt or fore-end first then tip/shake it all out. The water prevents secondary expansion of the foam.

A good method for laminating complicated shapes and to keep the carbon weave from getting all messed up is to get some 3m painters plastic, lay that down on a flat table and tape it out so there are no wrinkles. You then lay your cloth on that, mix up your resin and use a squeegee to spread the resin over the cloth and allow it to soak in. You can then squeegee the excess off so the cloth is not saturated. You then put another layer of 3m plastic over this and now you can use your patterns to mark out (on the plastic) the bits of fiber you need and cut them out with scissors. You then peel one side of the plastic off, lay your fiber in the mold in mostly the right place, remove the second layer of plastic and use a paintbrush (the cheap chip brushes are perfect for this) to tamp the fiber into place. Rinse and repeat until all your layers are in, then peelply, release film and breather and your into your bag.

Its a very good way of doing complex wet laminates. Kind of similar to prepreg lamination in that you can control all your overlap distances and patch sizes quite carefully.

If you want to get really fancy, you can weigh the fiber that you plan to use, divide that by the fiber to resin ratio you are shooting for and add 10% for peelply. You then only mix and use exactly that much resin for the job. You can get as low as 26-28% resin this way, which is comparable to pre-preg. Gives for a lighter and stronger product so long as you get complete wet-out, which can be challenging depending on the resin type and ratio you are trying to achieve.

Originally Posted by SixtyTen

A good method for laminating complicated shapes and to keep the carbon weave from getting all messed up is to get some 3m painters plastic, lay that down on a flat table and tape it out so there are no wrinkles. You then lay your cloth on that, mix up your resin and use a squeegee to spread the resin over the cloth and allow it to soak in. You can then squeegee the excess off so the cloth is not saturated. You then put another layer of 3m plastic over this and now you can use your patterns to mark out (on the plastic) the bits of fiber you need and cut them out with scissors. You then peel one side of the plastic off, lay your fiber in the mold in mostly the right place, remove the second layer of plastic and use a paintbrush (the cheap chip brushes are perfect for this) to tamp the fiber into place. Rinse and repeat until all your layers are in, then peelply, release film and breather and your into your bag.

Its a very good way of doing complex wet laminates. Kind of similar to prepreg lamination in that you can control all your overlap distances and patch sizes quite carefully.

If you want to get really fancy, you can weigh the fiber that you plan to use, divide that by the fiber to resin ratio you are shooting for and add 10% for peelply. You then only mix and use exactly that much resin for the job. You can get as low as 26-28% resin this way, which is comparable to pre-preg. Gives for a lighter and stronger product so long as you get complete wet-out, which can be challenging depending on the resin type and ratio you are trying to achieve.

Thats really good to know thank you! For the first layer in I used the spray adhesive, the theory being it would be easier to get the cloth into shape.
The subsequent layers I laid in sections with pre wetting the cloth similar to how you described. I cut the rough shape before putting resin on to soak in,

Ahhh, finally I get to see the stock coming to life, that's a fairly involved project @Joe.......... Might be finished next time we catch up....don't eat all the bloody chocolate biscuits either next time.

farken primo!

Originally Posted by ANTSMAN

farken primo!

You could do that.

Originally Posted by Tahr

You could do that.

I could eat all the chocolate biscuits
