Thread: Jay Doubleya project

  1. #1
    Member Mintie's Avatar
    Join Date
    Mar 2015
    Location
    Hawkes Bay
    Posts
    2,081

    Jay Doubleya project

    Have been wanting to either make a stock from scratch or reshape an existing stock on one of my JW15's for ages now, I decided I had very little to lose so just got stuck into reshaping.

    Here is the rifle before I started, I just don't like the plain and boring stock!

    Name:  Screenshot_20190701-212327_Photos.jpg
Views: 595
Size:  122.4 KB

    To be clear i'm a bit of a butcher when it comes to this stuff but calm down, its just a JW15.

    On the want list:
    1. Raised cheek piece (I like big scopes)
    2. Fatter and shorter forearm
    3. Palm swell
    4. More vertical and properly fitted pistol grip
    5. Brench rest style left hand grip under the butt
    6. Thumb up or thumb over position on the pistol grip

    I had everything that I needed but I was doing this away from home so was pretty limited to tools, and I didn't really have much time to put into it. The only things I used can be seen in the photo, angle grinder with flappy paddles sanding pad, dremil with flappy paddle sanding pad, screw driver, scraps of sandpaper, a silky, a rag, some car body filler, some primer and some paint.

    I first drew some lines with a vivid to get an idea of what I wanted to do and roughed up the stock where I was going to apply the filler.

    Name:  20190724_153421.jpg
Views: 506
Size:  571.2 KB

    Once I popped open the filler it got pretty ugly pretty quickly and I was really doubting that this was going to work.

    First coat

    Name:  20190724_155434.jpg
Views: 484
Size:  215.1 KB

    Second coat - Getting uglier!

    Name:  20190725_165646.jpg
Views: 485
Size:  358.9 KB

    Name:  20190725_165704.jpg
Views: 509
Size:  255.1 KB

    After the second coat had dried I decided to have a hack at it with the angle grinder and flappy pad, Shit does that thing make quick work of it or what! After a bit of shaping, cutting and smoothing with it I put on a 3rd coat of filler to fill some gaps (which I forgot to take a photo of)

    Name:  20190726_100251.jpg
Views: 480
Size:  170.9 KB

    Name:  20190726_101403.jpg
Views: 470
Size:  509.1 KB

    Name:  20190726_101354.jpg
Views: 450
Size:  201.8 KB

    Once the 3rd filler coat hardened I got back at it with the angle grinder and once it was roughed out I switched to the Dremil for some of the finer work. It was really easy to get all the lines in the right places and work the shape of the grip to fit my hand perfectly, very satisfying to feel how each change made it more and more comfortable. Bit of a quick sand down - I know its going to have a pretty crap finish and the long term plan is to paint it in truck bedliner texture paint so getting a perfect finish just wasnt worth doing and I didnt have the time for that.

    Name:  20190726_140049.jpg
Views: 513
Size:  714.8 KB

    Name:  20190726_140058.jpg
Views: 472
Size:  300.2 KB

    Name:  20190726_140105.jpg
Views: 441
Size:  323.4 KB

    Name:  20190726_140121.jpg
Views: 429
Size:  167.0 KB

    Name:  20190726_145647.jpg
Views: 432
Size:  207.6 KB

    Name:  20190726_145703.jpg
Views: 443
Size:  342.4 KB

    Just waiting for the primer to dry now, Will try get pics of it black this avo.

    Other plans for the project are:
    • Custom carbon fiber suppresor
    • Custom bolt handle
    • Piccatinny rail on the forend
    • Trigger work and action smooth out
    • Work out a way to clip the 10round CZ mags to the stock somehow.
    Shootm, veitnamcam, Dundee and 6 others like this.

  2. #2
    Fulla
    Join Date
    May 2012
    Location
    Cni
    Posts
    1,660
    Step away from the bog...!
    I like those projects were there's nothing much to loose, jump in boots and all, and say, what the fuck am I doing.
    It looks like it will turn out fine though. Just putting the time in to get a nice shape and finish.

  3. #3
    Member Mintie's Avatar
    Join Date
    Mar 2015
    Location
    Hawkes Bay
    Posts
    2,081
    Quote Originally Posted by bully View Post
    jump in boots and all, and say, what the fuck am I doing.
    Definetley one of those projects!

    Its black now and looking ok, will be better in bed liner paint for sure.

    This is my first time using bog, and first time shaping a stock so its a learning curve for me. Knowing now how quickly the flappy pad in an angle grinder eats wood for my next one I would just flatten the stock off, glue and screw square wood stock on and then re shape it rather than build the bog up.
    timattalon likes this.

  4. #4
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    Good on ya! I love tinkering with stuff too but I don't think I'm brave enough to do that to my rifles. Only one way to really learn though and that's by getting stuck into it.

    Currently steaming and sanding a Parker Hale stock that will be oil rubbed. So nowhere near as dramatic
    rewa likes this.

  5. #5
    Member Mintie's Avatar
    Join Date
    Mar 2015
    Location
    Hawkes Bay
    Posts
    2,081
    Quote Originally Posted by Preacher View Post
    Good on ya! I love tinkering with stuff too but I don't think I'm brave enough to do that to my rifles. Only one way to really learn though and that's by getting stuck into it.
    Cheers, I figured worst case scenario I would end up having to order a nice Boyds one to replace it, and that really isn't a bad scenario!
    Steve123 and Preacher like this.

  6. #6
    Fulla
    Join Date
    May 2012
    Location
    Cni
    Posts
    1,660
    I used some bed liner from super cheap, worked well. From memory lots of light coats was the key.

  7. #7
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    Quote Originally Posted by bully View Post
    I used some bed liner from super cheap, worked well. From memory lots of light coats was the key.
    Yep. Light coats and spray from a reasonable distance to allow the drops to "build". Too close and you end up with a semi slick mess.

    (Automotive painter by trade, so probably not the best advice)

  8. #8
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Location
    UK
    Posts
    7,916
    nar all good till @Dundee sees what you done to his gun
    Dundee and dannyb like this.
    It's all fun and games till Darthvader comes along
    I respect your beliefs but don't impose them on me.

  9. #9
    Member Mintie's Avatar
    Join Date
    Mar 2015
    Location
    Hawkes Bay
    Posts
    2,081

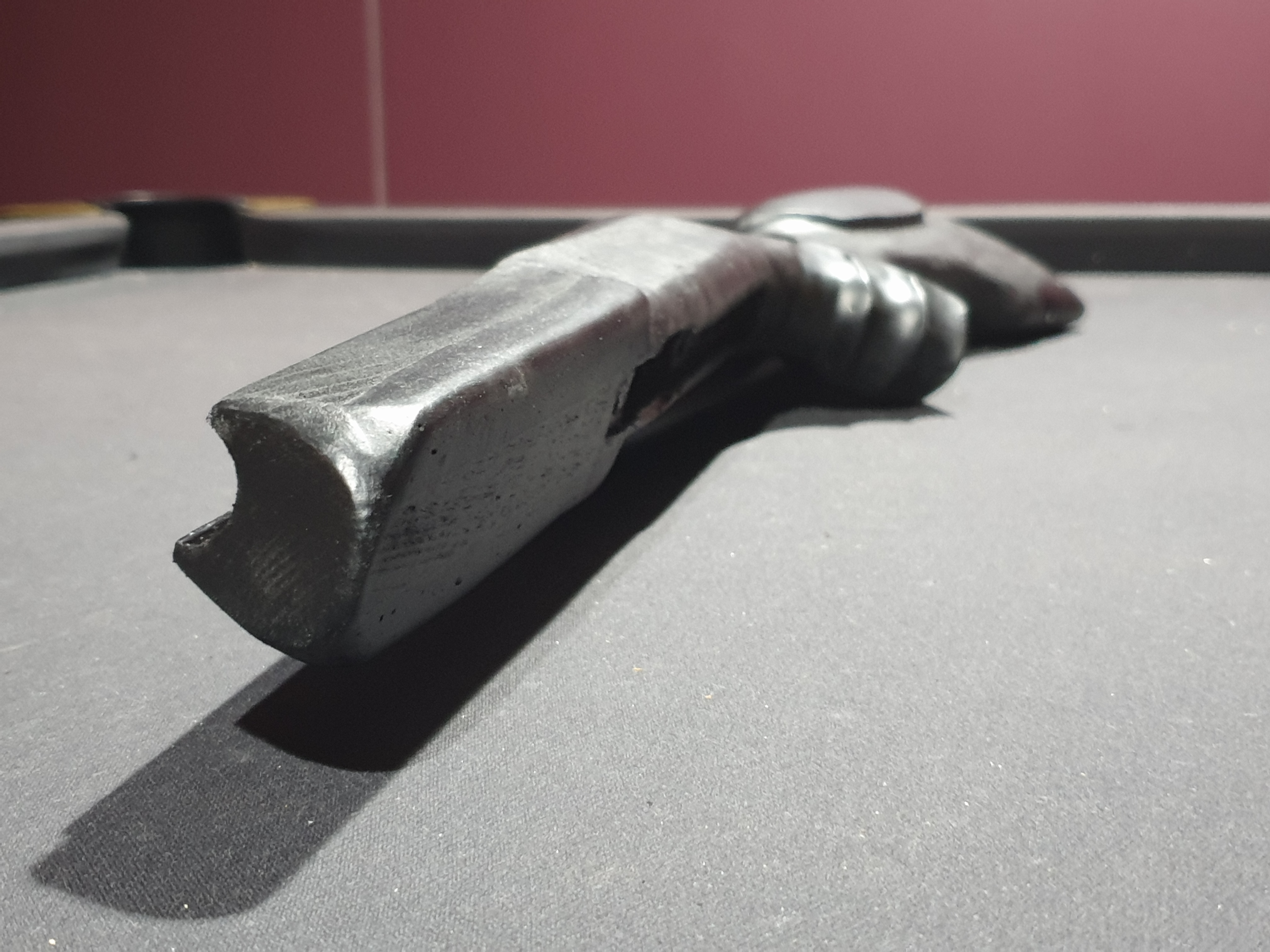

    Name:  20190726_183228.jpg
Views: 467
Size:  2.23 MB

    Name:  20190726_183221.jpg
Views: 495
Size:  2.10 MB

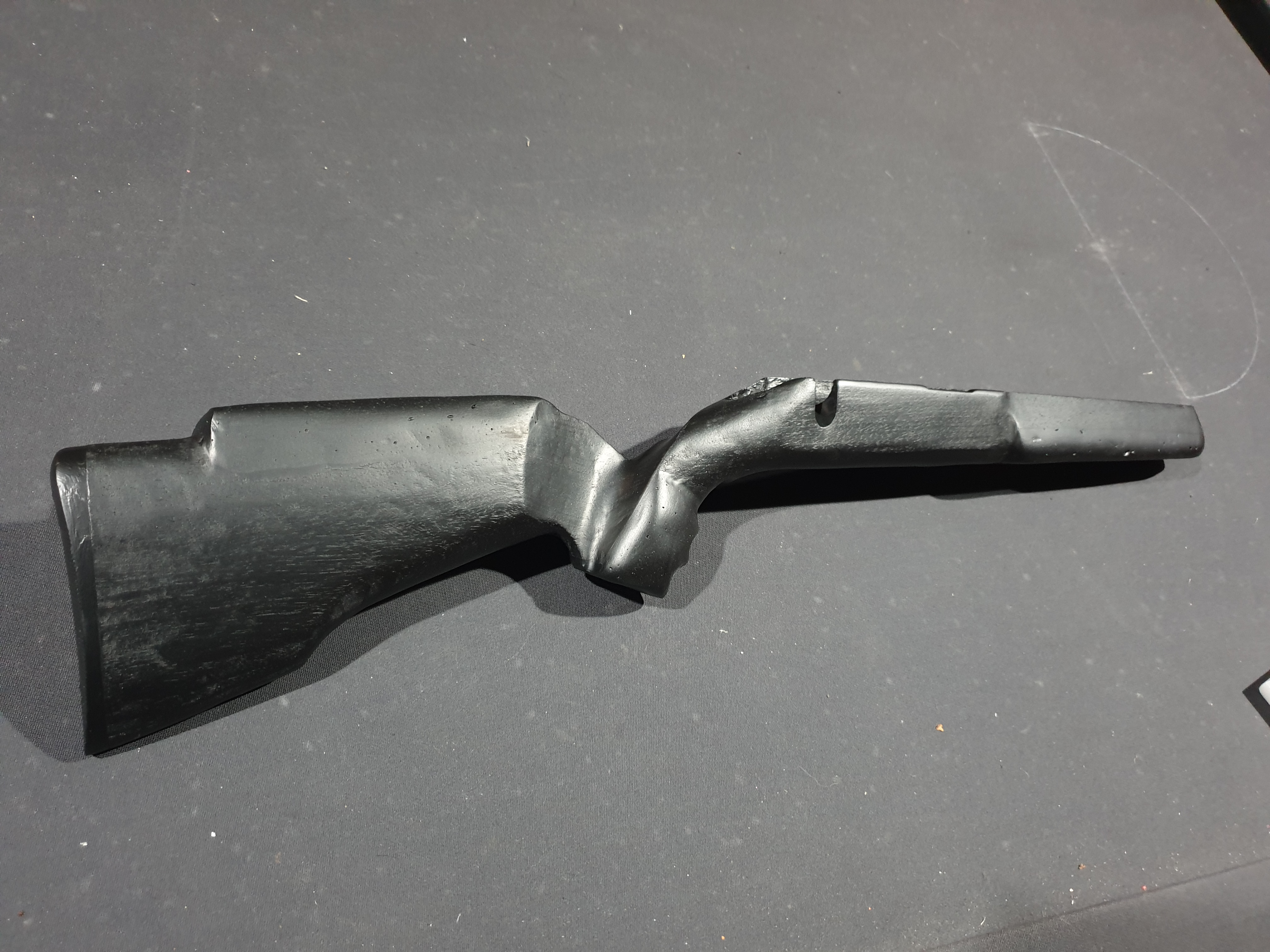

    Name:  20190726_183059.jpg
Views: 544
Size:  3.58 MB

  10. #10
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Location
    UK
    Posts
    7,916
    Better hand it in at the next steal back now that it’s new should get 95% payment for ya new black gun
    Dundee likes this.
    It's all fun and games till Darthvader comes along
    I respect your beliefs but don't impose them on me.

  11. #11
    Member Dundee's Avatar
    Join Date
    Dec 2011
    Location
    Way East of D'Vagas
    Posts
    17,574
    Good work @Mintie got a spare stock down here that has been loved to bits,in the HB also.
    "Thats not a knife, this is a knife"
    Rule 2: Always point firearms in a safe direction
    CFD

    tps://www.timeanddate.com/countdown/generic?iso=20180505T00&p0=264&msg=Dundees+Countdo wn+to+Gamebird+Season+2018&font=cursive

  12. #12
    Member
    Join Date
    Jul 2017
    Location
    Auckland
    Posts
    161
    Quote Originally Posted by Mintie View Post
    Definetley one of those projects!

    Its black now and looking ok, will be better in bed liner paint for sure.

    This is my first time using bog, and first time shaping a stock so its a learning curve for me. Knowing now how quickly the flappy pad in an angle grinder eats wood for my next one I would just flatten the stock off, glue and screw square wood stock on and then re shape it rather than build the bog up.
    Flappy disk eats all!

    I found can be just as effective with course sandpaper as you don't end up taking far too much off and have to add more bog!

    Sent from my SM-G955F using Tapatalk

  13. #13
    Member Steve123's Avatar
    Join Date
    Jan 2015
    Location
    Rotorua
    Posts
    3,866
    Quote Originally Posted by Dundee View Post
    Good work @Mintie got a spare stock down here that has been loved to bits,in the HB also.
    You could commission him to restore your 22.

    Sent from my SM-G390Y using Tapatalk

  14. #14
    Also known as Fingers Joe_90's Avatar
    Join Date
    Jun 2019
    Location
    Central Otago
    Posts
    1,523

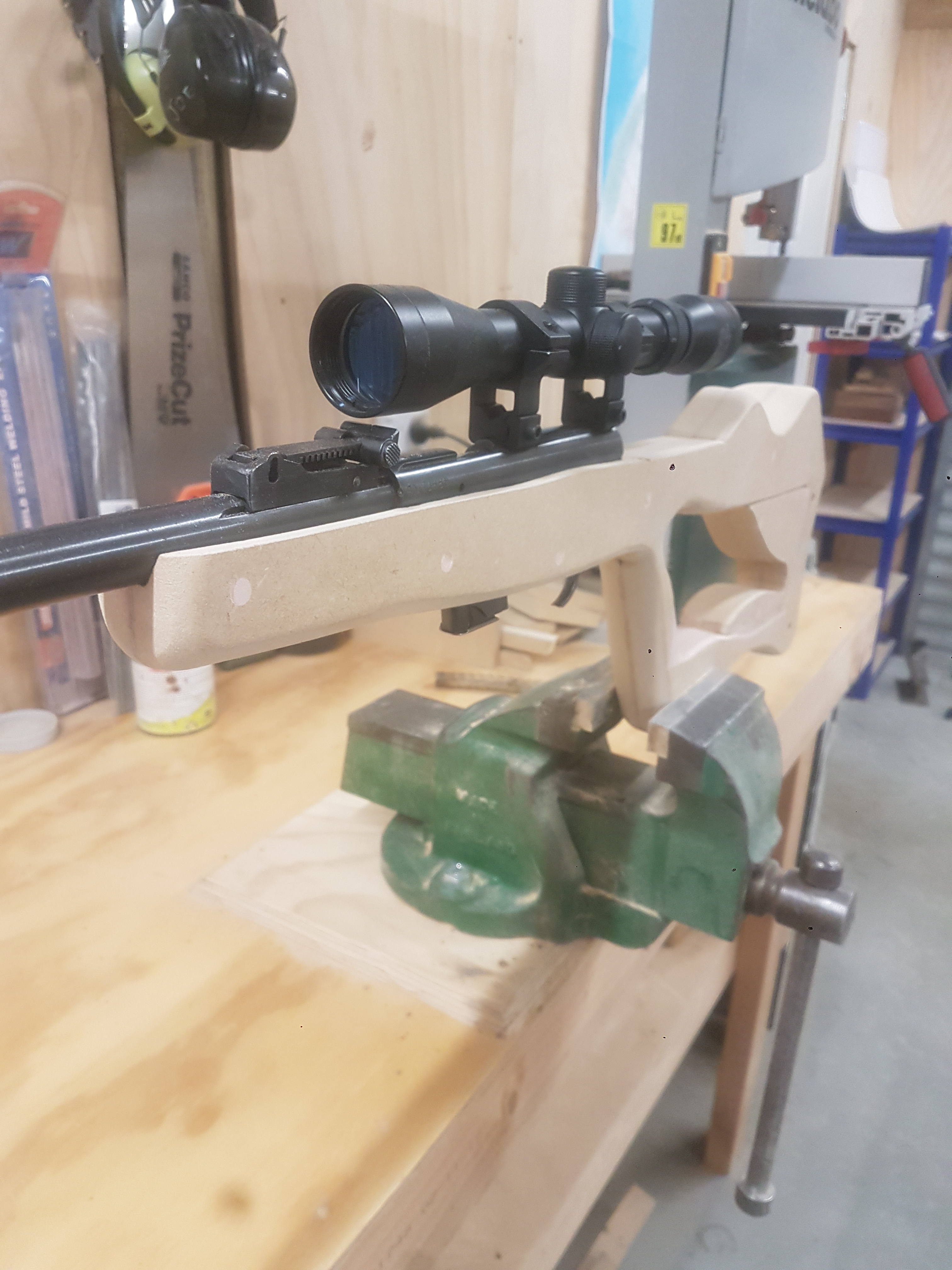

    Good going Mintie! It's got a working gun look to it. Building up the existing stock is definitely an easier option than making one from scratch....
    Name:  22 mdf stock.jpg
Views: 302
Size:  3.45 MB
    rewa likes this.
    Every machine is a smoke machine,
    If you use it wrong enough.

  15. #15
    Member
    Join Date
    Mar 2018
    Location
    Fielding-ish
    Posts
    572
    Toz ?
