    K.I.S.S. Action Wrench

    Some pics of the action wrench for my switch barrel project.

    Name:  uploadfromtaptalk1405994909480.jpg
Views: 468
Size:  273.6 KB

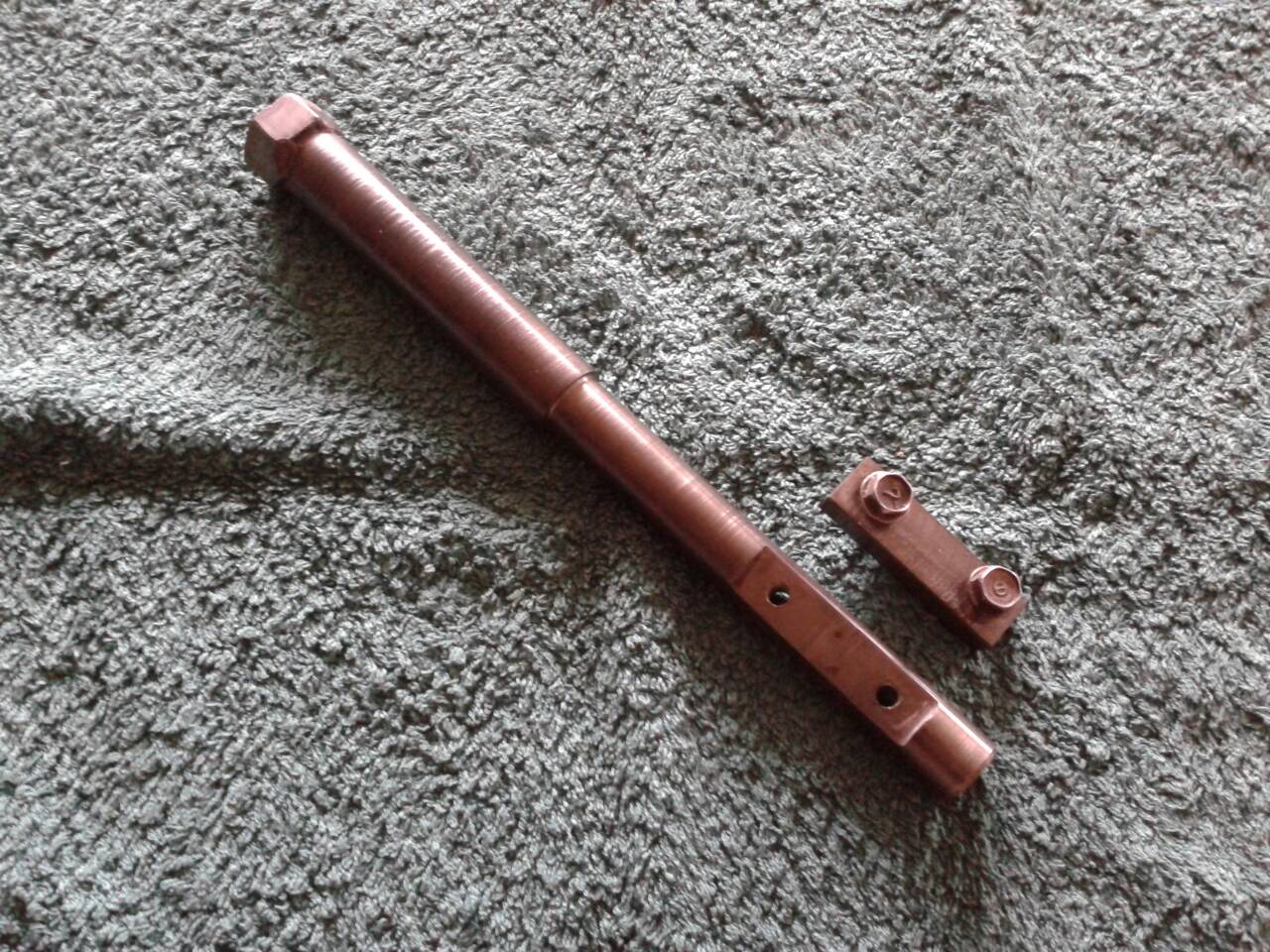

    Just a steel rod, turned down to fit inside the action. Flat milled into it to accept a key that fits snugly into the magazine cutout in the bottom of the action. The key and rod are both drilled and tapped.

    Name:  uploadfromtaptalk1405994880835.jpg
Views: 500
Size:  209.8 KB

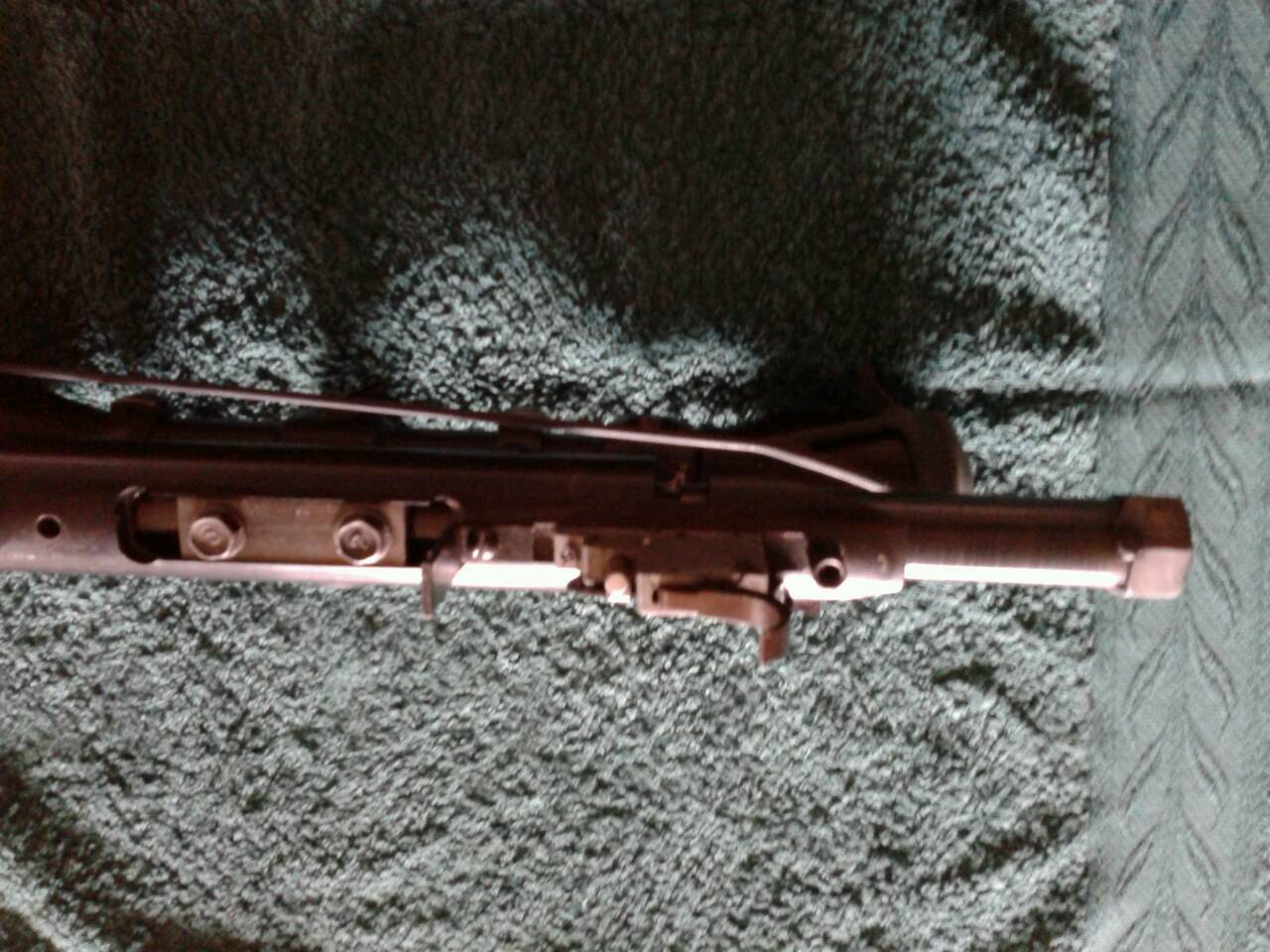

    Once the main part is inside the action, the 'key' is secured with high tensile bolts. Big nut welded onto the back. Allows you to remove the barrel without removing the scope bases.

    Name:  uploadfromtaptalk1405994856633.jpg
Views: 443
Size:  161.3 KB
    Last edited by ebf; 22-07-2014 at 03:28 PM.
    sako75 and Toby like this.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  2. #2
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,960
    That looks pretty complicated for a simple one?
    the one and only i made as a copy of the bolt basicly out of 4140 and snapped it like a carrot
    Howas are tight! went in with a parting tool right next to the action to relieve tension then undid by hand.

    Sent from my GT-S5360T using Tapatalk 2
    kokako likes this.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  3. #3
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Thought it was pretty basic....

    Wanted the nut fairly far back so the socket wrench would not hit the scope.

    Still thinking about different options for clamping the barrel. Trying to come up with a clever way to be able to do it without taking the scope off....
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  4. #4
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,960
    two bits of alloy and a hydraulic press.

    Sent from my GT-S5360T using Tapatalk 2
    7mmsaum likes this.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  5. #5
    Member
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    21,141
    Big 3 jaw chuck and alloy clams
    Boom, cough,cough,cough

  6. #6
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    At the moment it has a one piece base and remington type rings, so have to take scope out of rings...

    Will look at getting a blank picatinny or weaver rail so I can at least take rings and scope off in one go.

    Don't think gripping the barrel in front of the scope is such a hot idea...
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  7. #7
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,960
    Why do you have to remove the scope?

    Sent from my GT-S5360T using Tapatalk 2
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  8. #8
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    There is very little space between the scope and barrel. I want to be able to clamp on the thicker part of the barrel near the action, rather than the thin part in front of the scope. The current option is a steel block with a large hole a slot cut in to increase grip. Will make hardwood sleeves for the different barrel diameters.

    Scope will probably need to be zeroed again for each barrel in any case.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  9. #9
    Banned
    Join Date
    Jul 2012
    Location
    Dannevirke, southern Ruahines
    Posts
    5,072
    that sounds like a pain to have to re- zero each barrel or are you looking also to have a scope for each barrel? and whats your ideal weight of the finished project?.Is your budget $500 for this?.
    Blaser and BRADS like this.

  10. #10
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Re zero scope is the pain I will have to live with. One scope, 2 barrels at this stage.

    Yup, $500 budget, on hold cause I just had to fork out for components for next target season 1500 rounds ouch...

    Weight ? Dunno, the 788 is not light to start with, and the TF barrel for 22-250 is chunky
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  11. #11
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,960
    clamp it forward of the stock forend.
    If you need enough pressure to damage the barrel up there to clamp it there is no way your wrench or action will handle the torque anyway.

    Kinda defeats the purpose if you have to remove stock and scope just to swap barrels?

    Sent from my GT-S5360T using Tapatalk 2
    Kiwi Greg and Maca49 like this.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  12. #12
    Banned
    Join Date
    Jul 2012
    Location
    Dannevirke, southern Ruahines
    Posts
    5,072
    What is your second barrel cal going to be,308 is the same size case right? or have you already decided that.

  13. #13
    Member
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    21,141
    Weld a muzzle brake on each barrel and put a punch thru the brake and lock it in a vice to unscrew! Cams right if you need enough pressure to hold the barrel that it damages it, your undoer won't undo!
    ebf likes this.
    Boom, cough,cough,cough

  14. #14
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Jase, I have the original 788 barrel in 308 in the action at the moment. Also have the ex. Omark 308 barrel, could maybe look at doing that as a 30/284 at later stage (but would need re-threading and chambering), want to stick to .473 bolt face

    So for the barrels I have on hand it would be :

    308 bush shorty
    22-250 heavy contour varmint
    30/284 medium ranger
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  15. #15
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,960
    how long is action? to short for 06 cases?

    Sent from my GT-S5360T using Tapatalk 2
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.
