Thread: Knifemaking photo-essay (8) Shaping the guard

The previous post in this series was: https://www.nzhuntingandshooting.co....handle-105310/

Shaping the guard.

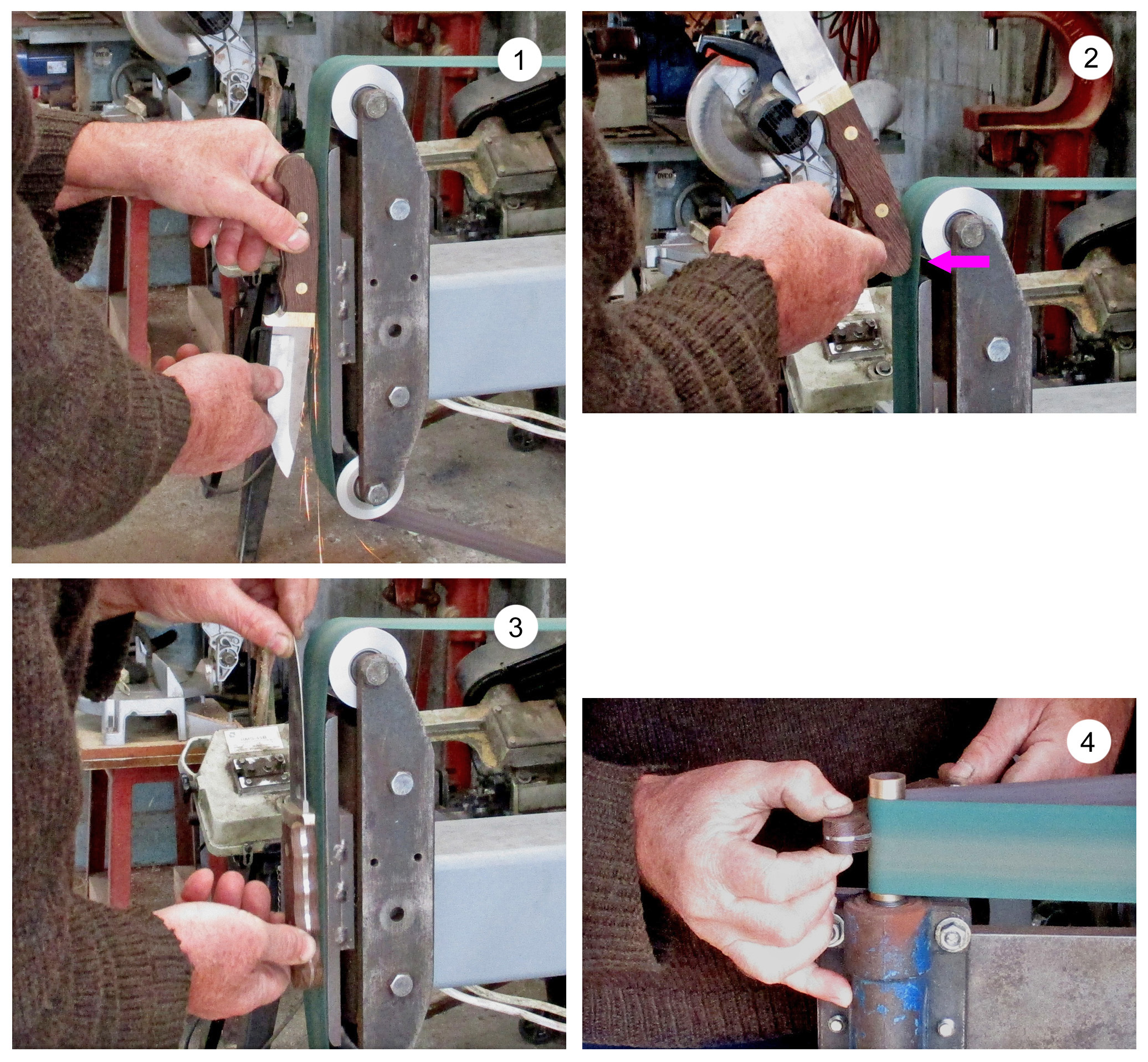

1) I attach an angled work rest to the flat platen linisher, and then angle the guard.

2) Front view of the angled guard.

3) Rounding off the bottom-front of the guard with a 180 grit belt.

4) The pink arrow indicates where the guard was rounded.

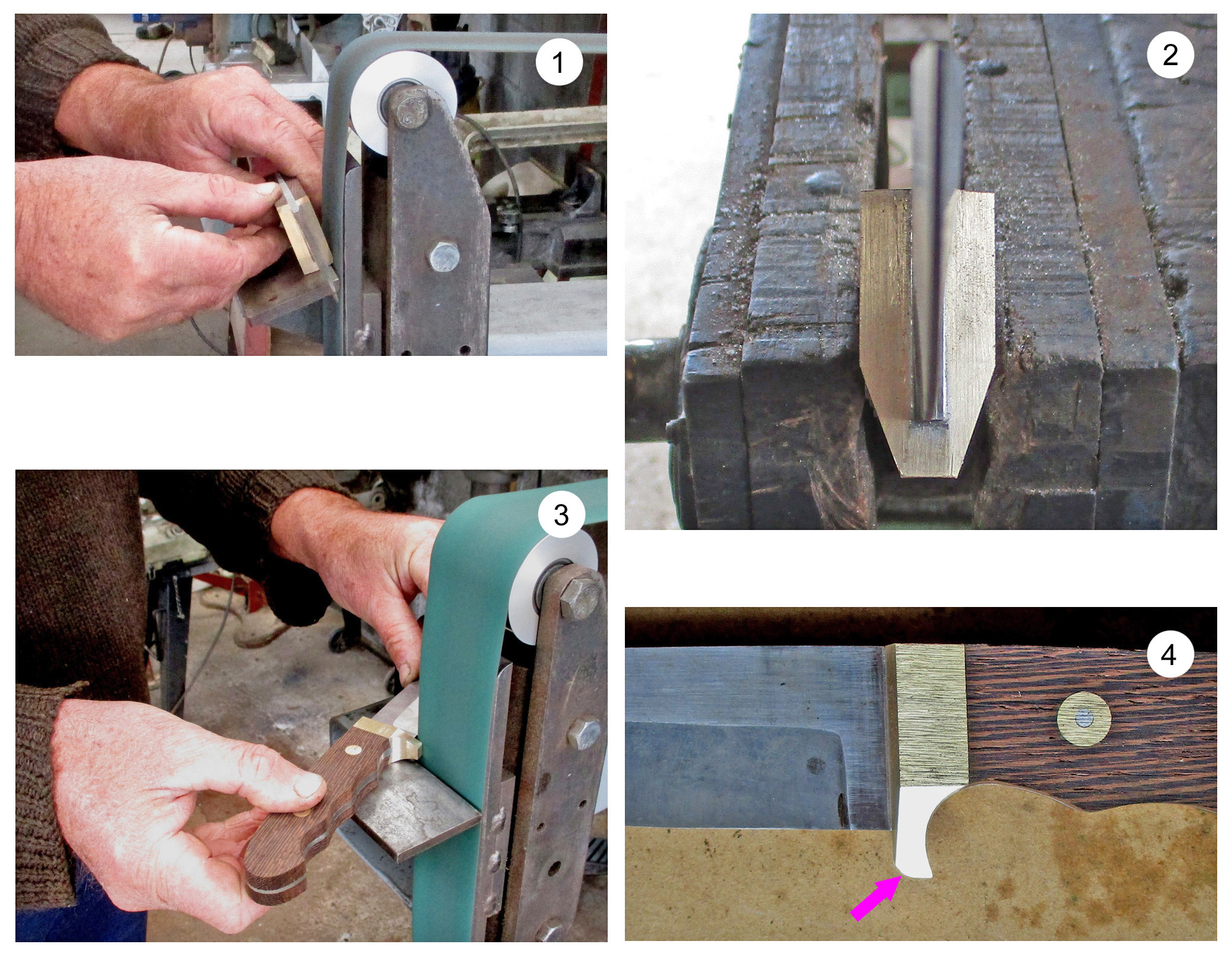

1) Sanding the spine with a 180 grit belt.

2) I sand the butt curve on the unsupported (slack) belt as indicated by the pink arrow.

3) 180 grit sanding of the sides.

4) 180 grit sanding of the finger grooves.

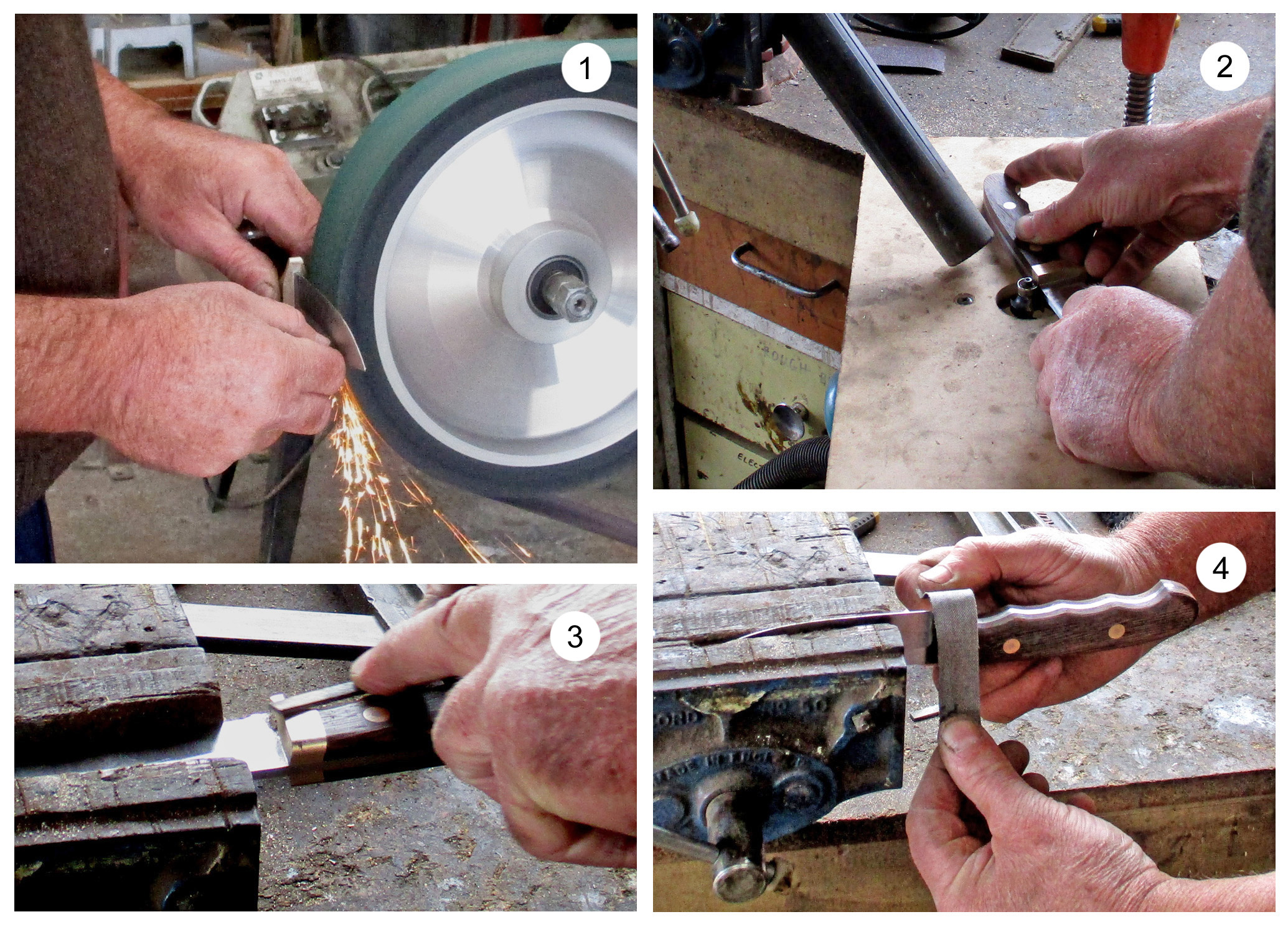

1) Sanding the bevels close to their final dimensions using a 180 grit belt.

2) I round off the handle and guard edges with a router using a small-radius TCT bit. Note the vacuum cleaner tube angling down from top left. I wear both safety glasses and a safety visor when I do this job. I slowly advance the workpiece into the tool, maintaining firm control, and I make sure to keep my fingers well away from the router bit.

3) Blending the guard flat/angle intersection with a fine file. I complete this job using abrasive cloth.

4) Rounding over the guard’s bottom corners.
