Making a Sharps Barrel in my lathe.

Hi Guys, I am still doing some bits on the rifle, mainly the stock wood fitting form the black walnut I got. Have roughly cut out the stock and forearm bits and fitting the forearm first, I cut it to fit the barrel on the lathe, same way I did the Hawken, and with lots of planning, sanding, oiling I have a nice forearm for the rifle. Still needs a few more coats of oil ,but I think its a keeper. This is the short forearm schnabble for the octagonal barrel, 10 1/2", I think it looks better on the short barrel, and it`s not to the plans, just my free hands having a go. Homebrew.357.

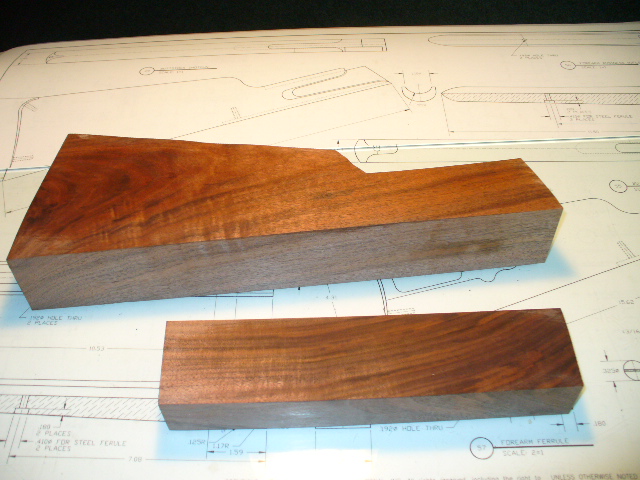

Attachment 43646, Rough cut out.
Attachment 43647, Pick the best bit for the stock.

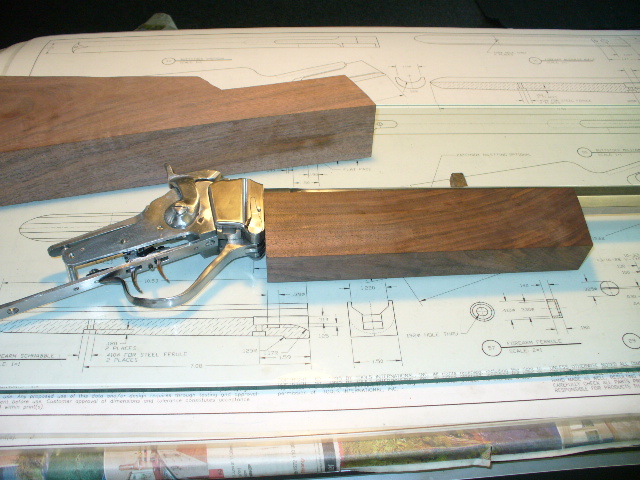

Attachment 43648, The forearm is fitting on nicely .

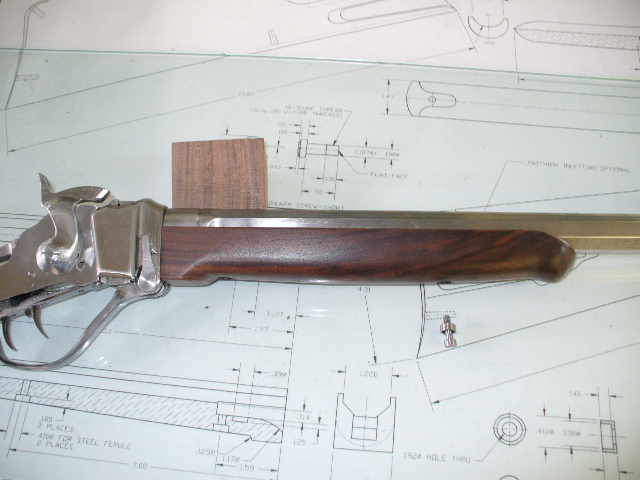

Attachment 43649, And you can see with my back yard way I have a nice bit of wood sitting on the rifle.

Hi, I was trying my idea of how to acid etch the side plate, off cause me being an electroplater no problem. My idea was to use a battery charger to do the etching, so I spray painted a test piece with clear lacquer all over and when dry I cut out and glued on my test pattern. I then carefully scraped away the lacquer all around the pattern outline and a bit more around it, then washed it in soapy water lightly and in to the battery acid, power on. Gave it 15 minuets , water wash and cleaned off with paint striper . Looks good, a bit more time etching for a deeper etch so it will stay after blueing . I have cut out some American Bison for the side plate, should look good. Homebrew.357.

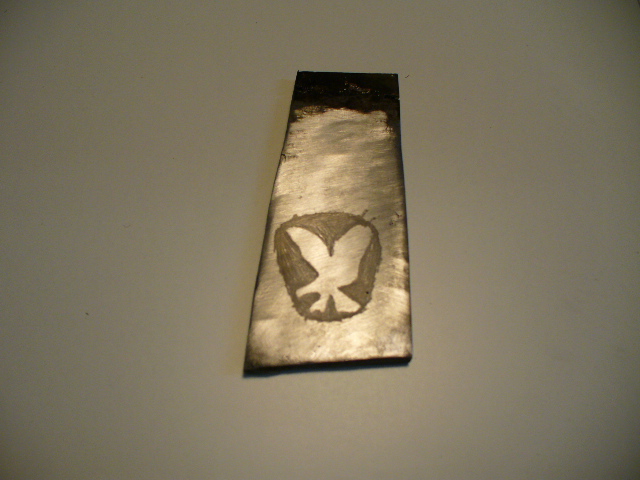

Attachment 43770, test, American eagle.

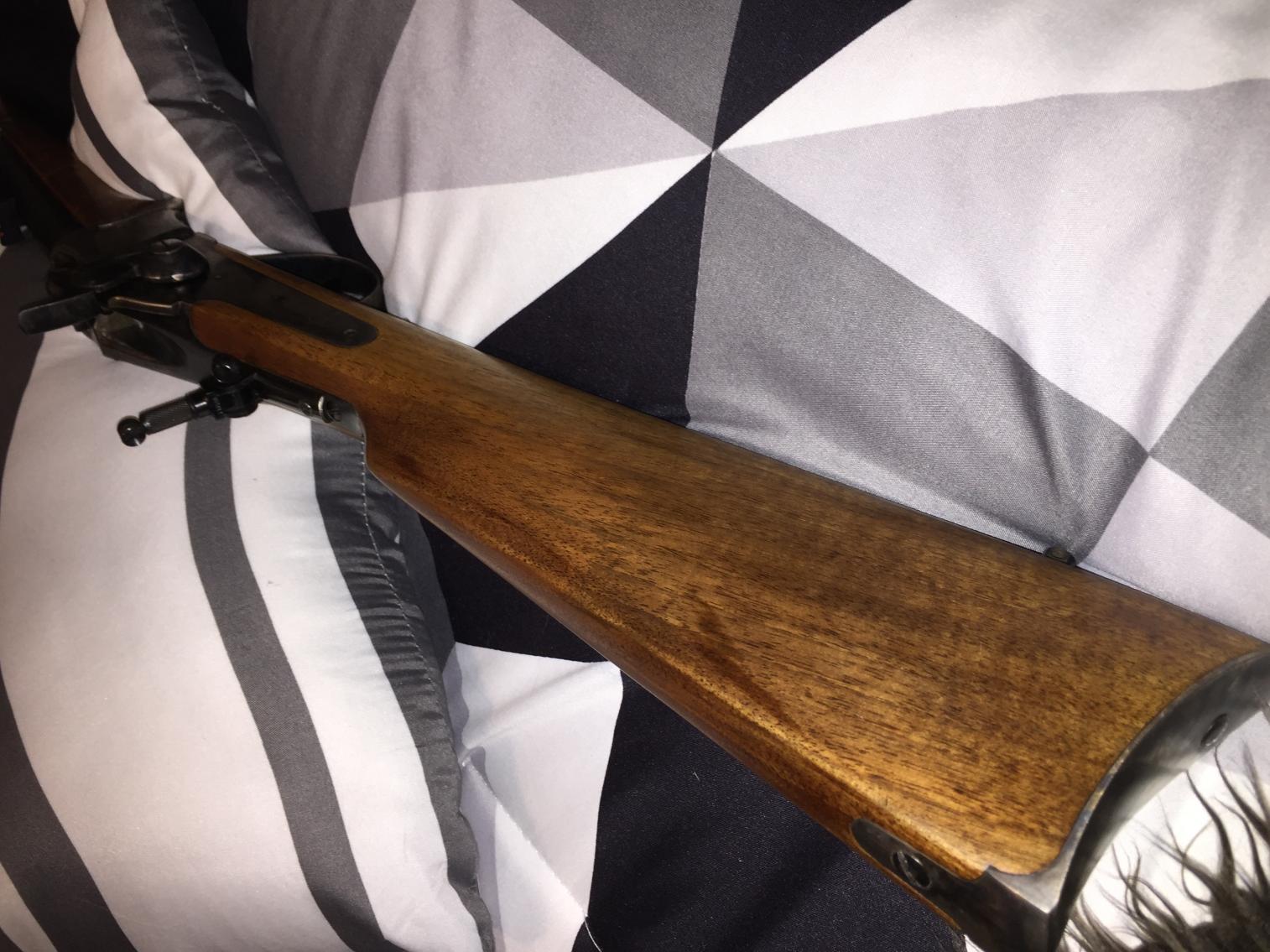

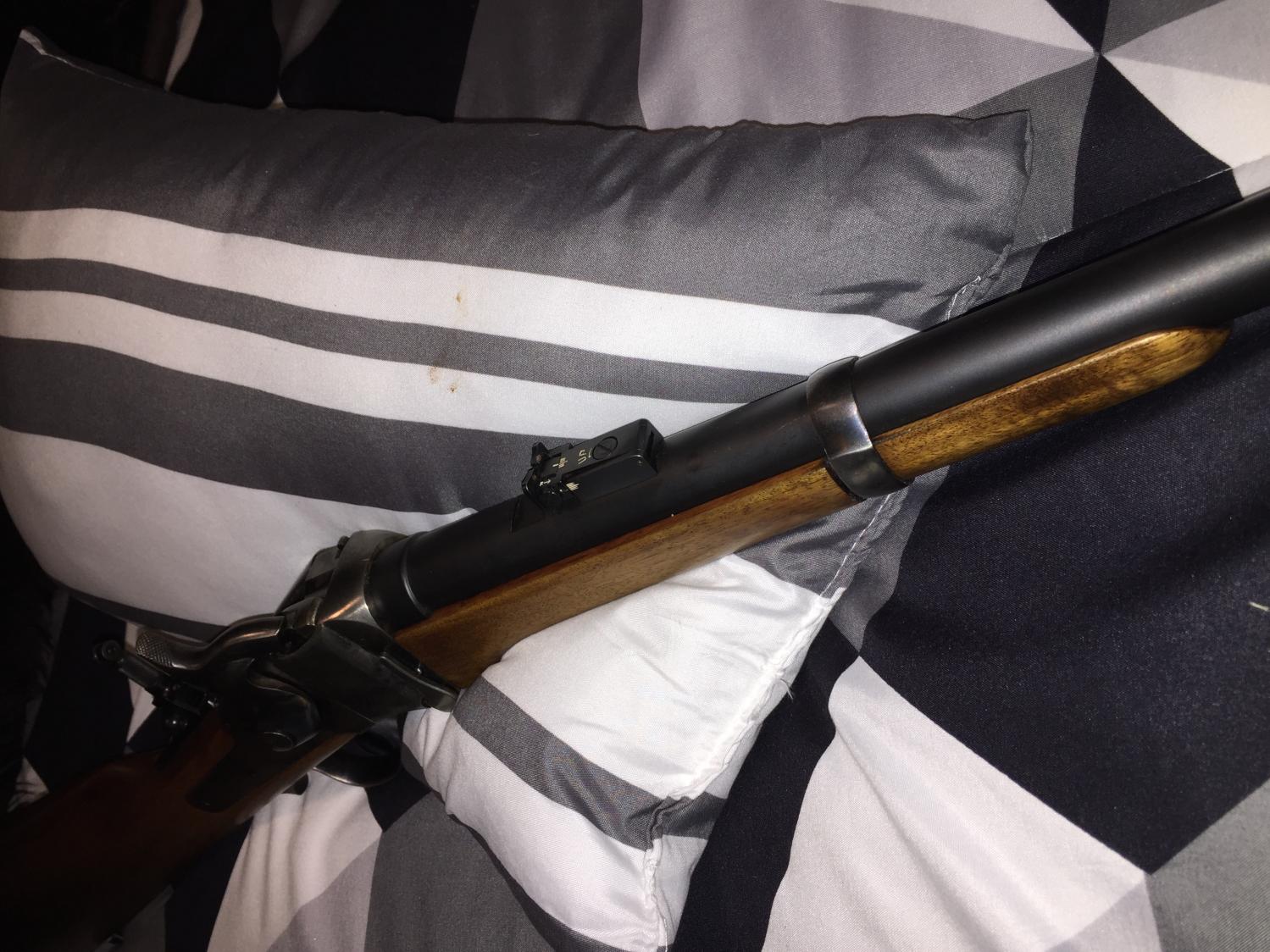

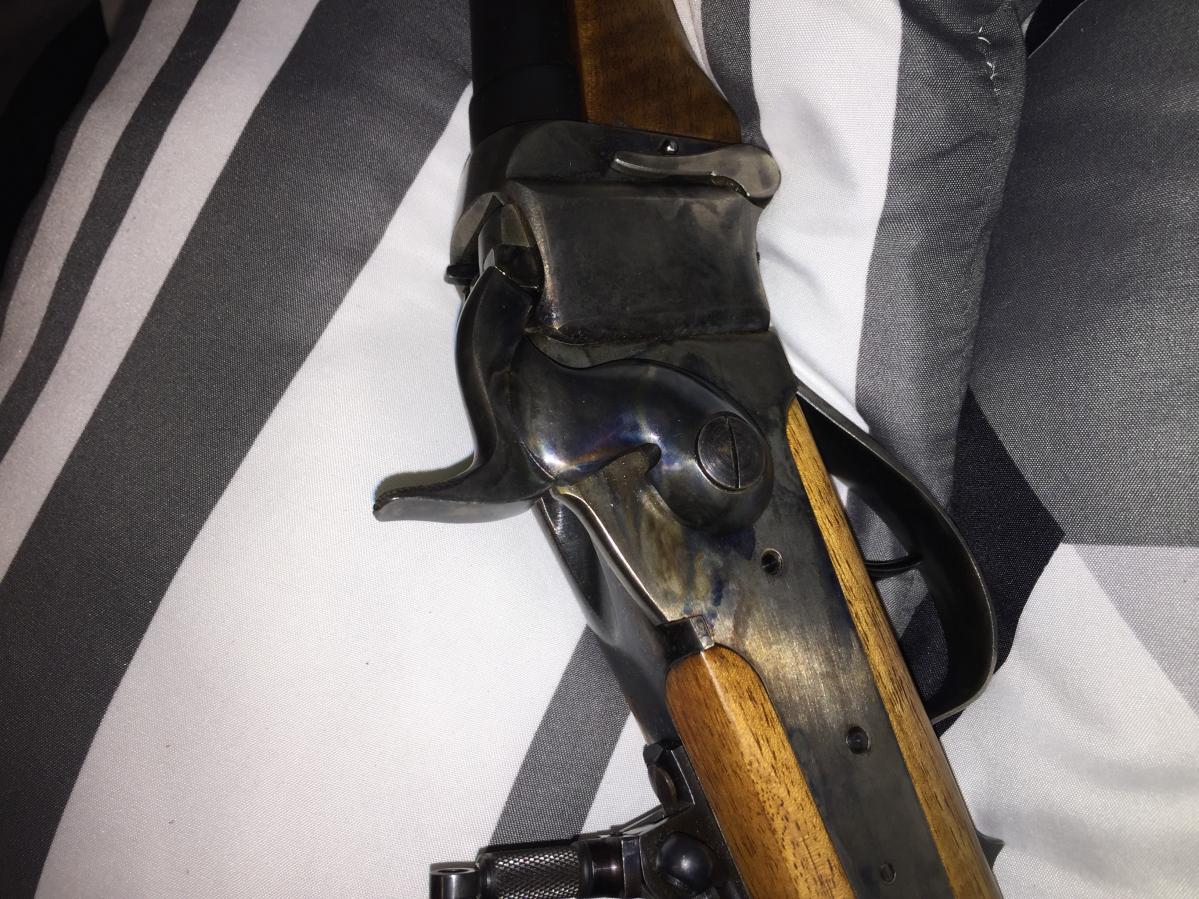

Hi Homebrew, I made this one with my credit card today! Pedisoli 45/70 falling block carbine hasn't done much work by the look of it. Will shoot it next week! Attachment 43771Attachment 43772Attachment 43773

That's absolutely cheating!!, :omg:, you lazy sod, :yuush:, it`s so unfear, post it up to me so I can check if mine is the same, :P. and so I can find out how they shoot!!!, :). You lucky sod, you had better git it to the range and get the barrel dirty, make heaps of smoke Maca 49, Cheers, Homebrew.357.

I knew you would feel like that, I haven't seen a shorty in a falling block, so grabbed it, go nicely with my Trapdoor and Matini Henry 45/70s I'll like you know how it goes with 63 grains 2f and a 500 grain slug!:D

You two buggers should go head to head at the tobygoodley memorial shoot next year. clint eastood &johnwayne reborn!

Hi Maca49, No you have still got it wrong!!, Those short ones need 70grs fffg and a 550gr bullet to get it out to 800yards. You can rest between shots, while they patch up your shoulder in hospital,:ouch...it hurts:. Have heaps of fun with it, I`m going to when I get mine up and running, in the mean time eat heaps of mince pies, ham, turkey, washed down with lots of beer, need more weight to handle that new gun. Cheers, lucky sod, :thumbsup: Hombrew.357.

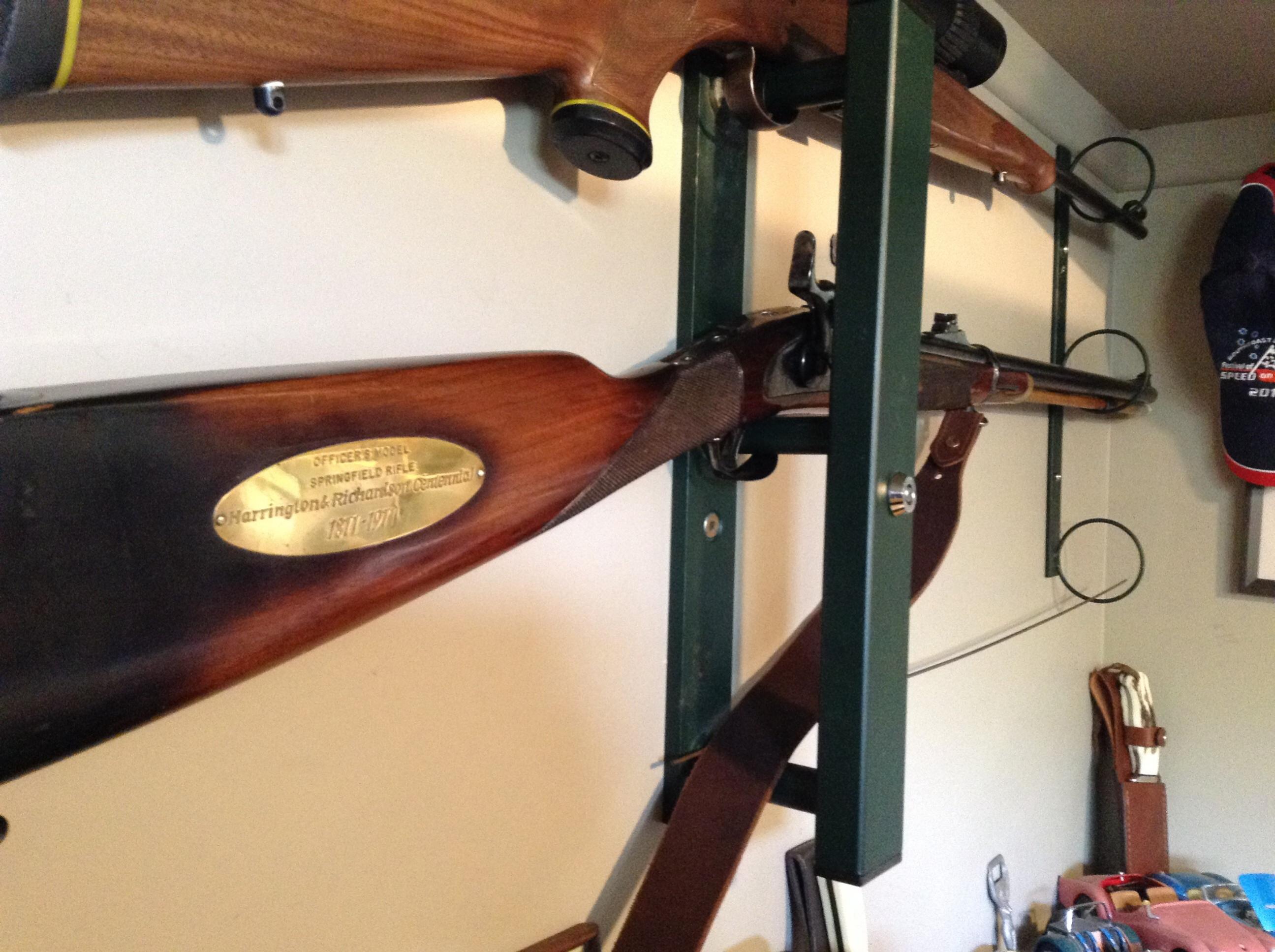

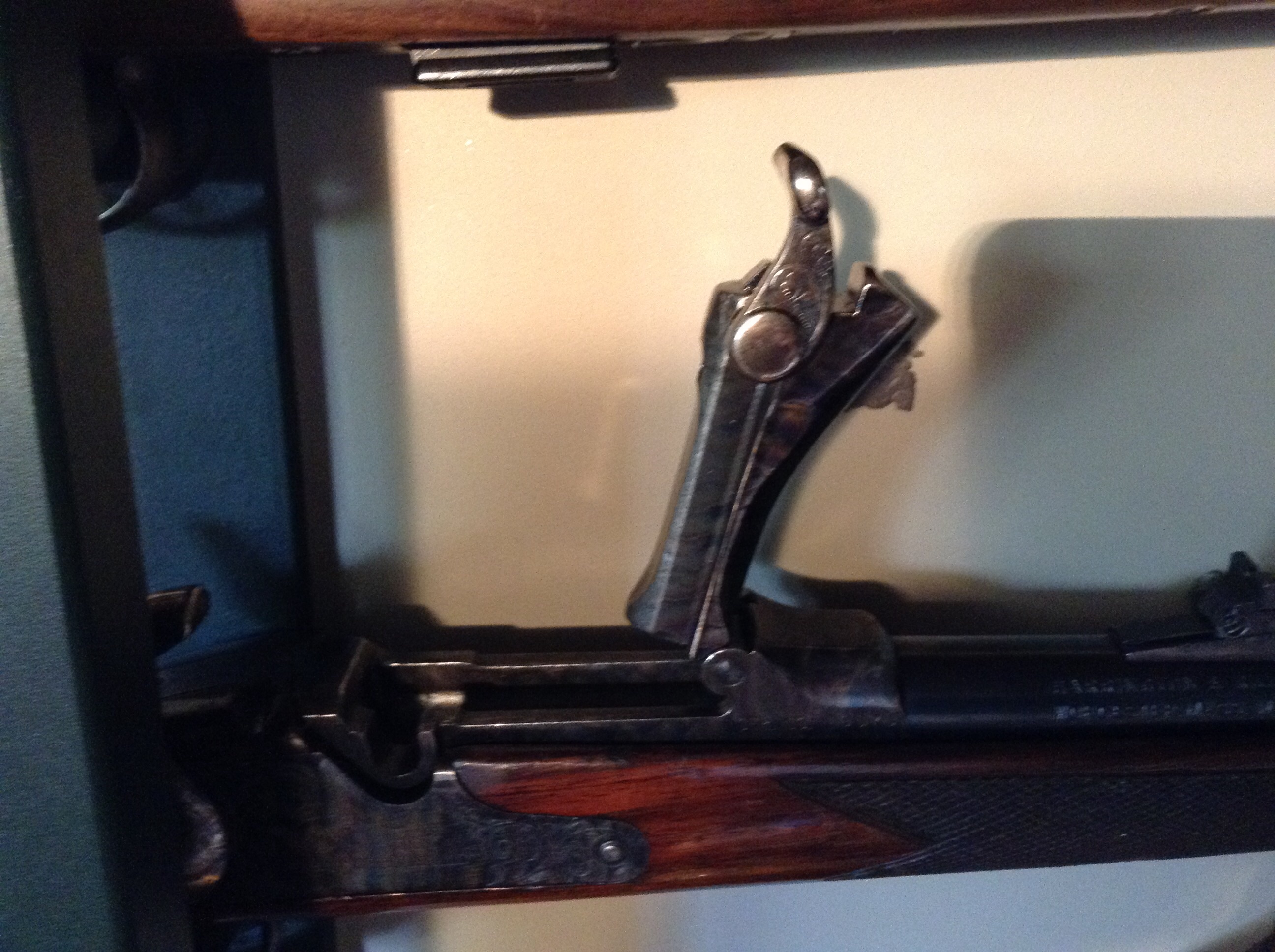

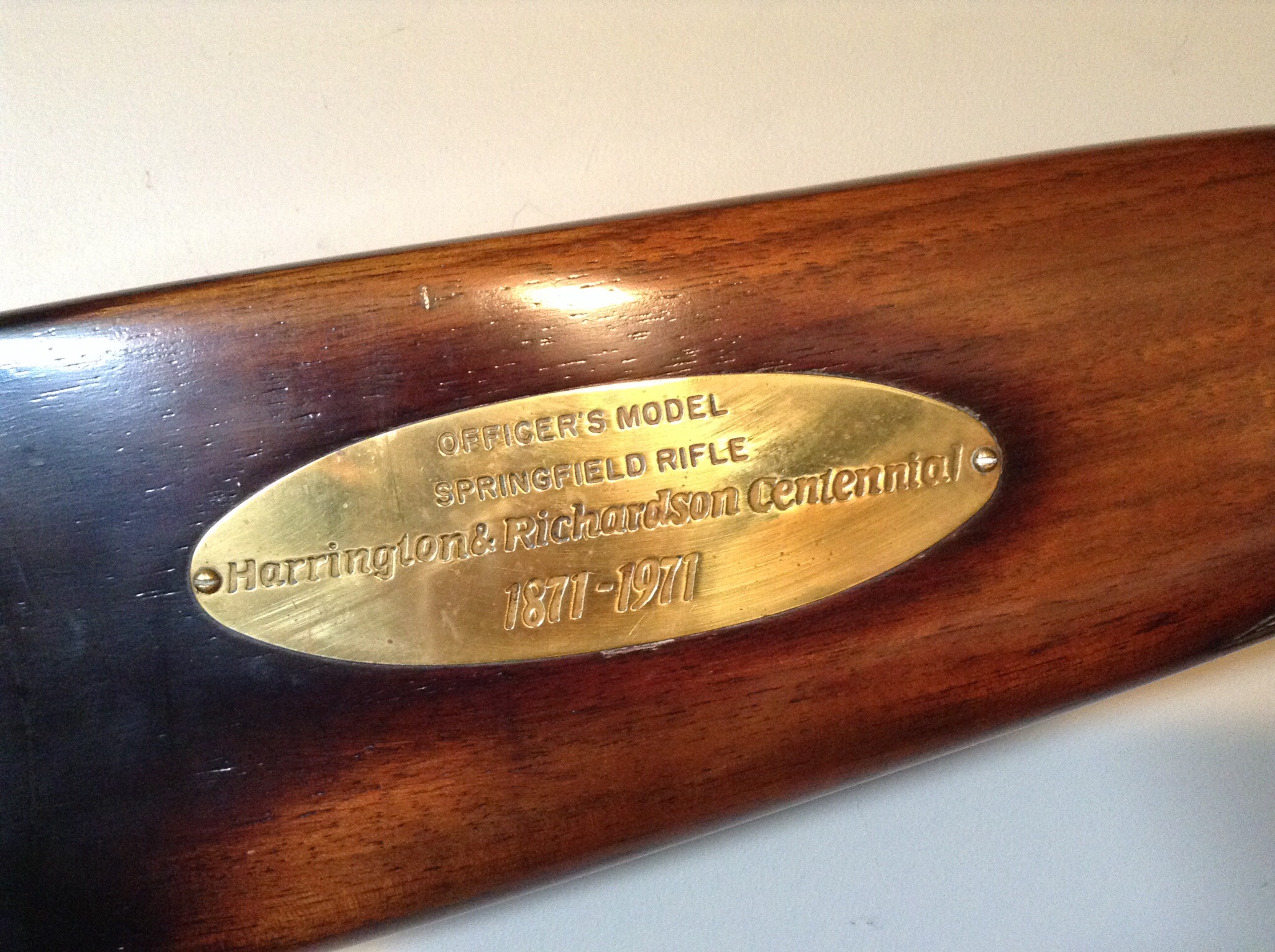

Shoulder is sorted, plenty of practice with this bitch!Attachment 43784Attachment 43785Attachment 43786 in 45/70

O M G, You know how to hurt a man to the quick, that is painfully a lovely looking rifle, none of your plastic fantastic stuff, just plain old reliable . You have some nice guns Maca 49, enjoy them. Hi Kotuku I want to be Quigley , I`m shore I can find a wooden bucket!. Homebrew.357.

how do ya do ,the names a brew -me trusty muskets fired a few. well ol chap you could alwasys hitch a lift with the SASto the current picnic spot.Im sure a few booms ,clouds of smoke and resulting dead hiluxes would confuse the assorted cameshaggers scrapping
ali ali what is that -do not know razzi -allah mentioned nothing about man with long gun that sound like bull camel farting but vanishes in great cloud of smoke.
Oh dear what will ISIS boss say our hilux tank has fallen over all dead -great hunk of lead sticking out!!woe is us.

I`m glad to be in NZ, I hope Hellen gets the job of sorting the buggers out. A 45-70 would do a bit of damage to a technical, but I love it when a hell fire missile goes in the back window, there an`t much left. Working on the stock now, planed the base flat to true it up for a datum, then cut the front angle true on the lathe. Set up the stock to cut the slot for the trigger plate base and then while its still there will mill out the deeper slots for it to fit in. I always cut it a bit small, then a bit of chisel work should get it fitting snug. Still waiting for bits form US, should come tomorrow, but will have to stop soon to get ready for the mainland trip. Cheers all, Homebrew.357.

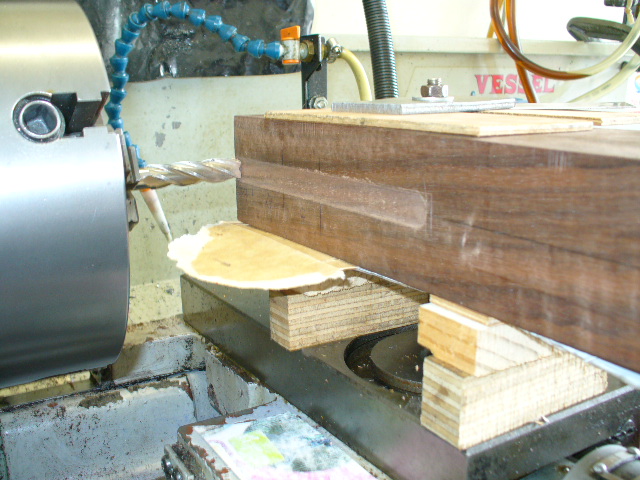

Attachment 43840, Milling out the trigger base slot.

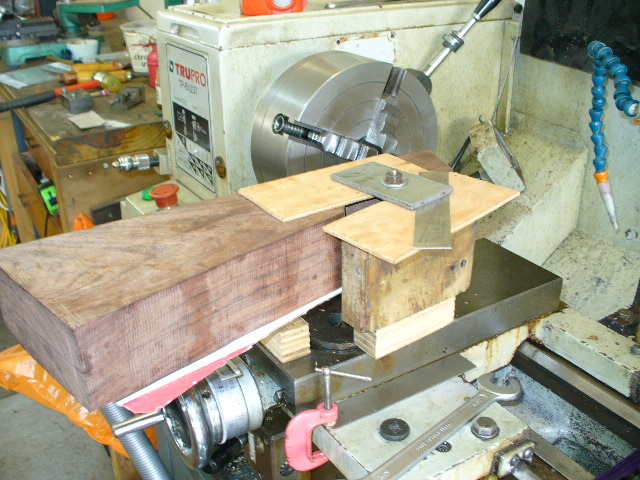

Attachment 43841, My set up for the stock.

Hi, So with a bit of careful inletting the trigger plate assemble fits in nice and snug, and all I`v got to do is fit in the rest of it with no mistakes. :o. It will be a tricky job, but now I have a good datum point and with very careful work should get it fitting right. Some people just buy them, but it`s so much more fun to make your own.;) Homebrew.357.

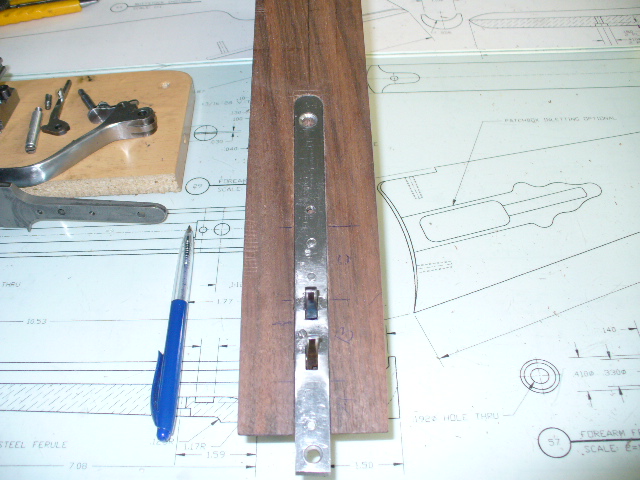

Attachment 43886, Trigger plate fits in.

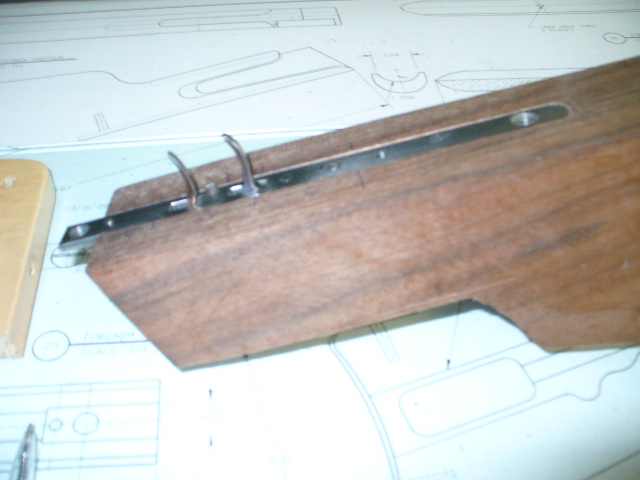

Attachment 43887, It`s getting there.

Yep I'll be shooting mine this weekend, cause I've got the time! Im sure you look at a job and say" what's the hardest way I could perform this task?", I take my hat off to you, you are a talent, now don't screw it up!!

Hi ,I want to see the 50m target, to see if you can beat my one with the Hawken, and doing it on my lathe is speeding it up, I think. Just think, when I walk onto the range with it," Shiloh Sharps" , no , it`s a Kiwi Sharps! , and the action is stronger, it`s .020" wider, a bit more steel there. But what you have got is what you use and what you use is what you have got, so go shoot that gun and have fun. Cheers, Homebrew.357.

Hold it, got it wrong, just measured the receiver width and it`s .068" per side so it is a strong action. The plans say it should be 1.830"and it is now 1.966" , this came about because when I had the breech block hole cut the tool shop surfaced ground the block of steel square and true, so I left it like that and a bit more weight will be good for my shoulder,:thumbsup: , Get stuck into Xmas, Cheers, Homebrew.357.
