Great stuff @homebrew.357
HI, Yes they recommend 0.0002" per revaluation, barrel speeds of 2/5000 rpms, and 1000 psi oil presser . The drill goes in one inch per minute and it takes 1/2 hour per barrel, I a lot slower. Homebrew.357.

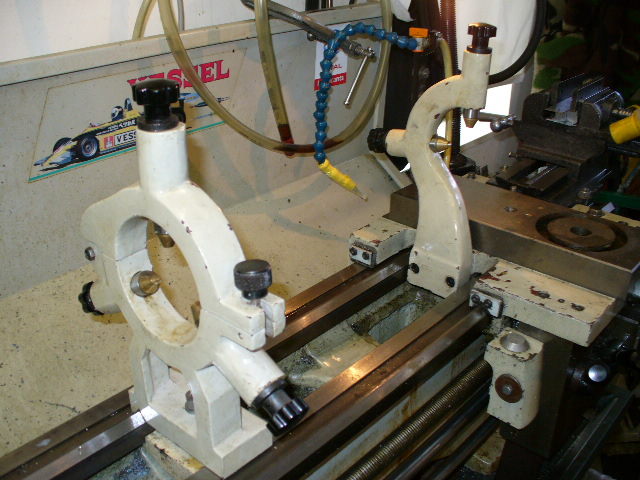

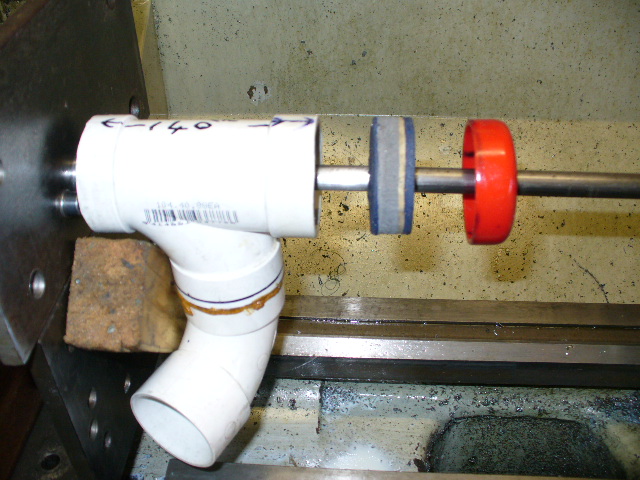

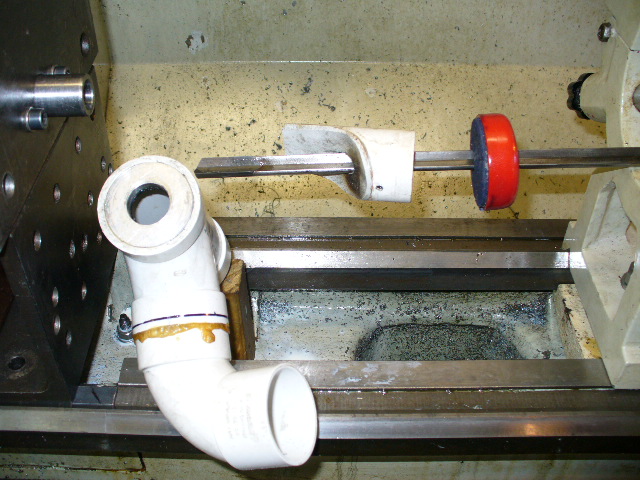

Ok, The barrel is set up ready to drill, so here is the setup for the gun drill. The following steady and fixed one are mounted on the lathe to help guide the gun drill and keep it straight . The chip catching assembly is put on the back of the drill guild , has a o ring seal, the gun drill is set up with it`s back end seals, the drill goes through them so no oil can leak out. drill is clamped in the vice at centre hight and oil hose is connected. pic`s, Homebrew.357.Attachment 29999Attachment 30000Attachment 30001 Attachment 29998

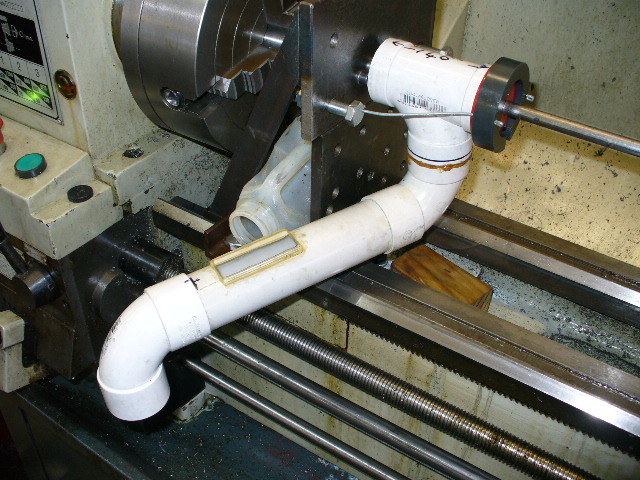

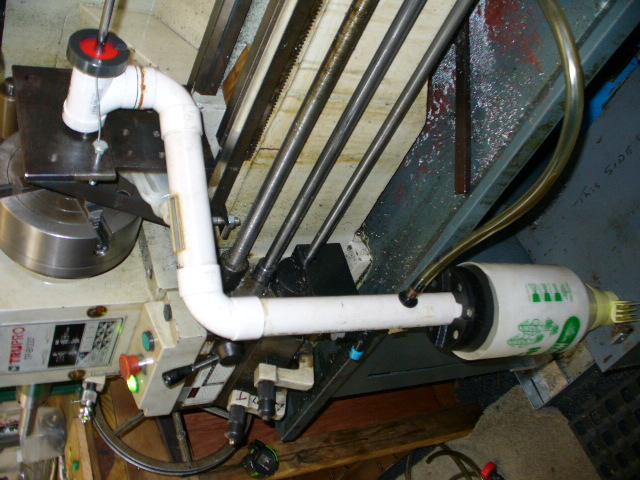

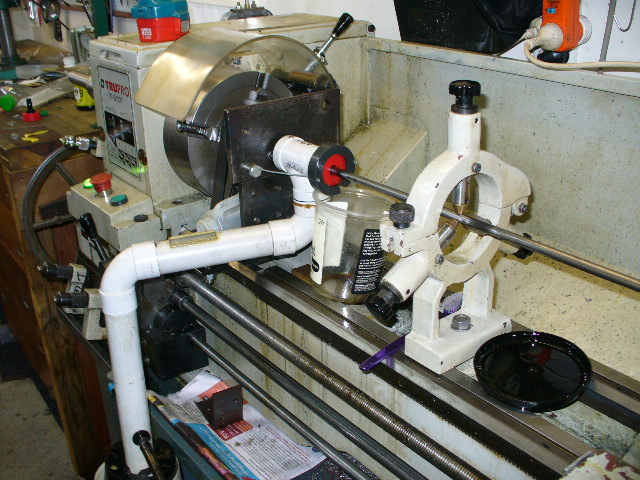

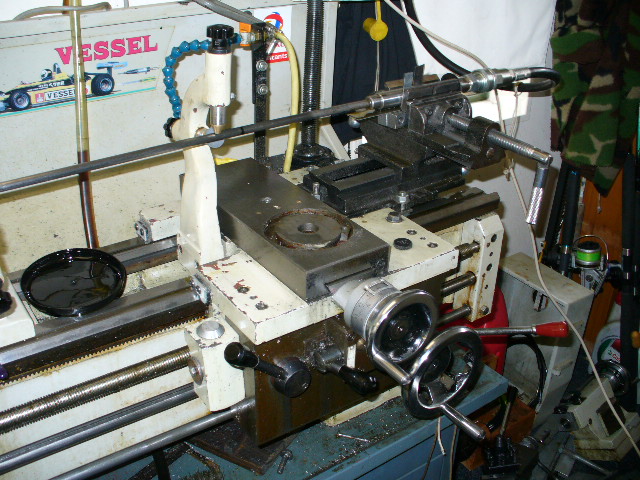

Ok, some more pic`s, The outlet tube has a clear window so I can see the chips flowing out, keeps me happy. Oil and chips go down to the chip strainer and oil goes into the tank in a go around cycle. The motor and car pump are at the back of the lathe and oil in pumped up to the junction box , red tap is tank return, at left, gate tap at right is to gun drill when left one is shut. The pressure is governed by the hole in the gun drill, I got 300 psi, worked all right as the chips soon filled up the box. Have to empty the chips out three times for this barrel, which by the way is 4140 steel. More pic`s, Homebrew.357.Attachment 30006 ,gun drill clamped in. Attachment 30007, Chip catcher assy. Attachment 30008, drill in ready to go. Attachment 30009, All back to the tank.
You are Gold, keep it up mate

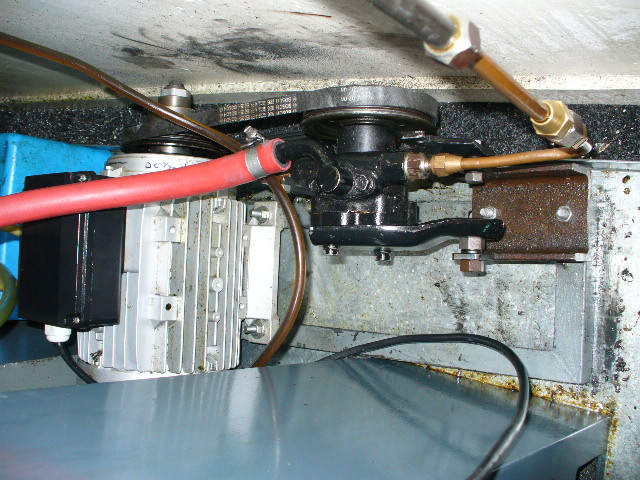

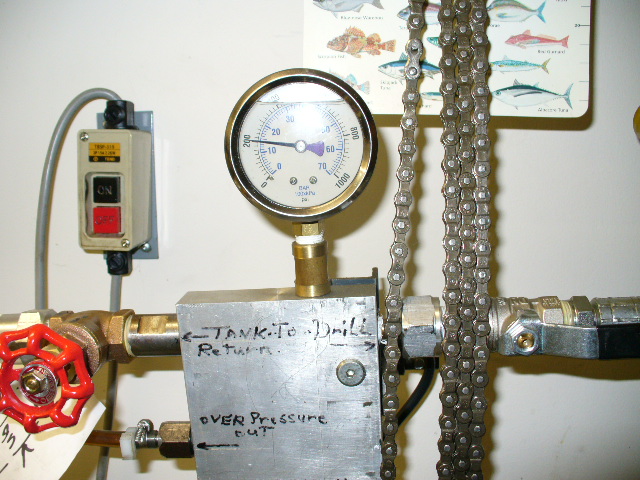

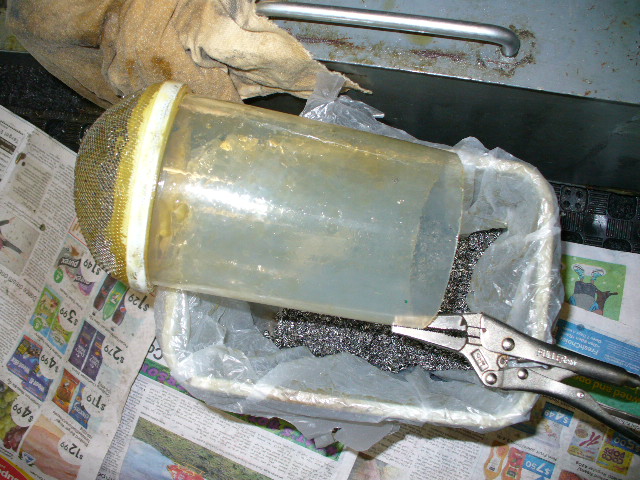

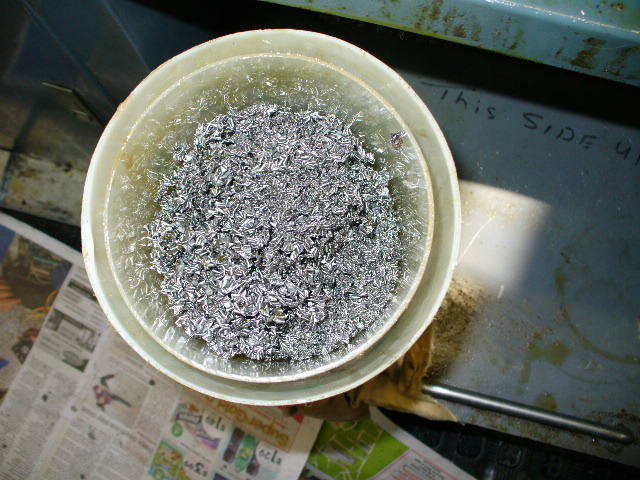

The junction box, Chip catcher full , motor and pump, Attachment 30019Attachment 30022Attachment 30025Attachment 30028, Lots of chips, :cool:,Homebrew.357.
is that a power steering pump? can it put out more than 300psi? cheers. like your work!

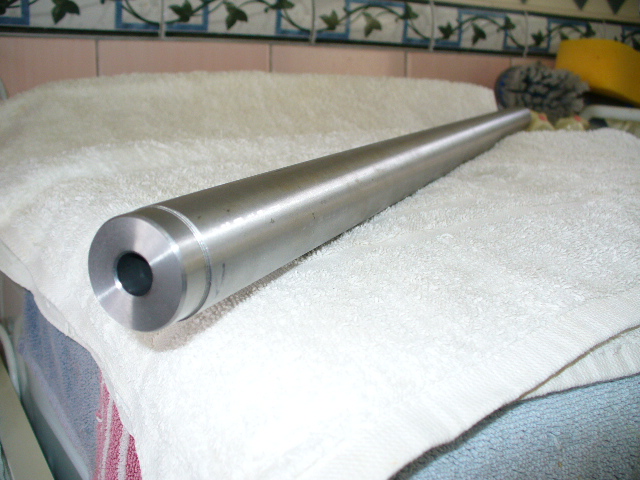

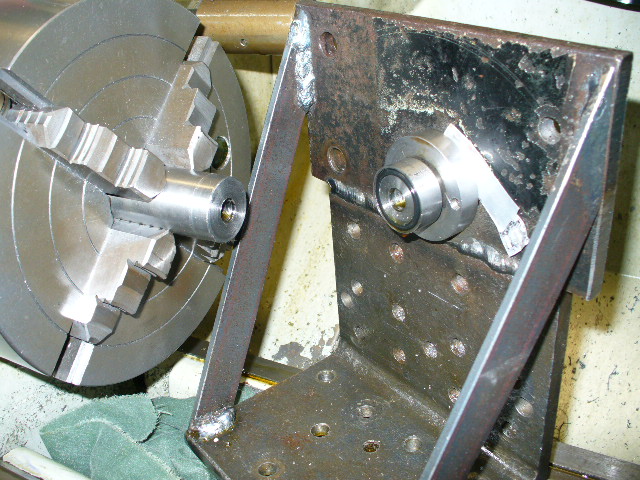

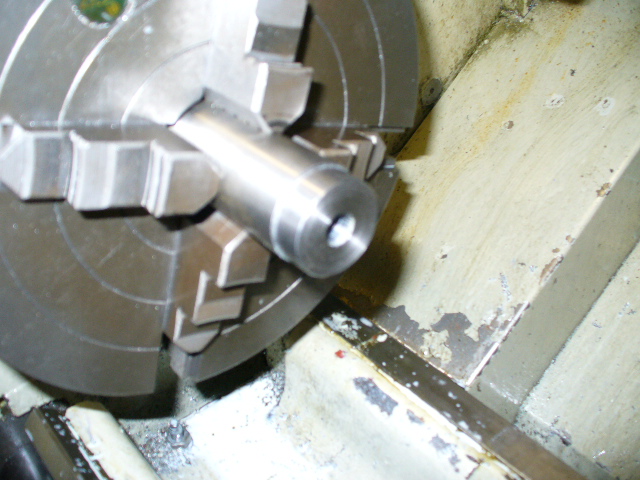

Hi, Yes , The power steering pump will put out more presser , but in this case it is the hole in the gun drill that gives the presser. So to start things going, the gun drill is in the guide 1/16" back from the barrel stock, the lathe is started, 1200 rpms, then the oil pump , there is no presser and the oil is retuned to the tank via the red tap, just going around. After checking oil flow is ok, the gate tap to gun drill is opened and red tap is slowly closed untill all the oil is going through the gun drill, at 300 psi, The lathe saddle is engaged to start the drill in feed. After a bit the chips can be seen coming past the sight glass and into the chip oil filter , and yes the oil presser does drop a bit when it warms up 200psi, but the chips keep coming out. After three days you end up with something like this,Attachment 30405Attachment 30406Attachment 30407, And, this is my try with 4140 steel, next is how I reamed it ,:thumbsup: Homebrew.357.
Your a man of great patience! And an all round clever one, got offered a barrel drilling lathe with drills the other day, ex Tony Hawkins, no button dies for rifling though
Getting the button dies is the easy part. Getting the gundrill lathe and the button pulling machine is the toughest. Also need a good oven for barrel metal stress relief.
Well I`ll be blowed, I knew Tony at the NZDA, he would come to the bench rest shoot, pull out a length of 3x2" with a truck axle barrel ,98 action on it in .308 cal, scope on top and proceed to shoot one ragged hole at a 100m. Pissed off a lot of shooters with the good gear. He was a great guy who had to leave early.

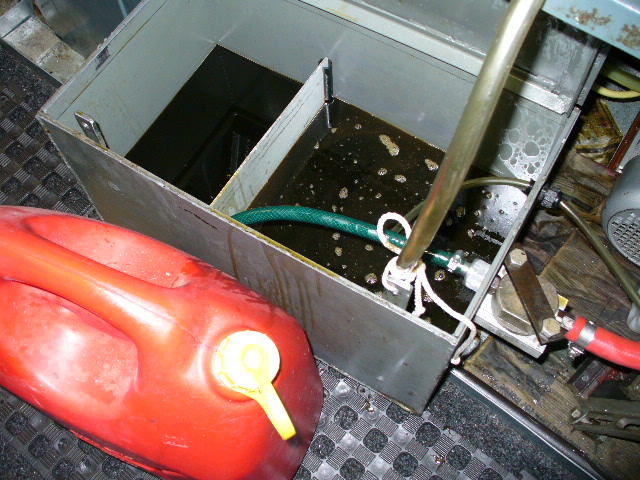

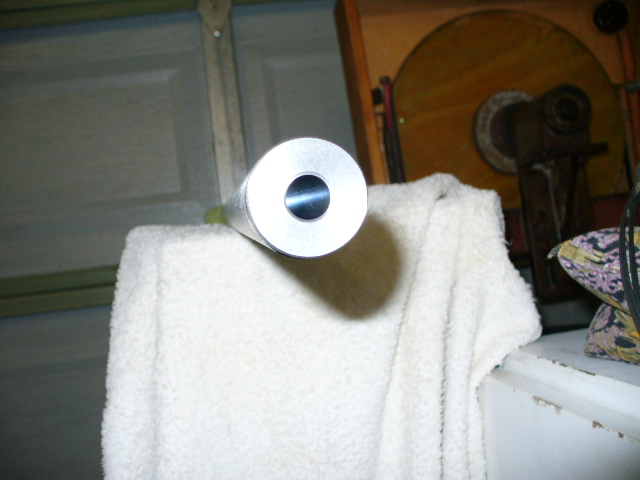

To all around clever, add real low down weaseley tight wad , you see ,when I say oil in tank, I`m not saying (cutting oil), because It`s not, it`s hydraulic oil from my son`s Kanga digger, well it works alright. :thumbsup:, pic`s, tank filling with ("cutting") oil, and barrel. Homebrew.357.Attachment 30559Attachment 30560
shit that's awesome good stuff homebrew357
Hey Mate this is some good stuff, keep the pics flowing, along with that cutting oil!
Opportunity?Quote:
Originally Posted by Friwi
Probably a dumb question but is it/are you going to rifle it? Or just leave it smoothbore?
