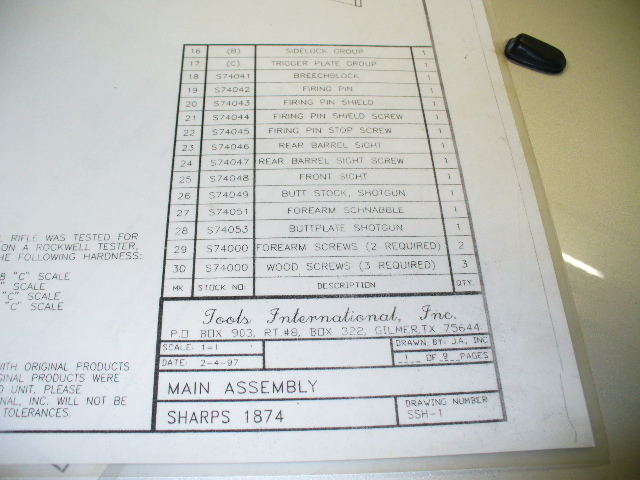

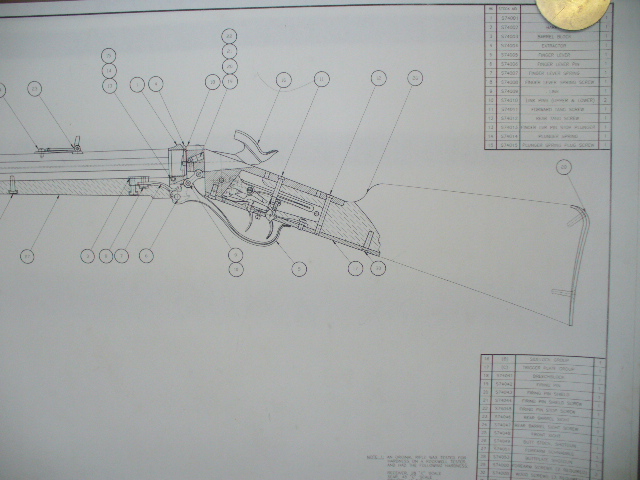

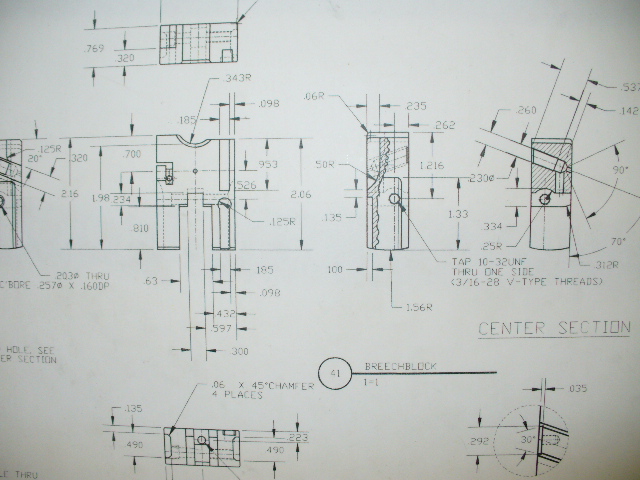

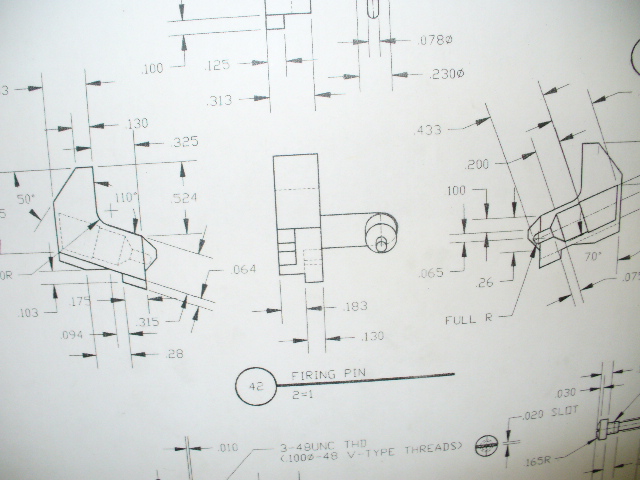

Hi all, I think I did the barrel post to show the barrel making in more detail, as I was doing it, so will go back to how I decided on the Sharps rifle for my next project. Finished the Hawken and had replenished my no 8 wire and washing machine bits, so was looking on Ebay in US when I saw Quigley down under Sharps 1874 rifle plans. :P I started drooling all over the computer, after a bit of biding I got them for $65 us, +$25 pp, about nz $126.00 and on my door 5 days later. They say they for wall hanging and not for making a rifle from , do so at your own risk , I carn`t see anything wrong with then , there are 9 sheets, plans in inches, are .900mmx.640mm size and I had them lamented to keep them clean. Now this is a new ball game for me, this is the first time I have tried making from plans, yep, the Hawken had no engineering plans, just ones for making the stock. So here is some pics of the plans. Homebrew.357.Attachment 34946, Full size. Attachment 34947, Attachment 34948,Attachment 34949, I`m still drooling.

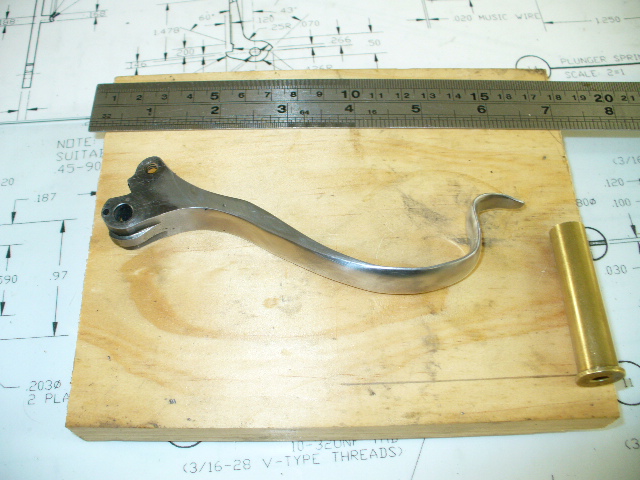

Attachment 35091Mmmmmm, I think the buggers have all gone down to the Ruapuka pub, :beer:. Anyway here is a #8 wire bit, the Sharps has a under lever come trigger guard thingie that drops down the breech block, so had to make it in two bits , the front part was milled, drilled, machined out of 1045 steel. The back bit was cut off the side of 1018 mild round stock, the two bits where welded together and then a lot of grinding ,sanding and polishing to clean it up and finale bent to shape . looks good. Homebrew.357.

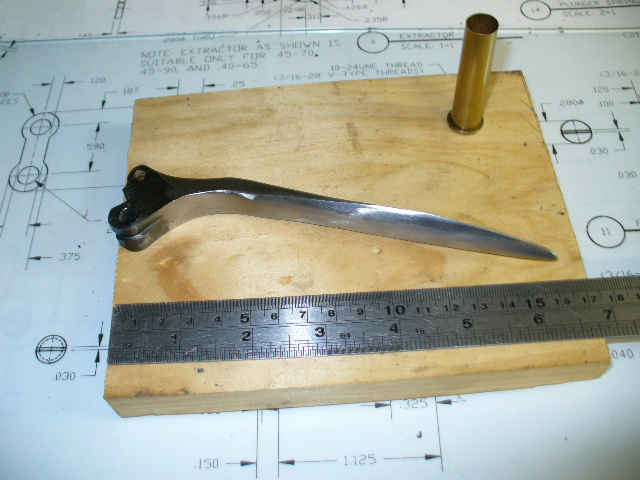

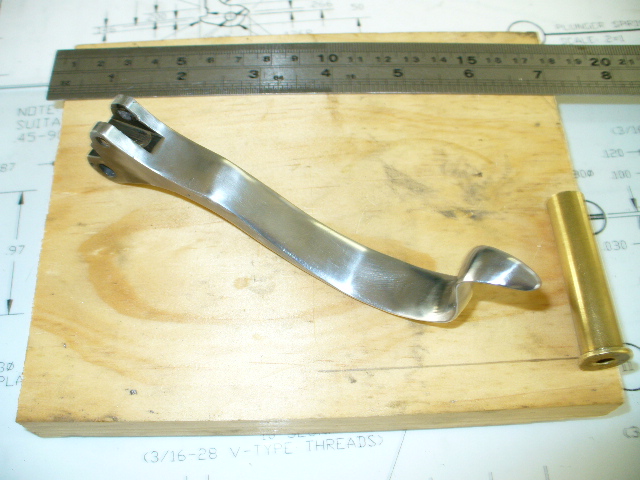

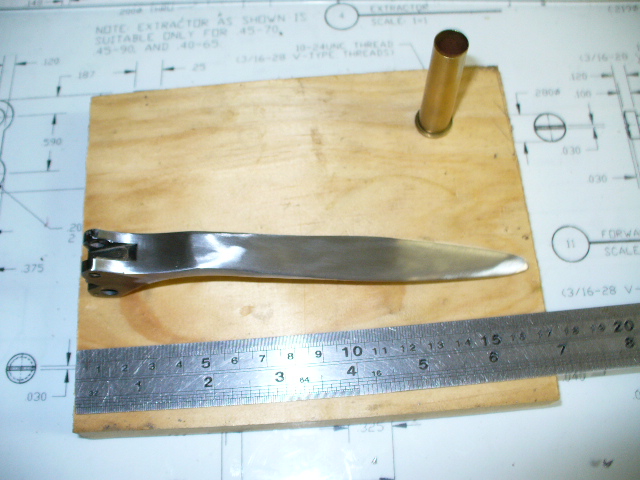

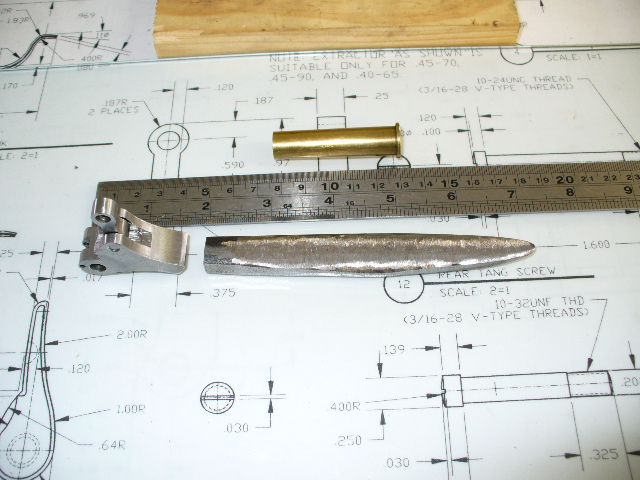

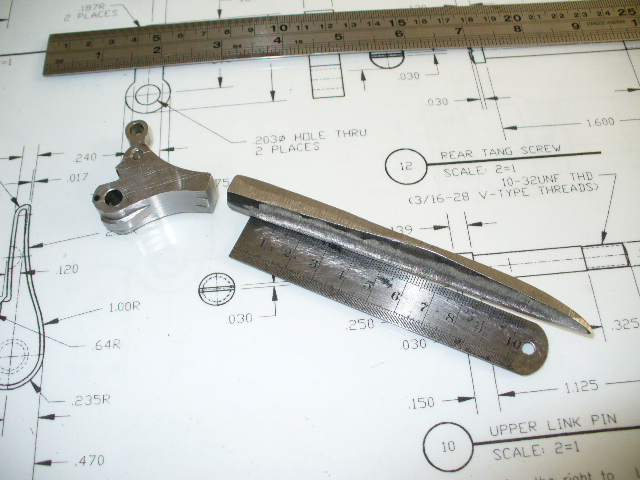

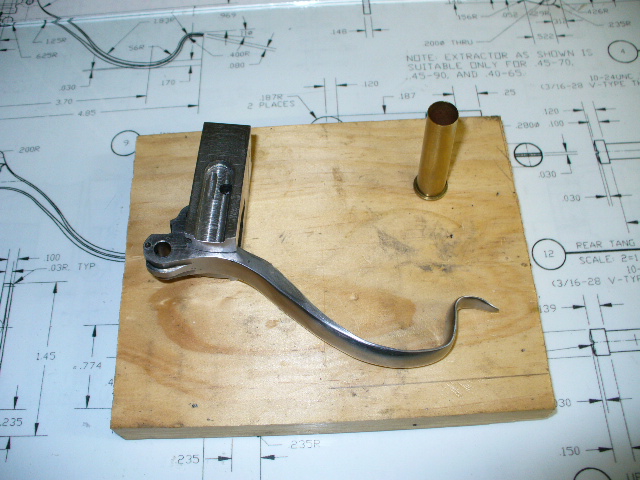

Attachment 35087, Attachment 35088, made to fit and ready for welding.Attachment 35089, welded. Attachment 35090, bent to shape. Attachment 35092 ,Attachment 35093, with breech block.

But wait, there`s more,:thumbsup: had to make the side plate with a hammer that's on steroids , also a gruntey v shaped spring to drive the hammer. Now my take on making springs is to make a spring form a spring, had a bit of car spring that had been put in the fire over night, fish it out and it`s soft to cut. Cut out the spring shape, filing, sanding to clean up smooth and then reharden it and temper, done, I had my side action main spring. Homebrew.357.

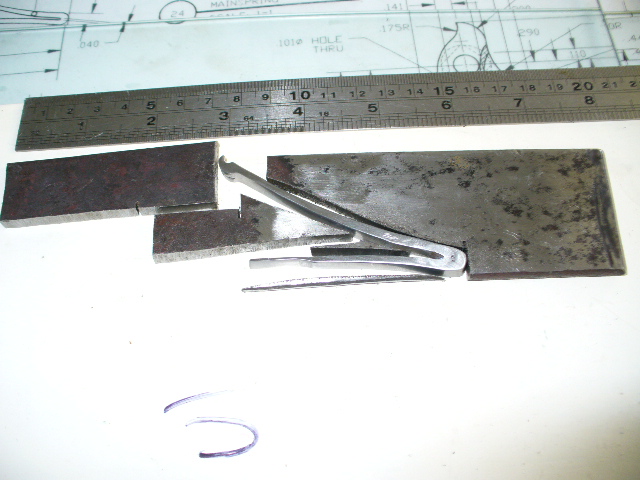

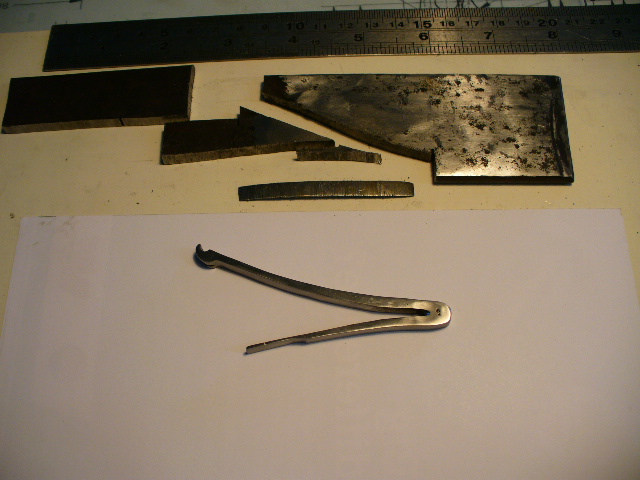

Attachment 35107, Cut out from the lump. Attachment 35108, Hardened, polished, tempered, done.

Beautiful, your talent amazes me!

This is so rad. I want a falling block rifle in my life

Love it HB. keep up the 'great' work......

I want one to, so, I`m making it, now the action is all on a side plate and it has to be good hard steel, but you have buy a large bit and I only needed a small bit. Problem, how to find a bit of good comeinhandy stuff, :nose pick:. Having a barbie at my sons place , you haven`t got some hard plate steel buy any charnce son?. I`v got three bits, buggered up Stilth chain bars, the rest is history . So cut a bit from bar with angle grinder, very hard, annealed it with gas tourch so I could cut to shape, then drilled holes and cleaned up ready for fitting other bits. So, yer, had my side plate, :cool: Homebrew.357

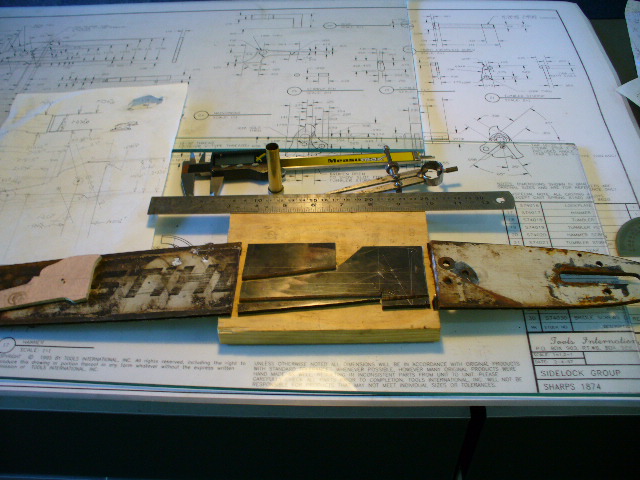

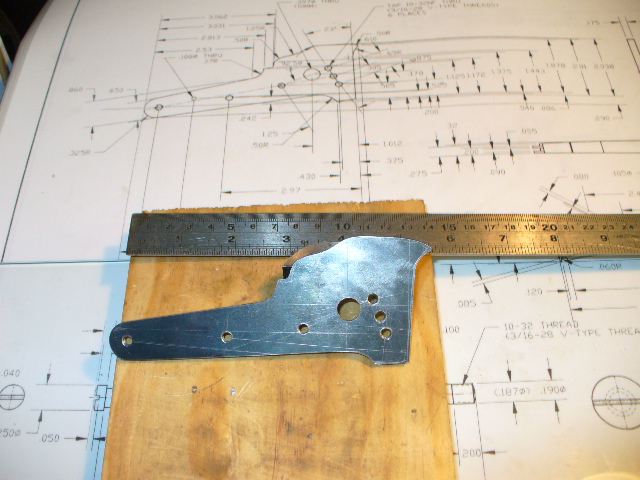

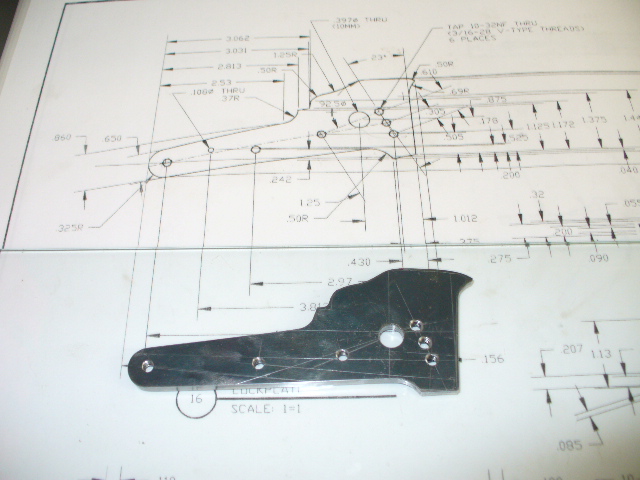

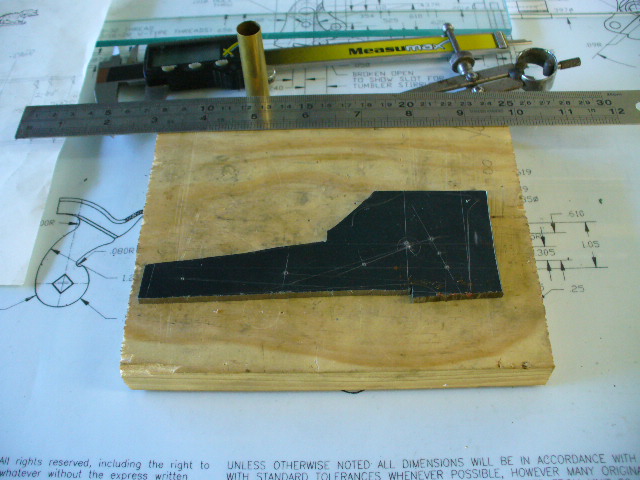

Attachment 35126, Bit cut out from chain bar. Attachment 35127, Getting there.Attachment 35128, cleaned up.Attachment 35129, The side plate from chain bar, when ready will just reharden and temper for nice finnish.

You're a machine!

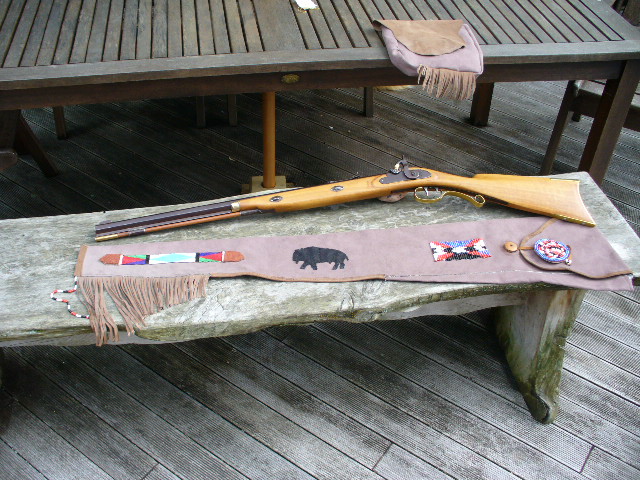

Hi, You could be right, I looked in the mirror and on my left side there`s a turret lathe, surface grinder, drill. Right side has C N C machine, shaper, lathe. Just managed to get my arms out to work on the Sharps rifle cover, a bit of Crow , Navajo bead work and it`s looking good, carn`t wait to take it to the range and pull out the Sharps 1874 Quigley 45-70 rifle and say, " You haven`t by any chance got a wooden bucket have you." :thumbsup:, Homebrew.357.Attachment 35155, Attachment 35156, Attachment 35157

Hi it`s all coming along nicely , and making a possibles bag for my Hawken for when I can take it for a hunt, but with all the ops I`v be having will have to rethink my transport to the bush. Homebrew.357.
Attachment 35194 Attachment 35195 :thumbsup:

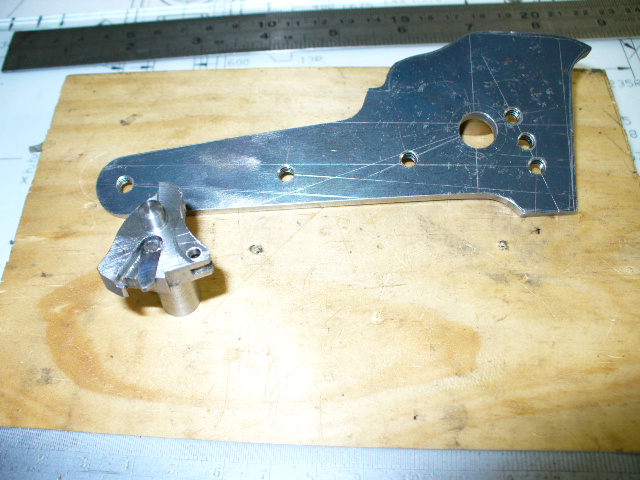

Attachment 35213Hi again, as you proberley relies I have already made theres parts I`m showing you, I got a bit ahead. So had to make the tumbler assy with fly, it`s very much the same as my Hawken lock, but bigger. Set up round 4140 stock in lathe off centre, for the hammer shaft and machined tumbler body round, then using saddle as a shaper cut out sear and half cock notches, turned hammer and bridle shafts and then cut it of the stock, reset up to cut square for hammer. When all was polished up hardned and tempred , done!, Homebrew.357.

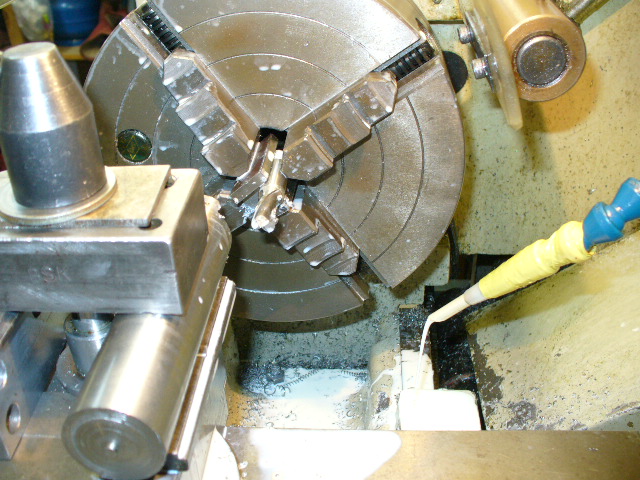

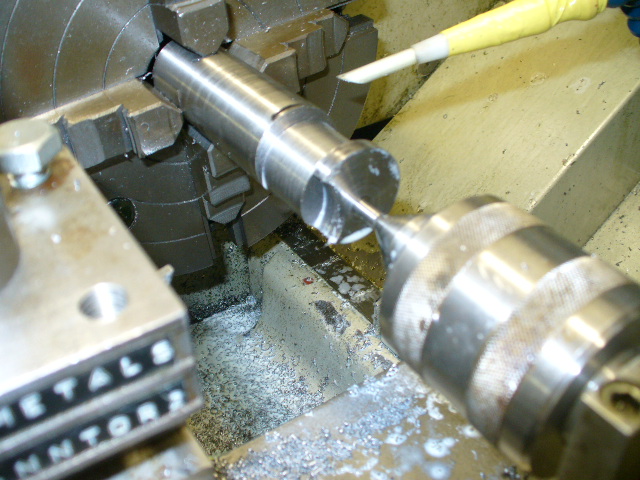

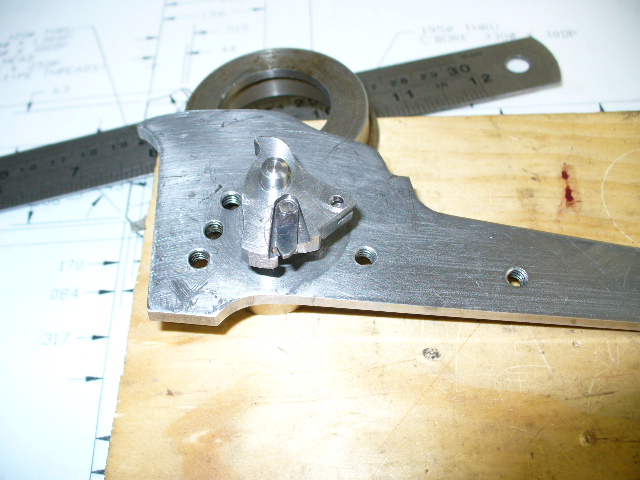

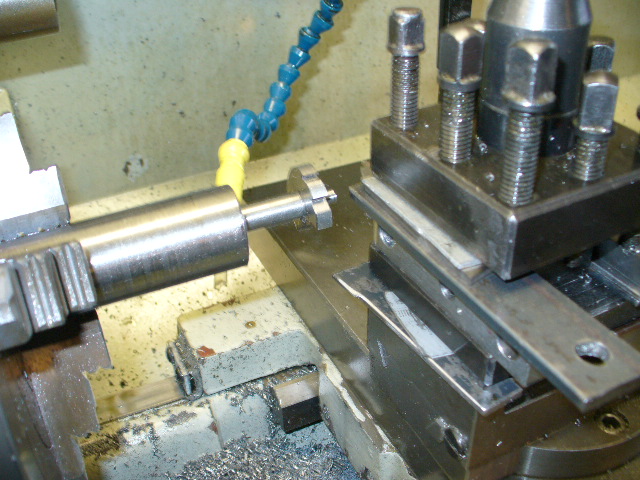

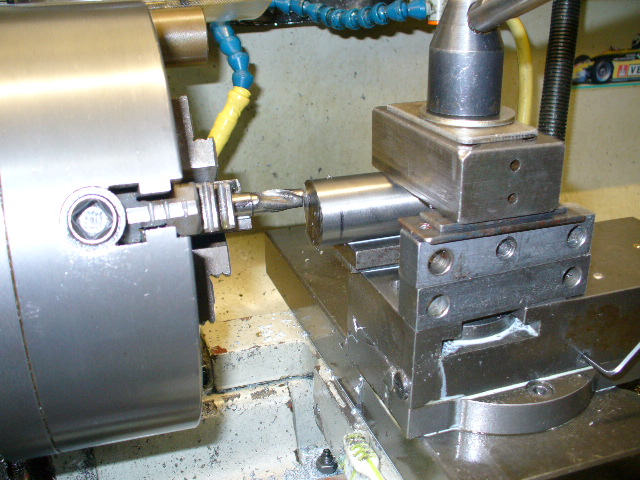

Attachment 35209,Turning to shape. Attachment 35210,coming on. Attachment 35211,Attachment 35211bit more work. Attachment 35212, cutting the sear.Attachment 35214
