Thread: Project Howa mini carbon chassis

  1. #1
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    647

    Project Howa mini carbon chassis

    So I thought I would give it a crack.
    In still in the early stages yet with lock down it's been bloody tricky getting hold of parts. Got a lot of stuff ordered but waiting to be delivered.

    I'm going to try and build a carbon chassis style stock to try and build an ultra light weight Howa mini.
    I am following the same method as @Robojaz so I won't go much into detail on how to build a plugs/mold.

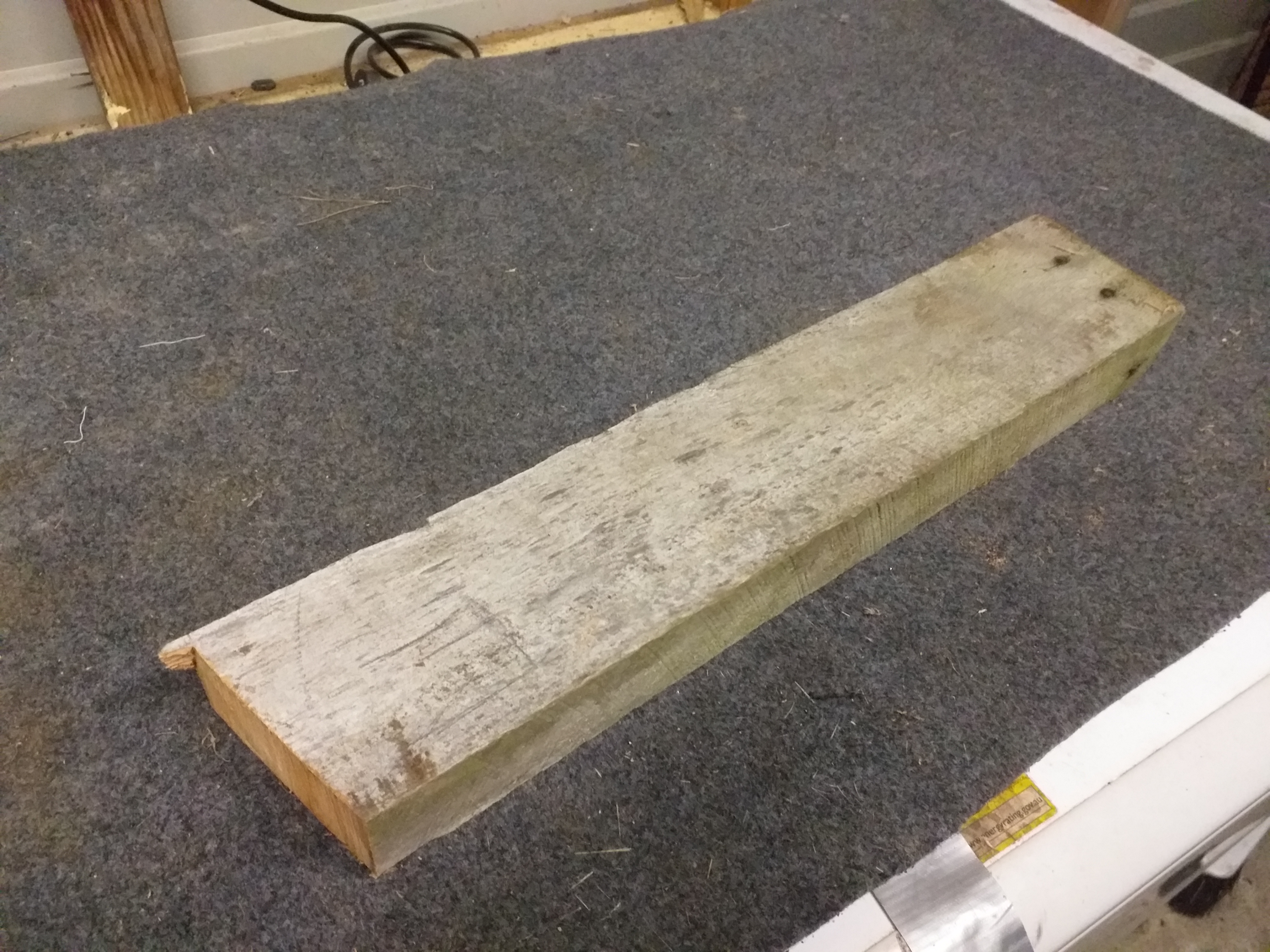

    Started off with this
    Name:  20200511_173136.jpg
Views: 970
Size:  3.54 MB

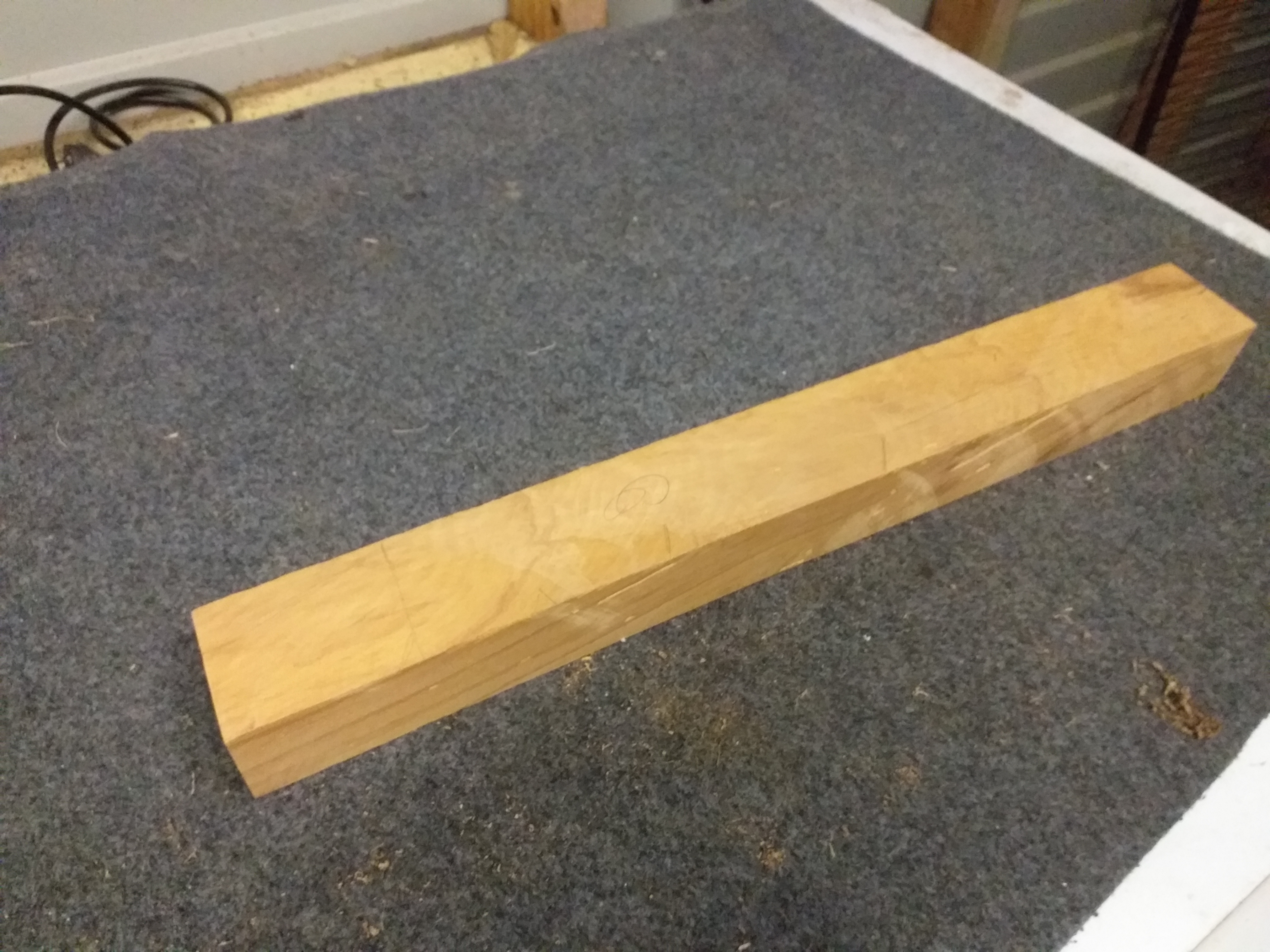

    Next job was to rough it down to something workable
    Name:  20200511_173145.jpg
Views: 964
Size:  3.32 MB
    After a bit of work this is where I'm up to until I can get more parts next week to confirm details for in letting etc.
    Name:  20200510_173832.jpg
Views: 1025
Size:  3.80 MB
    Name:  20200510_173903.jpg
Views: 971
Size:  5.23 MB
    Rear carbon tube will be eventually epoxied into the main carbon body.
    Last edited by Remmodel7; 13-05-2020 at 10:49 PM.
    rupert, seano, 300CALMAN and 3 others like this.

  2. #2
    Member
    Join Date
    May 2019
    Location
    NZ
    Posts
    133
    If you end up making a couple I will buy one.
    Tommy, piwakawaka and kiwi-adam like this.

  3. #3
    Member 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    NZISTAN
    Posts
    5,232
    very interesting

  4. #4
    Member
    Join Date
    Aug 2019
    Location
    Wellington
    Posts
    334
    This is gold. Been thinking of doing same. Maybe as a single shot and with a straight ali tube. Keep the pics coming

  5. #5
    Member
    Join Date
    Dec 2017
    Location
    Scotland
    Posts
    123
    Very nifty idea. Well done!

  6. #6
    Member
    Join Date
    Nov 2018
    Location
    Ashburton
    Posts
    862
    Subscribed!
    Will be watching this closely

  7. #7
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    647

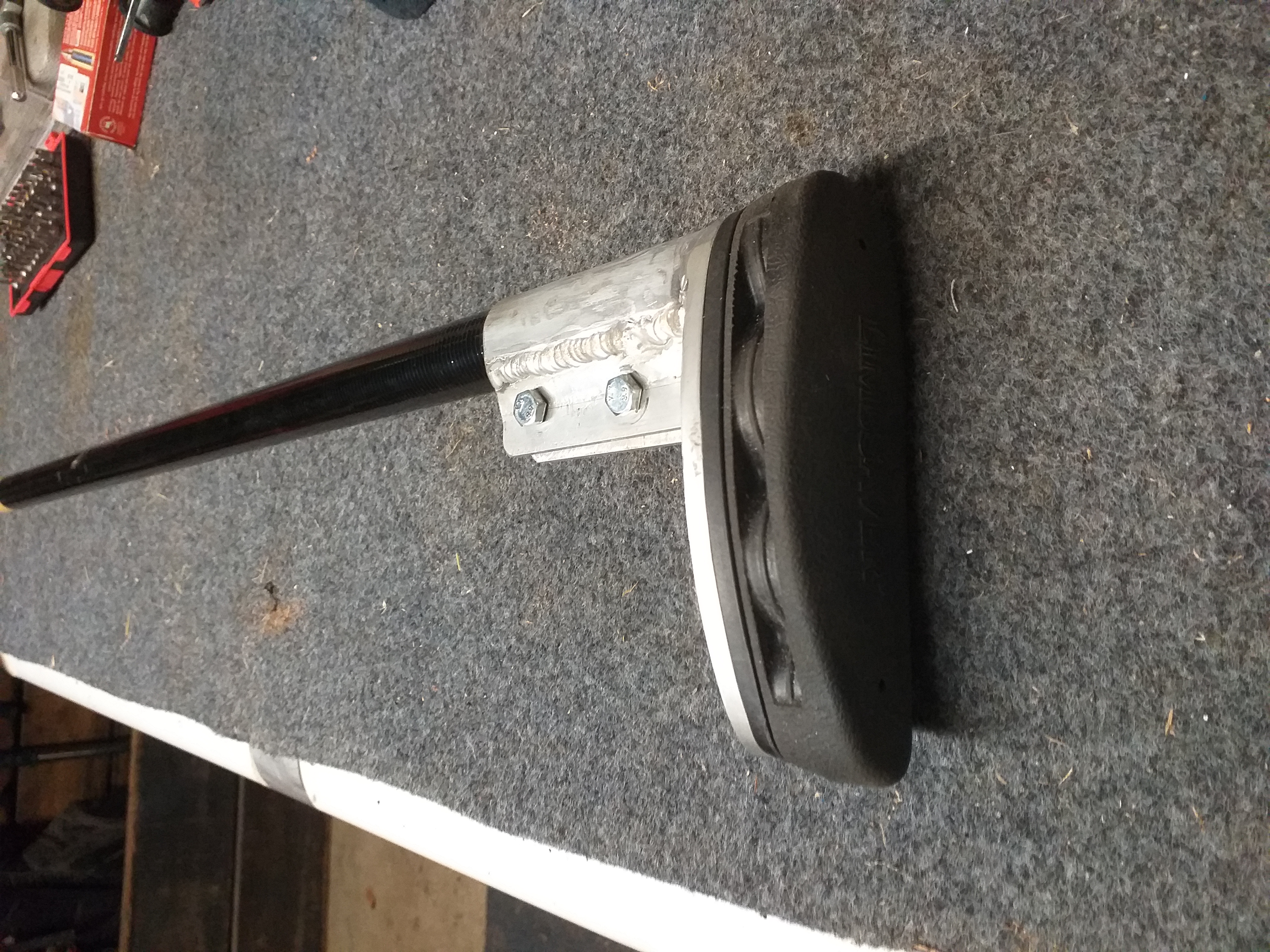

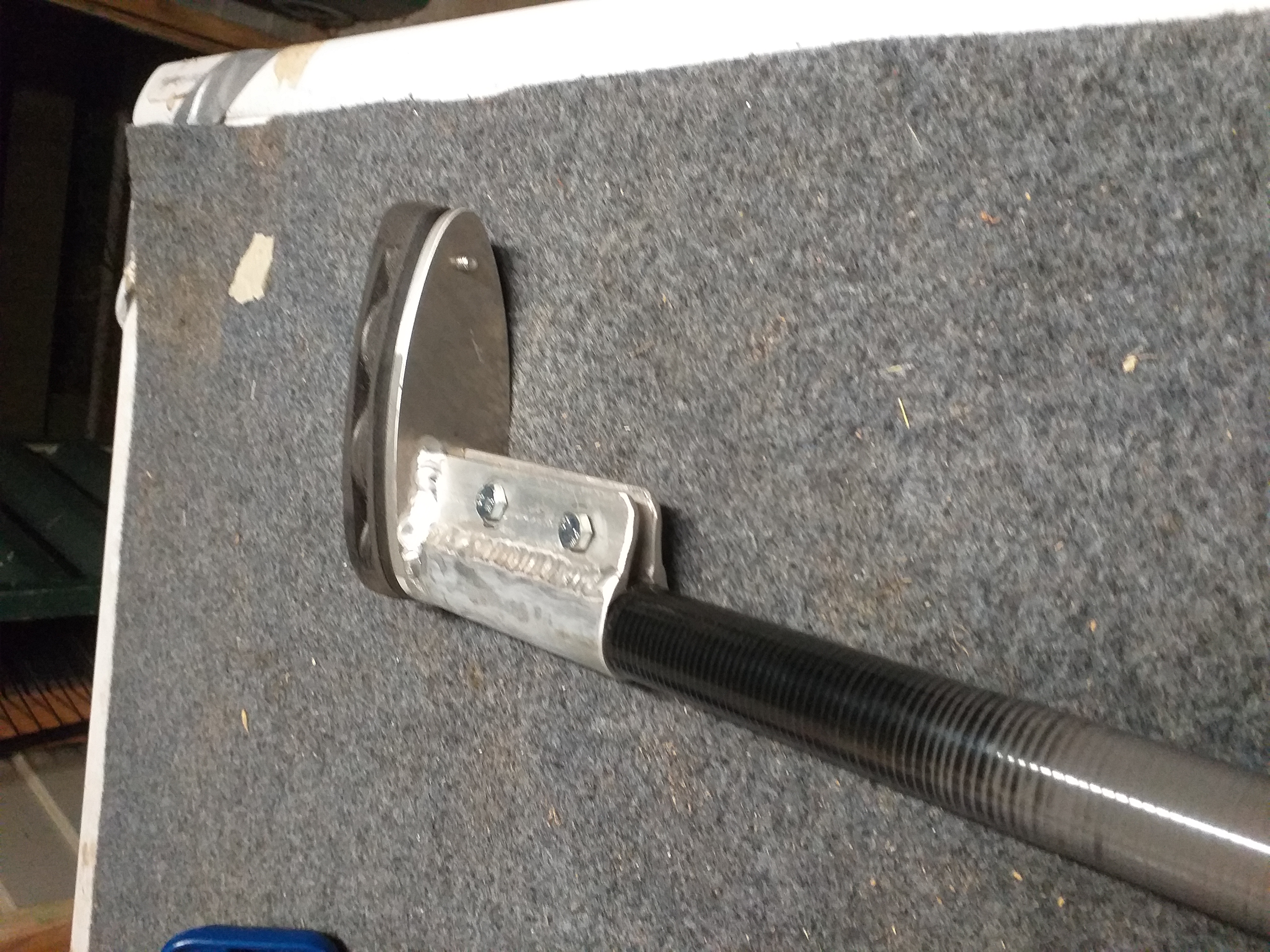

    So today it was time to have a crack at the butt end of the stock.
    Basically all ally. Needs a lot of cleaning up yet and had a bit of trouble with contamination on the welds. Bit of a mk1 and open to suggestions.
    Name:  20200517_175103.jpg
Views: 867
Size:  4.25 MB
    Name:  20200517_175113.jpg
Views: 878
Size:  4.46 MB

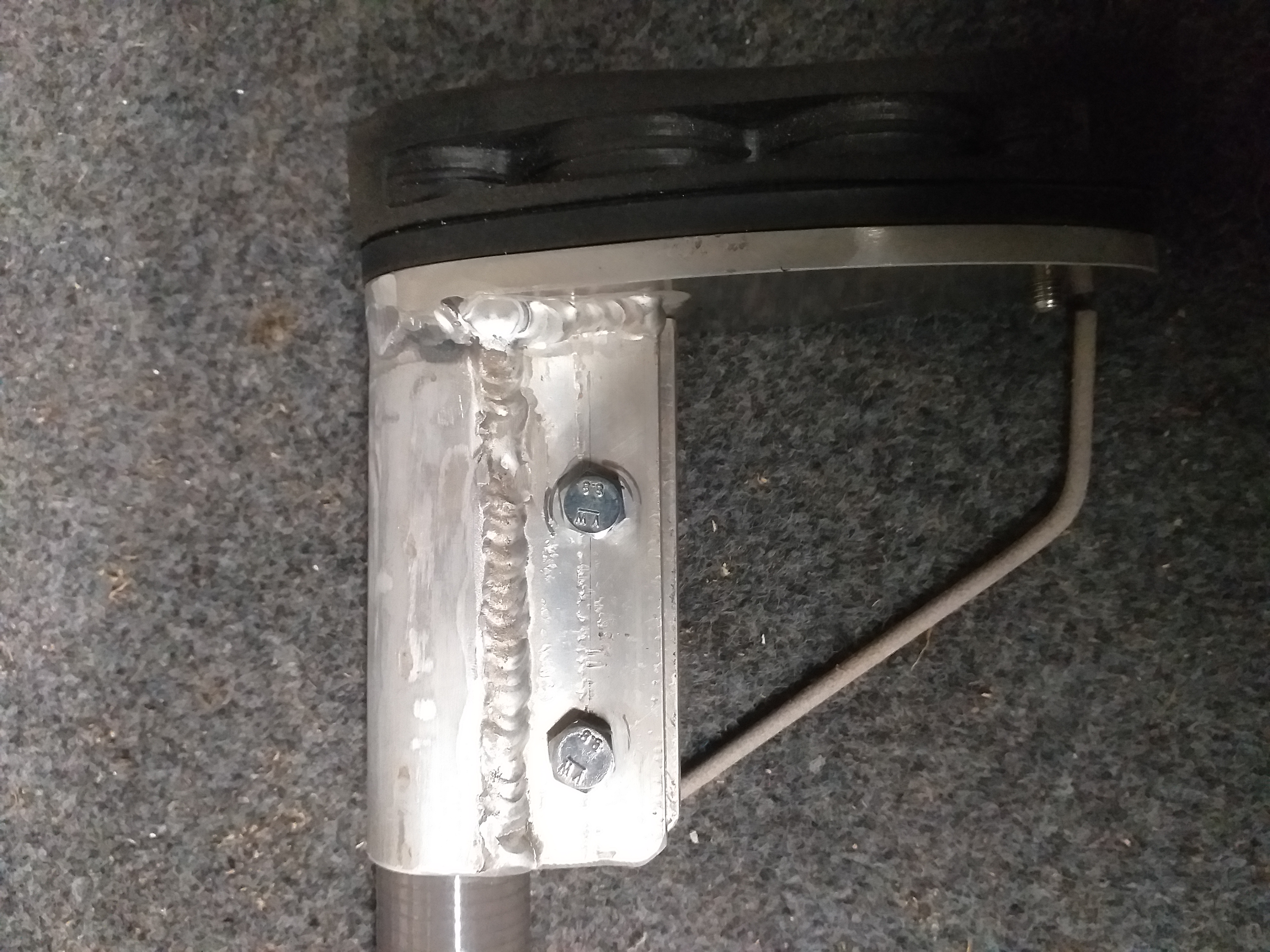

    Will attach an adjustable carbon cheek rest via tapped bolts into the ally recoil pad mounting plate.
    Will also put a small bag rest bar in as in the last photo but didn't have the material.
    Name:  20200517_175211.jpg
Views: 726
Size:  3.51 MB
    Clamping bolts will be switched to Allen dome head bolts
    I could have had the sleeve shorter but wanted it to be secure and does allow for some length of pull adjustment
    kiwi-adam likes this.

  8. #8
    Member
    Join Date
    Nov 2018
    Location
    Ashburton
    Posts
    862
    @Remmodel7 where are the updates! Impatiently waiting in anticipation!

  9. #9
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    647
    @kiwi-adam been a bit of a slow process getting parts but finally got the metal work with suppressor fitted back on Friday so hopefully things should move a little faster now
    Bill999 and kiwi-adam like this.

  10. #10
    Member SixtyTen's Avatar
    Join Date
    Dec 2015
    Location
    Auckland
    Posts
    532
    Looking good.
    Have you thought about making a mold for the butt stock to make a carbon part that slips over the tube?
    kiwi-adam likes this.

  11. #11
    Member southpaw's Avatar
    Join Date
    Dec 2019
    Location
    Vanderbijlpark, South Africa
    Posts
    35
    <<subscribe>>

  12. #12
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    647
    Quote Originally Posted by SixtyTen View Post
    Looking good.
    Have you thought about making a mold for the butt stock to make a carbon part that slips over the tube?
    Not yet but as the stock is essentially 3 components it could easily be swapped out at a later date for something different

  13. #13
    Member
    Join Date
    Mar 2012
    Location
    Naracoorte South Australia/From South Canterbury
    Posts
    387
    Awesome!

  14. #14
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    647
    Finally making some progress.
    Moulds completed just need a little tidy up.
    Carbon fibre this weekend
    Would post pic but not working
    Bill999, berg243 and Joe_90 like this.

  15. #15
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    4,301
    Don't forget:
    1- release agent
    2- release agent
    And 3 release agent!
    I have learnt the hard way.
    janleroux and Joe_90 like this.
