    Shotgun Stock CNC Build

    Thought I'd throw up some photos of a buttstock and fore-end I've been making out of some nice chocolatey (is that a word?) walnut I was given.
    I'd previously done a trial set out of some macrocarpa, just as a test to make sure the shape and fit were correct.
    The test set was also made from one thick slab, but with this set, I had two small pieces that were bookmatched, but would have to be made in two halves.

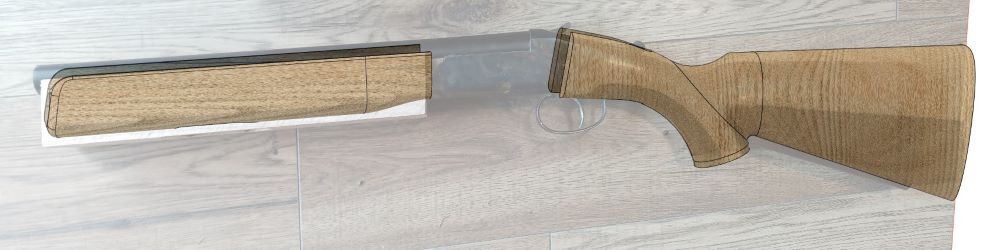

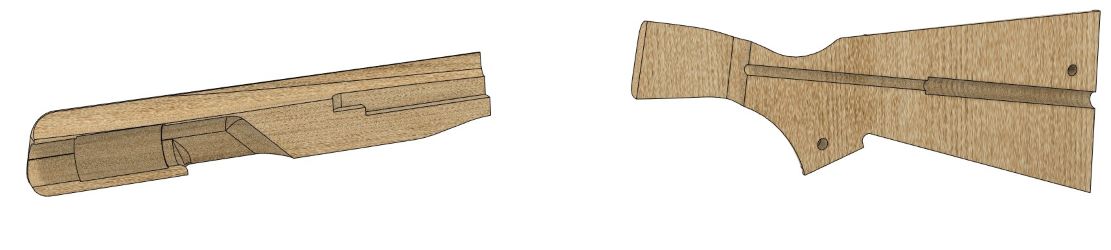

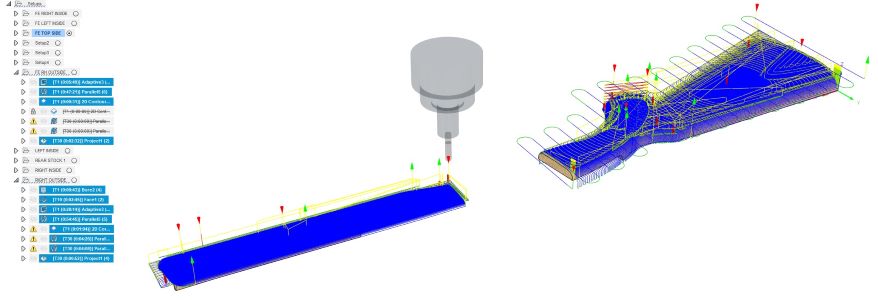

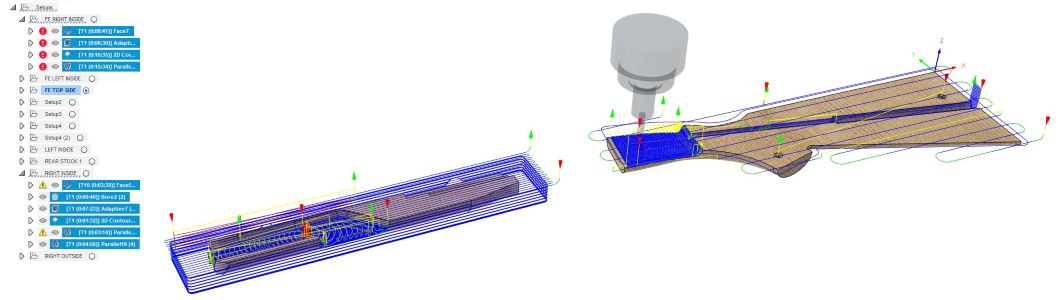

    Here's what the models look like, with some reference images and a lot of rough measuring to make sure I was in the ballpark. Also for those interested, the CNC toolpaths on the models.

    Name:  Screenshot 2021-03-01 163456.jpg
Views: 745
Size:  190.9 KB
    Name:  Screenshot 2021-03-01 163731.jpg
Views: 715
Size:  103.8 KB
    Name:  Screenshot 2021-03-01 163938.jpg
Views: 718
Size:  219.8 KB
    Name:  Screenshot 2021-03-01 164241.jpg
Views: 727
Size:  221.8 KB

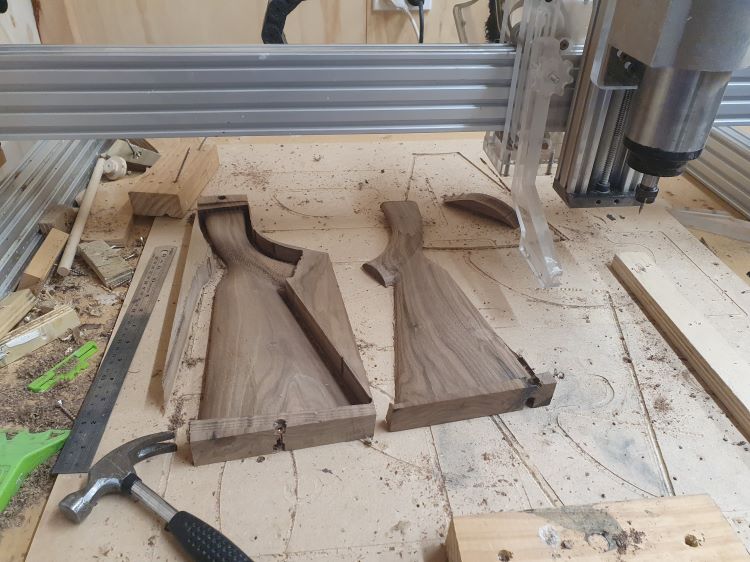

    First I cut the inside of the butt section, machining the groove for the bolt and the gap for the action to fit into.
    I cut the bolt hole length too short, kind of on purpose, thinking I could just drill more out once it was together, but in hindsight I should have just trusted my measurements.
    I also machined locating holes that I could use to flip and locate the part on the machine, but also to glue the two halves together.
    Everything was cut slightly oversize so it could be fit to the action by hand. A few small issues but overall, not too bad.

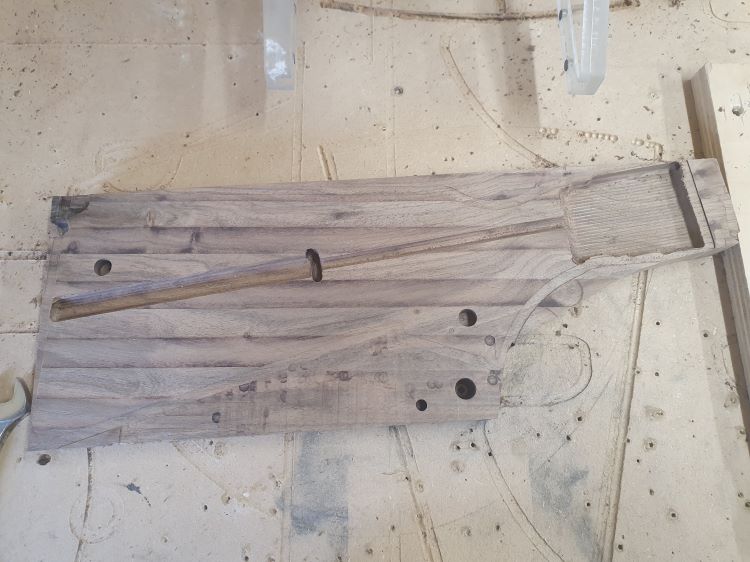

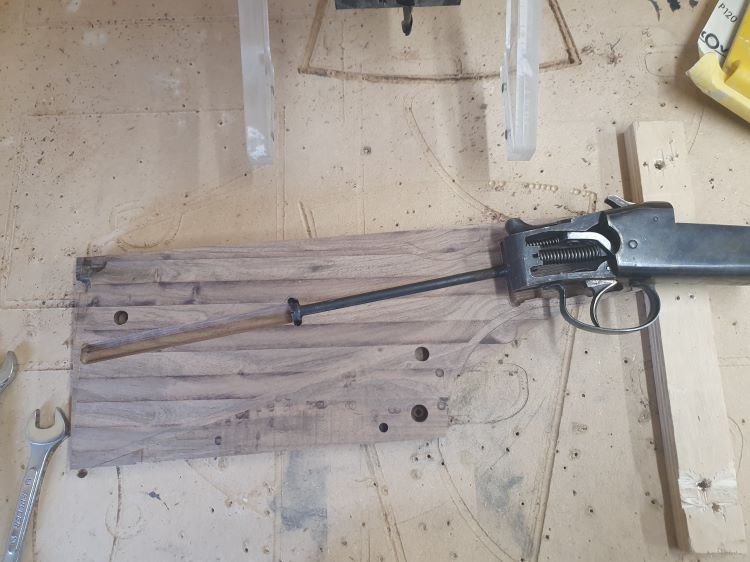

    Name:  20210214_113417.jpg
Views: 698
Size:  65.7 KB
    Name:  20210214_113235.jpg
Views: 704
Size:  64.5 KB

    Then machining the other side.

    Name:  20210214_153036.jpg
Views: 702
Size:  75.2 KB.

    Then copy and paste a mirrored part.

    Name:  20210218_195512.jpg
Views: 1004
Size:  3.55 MB

  2. #2
    Member
    Join Date
    Jan 2021
    Location
    Methven
    Posts
    146
    Next thing I did was to clamp the two halves together and start fitting them to the action. Its a tricky bugger, tapering in and having a semi-circle part in the center.
    I just wanted to see how everything was fitting before I glued the two halves together.

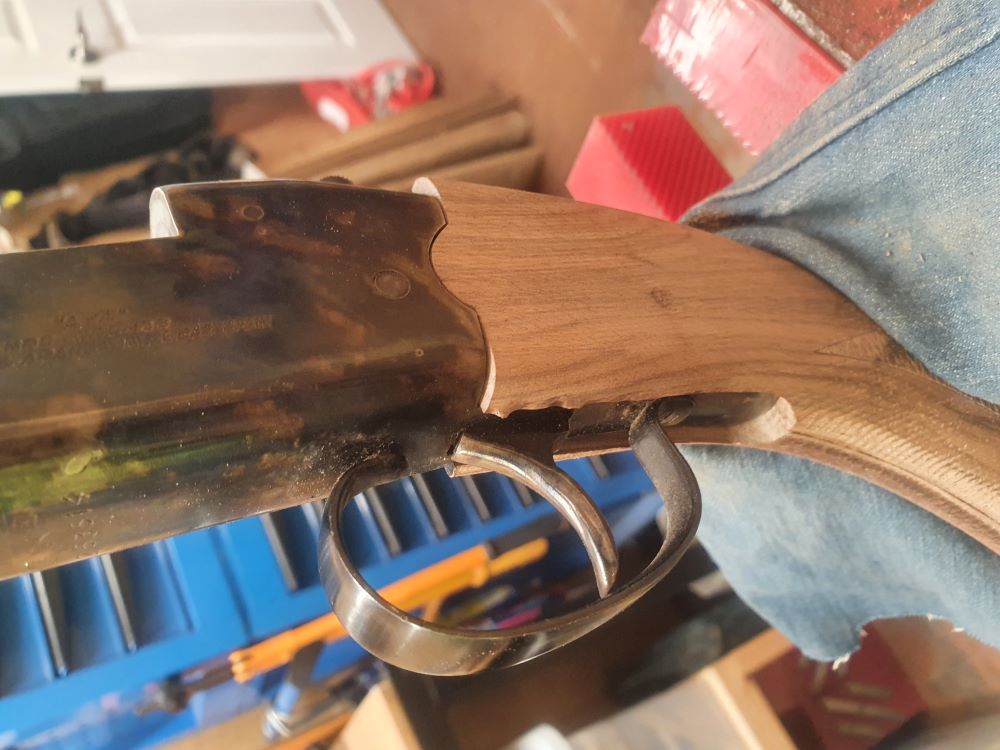

    I mostly used files, but I've also got a vertical belt sander that is nice to remove material quickly and leave things flat.

    Name:  20210219_090059.jpg
Views: 941
Size:  2.64 MB

    Once I was happy enough, I glued the two halves with lots of glue.
    Then I continued fitting it to the action, unfortunately I cocked up, I couldn't get the action to slide in nicely, and in a rush I took too much material off one side and created a taper.
    To fix it, I made two small wedges and glued one at the top and one at the bottom.

    Name:  20210224_154423.jpg
Views: 991
Size:  3.03 MB

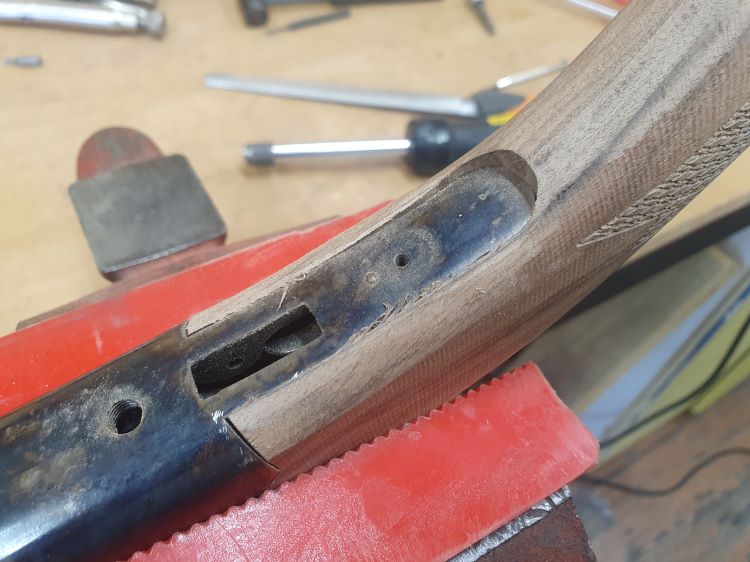

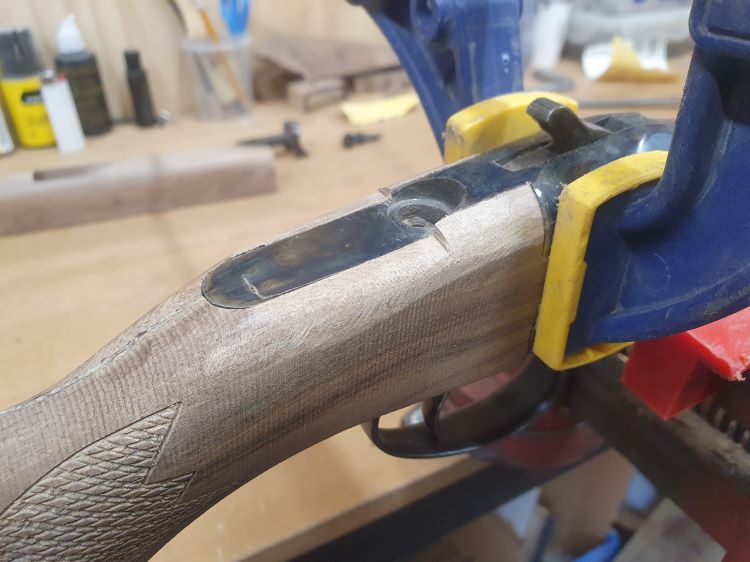

    That worked very well. Next I had to make a slight angle adjustment to the bolt hole as it was slightly too high, maybe 2mm. Then I removed the lever, trigger and trigger guard to start matching the action.

    Name:  20210227_105424.jpg
Views: 958
Size:  3.59 MB
    Name:  20210227_115238.jpg
Views: 945
Size:  3.37 MB

  3. #3
    Member
    Join Date
    Jan 2021
    Location
    Methven
    Posts
    146

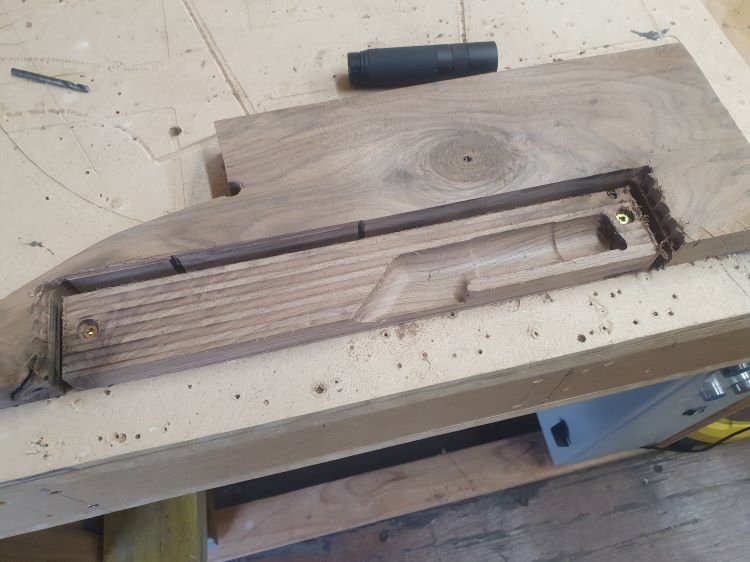

    While fitting the stock, I was going back and forth, machining the fore-end.
    Its got a wee surprise that I haven't seen done before but I thought would be cool.

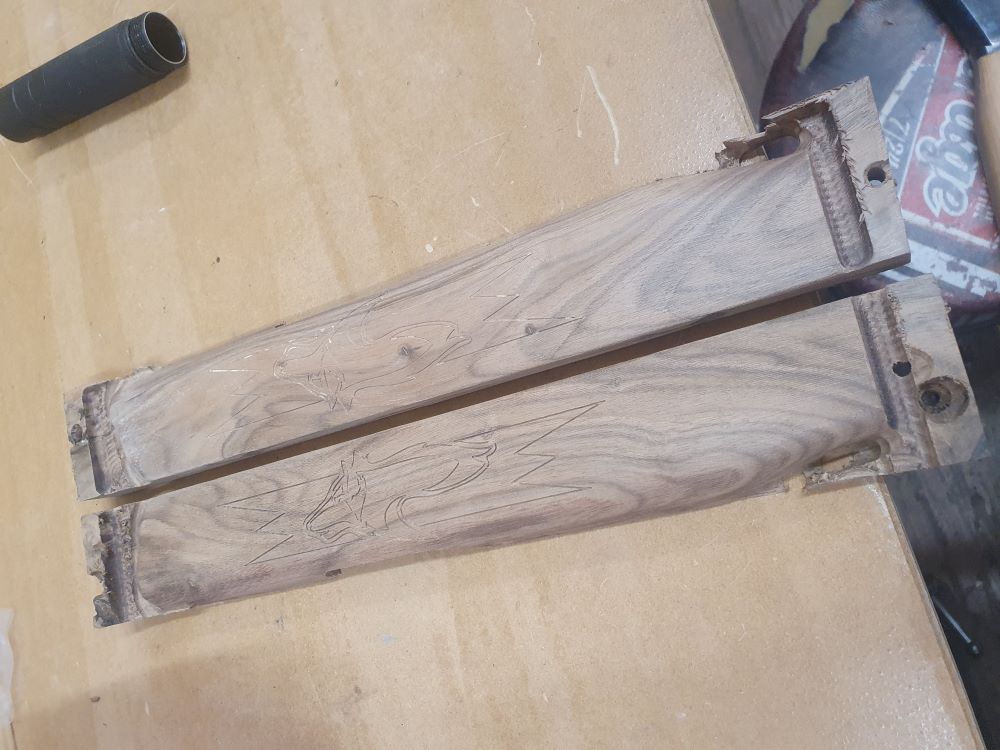

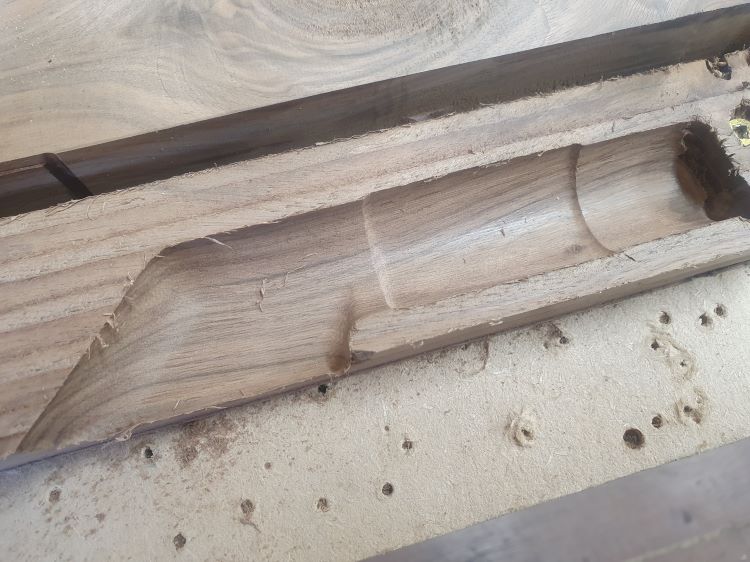

    Name:  20210223_135505.jpg
Views: 948
Size:  3.28 MB
    Name:  20210223_135509.jpg
Views: 913
Size:  3.42 MB

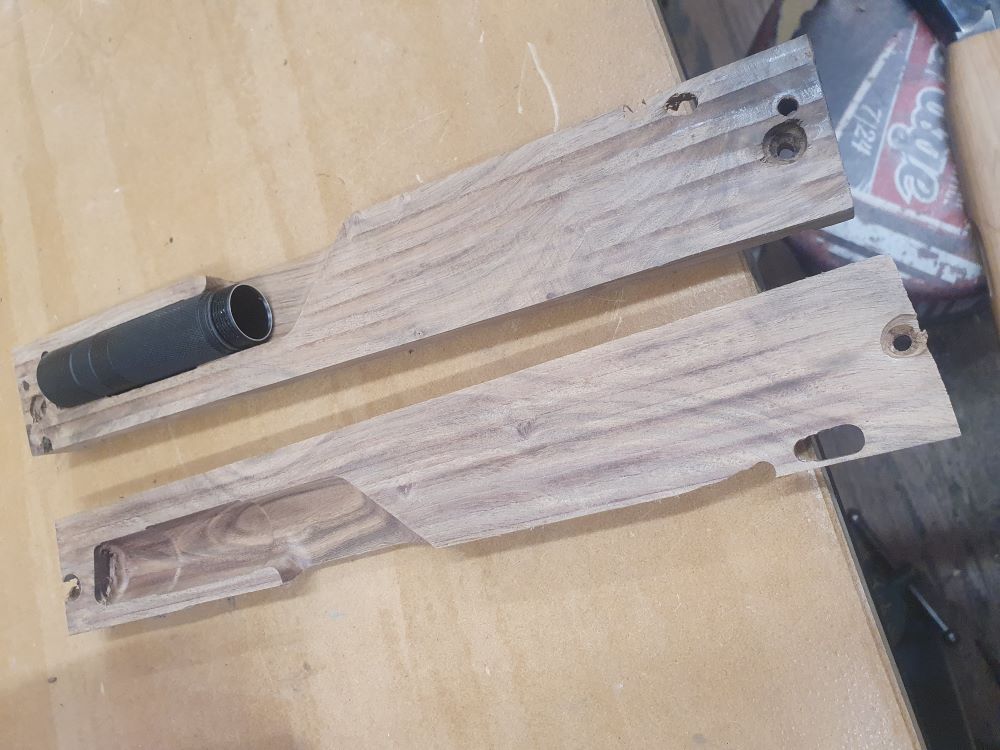

    Name:  20210224_154358.jpg
Views: 903
Size:  3.21 MB
    Name:  20210224_154410.jpg
Views: 912
Size:  2.93 MB

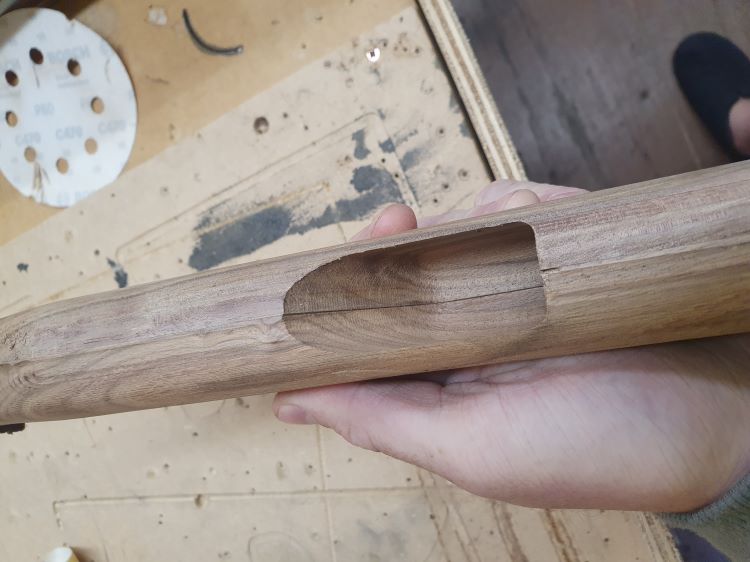

    I should have done it on the machine, but I drilled locating holes to strengthen and locate the two halves with dowels.

    Name:  20210224_155542.jpg
Views: 909
Size:  3.36 MB

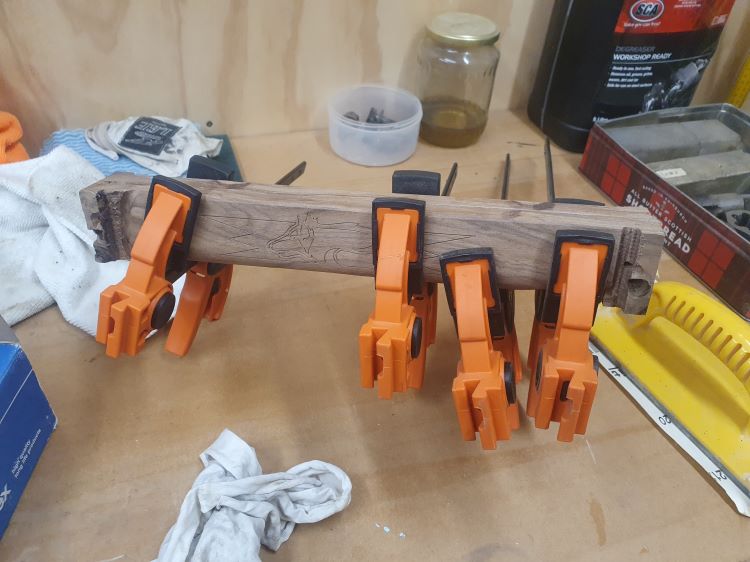

    Clamped and glued.

    Name:  20210224_160309.jpg
Views: 923
Size:  3.31 MB

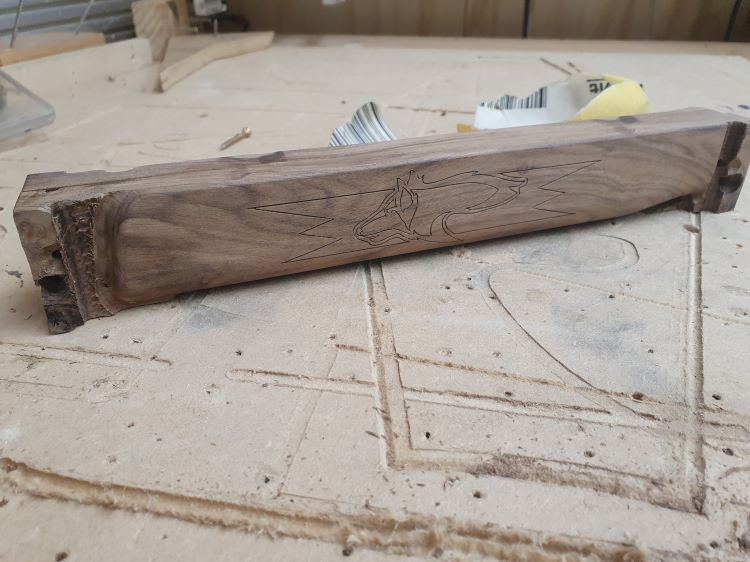

    Name:  20210225_091617.jpg
Views: 866
Size:  3.22 MB
    Name:  20210225_091621.jpg
Views: 873
Size:  3.37 MB

    So next I trimmed it and machined out the barrel channel and mounting, but I may have forgotten photos.

    The major thing I stuffed up on the whole set was the checkering, last time it went perfect, but this time the machine was a bit sloppy and didn't do nice even lines. So on the fore end I just engraved the outline. I may just finish it all and then decide on how to do the checkering or stippling or whatever.

  4. #4
    Member PaulNZ's Avatar
    Join Date
    Sep 2016
    Location
    Waikato
    Posts
    436
    Very impressive, please keep the updates coming. Did you model that from scratch or 3d scan an existing stock? I'm impressed you were able to go to final production after only a single trial set!

    Is it a straight stock or have you worked in some cast?

  5. #5
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    396
    awesome job, man! awesome! loving it!
    Skirch likes this.

  6. #6
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,263
    I am impressed with your skills in getting the machine to do all that! Being closely associated with dinosaurs, I have always whittled stocks from solid, 90% inletting on the milling machine and hand fitting. Horses for courses I suppose, but impressive work nonetheless! Keep it up.
    Micky Duck likes this.

  7. #7
    Member
    Join Date
    Jan 2021
    Location
    Methven
    Posts
    146
    Quote Originally Posted by PaulNZ View Post
    Very impressive, please keep the updates coming. Did you model that from scratch or 3d scan an existing stock? I'm impressed you were able to go to final production after only a single trial set!

    Is it a straight stock or have you worked in some cast?
    Cheers! Yeah modeled it from scratch. My normal shotgun is a remington 1187, so I took lots of measurements and modelled it to match that, slightly increasing the palmswell.

  8. #8
    Member
    Join Date
    Jan 2021
    Location
    Methven
    Posts
    146
    Quote Originally Posted by gundoc View Post
    I am impressed with your skills in getting the machine to do all that! Being closely associated with dinosaurs, I have always whittled stocks from solid, 90% inletting on the milling machine and hand fitting. Horses for courses I suppose, but impressive work nonetheless! Keep it up.
    Cheers Doc! I'm a mechanical thinker rather than creative, so getting the machine to do what I want is easier for me.

  9. #9
    Member
    Join Date
    Jan 2021
    Location
    Methven
    Posts
    146

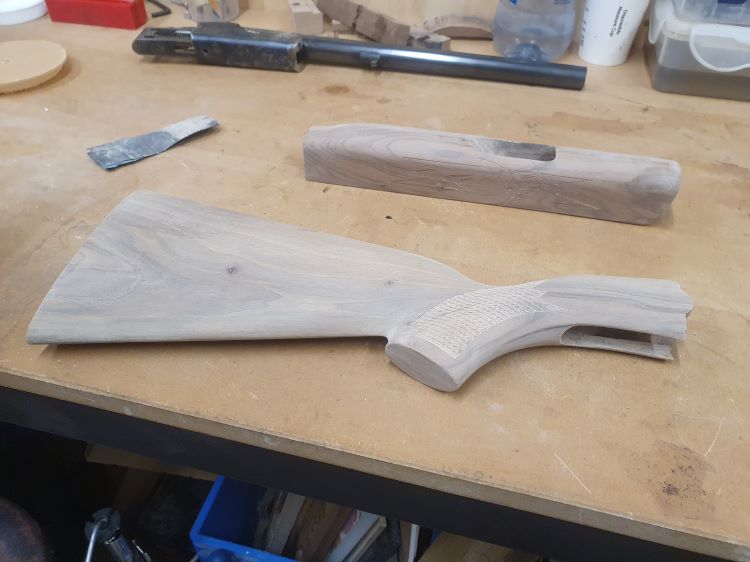

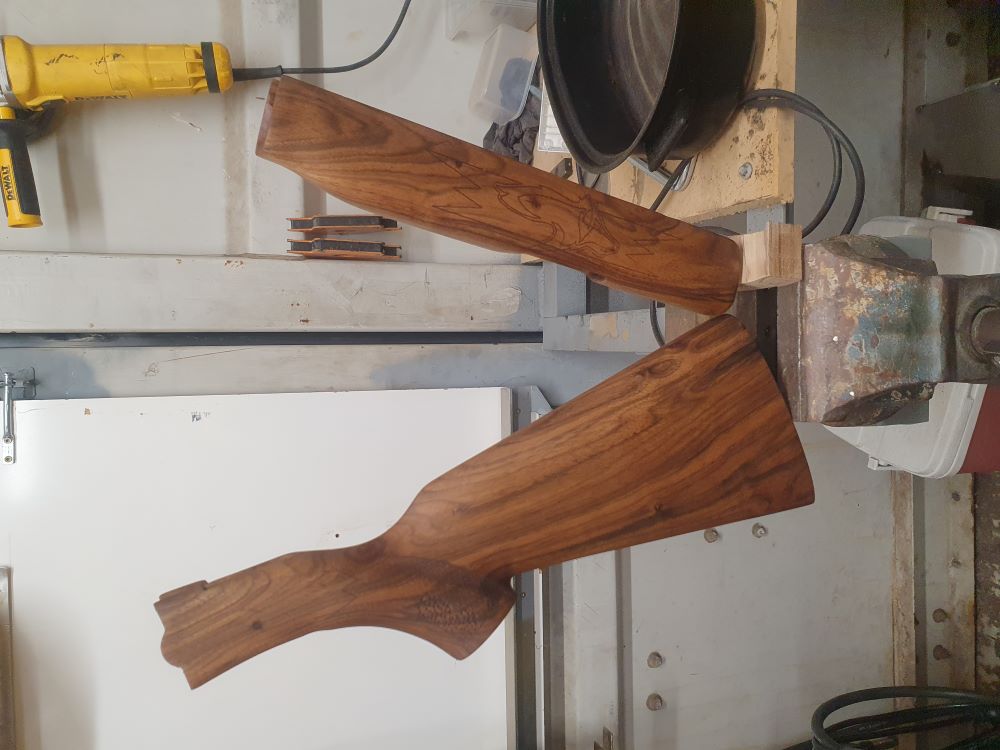

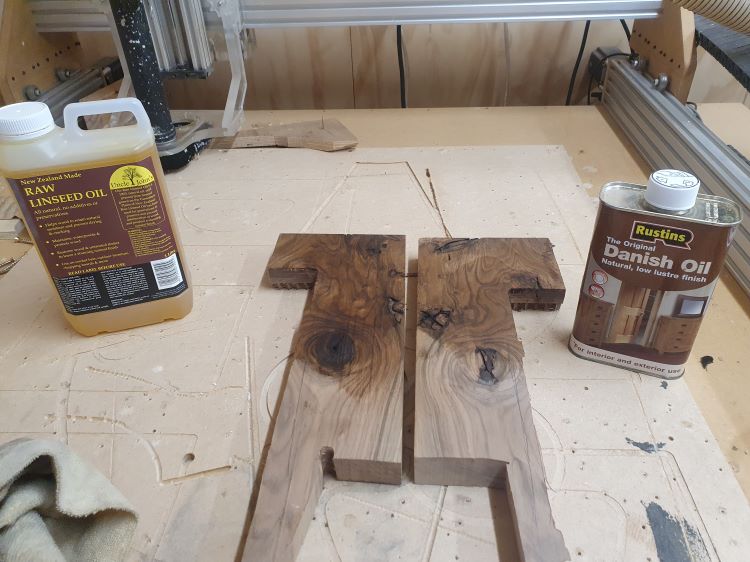

    Kinda got caught up in the moment with it and forgot a bunch of photos. But I spent some time sanding it down to 320 and decided on which oil to use. I know boiled linseed would have been better, but Raw was what I had, and made it a nice dark colour which I was after.

    Name:  20210303_084104.jpg
Views: 730
Size:  3.36 MB
    Name:  20210301_192633.jpg
Views: 734
Size:  3.31 MB
    Name:  20210303_090944.jpg
Views: 690
Size:  3.36 MB

    The biggest cock up of the whole thing is the checkering. In hindsight I would just do the outline on the machine and checker it by hand. Im a bit gutted about it, but decided I'll just finish it all and then decide what to do.

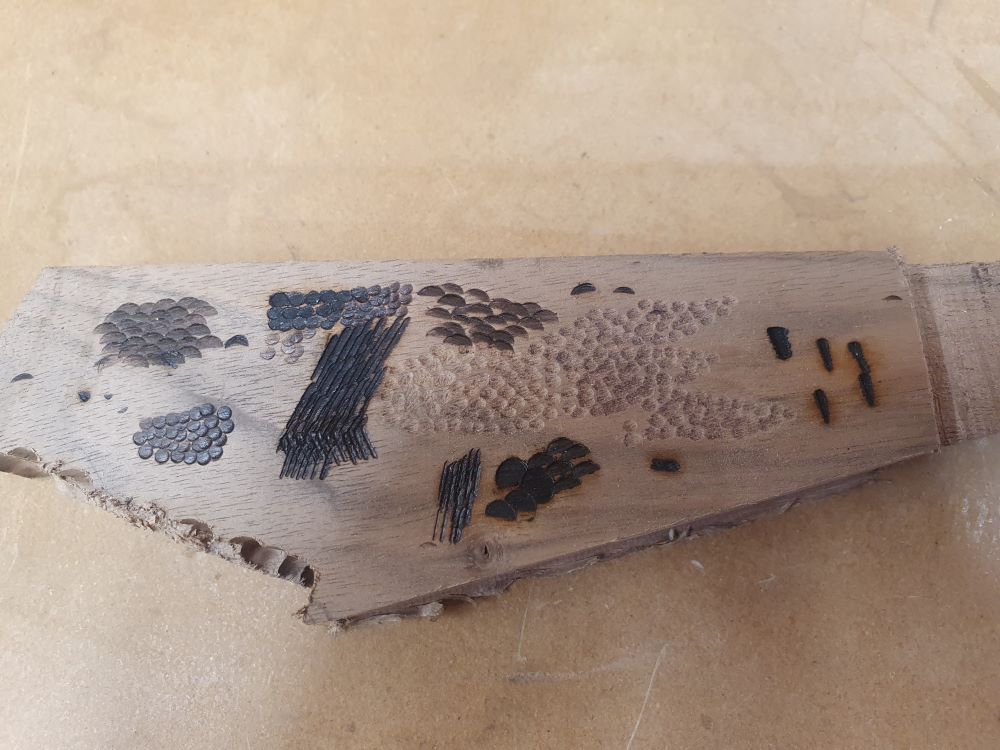

    Played around with some stippling with the Dremel and the wood burning kit, and will try again on some oiled pieces to see what might work. Any ideas are welcome!

    Name:  20210301_081818.jpg
Views: 707
Size:  3.34 MB

    This gun definitely wont be everyone's taste. It was just an old russian single shot that I'd originally planned to convert to a suppressed 44 mag. Then after feeling grumpy about the abuse gun owners get, I decided to cut it to minimum legal length in my own wee protest. It'll just be a loud fun gun, that might get to shoot the odd pig round the farm.

  10. #10
    Member
    Join Date
    Dec 2019
    Location
    Auckland
    Posts
    109
    @Skirch well done! What software did you use for 3d modeling and CNC machining?

  11. #11
    Member
    Join Date
    Jan 2021
    Location
    Methven
    Posts
    146
    Quote Originally Posted by LookingForMauser View Post
    @Skirch well done! What software did you use for 3d modeling and CNC machining?
    Cheers! Using fusion 360. I'm a mechanical consultant and usually use Inventor, but fusion for all my cnc stuff.

  12. #12
    Member dogmatix's Avatar
    Join Date
    Dec 2011
    Location
    Northern Gaul (Pukekohe)
    Posts
    6,035
    Want a job machining some replacement Lee Enfield stocks?
    Quite a demand for them now.
    Welcome to Sako club.

  13. #13
    Member
    Join Date
    Jan 2021
    Location
    Methven
    Posts
    146
    Quote Originally Posted by dogmatix View Post
    Want a job machining some replacement Lee Enfield stocks?
    Quite a demand for them now.
    Not sure I want a job doing anything! Id have to do a run of them to make it worth my time unfortunately, too many projects on the list!

  14. #14
    Member
    Join Date
    Mar 2014
    Location
    Waikato
    Posts
    439
    Very clever, Sir.

  15. #15
    Member
    Join Date
    Jan 2021
    Location
    Methven
    Posts
    146
    Its done! For now.... still doesn't have the stippling or checkering tidied up, but I'll just leave it for now and make a decision on how to finish that one day.
    My brother was out for the weekend and used his photography skills on it for me.

    I was having a quick add up in my head about how much I have into this project.
    Shotgun - $150 (from GunDoc about 10 years ago)
    Buttpad - $70
    Front sight - $30
    Torch - $30
    Tooling, oil and spilt bottle of bluing solution - $50
    Wood was all free.

    Total of $330, not bad for a shotgun that might fire ten shots a year.

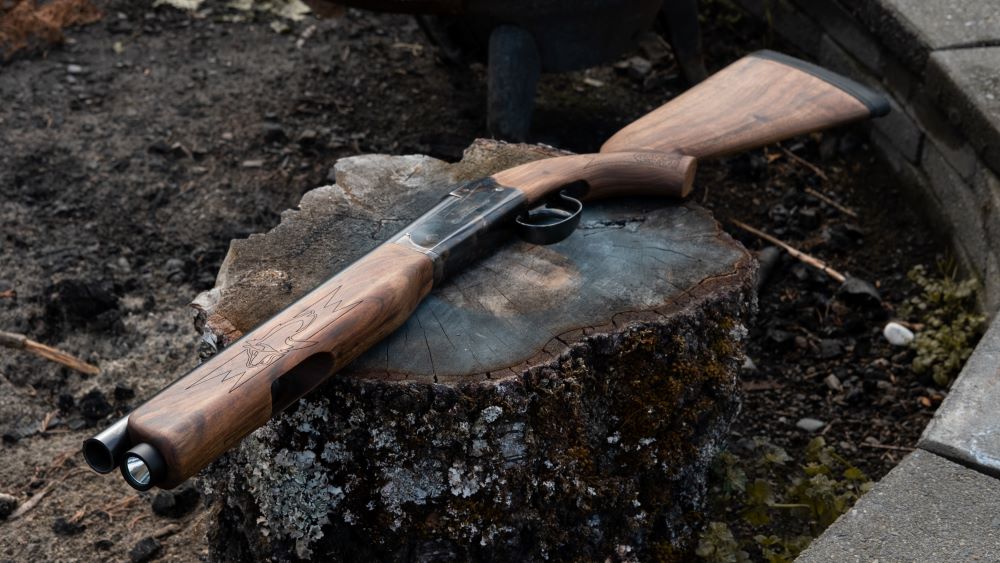

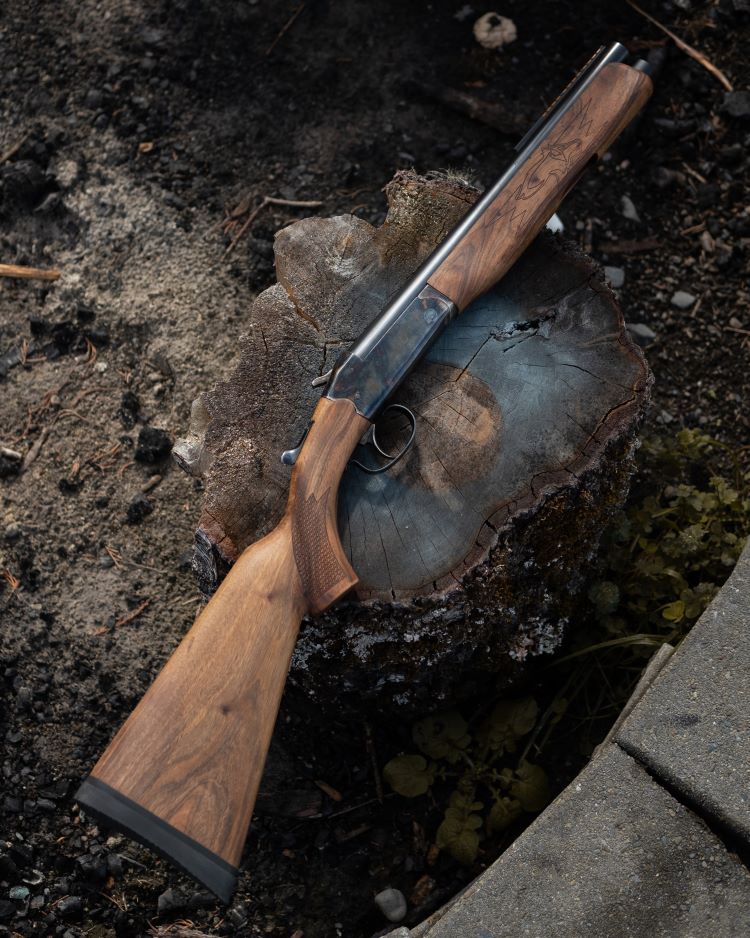

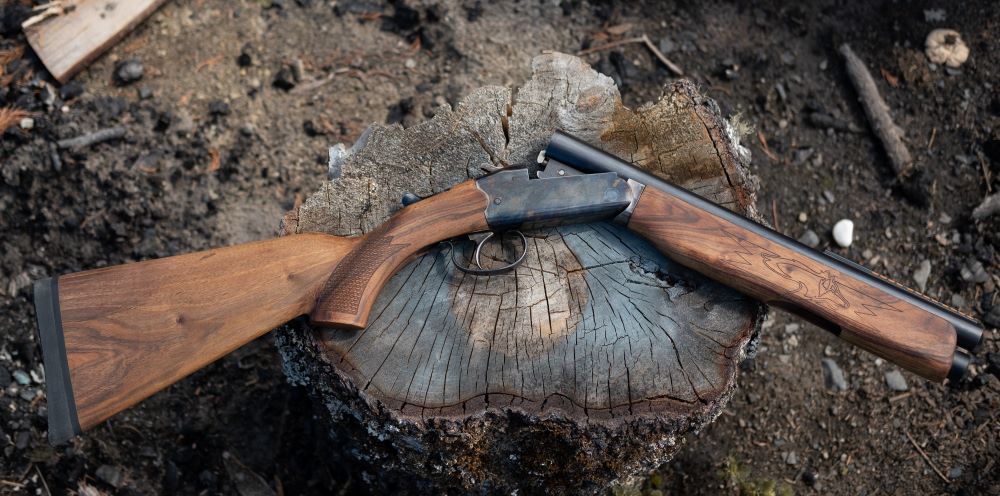

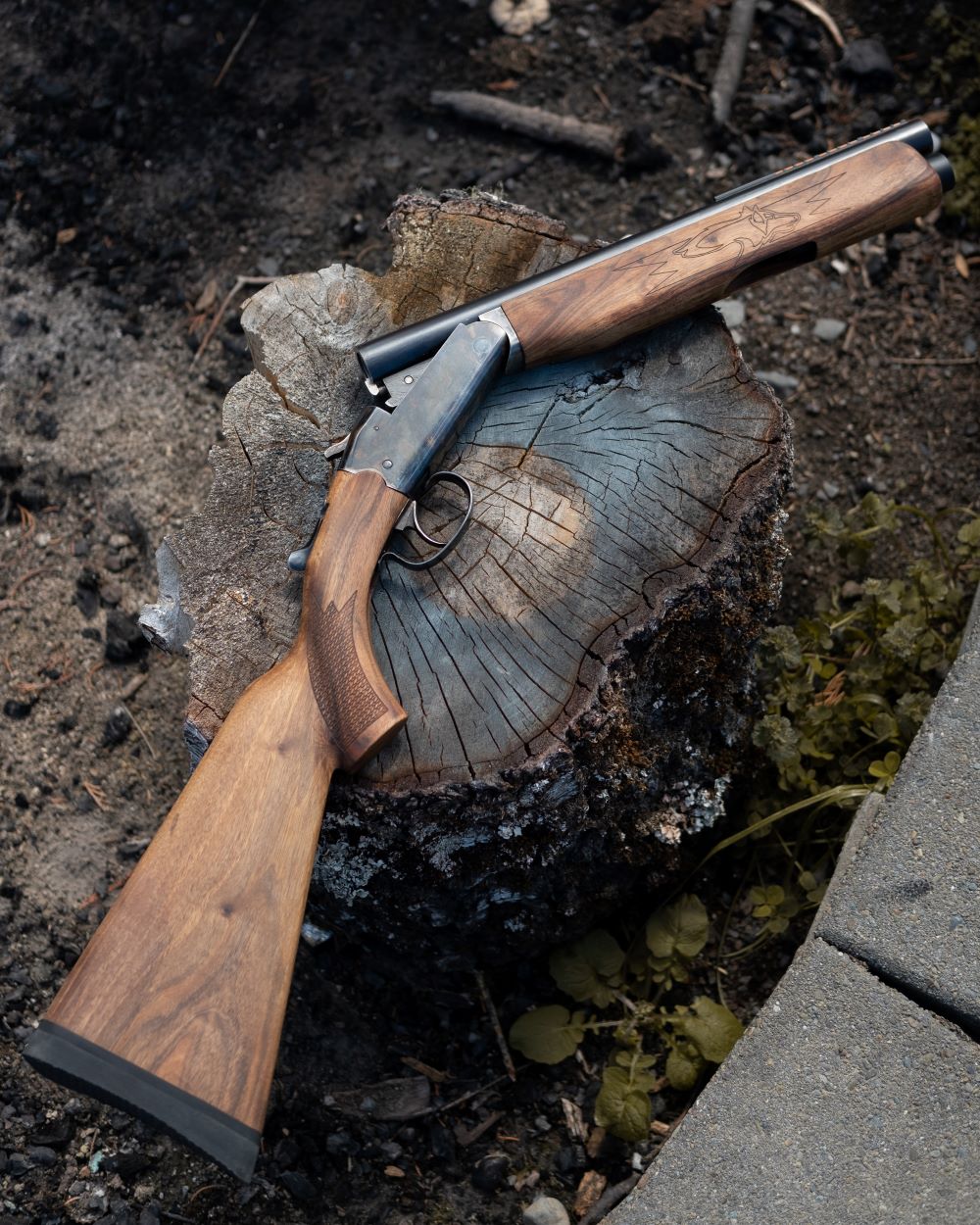

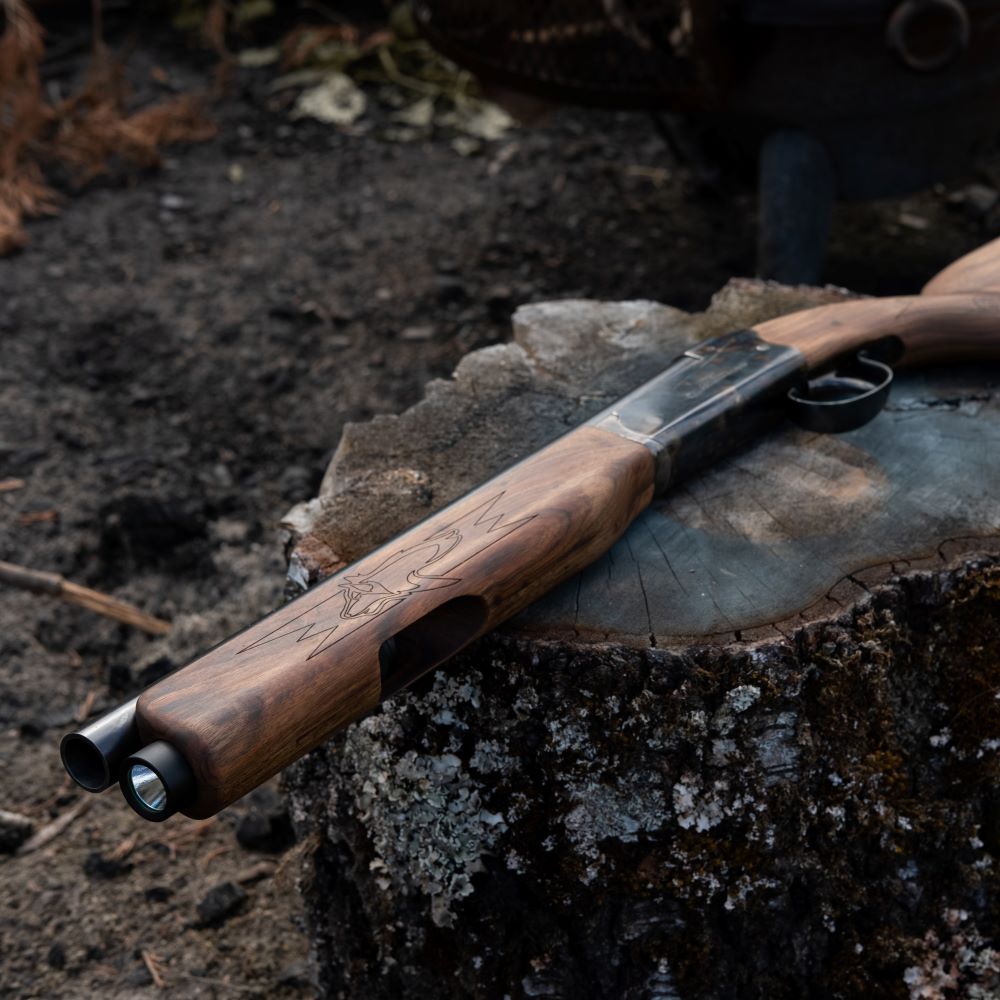

    Anyway, here's some pretty pictures.
