Yeah unless you can get the steel and locks cheap like Azimuth above, it's not financially worth it - I just wanted a B-cat and E-cat together
I like the idea of the motorbike gears, that's a good one - does bisalloy require any specialised welding? I've not worked with it before
Some guys have got old ATM safes, welded them together and cut out the centre to make one large one but you'd need a damn forklift to move that...not that there's anything wrong with that approach..
I looked at the website for bisalloy and it didn't give anything much in the type of rod for welding , ... all mine will be done with tig , so I will have to, look at the specs a little harder .
Don't want to burst anyones bubble but just remember it has to have a certification letter before the police will accept it as suitable for B/C/E use.
Basically a registered engineer must put on a piece of letterheaded paper that it meats standard xyz etc.
Not so.Quote:
Originally Posted by muzr257
My home built E cat safe has been accepted without any such certification.
My mate built one last month too and this has also been accepted without any such certification.
He has welded 6mm plate almost the same as shown here.
Cheers
Pete
Mine and my buddies understanding is that cert is only needed if you intend to sell it.
It really just have to have the required features, as long as AO can tick off all the boxes (plate thickness, locks, method of securing) then you should be sweet.
IF I REMEMBER FROM READING THE REGS ( I MAY BE WRONG) that the cert is needed if the safe is anything less than the minimum of steel (6mm) ... such as the bisalloy I mentioned , because the safe was only 4,5mm it needed a cert to confirm it meet the same strength/toughness as 6mm steel (not sure if mild or cold rolled) ... but as I have seen by reading a lot of the forums here that there is a national policy that doesn't seem to happen in all places as in some AOs will ask some will not etc etc ....
Any photos AzumitH?Quote:
Originally Posted by AzumitH
I need to build a safe to fit a specific space in my house. needs more height tho.
Then I will sell the SentrySafeŽ Fire-SafeŽ 24-Gun 59" Electronic Lock - E Cat Gun Safe.
Rushed first one through build stages on Saturday to get AO thumbs up before we finish it. Half an hour on the laser, four hours to weld sides together, position hinges and machine bushes for them, tack the back on. Will get some photos of the next one in progress.
Width and depth are easily adjusted (within sheet length), height is limited by sheet width (1220mm). Could be made higher by stitching a box onto the top which is what I did with my 3mm A-Cat one I made a few years back to fit the Mosin in it. So if we were to offer these for sale (which has been ok'd by the AO as we are certified to sign them off anyways lol) then it could be completely custom dimensions.
Oh yeah, and the AO informed us that there is quite literally a checklist for safe inspections, if it has the required features (thickness/locks/method of securing) then it's good. Cert for safe circumvents this obviously.
Cool, looking forward to pics.
If I did mine again I'd probably do as VC said earlier and find an engineering shop to fold the sheet twice so as to end up with sides and back done at least but yours sounds different.
I did look at Fletcher Steel initially to find their largest 4-sided square sections with 6mm wall thickness but from memory they only went out as big as 300-350mm wide. A couple of those welded together would be a cheap option but probably too small for most.
Ok, so you want to make a safe.
First you buy some steel, a forklift to move it around is good too if you have one.
http://i10.photobucket.com/albums/a1...ps59cfd499.jpg
Then get a laser cutter, or a grinder with about 55,000 cutting discs.
http://i10.photobucket.com/albums/a1...psc047eb4f.jpg
Mash the buttons on the laser repeatedly until it cuts some shapes.
http://i10.photobucket.com/albums/a1...ps2103520b.jpg
Your shapes should look like a gun safe, only flat and in pieces.
http://i10.photobucket.com/albums/a1...ps23b660f8.jpg
Put some of the pieces together and weld them a little bit, not too much at first though.
http://i10.photobucket.com/albums/a1...psf5b5bf6f.jpg
Some more pieces, and a little more welding.
http://i10.photobucket.com/albums/a1...psebcc020c.jpg
Then you put on the door piece.
http://i10.photobucket.com/albums/a1...psa3b04fe0.jpg
Then you wait for your locks to turn up, which should be early nest week.
http://i10.photobucket.com/albums/a1...pseca24763.jpg
Got three of them to this stage now, locks should be here tomorrow.
Could be looking to sell some of these, currently in talks to get them into stores here in Hamilton. As I said above custom dimensions wouldn't be a problem, can even go up to a 3000x1500mm sheet size for a 1490mm approx high safe.

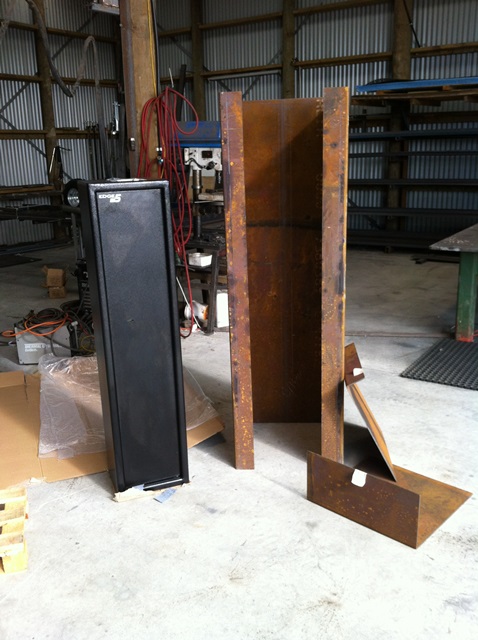

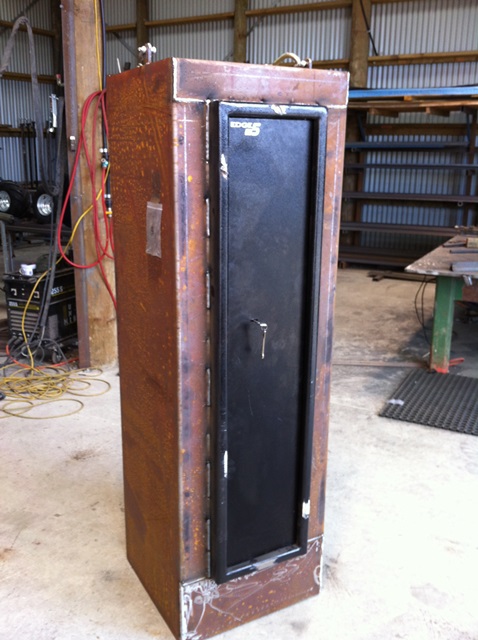

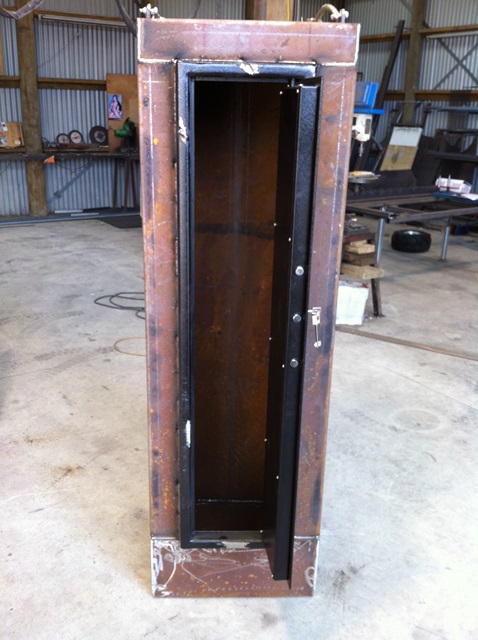

My version of a closet hybrid. (to go into a specific space behind a door i put into side of closet)
Edge safe 1450mm H, $660 delivered (doner door)
Supply, Cut and fold 191Kg of 6mm steel $750
3 hrs to put together.
1800mm H x 560mm x 550mm
Will powder coat, add shelf at height required to fit longest firearm (shotgun with mag extension). Add 5m of LED light strip and marine carpet.
The door was the widest I could find pre made that would work with the closet door opening. Cuts out the wasted space from the door closing inside the safe. If I had made my own door I would have been at $550-$600 worth anyway and only gained 80mm in width.
Attachment 24232Attachment 24233Attachment 24234
Bloody good looking build there Baz

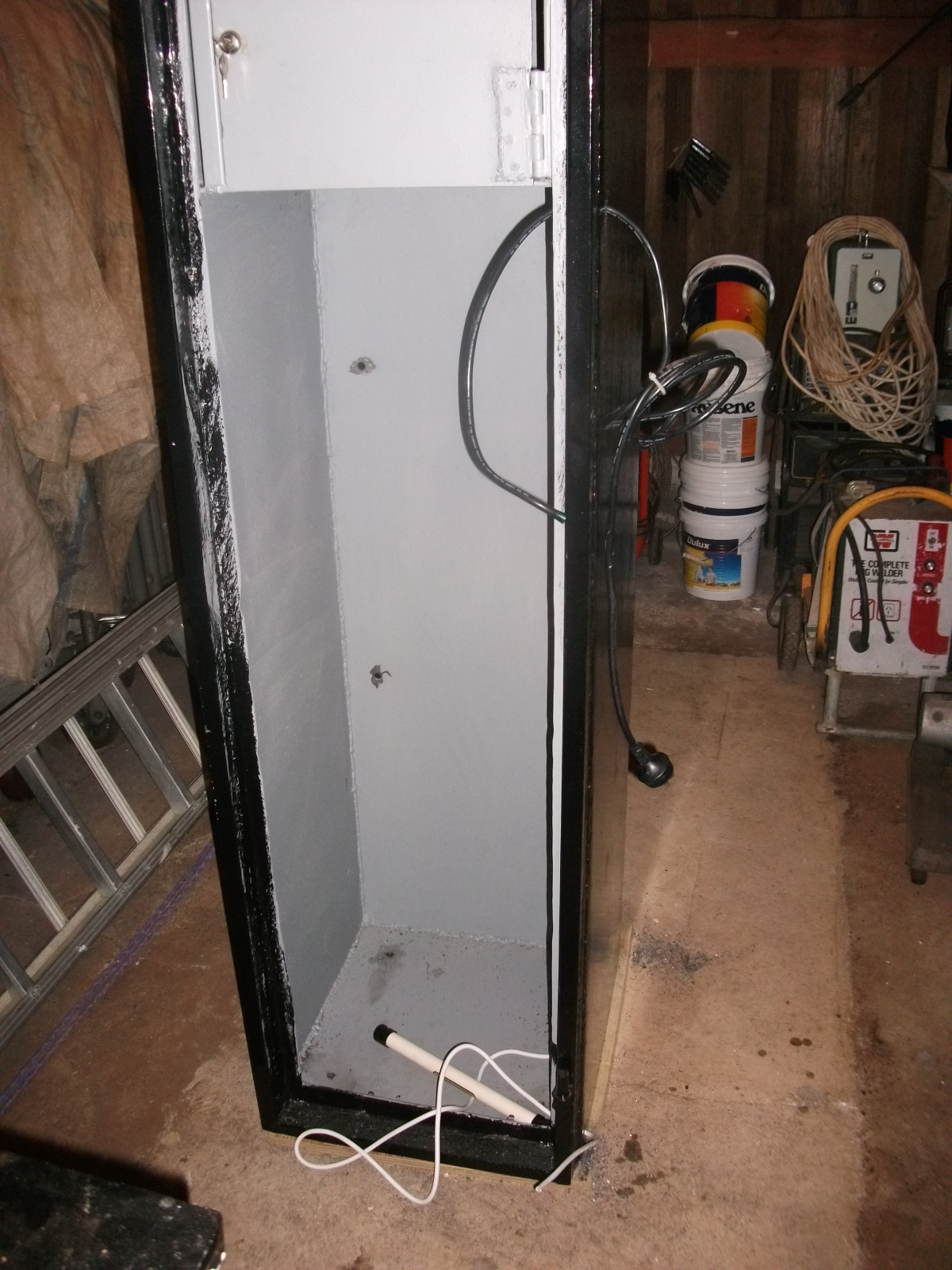

I'm waiting on an inspection then will glue felt to the interior and have bought a 5m lightrope too
I ran one of these mini-heater thingies - they cost about $80 at Bunnings
[ATTACH=CONFIG]24253 Attachment 24254
The top cable is for the light
You guys have some pro looking setups
Just as another idea that will give you up to 120min fire proofing would be to coat the exterior / interior with an intumescent (Fireproof) paint. Expensive per litre but would be effective and a nicer finish than gib. Can be easily over coated with water or solvent based paints :)Quote:
