Thread: .223 body taper angle ?

  1. #1
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235

    .223 body taper angle ?

    I want to find the exact body taper angle for a 223 case

    Google just comes up with lots of images with sizes and the shoulder and extractor groove angles
    But none that I have found give the body taper

    Anyone got this info or know where to find it ?

  2. #2
    Gone but not forgotten
    Join Date
    Apr 2017
    Location
    Hamilton
    Posts
    4,129
    What's your trigonometry skills like? Should be able to work out the angle from width at rim of 0.378, width at shoulder of 0.354, and 1.438 inches between those two spots.
    I might have the SAAMI specs on my tablet, I'll have a look and see if it has angle.

  3. #3
    Gone but not forgotten
    Join Date
    Apr 2017
    Location
    Hamilton
    Posts
    4,129
    If my maths is correct, the angle is very close to 1 degree (or 89 degrees, depending which way round you work)

  4. #4
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    647
    .48 degrees. @Cigar you have to divide the .024 by 2 as this is the difference for both sides

  5. #5
    Gone but not forgotten
    Join Date
    Apr 2017
    Location
    Hamilton
    Posts
    4,129
    Quote Originally Posted by Remmodel7 View Post
    .48 degrees. @Cigar you have to divide the .024 by 2 as this is the difference for both sides
    True, my maths wasn't correct! Only out by 100%

  6. #6
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235

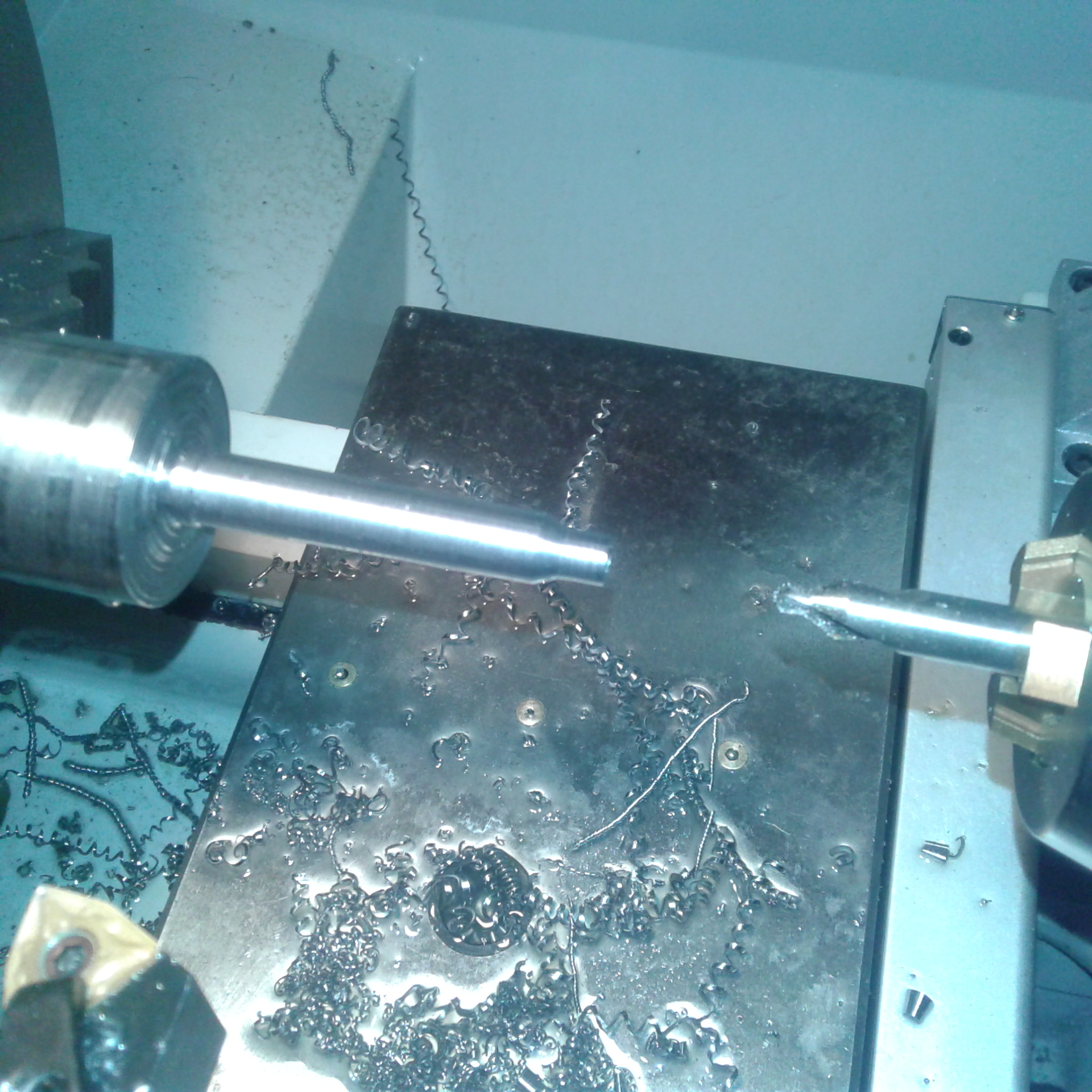

    I worked it all out by trial and error using the compound slide on my lathe.
    Sadly the scale is typically crude and doesn't do parts of a degree.
    I might add a fine screw adjustment if i intend doing more often.

    I'm making ( trying ) a chamber adapter for my G2 contender to be able to fire .22 rf in my 223 barrel

    Name:  20191120_201218.jpg
Views: 215
Size:  1.18 MB
    Kiwi-Hunter likes this.
