Thread: 270wsm rl26 145g eldx my experience

  1. #16
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184

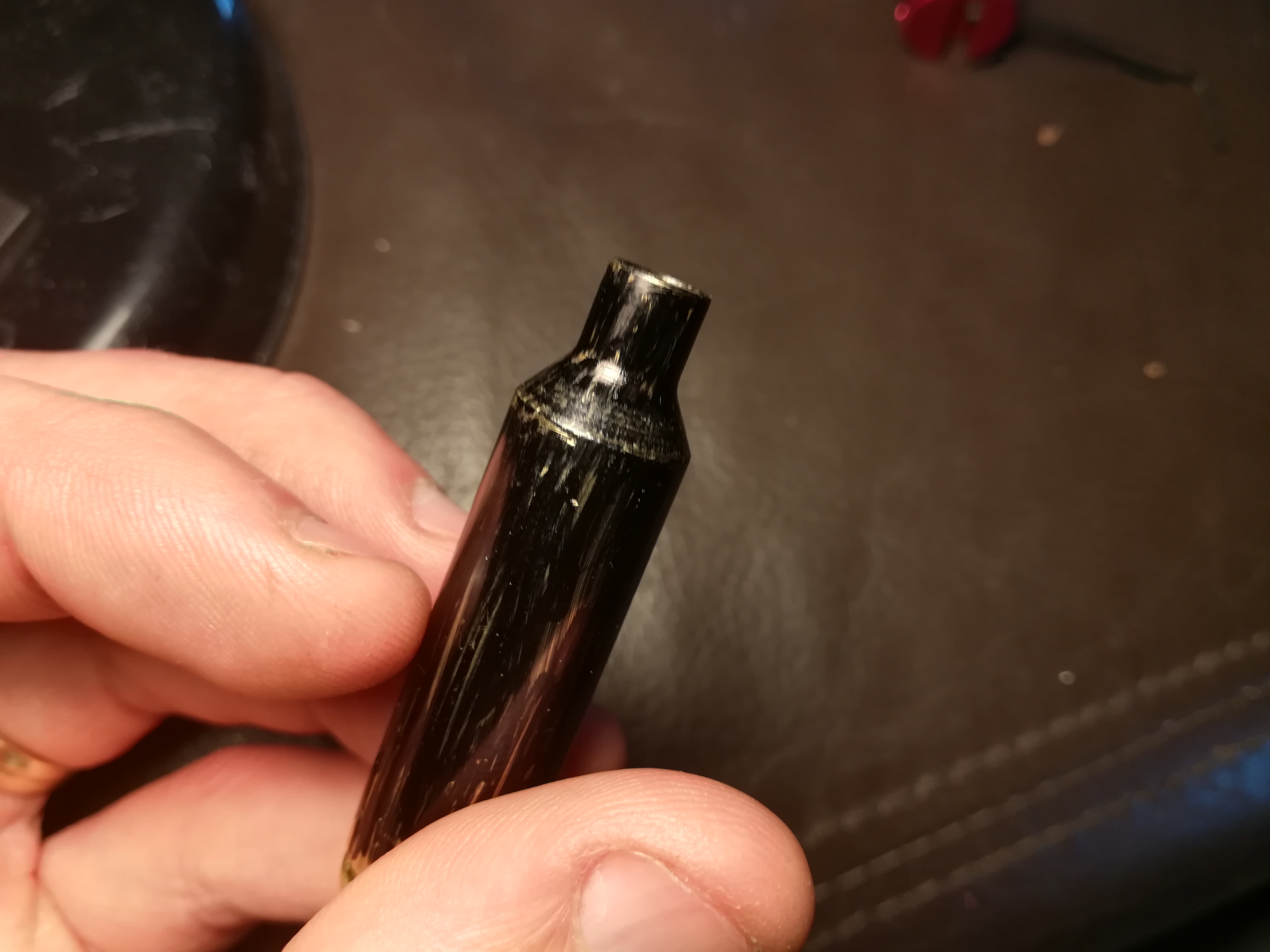

    Some pics to show what I'm talking about.
    You can just see the faintest mark on the shoulder, no other marks anywhere on the chambered case

    Name:  IMG_20190730_125915.jpg
Views: 374
Size:  1.74 MB

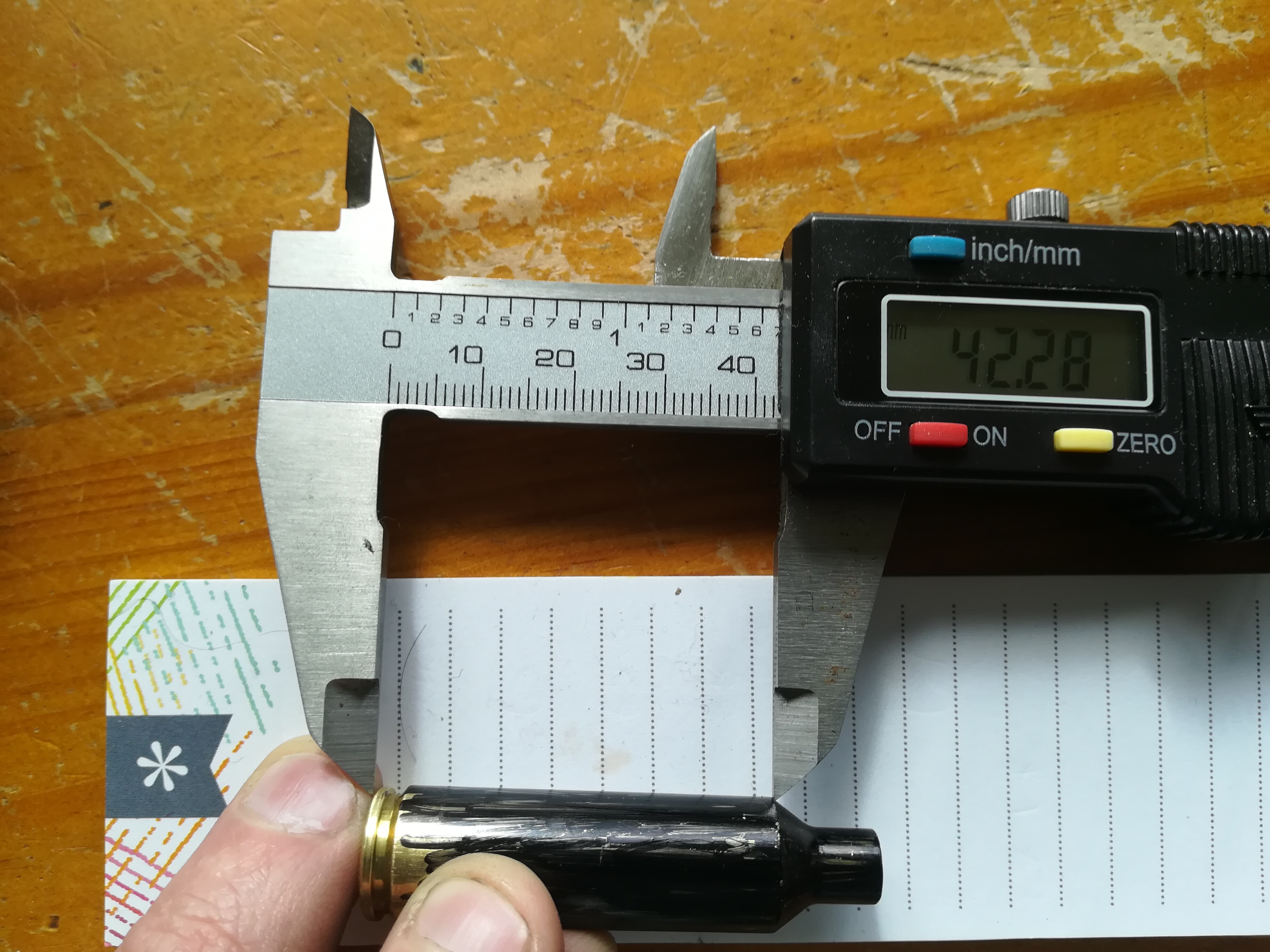

    Pics of case measurements

    Name:  IMG_20190730_130517.jpg
Views: 450
Size:  2.37 MB

    Name:  IMG_20190730_130455.jpg
Views: 445
Size:  2.32 MB

    The case coloured in black has now been full length sized in my Lee sizing and decapping die twice and is still way to tight, its got me stumped.

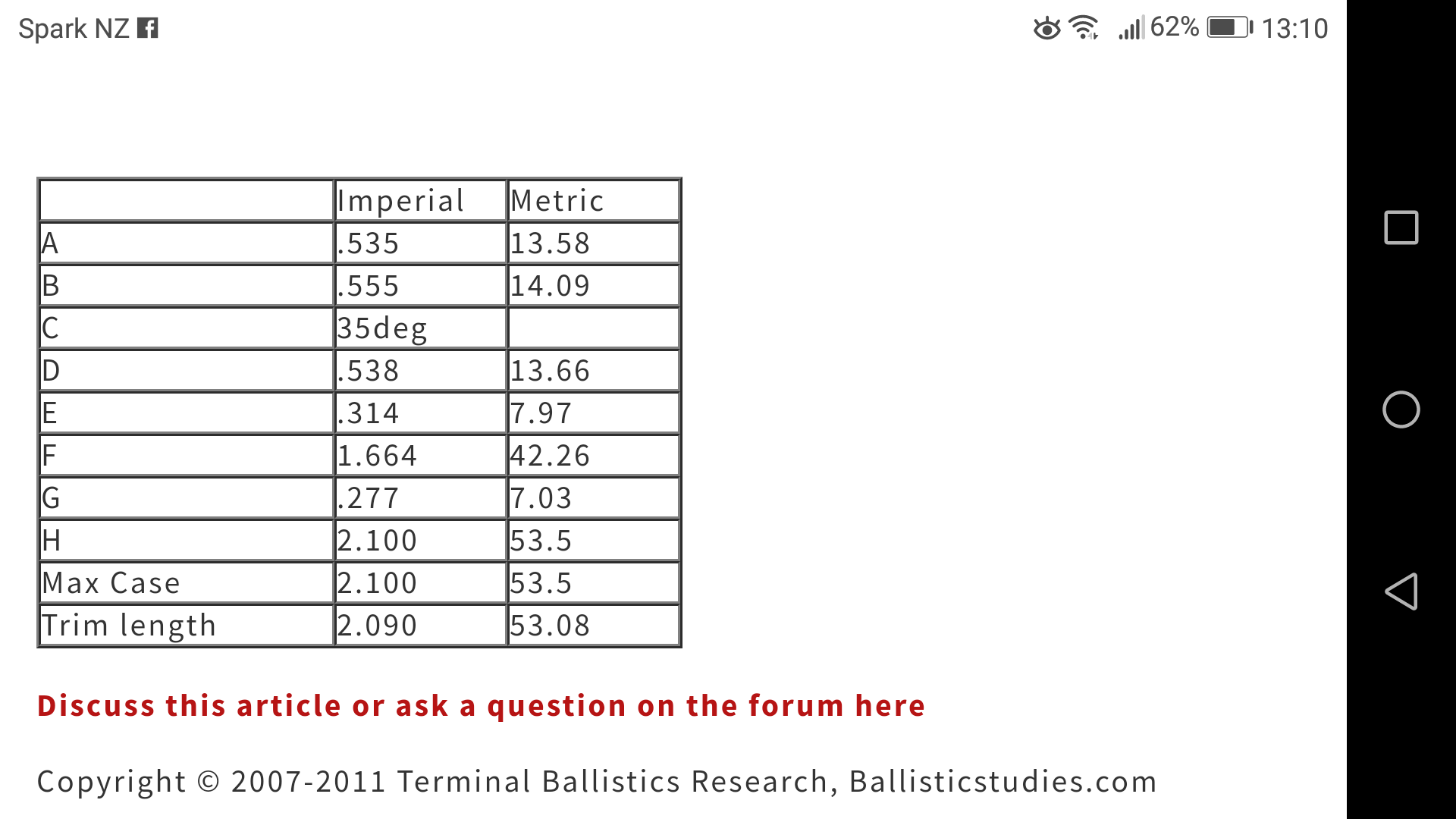

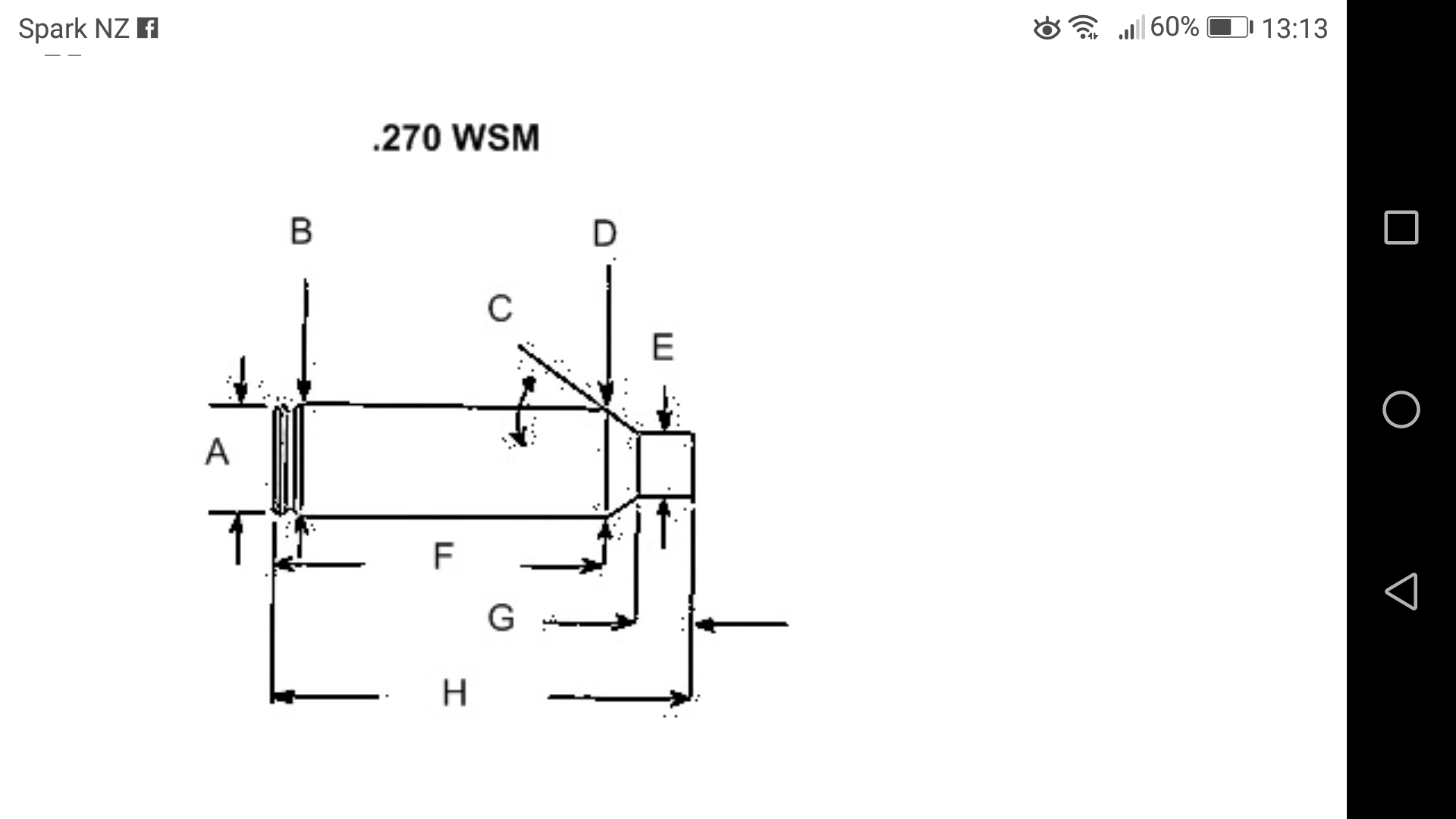

    Below is a chart showing case dimensions note the full length trim and max measurements and the "F" measurement which is base to shoulder
    Name:  Screenshot_20190730-131346.png
Views: 348
Size:  123.6 KB
    Name:  Screenshot_20190730-131002.png
Views: 324
Size:  118.4 KB

  2. #17
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184
    The only thing I can think of is that maybe the head space in my chamber has much tighter tolerance than the rifle this round was originally fired in and no matter how much I try and re size it, it's never gone be right in my chamber due to the cartridge springing back a little once it's been through the die ?
    I can't otherwise see how my head space could have shrunk ?

  3. #18
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184
    Have just checked the width at the shoulder or "G" on the chart and it's 13.7mm could this mean my theory is correct and the rifle this cartridge was originally fired out of has fireformed this case bigger than what I can size it back to ?

  4. #19
    Member wsm junkie's Avatar
    Join Date
    Dec 2011
    Location
    Northern Rangitikei
    Posts
    1,485
    Have you trimmed them at all @dannyb
    That bottom pic measurement looks quite long compared to the trim length on the chart

  5. #20
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,302
    It's your sizing die setup
    Shearer likes this.
    270 is a harmonic divisor number[1]
    270 is the fourth number that is divisible by its average integer divisor[2]
    270 is a practical number, by the second definition
    The sum of the coprime counts for the first 29 integers is 270
    270 is a sparsely totient number, the largest integer with 72 as its totient
    Given 6 elements, there are 270 square permutations[3]
    10! has 270 divisors
    270 is the smallest positive integer that has divisors ending by digits 1, 2, …, 9.

  6. #21
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184
    Quote Originally Posted by wsm junkie View Post
    Have you trimmed them at all @dannyb
    That bottom pic measurement looks quite long compared to the trim length on the chart
    No, I haven't. I would've thought once fired brass wouldn't need trimming straight off the bat, I can see what you mean though it's not far off maximum.
    Could that seriously be all that's wrong ? Excuse my ignorance, I've not had to trim any brass yet even after 3 or 4 loads in mybold 270win.
    Guess I'm buying a case trimmer tomorrow.
    Out of interest could this be enough to skew my ladder test results ?

  7. #22
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184
    Quote Originally Posted by Ryan_Songhurst View Post
    It's your sizing die setup
    How so ? Honestly never had any issues resizing with Lee dies yet, what sm I doing wrong ?

  8. #23
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,302
    Message ya later, on the road...
    dannyb likes this.
    270 is a harmonic divisor number[1]
    270 is the fourth number that is divisible by its average integer divisor[2]
    270 is a practical number, by the second definition
    The sum of the coprime counts for the first 29 integers is 270
    270 is a sparsely totient number, the largest integer with 72 as its totient
    Given 6 elements, there are 270 square permutations[3]
    10! has 270 divisors
    270 is the smallest positive integer that has divisors ending by digits 1, 2, …, 9.

  9. #24
    #KnowsFuckAll Dorkus's Avatar
    Join Date
    Jul 2015
    Location
    Mangawhai
    Posts
    1,310
    Got a big drive or something @Ryan_Songhurst?
    "I heard Jesus did cocaine on a night out. Eyes wide-open, dialated, but he's fine now. And if his father ever finds out, then he'd probably knock his lights out...
    Gets a little messy in heaven "
    - Venbee

  10. #25
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    4,491
    You need to shoulder bump them. You might have to place a feel gauge under the case in the shell holder when you full length and cam over. This is the easiest way instead of buying shell holders with various heights, try 6 thou' and move up from there until a resized case closes correctly.
    Bagheera likes this.

  11. #26
    Member
    Join Date
    Aug 2018
    Location
    Christchurch
    Posts
    1,648
    Standard seems to be to screw in til the die touches the shell plate, lower the ram and screw in another 1/4 turn. Otherwise, mechanical play and stacking of tolerances in the press and die threads means with a case in the mix, you might not be pushing the shoulders down at all. If the press and plate touch without a case, you'll likely see a small gap when there is a case in there.

    I recommend taking the expander out until you've figured it out, else repeatedly sizing the neck is just going to work harden your brass.
    Bagheera likes this.

  12. #27
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184
    Quote Originally Posted by PommyMcPomFace View Post
    Standard seems to be to screw in til the die touches the shell plate, lower the ram and screw in another 1/4 turn. Otherwise, mechanical play and stacking of tolerances in the press and die threads means with a case in the mix, you might not be pushing the shoulders down at all. If the press and plate touch without a case, you'll likely see a small gap when there is a case in there.

    I recommend taking the expander out until you've figured it out, else repeatedly sizing the neck is just going to work harden your brass.
    This is exactly how I set my resizing die up, I go a half turn instead of a quarter (there's a bit of play in the cheapo lee press) but can confirm the shell holder is definitely touching the die at full extension, I think maybe first port of csl might be to buy trim die for my wuick trim and trim all the brass back to minimum trim length and check an empty case again before doing anything rash.
    As has been pointed out even though only once fired it is very close to maximum length and I cant help wondering if maybe the neck is hitting the end of the chamber..... and if thst is the case (no pun intended) possibly also crimping my proectile in the process and scewing all my load testing.
    Sigh......guess this kinda has turned into a cry for help

  13. #28
    Member
    Join Date
    Jul 2014
    Location
    BOP
    Posts
    4,015
    Does your mate have different loading dies for his rifle. If so maybe run those tight shells through his dies and see if they will resize them to fit your chamber. If you can find a RCBS trim/form die then it will solve the problem, run them through the die trim the excess that sticks out the top of the die and job done.
    dannyb likes this.

  14. #29
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184
    Quote Originally Posted by Mooseman View Post
    Does your mate have different loading dies for his rifle. If so maybe run those tight shells through his dies and see if they will resize them to fit your chamber. If you can find a RCBS trim/form die then it will solve the problem, run them through the die trim the excess that sticks out the top of the die and job done.
    Mate lives way too far away for that......I'm gonna pop into gunworks and pick up a 270wsm trim die tomorrow and give that a whirl (see what I did there) it may or may not solve all my problems, although I now have the arduous task of depriming about 30 live primer cases so I can trim them

  15. #30
    Member
    Join Date
    Jul 2014
    Location
    BOP
    Posts
    4,015
    The RCBS die is the only one to use. We have them in 243,308,30 06, and 300 Win and all work well.
