Thread: 500 BPE load advice

  1. #16
    Member norsk's Avatar
    Join Date
    Jun 2016
    Location
    Norway
    Posts
    2,541
    Sharpen the inside of you wad punch.

    You can use practically anything to fill the air gap.In the past I have used:

    Kaypoc from old life Jackets
    Raw Wool (stinky)
    Cotton Wool
    Rolled Oats
    Corn tumbling meda
    Newspaper
    Felt wads

    Best of all is foam backing rod,select the size a little smaller than the inside of your case and about a half inch longer than the distance from the powder level of your load.

    When you seat the projectile it will compress and compress your charge too.
    It disintegrates upon firing as won't leave residue in the barrel.
    akaroa1 likes this.
    "Sixty percent of the time,it works every time"

  2. #17
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250
    @Scout If I can find the direct contact for Bertram brass in Australia I could get some 500 3 1/4" basic brass with the thick rims and turn them myself to the perfect size for my rifle

    All the Bertram contacts on line are for USA
    The actual guy in Melbourne obviously just makes the brass and doesn't want to deal with emails etc

    As I thought. Drank too much with guests so no work on the lathe tonight !
    But have the steel and a plan sorted to make a custom sized wad punch tomorrow

  3. #18
    Member
    Join Date
    Feb 2018
    Location
    Waikato
    Posts
    1,308
    I have Bruce's contact some where, ill look see but don't mess him about, that's why he is hard to find lol !


    Just remembered, how will you get them to NZ, as no one in Aussie ships now days, last time I picked them up & traveled with them ?
    Last edited by Scout; 22-02-2020 at 08:57 PM.

  4. #19
    Member
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    21,180
    Quote Originally Posted by norsk View Post
    Sharpen the inside of you wad punch.

    You can use practically anything to fill the air gap.In the past I have used:

    Kaypoc from old life Jackets
    Raw Wool (stinky)
    Cotton Wool
    Rolled Oats
    Corn tumbling meda
    Newspaper
    Felt wads

    Best of all is foam backing rod,select the size a little smaller than the inside of your case and about a half inch longer than the distance from the powder level of your load.

    When you seat the projectile it will compress and compress your charge too.
    It disintegrates upon firing as won't leave residue in the barrel.
    Foam backing rod sounds good!!
    Boom, cough,cough,cough

  5. #20
    Member
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    21,180
    Just deal with Deadeye Dicks and cut the hassles of getting Bertram Brass!!
    Boom, cough,cough,cough

  6. #21
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250
    Quote Originally Posted by norsk View Post
    Sharpen the inside of you wad punch.

    You can use practically anything to fill the air gap.In the past I have used:

    Kaypoc from old life Jackets
    Raw Wool (stinky)
    Cotton Wool
    Rolled Oats
    Corn tumbling meda
    Newspaper
    Felt wads

    Best of all is foam backing rod,select the size a little smaller than the inside of your case and about a half inch longer than the distance from the powder level of your load.

    When you seat the projectile it will compress and compress your charge too.
    It disintegrates upon firing as won't leave residue in the barrel.
    @norsk do you mean PEF rod that builders use around Windows?
    I have heaps of that I'm a huge range of sizes and sure to have 12mm which would be ideal
    Maca49 likes this.

  7. #22
    Member
    Join Date
    Feb 2018
    Location
    Waikato
    Posts
    1,308
    Yes I used the 12mm or 12.5mm backer rod in my Nitro loads, works well .

  8. #23
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250
    Quote Originally Posted by Scout View Post
    I have Bruce's contact some where, ill look see but don't mess him about, that's why he is hard to find lol !


    Just remembered, how will you get them to NZ, as no one in Aussie ships now days, last time I picked them up & traveled with them ?
    Yes getting them here could be challenging
    A friend went and visited him and went throught his workshop and reckons it's worth a trip to Melbourne just to see that

  9. #24
    Member norsk's Avatar
    Join Date
    Jun 2016
    Location
    Norway
    Posts
    2,541
    @akaroa1

    Yes that's the stuff.You will work out the desired length based on your load.Too much and you can't seat the projectile.

    Black powder needs compression to burn evenly,truly loading one cartridge loose,with say cotton wool as a filler and one cartridge hard with foam rod compressed.

    Just the sound of the report will tell you all you need to know.
    akaroa1 likes this.
    "Sixty percent of the time,it works every time"

  10. #25
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250
    Thanks all you guys
    This project has been ripping along and I now feel confident to start some load work once I get in to Gunworks and pick up some FFG

    I doubt it's been fired for the best part of a century
    My thinking I'd brass would have been a huge challenge in the past.

    We are living in a time now where CNC machining and the internet are making these historic firearms usable again

  11. #26
    Member
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    21,180
    Quote Originally Posted by akaroa1 View Post
    Thanks all you guys
    This project has been ripping along and I now feel confident to start some load work once I get in to Gunworks and pick up some FFG

    I doubt it's been fired for the best part of a century
    My thinking I'd brass would have been a huge challenge in the past.

    We are living in a time now where CNC machining and the internet are making these historic firearms usable again

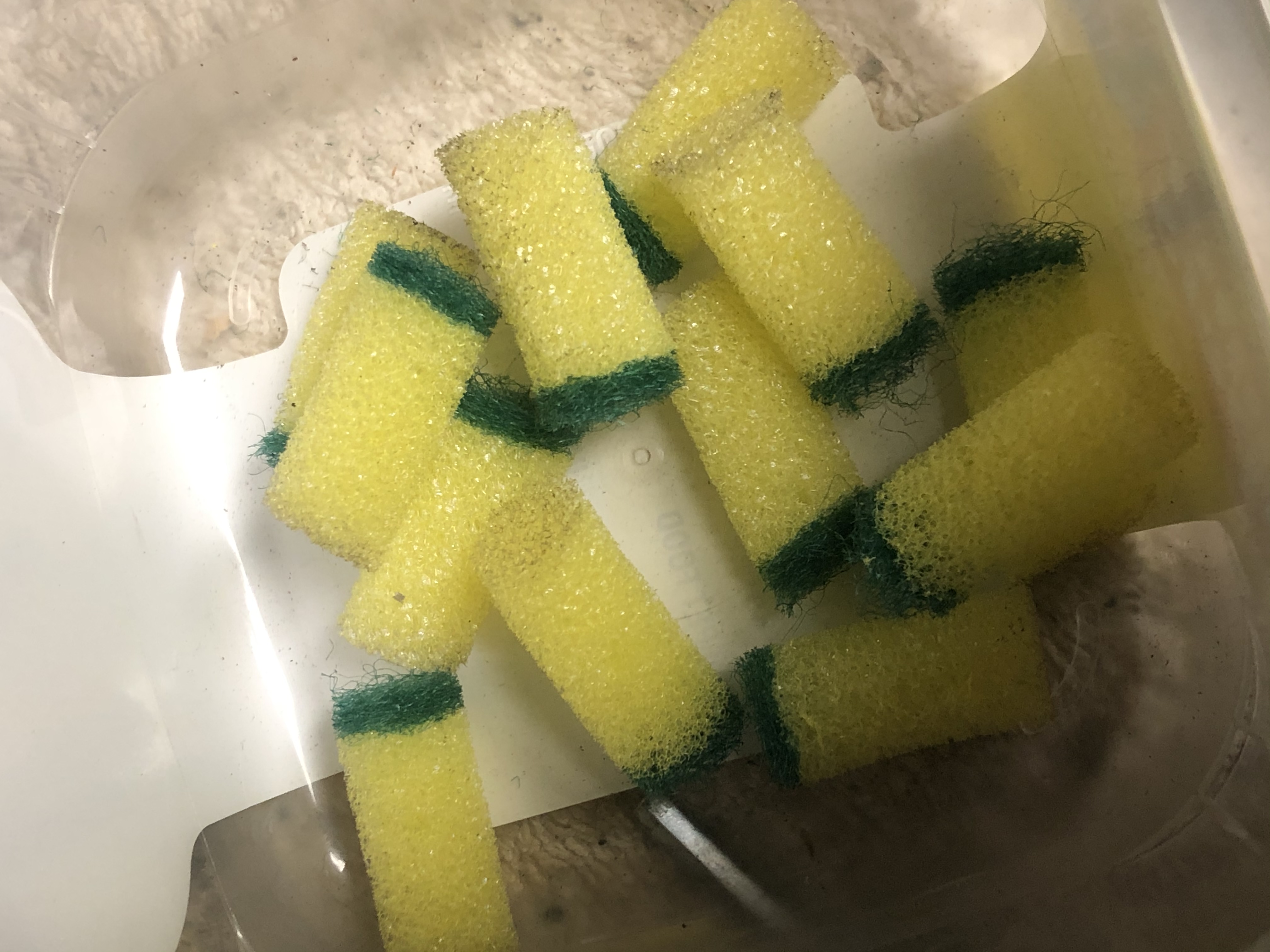

    Don’t tell Nash about the CNC bit, here’s some foam wads I used in my smokeless BP loads on the 500Name:  B3E15051-0842-4546-A211-1CE2F8BB4879.jpeg
Views: 166
Size:  1.73 MB
    Micky Duck likes this.
    Boom, cough,cough,cough

  12. #27
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250
    We will just tell Nash that it's for a spud gun

  13. #28
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250

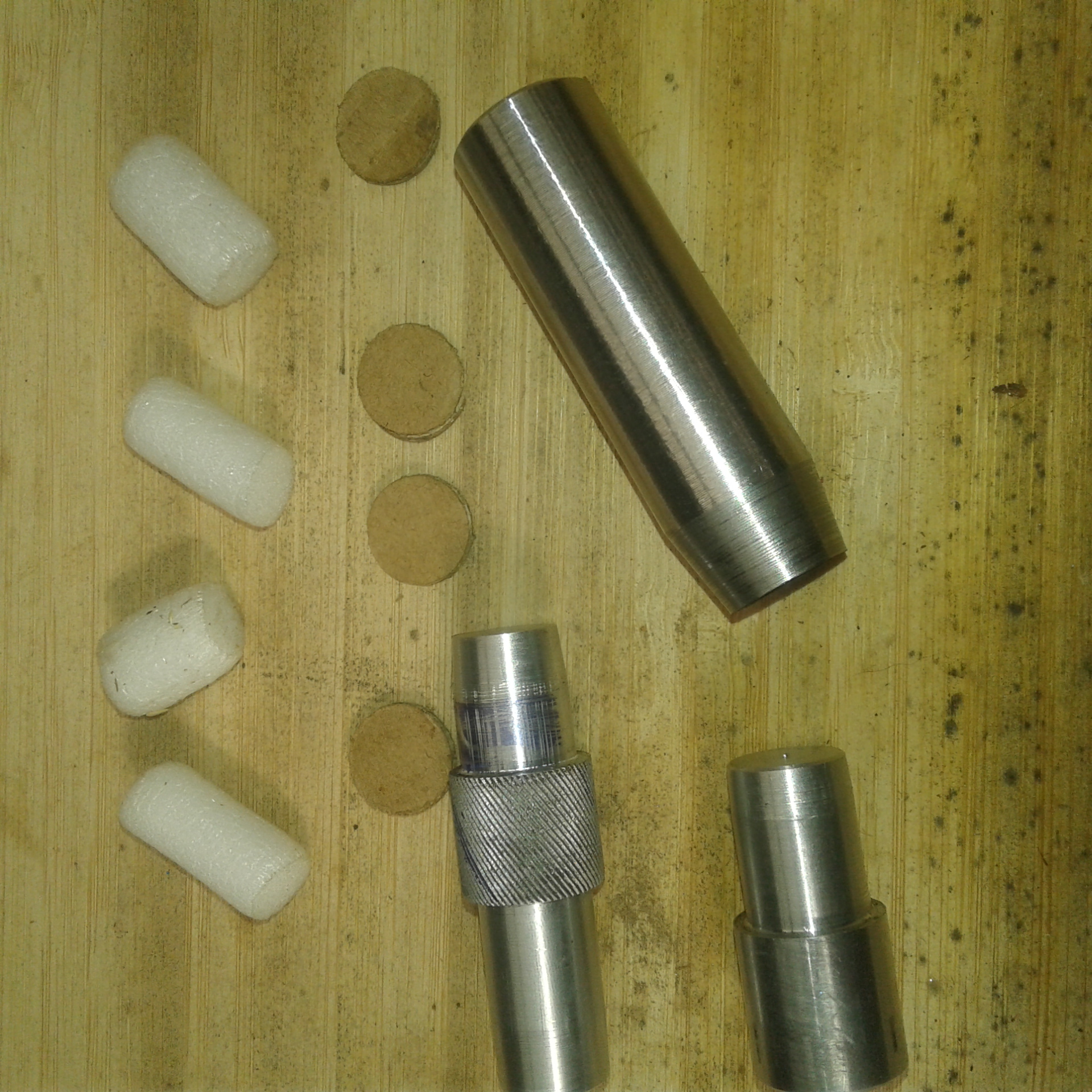

    Neck expanding plugs made
    Wad punch made
    Have heaps of PEF rod in stock anyway

    So powder and its ready to go.
    Tie it to a tyre and use a string for the first shots to see how the old girl handles the strain

  14. #29
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250
    Name:  20200224_113333.jpg
Views: 177
Size:  1.38 MB

  15. #30
    Member
    Join Date
    Mar 2013
    Location
    Bell Block NZ/Northern Alberta Canada
    Posts
    1,137
    local gun store here in Canada has Norma 500 nitro express,($149)for 25 also starline in 50-110 win and 50-90 sharps, $90-50 and $110- 50, any of these any good to you, I will be back in NZ in five weeks.
    Moa Hunter and Micky Duck like this.
