Recovery from surgery has been going well, I was hopeful of testing some of the Trailboss 151hp loads this coming Sunday but cyclone Oma may be about to stuff that plan up!
I noticed the necks on the loaded rounds were visibly larger where the projectile is seated. Some quick measurements raised some concern - loaded neck diameter was slightly larger than the neck diameter of fired cases - so this afternoon I did a bit more investigation.

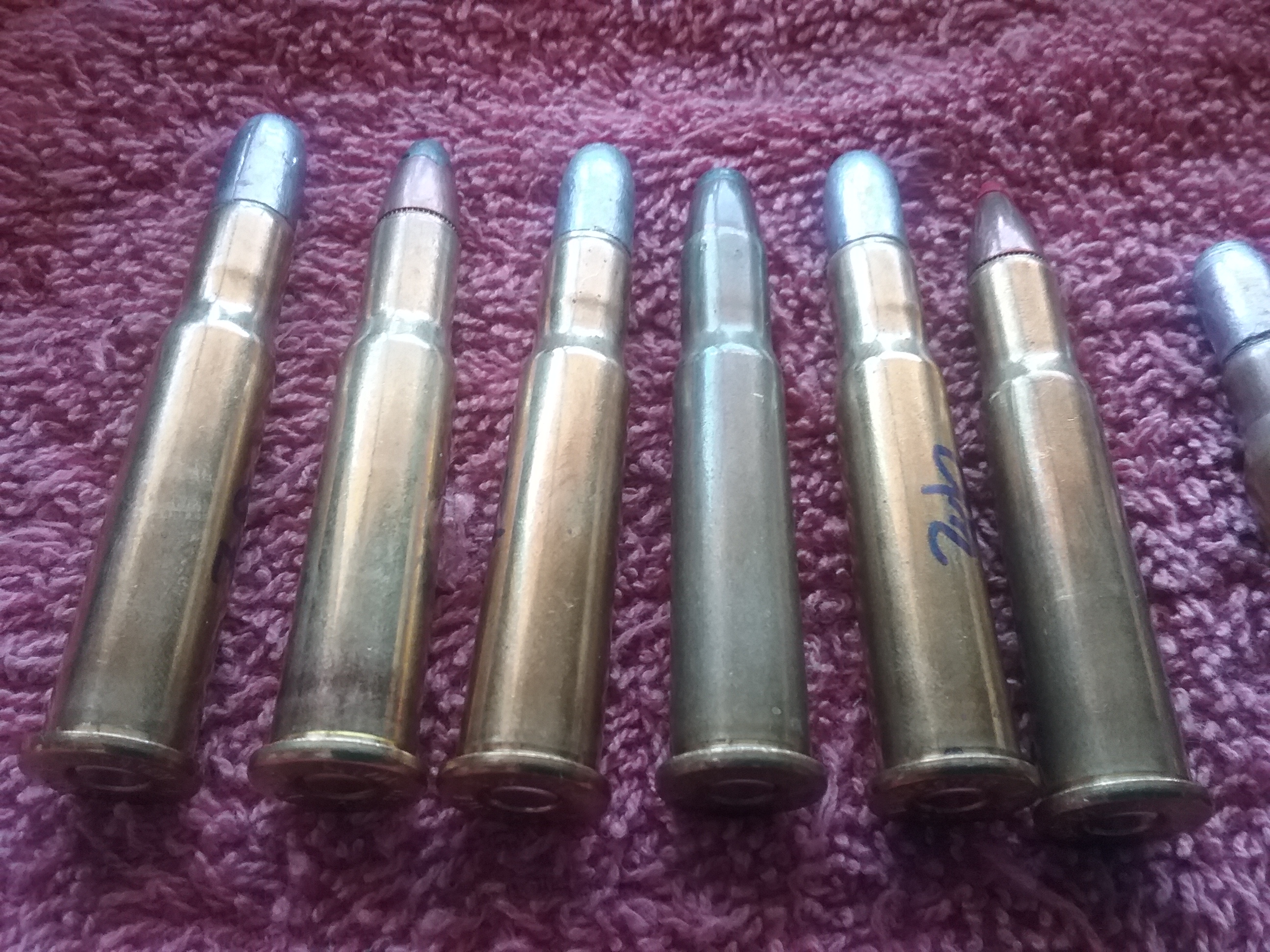

Here is a photo of the rounds, numbers 1, 3 and 5 from the left are the Trailboss rounds, 4 and 6 are other reloads, and number 2 is a factory round.
Some neck diameter measurements, in mm as that is what my micrometer measures.
Trailboss rounds 8.45mm
Fired case 8.43mm
Factory round 8.33mm
Reloads (2 types) both 8.34mm
So the necks of the Trailboss rounds are quite a bit larger than normal, and slightly larger than the neck on a fired case.
My concern was that the neck would be too tight in the chamber, but I think I'm okay. The difference between loaded and fired is small, and all rounds chamber okay in the rifle with no obvious marks on the necks. The SAAMI dimensions for case necks are 8.4 to 8.45mm, which I think is a minimum size, is this correct?
