Thread: Barnes seating depth

Think velocity rather than distance.the faster they going the better/ further they expand. Look at the graduated photos and from my experience they about right.

I reckon you need about 2400fps impact V

So you are probably talking under 200 yards.

Originally Posted by Shearer

I am about to try some 50gn Barnes TSX in my 223 and seem to remember seeing somewhere that they like to be seated 50 to 100 thou off the land for best accuracy. Anyone have any experience with this?

No, the trick is to use the first (this bullet only has one) drive band as your seating depth/crimp ring/cannelure.



Don't bother playing with seating depth, load up powder charges until you find pressure. If the accuracy is not there, either you barrel twist is too slow or try another powder/more neck tension.

All factory ammo is made to a spec of seating depth, yet it suits the majority of firearms (if the ammo is good and firearm in spec).

Don't burn components needlessly.

Originally Posted by Shearer

@TeRei. What sort of distance are you using the 53gns to on game?

Mostly 2 hundy because head and neck shooting. I think the 53gr beats the 55gr. Fired up with BM2 they really tag deer very well. Becomes a confidence thing after a while. They are an amazing pill. Yet currently loading 300 55gr GMK for my mate up the Raukumaras. Funny because I loaded 3 hundy triple deuce for him last month. Same pill.

Originally Posted by caberslash

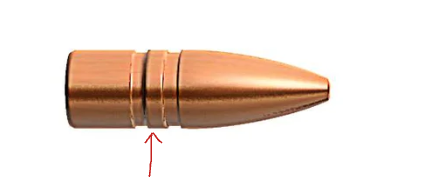

No, the trick is to use the first (this bullet only has one) drive band as your seating depth/crimp ring/cannelure.

Attachment 261841

Don't bother playing with seating depth, load up powder charges until you find pressure. If the accuracy is not there, either you barrel twist is too slow or try another powder/more neck tension.

All factory ammo is made to a spec of seating depth, yet it suits the majority of firearms (if the ammo is good and firearm in spec).

Don't burn components needlessly.

I dont agree with this at all either for Barnes or Hammers. Both to the top cannelure. The monos love a tight long grip. They hold, the pressure hits the right node and banger they zip away.2C.

https://rokslide.com/forums/threads/...n-deer.335820/

I tried some ttsx in a 270wsm with a super long throat and couldn’t get anywhere near the lands. From memory ended up nearly .200 off and it still shot under an inch. Seating depth wasn’t that critical on that one.

I got some advice off Jaco about the 110gr TTSX. The only rainbow juice I had was 748. The manual suggested a range from 52 to 47gr's. Thought I would try backwards. The 52 was a complete waste of time. The powder was to the top of the neck and spilling over. Nothing was achieved until I got to 47gr's. Then I had to settle the powder by tapping it. Seated to top of top cannelure. Out last night with my son and his mate. Big gully. Lines up on a fatty. The sound of that 110gr hitting that stag was impressive. Told them I had to stay there to ensure we did not get lost from our celestial navigation. Anyway lotsa hooping and then swearing. It was a 13pt velvety. They struggled back with back legs, head and backs. Funny beacuse I had loaded him some 150gr Sierra and a dozen 168gr TTSX. Dont think he wants any other pill. It just anchored that stag probably because he nailed it in the swede. Never used a 308 but most impressed how it performed. It is a dynamite pill.
