Thread: Black Powder Witchcraft. Regulating a BP Double Rifle

Hybrid View

  1. #1
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,752
    Damascus steel barrels with the two belt grooves at 12 and 6 o'clock at the muzzle and about 1:60" twist rate

    Old school

    Name:  20230713_113957.jpg
Views: 254
Size:  1.10 MB


    Name:  20230713_114020.jpg
Views: 246
Size:  1.02 MB

    Name:  20230713_114051.jpg
Views: 243
Size:  976.6 KB
    The Church of
    John Browning
    of the Later-Day Shooter

  2. #2
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,752
    Well I like to look at things very thoroughly and do a lot of checks before I live fire a 185 year old rifle.

    I actually sent bore castings and patches to James Tanner at ballmould.com in England this morning.
    He will make a perfectly sized belted ball mould allowing for the patch thickness and pure lead shrinkage rate.

    I have also researched the Dickson barrel numbers with Dickson and sons in Scotland as they have the full Dickson Ledgers since 1820.
    They do have a record of these barrels and they even have a record of them coming to NZ and that the original owner returned from NZ in 1866 but did not return with the rifle.
    That is all the information they would allow without the payment of 55 Pounds.
    Dickson's also hold the ledgers for a number of other sadly departed Scottish Gunmakers and provide historic records for a charge.

    I will get the Dickson double and my Alexander Henry rifle records done as both are worth the time and money to research.

    Technically you have to marvel at the skills of the designers and craftsmen that made these rifles 185 and 150 years ago respectively.
    The Dickson barrels are in perfect shootable condition and I would rate them 7.5/10
    My Alexander Henry left the workshop 150 years ago next month.
    Yes it left the workshop in August 1873. It is in mechanically perfect condition and the bore is 9.5/10

    Show me a rifle made today that you might expect to be mechanically 100% in 150 years ?
    The Church of
    John Browning
    of the Later-Day Shooter

  3. #3
    Banned
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    5,462
    How interesting this is. I would never of dreamed that a belted ball would be a 'thing'.
    Northkiwi likes this.

  4. #4
    Member
    Join Date
    Dec 2021
    Location
    Tauranga
    Posts
    5,865
    Quote Originally Posted by Moa Hunter View Post
    How interesting this is. I would never of dreamed that a belted ball would be a 'thing'.
    As far as I was aware a 'belted ball' was NOT something you wanted... But yes, interesting as. When you see where we came from, the modern gear is quite unreal isn't it?
    Moa Hunter likes this.

  5. #5
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,752
    Quote Originally Posted by No.3 View Post
    As far as I was aware a 'belted ball' was NOT something you wanted... But yes, interesting as. When you see where we came from, the modern gear is quite unreal isn't it?
    I think the belted ball was well regarded when patches and used in slow controlled fire
    But there was no advantage when volley fire was needed because the balls went in un patched.
    In which case a musket is just as good and vastly cheaper to produce.

    But as I have shown with this Dickson Sporting Rifle, the belted ball when loaded with care and attention ( as any sporting rifle should ) can be a very accurate rifle.

    But I marvel at how these barrels were made and the rifling form is so accurate.
    Hence the army were never going to choose it despite good trials results
    Moa Hunter and Micky Duck like this.
    The Church of
    John Browning
    of the Later-Day Shooter

  6. #6
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,752

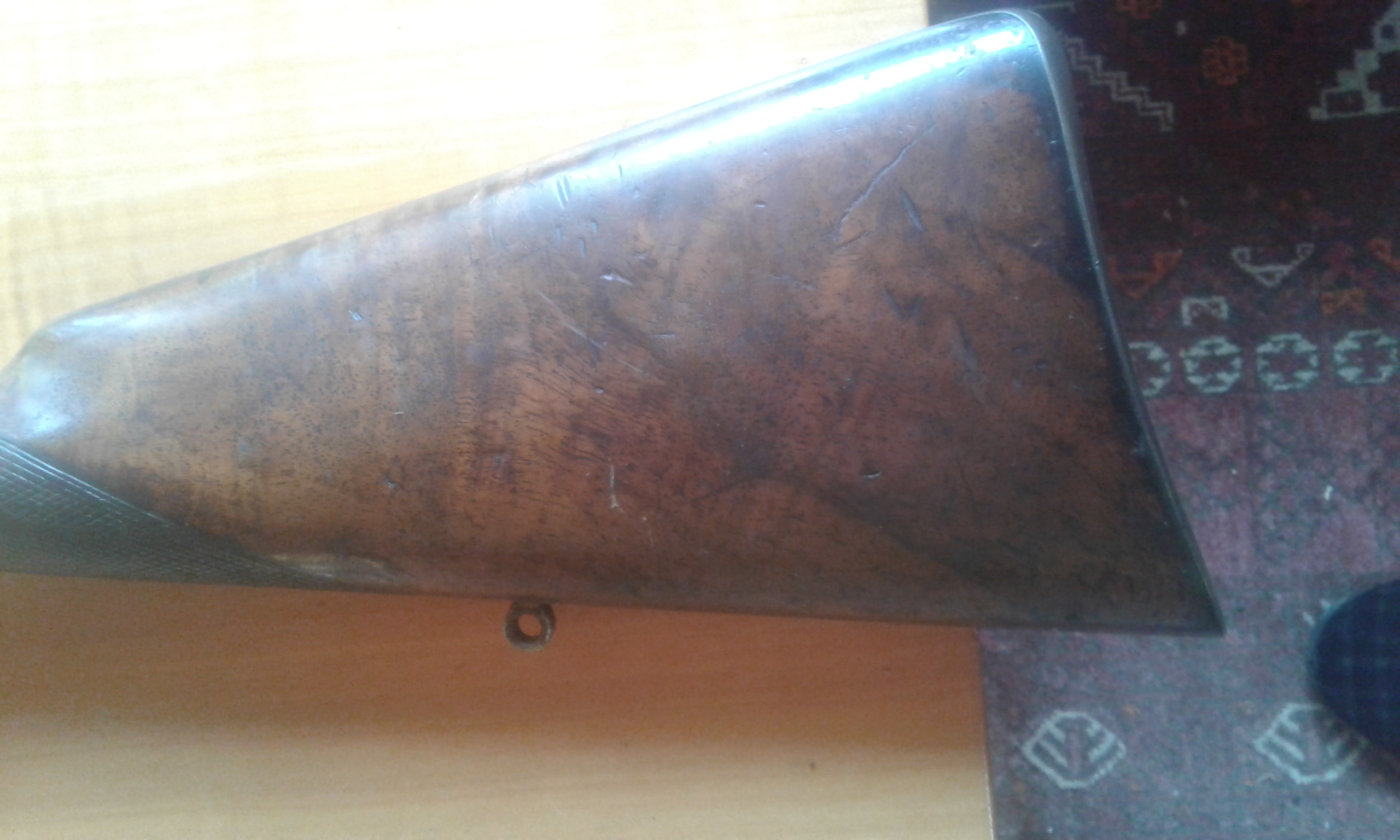

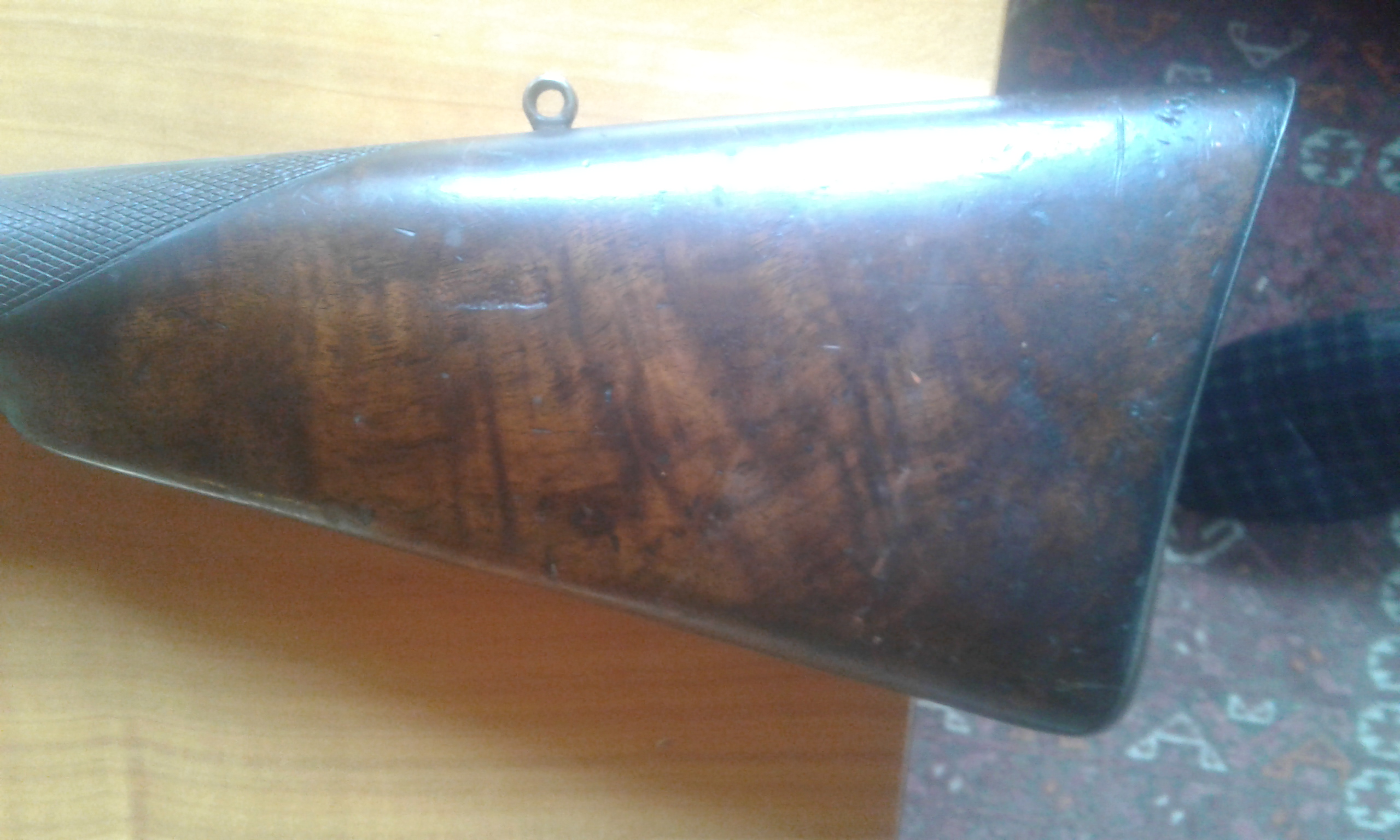

    Next wet day I will start on cleaning the woodwork
    The walnut looks to be a pretty nice piece
    Solvents to dissolve the decades of dried on gun oils and a lot of cleaning

    Name:  20230713_113752.jpg
Views: 166
Size:  907.8 KB

    Name:  20230713_113801.jpg
Views: 163
Size:  925.1 KB
    The Church of
    John Browning
    of the Later-Day Shooter

  7. #7
    Member
    Join Date
    Apr 2022
    Location
    New Plymouth
    Posts
    3,808
    Quote Originally Posted by akaroa1 View Post
    Next wet day I will start on cleaning the woodwork
    The walnut looks to be a pretty nice piece
    Solvents to dissolve the decades of dried on gun oils and a lot of cleaning

    Attachment 229931

    Attachment 229932
    yes that will come up a treat
    Oldbloke likes this.

  8. #8
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,752
    And the grips took a long time to clean out but now look and feel awesome

    Name:  20230731_194604.jpg
Views: 204
Size:  1.64 MB

    Name:  20230731_194632.jpg
Views: 205
Size:  1.44 MB
    veitnamcam likes this.
    The Church of
    John Browning
    of the Later-Day Shooter

  9. #9
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,752
    I guess you would call the Belted Ball a technological dead end.

    It had its moment when someone thought it was the answer.
    Whitworth rifling was another answer that didn't last

    I personally find the odd mechanical rifling systems to be very interesting.
    This rifle sits well with my Whitworth as an example of things that were certainly an improvement but were superseded very quickly.

    Then there was Henry Rifling, Metford Rifling as the last evolution of BP rifling and Enfield Rifling and others to usher in the smokeless types
    Moa Hunter and Micky Duck like this.
    The Church of
    John Browning
    of the Later-Day Shooter

  10. #10
    Banned
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    5,462
    From the section photos shown it looks like a lovely stylish piece, no doubt with good balance. A gentleman's gun

  11. #11
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    25,373
    actually thinking about it..this is the origonal two groove barrel
    75/15/10 black powder matters

  12. #12
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,752

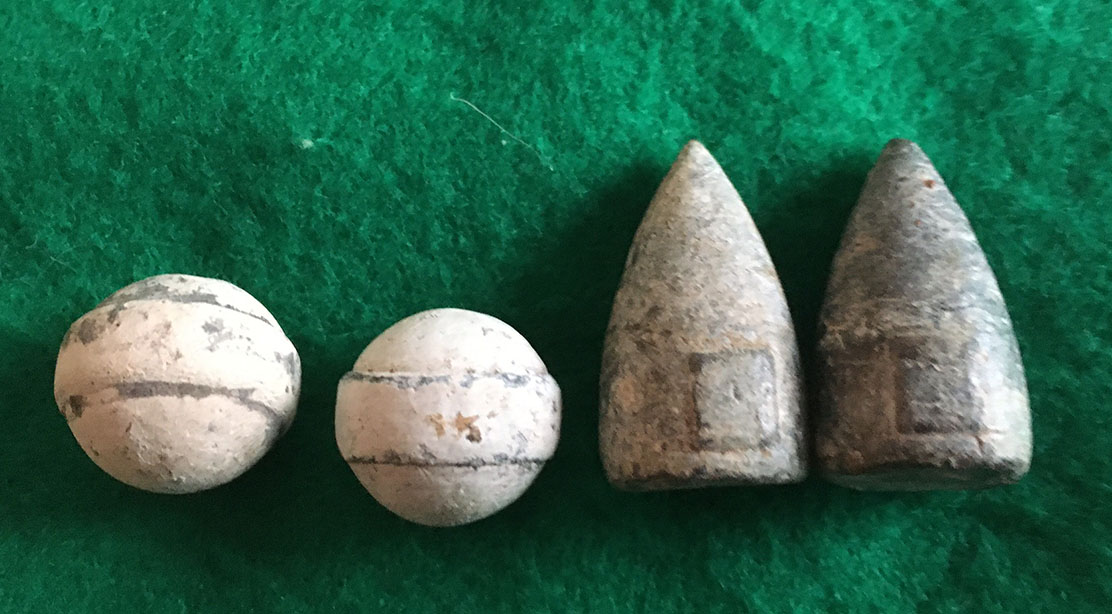

    Here it is
    The Russian variation used the Brunswick rifling in the Luttich Rifle and Carbine.

    The conical was a slight ballistic improvement
    Circa 1843

    Name:  Littich 1843-3.jpg
Views: 157
Size:  158.0 KB
    john m, 308, Moa Hunter and 1 others like this.
    The Church of
    John Browning
    of the Later-Day Shooter

  13. #13
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    25,373
    ok so it runs a round ball with a ring of saturn right around it...so....a squat mini with a tit on each side would utilize the rifling the same way...... IF a hole of correct diameter was bored into a block,with two smaller holes bored at 12 n 6;00 before main hole was drilled you would in effect have a short slug with two bumps on each side......maybe??? maybe not feasable.....I just love the concept...its like a rifled slug with the same rifling on barrel.
    75/15/10 black powder matters

  14. #14
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,752
    Quote Originally Posted by Micky Duck View Post
    ok so it runs a round ball with a ring of saturn right around it...so....a squat mini with a tit on each side would utilize the rifling the same way...... IF a hole of correct diameter was bored into a block,with two smaller holes bored at 12 n 6;00 before main hole was drilled you would in effect have a short slug with two bumps on each side......maybe??? maybe not feasable.....I just love the concept...its like a rifled slug with the same rifling on barrel.
    Well M.D. there was a conical with wings that fitted into two mechanical grooves

    I just can't remember what it's called
    Micky Duck likes this.
    The Church of
    John Browning
    of the Later-Day Shooter

  15. #15
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    25,373
    now THAT would not be that hard to do....
    75/15/10 black powder matters
