Thread: Never had this happen before.... Help

  1. #1
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184

    Never had this happen before.... Help

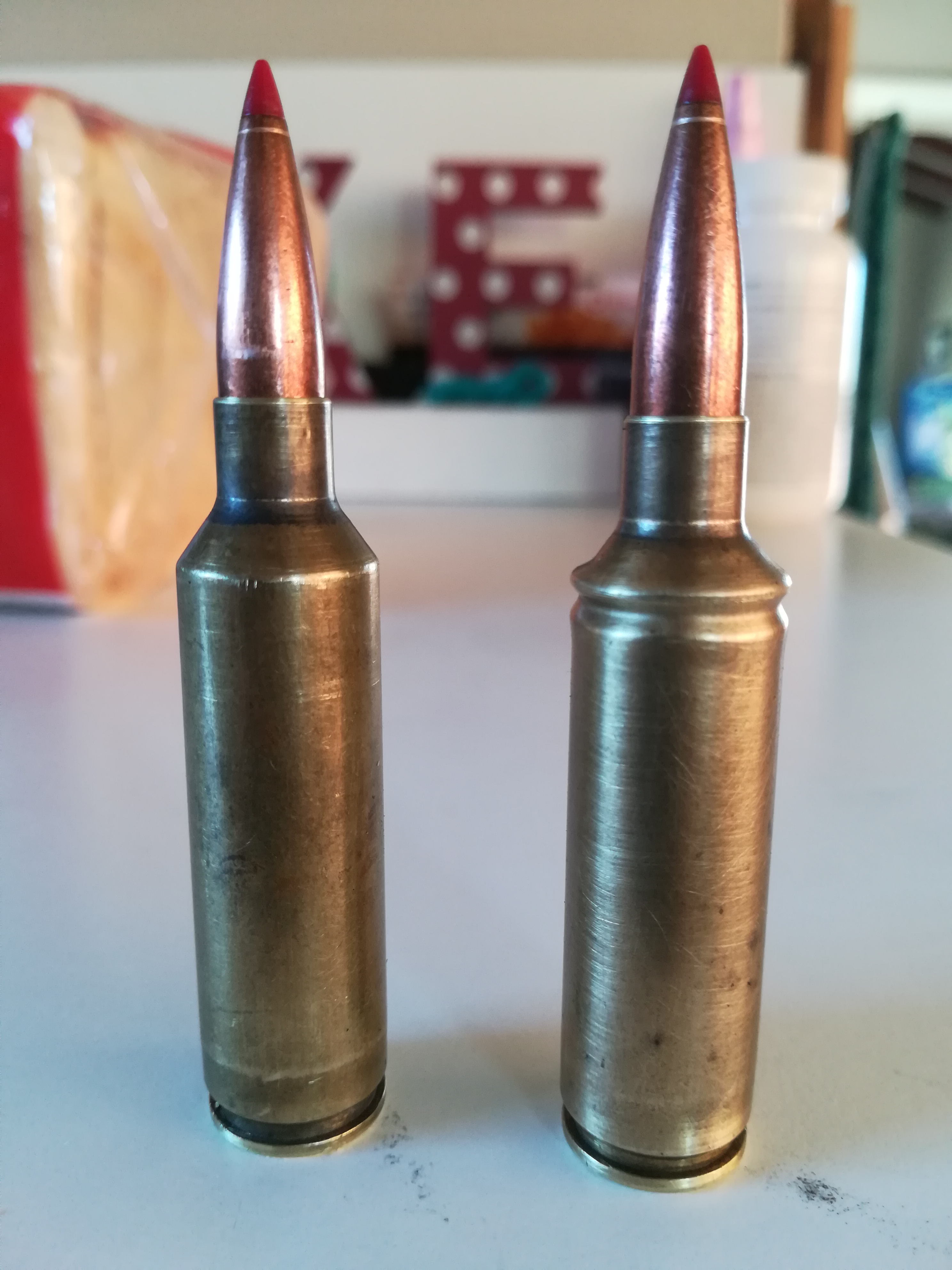

    Name:  IMG_20190513_113423.jpg
Views: 469
Size:  1.93 MB
    Was working out coal/seating depth for the new rifle (270WSM)
    And when trying to seat the projectile in an empty un primed case I felt resistance but hadn't had the seating rod hit the bottom of the die yet ? So I gave it a few more newton's and this happened. Anyone able to shed some light ?
    Set the die in the press (Lee breechlok) screwed it down till it just touched the shell holder at full extention as I normally would and the case was crushed when trying to seat the projectile.
    As mentioned I felt resistance before getting full extention and the die was not yet touching the case holder.
    Sorry if this is a noob mistake

  2. #2
    Member
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    17,973
    its one of those belted magnums and you cleverly put the belt at the wrong end

  3. #3
    Gone but not forgotten
    Join Date
    Apr 2017
    Location
    Hamilton
    Posts
    4,129
    Had the same happen several times when using collet neck sizing dies. I think either not aligned properly, or collet stuck in closed position
    Gibo likes this.

  4. #4
    Ex stick thrower madjon_'s Avatar
    Join Date
    Dec 2011
    Location
    Richmond. Tasman.and Oz
    Posts
    3,446
    Screw the die out.back the seated stem off,fresh case all the way up,screw the die down to shoulder,back off,then adjust the seating stem for col.
    Works for me but I'm just an old cnut so what would I know.
    Real guns start with the number 3 or bigger and make two holes, one in and one out

  5. #5
    Member
    Join Date
    Feb 2016
    Location
    NZ
    Posts
    297
    Seating/crimp die combo adjustment out? crimping before reached seating depth? Had that happen with .44 and buckled case but not sure how possible it is with rifle loading.

  6. #6
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland (Dunedin)
    Posts
    5,526
    Someone annealed the neck, the shoulders and down the sides of the shoulders methinks. Looks great. Ask if you can get away with only neck annealing.
    An itch ... is ... a desire to scratch

  7. #7
    Member
    Join Date
    Nov 2012
    Posts
    1,527
    You don't normally have seating die hard down on shell holder.
    Just have a case in shell holder raise ram with case up fully then wind die down until it just touches the case then back off about 1/2 a turn and lock ring then good to go.

    Sent from my SM-G920I using Tapatalk
    7mmsaum, Micky Duck and Mathias like this.

  8. #8
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184
    thanks guys appreciate all the input,
    I'm running a full length sizing/decapping die and a seating die (Lee).
    I will reset the seating die with a empty case and wind the seating depth right out and do it that way.
    that case will be one for the shelf of stoopid mistakes
    WallyR likes this.

  9. #9
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184
    Quote Originally Posted by madjon_ View Post
    Screw the die out.back the seated stem off,fresh case all the way up,screw the die down to shoulder,back off,then adjust the seating stem for col.
    Works for me but I'm just an old cnut so what would I know.
    cheers thanks for that, I'll give it a nudge

  10. #10
    northdude
    Guest
    Youve just made a new wild cat a 270 concatina
    Moa Hunter and dannyb like this.

  11. #11
    Member Bobba's Avatar
    Join Date
    May 2018
    Location
    Ngaruawahia
    Posts
    1,294
    Did exact same thing the other day on a nicely neck turn 284. Got to remember to back off that seating die.
    superdiver and dannyb like this.

  12. #12
    Member
    Join Date
    Mar 2016
    Location
    Arrowtown
    Posts
    1,343
    Arrrrr, yes.... middle age spread.

    I think a better diet is recommended along with more exercise.


  13. #13
    Member
    Join Date
    Jun 2014
    Location
    CNI
    Posts
    5,905
    The cartridge on the left looks like a candidate for a head separation. Is the brass old?
    Summer grass
    Of stalwart warriors splendid dreams
    the aftermath.

    Matsuo Basho.

  14. #14
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,184
    Quote Originally Posted by Woody View Post
    The cartridge on the left looks like a candidate for a head separation. Is the brass old?
    that's why it was being used as a dummy round to check seating depth COAL etc the one on the right has the beginning of a split forming in the neck on the side facing away from the camera.
    it's about all these 2 cases where good for.
    just wanted a dummy to make sure they would mag feed,eject unfired round and and good for setting up dies to the right height.

  15. #15
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Location
    UK
    Posts
    7,916
    @dannyb now what you have here is a cartridge that is rearing to go. You see the donut at the top is not really a donut at all but a spring so that the mighty 270 can get a good old run up before it enters the barrel




    ps go with the other guys advice ah
    dannyb likes this.
    It's all fun and games till Darthvader comes along
    I respect your beliefs but don't impose them on me.
