Thread: Powder for 6.5 06 and 140gr projectile

  1. #16
    Caretaker - Gone But Not Forgotten jakewire's Avatar
    Join Date
    Dec 2011
    Location
    here
    Posts
    7,477
    @distant stalker
    https://www.nzhuntingandshooting.co....16/index2.html

    Weather has conspired against me for shooting, this weekend no better
    @Tentman
    Could you do the same thing for me using H4831 [not SC] please
    nor-west likes this.
    Quis custodiet ipsos custodes?

  2. #17
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland (Dunedin)
    Posts
    5,531
    H4350
    An itch ... is ... a desire to scratch

  3. #18
    Member
    Join Date
    Feb 2014
    Location
    Hawkes Bay
    Posts
    2,602
    He's already mentioned 2209

  4. #19
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland (Dunedin)
    Posts
    5,531
    Quote Originally Posted by 6x47 View Post
    He's already mentioned 2209
    Thanks, not reading thread properly. Bad boy.
    An itch ... is ... a desire to scratch

  5. #20
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,210
    For everyone's sake - NO pictures = No data
    jakewire likes this.

  6. #21
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,210
    Just teasing - when your blood pressure is back to normal . . . .

    Cartridge : 6.5-06 A-Square
    Bullet : .264, 140, Sierra SPBT 1730
    Useable Case Capaci: 62.717 grain H2O = 4.072 cm³
    Cartridge O.A.L. L6: 3.340 inch = 84.84 mm
    Barrel Length : 25.0 inch = 635.0 mm
    Powder : Hodgdon H4831

    Predicted data by increasing and decreasing the given charge,
    incremented in steps of 2.0% of nominal charge.
    CAUTION: Figures exceed maximum and minimum recommended loads !

    Step Fill. Charge Vel. Energy Pmax Pmuz Prop.Burnt B_Time
    % % Grains fps ft.lbs psi psi % ms

    -20.0 85 48.00 2533 1995 37585 10394 93.2 1.527
    -18.0 88 49.20 2596 2095 40265 10696 94.3 1.477
    -16.0 90 50.40 2659 2198 43146 10984 95.4 1.430
    -14.0 92 51.60 2722 2303 46212 11257 96.3 1.385
    -12.0 94 52.80 2785 2411 49473 11514 97.1 1.341
    -10.0 96 54.00 2848 2521 52965 11754 97.8 1.299
    -08.0 98 55.20 2910 2633 56709 11974 98.4 1.259 ! Near Maximum !
    -06.0 100 56.40 2973 2747 60726 12174 99.0 1.220 ! Near Maximum !
    -04.0 103 57.60 3035 2863 65040 12353 99.4 1.183 !DANGEROUS LOAD-DO NOT USE!

    The last load at 57.60gn at 65040 psi is "possibly" OK, it might be prudent to consider 57.0 as max

  7. #22
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,210
    Oh and so it is says Quickload (which is only one of several references you should be using, I always correlate Q/L data with reloading manuals)

    Cartridge : 6.5-06 A-Square
    Bullet : .264, 140, Sierra SPBT 1730
    Useable Case Capaci: 62.717 grain H2O = 4.072 cm³
    Cartridge O.A.L. L6: 3.340 inch = 84.84 mm
    Barrel Length : 25.0 inch = 635.0 mm
    Powder : Hodgdon H4831

    Predicted data by increasing and decreasing the given charge,
    incremented in steps of 2.0% of nominal charge.
    CAUTION: Figures exceed maximum and minimum recommended loads !

    Step Fill. Charge Vel. Energy Pmax Pmuz Prop.Burnt B_Time
    % % Grains fps ft.lbs psi psi % ms

    0.0 100 57.00 3004 2805 62844 12266 99.2 1.201 ! Near Maximum !

  8. #23
    Caretaker - Gone But Not Forgotten jakewire's Avatar
    Join Date
    Dec 2011
    Location
    here
    Posts
    7,477
    Quis custodiet ipsos custodes?

  9. #24
    dog chaser distant stalker's Avatar
    Join Date
    Dec 2011
    Location
    Chch
    Posts
    2,013
    I'm curious about n560 ad 140gr amax if anyone feels like playing with quick load...

  10. #25
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,210
    you're lucky. it was up and still on 6.5-06

    Cartridge : 6.5-06 A-Square
    Bullet : .264, 140, Hornady A-MAX 26332
    Useable Case Capaci: 61.183 grain H2O = 3.973 cm³
    Cartridge O.A.L. L6: 3.340 inch = 84.84 mm
    Barrel Length : 23.5 inch = 596.9 mm
    Powder : Vihtavuori N560

    Predicted data by increasing and decreasing the given charge,
    incremented in steps of 2.0% of nominal charge.
    CAUTION: Figures exceed maximum and minimum recommended loads !

    Step Fill. Charge Vel. Energy Pmax Pmuz Prop.Burnt B_Time
    % % Grains fps ft.lbs psi psi % ms

    -20.0 81 46.40 2432 1838 33072 11311 90.0 1.559
    -18.0 83 47.56 2495 1935 35376 11688 91.3 1.518
    -16.0 85 48.72 2558 2034 37840 12052 92.6 1.476
    -14.0 87 49.88 2622 2137 40479 12402 93.8 1.428
    -12.0 89 51.04 2685 2241 43308 12736 94.8 1.383
    -10.0 91 52.20 2749 2349 46337 13053 95.8 1.339
    -08.0 93 53.36 2812 2458 49597 13351 96.7 1.297
    -06.0 95 54.52 2876 2571 53054 13628 97.5 1.257
    -04.0 97 55.68 2939 2685 56739 13884 98.2 1.218 ! Near Maximum !
    -02.0 99 56.84 3002 2802 60682 14115 98.8 1.181 ! Near Maximum !
    +00.0 101 58.00 3065 2920 64904 14321 99.2 1.145 !DANGEROUS LOAD-DO NOT USE!
    +02.0 103 59.16 3127 3041 69429 14501 99.6 1.110 !DANGEROUS LOAD-DO NOT USE!
    distant stalker likes this.

  11. #26
    Caretaker - Gone But Not Forgotten jakewire's Avatar
    Join Date
    Dec 2011
    Location
    here
    Posts
    7,477
    Yes Thanks for that too as I run N560 in the x55 , I wanted to go away from it if possible, not because it doesn't work, it does, but because it's getting hard to get down here and it is a bit more expensive and it seems to burn rather hot.
    Trouble is I've never been able to get the same accuracy in my x55 Finn with the 2209, great with the lighter 120gr BT's or 12 Hornadys just doesn't seem to like the heavier bullets in y rifle

    I'm loaded for testing today 48-to 49.4 of H4831 in the 06 and 25 -26 with the 69gr Serria TMK's in 2206h and 2208 in the 1-8 tikka

    Bit concerned about the length in the tikka, Book says 2.26 Oal but I can easily close the bolt on 2.4" [ have a Waters Rifleman magazine] have split the difference at 2.33 hope it's not jammed in , did the felt pen thing but could only see the one line where I'm guessing it was chambering up the ramp, not really sure what I'm looking for anyway.suppose it will be a series of lines indicating it jammed in the rifling.
    Quis custodiet ipsos custodes?

  12. #27
    Banned
    Join Date
    Mar 2016
    Location
    auckland
    Posts
    2,453
    IMR 7828 might go quite well.

  13. #28
    Member 300_BLK's Avatar
    Join Date
    Aug 2014
    Location
    NZ
    Posts
    3,726
    @jakewire i have had great success in the 264 by going to RL 33. Gain of 200 fps over AR2217 which i was running previously with 140 gr pills.

    If you ever want slightly more grunt get her ackley improved and neck down 280AI brass.

    You will get 264 Win Mag performance without the powder required!
    jakewire likes this.
    Warm Barrels!

  14. #29
    Member Flyblown's Avatar
    Join Date
    Feb 2018
    Location
    Waikato
    Posts
    3,339
    @jakewire

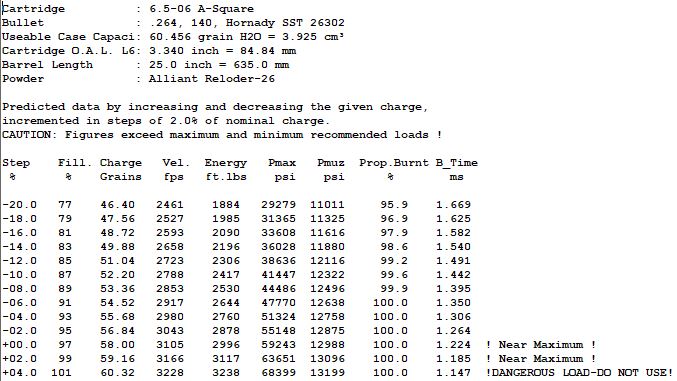

    I spent the weekend reading about RL-26 in the -06 case in various .264 and .277 cartridges.

    There's a lot of data available from the US for the 6.5-06 A Square.

    A Quickload model with the 140gr SST shows and easy 3100fps, staying below pMax. You can get that up to 3200fps if you're prepared to go to a 100% case fill. This assumes SAAMI c.o.a.l. but I have adjusted the weighting factor to reflect the overbore case, as per Pierre van der Walt studies.

    If I end up going this way (-06 case necked down) then RL-26 would be the first powder I'd test.

    Name:  Capture2.JPG
Views: 285
Size:  71.5 KB

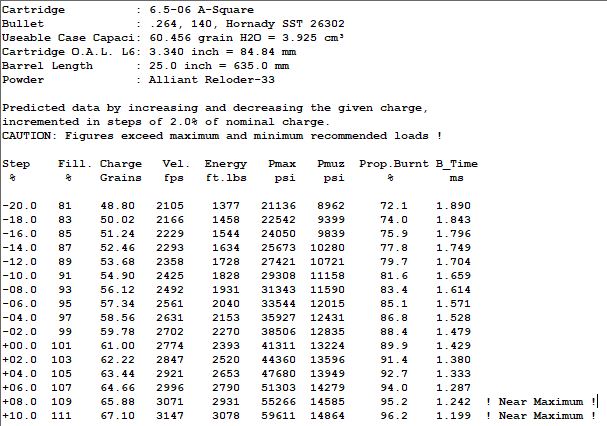

    Taking a look at @300_BLK's suggestion, RL-33, you have to get into slightly compressed loads to reach 2800fps, but it remains a low pressure combustion right up to properly compressed. You reach 3100fps somewhere about 110% case capacity. It's an interesting idea though, lower pressure for the same velocity, assuming the accuracy is there. I have zero experience of compressed loads.

    Name:  Capture.JPG
Views: 262
Size:  77.4 KB
    jakewire likes this.
    Just...say...the...word

  15. #30
    Caretaker - Gone But Not Forgotten jakewire's Avatar
    Join Date
    Dec 2011
    Location
    here
    Posts
    7,477
    One thing I found out today
    H4831 is no good for speed in my rifle, I seated all at OAL 3.33
    I started at 48 , which according to Hornady should give me around 2750 in a 24" barrelmine is 26
    then went
    48.4, 448.8.49.1 and finally 49.4 which is hornady maximum

    They were right about one thing it was very accurate , I fired one Bullet of each for a start for speed as I was using the V3 , then I was going to settle into 4 shot groups with each powder weight.
    The whole range didn't have a bullet hole separating them top to bottom each one broke the hole below it.

    However....
    First speed - 48gn Flat 2497Fps, What????
    Second One - 48.4 , 2449, yip, at this point I though the V3 was broken so set the old Chrony up 12 feet away as well
    48.8 254sFPS, well at least I was getting somewhere, chrony showed 100 Faster but it always has read high I've thought.Howevr it didn't read 300 Higher which was what I was wanting

    Stopped there and put the V3 on the Finn and Fired three rounds of 48 Gr of 2209 behind 120Gr Nosler BT, Rifle has always liked this load, still does for 2943, 2948, 2946 FPS.
    So Nought wrong with the V3

    Went back to the 06
    49.1 is 0.3 under max for 2497
    Finally on [book] max , it went backwars in a hurry which is usually a sgn , for 2468FPS
    Recoil was noticably heaver but primers ok and No marks on the brass

    Needless to say I didn't shoot for groups, packed it up and dug out the 223.I'll pull the other 20.

    Weird though Ive never struck loads this far out from the Book.Unless there is something else wrong, same scales loaded the 223 last night and it performed as expected.
    I'll have a read of what you guys are suggesting above and see if I can do better next time with another powder
    I can't afford to run anything to temperature sensitive as in winter we are below zero and summer in the Valley can sometimes easily exceed 35.
    Phew.
    Last edited by jakewire; 03-06-2019 at 07:44 PM.
    Quis custodiet ipsos custodes?
