Thread: Sizing die trouble

  1. #1
    Member
    Join Date
    Jan 2018
    Location
    Otorohanga
    Posts
    111

    Sizing die trouble

    So just bought a new set of .222 series A redding dies and the FL die is bloody tight and seems to be stretching and over sizing the neck.

    1st case I tried was lubed up with imperial wax and strangely hard as soon as it contacted the neck so I removed and looked and the neck was being for what it seemed like, over sized.
    I then tried more lube then less lube, dry lube but no luck. So I full sent it and sure enough, stuck case. Managed to remove it and tried couple different cases to no avail.

    Anyone else had this issue or have an idea of what I could be missing?

    Cheers

  2. #2
    Member
    Join Date
    Jan 2018
    Location
    Otorohanga
    Posts
    111
    Name:  20230730_161607.jpg
Views: 271

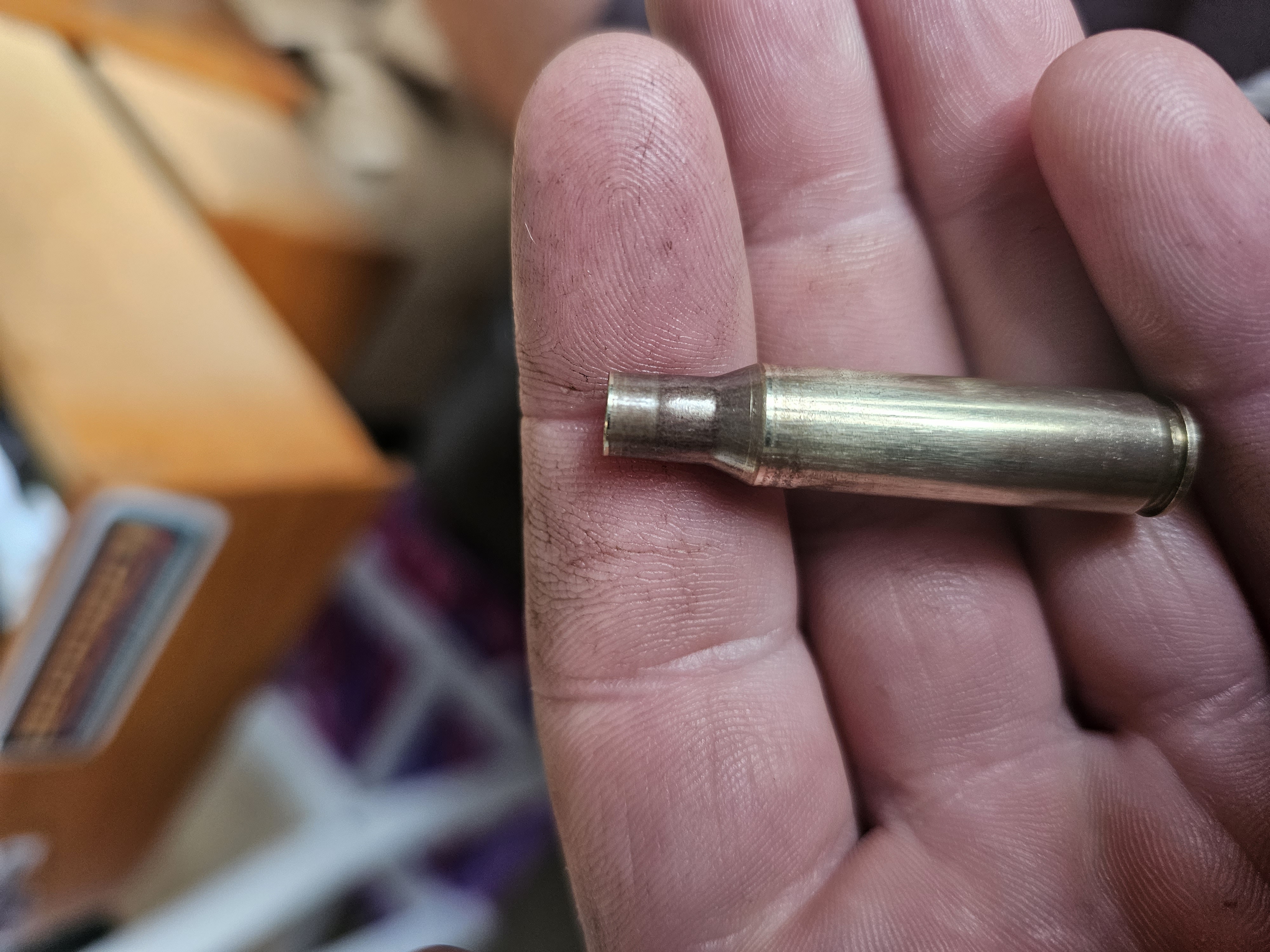

Size:  1.67 MBName:  20230730_164029.jpg
Views: 438
Size:  3.30 MB

  3. #3
    Member
    Join Date
    Jan 2018
    Location
    Otorohanga
    Posts
    111

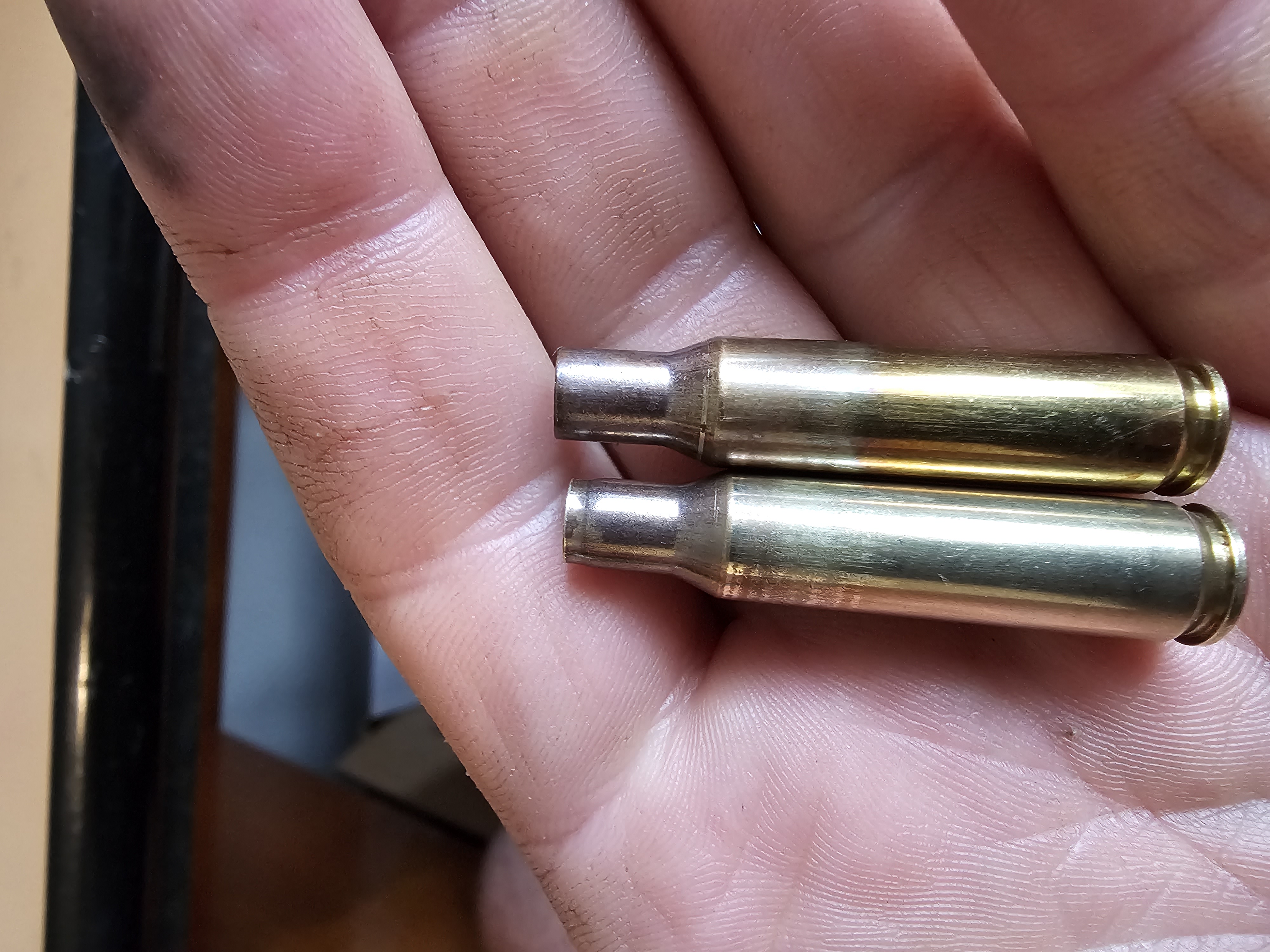

    Name:  20230730_161412.jpg
Views: 466
Size:  2.26 MB

  4. #4
    Banned
    Join Date
    Dec 2021
    Location
    Tauranga
    Posts
    5,143
    Have you stripped the die apart and inspected everything and reset it up correctly?

  5. #5
    Member
    Join Date
    Jun 2023
    Location
    waimakau
    Posts
    3,635
    Way over working it. Id measure the dia of the decapping rod and give the inside of the die a measure if you've got the gear to do it. You'll end up with 204 brass at that rate
    XR500 and shananah like this.

  6. #6
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Did you clean the die before first use as per the manufacturer's instructions?

  7. #7
    Member
    Join Date
    Jan 2018
    Location
    Otorohanga
    Posts
    111
    Yea cleaned it all with solvent to remove all the factory crap in it. Initially had the expander ball assembly removed as I'm using a expander mandrel. But tried it with it and makes no difference.

  8. #8
    Member
    Join Date
    Oct 2022
    Location
    Pukekohe
    Posts
    979
    Quote Originally Posted by kayneb View Post
    So just bought a new set of .222 series A redding dies and the FL die is bloody tight and seems to be stretching and over sizing the neck.

    1st case I tried was lubed up with imperial wax and strangely hard as soon as it contacted the neck so I removed and looked and the neck was being for what it seemed like, over sized.
    I then tried more lube then less lube, dry lube but no luck. So I full sent it and sure enough, stuck case. Managed to remove it and tried couple different cases to no avail.

    Anyone else had this issue or have an idea of what I could be missing?

    Cheers
    The ring on the neck of the left case in both pics makes me wonder if it's been inserted far enough into the FL Die. When the FL Die is correctly set into the press that ring would be at or near the bottom of the neck, usually. You might need to reset the decapping stem so it doesn't bottom out and suffer damage inside the case.Could you post another pic of your press setup with a fully inserted case as it would help to tell ? If you're worried about a repeat stuck case ensure that you lube ( with Imperial Wax ) well all the main body of the case but particularly the bottom of the case nearest the case head as that's the most critical area. Imperial Wax lubing should allow you to extract even a tight case. Also, would help you to graphite lube the inside of the neck.
    Micky Duck likes this.

  9. #9
    Member
    Join Date
    Jan 2018
    Location
    Otorohanga
    Posts
    111
    Yea it definitely hasn't gone far enough into the die to size the whole neck. How much wax is too much as I've put a fair amount on already

  10. #10
    Member
    Join Date
    Sep 2013
    Location
    Wairarapa
    Posts
    1,176
    With imperial sizing wax you need less than a boarding school scrape of butter, 2/3 of 5/8 of stuff all, not even a lick, just run your finger over the surface then run same finger over the surface of the brass. if you can see the wax on the brass it's more than you need and probably too much.

    That is when everything is working properly anyway.

  11. #11
    Member
    Join Date
    Mar 2016
    Location
    Waikato
    Posts
    436
    Expander too far up in the body of the die so it’s trying to expand while the neck is still within the neck part of the die perhaps. If it’s that, make sure decamping pin is pushed in fully and lower the rod.
    Micky Duck likes this.

  12. #12
    Member
    Join Date
    Oct 2022
    Location
    Pukekohe
    Posts
    979
    Quote Originally Posted by kayneb View Post
    Yea it definitely hasn't gone far enough into the die to size the whole neck. How much wax is too much as I've put a fair amount on already
    Not much is necessary, only a thin film but it doesn't hurt to have a little too much which might just give you a safety margin initially. Cover the whole case body, but particularly the bottom section. Keep wax off the sloping shoulder so it doesn't cause dents. And, as I said, dry lube the inside of the neck, and the outside also is OK.

  13. #13
    Member ElDax's Avatar
    Join Date
    Jul 2018
    Location
    WGTN
    Posts
    519
    Bit of a stab in the dark here but your expander mandrel isn't set so its in contact while it's trying to resize the neck right? I'd try adjusting the decapping pin depth and see how that goes?

  14. #14
    Member
    Join Date
    Oct 2022
    Location
    Pukekohe
    Posts
    979
    Quote Originally Posted by Plinky View Post
    Expander too far up in the body of the die so it’s trying to expand while the neck is still within the neck part of the die perhaps. If it’s that, make sure decamping pin is pushed in fully and lower the rod.
    Maybe, but if so I would think he would not be decapping cases either if it was that high. So, if successfully decapping the expander is probably positioned OK. But, if the expander is set too high within the die it might cause an issue ... ??

  15. #15
    Member
    Join Date
    Jan 2018
    Location
    Otorohanga
    Posts
    111
    The Expander/decapping assembly wasn't in it initially as ill use a separate Expander die to set my neck tension afterwards.

    I'm not sure what the die is supposed to size the neck down to before the Expander ball widens it but the ID of the case mouth was below .210" without the Expander, Just measured with the calipers
