Thread: A question for the doubters

Hybrid View

  1. #1
    Member
    Join Date
    Mar 2024
    Location
    Te anau
    Posts
    164
    I think we are talking the same thing. Energy on on one hand has to be balanced on the other with bullet performance. A heavier faster bullet of the same construction and terminal performance will create a wound that in all probability will debilitate an animal more quickly

  2. #2
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    9,874
    Quote Originally Posted by Mararoa View Post
    I think we are talking the same thing. Energy on on one hand has to be balanced on the other with bullet performance. A heavier faster bullet of the same construction and terminal performance will create a wound that in all probability will debilitate an animal more quickly
    In theory- the evidence we have is that the bullets in question in this thread meet the threshold of "Sufficiency" and therefore anything "quicker" than that is theoretical.

  3. #3
    Member
    Join Date
    Mar 2024
    Location
    Te anau
    Posts
    164
    Yep. So there is nothing mystical about a .224 caliber bullet it’s the same as any other. The laws of physics are going to apply.

  4. #4
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,355
    Quote Originally Posted by Mararoa View Post
    Yep. So there is nothing mystical about a .224 caliber bullet it’s the same as any other. The laws of physics are going to apply.
    True I think the point is that the reverse is true and that when using specific projectiles a 7mm 308 338 etc don't make as big a difference as most like to believe. They are all able create absolutely traumatic wounds and when comparing similarly constructed bullets impacting at similar speeds they have similar wounding capacity. The reason 224 projectiles is talked about so much is probably because it can achieve higher velocities for less recoil and with modern bullets can have BCs able to hold the required velocity to or beyond the effective range of most modern shooters abilities in field conditions.

  5. #5
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    9,874

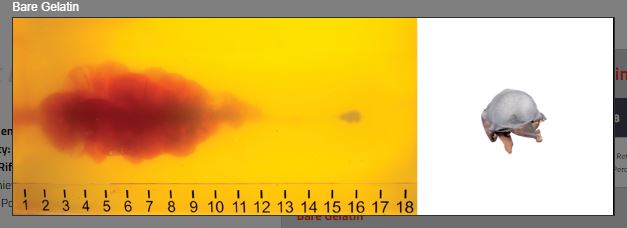

    This is a good illustration of the limited predictive value of energy in wound size. Same construction similar speed different diameter and energy.


    106gr ELDM 6mm at 2625fps. 1622 FTLB





    147gr ELDM 6.5mm at 2693fps. 2353 FTLB.


    Name:  65 Creed.JPG
Views: 177
Size:  17.1 KB



    30% more energy with the 6.5mm bullet but the permanent cavity (the important characteristic) isn't any bigger.

    Calibrated ballistic gel is used for such tests precisely because it closely represents results in actual tissue.

  6. #6
    Member
    Join Date
    May 2020
    Location
    West Coast
    Posts
    1,137
    Quote Originally Posted by gimp View Post
    This is a good illustration of the limited predictive value of energy in wound size. Same construction similar speed different diameter and energy.


    106gr ELDM 6mm at 2625fps. 1622 FTLB





    147gr ELDM 6.5mm at 2693fps. 2353 FTLB.


    Attachment 258212


    30% more energy with the 6.5mm bullet but the permanent cavity (the important characteristic) isn't any bigger.

    Calibrated ballistic gel is used for such tests precisely because it closely represents results in actual tissue.

    Had a think about this one last night. The larger projectile is shedding/ Imparting energy faster due to bigger surface area. That seems pretty intuitive?

  7. #7
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    25,383
    Quote Originally Posted by whanahuia View Post
    Had a think about this one last night. The larger projectile is shedding/ Imparting energy faster due to bigger surface area. That seems pretty intuitive?
    It's also light for calibre by comparison. Not apples n apples
    75/15/10 black powder matters

  8. #8
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    9,874
    Quote Originally Posted by Micky Duck View Post
    It's also light for calibre by comparison. Not apples n apples
    A 147gr in 6.5mm is light for calibre?

  9. #9
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    25,383
    Quote Originally Posted by gimp View Post
    A 147gr in 6.5mm is light for calibre?
    I was referring to the .308 offering. To be apples n apples both projectiles need to be of same make n model and at same end of weight spectrum for calibre.
    75/15/10 black powder matters

  10. #10
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    9,874
    Quote Originally Posted by whanahuia View Post
    Had a think about this one last night. The larger projectile is shedding/ Imparting energy faster due to bigger surface area. That seems pretty intuitive?
    I'm not quite sure I understand what you're thinking here. Why would shedding energy sooner lead to the wound cavity being negligibly different in size?

    Have to remember that ballistic gel is incontrovertibly a suitable representation of wounds in actual tissue. And these results show that with the only major difference being a .5mm larger bullet and 31gr more mass, and ~30% more energy, the wound isn't physically as different as the numbers would predict if energy was a major factor in wound size.

  11. #11
    Member
    Join Date
    May 2020
    Location
    West Coast
    Posts
    1,137
    Quote Originally Posted by gimp View Post
    I'm not quite sure I understand what you're thinking here. Why would shedding energy sooner lead to the wound cavity being negligibly different in size?

    Have to remember that ballistic gel is incontrovertibly a suitable representation of wounds in actual tissue. And these results show that with the only major difference being a .5mm larger bullet and 31gr more mass, and ~30% more energy, the wound isn't physically as different as the numbers would predict if energy was a major factor in wound size.
    No its not. its a model. Its not representative. Its a standard medium, that has no difference in tissue structure. No skin. No bone, Its 18 or more inch of constants. Its a way to hold water together without any fibres.

    Compare too a deer, 20mm thickness of hair and possibly foreign material, 5-10mm of very tough barrier layer, 100mm of flesh and bone, A 150-250mm cavity of low pressure and low density material, and then the first 3 again in reverse.

    The heavier projectile has stopped shorter than the lighter one was what I was talking about. as too the "wound cavity" in ballistics gel. Its a sign the projectile is working, but it may not accurately show imparted energy. Thats a dubious claim.

  12. #12
    Member
    Join Date
    Feb 2016
    Location
    Marlborough
    Posts
    1,150
    Quote Originally Posted by whanahuia View Post
    No its not. its a model. Its not representative. Its a standard medium, that has no difference in tissue structure. No skin. No bone, Its 18 or more inch of constants. Its a way to hold water together without any fibres.

    Compare too a deer, 20mm thickness of hair and possibly foreign material, 5-10mm of very tough barrier layer, 100mm of flesh and bone, A 150-250mm cavity of low pressure and low density material, and then the first 3 again in reverse.

    The heavier projectile has stopped shorter than the lighter one was what I was talking about. as too the "wound cavity" in ballistics gel. Its a sign the projectile is working, but it may not accurately show imparted energy. Thats a dubious claim.
    Maybe we should go back to using pig carcasses for comparative analysis like various military forces worldwide used to do before they moved to ballistic gel which is cheaper and easier to source. Pigs were thought to be closest to human body structure for wound analysis, bullet performance.

  13. #13
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,587
    Maybe the squads for Sparrowhawk should be divided up into the 224 boys and the rest - with a wager on the result!
    Barry the hunter likes this.

  14. #14
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    9,874
    I'm a bad shot remember

    E: who else is bringing a .223?

  15. #15
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    4,707
    223 222 22-250 etc. is great on deer for an experienced hunter who can put the bullet exactly where it needs to go and doesn't get too excited and take less-than-ideal shots I know a guy whose main hunting rifle is a 204 Ruger 40gn bullets
    he's shot all but one species of deer in NZ with it as with everything you just got to put it in the right spot
