Thread: 223 mag box length

  1. #1
    Member
    Join Date
    May 2012
    Location
    Up north
    Posts
    245

    223 mag box length

    Hi, didnt want to hi jack the other thread,

    reading the "223 on deer thread" got me thinking, I am after a light 223 for rabbits and targets, thinking either a x-bolt super light carbon or a reminton model 7 with hs precision stock shorten to 16-17 inches. I want to run the longer heavier bullets every one is mentioning and I noticed gimp is running a special mag box.

    Is the Remington mag box to short to load heavy long bullets ? Any one able measure the x-bolt mag box for me? I believe the standard model 7 box is 60mm.

    What sort of over all load length are you ending up with with the 77 and 80 grainers

    Thanks

  2. #2
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    12,763
    Quote Originally Posted by rusl View Post
    Hi, didnt want to hi jack the other thread,

    reading the "223 on deer thread" got me thinking, I am after a light 223 for rabbits and targets, thinking either a x-bolt super light carbon or a reminton model 7 with hs precision stock shorten to 16-17 inches. I want to run the longer heavier bullets every one is mentioning and I noticed gimp is running a special mag box.

    Is the Remington mag box to short to load heavy long bullets ? Any one able measure the x-bolt mag box for me? I believe the standard model 7 box is 60mm.

    What sort of over all load length are you ending up with with the 77 and 80 grainers

    Thanks
    If you use a Model 7 the 1/9 factory twist barrel will be the limiting factor for heavier bullets over 69 grn (gimp changed his). Not sure of the Browning twist. Tikka do a 1/8 which shoots them well but you are limited to 2.3' OAL unless you replace the bottom metal and mag (Hardy has them I think) or Greg on here can modify a Tikka mag.

    The alternative for a short mag 1/8 twist is to use the 77grn Serra TMK which are designed for short AR mags so work seated in to Tikka mag length. They work very well and thats what I have done.
    mimms2 likes this.

  3. #3
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,797
    and for rabbits at 200-250 you can easily use the awesome 50 grn-55grn range of projectiles out there and OAL isnt going to be issue.....also if you looking to shoot targets or longer range sniping of bunnies...single loading that super sleak heavy projectile load isnt going to be a huge hassle... think 90% of the job rifle will do....sub 250 yard and put up with the other 10% where you will have time to single load.... as Tahr has said there are options for shorter heavy projectiles that will work.
    caberslash likes this.

  4. #4
    Member 300_BLK's Avatar
    Join Date
    Aug 2014
    Location
    NZ
    Posts
    3,726
    All factory mag boxes will allow a SAAMI COAL of 2.250" or 59mm +/-.

    If you want to run heavies and your chambering allows for it (long throat / freebore) then you get additional performance by seating said heavies out a little further.

    Tikka's are renowned for long throats and the mags can be elongated using a Dremel and some sandpaper.

    If you are going to run a shorter barrel, I think this will negate the additional performance you are expecting.

    My last howa mini with a 16" barrel ran the 77 SMK belmont OFC load at 2550 fps.

    My current 223 is 18" with a can and I'm expecting 2600 fps 'ish'.
    mimms2 likes this.
    Warm Barrels!

  5. #5
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    9,512

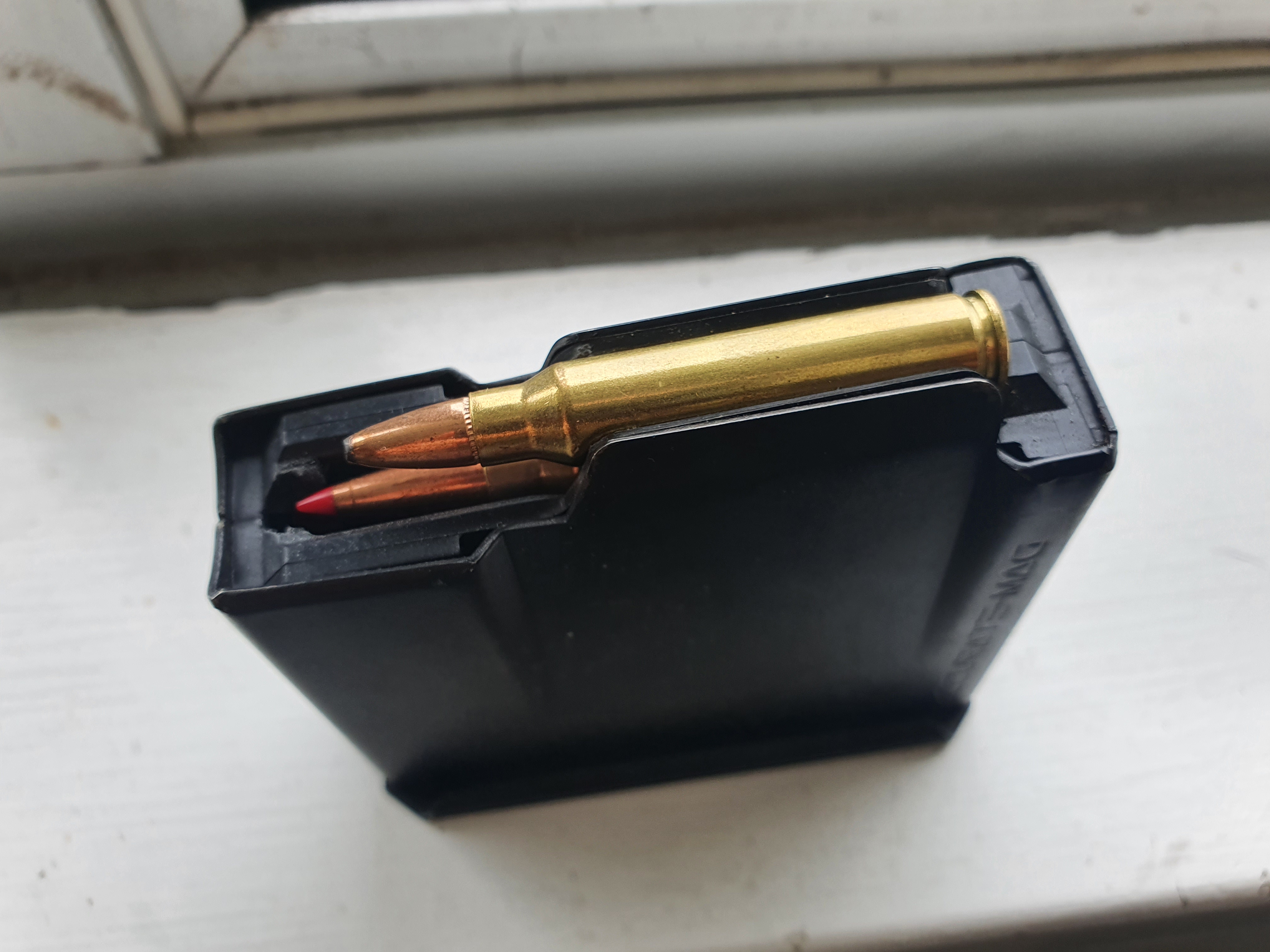

    Name:  20201220_105938.jpg
Views: 823
Size:  2.68 MB

    Accurate Mag .223 AICS mags can be modified to allow more or less any OAL you like. 55gr factory round for scale on top of 80gr handloads. Seating a long 80gr out 6 or 7mm longer than a shorter mag allows gives a lot more case capacity
    Tahr and Micky Duck like this.

  6. #6
    Member
    Join Date
    Mar 2019
    Location
    Cambridge
    Posts
    285
    Just seated a dummy 75 gr BTHP at 2.418 and will fit in my x-bolt mag. Might be able to make them a few thou longer. Don't know whether it will chamber that long though, just haven't checked.

  7. #7
    Member
    Join Date
    May 2012
    Location
    Up north
    Posts
    245
    Thanks for the input, I guess I need to think about why I want the heavy bullets, I was thinking better bc and less wind drift, which is why I'm going to a 223 from my 17hmr, got sick of the wind blowing it away.

    Thinking it through its sounding like it will be quite a custom rifle and I'm starting to wonder why I don't just do some thing like load my 308 with 110gr v max's for windy or longer shooting days and have a simple stock 223 for 0-200m sort of shots.

  8. #8
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    4,881
    Sounds like a bog standard 243 would do the trick too
    Boring I know but it effortlessly does what the 223 has to work hard for and even in a light set up the recoil is negligible
    Just incase a suitable model7 243 pops up in the search for a the 223

  9. #9
    Member
    Join Date
    Jan 2018
    Location
    Christchurch
    Posts
    703
    Quote Originally Posted by rusl View Post
    Thanks for the input, I guess I need to think about why I want the heavy bullets, I was thinking better bc and less wind drift, which is why I'm going to a 223 from my 17hmr, got sick of the wind blowing it away.

    Thinking it through its sounding like it will be quite a custom rifle and I'm starting to wonder why I don't just do some thing like load my 308 with 110gr v max's for windy or longer shooting days and have a simple stock 223 for 0-200m sort of shots.
    I finally got a 223 about six months ago and have been having fun setting it up to be a light, easy to shoot hunting rifle.

    I settled on a Howa 1500 short action(not the Mini) for a few reasons, a big one being I despise the plastic magazine well/trigger guard/detachable box magazines they come with. This decision process predated the Jefferson bottom metal flush magazines and the Ken Henderson Hi-Tec stocks becoming available for the Mini.

    Another consideration was that when I looked at the conventional internal double stack magazine in the Howa, it seemed quite simple to be able to modify the blocked magazine box (was about 2.35 previous if I recall) to accept rounds loaded to around 2.46 or so. This was combined with the 1500 having arrived in NZ in Jan 20 finally sporting the 1/8 twist! And the last factor was the Howa Alpine stock (very slim and light proportions, shortish foreend) I had scored a few months prior just sitting there waiting for a barreled action to be acquired.

    I had the barrel trimmed slightly so the Gunworks 35mm suppressor cleared the foreend - barrel ended up at 18.5 inches.i could have gone shorter (didn't feel any need to ) by using a DPT or the Gunworks 41mm suppressor as the over-barrel section is much shorter on those.

    Next step - hunting loads. Short version is the Hornady 53g V-Max was selected for initial experimentation as its BC is much higher than most projectiles in that weight range. A bit of experimentation found a load that shot nice groups at 3140 fps. Game on. Go shoot some wallabies! This load works devastatingly well. Anything this side of 300m is in big trouble provided the wind isn't blowing really hard (it often does up on the hills!).

    So this wind question as well as the possibility of seeing bigger critters while wandering about has me sorting a heavier bullet load. Two schools of thought on this one - go long and sleek ie 75 Eld-M - again, high BC and being used successfully by many on goats, fallow and red hind size animals with careful shot choice and placement. But it is a VLD style projectile (as is the 53g to be fair) and as such is very fussy about seating depth. It has been challenging to get close to the groups I would like for this load. In comparison I put a few 69g TMKs on top of a dose of 2206 and promptly shot a one large hole group - very forgiving bullets!
    The second approach is a heavier built bullet, the 75g Speer Gold Dot. This seems like a good choice to have on hand if pigs or deer are spotted. This has been quite easy to get to shoot good groups with as it's a very forgiving shape like the Sierra TMKs - the down side being they don't hold velocity anywhere near as well as the very pointy ones.

    Well that turned out waaay longer than expected, but hopefully gives you some more ideas.

    PS Also have a wicked reduced load thanks to @Pommy doing some reloading nerd wizardry on GRT - did this to duplicate what a 17 HMR can do without buying another rifle! ��

  10. #10
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,210
    Quote Originally Posted by rusl View Post
    Thanks for the input, I guess I need to think about why I want the heavy bullets, I was thinking better bc and less wind drift, which is why I'm going to a 223 from my 17hmr, got sick of the wind blowing it away.

    Thinking it through its sounding like it will be quite a custom rifle and I'm starting to wonder why I don't just do some thing like load my 308 with 110gr v max's for windy or longer shooting days and have a simple stock 223 for 0-200m sort of shots.
    Ya gotta think how far to follow this or you'll end up like me - down a rabbit hole. I was sick of 55gn 223 getting "taken" by the wind so went to a 6mm Creedmoor, however a 243 will do exactly the same thing if you get a fast twist barrel (and there is a Howa in 6mm CM). The issue then is you are burning nearly double the amount of powder just to gain a bit less windage. In some ways buying more ammo to practise reading the wind might be a better bet!
    Bill999 likes this.

  11. #11
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,797
    22-250 could slot in there too.... sure has opened my eyes to what an extra 300-500fps does to trajectory. if its windy,get closer LOL. under 150 yards any deer is in big trouble with the 223 from me..... I carry a few 50 grn barnes ttsx for just that reason....they just work.

  12. #12
    Member
    Join Date
    Jul 2015
    Location
    Christchurch
    Posts
    1,350
    I extended the length of a 223 tikka mag some years ago & it worked good. Was a problem mag that kept springing the rounds up so as they wouldn't chamber.(the fix was to cramp the feed lips tighter and apply a little heat from a heat gun) There was a forum article, had the link but can't seem to put it up here.

  13. #13
    Member
    Join Date
    Jul 2015
    Location
    Christchurch
    Posts
    1,350

  14. #14
    Member
    Join Date
    Mar 2012
    Location
    Christchurch
    Posts
    1,427
    Rock: that link does not work.
    Shamus_ likes this.

  15. #15
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    6,086
    Quote Originally Posted by Steelisreal View Post
    I finally got a 223 about six months ago and have been having fun setting it up to be a light, easy to shoot hunting rifle.

    I settled on a Howa 1500 short action(not the Mini) for a few reasons, a big one being I despise the plastic magazine well/trigger guard/detachable box magazines they come with. This decision process predated the Jefferson bottom metal flush magazines and the Ken Henderson Hi-Tec stocks becoming available for the Mini.

    Another consideration was that when I looked at the conventional internal double stack magazine in the Howa, it seemed quite simple to be able to modify the blocked magazine box (was about 2.35 previous if I recall) to accept rounds loaded to around 2.46 or so. This was combined with the 1500 having arrived in NZ in Jan 20 finally sporting the 1/8 twist! And the last factor was the Howa Alpine stock (very slim and light proportions, shortish foreend) I had scored a few months prior just sitting there waiting for a barreled action to be acquired.

    I had the barrel trimmed slightly so the Gunworks 35mm suppressor cleared the foreend - barrel ended up at 18.5 inches.i could have gone shorter (didn't feel any need to ) by using a DPT or the Gunworks 41mm suppressor as the over-barrel section is much shorter on those.

    Next step - hunting loads. Short version is the Hornady 53g V-Max was selected for initial experimentation as its BC is much higher than most projectiles in that weight range. A bit of experimentation found a load that shot nice groups at 3140 fps. Game on. Go shoot some wallabies! This load works devastatingly well. Anything this side of 300m is in big trouble provided the wind isn't blowing really hard (it often does up on the hills!).

    So this wind question as well as the possibility of seeing bigger critters while wandering about has me sorting a heavier bullet load. Two schools of thought on this one - go long and sleek ie 75 Eld-M - again, high BC and being used successfully by many on goats, fallow and red hind size animals with careful shot choice and placement. But it is a VLD style projectile (as is the 53g to be fair) and as such is very fussy about seating depth. It has been challenging to get close to the groups I would like for this load. In comparison I put a few 69g TMKs on top of a dose of 2206 and promptly shot a one large hole group - very forgiving bullets!
    The second approach is a heavier built bullet, the 75g Speer Gold Dot. This seems like a good choice to have on hand if pigs or deer are spotted. This has been quite easy to get to shoot good groups with as it's a very forgiving shape like the Sierra TMKs - the down side being they don't hold velocity anywhere near as well as the very pointy ones.

    Well that turned out waaay longer than expected, but hopefully gives you some more ideas.

    PS Also have a wicked reduced load thanks to @Pommy doing some reloading nerd wizardry on GRT - did this to duplicate what a 17 HMR can do without buying another rifle! ��
    I was about to suggest this as a solution as I still have one of those 223s listed in the FS section. It is simply a case of pulling out the spacer at the rear of the mag well and extending the follower....
