Thread: 30mm optilocks clearance

  1. #1
    Member
    Join Date
    Aug 2016
    Location
    Gisborne Rural
    Posts
    3,363

    30mm optilocks clearance

    Will one piece 30mm optilocks take a 50mm scope with ease?

  2. #2
    Member
    Join Date
    Jul 2013
    Location
    Papakura
    Posts
    1,999
    Up to 56 mm from memory
    BRADS and bigbear like this.

  3. #3
    Member
    Join Date
    Mar 2012
    Location
    Waikato
    Posts
    2,096
    Not with ease.

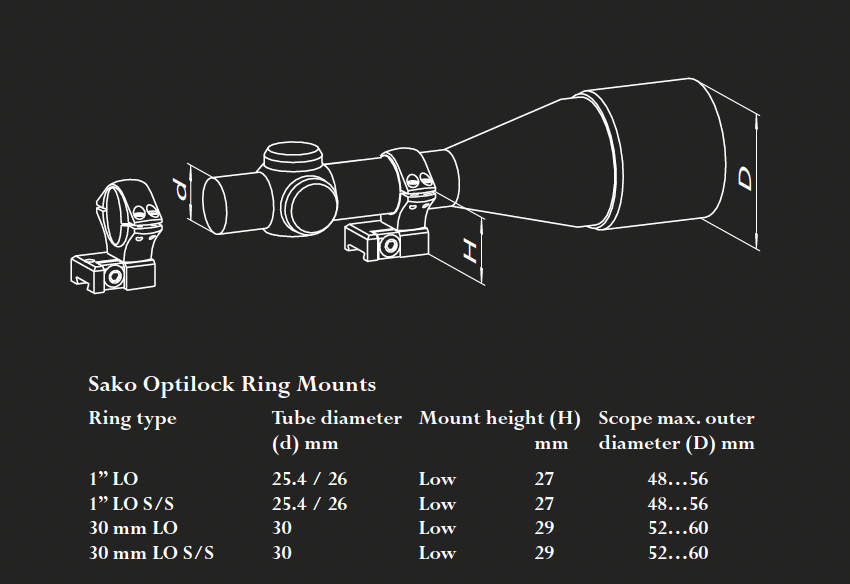

    This pic from their catalogue shows the 2 piece mounts but the numbers are for the one piece "ringmounts"
    Name:  Screenshot 2023-07-09 at 21.15.21.png
Views: 192
Size:  181.1 KB

    A mate with the VX3 x40mm lens reports its outside diameter is 47mm but of course that will vary with brand.
    He has 30mm tube and optilocks and says 6mm clearance from a #3 contour Shilen barrel, which would leave you with <1mm clearance. No room for scope caps...

  4. #4
    Member
    Join Date
    Jul 2013
    Location
    Papakura
    Posts
    1,999
    I happily mounted a Zeiss Diavari 3-12 x 56 on a Sako 85. Might depend on eye relief requirements to clear the knox but it worked for me.

    B
    Bagheera likes this.

  5. #5
    Member
    Join Date
    Aug 2022
    Location
    New Plymouth
    Posts
    1,557
    Yip I have a 56mm on mine but very very close should do 50mm easy

    Sent from my CPH2145 using Tapatalk
    Bagheera, bigbear, dannyb and 1 others like this.

  6. #6
    Member
    Join Date
    May 2012
    Location
    Sydney
    Posts
    1,634
    The 30 mm’s come in two heights. My guess is you need the taller set for a 56mm obj.


    Sent from my iPhone using Tapatalk

  7. #7
    Member
    Join Date
    Jul 2013
    Location
    Papakura
    Posts
    1,999
    Quote Originally Posted by Dicko View Post
    The 30 mm’s come in two heights. My guess is you need the taller set for a 56mm obj.


    Sent from my iPhone using Tapatalk
    OP was asking about one piece….

    B
    BRADS and bigbear like this.

  8. #8
    Member
    Join Date
    May 2012
    Location
    Sydney
    Posts
    1,634
    I am talking the one piece mounts.


    Sent from my iPhone using Tapatalk

  9. #9
    Member
    Join Date
    Aug 2022
    Location
    New Plymouth
    Posts
    1,557
    Quote Originally Posted by Dicko View Post
    I am talking the one piece mounts.


    Sent from my iPhone using Tapatalk
    1 piece is only in low

    Sent from my CPH2145 using Tapatalk
    BRADS, shift14, 10-Ring and 1 others like this.

  10. #10
    Member
    Join Date
    Aug 2016
    Location
    Gisborne Rural
    Posts
    3,363
    yep the 30mm one piece only come as a low. I have decided to stick with a 44mm obj.
    I had a pm and depending on where you set up for eye relief and the way a bigger bell can tapper back i didn't want to risk it.
    Also i do like to run a neoprene cover
    shift14 likes this.
