Thread: 9mm Jungle Carbine / Lee Enfield Conversion

  1. #16
    Member Wingman's Avatar
    Join Date
    Aug 2018
    Location
    Waikato
    Posts
    2,028
    In my defence I didn't fit the cheek piece.
    I am however working on another No5 mk1 in 9mm Luger in more "Delisle format" but all carbon fiber

  2. #17
    Member
    Join Date
    Apr 2015
    Location
    Taupo
    Posts
    705
    Quote Originally Posted by akaroa1 View Post
    Mustn't have twisted said toes long enough !
    I've got the No.4T cheek rest here ... But the Bradley Cheek Riser was on hand and expedient at the time.

    I also got it in a parts bin very cheap so it cost me a grand total of approx $5

  3. #18
    Member Wingman's Avatar
    Join Date
    Aug 2018
    Location
    Waikato
    Posts
    2,028
    Quote Originally Posted by Masperjay View Post
    I've got the No.4T cheek rest here ... But the Bradley Cheek Riser was on hand and expedient at the time.

    I also got it in a parts bin very cheap so it cost me a grand total of approx $5
    "You can take the boy out of the Army...."
    Micky Duck likes this.

  4. #19
    Member Wingman's Avatar
    Join Date
    Aug 2018
    Location
    Waikato
    Posts
    2,028

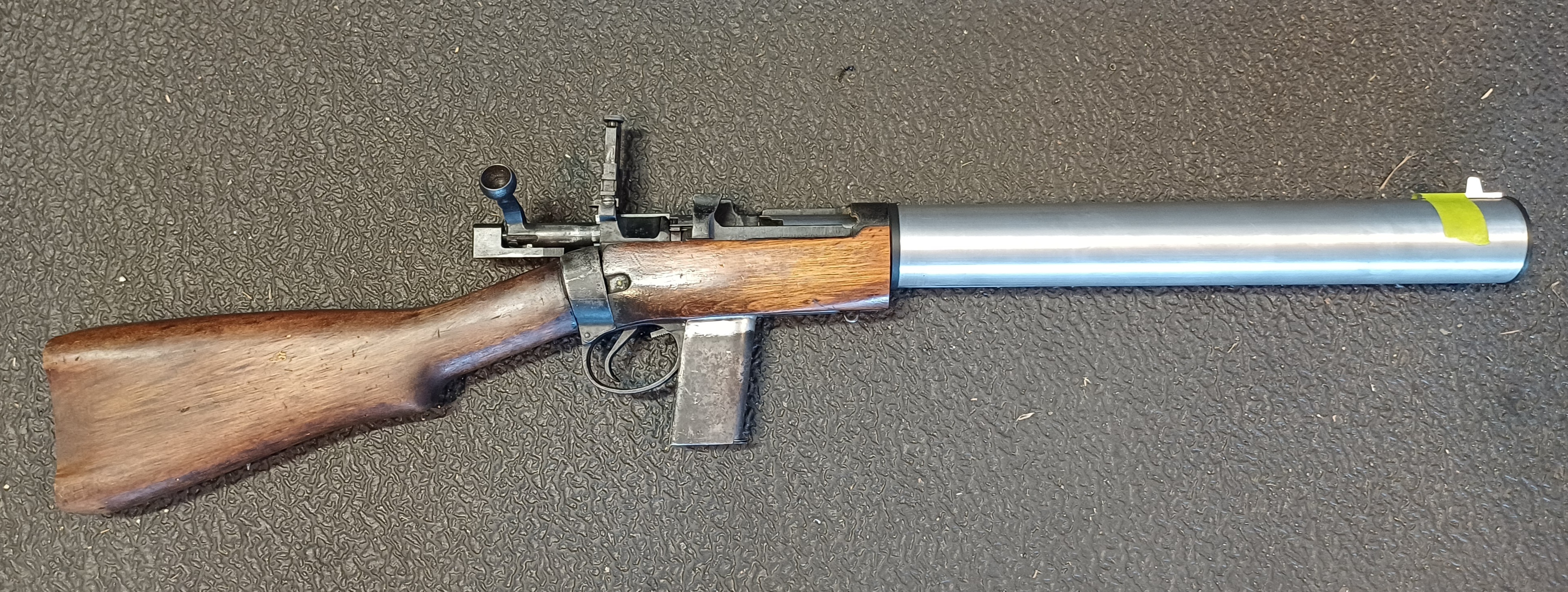

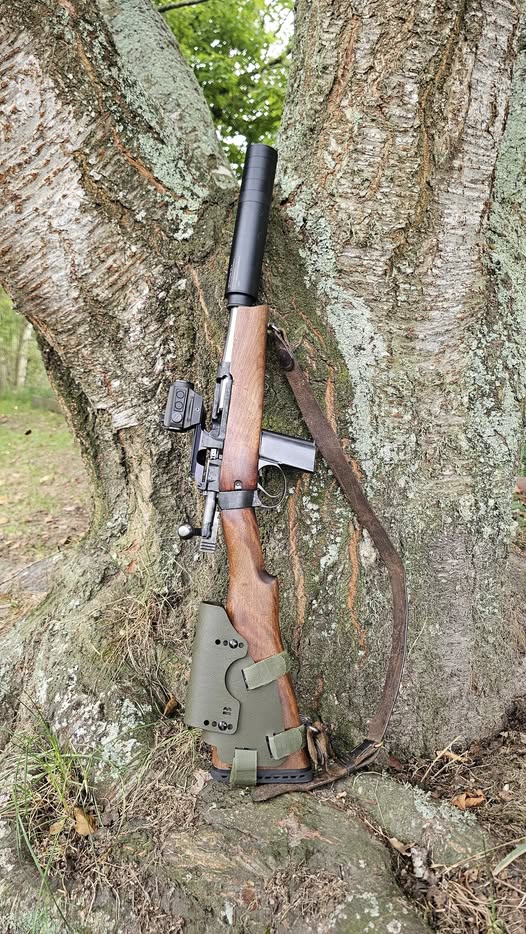

    Got the 2nd No5 mk1 9mm to a working stage.. just a bunch of cosmetic finishing work to go..

    Name:  20250412_164025.jpg
Views: 91
Size:  2.06 MB
    Mistral, 308, seano and 4 others like this.

  5. #20
    Member
    Join Date
    Jun 2023
    Location
    waimakau
    Posts
    4,445
    Does the suppressor come off?

  6. #21
    Member Wingman's Avatar
    Join Date
    Aug 2018
    Location
    Waikato
    Posts
    2,028
    Quote Originally Posted by blip View Post
    Does the suppressor come off?

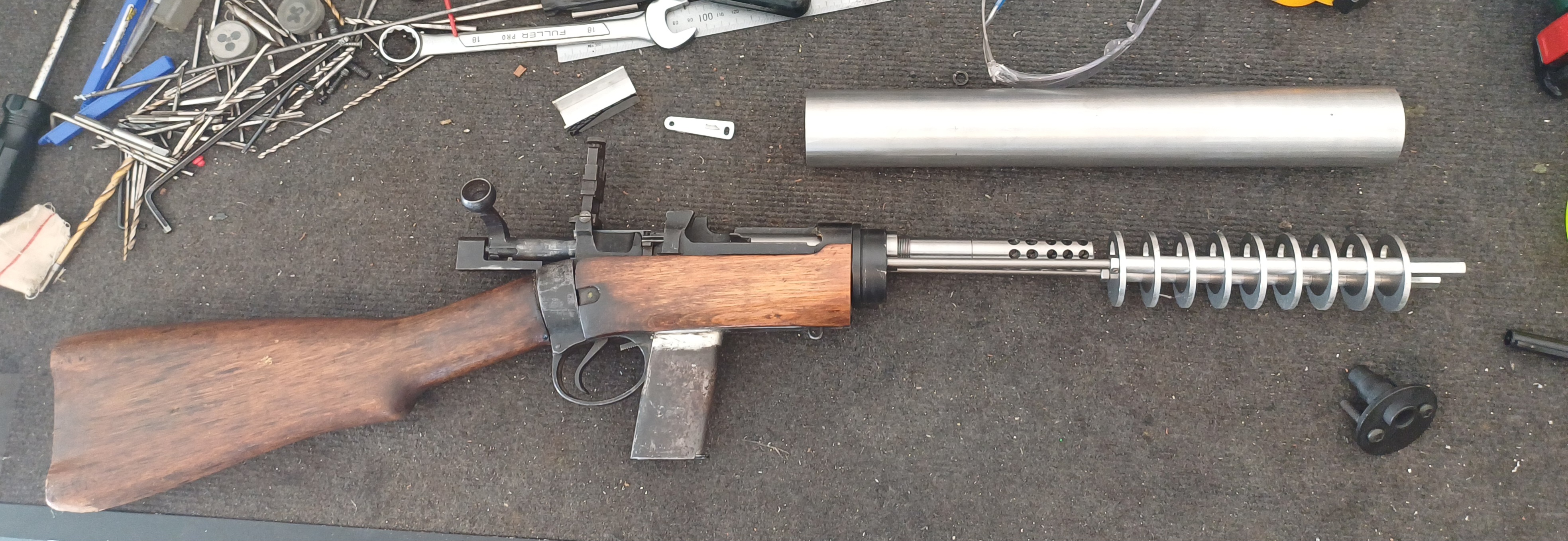

    It is an integral eccentric suppressor designed to be permintly attached. It has an 6" long stainless 1:10"twist barrel with a ported break and 9 baffles with a gas stripper muzzle tube to shoot the heavy 147gr and 160gr subs.

    Name:  20250412_153905.jpg
Views: 76
Size:  1.50 MB
    Last edited by Wingman; 17-04-2025 at 11:03 PM.
    seano, Micky Duck, Dan88 and 1 others like this.

  7. #22
    Member Wingman's Avatar
    Join Date
    Aug 2018
    Location
    Waikato
    Posts
    2,028

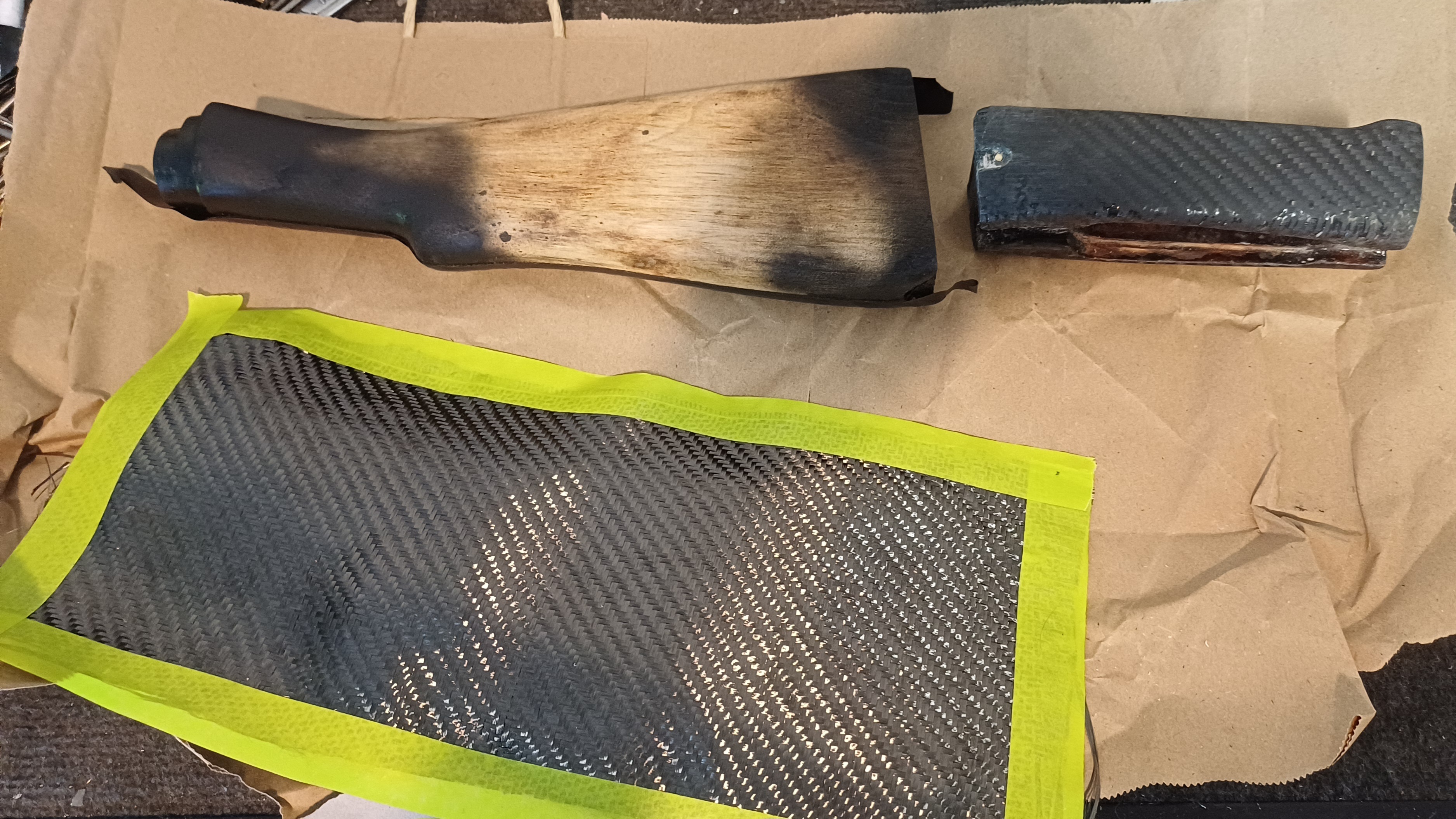

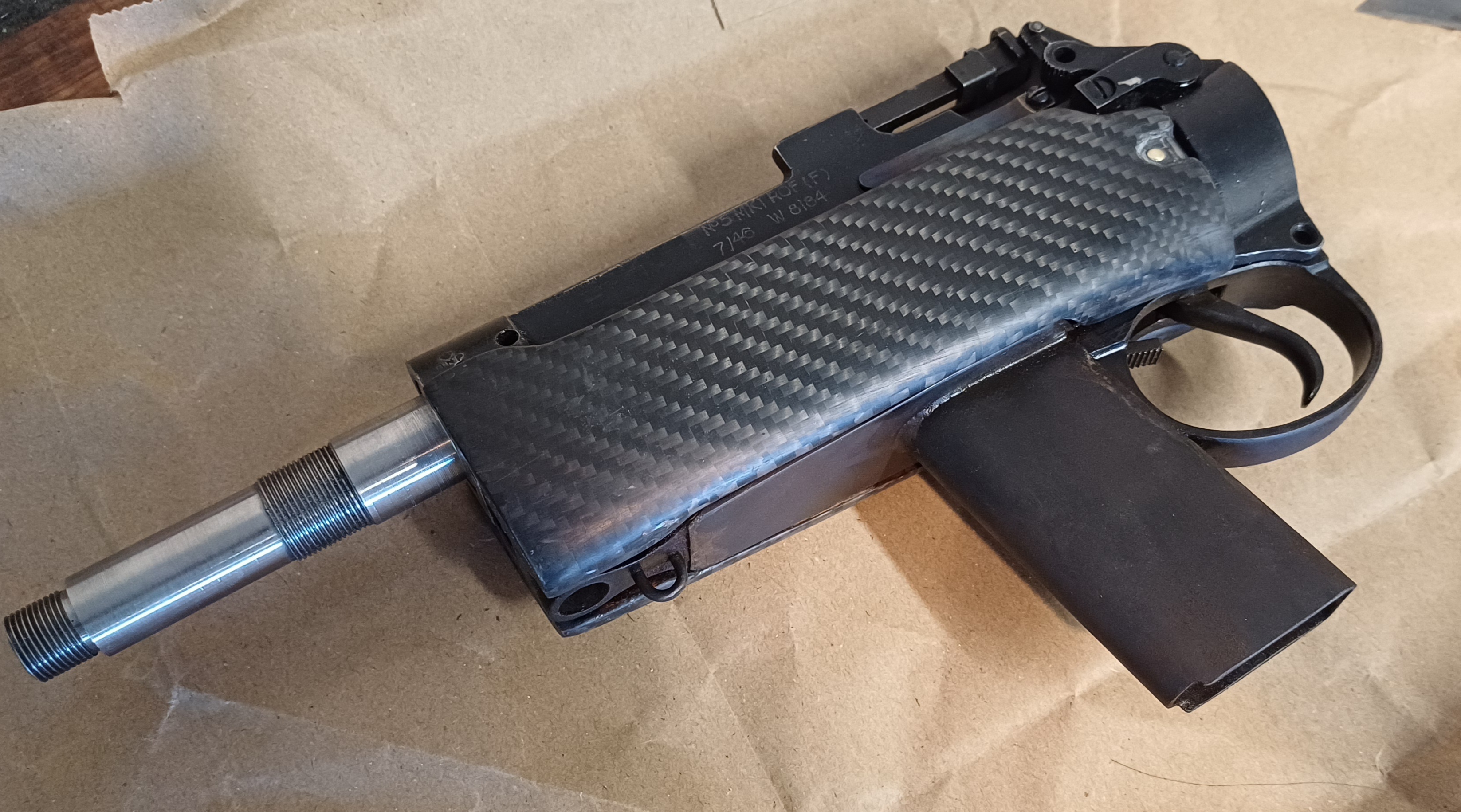

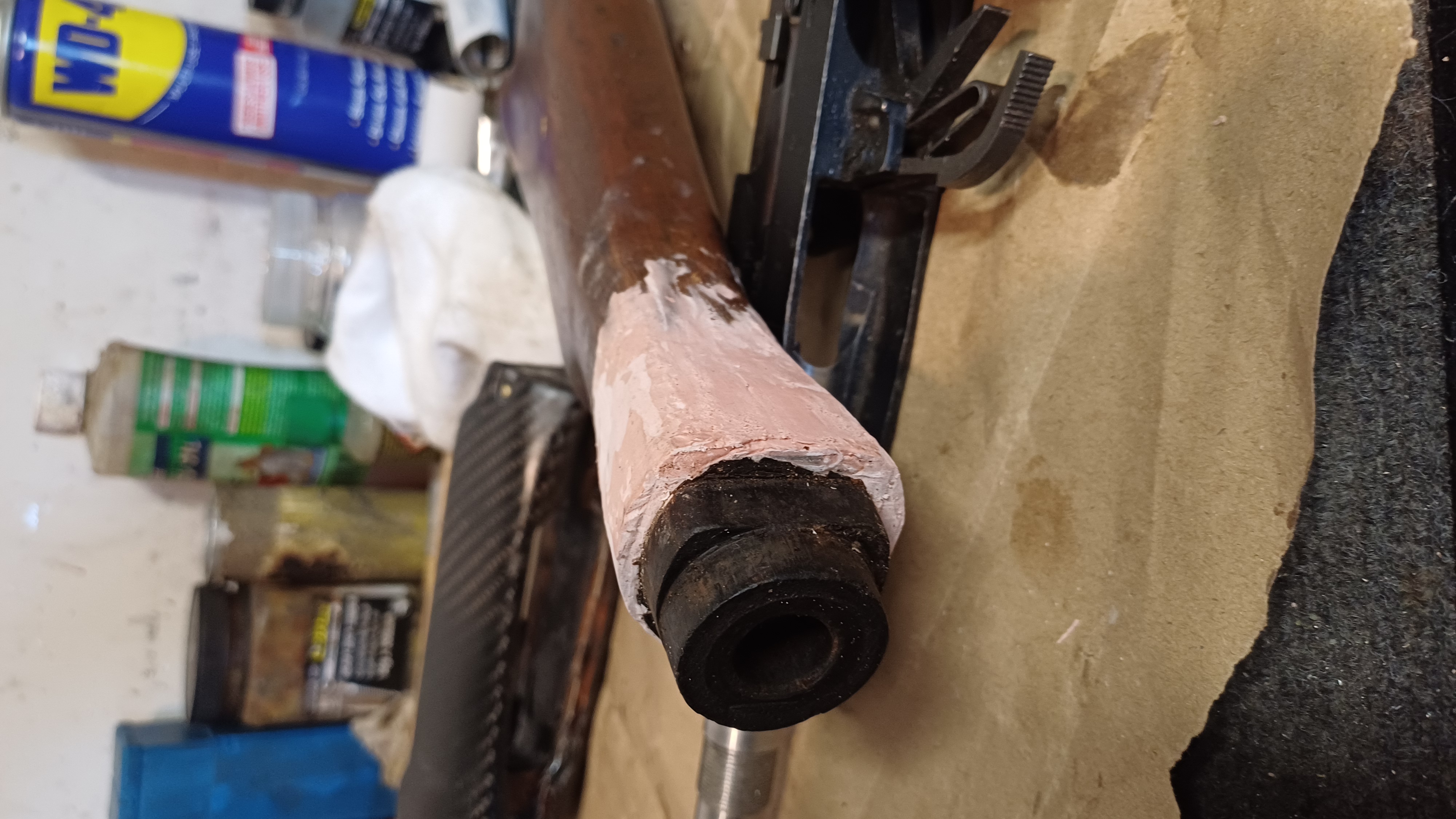

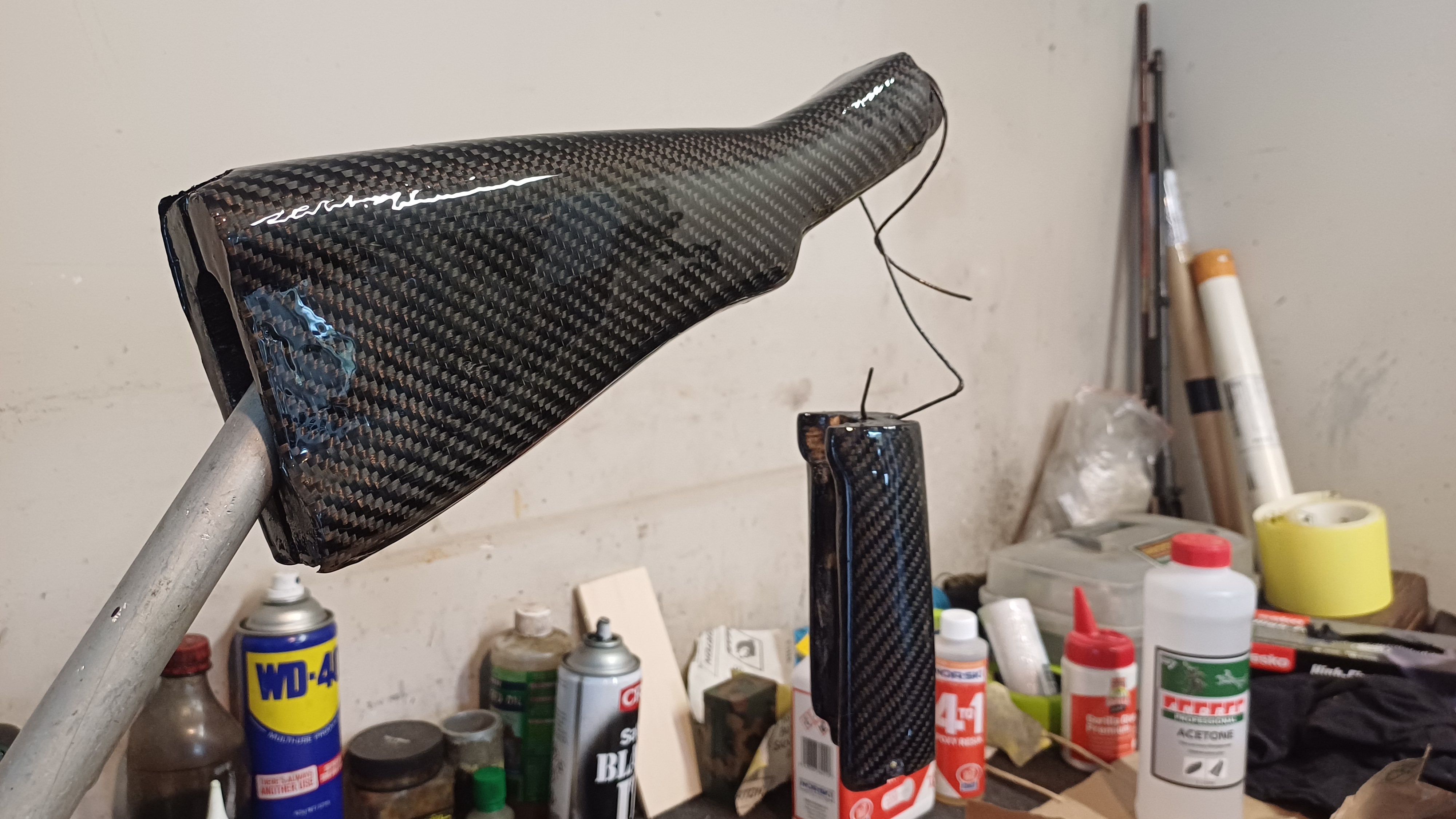

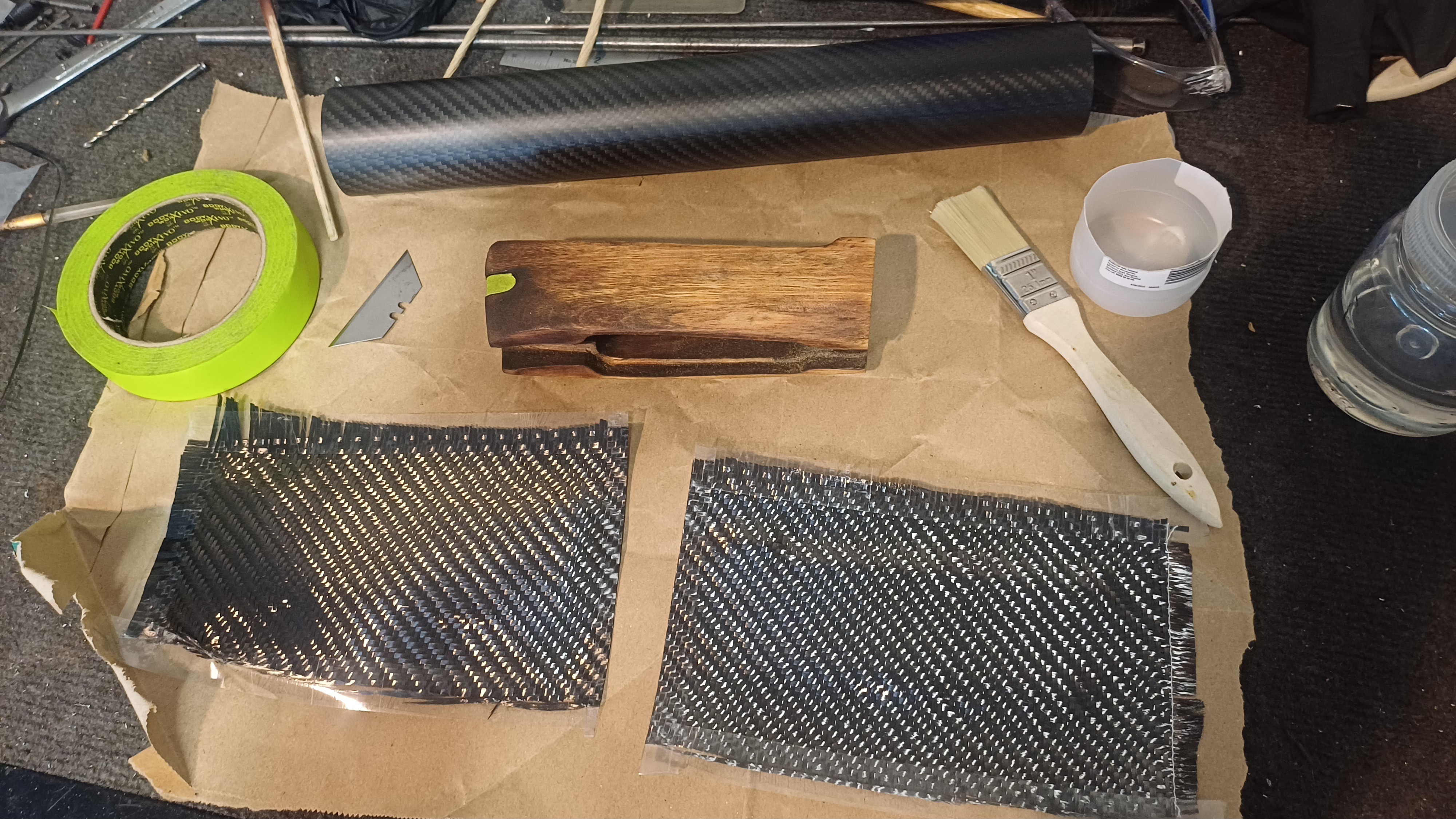

    Let the carbon fiber mess begin..
    Keeping in with the theme of the design intent of both the delisle carbine and the No5 jungle carbine I'm making a "lightweight modern tip of the hat" to the fore mentioned carbines.
    Not everyone's cup of tea, and I get that.. but let me assure the purists amoungst us that no restorable milsurp rifles were harmed in these builds. Both the no5 actions came to me in a box of enfield bits at a gun show and we're stripped of all parts with no bolts etc.
    I have picked through no4 bolts that were beyond headspace tolerances and cut them short. The wooden furniture is all Bubba's handy work and in the scrap pile.
    The only thing felt a little bad about was the lightened No5 bottom metal, but not bad enough not to use it..

    Name:  20250418_110258.jpg
Views: 47
Size:  2.79 MB

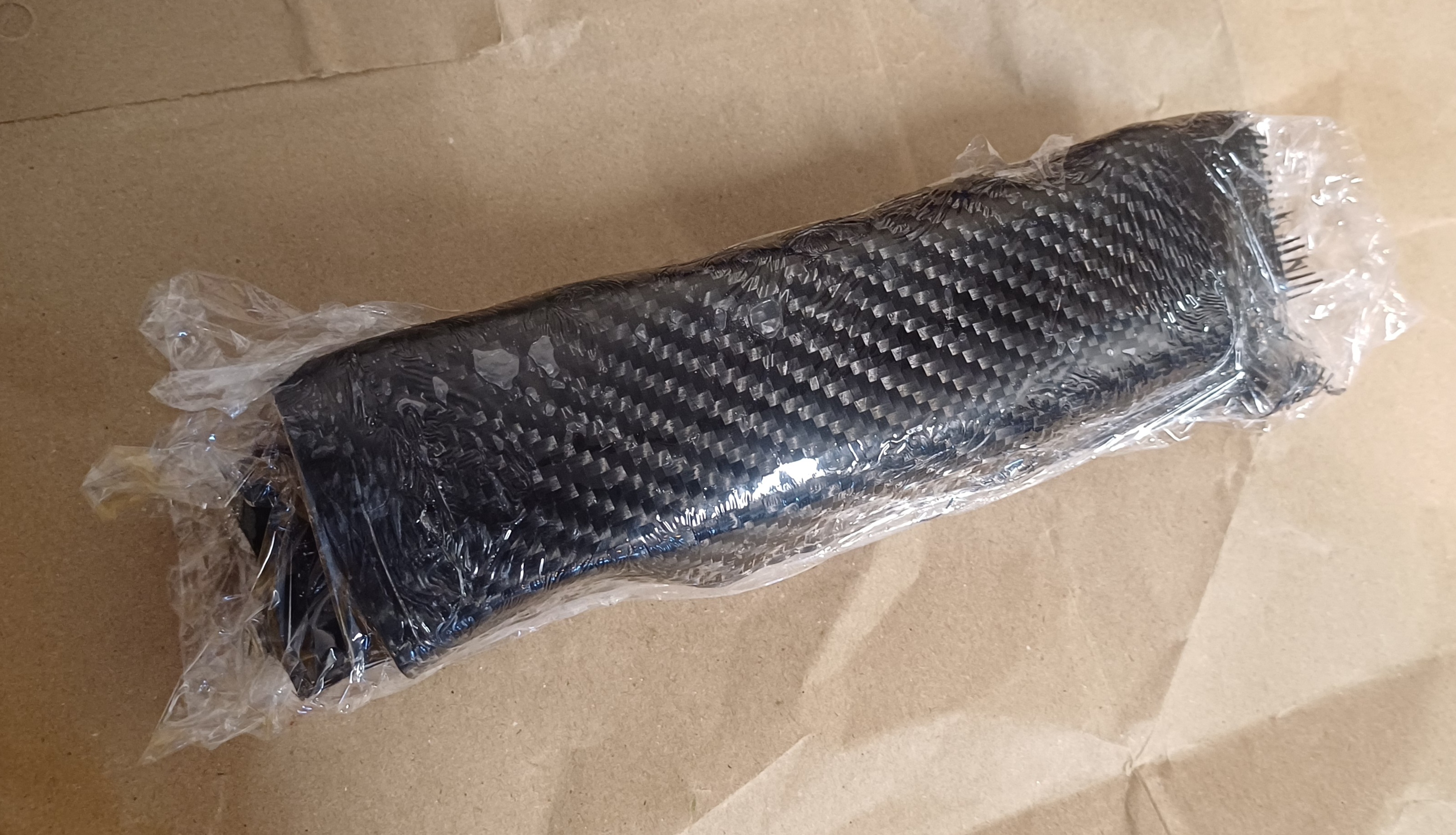

    Name:  20250418_113407.jpg
Views: 46
Size:  1.29 MB

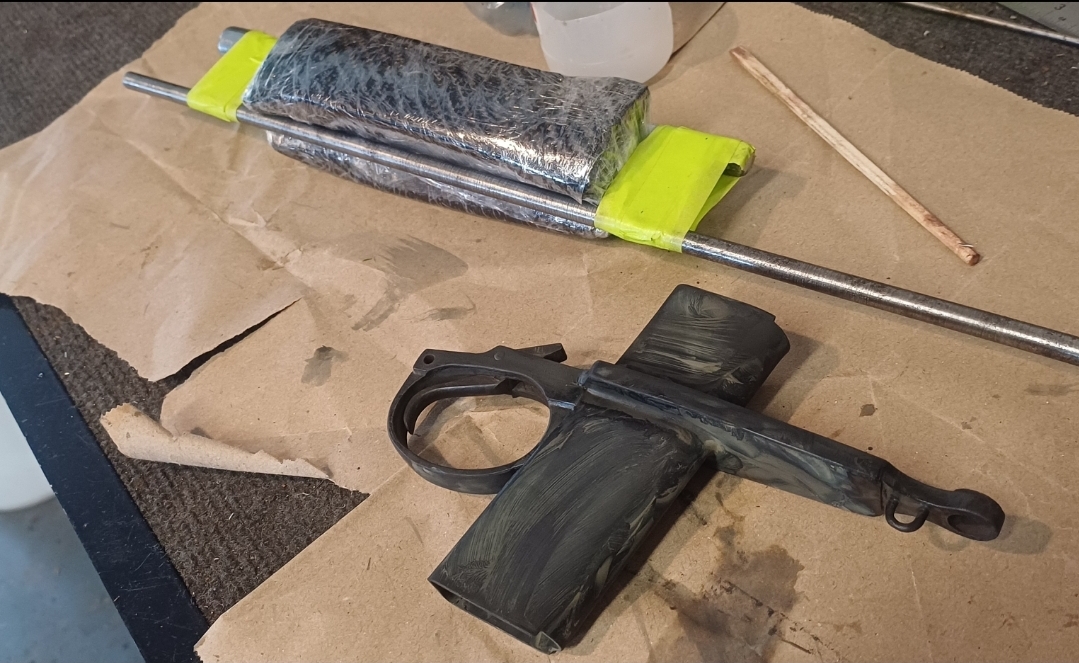

    Name:  Screenshot_20250418_124532_Gallery.jpg
Views: 43
Size:  494.3 KB
    Last edited by Wingman; 18-04-2025 at 01:56 PM.
    Rich007, 308, Frogfeatures and 3 others like this.
