Thread: Barrel threading

  1. #1
    Member
    Join Date
    Mar 2012
    Location
    Hastings
    Posts
    2,644

    Barrel threading


  2. #2
    Banned
    Join Date
    Dec 2021
    Location
    Tauranga
    Posts
    5,143
    Jeez, a 3/4 die nut slides straight over most NZ barrel profiles! Some can't be threaded any bigger than 1/2 UNC or 1/2 UNF in .308 calibers...

    While it is a possible issue for most of the slim profile barrels we have in NZ if the barrel was going to bell out I would expect it would have done it at the time it was profiled to the sporter contours we commonly use. If it's a heavy truck axle target type barrel yeah I can definitely see this being an issue if you wanted to put a 1/2" thread on the end and it was a .308 sized barrel.

    The usual common practice is to go to the biggest thread size you can on the barrel to leave the most meat on it, for a lot of them it's 14x1 or 9/16 but some are barely able to fit 1/2" on there. 5/8 threads are getting up there in my experience, not routinely encountered until you get up to things like the .338 calibers.
    Micky Duck likes this.

  3. #3
    Member Jamesyd's Avatar
    Join Date
    Sep 2018
    Location
    Auckland
    Posts
    1,384
    Some of the new Rugers, the standard Hawkeye for one, and the Ranch in 7.62x39, bell out at the end of the barrel to fit a 5/8x24 thread. I suppose it’s good having a meaty thread, but certificate looks weird on the end of the barrel. Would also stop you having a properly fitted rear bushing, as the thread is a lot wider to get over than the barrel is where it would be resting

  4. #4
    Member
    Join Date
    Jul 2020
    Location
    Waikato
    Posts
    502
    Of all the variables effecting accuracy, I would think finding blame in a slightly wider exit...not much more than 10mm at the tip of the barrel as grasping at straws.

  5. #5
    Member PaulNZ's Avatar
    Join Date
    Sep 2016
    Location
    Waikato
    Posts
    436
    Quote Originally Posted by trapperjohn View Post
    Of all the variables effecting accuracy, I would think finding blame in a slightly wider exit...not much more than 10mm at the tip of the barrel as grasping at straws.
    Not too far fetched - slugging and cutting your barrel at a 'tight' spot is fairly well known. Probably not going to affect normal hunting accuracy though.
    trapperjohn likes this.

  6. #6
    Member
    Join Date
    May 2019
    Location
    Christchurch
    Posts
    284
    On the other hand when you over torquing your muzzle device, it will fix the bore diameter opening up problem

    See video from Brownells https://www.youtube.com/watch?v=m8BAOMcSJGQ
    trapperjohn likes this.

  7. #7
    Member SixtyTen's Avatar
    Join Date
    Dec 2015
    Location
    Auckland
    Posts
    529

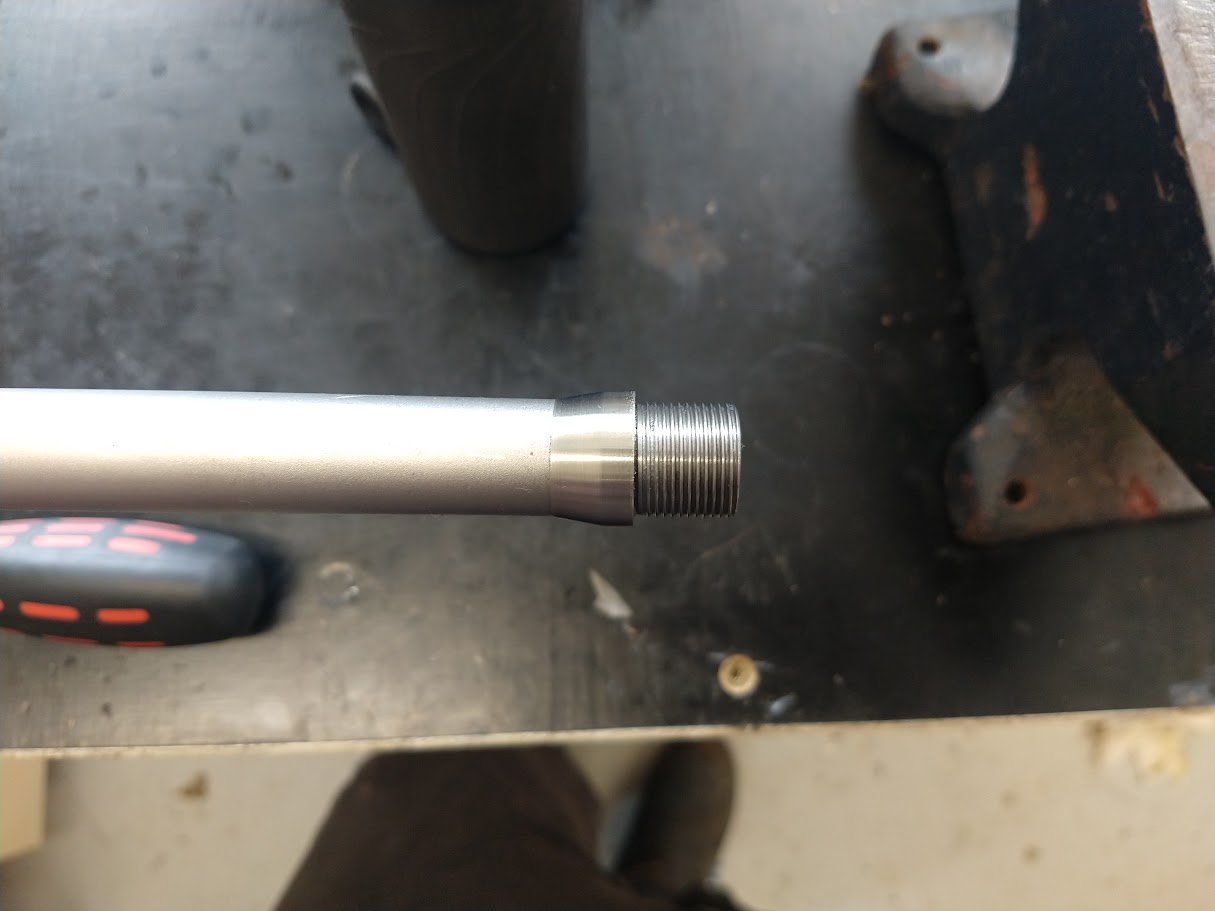

    This has been my solution to the problem. Simply cut your threads around twice as long as normal and make a bush that threads on. Install with red loctite and recut the shoulder face to be sure its square with the bore.

    If you keep it reasonably slim, the barrel dia will often be larger than the shoulder where the suppressor bush is.

    Name:  IMG_20230130_152705412.jpg
Views: 253
Size:  74.9 KB
    Micky Duck, PaulNZ, takbok and 1 others like this.

  8. #8
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,724
    My 1/2" 1:20 thread cap will slide about 1/4" onto end of mates savage 7mm magnum unthreaded barrel.
    75/15/10 black powder matters

  9. #9
    Member SixtyTen's Avatar
    Join Date
    Dec 2015
    Location
    Auckland
    Posts
    529
    Quote Originally Posted by Micky Duck View Post
    My 1/2" 1:20 thread cap will slide about 1/4" onto end of mates savage 7mm magnum unthreaded barrel.
    That is a mighty skinny barrel. Probably around 2mm wall thickness at the muzzle.

  10. #10
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,724
    True that...I was shocked.
    75/15/10 black powder matters

  11. #11
    Banned
    Join Date
    Dec 2021
    Location
    Tauranga
    Posts
    5,143
    Quote Originally Posted by SixtyTen View Post
    This has been my solution to the problem. Simply cut your threads around twice as long as normal and make a bush that threads on. Install with red loctite and recut the shoulder face to be sure its square with the bore.

    If you keep it reasonably slim, the barrel dia will often be larger than the shoulder where the suppressor bush is.

    Attachment 259664
    From the 'looks weird, but is effective' file! Nice work.

  12. #12
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    4,293
    I like barrels that have enough meat to do a 14x1 thread at least . But it does not always happen how I want. I once fitted a brake with 1/2-28 thread on a 300 win mag savage that the customers said was not shooting properly. I tested the gun with factory precision hunter ammo and was getting under 1/2moa 3 shot groups at 100m.
    Micky Duck and Fssprecision like this.

  13. #13
    Member
    Join Date
    Jul 2021
    Location
    Whangarei
    Posts
    447
    Quote Originally Posted by SixtyTen View Post
    This has been my solution to the problem. Simply cut your threads around twice as long as normal and make a bush that threads on. Install with red loctite and recut the shoulder face to be sure its square with the bore.

    If you keep it reasonably slim, the barrel dia will often be larger than the shoulder where the suppressor bush is.

    Attachment 259664
    Yep I have done that a few times

  14. #14
    Member
    Join Date
    Jul 2017
    Location
    Whangarei
    Posts
    1,190
    I have kept a 14x1 thread on 223, 243 (share a hardy stealth) and even my 358 but thats getting marginal, not much meat under the threads. however i was wanting to keep barrel weight down so the truflight guys went as thin as they were comfortable with on the barrel conture.
    Z

  15. #15
    Member
    Join Date
    Jun 2023
    Location
    waimakau
    Posts
    3,617
    14x1 is what I go for when getting any of mine done except for 22lr, 1/2 x 20 is fine for that
    No good names left likes this.
