Thread: Classy lightweight takedown

  1. #76
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235
    Quote Originally Posted by joelhenton View Post
    I've posted this before on the forum but it's changed slightly since then, still a work in progress. My Thompson Contender G1, a classy little takedown single shot in 30-30 I think. Barrel fluted, just fractionally over legal length, mil-spec coated. Swapped the front grip for some carbon fiber tube, I'm working on a carbon tube stock (just a mock up with blue tac currently). I've got a permit for a pistol grip, hopefully that plan will come together. As pictured it's bang on 2.1kg, I think it will break the sub 2kg mark... Who knows, thread an Oceania Defense suppressor on it? Taken plenty of animals with it. Recoil is fine.
    Attachment 124053
    Nice Joel

    I'm just about to send 2 x G2 barrels and lugs for test welding.
    They will only be 150mm length barrels but fully chambered because I want to see how the barrels cope with the tig welds for straightness and chamber concentricity
    Matt2308 likes this.

  2. #77
    Member
    Join Date
    Sep 2017
    Location
    BOP
    Posts
    492
    Quote Originally Posted by akaroa1 View Post
    Nice Joel

    I'm just about to send 2 x G2 barrels and lugs for test welding.
    They will only be 150mm length barrels but fully chambered because I want to see how the barrels cope with the tig welds for straightness and chamber concentricity
    Thanks, the G1 is a joy to carry... I'll be looking forward to hearing about your progress with the barrels, you might find yourself a small Contender market! If you figure out a tool-less breakdown let me know!

  3. #78
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235
    Quote Originally Posted by joelhenton View Post
    Thanks, the G1 is a joy to carry... I'll be looking forward to hearing about your progress with the barrels, you might find yourself a small Contender market! If you figure out a tool-less breakdown let me know!
    Ok @joelhenton
    I will put it in my long list of problems to solve.

    I have 416 ss for barrel lugs and extractors and some roughed out
    I have ss spring steel for the extractor flat spring
    I have tracked down ss roll pins

    If the weld test results arw possative i will push on with a run of 4 or 5
    Matt2308 and dannyb like this.

  4. #79
    Member
    Join Date
    Aug 2019
    Location
    Wellington
    Posts
    334
    Quote Originally Posted by joelhenton View Post
    I've posted this before on the forum but it's changed slightly since then, still a work in progress. My Thompson Contender G1, a classy little takedown single shot in 30-30 I think. Barrel fluted, just fractionally over legal length, mil-spec coated. Swapped the front grip for some carbon fiber tube, I'm working on a carbon tube stock (just a mock up with blue tac currently). I've got a permit for a pistol grip, hopefully that plan will come together. As pictured it's bang on 2.1kg, I think it will break the sub 2kg mark... Who knows, thread an Oceania Defense suppressor on it? Taken plenty of animals with it. Recoil is fine.
    Attachment 124053
    Now we are talking Joel!! That is what a light weight single shot should be like Nicely done mate.

  5. #80
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235
    The other nice thing with the G2 is it sits nicely in the front passengers side of the truck while i was working on a west coast farm recently. Always there and easier to get out.
    Saw heaps of the wrong breed and sex of deer but did get some pigs and a goat.
    Down side is its to short for the overhead carrier in my kubota side by side
    Name:  20191105_195847.jpg
Views: 666
Size:  1.02 MB
    Name:  20191105_191242.jpg
Views: 656
Size:  1.68 MB

  6. #81
    Member GSP HUNTER's Avatar
    Join Date
    Mar 2012
    Location
    North
    Posts
    675
    Quote Originally Posted by Seventenths View Post
    I haven't seen one of them in NZ yet but what are they like?... weight?... handling/feel?... trigger?... price?
    I had a go ag the local deer stalkers range. Trigger was crisp on the 45/70. The wood work and blue was top notch as was the balance for me. The guy bought it in Auckland. 700 I seem to recall. I'd buy one in 243 or 308. Def keep an eye out for them.

  7. #82
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235
    @joelhenton

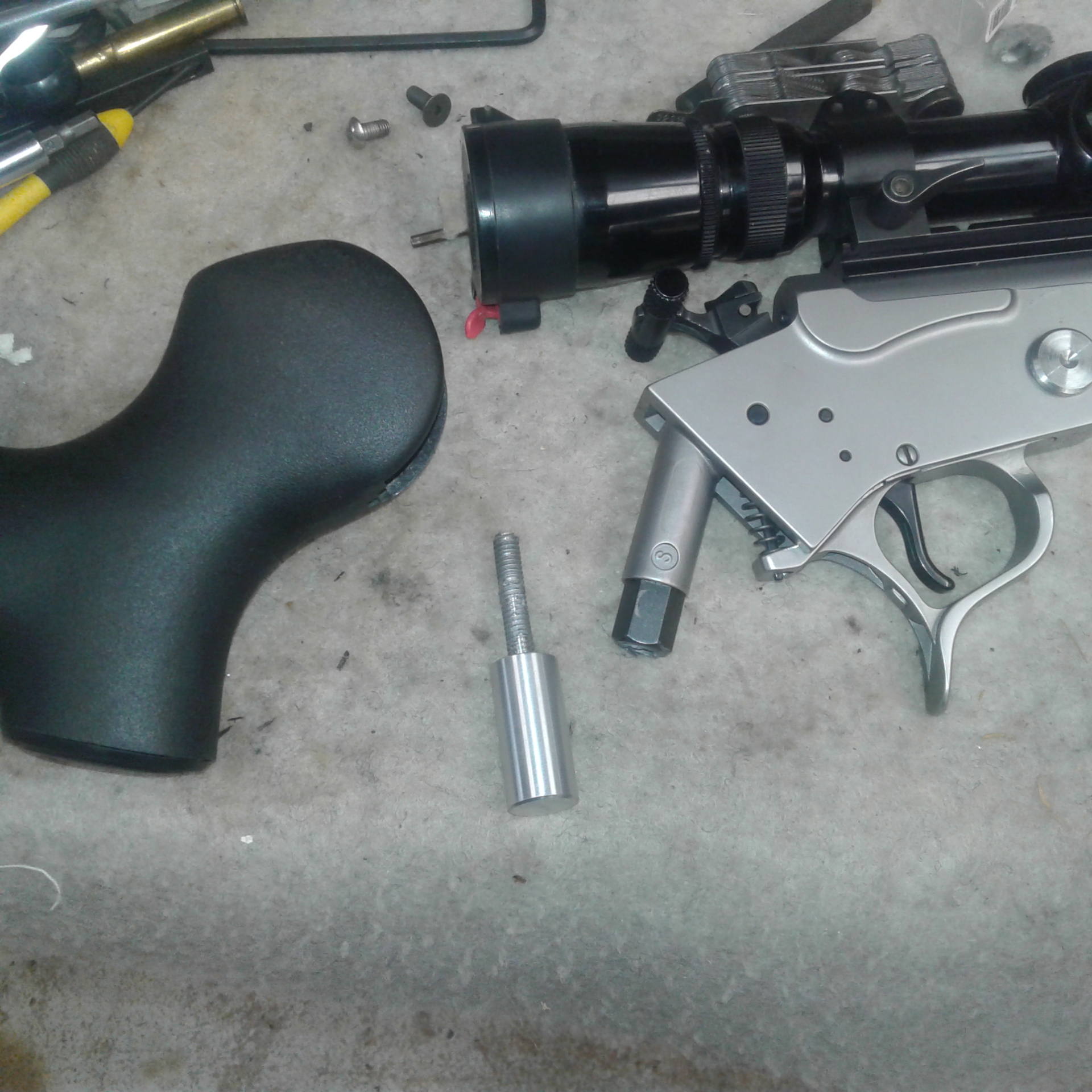

    I solved the tool less take down problem.

    Don't take down at the hinge pin
    Take down at the butt stock bolt.
    Barrel plus action stay together and are only 40mm longer than barrel alone.
    I have still ditched the fore end and using a very small shouldered hinge pin I made.

    The alloy take down screw comes out the pistol grip cap and they just need knurling to be complete.
    They are counter bored to save weight and are identical to the original factory steel cap screw.
    They are captive inside the pistol grip cap which they come through
    Easy and quick to use even without the knurling.
    But will need the knurling when wet.

    Scope is quick release also
    Name:  20191208_145755.jpg
Views: 571
Size:  1.01 MB

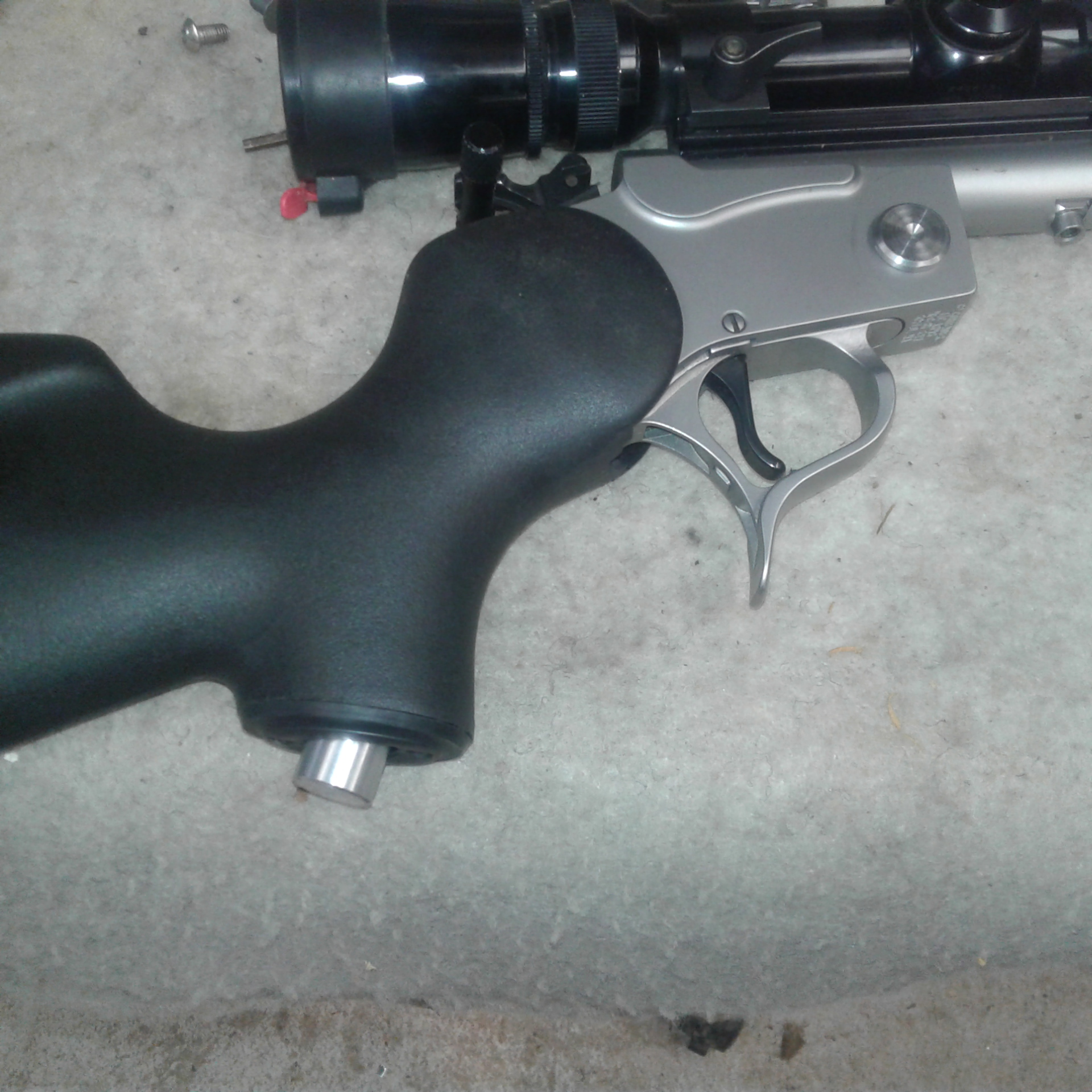

    This is the shorter of the 2 take down screws I made. 3mm longer one is better and knurling will be added
    Name:  20191208_145827.jpg
Views: 557
Size:  955.2 KB

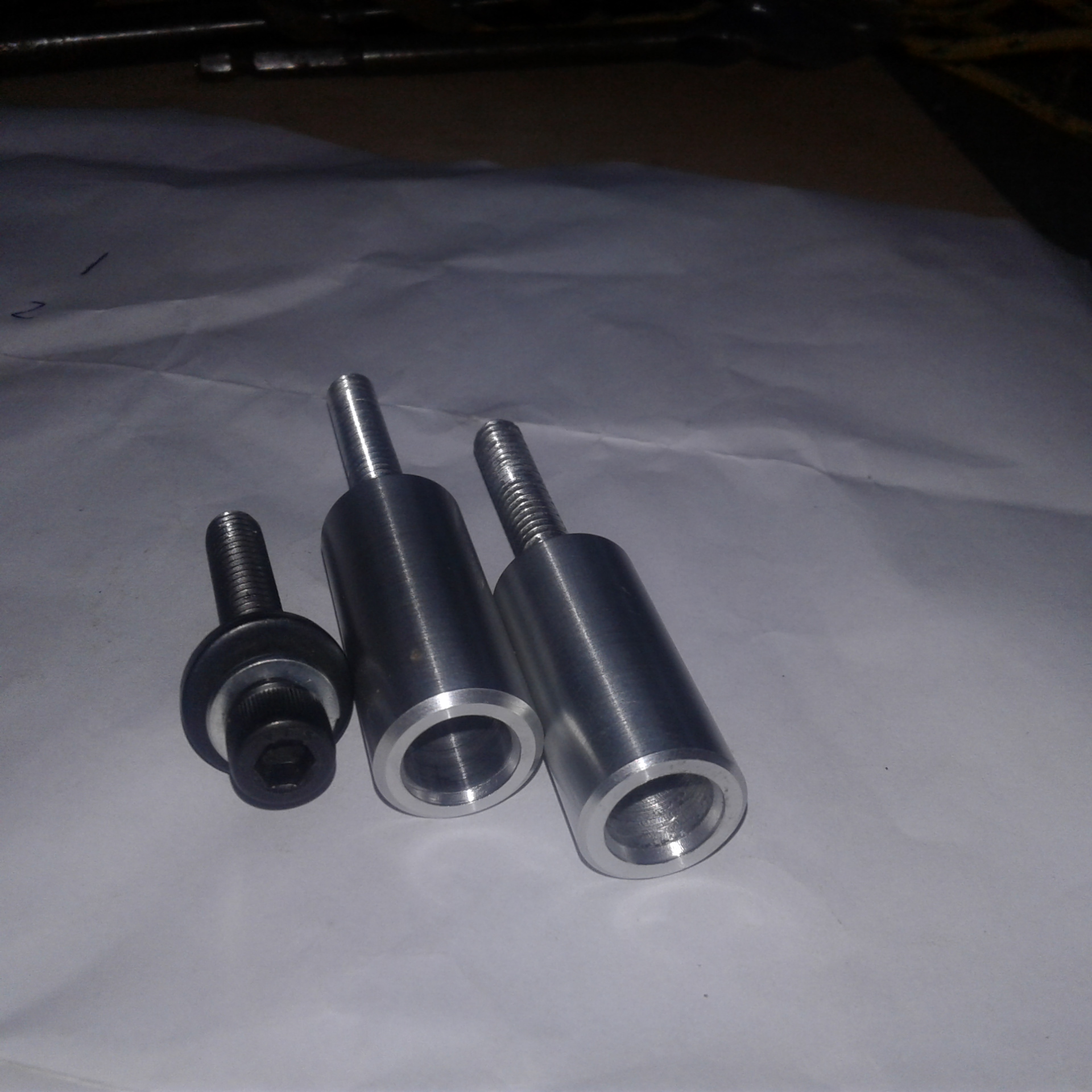

    Alloy counter bored to be exact same weight as the original factory steel cap screw. A bit of anti seize on the thread and it's easy to use.
    Name:  20191208_193412.jpg
Views: 551
Size:  786.1 KB
    Tommy, Moa Hunter and Micky Duck like this.

  8. #83
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235
    I just popped the T.C. emblem off the pistol grip cap and bored it out 18mm for the 16mm take down screw diameter which comes through in a slight angle and it comes out through the center of where the 20mm molded recess was for the emblem
    Very tidy looking modification
    Matt2308, Tommy and Micky Duck like this.

  9. #84
    Member norsk's Avatar
    Join Date
    Jun 2016
    Location
    Norway
    Posts
    2,541
    That looks like a great solution.
    Making the bolt captive might save a hunt around in the long wet grass someday.
    Tommy likes this.
    "Sixty percent of the time,it works every time"

  10. #85
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,210
    @akaroa1 - now all you have to do is cut off the silly "extension" that makes it impossible to get a "rifle style" grip angle and re-thread it (possible quite a bit of machine work to get it set up just right) , THEN after you make up a classic style stock from a bit of walnut you will have a really nice rifle!!
    @norsk - thats a great addition to the ideas pot!
    csmiffy likes this.

  11. #86
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235
    Quote Originally Posted by norsk View Post
    That looks like a great solution.
    Making the bolt captive might save a hunt around in the long wet grass someday.
    There is 20mm under the pistol grip cap.
    So the captive screw sits in that space and stops it coming out past the hole bored in the cap

    Nice to see you are on air @norsk
    norsk likes this.

  12. #87
    Member
    Join Date
    Jul 2013
    Location
    Waikato
    Posts
    2,516
    I think ssrnz used to make a mean 7.62x39 setup in single shot bolt action..pricey though.

  13. #88
    Member
    Join Date
    Sep 2017
    Location
    BOP
    Posts
    492
    Quote Originally Posted by Hiawatha View Post
    Now we are talking Joel!! That is what a light weight single shot should be like Nicely done mate.
    Thanks mate, I'm quite fond of the setup. Back in summer 2016-17 I fast pack hiked over 2000km from Lottin Point (East Cape) to Bluff through all the public land I could piece together. A great test for a lightweight takedown rifle! It's a little bit lighter now than when I did that trip. Definitely proved up for the task. I have some thoughts about more trips to get it back in the hills.

    I solved the tool less take down problem. Don't take down at the hinge pin. Take down at the butt stock bolt.
    @akaroa1 I've been out of this thread for a bit and I like your solution! This is actually how I used it on my hike, albeit I removed the grip plate permanently and used an allen key for disassembly. Then I could pack my Contender discreetly when I needed to resupply food in towns. This is probably a more convenient method I think because as you know the tighter the hinge pin the accuracy potential improves. So it can be a bit of a pain to remove the hinge pin without a punch or something. Since I don't have the G2 in my safe anymore I'm not sure if the G1 and G2 stock screws are the same dimensions?

    @Tentman Personally I prefer the more vertical grip style Contender stocks over the more traditional hunting style stock. I find married with the Aimpoint it makes a very nice ergonomic feel (for me) for quick snap shots in the bush.
    Ruger likes this.

  14. #89
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235
    [QUOTE=joelhenton;928550]

    @akaroa1 I've been out of this thread for a bit and I like your solution! This is actually how I used it on my hike, albeit I removed the grip plate permanently and used an allen key for disassembly. Then I could pack my Contender discreetly when I needed to resupply food in towns. This is probably a more convenient method I think because as you know the tighter the hinge pin the accuracy potential improves. So it can be a bit of a pain to remove the hinge pin without a punch or something. Since I don't have the G2 in my safe anymore I'm not sure if the G1 and G2 stock screws are the same dimensions?


    The screw is 1/4" x 20 TPI and its 32mm long on the G2.
    I would expect the G1 will be the same screw but the other sizes might need to be fiddled with just a little bit.

    As I have made this the parallel section is 16mm diameter and 40mm long and I will knurl the last 15mm or so.
    There is 20mm of float between the inside face of the grip cap and the shoulder inside for the captive screw to be contained inside

  15. #90
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235

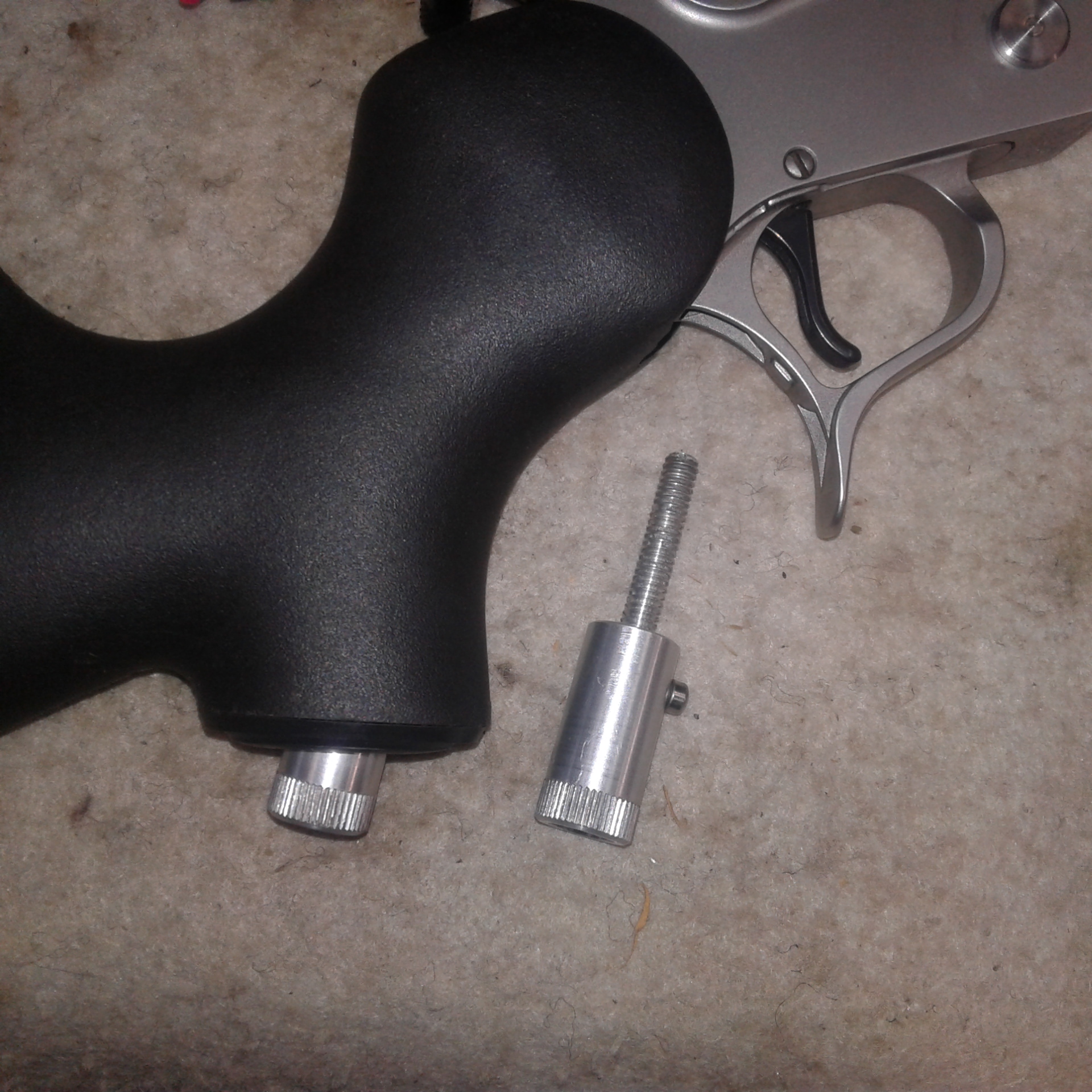

    Wet day so finished the take down thumb screw.
    Knurled the end and tapped in the m3 cap screw that makes it captive under the grip cap.

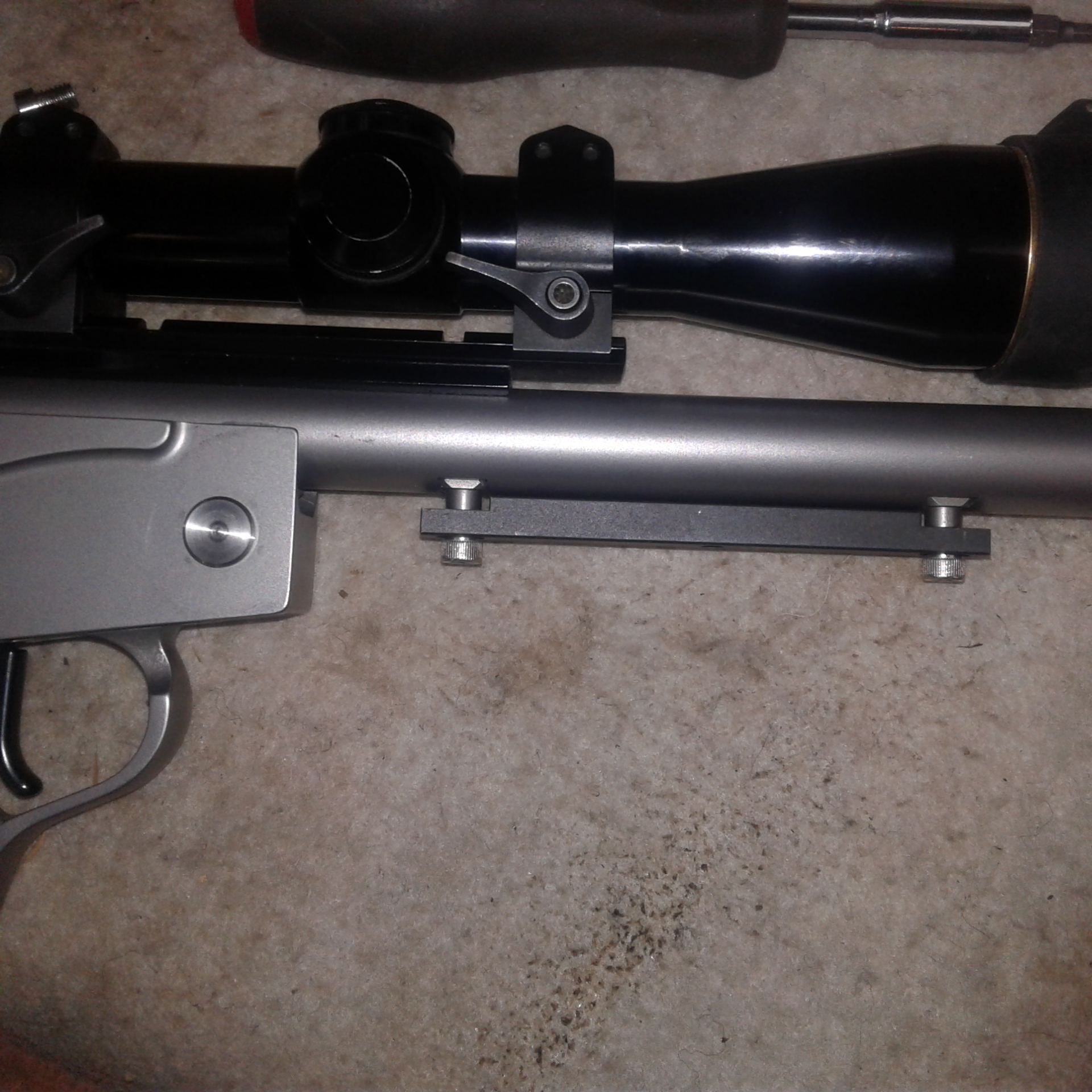

    Fitted a hanger bar also and will start on a splinter fore end.
    Then a barrel band sling mount well forward and it's done.

    Name:  20191218_100045.jpg
Views: 695
Size:  1.15 MB

    Name:  20191218_101055.jpg
Views: 669
Size:  1.07 MB
    Matt2308, Tommy and canross like this.
