Thread: Classy lightweight takedown

  1. #91
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250

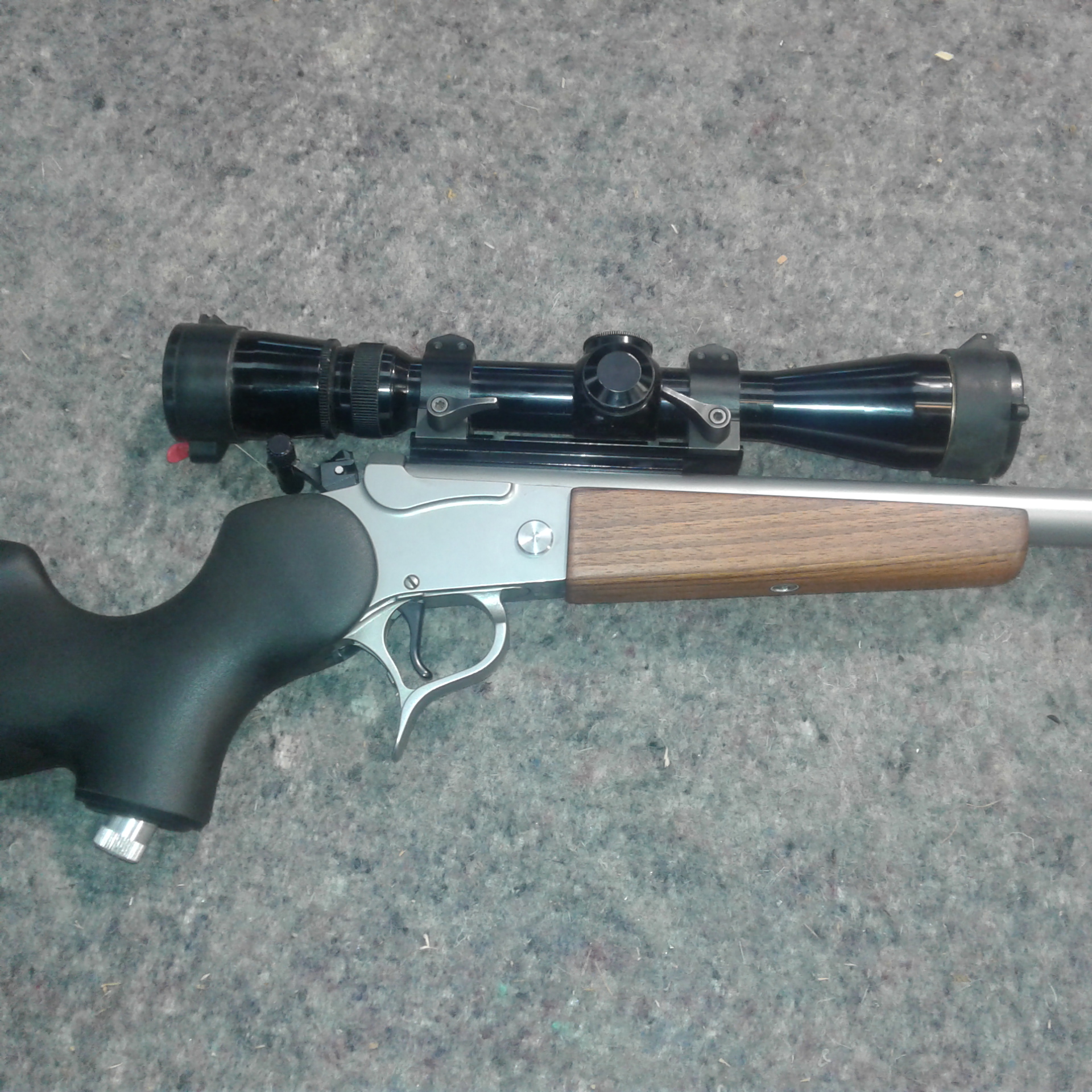

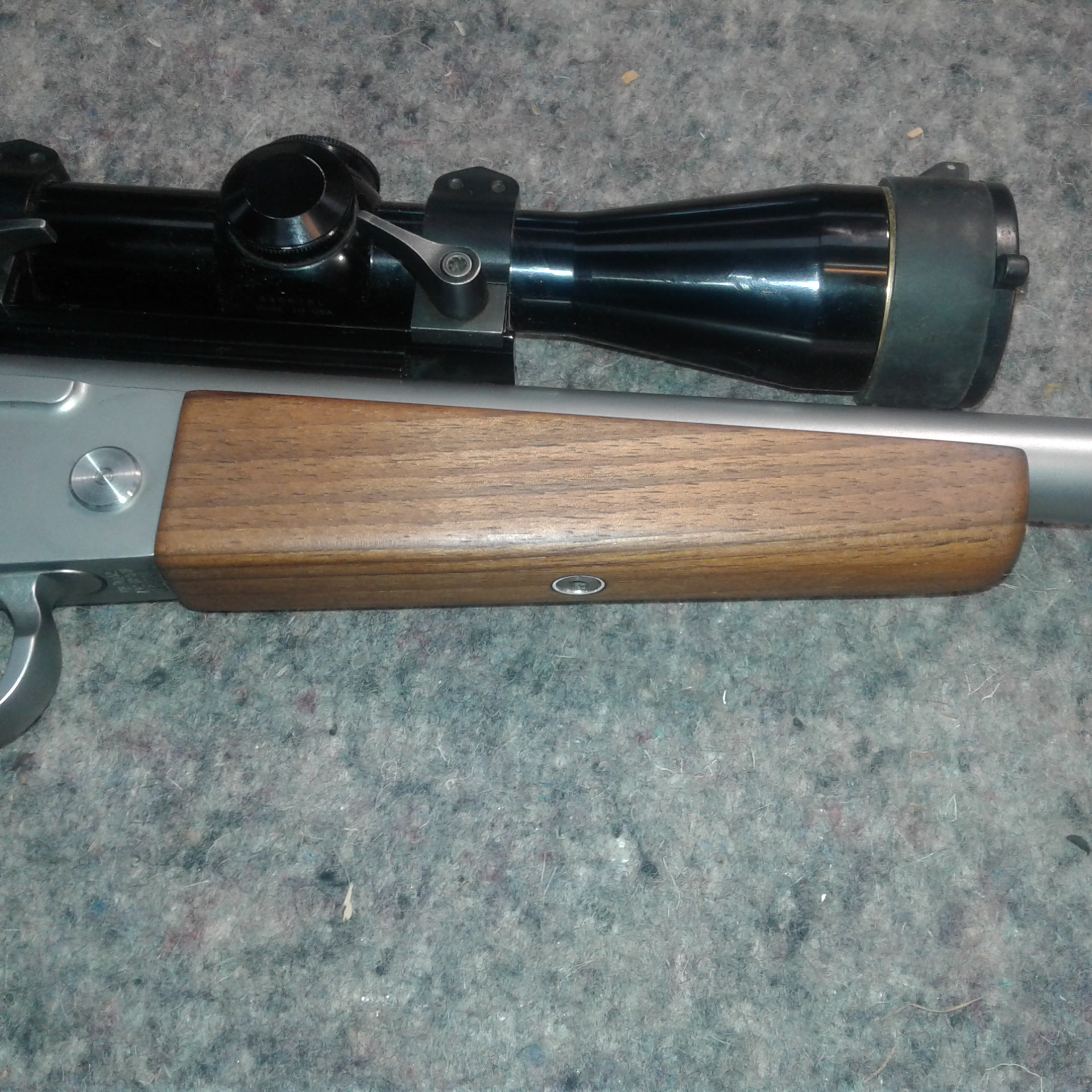

    Splinter fore end done.
    Fitted around the hanger bar and the action folds inside the end of it when it hinges.
    It's perfect when carrying one handed because the ballence point is just in front or the guard / lever.

    Just need to complete the barrel band sling mount for further out the barrel and its ready for the winter.

    Name:  20200102_200457.jpg
Views: 687
Size:  1.22 MB

    Name:  20200102_200512.jpg
Views: 666
Size:  1.36 MB

  2. #92
    Gkp
    Gkp is offline
    Member
    Join Date
    May 2018
    Location
    Queenstown
    Posts
    1,851
    Quote Originally Posted by akaroa1 View Post
    Splinter fore end done.
    Fitted around the hanger bar and the action folds inside the end of it when it hinges.
    It's perfect when carrying one handed because the ballence point is just in front or the guard / lever.

    Just need to complete the barrel band sling mount for further out the barrel and its ready for the winter.

    Attachment 127325

    Attachment 127326
    Single shot porn!

  3. #93
    Member
    Join Date
    Sep 2017
    Location
    BOP
    Posts
    492
    That's excellent workmanship there @akaroa1 I'm going to have to get you to make me one of those take down screws haha when I eventually get the pistol grip I'll have to figure out how long the screw will be. I finished my carbon fiber hangar bar and now my foregrip is floating and looking good.

  4. #94
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250
    G2 .223 project all done

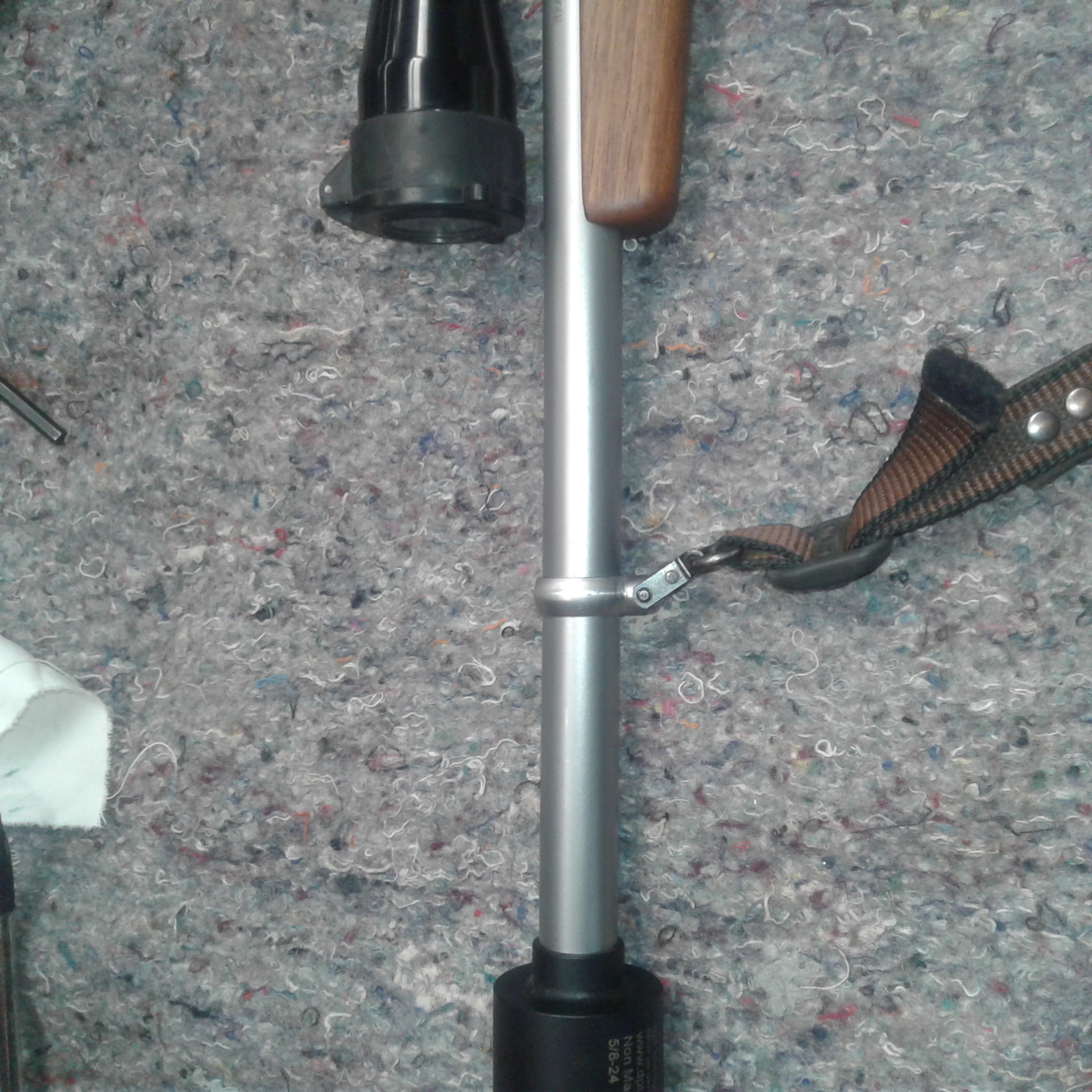

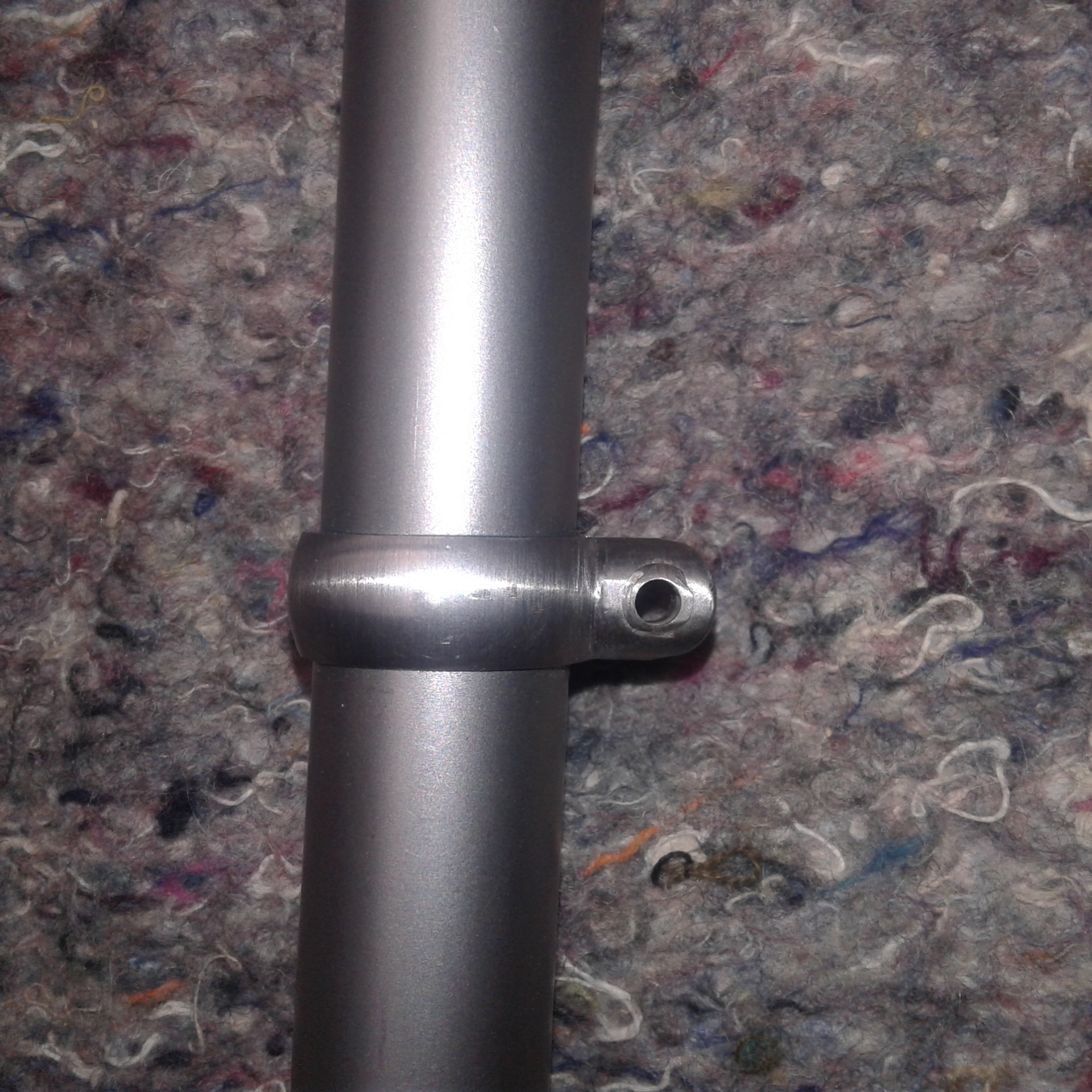

    Finished the barrel band sling mount
    Now it carries low and i can push through the bush even bent down and it will not snag

    Name:  20200119_155358.jpg
Views: 456
Size:  1.31 MB

    Name:  20200119_155341.jpg
Views: 474
Size:  1.31 MB

    Name:  20200119_155306.jpg
Views: 463
Size:  1.04 MB

  5. #95
    Also known as Fingers Joe_90's Avatar
    Join Date
    Jun 2019
    Location
    Central Otago
    Posts
    1,534
    Well played with the photo. Looks like a lovely wee set up.

    Name:  bang.JPG
Views: 506
Size:  27.8 KB
    Every machine is a smoke machine,
    If you use it wrong enough.

  6. #96
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250
    Quote Originally Posted by Joe_90 View Post
    Well played with the photo. Looks like a lovely wee set up.

    Attachment 128721
    That's because my 100m shooting range is out the workshop door

  7. #97
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,194
    Quote Originally Posted by joelhenton View Post
    That's excellent workmanship there @akaroa1 I'm going to have to get you to make me one of those take down screws haha when I eventually get the pistol grip I'll have to figure out how long the screw will be. I finished my carbon fiber hangar bar and now my foregrip is floating and looking good.
    Post a pic of progress mate keeps us stalkers happy.

  8. #98
    Member
    Join Date
    Sep 2017
    Location
    BOP
    Posts
    492
    Quote Originally Posted by Stocky View Post
    Post a pic of progress mate keeps us stalkers happy.
    Haha, my setup looks pretty much the same as it was in previous post (page 6), only I decided to lengthen the foregrip a bit. It has gotten a little bit lighter though, Jacinda brought my DPT and I upgraded to an Oceania Defense suppressor. I'll be sure to post up a picture when it's actually completed. The project is a bit stagnant at moment as I have to wait for the pistol grip to be imported, that time wait is out of my hands. I've had to use an import agent. Then I will complete the skeleton stock. Just a whisker over 2kg currently... I'd like to get it into the hills for a fast-pack style hike / hunt trip, but I want it completed first. Barrel band looks great @akaroa1
    Last edited by joelhenton; 22-01-2020 at 11:13 PM.
    Stocky likes this.

  9. #99
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250

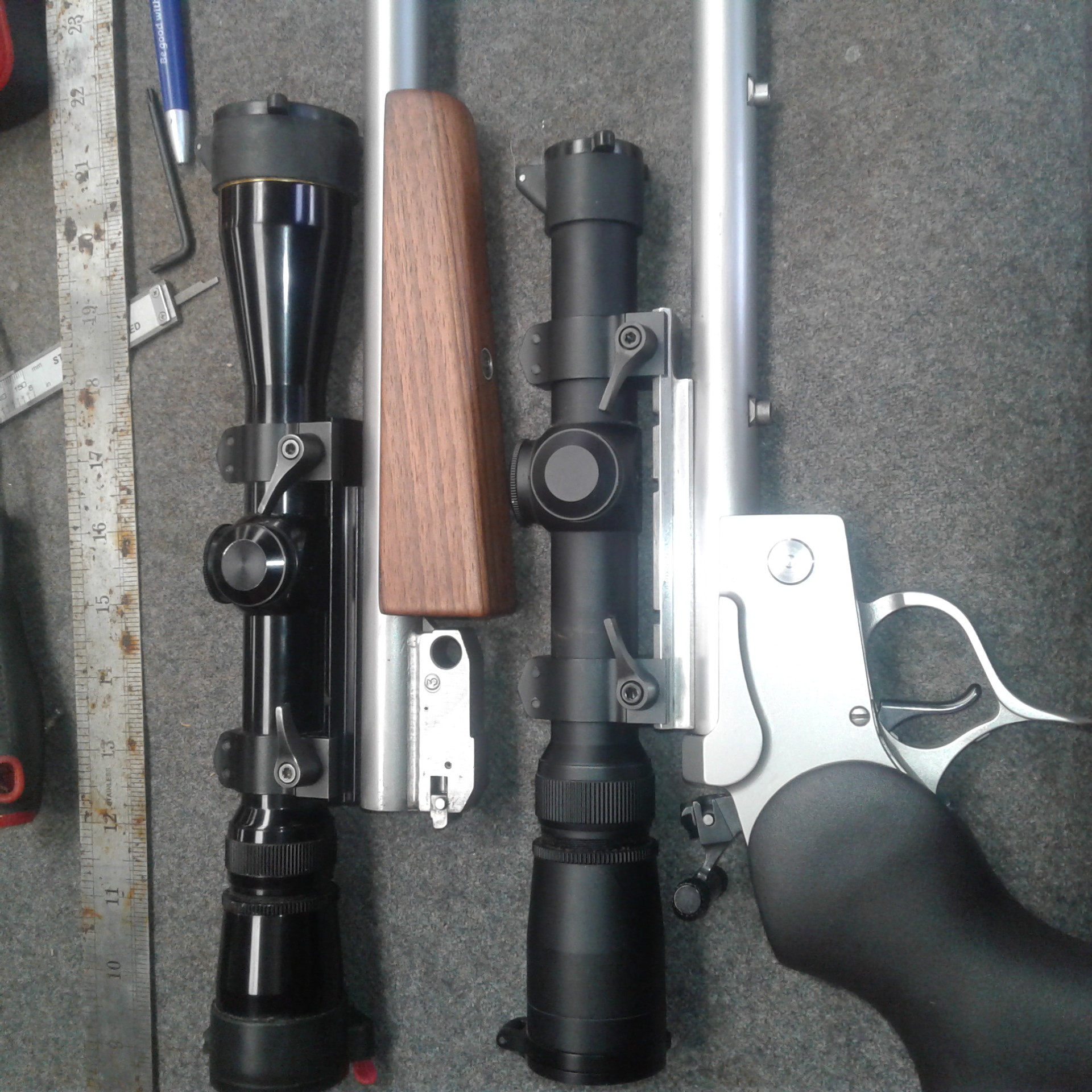

    Just finished the G2 223 and my 375 Winchester G2 barrel arrived yesterday.
    So scope mounted
    Hanger bar made and fitted

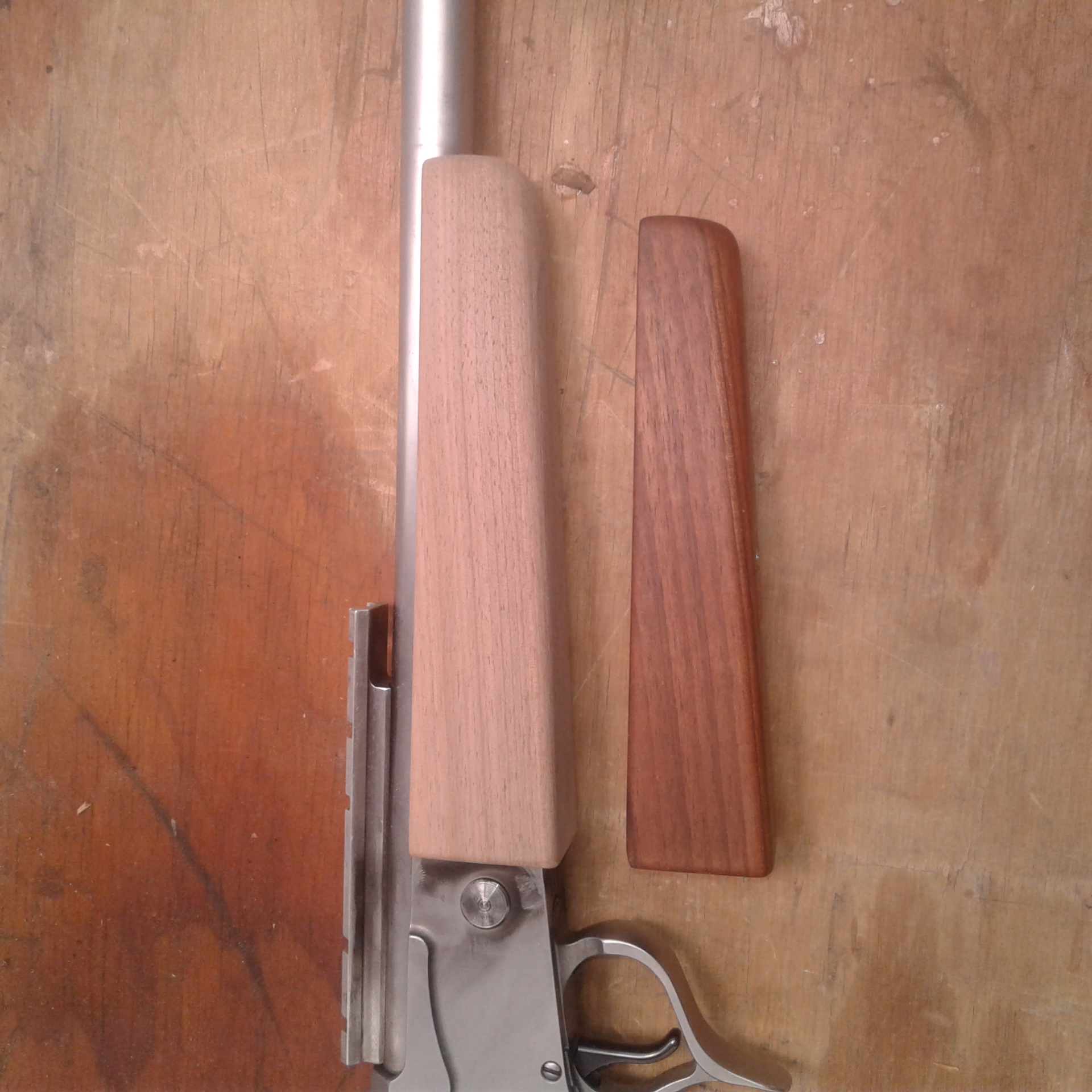

    Fore end made and being oiled now. It's a little fuller and longer because I'm going to hold on a little more because it will have more recoil and isn't going to be suppressed.
    Another barrel band on the lathe now

    Barrel is 21" tapered sporting weight and it will stay that length.
    Does here first week of February
    Three different weights of bullets already cast
    100 cases courtesy of @mikee
    This one will be finished double quick.

    Name:  20200121_132258.jpg
Views: 343
Size:  1.23 MB
    Name:  20200122_123042.jpg
Views: 347
Size:  1.03 MB
    Micky Duck likes this.

  10. #100
    Member
    Join Date
    Sep 2017
    Location
    BOP
    Posts
    492
    A great looking workshop, that's the dream... How is the barrel band held in place @akaroa1?

  11. #101
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250
    @joelhenton It was a tight fit then I split the shank with a slitting saw
    Fitted a turned down reduced shank and bored through cap screw for the sling to mount through.
    Re profiled the shank to round and the bottom edge so the sling swings past the shank end.
    A little bit of licktite and plenty of pressure on the cap screw and it won't be going anywhere.

    The one for the 375 will be slightly smaller for the barrel taper.
    It could also be done with a good grade of alloy.
    But i have a heap of 416 ss and its nice to work with

  12. #102
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,250
    Locktite!
    I don't know how spell check came up with licktite
    Micky Duck and Stocky like this.

  13. #103
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    6,087
    Quote Originally Posted by akaroa1 View Post
    Locktite!
    I don't know how spell check came up with licktite
    I know one sounds like a lot more fun to use......
    csmiffy likes this.

  14. #104
    Member
    Join Date
    Mar 2017
    Location
    Canterbury
    Posts
    7
    Awesome rifles in this thread. I have been thinking about getting a backpack rifle for a while now and those contenders look great. Does anyone know where to get your hands on one? One might pop up for sale I guess.
    Alternatively it would be interesting to see how much weight a Bergara BA13 could lose if it was put on a diet.

  15. #105
    Member
    Join Date
    May 2012
    Location
    Sydney
    Posts
    1,634
    Here's my little take down. 2.4kg sans scope and rings. 2.8 all up.

    Shoots quite well too.
