Thread: Help with single shot Rossi

  1. #16
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,964
    Found the little tab on the opening lever is broken off.
    Will build it up with some hard ss

  2. #17
    Member
    Join Date
    Jun 2012
    Location
    Timaru
    Posts
    184
    That's what happened to my rossi also. That tab is pretty small, easy to see how they break. I had Dean Maisey fix it, I think he made a new part.
    He might be able to give you some info on it

  3. #18
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,964

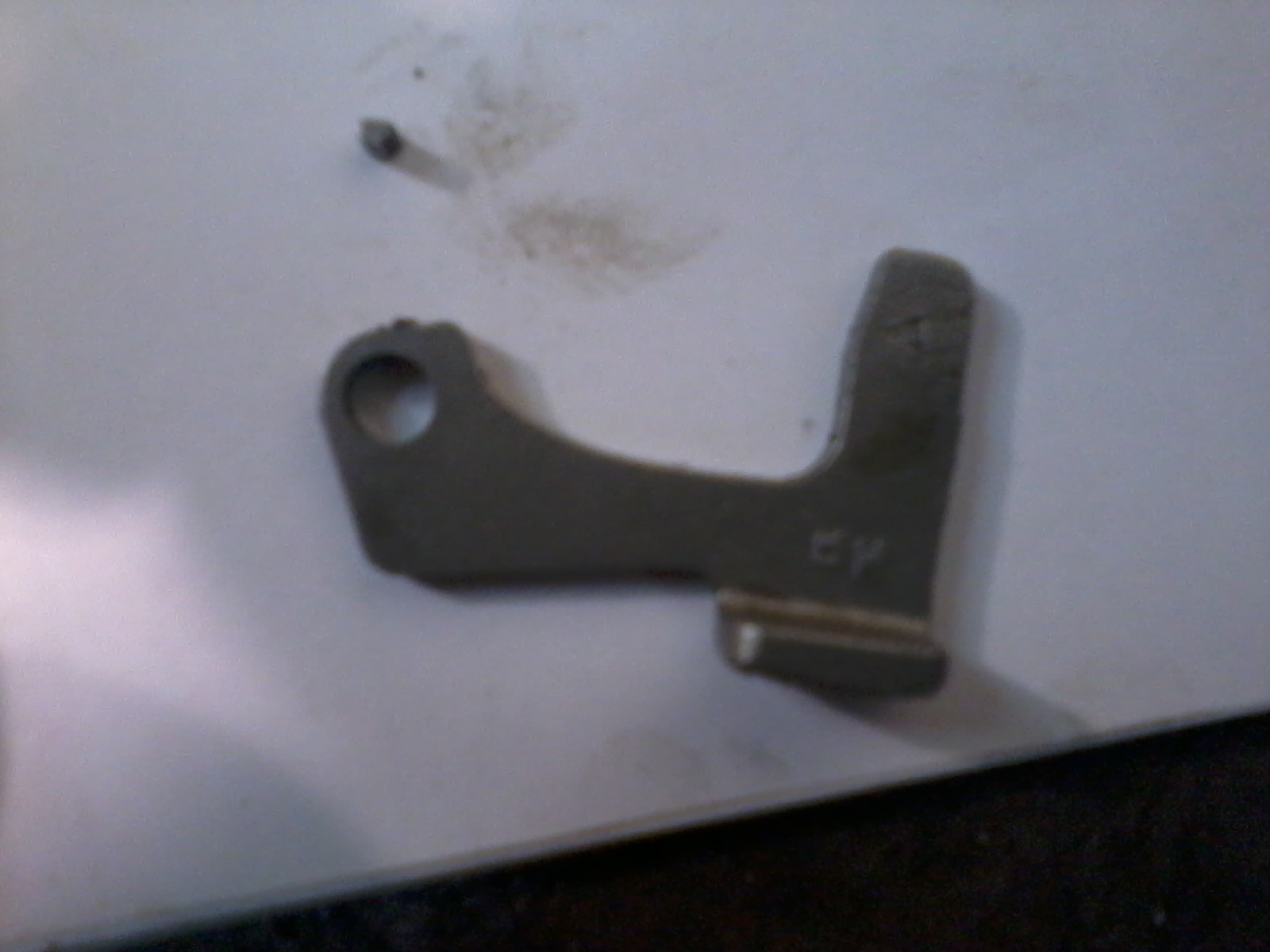

    Here is the broken bit
    Name:  Rossi 006.jpg
Views: 1009
Size:  351.6 KB

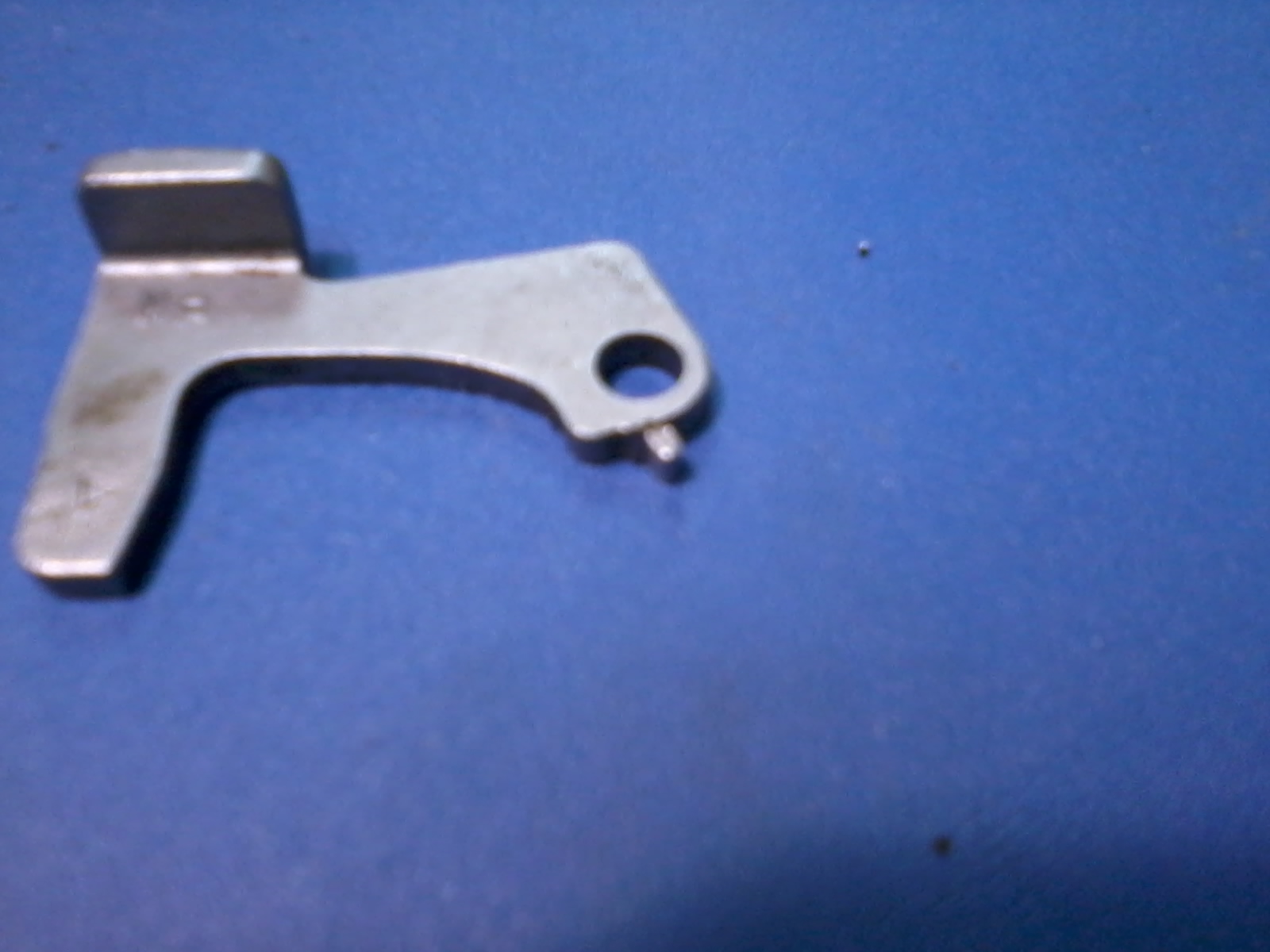

    It should look something like this
    Name:  Rossi 008.jpg
Views: 1179
Size:  294.7 KB

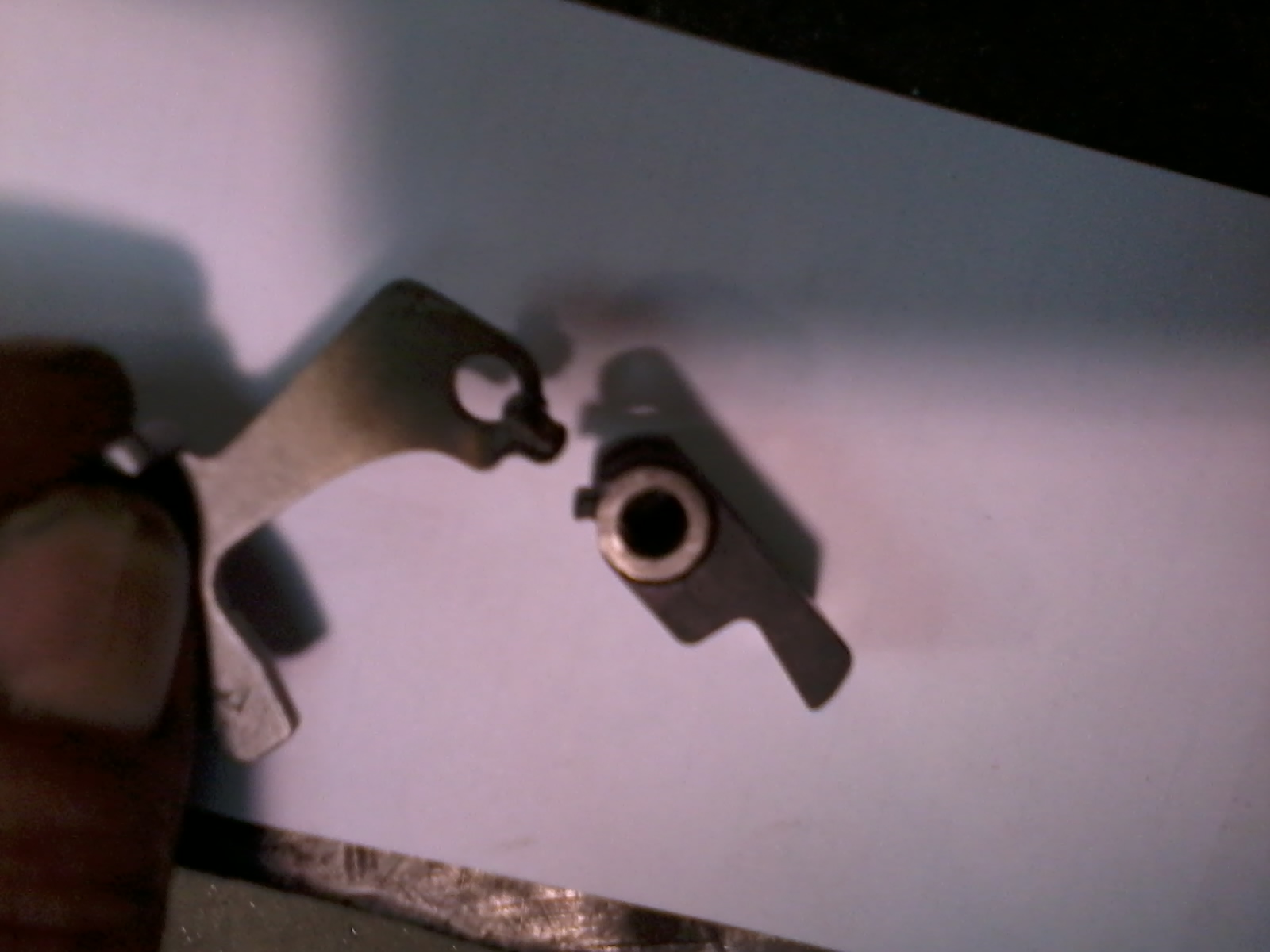

    I lightly prepped it and built it up using 507t toolsteel making sure to penetrate all the way threw into the hole to provide as large as possible dilution area for the dissimilar metals.
    Now iv got to clean it up and shape it.
    Name:  Rossi 011.jpg
Views: 1083
Size:  259.9 KB

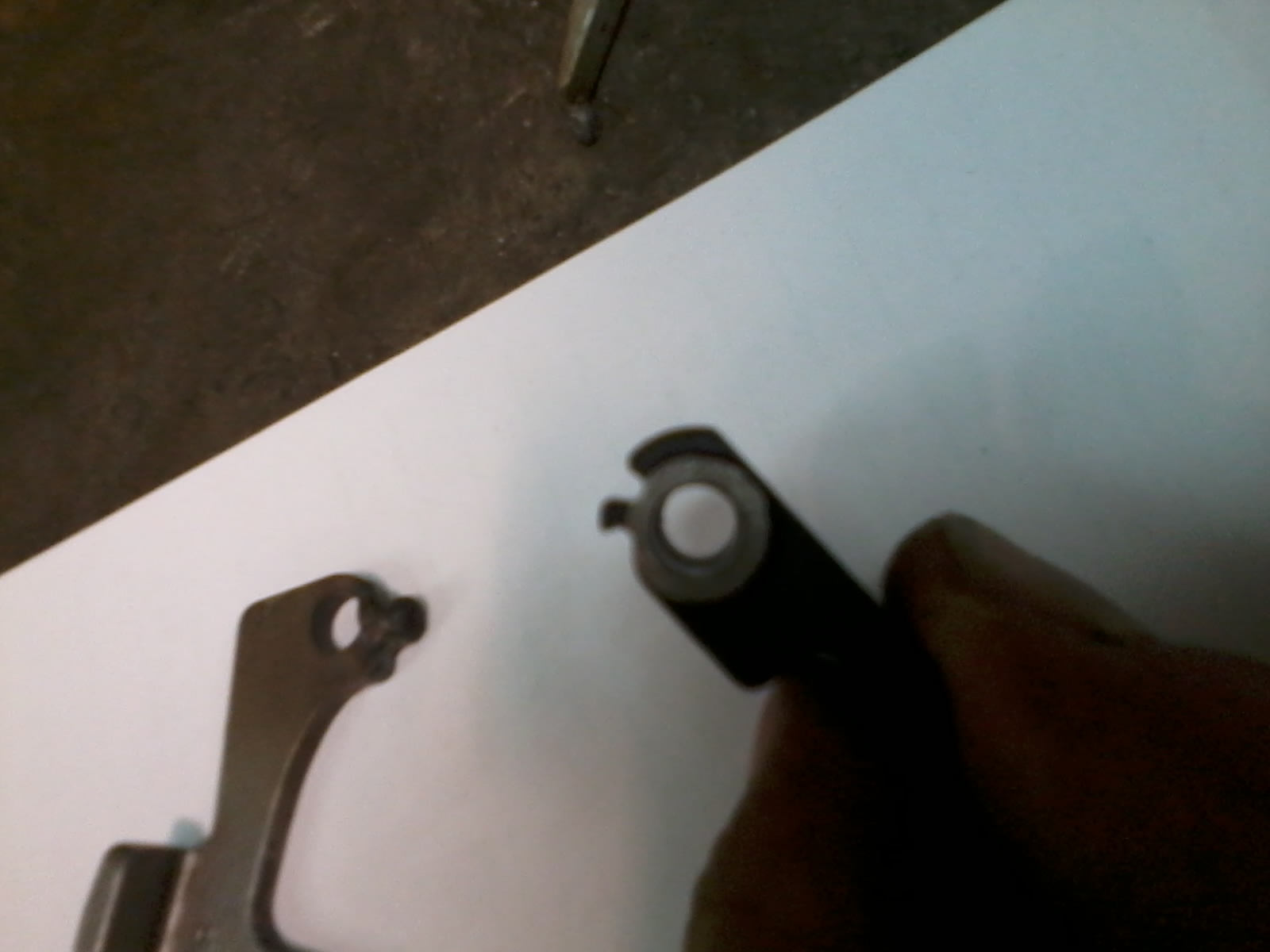

    The locking peice it engages only has a very small notch hence the pissy little tab.
    Name:  Rossi 013.jpg
Views: 959
Size:  259.0 KB
    I'm thinking I will open out this notch half a mm or so to enable the tab to be a bit beefier. At first glance i cant see a problem with this but will have to look further obviously.

    Then onto why it broke it in the first place, in theory there should be no load on that tab during firing unless the angles on the locking piece and barrel are creating thrust. The locking piece has obviously been on a stone and im picking is the cause
    Its still nice and tight when closed so hopefully I can remedy this without having to build it up and start from scratch.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  4. #19
    Official Cheese Shaman Spanners's Avatar
    Join Date
    Dec 2011
    Location
    Chch
    Posts
    6,385
    Quote Originally Posted by muzza View Post
    Spanners - Baikals are fussy on primers. You need to use a softish primer to get reliable ignition .
    My firing pin was too short to start with - send it back and they were going to replace - but I had hacked 6" off the barrel and attacked the wood
    So they gave it to gunsmith.
    Sweet now, but if it isnt shut with authority then it wont fire
    You can easy it shut and pull the open lever back down and its good - but if its not completely down then no go
    Its only fired a handful of rounds and still pretty tight

  5. #20
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,964
    Quote Originally Posted by muzza View Post
    Mate - you're a legend. Them "basic engineering skills " work wonders dont they ?

    Did you make a set of slave pins to help you reassemble it all? You will wish you had if you didnt ..... ;-)

    Give the trigger group bits a wee stone while you are in there. dO not over do it - the metal is rather soft compared to an NEF/Handi rifle so be cautious. You wont get a two pound trigger but you can get a smooth release that is way better than the original.

    Did I ment ion the slave pins ? And be careful reassembling or you can easily allow the trigger interupter bar to mis-align and then the trigger no go bangy when you pull it .....

    Have fun
    Cheers muzza
    I did think it might be a prick to get back together with my sausage fingers
    I thought of tapering the end of a pin to a point and following that threw with the actual pin, Is that what you mean?
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  6. #21
    Member
    Join Date
    Apr 2012
    Location
    Tuatapere
    Posts
    376
    Quote Originally Posted by veitnamcam View Post
    My Dads single shot 308 has always had problems with opening when firing.
    His "gunsmith" mate has had it for a year or so to fix that and shorten/suppress it and mount a scope.
    So I thought id have a play at making some subs for it
    Shot one opened
    Shot two opened
    Shot three failed to fire(very light firing pin strike) closed recocked and fired
    Shot 4 fired stayed closed and the open button is flopping round doing nothing.

    How do I open it and then sort out its issues. Out with the pin punches?
    There is no help for these pieces of shit

  7. #22
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,964
    Neither does 1872 posts
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  8. #23
    P38
    P38 is offline
    Member P38's Avatar
    Join Date
    Dec 2011
    Location
    Hastings
    Posts
    5,692
    Quote Originally Posted by muzza View Post
    Have to disagree Steveh.

    Obviously these rifles arent to your liking , but since the OP was seeking help, one would imagine if you arent able to offer any help then maybe you should STFU and say nothing..... 6 post does not an expert make .....
    Good on ya Muzza.

  9. #24
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,964
    Update couldnt be arsed shaping the opening lever tonight, maybe tomorrow
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  10. #25
    AB Precision
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    2,209
    Quote Originally Posted by veitnamcam View Post
    Update couldnt be arsed shaping the opening lever tonight, maybe tomorrow
    seen a couple of these little things in stirling sports today can they look good enough, never had a fiddle with it tho, was the new rem700 mountian rifle in there to, with its spindly little tube haha

  11. #26
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,964
    Quote Originally Posted by tui_man2 View Post
    seen a couple of these little things in stirling sports today can they look good enough, never had a fiddle with it tho, was the new rem700 mountian rifle in there to, with its spindly little tube haha
    Shes a budget rifle and it shows Abe, still no reason why it shouldn't function tho.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  12. #27
    AB Precision
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    2,209
    Quote Originally Posted by veitnamcam View Post
    Shes a budget rifle and it shows Abe, still no reason why it shouldn't function tho.
    they had a 243? looked quite tidy but way busy chasing the you fella around as he was doing the bolt, they have a bit of stuff in there now an some sharp prices to boot

  13. #28
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,964
    Quote Originally Posted by tui_man2 View Post
    they had a 243? looked quite tidy but way busy chasing the you fella around as he was doing the bolt, they have a bit of stuff in there now an some sharp prices to boot
    Yep beats the big green store
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  14. #29
    Member
    Join Date
    Apr 2012
    Location
    Tuatapere
    Posts
    376
    Quote Originally Posted by muzza View Post
    Have to disagree Steveh.

    Obviously these rifles arent to your liking , but since the OP was seeking help, one would imagine if you arent able to offer any help then maybe you should STFU and say nothing..... 6 post does not an expert make .....
    You are quite right I am not an expert nor do I claim to be, not even after 36 years of repairing ,building custom guns, sporterising of military arms and accurising all manner of firearms and working with such notables as Jeff Cooper (USA 4years) and a Belgium Gunmaker who specialised in military and long range firearms and custom guns (3years). I have also been a shooter of some not very fine and some extreme firearms since I was 7 years old. Was a general meat hunter and worked the choppers for a number of years.....but I still don't call myself an expert particuarly with the likes of a very clever person like you that has a lot of posts. Note: It is well known around gunsmithing circles that Rossi single shots are a piece of shit!

  15. #30
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,964
    Shaped up the lever with a fine cutting wheel and a quality small burr in a dremel(not the shit that comes with a dremel which is only marginally better than the shit that comes with a dremel copy)
    When I was getting close I lined up by eye with the holes on the outside of the action.
    Name:  Rossi 014.jpg
Views: 1131
Size:  7.1 KB
    I also opened the notch in the locking piece to allow a beefier tab(half a mm)
    When getting close I dropped pins in on the outside of action to check operation and went to wet and dry round a small file.
    Name:  Rossi 015.jpg
Views: 1157
Size:  7.3 KB

    Better than new.
    Name:  Rossi 019.jpg
Views: 1170
Size:  4.9 KB

    Once I actually thought about how it had to go together ( I just knocked it apart) what Muzza had said about pins became obvious and I cut the shank off a new 5mm drill bit as a "slave pin".......... Necessary to assemble parts under spring tension before putting into action.
    locking piece and firing pin thingie assembled on dill bit butt.
    Name:  Rossi 021.jpg
Views: 1156
Size:  6.3 KB

    The whole action went together a piece of piss, trigger and associated springs,levers etc took a couple of goes till i worked out to tape the trigger in the fired position. then all good

    Fiddled with a bit making sure it all worked closed it firmly on a sub and fired it into a block of wood

    Further testing with sub and full power ammo will have to wait. ( full power ammo in shop after hours probably not a good idea! )
