Thread: Lockdown light weight carbon wrap stock build - Here we go

  1. #106
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    Name:  20210902_085256.jpg
Views: 505
Size:  1.42 MBName:  20210902_085303.jpg
Views: 510
Size:  1.15 MBName:  20210902_085306.jpg
Views: 511

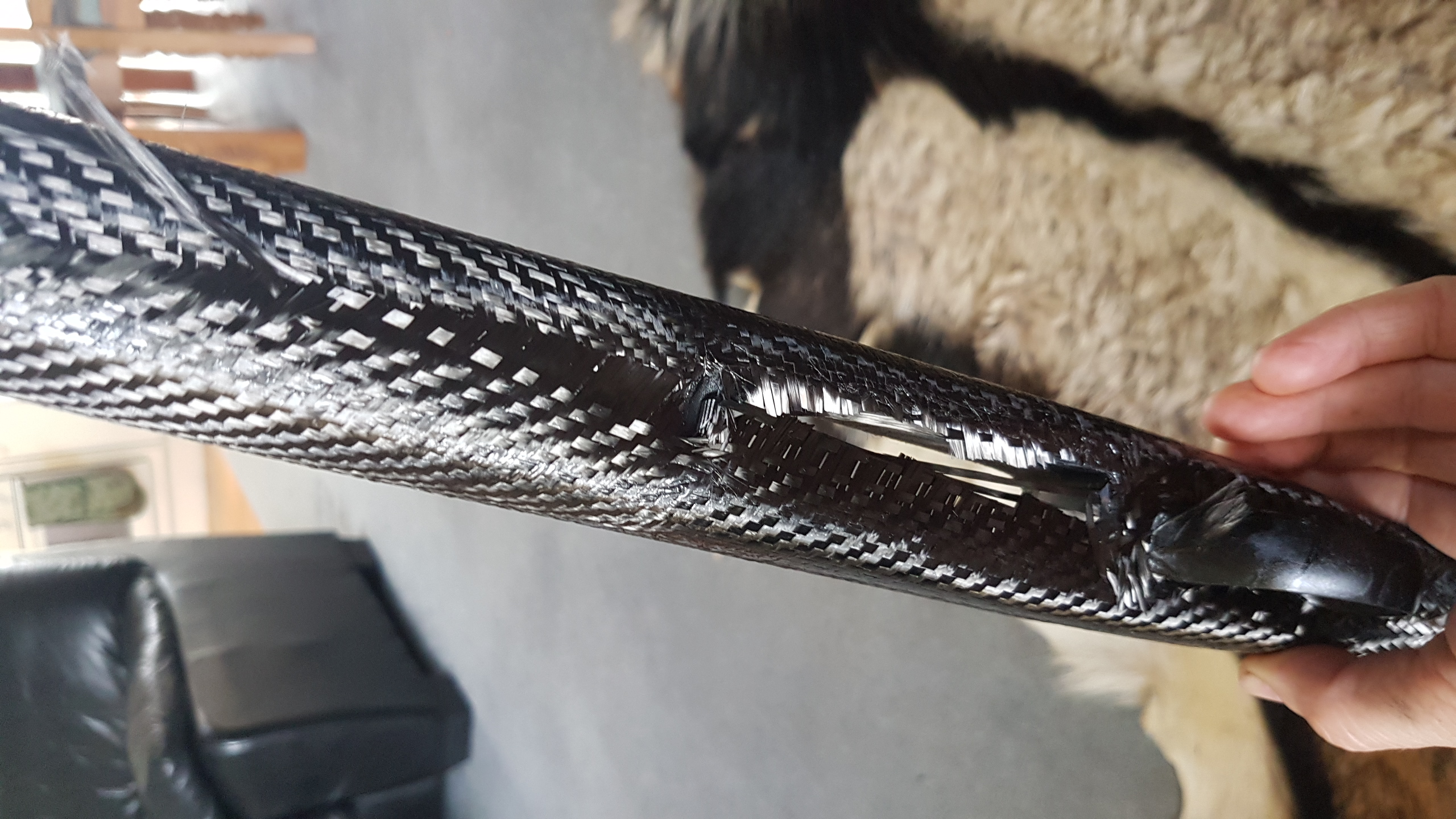

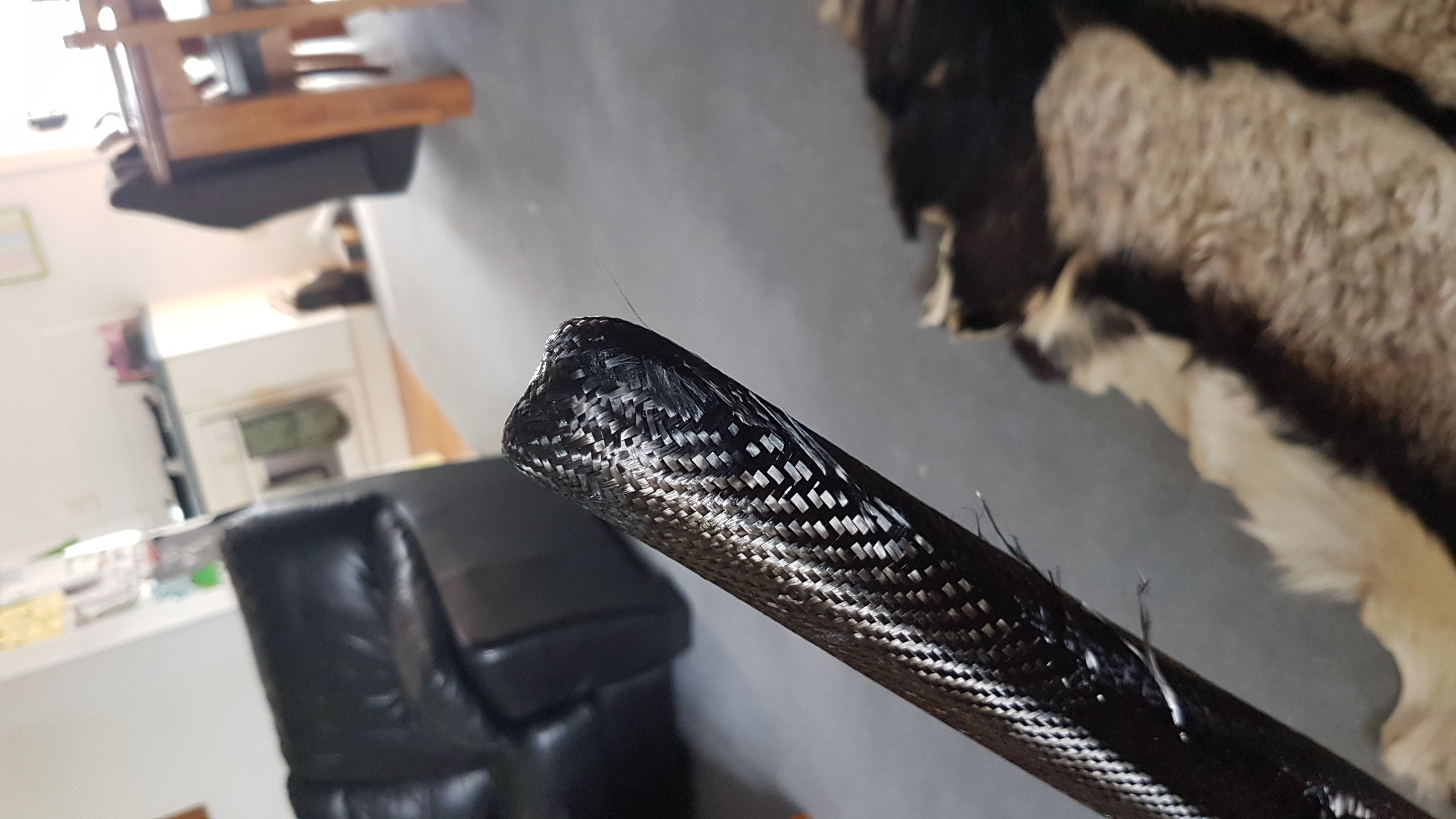

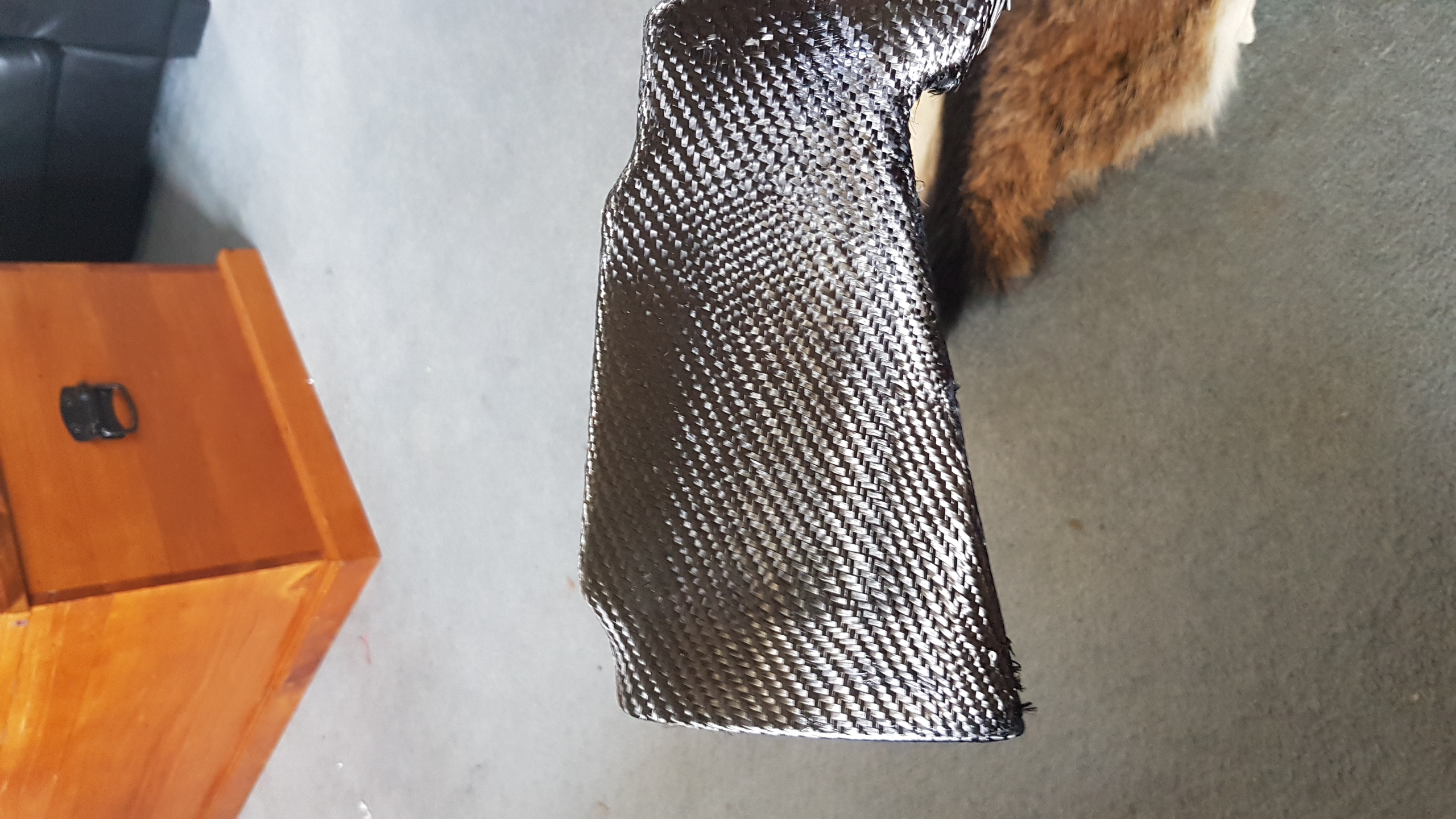

Size:  1.29 MB So its not terrible, the experience was tho lol. id not bed till after this next time... I'm not sure about the quality of this carbon but its what I had. Must have sharp scissors and tweezers and loads of gloves lol
    veitnamcam and Micky Duck like this.

  2. #107
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    12,763
    Have you weighed it?

  3. #108
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    I weighed it, sitting at just over 500g. then I trimmed a bit and started the next process

  4. #109
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    Name:  20210902_133944.jpg
Views: 481
Size:  1.52 MBName:  20210902_133953.jpg
Views: 478
Size:  1.62 MB

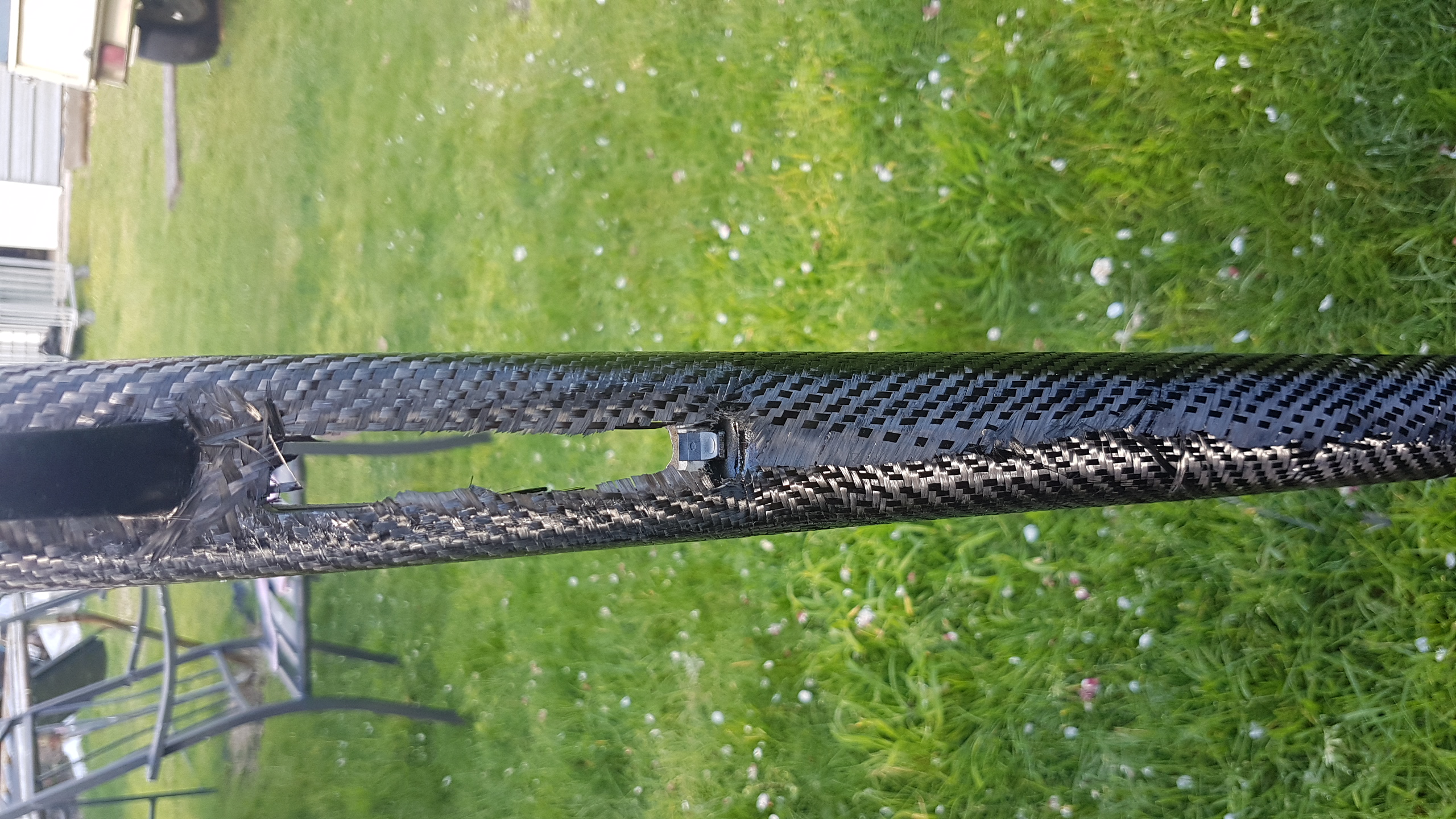

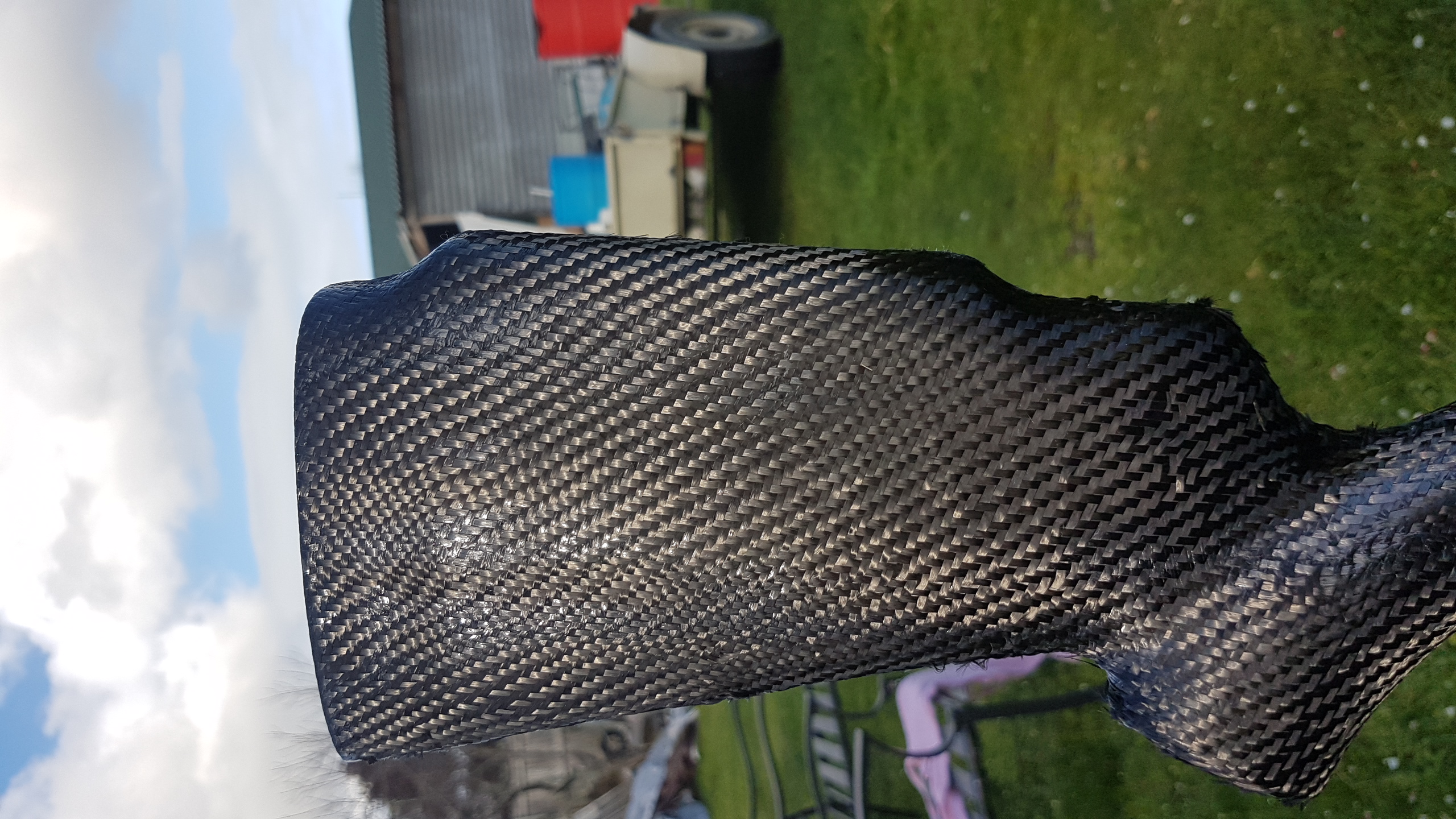

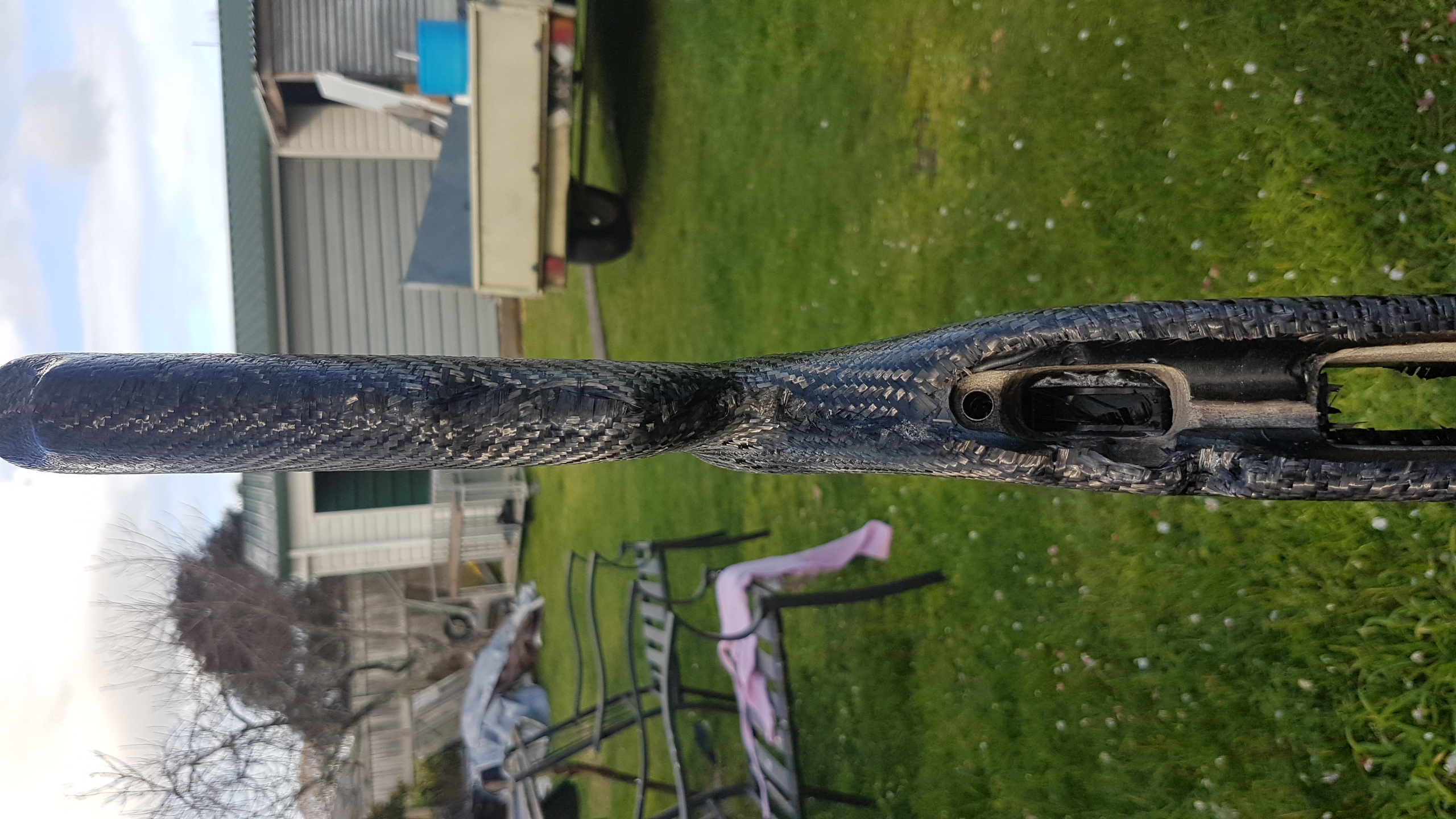

    So it trimmed up ready to coat with epoxy again. id definitely not bed it first when doing another... if I ever do another lol. Name:  20210902_133941.jpg
Views: 471
Size:  1.41 MB
    Last edited by Scott Cowan; 02-09-2021 at 07:20 PM.
    Joe_90 likes this.

  5. #110
    Member SPEARONZ's Avatar
    Join Date
    Aug 2019
    Location
    Nth island
    Posts
    396
    Great stuff. When you say you would bed it later, would you cut the inletting oversized and wrap the carbon over the edges?

  6. #111
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    Name:  20210902_163401.jpg
Views: 475
Size:  1.41 MBName:  20210902_163340.jpg
Views: 467
Size:  1.33 MBName:  20210902_163425.jpg
Views: 467

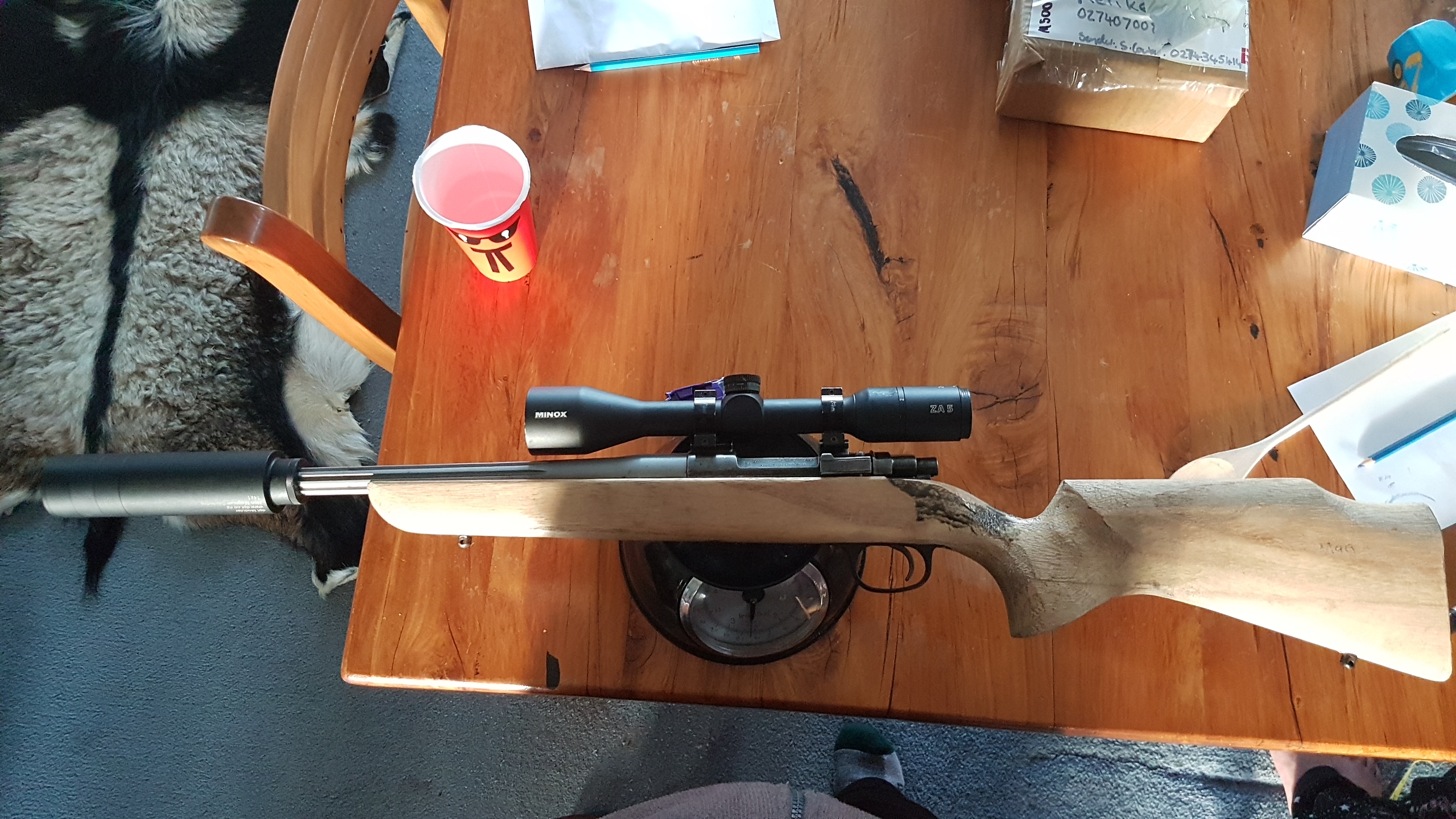

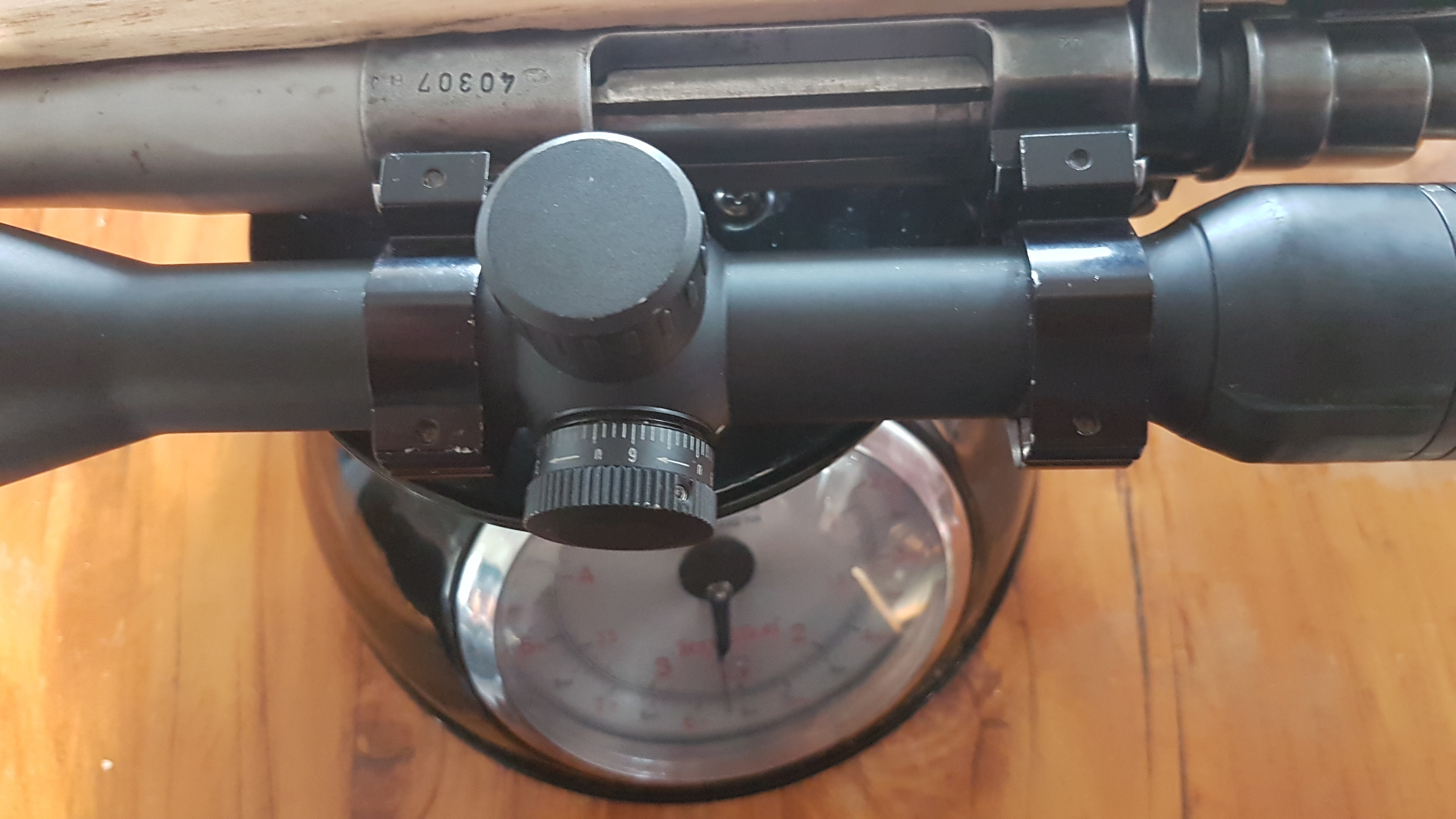

Size:  1.16 MB So this is the little Grendel. so light to carry. A bare Tikka t3 weighs 2.7KG aprox. so this has scope, rings and suppressor and still comes in under the weight of the bare Tikka rifle. I bought it as a 222 without a mag follower so its a single shot at present. I originally planned to carbon wrap the wrist but haven't got there yet. I am playing with the idea of fitting a tikka mag and bottom to this one also... would be even more tricky than the one I've just done as Id have to trim the back off a 223 mag as it wouldn't fit due to the trigger position. Maybe better to just find a mag follower lol... any thoughts guys?
    Tahr likes this.

  7. #112
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    yes id over cut the channel and wrap it, then bed after finishing the carbon process... at least that's what I think I'd do lol

  8. #113
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    4,301
    See if the Howa mini magazine and trigger guard would work.
    Scott Cowan likes this.

  9. #114
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    Name:  20210902_141000.jpg
Views: 432
Size:  1.61 MBName:  20210902_141017.jpg
Views: 427
Size:  1.47 MBName:  20210902_141010.jpg
Views: 432
Size:  1.42 MBName:  20210902_141023.jpg
Views: 417
Size:  1.35 MB

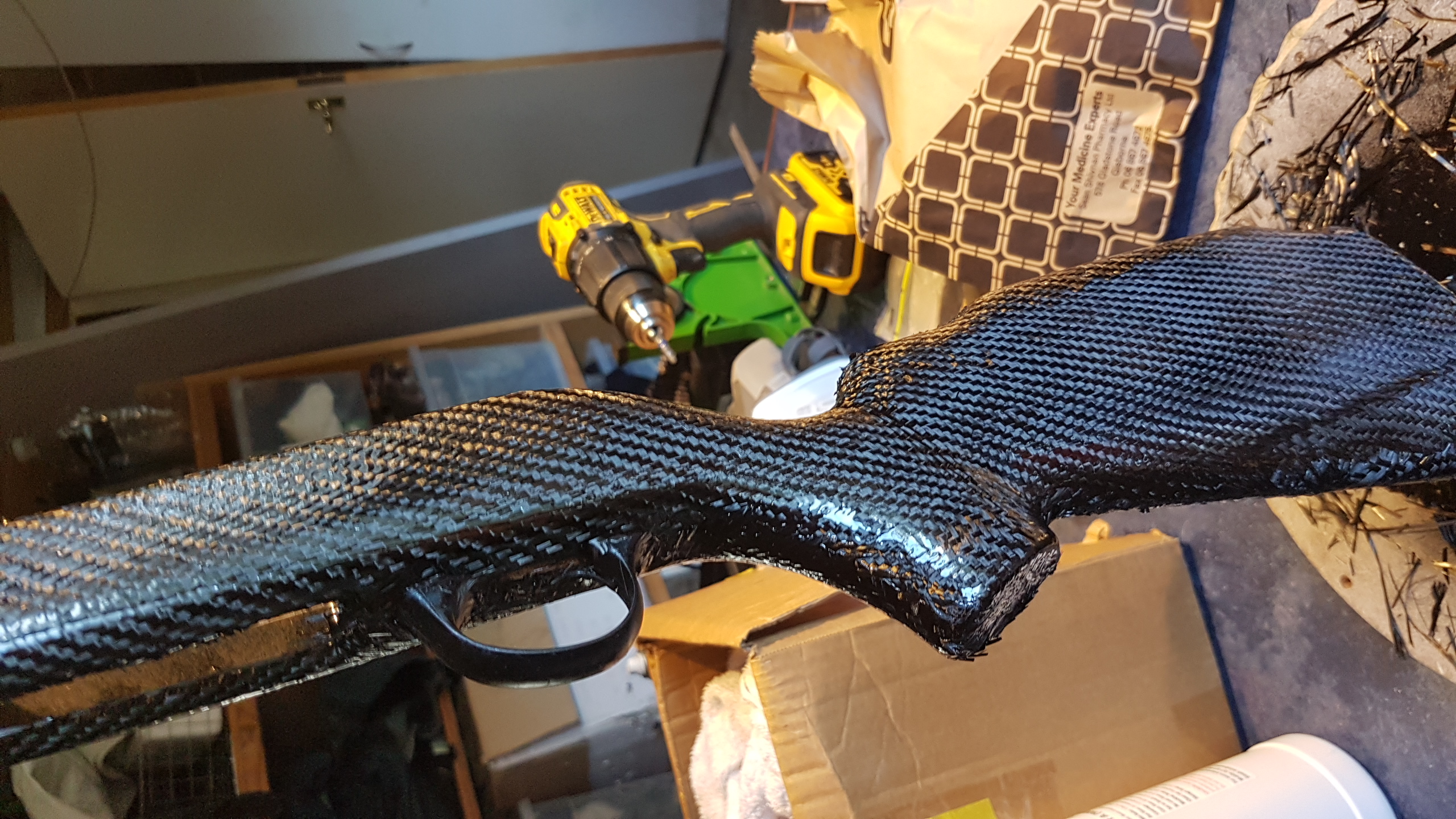

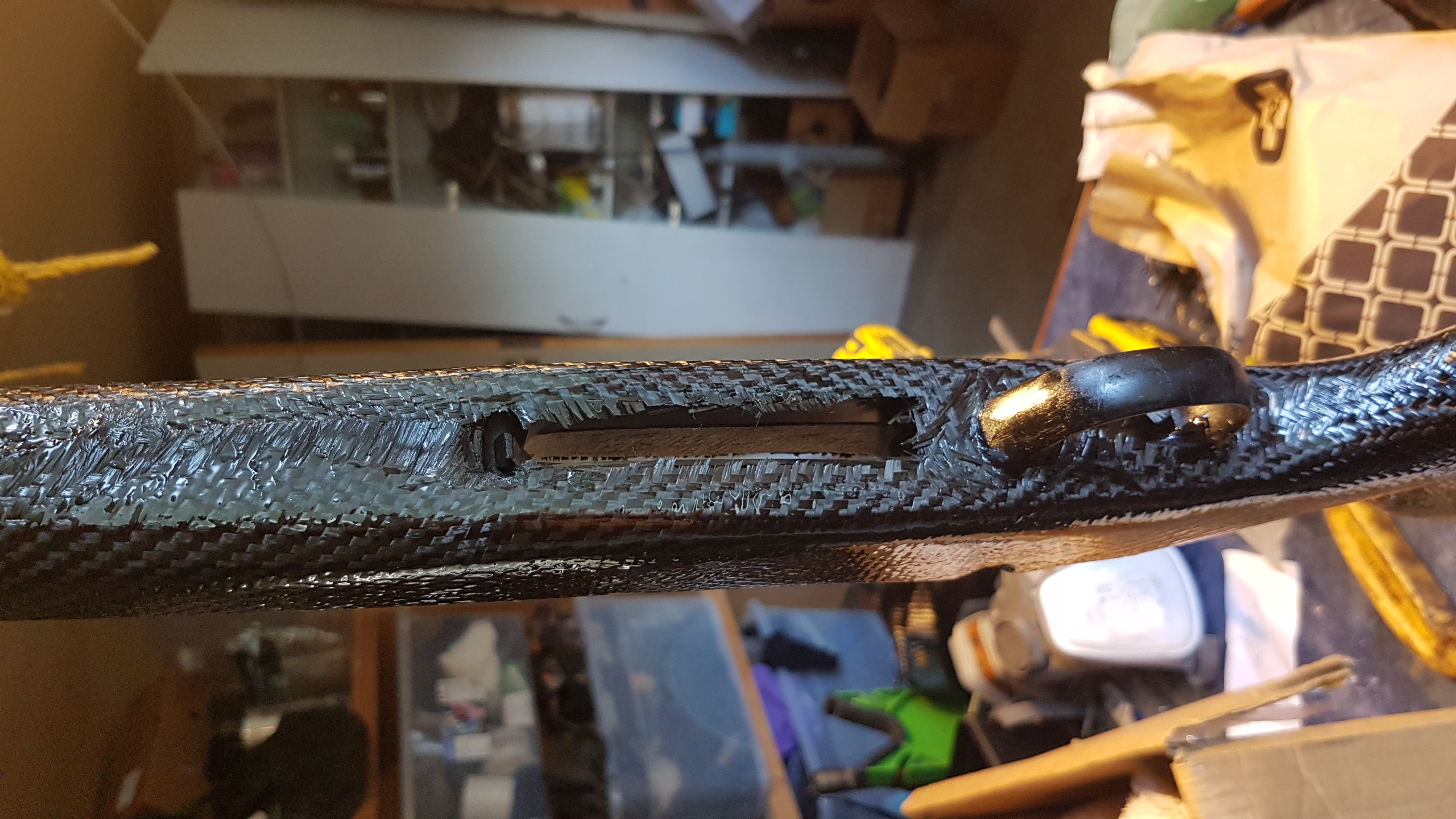

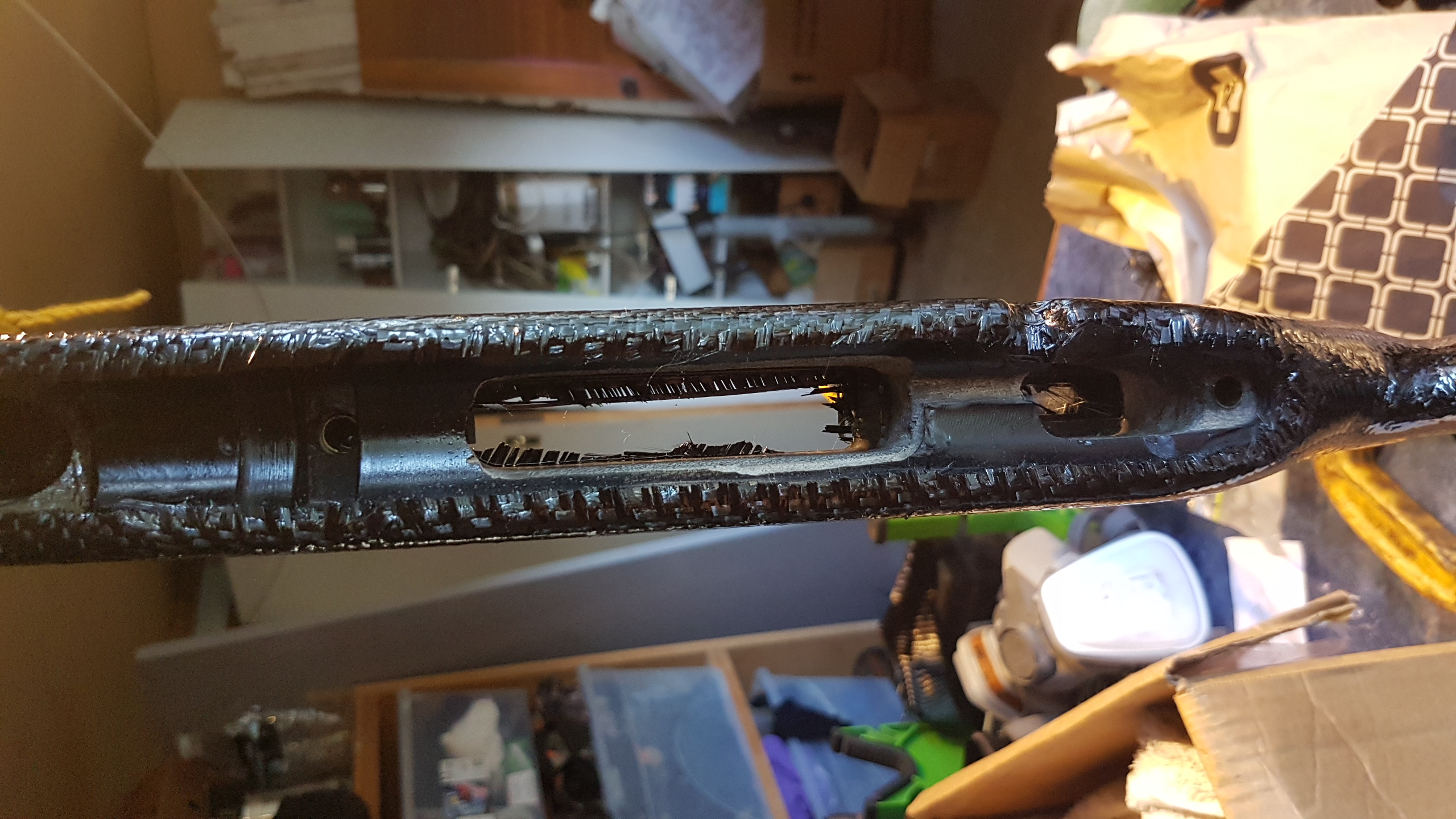

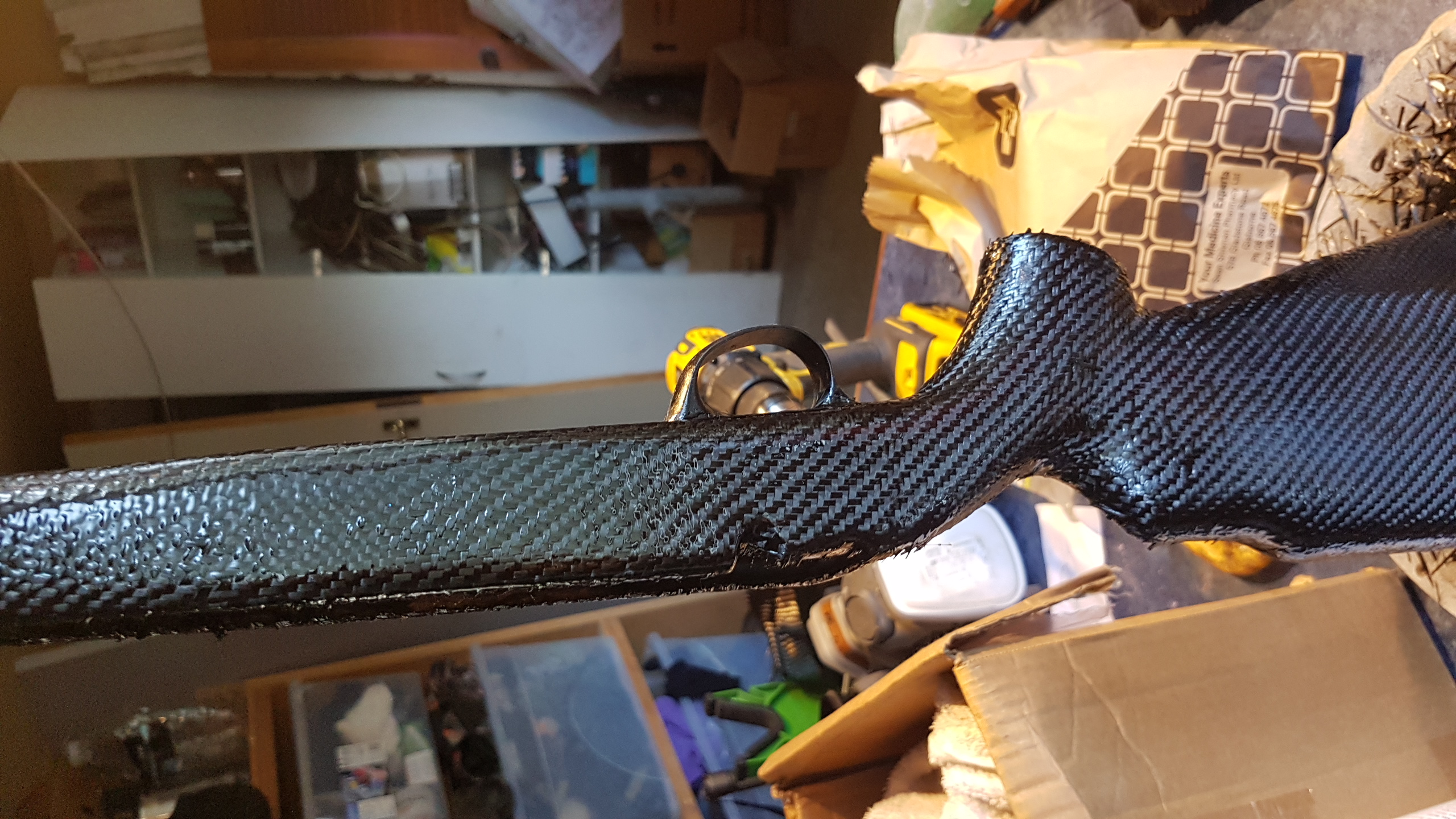

    curing well. bit of lifting and nibs that will need to be sanded off.

  10. #115
    Member mopheadrob's Avatar
    Join Date
    Jun 2018
    Location
    Christchurch
    Posts
    695
    I’ve been following this with interest, as I was thinking about doing a similar thing myself. I’d planned to use XPS insulation board, possibly laminated over a balsa-ply central stringer. What would be the pros & cons of using paulownia instead? And does anyone know if anyone stocks it in Christchurch, or would I need to get some sent down from the growers in Hamilton?
    Micky Duck likes this.

  11. #116
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    Name:  20210902_165452.jpg
Views: 380

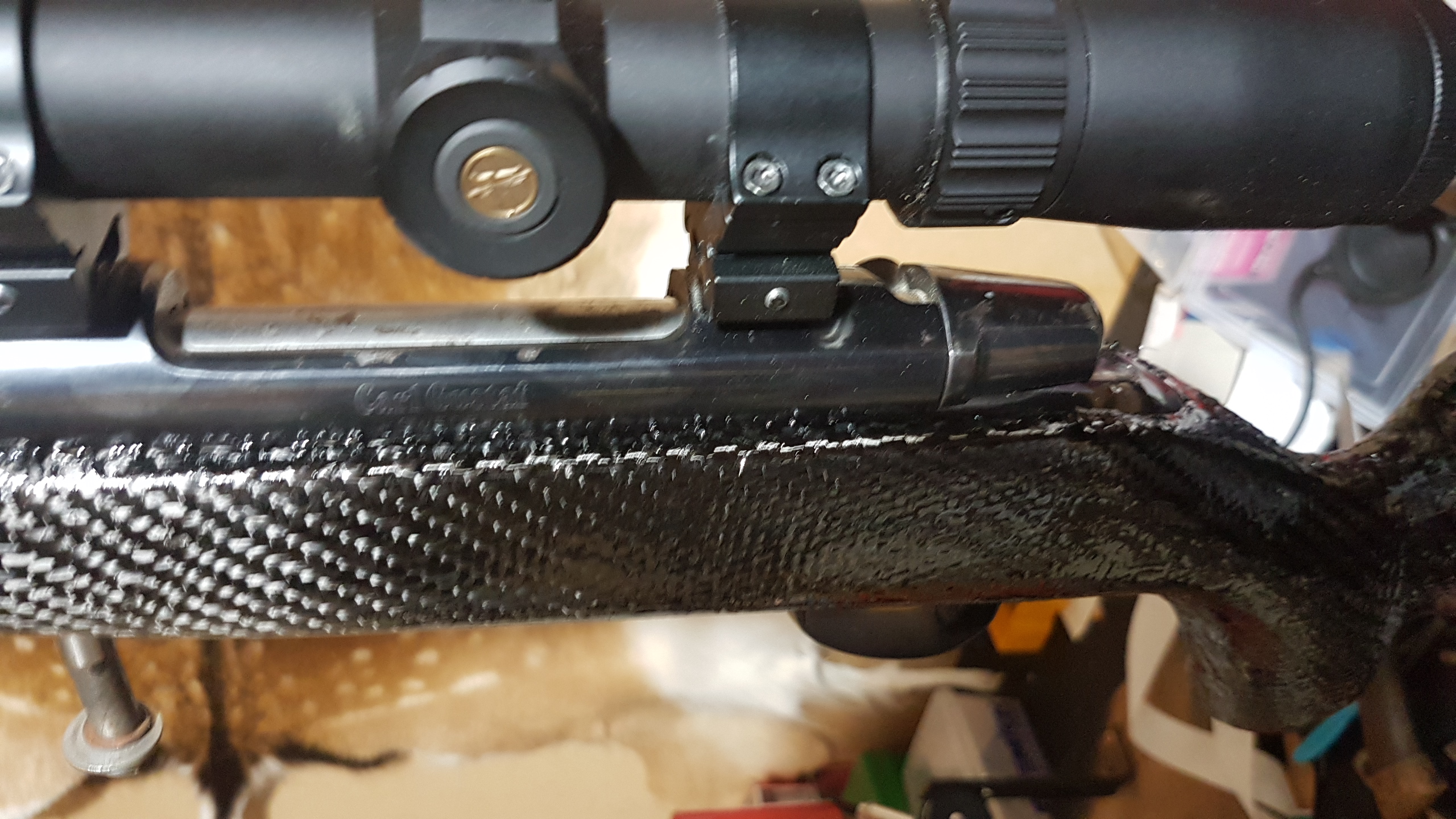

Size:  1.40 MB So I did this before the resin set.... was it a good idea? of course I buffed the action with nugget. there was too much fiber sitting off the top edge so I figured the action would squash it down and ill be re bedding it anyway. will i have issued breaking it free I wonder...lol

  12. #117
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    Name:  20210903_103503.jpg
Views: 353

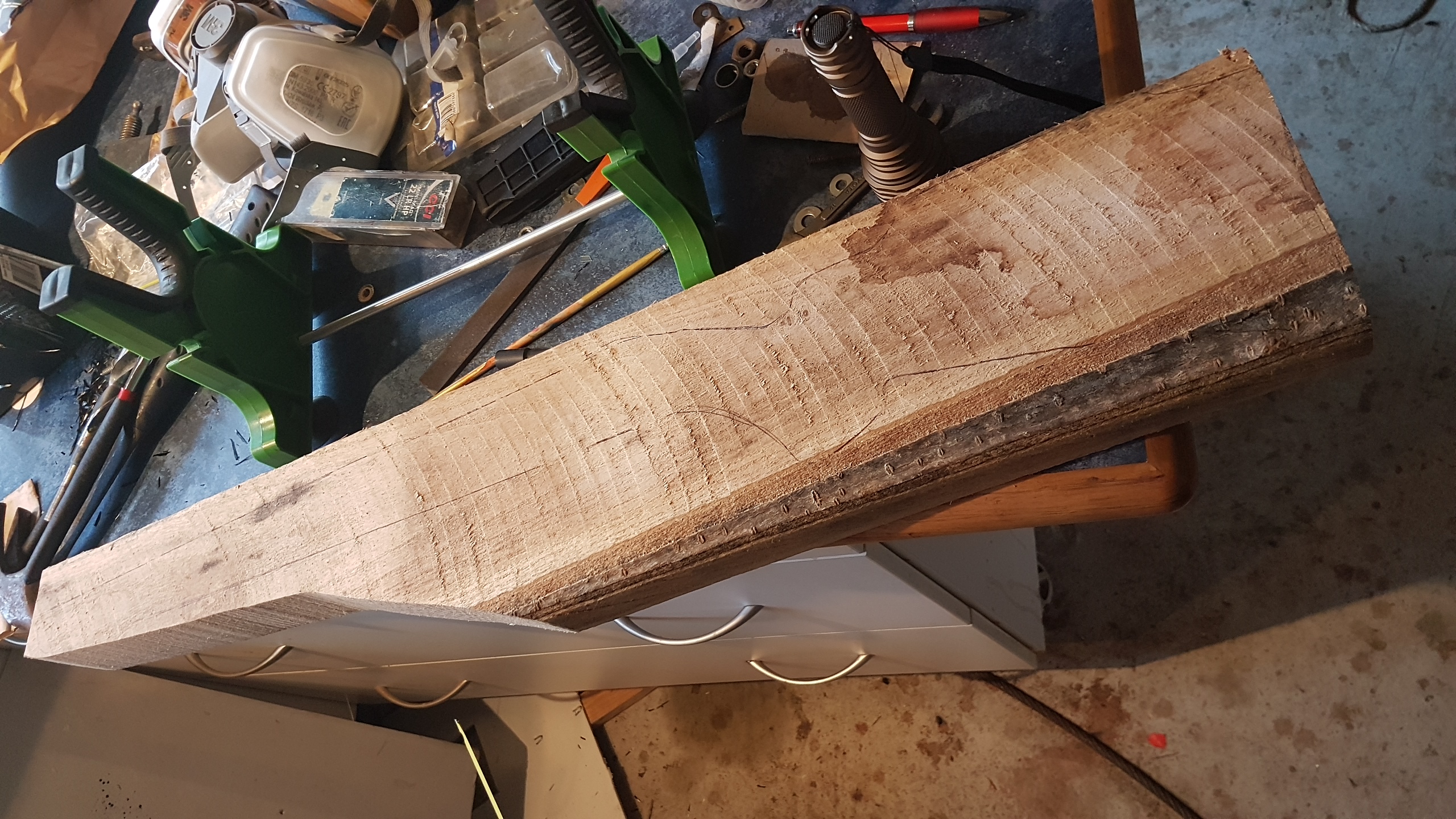

Size:  1.52 MB So this is what it started out looking like
    Micky Duck likes this.

  13. #118
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,797
    out of interest...as Im plurry positive others want to ask...how much did that stick cost you????
    the off cut you can post to Gibo...he will get at least 1 maybe 2 lures from it LOL.

  14. #119
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    Name:  20210903_191958a.jpg
Views: 316
Size:  916.6 KBName:  20210903_192018a.jpg
Views: 314
Size:  862.4 KBName:  20210903_192024a.jpg
Views: 316
Size:  846.5 KB

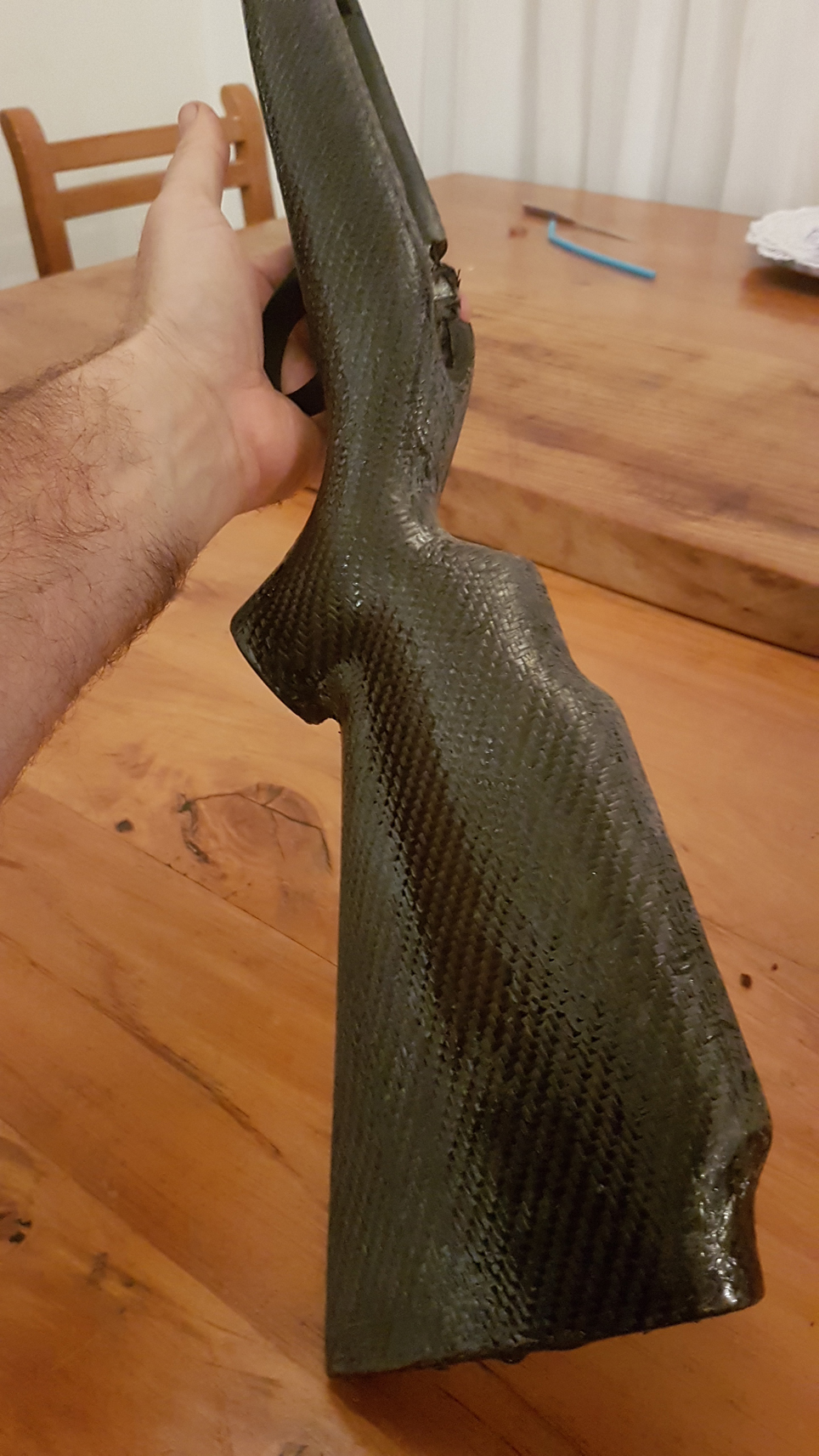

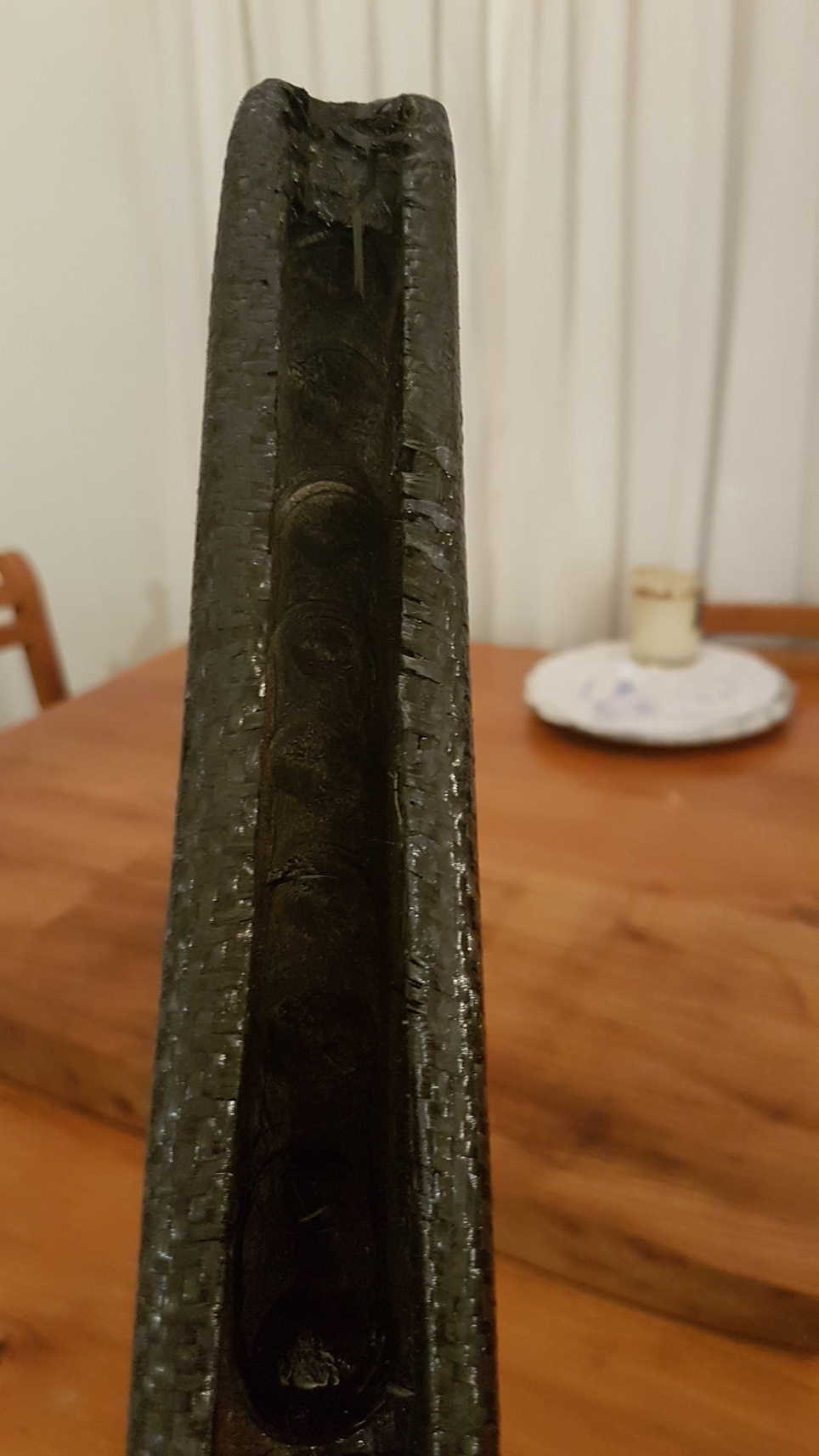

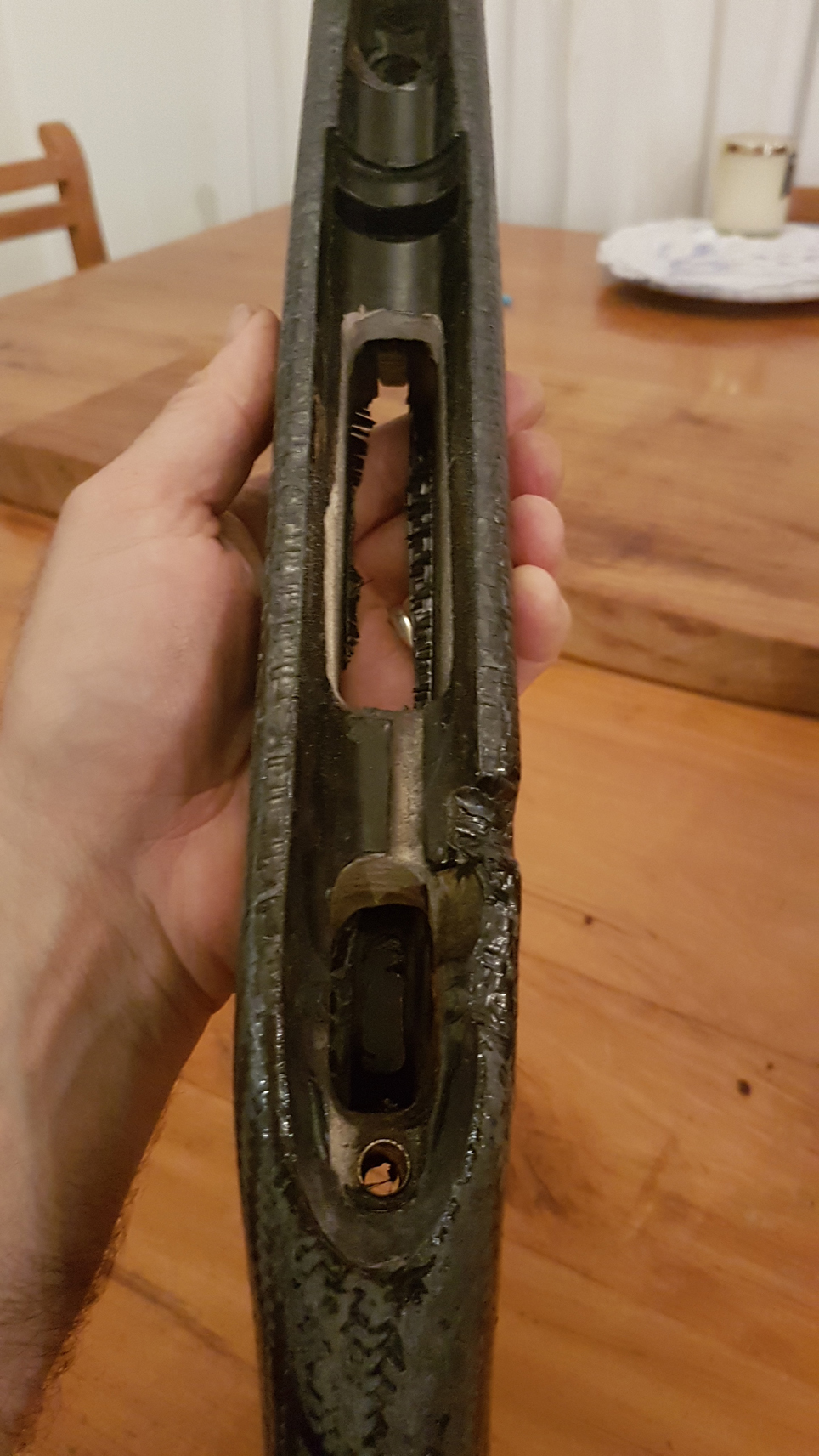

    Man I was relieved it popped out clean. time for sanding the nibs off then sanding the whole surface ready for next coat. I may let each coat harden and sand back between coats to keep it as light as possible.
    veitnamcam, FRST and Joe_90 like this.

  15. #120
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    Name:  20210903_191948a.jpg
Views: 602

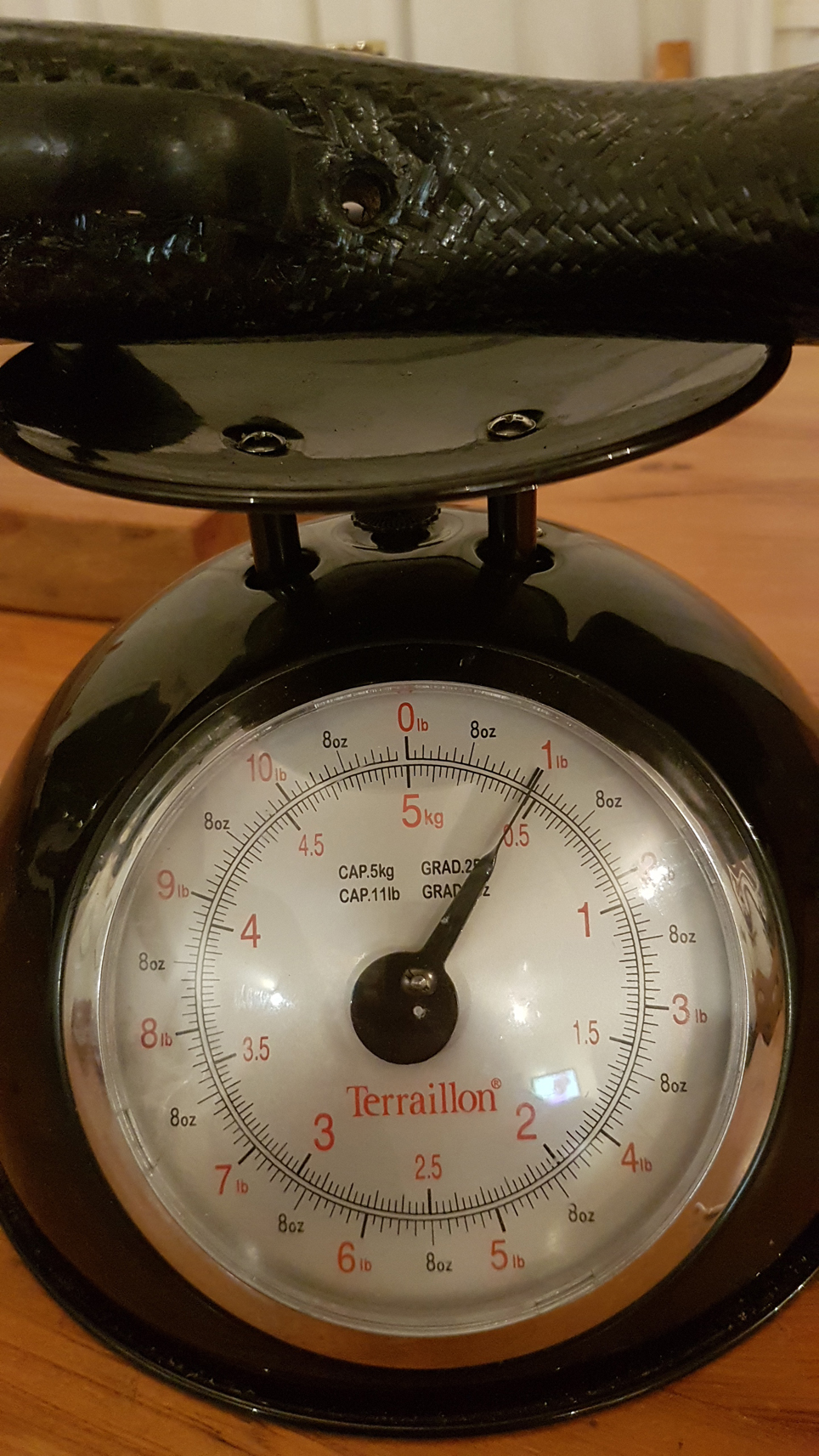

Size:  1,022.5 KB would love to keep it sub 600g if possibleName:  20210903_191948a.jpg
Views: 602
Size:  1,022.5 KB... I might be dreaming lol
