Thread: Lockdown light weight carbon wrap stock build - Here we go

  1. #121
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801

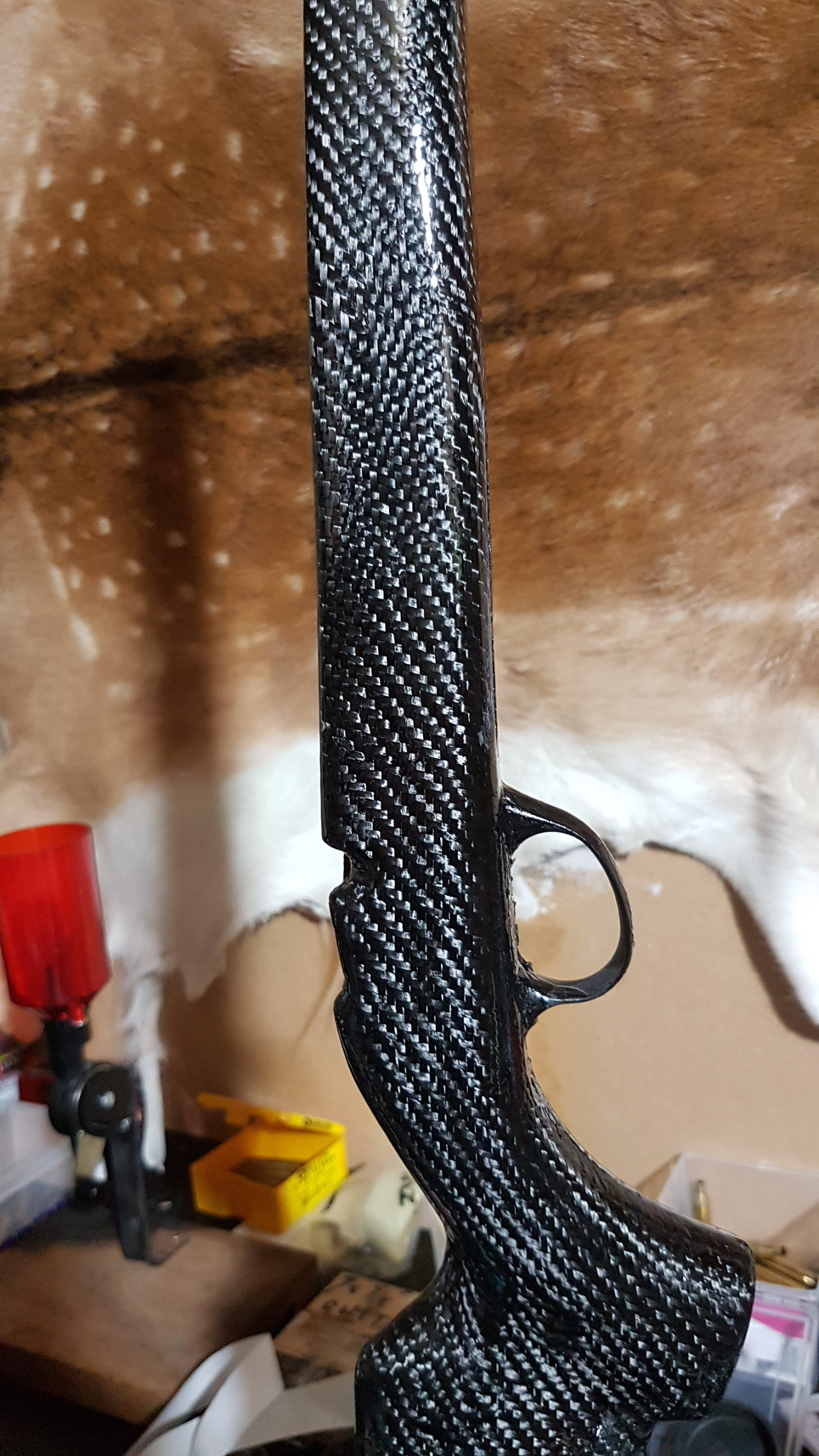

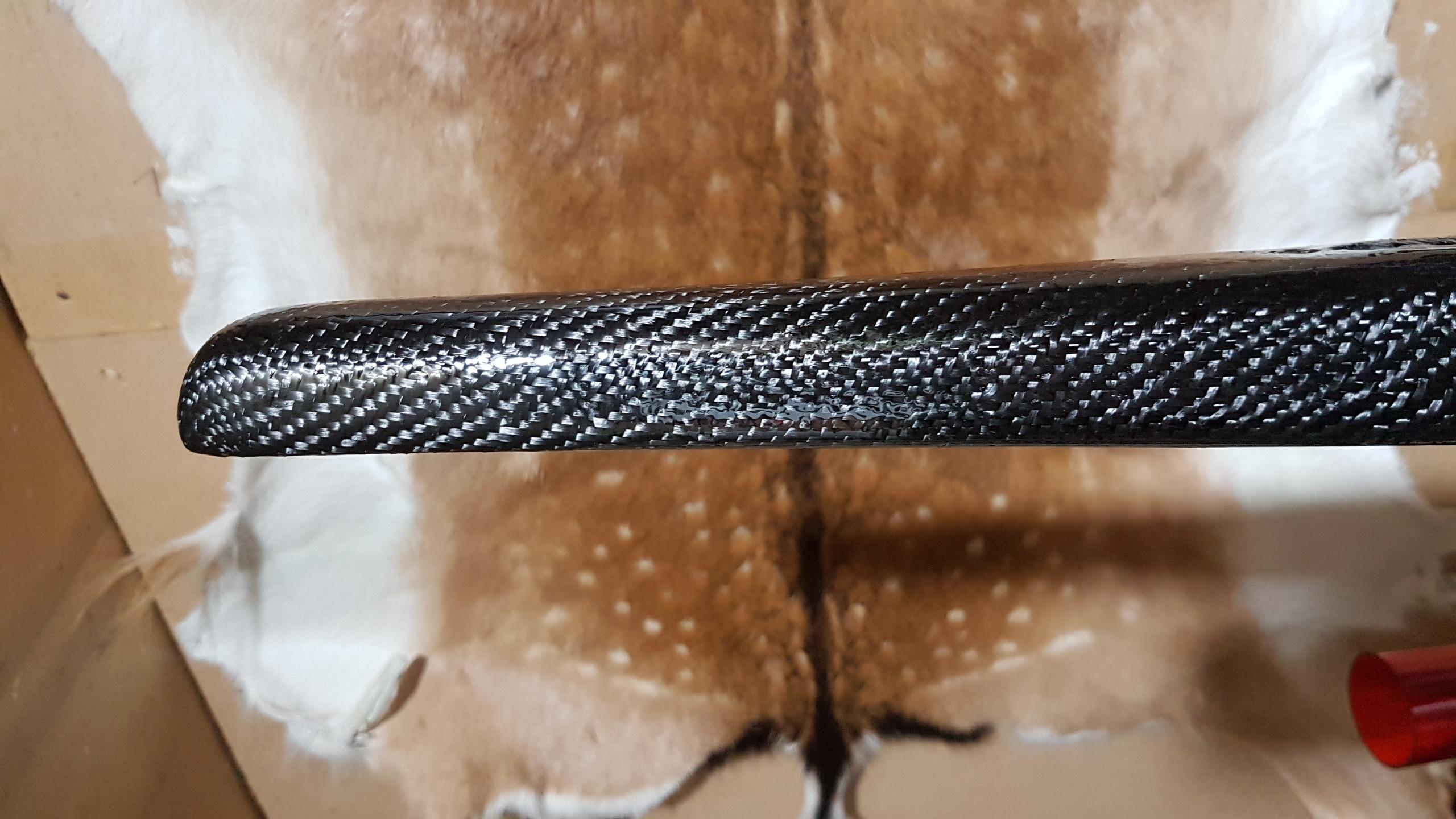

    Name:  20210903_233834a.jpg
Views: 593
Size:  1.07 MBName:  20210903_233837a.jpg
Views: 559
Size:  316.8 KB next coat done

  2. #122
    Member chainsaw's Avatar
    Join Date
    Jul 2014
    Location
    Norf
    Posts
    5,771
    Coming together nicely

  3. #123
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801

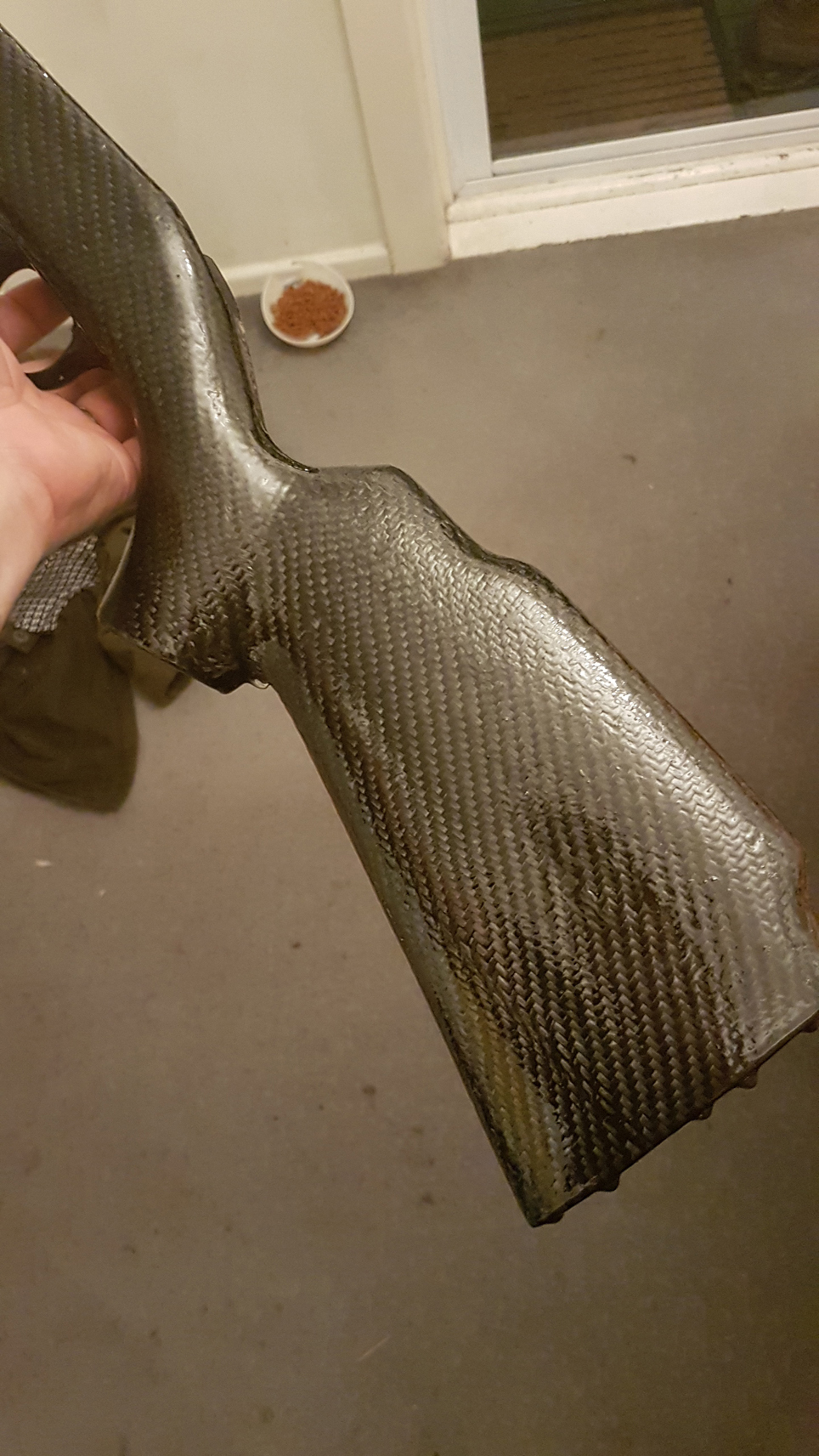

    Name:  20210904_203224a.jpg
Views: 531
Size:  873.3 KBName:  20210904_203241a.jpg
Views: 560
Size:  928.7 KB
    that coat went well, didnt gain much weight. will finish below 600g im confident of that now. Still curing, will sand again tomorrow. sorry its so slow guys lol
    Tahr, veitnamcam, Spoon and 3 others like this.

  4. #124
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,797
    how much did blank plank cost?????

  5. #125
    Member
    Join Date
    May 2020
    Location
    Gore
    Posts
    168
    Looks bloody good

  6. #126
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    Ill have to monitor the next coat while it dry's and use the hair dryer to sort the bubbles out.

  7. #127
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801

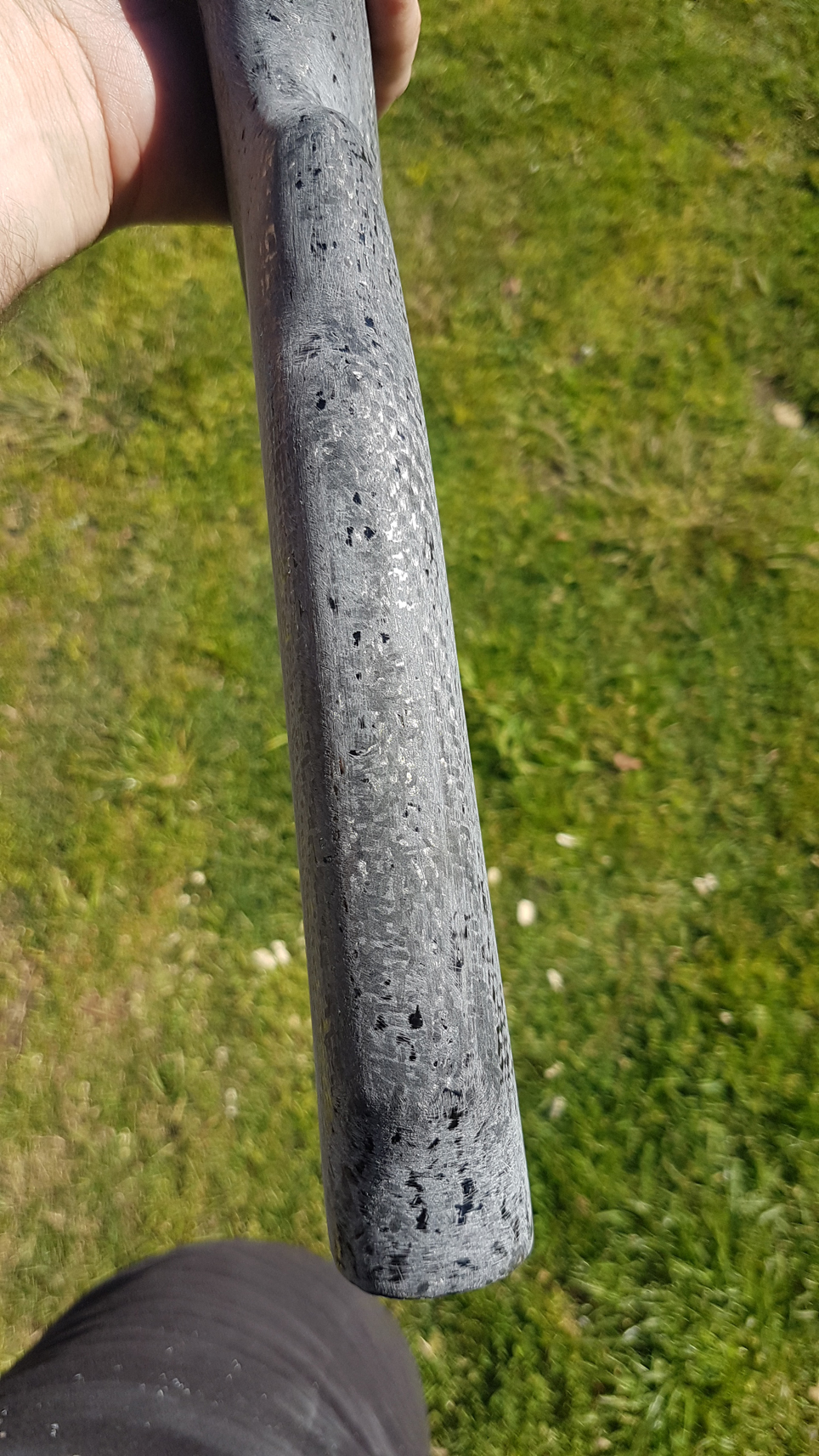

    Name:  20210905_132758a.jpg
Views: 495
Size:  1.50 MBName:  20210905_132812a.jpg
Views: 482
Size:  1.15 MBName:  20210905_132802a.jpg
Views: 486
Size:  1.34 MB
    Sanded up and ready for the next coat. If you are going to try this at home be prepared to fix some stuff ups. I had to resin a few carbon strands on in a couple spots where I was too vigorous on the sanding.
    Id try find carbon that was on a roll next time as the folds in my carbon fabric from China are visible in the pattern in a couple places.
    Micky Duck likes this.

  8. #128
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801

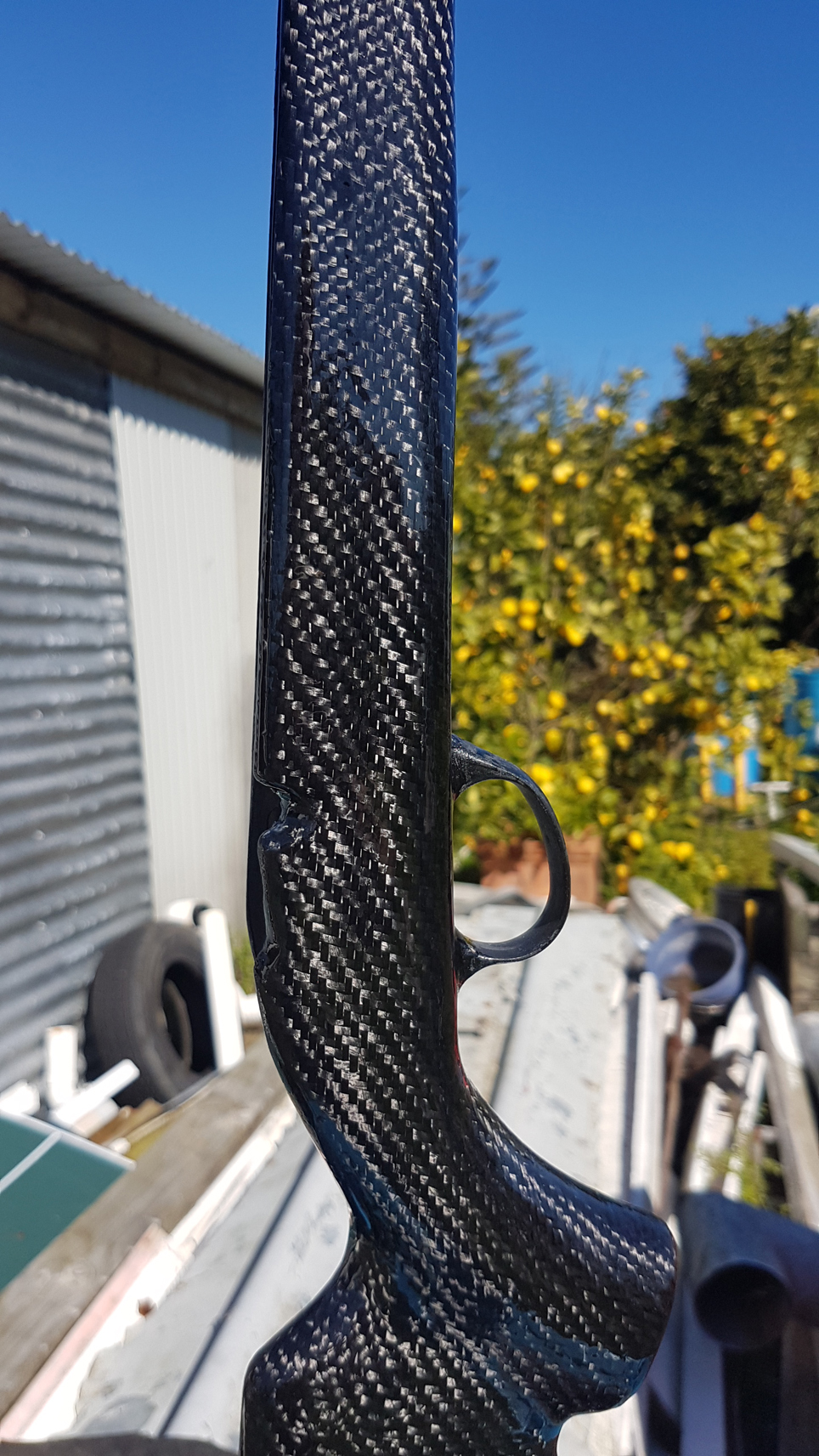

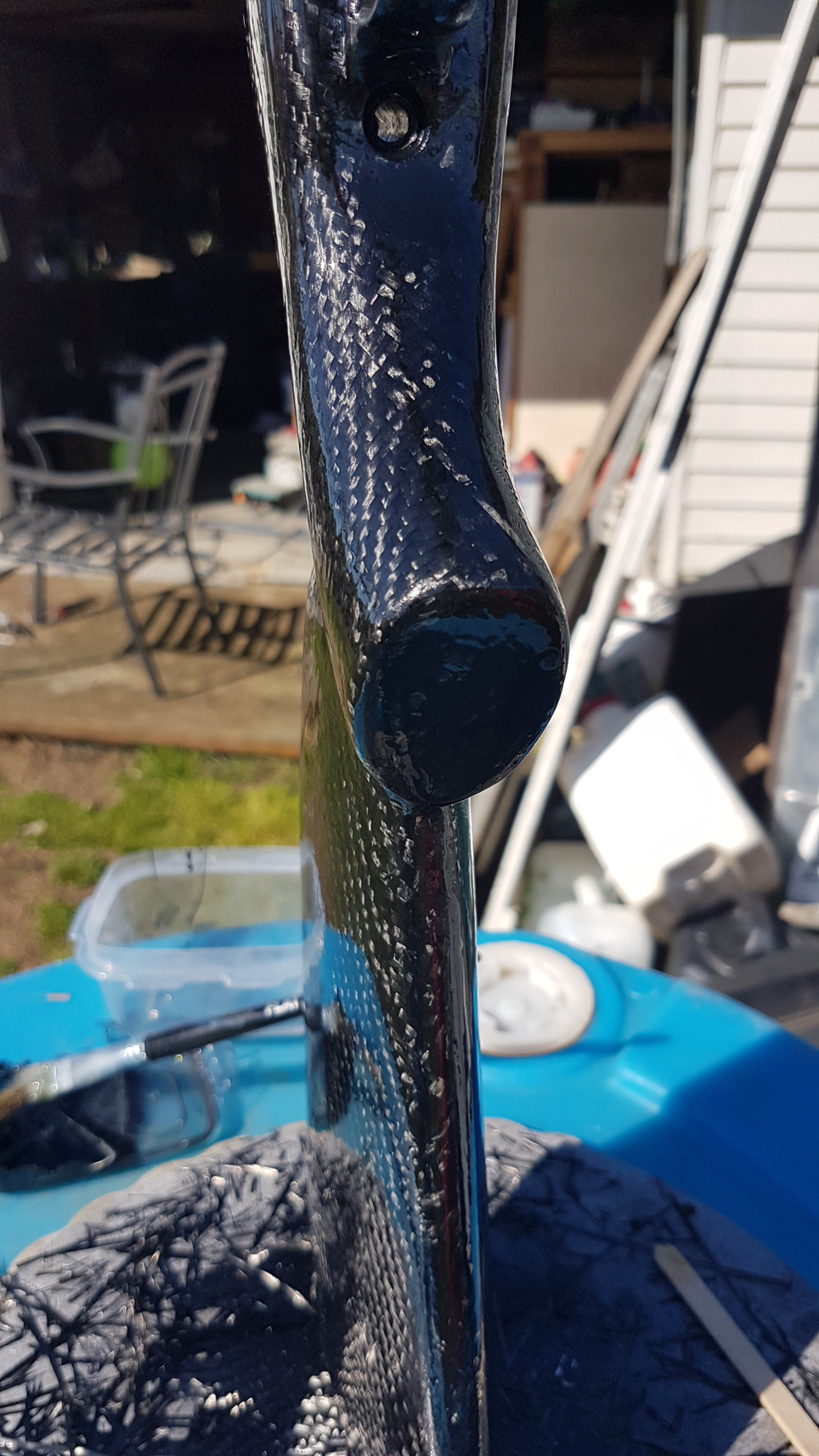

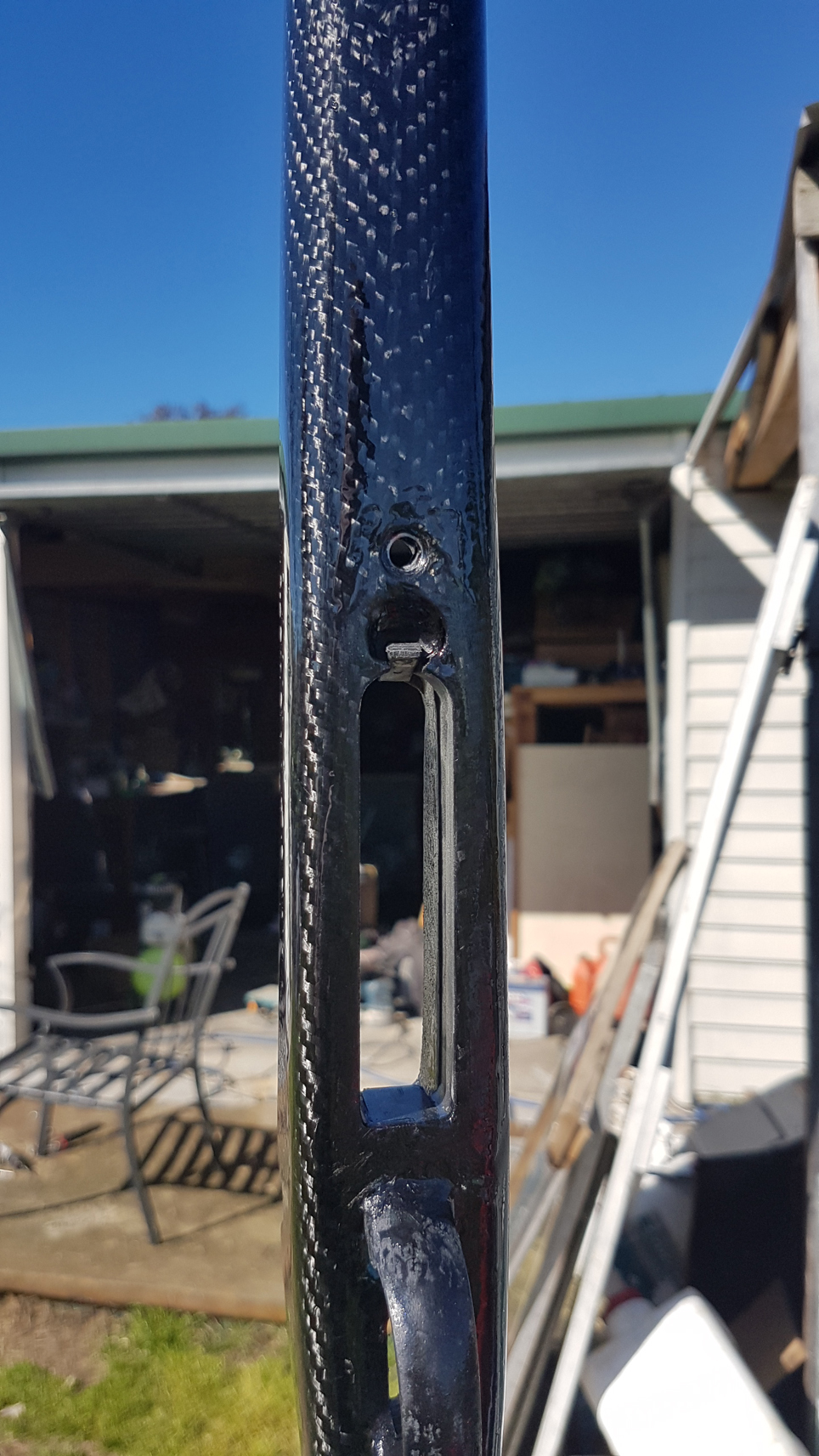

    Name:  20210905_135344a.jpg
Views: 463
Size:  1.05 MBName:  20210905_135339a.jpg
Views: 473
Size:  1,017.7 KBName:  20210905_135337a.jpg
Views: 463
Size:  933.6 KB
    Got time to coat it this morning, next time id look for a more suitable resin, this one doesn't coat well, forms drips and bubbles to easily and cure time is double what most people use... but lockdown... had to use what I could get.

    AND HAPPY FATHERS DAY! especially to all the guys who for what ever reason are separated from their kids, and I don't mean lockdown separation, I mean legal separation or busted connection separation. In my line of work we have seen the craziest busted Dad and kids relationships restored, yeah it can take some years of grief but its worth holding on to all the hope for a better future you can get. Hang in there Dads hope is on His way.
    Peace
    Name:  20210905_171013[1].jpg
Views: 478
Size:  2.17 MB
    veitnamcam, FRST, Monk and 9 others like this.

  9. #129
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    12,763
    Good on all counts

  10. #130
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    647
    Looking good.
    When you mix your resin don't stir it. Cut it like a knife with a popsicle stick back and forth with the odd very slow stir. Reduces bubbles in your resin before you start
    Micky Duck and Scott Cowan like this.

  11. #131
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801
    Thanks Remmodel7 I did this on the last coat ands much reduced bubbles. Ill let it cure now and rub it back with fine grit and probably apply a matt spray finish to reduce the glare
    Micky Duck likes this.

  12. #132
    Member
    Join Date
    Oct 2020
    Location
    Gisborne
    Posts
    801

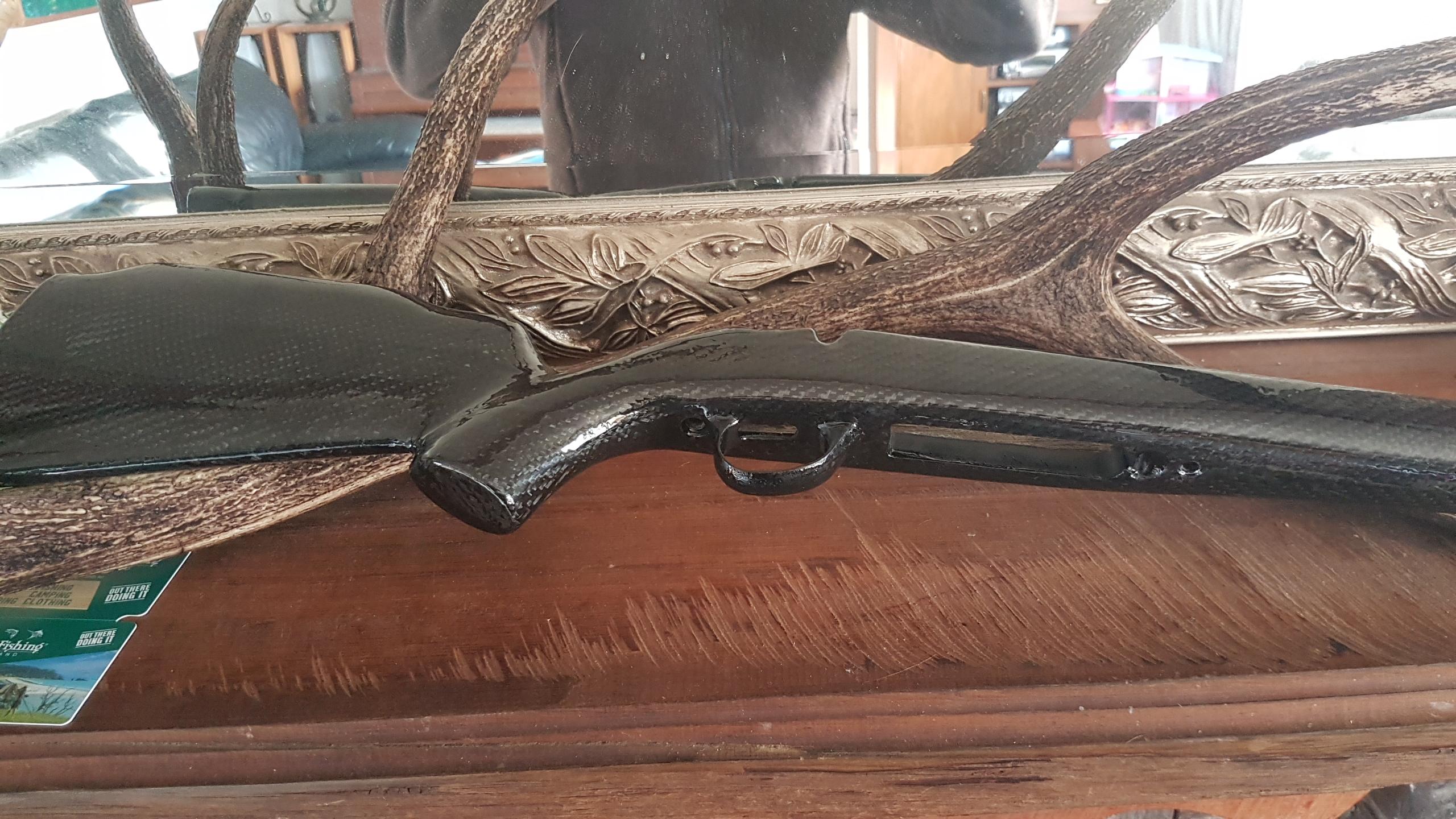

    Name:  final.jpg
Views: 368
Size:  497.9 KB Man this resin takes days to final cure!
    Tahr, takbok, Liam258 and 2 others like this.

  13. #133
    Member Liam258's Avatar
    Join Date
    Mar 2018
    Location
    Waipu
    Posts
    238
    It’s looking awesome mate! I’m looking forward to seeing the final product!
    Preacher likes this.

  14. #134
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,480
    I remove bubbles with a lick of the gas torch
    janleroux and Scott Cowan like this.

  15. #135
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,480
    Also warm up your epoxy in warm water before mixing and applying. Removes the majority of bubbles
    Scott Cowan likes this.
