Thread: Machinist/Gunsmiths Muzzle Threading Query

  1. #1
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,190

    Machinist/Gunsmiths Muzzle Threading Query

    Have two rifles with threaded Muzzles and was having a look and thought neither looks like what I thought I remembered my old threaded rifles looked like.

    One doesn't seem to have a square shoulder and one doesn't seem to have a relief cut.

    Is this just different ways to suck eggs or something to have looked at?

    I don't know much about this side of things so thought I'd ask the NZHS forum.

    Don't know if it matters but ones for a brake and one a suppressor.

    Cheers,
    Cam

  2. #2
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,190
    To clarify this is a query not a criticism as I have not real experience. The one with the relief cut I think just looks like it's not a square shoulder as the relief is a radius.
    Name:  IMG_20210804_174017.jpg
Views: 504
Size:  2.89 MB

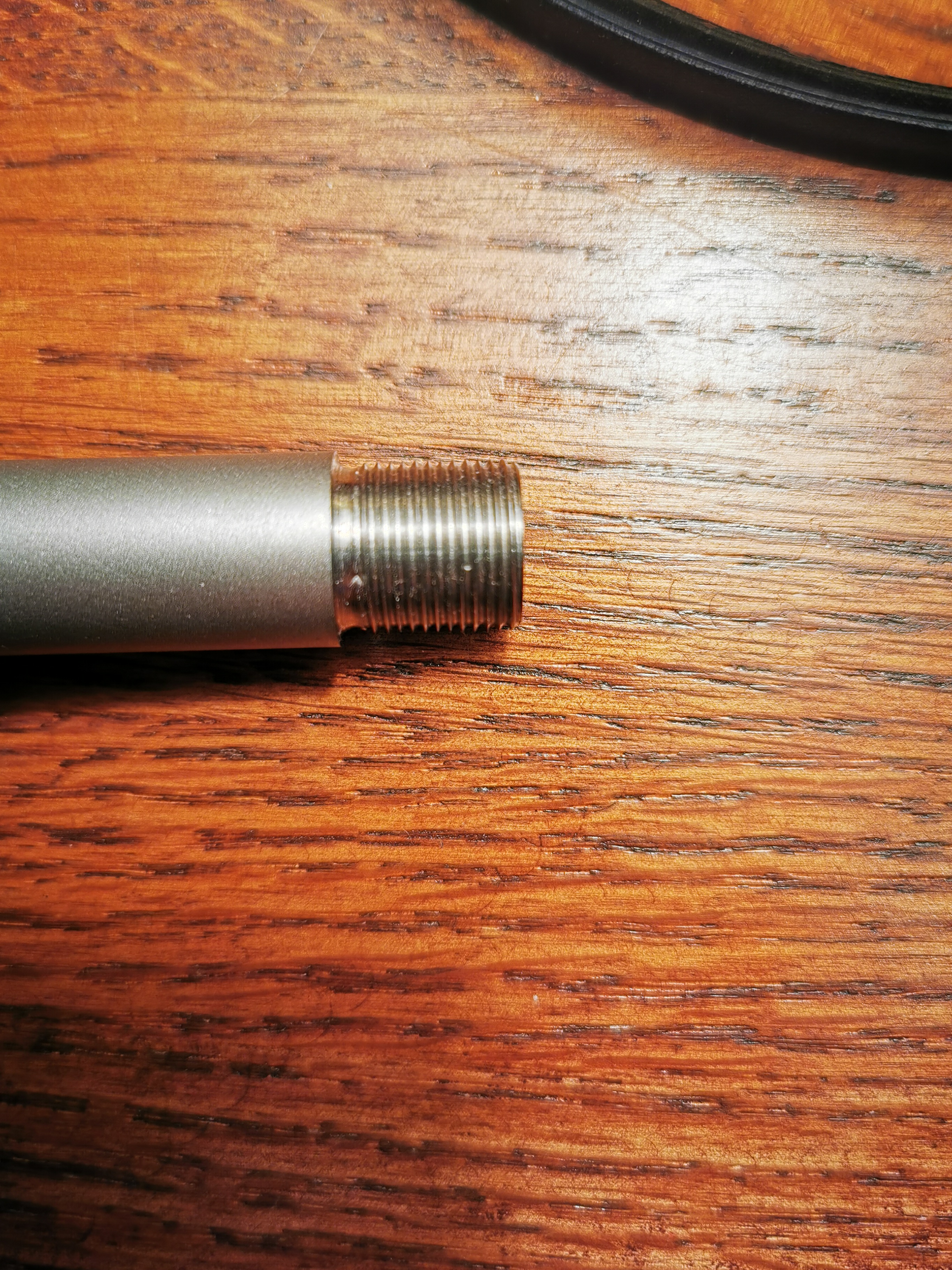

    Relief Cut 1/2x28

    Name:  IMG_20210804_173305.jpg
Views: 482
Size:  4.63 MB

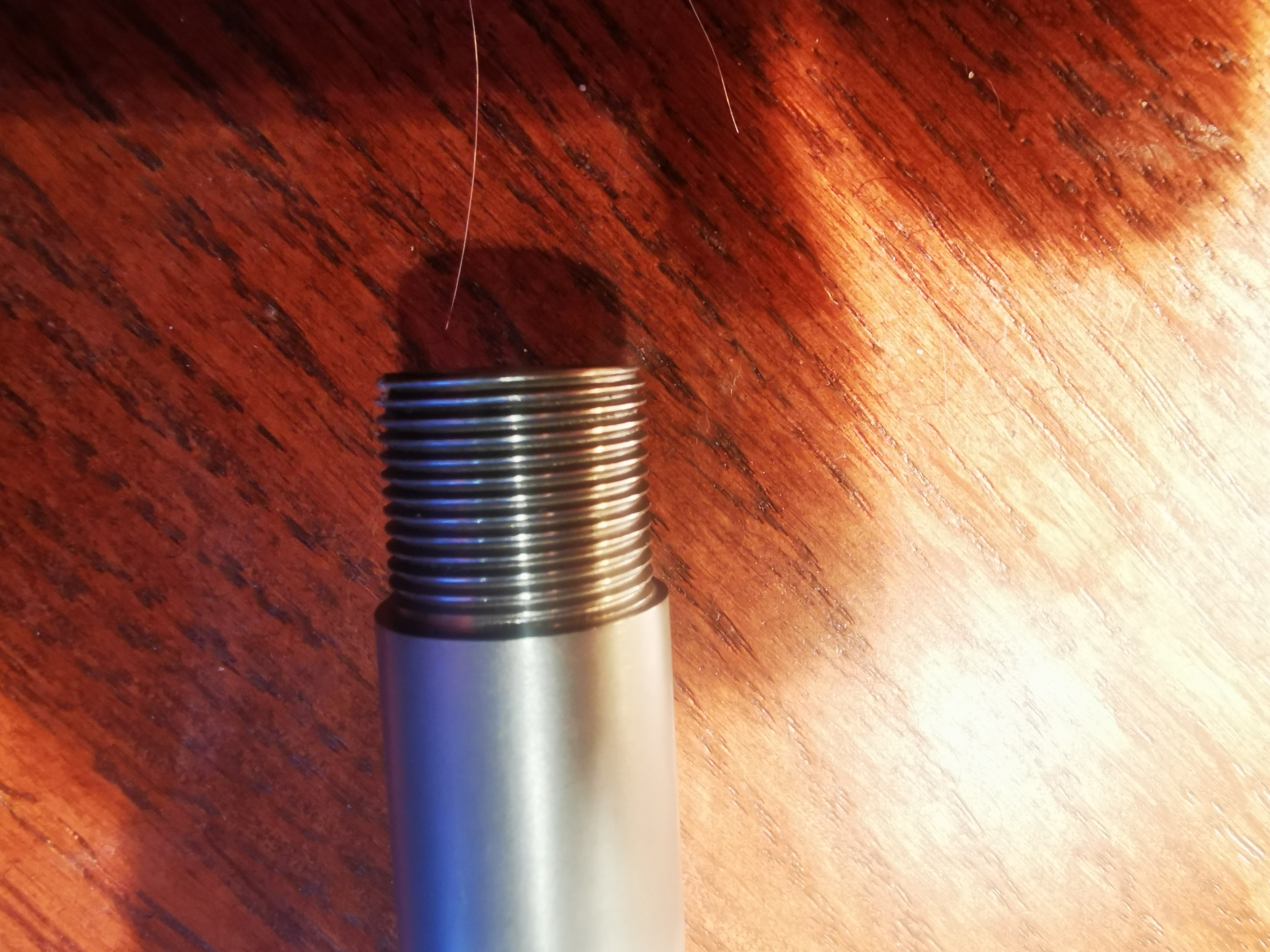

    No Relief Cut 5/8x24

  3. #3
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    7,112
    As long as your appropriate attachments fit properly it shouldn't be an issue.
    The radius relief cut if anything is mechanically superior to a square one as there will be no sharp corners but in this case it's not a problem.
    Having no radius is fine as long as you can get the thread hard up against the shoulder. To err on the side of caution I would probably stop just before I got to the shoulder and do a relief cut.
    But it does depend on the lathe and tradesman
    Stocky likes this.

  4. #4
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,190
    Thanks for the responses. Wasn't sure whether the relief functioned to allow ensure the suppressor could but against the shoulder without the threads binding. Threads seem good nice and snug and would expect them to be concentric to the bore.

    As for the relief radius that makes sense as it removes a stress point I guess what I meant is it kind of looked like the radius ended above the major thread pitch.

    How would you tell whether the suppressor buts up against the shoulder on an over barrel style?

    Will see how they both shoot these coming few weeks.

  5. #5
    Member
    Join Date
    Aug 2014
    Location
    Palmerston North
    Posts
    937
    How would you tell whether the suppressor buts up against the shoulder on an over barrel style?

    What kind of suppressor? If dpt, take off the barrel bush and see if it butts up hard to end of thread? Otherwise ive no idea

  6. #6
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    7,112
    As posted it is a fine line on some lathes to get the last cut consistently up against the shoulder without cutting into it. This can mean you cant screw something hard up against the shoulder unless there is a big enough chamfered on the end.
    I was a fan of making a relief to make this go away. Down to about the root level of the thread but do it before I started threading.
    Your one looks like it was done after to mitigate what i have mentioned
    Moa Hunter likes this.

  7. #7
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,190
    Quote Originally Posted by mimms2 View Post
    Out with your engineers blue. (Or a vivid)...Colour in the shoulder and thread on and off a few times. See if it's all rubbed off (or, 80%+ contact)... or leaning to one side
    Mint will give that a go.

  8. #8
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,190
    Quote Originally Posted by keengunNic View Post
    How would you tell whether the suppressor buts up against the shoulder on an over barrel style?

    What kind of suppressor? If dpt, take off the barrel bush and see if it butts up hard to end of thread? Otherwise ive no idea
    It's a dpt but you definitely can't see the shoulder through the can even with baffles removed as that was my first thought

  9. #9
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,190
    Quote Originally Posted by mimms2 View Post
    From an engineering perspective a thread should never go to a shoulder without relief as it creates a stress riser and is less likely to load the pitch correctly, and so let the thread do it's job.
    = always relief.

    Shoulder should be square to the bore. This may or may not coincide with the exterior of the barrel.
    This is vaguely what I thought I'd had heard and why I asked the question.

  10. #10
    Member
    Join Date
    Feb 2014
    Location
    Hawkes Bay
    Posts
    2,594
    Quote Originally Posted by mimms2 View Post
    From an engineering perspective a thread should never go to a shoulder without relief as it creates a stress riser ..
    I would have thought a square-corner relief cut would be an equal stress raiser
    Finnwolf likes this.

  11. #11
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Quote Originally Posted by Mauser308 View Post
    Humph. I will ask my autocorrect to please get it right next time... Humblest apolagiez ona behelf of me phun nd itz poah spellinz...
    If if we're going to split hairs the "science" is Finite Element Analysis usually abbreviated to FEA.

  12. #12
    Member
    Join Date
    Jan 2016
    Location
    Kapiti Coast
    Posts
    984
    As a machinist and gunsmith Im with Mimms2 on this. Always have a relief cut and a shoulder.

    I normally get stuff like this in my shop when the owner or new owner wants to fit a new/another muzzle device and cannot get it to thread on all the way up to the shoulder. I always remind myself to cut the thread not for a specific attachment.

    I've had barrels in my shop where the thread ends with a 45 or 60° shoulder. The silencer manufacturer was of the opinion that a taper is supposed to assist with alignment....which it did'nt - a flat shoulder to bottom out against would have been better.
    Micky Duck likes this.

  13. #13
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,190
    Quote Originally Posted by Jaco Goosen View Post
    As a machinist and gunsmith Im with Mimms2 on this. Always have a relief cut and a shoulder.

    I normally get stuff like this in my shop when the owner or new owner wants to fit a new/another muzzle device and cannot get it to thread on all the way up to the shoulder. I always remind myself to cut the thread not for a specific attachment.

    I've had barrels in my shop where the thread ends with a 45 or 60° shoulder. The silencer manufacturer was of the opinion that a taper is supposed to assist with alignment....which it did'nt - a flat shoulder to bottom out against would have been better.
    Would you ask to have a relief cut if it was returned like pictured that's a freshly cut thread the other wasn't done during my ownership.

  14. #14
    Member
    Join Date
    Jan 2016
    Location
    Kapiti Coast
    Posts
    984
    If it is currently shooting well don't bother, ask for a relief cut when you have the crowns cleaned up/recut at some stage.

    If you are considering changing a muzzle attachment or if you have any doubts, ask for a relief cut.
    Stocky likes this.

  15. #15
    Member
    Join Date
    Feb 2014
    Location
    Hawkes Bay
    Posts
    2,594
    Quote Originally Posted by mimms2 View Post
    That was @ the other fullah who put the word "raiser" in bold...
    and it looks like "riser" is a more modern US spelling abortionation. I had three mech eng flatmates at uni and heard the term often enough.

    https://www.sciencedirect.com/topics.../stress-raiser
