Thread: Rifle Bedding Opinions

  1. #1
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,191

    Rifle Bedding Opinions

    So I have a Bergara Extreme hunter that I purchased as a bit of a heavier rifle for shootability as my 2.6kg 7mm08 and 2.9kg 280ai are a little lively at times and definitely not a good steeping stone for my partner coming from the 22lr she's been learning on. Been having some pretty good results except I pulled the action and retorted the action screws to 65inch pounds like I used to do my old rem 700 6.5x47. I then went and shot a group at 200 that was around 4.5 inches and with a shifted poi which for this rifle is shocking. I then Google bergaras torque spec which is 55inchlbs which I changed back to and groups returned somewhat to right around the 1moa mark which is a little more than whatever the actual torque was when the rifle came from factory.

    But this prompted be to inspect the stock at which point I noticed the action is a very tight fit. I can hold stock upside down with no action screws and action stay locked in place. I also noticed the pillars had the soft touch coating peeling off them as the coating appears to be a dip which going over these. I cleaned the coating from the front pillar but have noticed the rear pillar is actually under the surface of the stock around a mm. I'm thinking of bedding the rifle but unsure whether I should dig down so the rifle action sits on both pillars. I also note that that bottom metal is very tight in the stock and wonder whether relieving it slightly and then bedding it too might not be a bad idea.

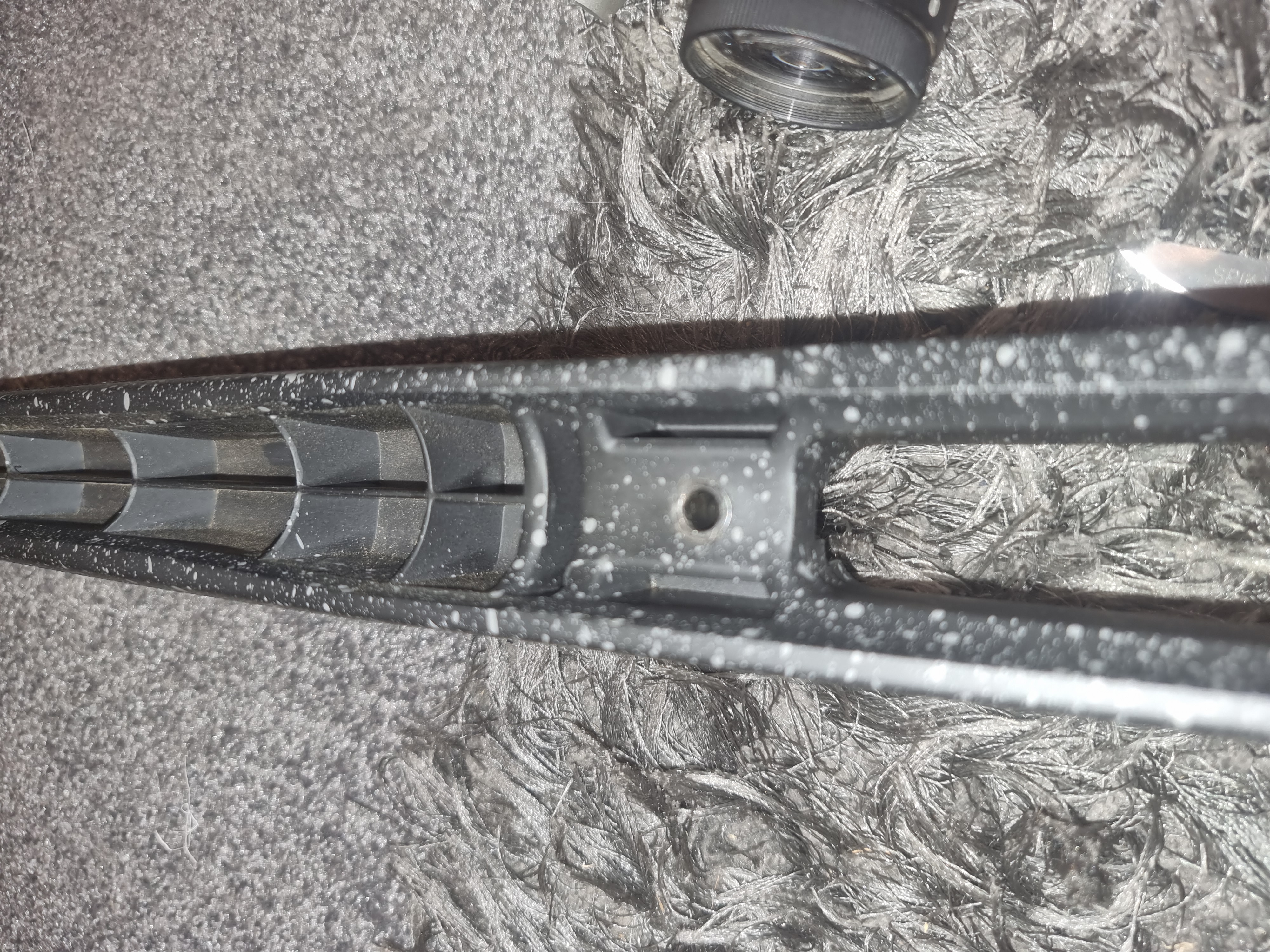

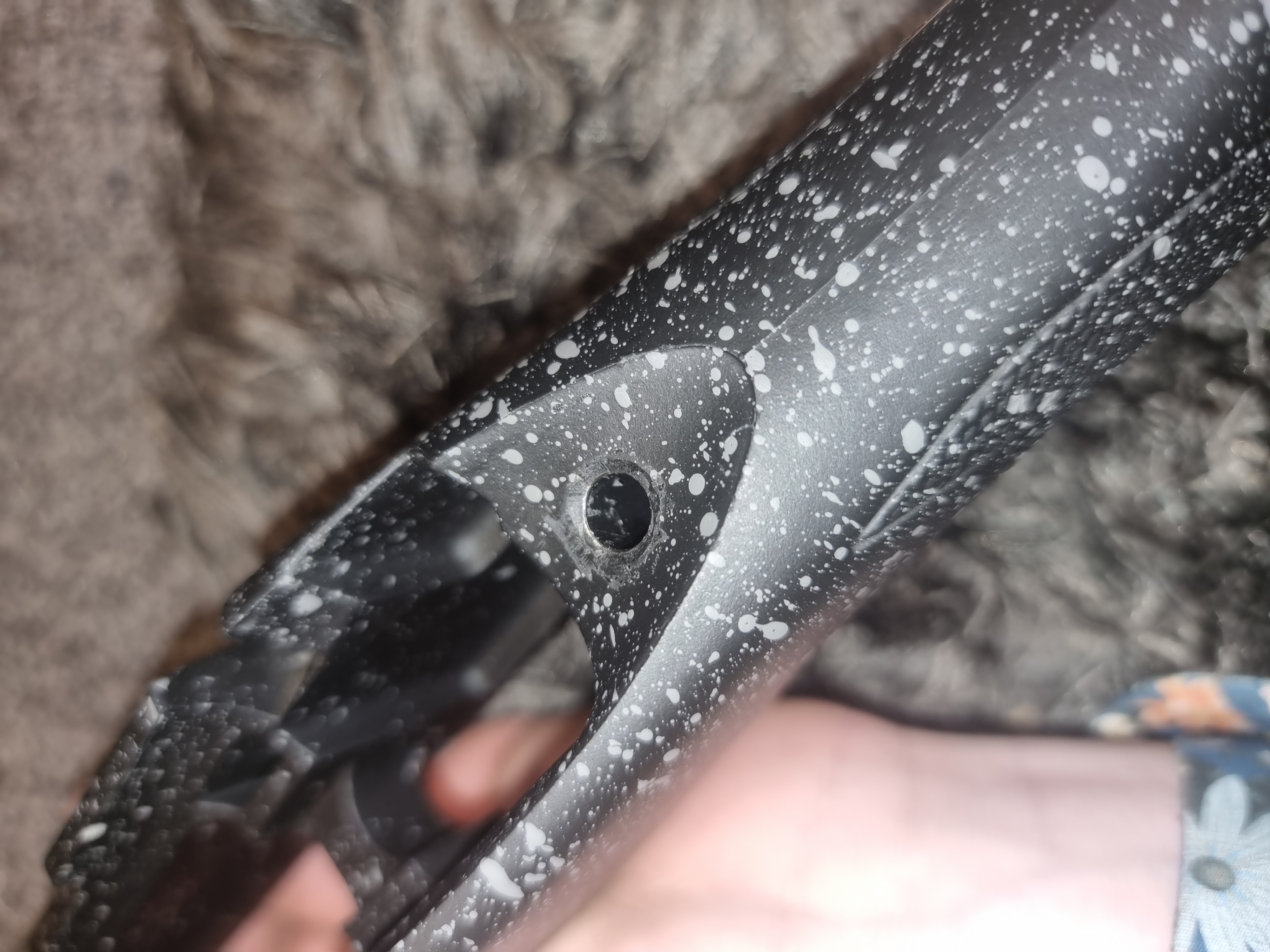

    Here's some photos of the front an rear pillar.

    Name:  20220514_211646.jpg
Views: 899
Size:  1.75 MB
    Name:  20220514_211626.jpg
Views: 1096
Size:  3.65 MB


    So would people relieve the stock so the action can bare on the pillars when it's bedded or what the sides of the action probably need relieving too being they hold the action so tight it would be very hard to bed stress free when it's like this.

    Ps: also looked at all previous 5 shot groups that tend to have 3 very close and 2 fliers this hasn't tended to be consistent as to which number shot is the flier.

  2. #2
    Caretaker
    Join Date
    Dec 2011
    Location
    Hawkes Bay
    Posts
    9,257
    Devcon 10110 is the best bedding compound on the planet

    You have a complicated situation there and the metalwork needs to be setup better than what it was from the factory

    It will take experience to have the finished product look and function correctly.
    Steve123 and PipIstrelle like this.
    A big fast bullet beats a little fast bullet every time

  3. #3
    Member
    Join Date
    Oct 2021
    Location
    Wellington
    Posts
    482
    After probably over-researching, I ended up buying this stuff:
    https://www.ballisticstudies.com/sho...+Compound.html

    Created by a guy who does this professionally. Great vids showing the process, and phone support if needed.

    And you're buying NZ made.
    Micky Duck likes this.
    bunji likes this.

  4. #4
    Caretaker stug's Avatar
    Join Date
    May 2012
    Location
    Rolleston, Canterbury
    Posts
    5,050
    A friends Bergara had the groups tighten right up when he decreased the torque on the screws. You could try loosening them a bit more and see what happens. I wouldn’t lower the action any unless you know you will have clearance with the mag box not being pinched between the action and bottom metal.
    From my understanding pillar bedding was “invented” when some of the early fibreglass stocks had the bedding collapse because they were using micro balloons to stiffen the resin. Over time the glass balloons were breaking and collapsing. If you look at the compression strength and elongation properties of modern resins they are as good or better than aluminium so I wouldn’t be concerned about the pillars being too low.
    chainsaw and Stocky like this.

  5. #5
    Caretaker stug's Avatar
    Join Date
    May 2012
    Location
    Rolleston, Canterbury
    Posts
    5,050
    When I bed my Rem 700 I put a single layer of insulation tape around the action so only the rear tang and front of the action are touching and are bedded. The rest of the action is essentially free floating.
    Ross Nolan, chainsaw and Preacher like this.

  6. #6
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,191
    Good to know Stug pretty easy to remove a mm from the bottom of the mag box if it's a little snug. For bedding this stock I guess your suggesting I remove a little material down the sides of the action but leave a bit off material at the rear of the action as a reference height for the action for when I bed it?

  7. #7
    Caretaker stug's Avatar
    Join Date
    May 2012
    Location
    Rolleston, Canterbury
    Posts
    5,050
    You could get a bar turned up the same diameter as the action wrap some sand paper around it and sand the whole action area then drill some small holes in action area to get a mechanical lock for the bedding compound.
    tetawa and Stocky like this.

  8. #8
    Banned
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    5,462
    Call in at my place after work and I will show you a Rem 700 and a BSA full action bedded with Nathan Fosters kits. Comes out superb
    Micky Duck likes this.

  9. #9
    Member stagstalker's Avatar
    Join Date
    Jul 2018
    Location
    North Island, New Zealand
    Posts
    2,178
    55 and 65 inch pounds seems like a lot. I could be wrong but on my plastic Tikka stocks I torque to 35 inch pounds to avoid any unnecessary compression and on my carbon stocks with pillars I go 40 inch pounds which feels like plenty.

  10. #10
    Member
    Join Date
    Jan 2022
    Location
    Auckland
    Posts
    50
    As above NF/Ballistic Studies kit is very good. I’ve only used it on two rifles, Ruger M77 and Howa Mini. Both have turned out great and in both cases reduced grouping size, particularly the Mini after bedding the Knox.

    As an a relative novice in this area Nathan’s videos are a big help. They take you through it step by step and I think they focus on the rem action.

    The consistency of the mixed product is just right. It’s flows easily enough but is also thick enough to not run all over the place while you’re putting the action down into the compound. The finished result has a fantastic look to it with a very professional appearance. As Nathan says over and over prep is the key and have everything in front of you that you will need plus test run how you’re going to go about things before mixing up the compound.
    Moa Hunter and Micky Duck like this.

  11. #11
    Member Brian's Avatar
    Join Date
    Dec 2011
    Location
    Upper Hutt
    Posts
    1,362
    I'd try a washer on the top of that rear pillar to get it touching first.
    chainsaw likes this.

  12. #12
    Caretaker
    Join Date
    Dec 2011
    Location
    Hawkes Bay
    Posts
    9,257
    Quote Originally Posted by stagstalker View Post
    55 and 65 inch pounds seems like a lot. I could be wrong but on my plastic Tikka stocks I torque to 35 inch pounds to avoid any unnecessary compression and on my carbon stocks with pillars I go 40 inch pounds which feels like plenty.
    You are 100% correct

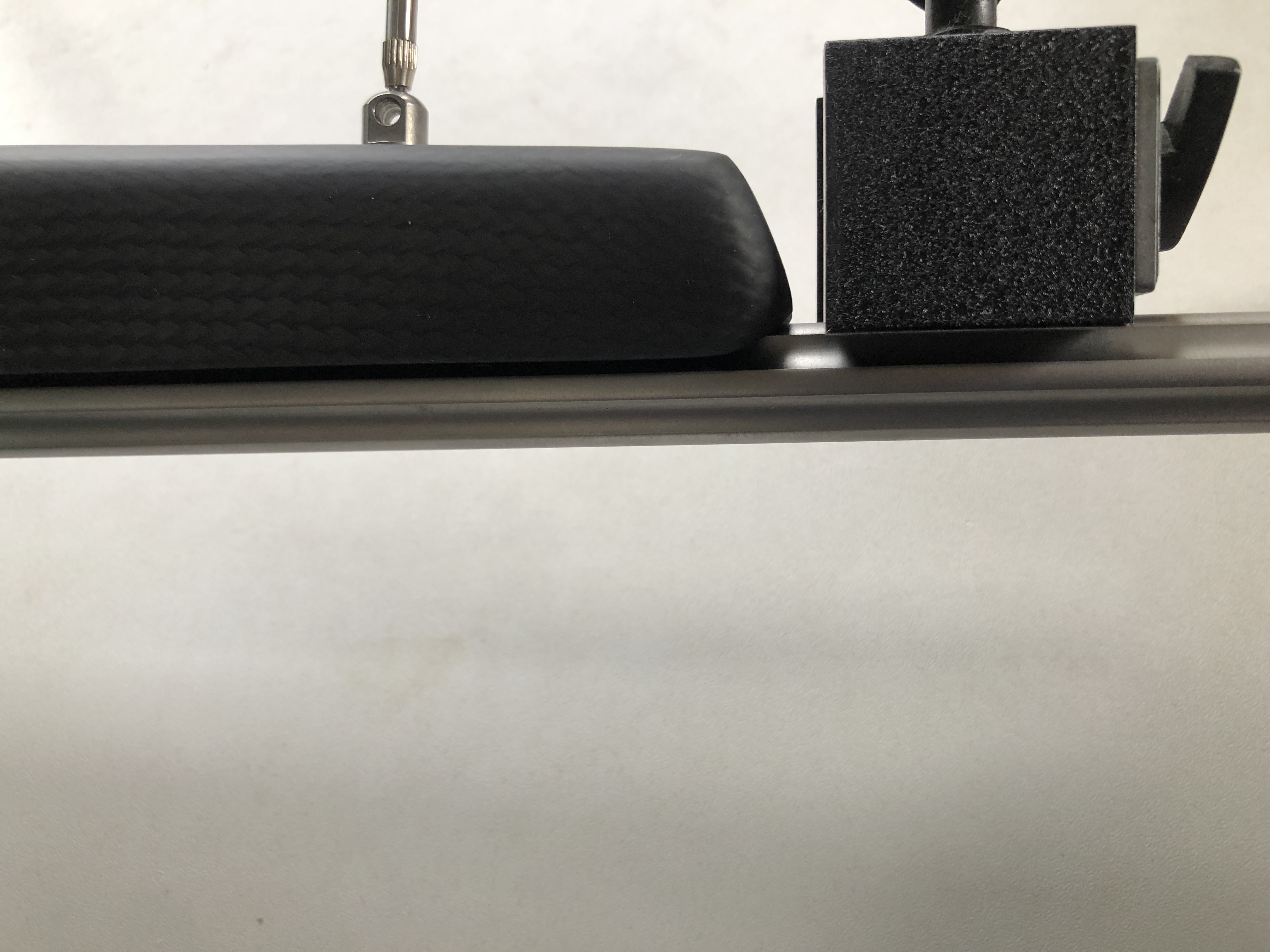

    I have set up hundreds of rifle stocks using a magnetic dial indicator gauge, watching the dial during the tightening sequence tells you everything you need to know

    A thorough understanding of how a rifles metalwork sits in a stock is required, you need to keep the metalwork and stock in line with each other, easements for gas ports, magazine reliefs and trigger recesses, then clearance around action screws. Any alteration to magazine wells and such can alter ammo feed and mag fitment
    There’s a reason most only show remington actions being worked on, they are the easiest. Once you change something for the worse you will wish you had never touched it. Take it to a competent gunsmith

    Overtightening often irreversibly damages a stock to the point that proper bedding is necessary

    Devcon will get the measured difference to zero and under half a thousandth on a bad day

    Skim bedding is ok for alloy (HS precision etc)

    Carbon/timber/aramid fibre/plastic needs the hardest bedding surface money can buy or you Haven’t improved it as well as you could have

    Name:  212DC764-334F-444A-92A2-D386862683BC.jpeg
Views: 788
Size:  1.92 MB
    Last edited by 7mmsaum; 15-05-2022 at 12:21 PM.
    A big fast bullet beats a little fast bullet every time

  13. #13
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,191
    Quote Originally Posted by stagstalker View Post
    55 and 65 inch pounds seems like a lot. I could be wrong but on my plastic Tikka stocks I torque to 35 inch pounds to avoid any unnecessary compression and on my carbon stocks with pillars I go 40 inch pounds which feels like plenty.
    55 is the recommended torque by Bergara 65 was the recommended torque by the stock on my old rem 700. its tight but not out of the normal range for pillared stocks. Tikkas are a straight plastics stock with no pillars hence the lower recommended torque.

  14. #14
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,191
    Quote Originally Posted by 7mmsaum View Post
    You are 100% correct

    I have set up hundreds of rifle stocks using a magnetic dial indicator gauge, watching the dial during the tightening sequence tells you everything you need to know

    Devcon bedding will get the measured difference to zero, and under half a thousandth on a bad day.

    Overtightening often irreversably damages a stock to the point that proper bedding is necessary

    Skim bedding is ok for alloy (HS precision etc)

    Carbon/timber/aramid fibre/plastic needs the hardest bedding surface money can buy or you Haven’t improved it as well as you could have

    Attachment 196882
    Its not 100% correct if its manufacturer recommended torque specs mate. Also these are steel pillars which is plenty fine for 65inch pounds the issue occurs when everything else interacts with the action before it can bare against the pillars.

    I do plan to bed the rifle but noticed the pillars are marginally touching the action screw so i have removed pilars and will redo these then bed. The pillars are the correct height for magazine to float between bottom metal.

    My queries where not about if i should bed it. It was about whether people thought i should expose the pillars so the action could bare direct on steel when doing the bedding. anyway removing the pillars has allowed me to sort this for now

  15. #15
    Caretaker
    Join Date
    Dec 2011
    Location
    Hawkes Bay
    Posts
    9,257
    Quote Originally Posted by Stocky View Post
    55 is the recommended torque by Bergara 65 was the recommended torque by the stock on my old rem 700. its tight but not out of the normal range for pillared stocks. Tikkas are a straight plastics stock with no pillars hence the lower recommended torque.


    If you had a HSPrecision stock on your remington the recommended is 65 inch pounds in the front and 40 on the rear

    35 to 40 on the rear suits most composite stocks.

    If you need to be specific put a dial indicator gauge on it and see if that torque level bends the action in the stock

    Screw Torque by itself means nothing

    An action that’s bending in a stock is a whole nother story

    One reason tikkas shoot so well is the stock is not strong enough to bend the action when tightened


    I have never found a factory rifle without some bedding issues when you really measure it properly
    Moa Hunter, Stocky and Hunter_Nick like this.
    A big fast bullet beats a little fast bullet every time
