Thread: School me on muzzle threads

  1. #1
    Member Delphus's Avatar
    Join Date
    Feb 2019
    Location
    South Canterbury
    Posts
    1,606

    School me on muzzle threads

    So I have been wondering this for a while. I understand the difference between threads, the fact that there are a certain amount of turns cut per inch etc. What I don’t know is what the different threads are used for? Can any thread be cut into any barrel? Are some threads used for specific barrels? I’m looking to cut down my .223, but also want to replace the current gunworks suppressor for a dpt. I have passed up on a few second hand supressors in the past because they were the wrong thread for the rifle. Can I buy another threaded suppressor and cut the barrel to suit?

  2. #2
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    6,086
    Quote Originally Posted by Delphus View Post
    So I have been wondering this for a while. I understand the difference between threads, the fact that there are a certain amount of turns cut per inch etc. What I don’t know is what the different threads are used for? Can any thread be cut into any barrel? Are some threads used for specific barrels? I’m looking to cut down my .223, but also want to replace the current gunworks suppressor for a dpt. I have passed up on a few second hand supressors in the past because they were the wrong thread for the rifle. Can I buy another threaded suppressor and cut the barrel to suit?
    With my limited experience, most threads I see are 1/2" UNF but when you get up to about 30 cal a lot of them do 9/16ths . The reason for the size difference is the internal distance from the bottom/deepest part of the cut, is not much bigger than the bore

    My usual advice is to get a thread cut by whoever makes your suppressor. While threads are supposed to be standardised there may be subtle variations in it that vary.

    And may I ask why you want DPT over the Gunworks? On a 223 performance would be very similar in both I would have thought....
    Micky Duck and Dago like this.
    Intelligence has its limits, but it appears that Stupidity knows no bounds......

  3. #3
    Member Delphus's Avatar
    Join Date
    Feb 2019
    Location
    South Canterbury
    Posts
    1,606
    Cheers. Yeah performance between the two will be about the same, but the dpt has a fair bit less muzzle forward, and I want a shorter overall rifle. Dpt is also lighter by a fair bit.

  4. #4
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,266
    The choice of threads is best selected according to the calibre so there is sufficient meat at the muzzle. The common sizes are: .22/223 - 1/2"x20 TPI (UNF) and 1/2"x28 (UNEF, AR15 etc). .243/6mm - same, .270/7mm - same or 9/16" UNF or 14x1mm, .30/7.62mm - 9/16"/14mm, .338" - 5/8" UNF or 16mm, and so on. The actual thread (Unified and Metric are both 60 degree vee) is of no consequence so long as it matches the suppressor. Aluminium suppressors are best with a coarser thread to avoid cross-threading.
    ebf likes this.

  5. #5
    Member
    Join Date
    Dec 2018
    Location
    Christchurch
    Posts
    599

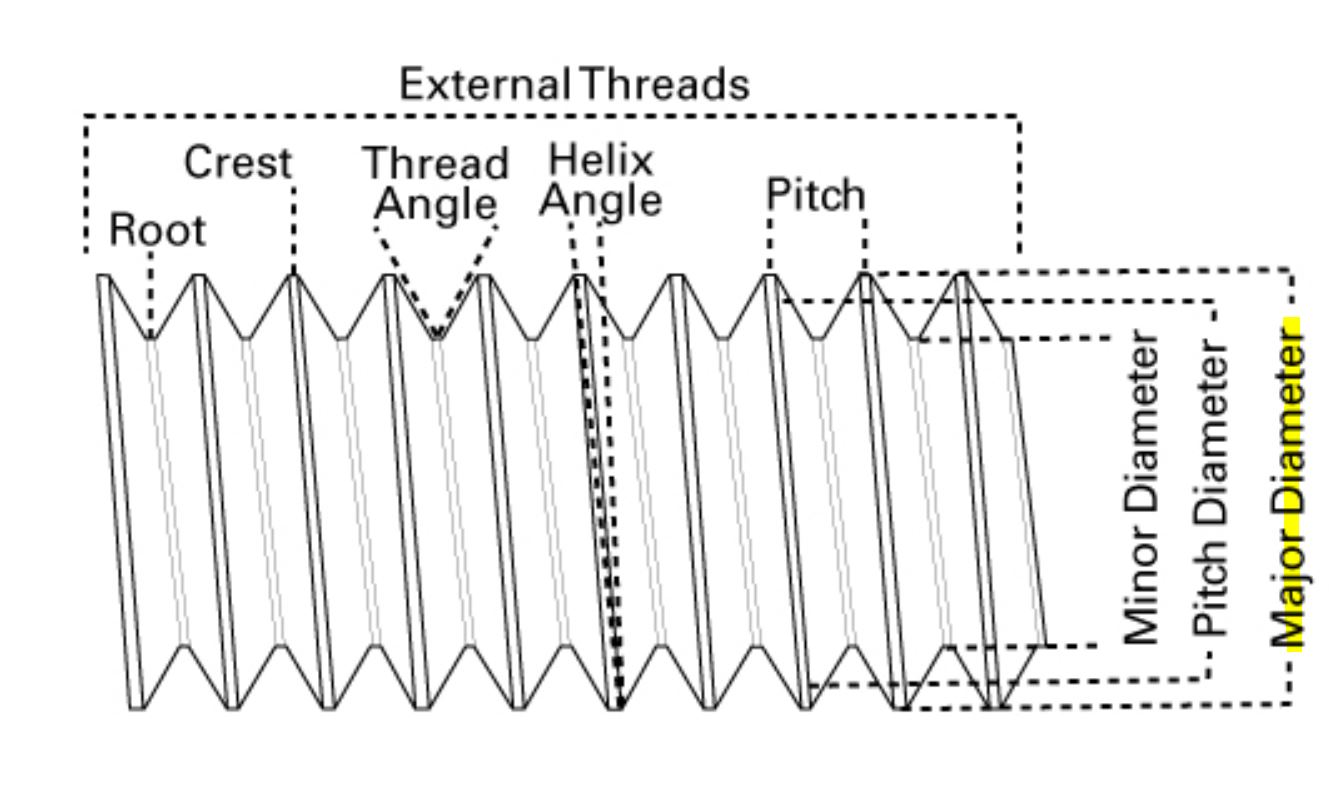

    A thread size has two measurements
    - Major diameter
    - Pitch

    Name:  1.JPG
Views: 759
Size:  103.1 KB

    Pitch isn't that critical from my experience.

    I do think major diameter is important though, choosing a suitable major diameter depends on:
    - Barrel outside diameter before threading
    - Caliber, ie. the diameter of the hole
    You want to ensure there is sufficient thickness of material left on the barrel after threading. For example, cutting a thin barrel with a large caliber to a small major diameter is not the best option.
    However you also want to make sure the thread grooves are sufficiently deep to achieve a strong connection with the suppressor. Theoretically, the deeper the thread grooves, the less chance of the suppressor "slipping" off. With a heavy barrel and a small caliber, you can afford to cut deeper threads while maintaining sufficient residual barrel thickness.

    So it's all about finding the best balance point, and is probably best left to the suppressor fitter or gunsmith to decide.

  6. #6
    northdude
    Guest
    With my rifles 22cal gets 1/2x20 thread everything above that bar a facory threaded rifle gets a 14x1

  7. #7
    Member
    Join Date
    May 2019
    Location
    Christchurch
    Posts
    670
    Have you looked at Greystone suppressor?

  8. #8
    Member
    Join Date
    Dec 2019
    Location
    Okawa Hawkes Bay
    Posts
    3,070
    Greetings Delphus,
    Both my .308 rifles have 5/8"x 24 UNEF. One came threaded and I had the second one threaded the same although each has its own suppressor. If I get round to suppressing my 6.5 x 55mm rifles theirs will be 14 x1mm. Ditto the .223 will be 1/2"x 24 UNEF. This stops me getting the suppressors mixed up, a small thing perhaps but fail safe is always best. Your rifles your choice however.
    Regards Grandpamac.
    johnv308 likes this.

  9. #9
    northdude
    Guest
    I use a 30 cal suppressor and dont own anything over 30 so dont have to worry about a different suppressor for every different rifle and supression seems to work well

  10. #10
    Member
    Join Date
    Dec 2019
    Location
    Okawa Hawkes Bay
    Posts
    3,070
    Quote Originally Posted by northdude View Post
    I use a 30 cal suppressor and dont own anything over 30 so dont have to worry about a different suppressor for every different rifle and supression seems to work well
    Greeting Northdude,
    My son uses a .30 calibre suppressor on his .284 which seems to work well. One of my suppressors is a muzzle forward model and I had thought of sharing it with some of my old soldiers, 6.5mm, .30 and .303. None of them will be fired all that much so it would probably work well. We will see.
    Regards Grandpamac.

  11. #11
    Member
    Join Date
    Mar 2012
    Location
    Hastings
    Posts
    2,650
    Go to DPT with your rifle and get them to do the whole shebang. Job done. No heartache. Taught me a bit on my last visit in November. Walked out with the magnum 243 suppressor. Fantastic balance . Going back for my 223WSSM shortly or in November. The dude has come a long way from Tokoroa. Credit to him.
    timattalon and Micky Duck like this.

  12. #12
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    4,301
    Delphus being in Timaru is long way from dpt in hamilton.
    Micky Duck and Delphus like this.

  13. #13
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,797
    I do like the DPT suppressors BUT living where I do...its gunworks spartan for me....and with your 223,how much length will you actually save???past the muzzle,maybe inch tops....back behind suppressor yes the dpt is shorter...but the spartan going back further SEEMS to make rifle balance better ,unless you going to make barrel really short and want to butt suppressor up against stock you really wont gain a hell of a lot.
    timattalon likes this.

  14. #14
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,797
    also if Im reading your post correctly...you only want to change suppressor type...not looking to shorten barrel...you COULD just buy DPT with correct thread....but seriously I suggest you borrow one and try it for balance and length before forking out hard earned $$$$ to change from what you have that is working fine.
    timattalon likes this.

  15. #15
    Member Delphus's Avatar
    Join Date
    Feb 2019
    Location
    South Canterbury
    Posts
    1,606

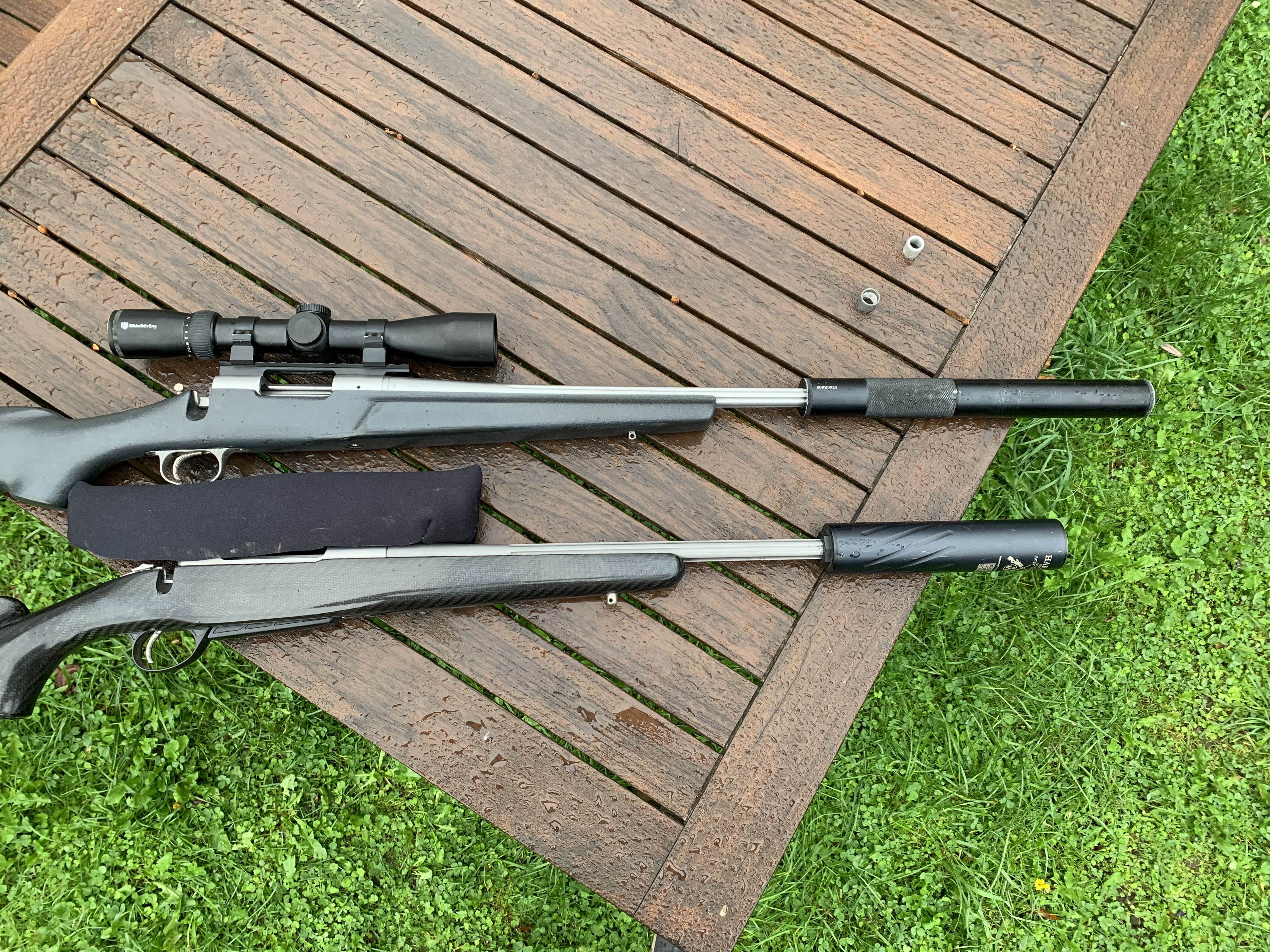

    I was looking to try and save a bit of coin and buy a second hand supressor when it came up, even if it was a different thread than my barrel, and just have the barrel cut and rethreaded to whatever the supressor thread was. I’ll just save up a bit more and buy a new one. Or just buy a new DPT and keep the length the same for now. Take a look at the comparison pic(obviously bottom is hardy not dpt), mine is the top one. Same length barrels in both photos, but mine is significantly longer. It just feels too long in the hand, especially as half of my wallaby shooting is on the back on a canam.

    Name:  C47F2B7D-2E61-48AE-946F-87670A70AF43.jpeg
Views: 853
Size:  5.54 MB
