Thread: Screws for BSA Cadet Aperture Sight, Parker Hale No 8

  1. #1
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,477

    Screws for BSA Cadet Aperture Sight, Parker Hale No 8

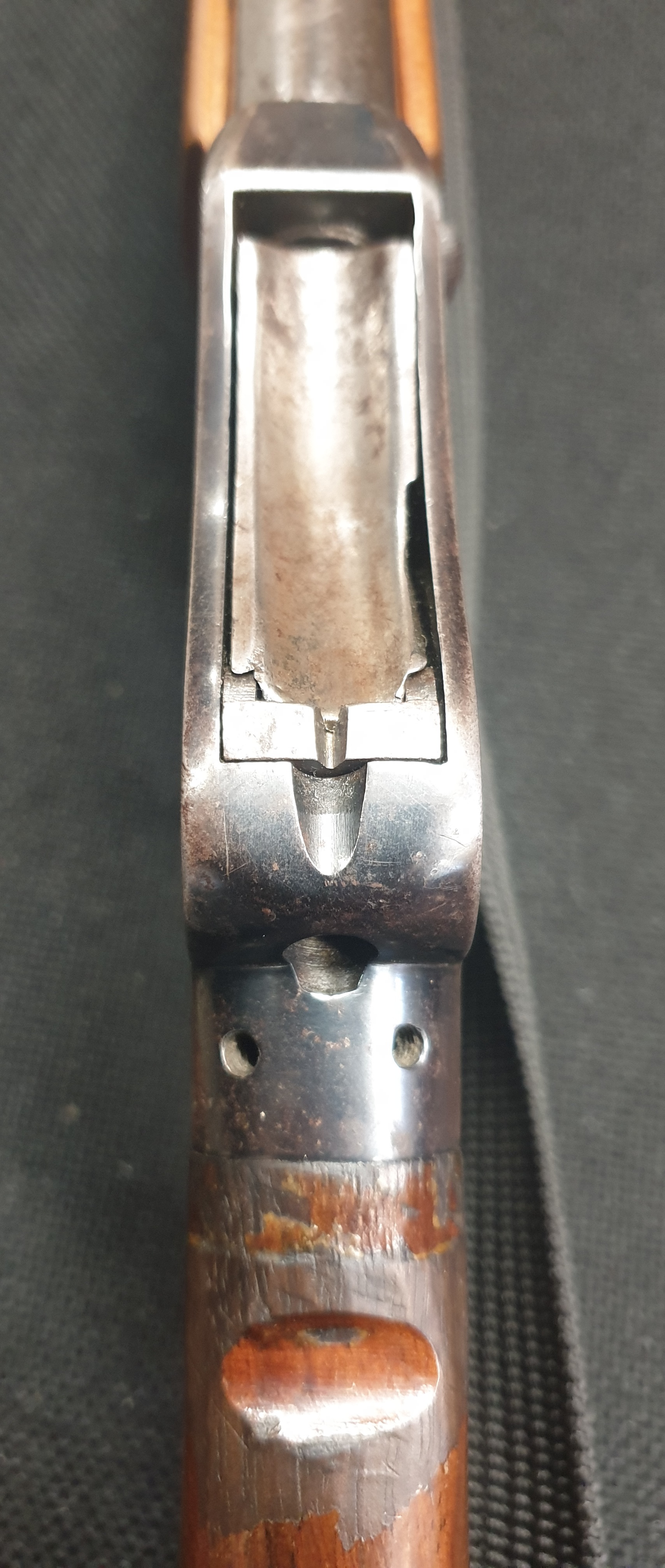

    Hi, courtesy of a Forum member I just bought tge above sight. Rifle has had such a sight on it and has the screw holes. Wondering if anyone has one who could tell me what screws I need, thread and dia?

    Cheers

    Name:  20230831_131159.jpg
Views: 174
Size:  1.46 MB
    I know a lot but it seems less every day...

    Due to the exorbitant cost of reloading components, warning shots will not be given.

  2. #2
    Banned
    Join Date
    Dec 2021
    Location
    Tauranga
    Posts
    5,143
    Possibly not, as there are about three possibilities depending on who originally fitted the thing. Not likely to be metric though. Need threads per inch and diameter for starters.

  3. #3
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Would have been most likely factory fitted. Looks quite crude though as the timber is visible thru the hole. Wood screws....??
    I'll dig my old BSA out and see what's been done with it.

  4. #4
    Member
    Join Date
    Aug 2023
    Location
    Northland
    Posts
    230
    Can't really see pics too good on phone, but I'd be surprised if it was oddball thread. #4x40 would be my standard guess.

  5. #5
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,192
    Its english more likely to be a BA thread or donething of that ilke

  6. #6
    Member
    Join Date
    Mar 2012
    Location
    Christchurch
    Posts
    1,423
    The screw (on my example) is a slightly domed cheese head and countersunk. The head diameter is 0.250", the threaded section is 0.156" long and 0.163 in diameter. There are 6 threads on the threaded section. Name:  IMG_0623.JPG
Views: 130
Size:  392.5 KBName:  IMG_0623.JPG
Views: 130
Size:  392.5 KB

  7. #7
    Member
    Join Date
    Mar 2012
    Location
    Christchurch
    Posts
    1,423

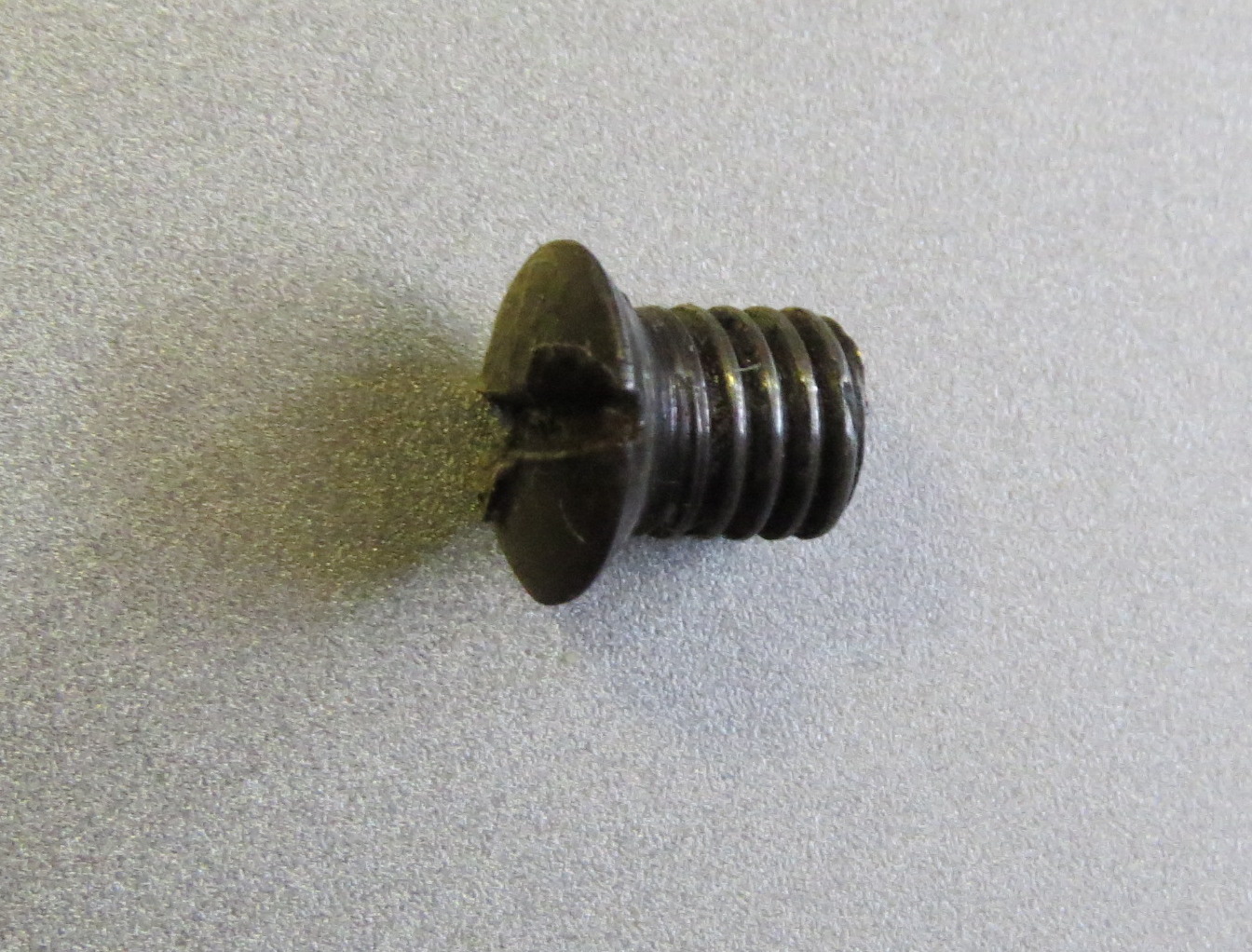

    Name:  IMG_0622.JPG
Views: 128
Size:  440.4 KB

  8. #8
    Member
    Join Date
    Mar 2012
    Location
    Christchurch
    Posts
    1,423

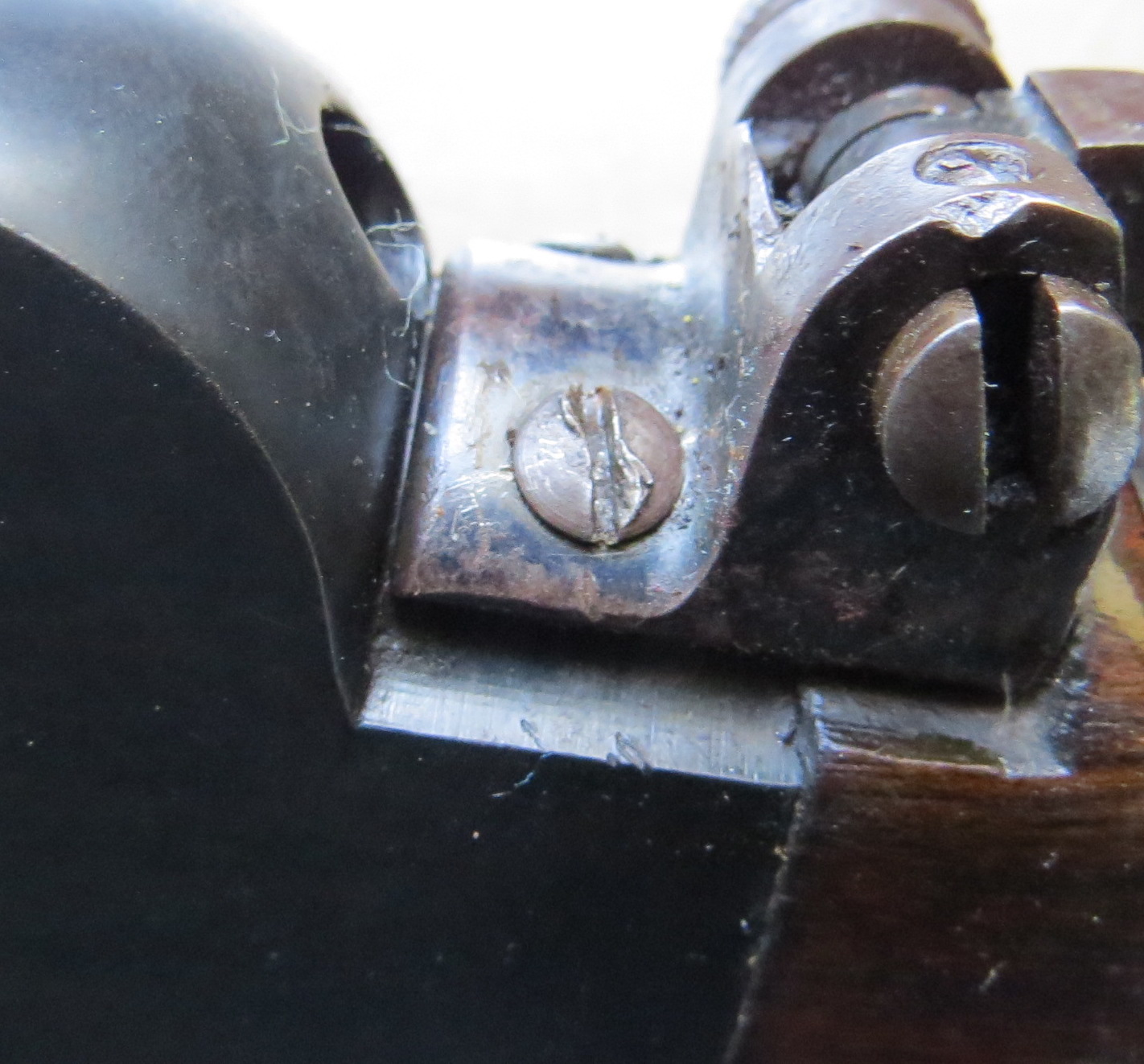

    Name:  IMG_0624.JPG
Views: 133
Size:  391.8 KB
    Tentman likes this.

  9. #9
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986

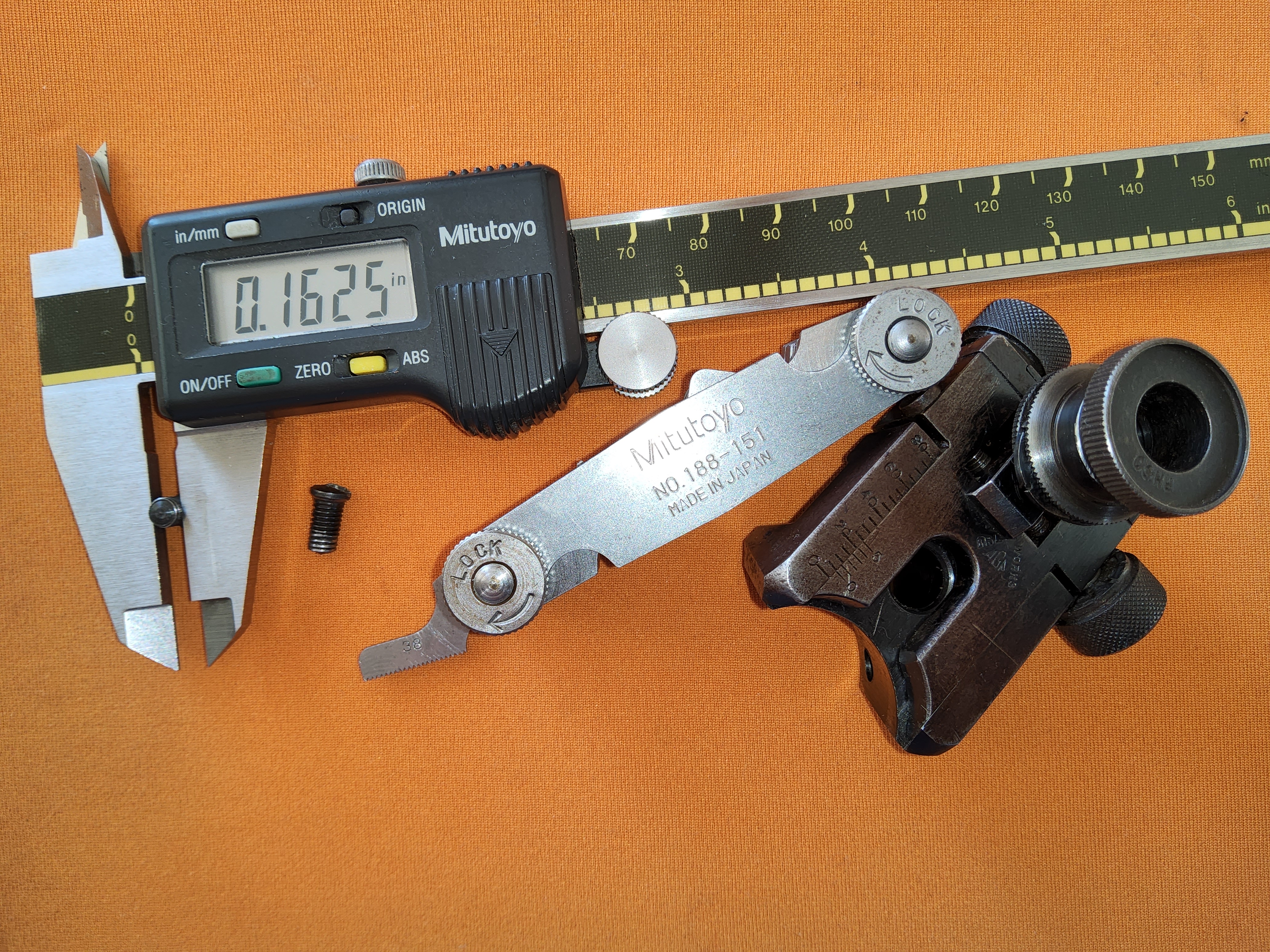

    Name:  20230908_165208.jpg
Views: 207
Size:  5.78 MB
    38 TPI
    11mms likes this.

  10. #10
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,477
    Thks Team, very helpful. I have a local offer to check out on Monday so will come back to the thread then.. cheers
