Thread: Using a Camera/Telescope Tripod with a Rifle.

  1. #1
    Member
    Join Date
    Jun 2021
    Location
    huntly
    Posts
    753

    Using a Camera/Telescope Tripod with a Rifle.

    Hi all. Has anyone successfully mounted a rifle onto a camera/telescope tripod ? If so, how did you do it? Thanks

  2. #2
    Member 7mm tragic's Avatar
    Join Date
    Apr 2023
    Location
    North King Country
    Posts
    376
    Yes, Spartan adapter on rifle ($80 gunsmith mount I did myself) then purchased spartan swiss arca mount $50 from guncity.

    I then needed to get a swiss arca to qr adapter from photo warehouse because my camera tripod had a qr base plate $30

    https://www.guncity.com/spartan-bipo...h-brass-374064

    https://www.guncity.com/spartan-prec...nverter-382776

    https://www.photowarehouse.co.nz/sho...e-square-clamp
    kiwijames and dannyb like this.

  3. #3
    Member
    Join Date
    Oct 2020
    Location
    Kapiti
    Posts
    336
    Mtngear do a hybrid picatinny arca mount for your rifle.

  4. #4
    Tim
    Tim is offline
    Member
    Join Date
    Dec 2011
    Location
    Lower Hutt
    Posts
    371
    Use a saddle mount. They fit by arca and grip your rifle with no need for a rifle mounted arca.
    Getting older is compulsory, growing up is entirely optional.

  5. #5
    Lovin Facebook for hunters kiwijames's Avatar
    Join Date
    Feb 2012
    Location
    Hawkes Bay
    Posts
    7,205
    The Aziak Backcountry light (or Frontcountry) ball head comes with an Arca Swiss mount. You can get any adaptor you want from there.
    https://www.aziakequipment.com/produ...lite-ball-head
    The range of what we think and do is limited by what we fail to notice. And because we fail to notice that we fail to notice, there is little we can do to change; until we notice how failing to notice shapes our thoughts and deeds

  6. #6
    Member Happy Jack's Avatar
    Join Date
    Jan 2020
    Location
    Nelson/Tasman
    Posts
    3,899
    Half a piece of 60mm pipe 5mm hole in the middle, hot glue a nut to fit the thread on the tripod and cover with foam. Cost $5. Was my go to for shooting rabbits when we had the big property.
    Micky Duck, flock and Springy like this.

  7. #7
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,480
    Quote Originally Posted by Tim View Post
    Use a saddle mount. They fit by arca and grip your rifle with no need for a rifle mounted arca.
    Got a link to any good ones local? nz

  8. #8
    Tim
    Tim is offline
    Member
    Join Date
    Dec 2011
    Location
    Lower Hutt
    Posts
    371
    I think Nightvision NZ usually has some, but I got mine from Ali in less than 2 weeks and for about $80-90. It's aluminium and very well made, works perfect.
    Getting older is compulsory, growing up is entirely optional.

  9. #9
    Member Shearer's Avatar
    Join Date
    Sep 2013
    Location
    Tasman
    Posts
    7,065

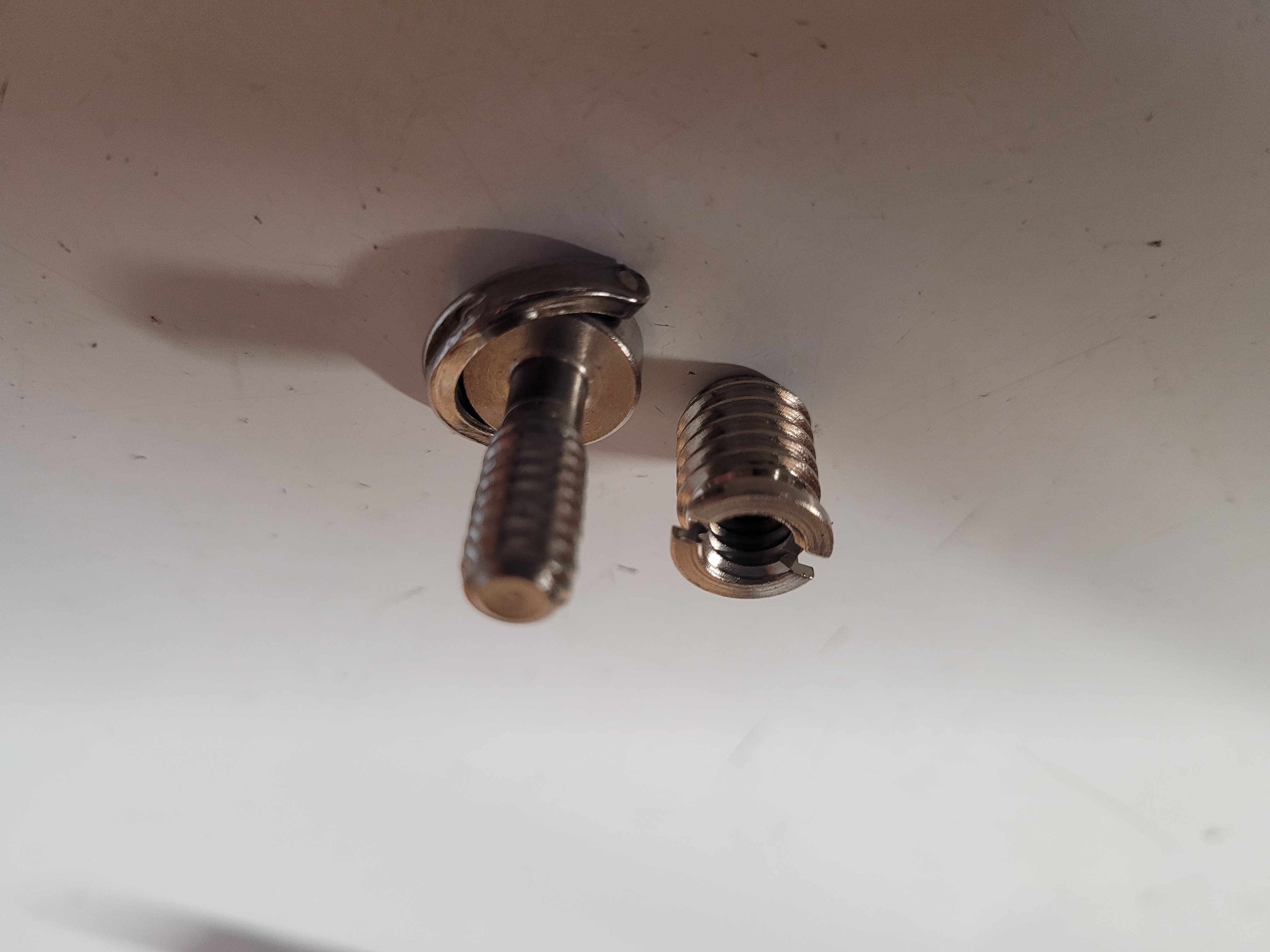

    I bought a few of these of Ali Express.
    Name:  20240826_113428[1].jpg
Views: 154
Size:  2.98 MB

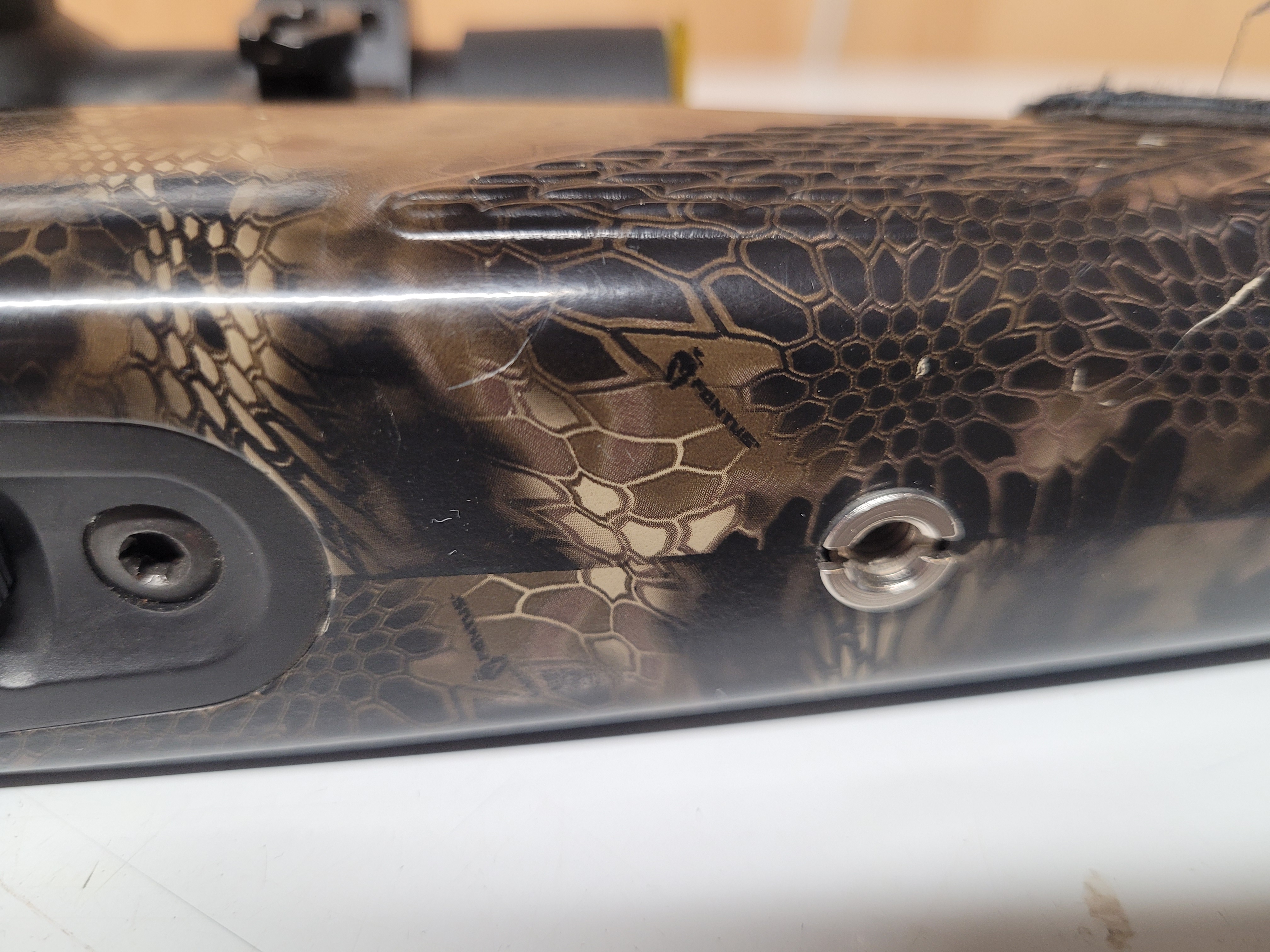

    Screw/glue the nut into your stock.
    Name:  20240826_113333[1].jpg
Views: 154
Size:  2.98 MB

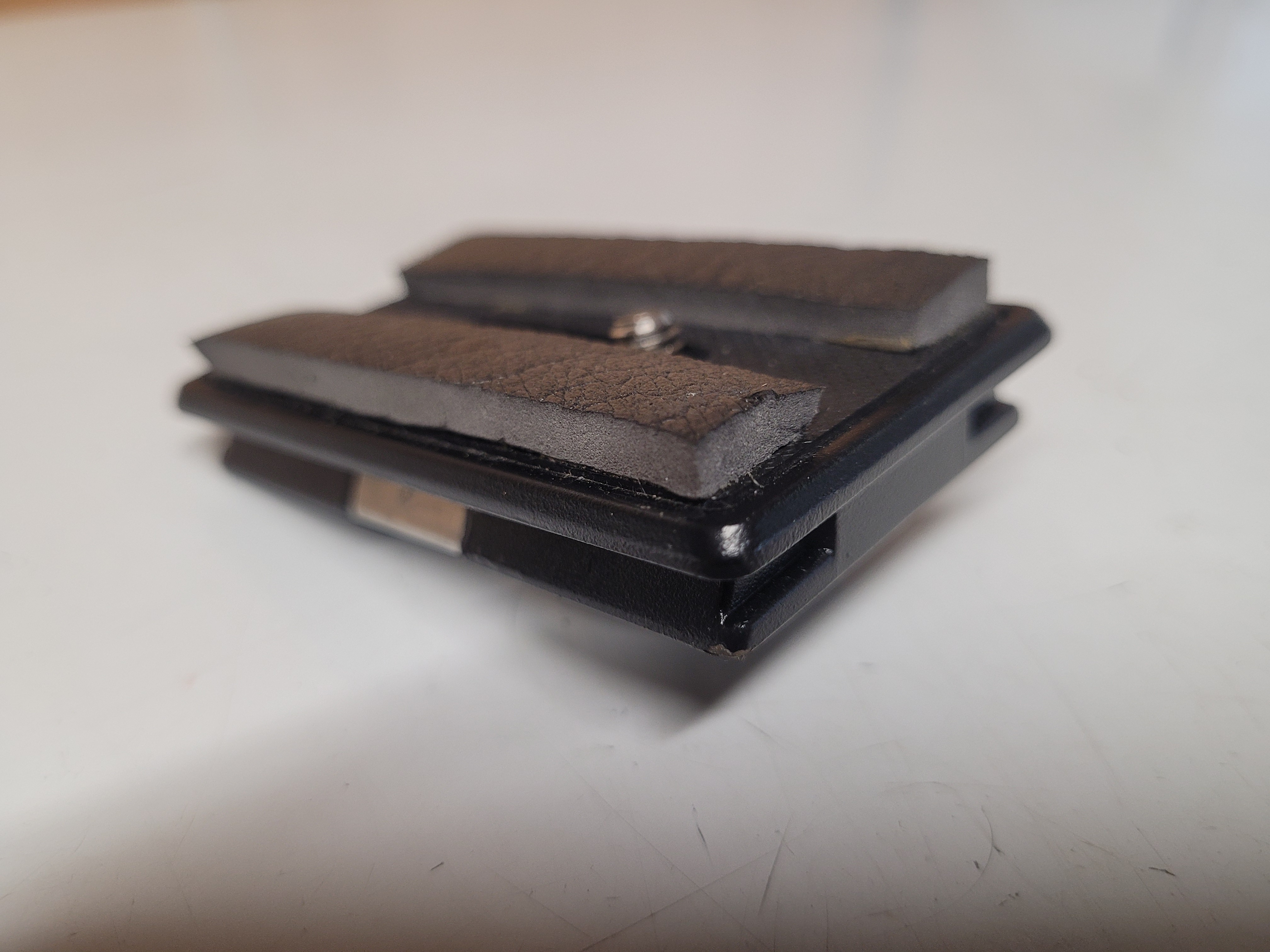

    Attach longer screw to your tripod mount. I added a bit of foam to snug it up too.
    Name:  20240826_113552[1].jpg
Views: 145
Size:  2.46 MB
    Experience. What you get just after you needed it.

  10. #10
    Member SPEARONZ's Avatar
    Join Date
    Aug 2019
    Location
    Nth island
    Posts
    396
    As above. This is a really good method as you can ditch the arca rail when it’s not required.

  11. #11
    Member Beetroot's Avatar
    Join Date
    Apr 2013
    Location
    Morrinsville
    Posts
    3,011
    Do you already have a tripod you are going to use?
    There are multiple mounting methods you could use, an ARCA set up is likely the most versatile but you'll need an appropriate tripod/ball head.

  12. #12
    Member
    Join Date
    Jan 2015
    Location
    Wellington
    Posts
    2,596
    A shooting saddle with an Arca base is okay for most hunting rifles without modifying them. It will fit onto an existing tripod with Arca compatible head.

    If you can mount a Pic rail under the front of your stock, consider an Arca and Picatinny tripod ballhead... you can get a cheaper adapter if you already have a ballhead. If you are going to use a centrefire, a lightweight photographic tripod may not be sturdy enough to last. Consider something with at least 35 - 40mm diameter leg tubes.
    Edit: I don't own these ' I've been down this particular rabbit hole the past week and am considering buying the ballhead and a picatinny to swivel stud adapter.
    Last edited by Bol Tackshin; 26-08-2024 at 11:21 PM.
