Thread: My new hunting mobile / winter project

  1. #16
    unit moonhunt's Avatar
    Join Date
    Dec 2011
    Location
    warkworth
    Posts
    1,471
    Quote Originally Posted by ebf View Post
    As with most things GM, the level of "ratness" can go completely overboard

    I was just thinking of a matt spray job, and possibly asking Moonhunt for some mean old boar tusks to mount on the front fender, hehe....
    Some grinders would look cool , bit more weight, I would be a tad reluctant to part with my mean old boar tusks
    ebf and Dynastar27 like this.
    Rule 4: Identify your target beyond all doubt
    OPCz

  2. #17
    unit moonhunt's Avatar
    Join Date
    Dec 2011
    Location
    warkworth
    Posts
    1,471
    Can send you this if you like

    you could pull the grinders and join them somehow, or keep it whole for the Evel Knievel look

    Name:  E.jpg
Views: 411
Size:  348.6 KB
    gadgetman likes this.
    Rule 4: Identify your target beyond all doubt
    OPCz

  3. #18
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Quote Originally Posted by P38 View Post
    I put a 13 tooth on the front and a 64 tooth on the back.
    Pete, counted the sprocket teeth last night. Currently it is 13/53, no idea if this is standard or not...
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  4. #19
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Making some progress with the mudslug

    • Had the forks out to replace the boots today
    • Tank off to replace the fuel line, and check out the wiring harness
    • New grips
    • Replaced spark plug and air filter
    • Lubed the chain and adjusted tension
    • Got the headlight working, whoohoo

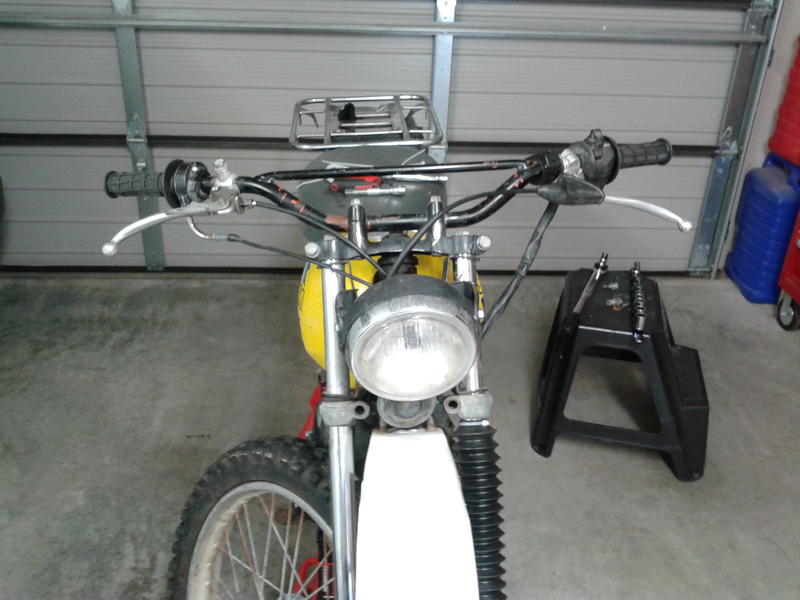

    Name:  20140410_094713.jpg
Views: 411
Size:  72.8 KB

    So pretty much ready to go at this stage.

    Still to do:
    • Kill switch
    • Want to put a small green led into the headlight housing for neutral light
    • Fuel tap needs to be replaced, and maybe carb rebuilt
    • Discovered the strainer is missing in the sediment bowl, so will order a replacement
    gadgetman likes this.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  5. #20
    Member gadgetman's Avatar
    Join Date
    Jan 2012
    Location
    Christchurch
    Posts
    17,979
    Coming along nicely ebf.
    There are only three types of people in this world. Those that can count, and those that can't!

  6. #21
    OCD Gravity Test Specialist kiwi39's Avatar
    Join Date
    Oct 2012
    Location
    Kapiti, Wellington
    Posts
    1,807
    Nice work @ebf, and definitely an awesome machine ... you going to bring it out to the farm for me to go for a rip on ?

    Theres a certain small primate @M_Terabyte that might also like to have a turn ..

    T

  7. #22
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    The bloody four-legged apprentice stole the front axle nut and spacer, had me searching all over the workshop ! Eventually found them in the back yard near his usual stash...

    Also managed to get the throttle re-assembled in full open position. Remember that I do not currently have a kill switch... Er, so when I started the bike while it was up on stands, it suddenly started revving its tits off, with no simple way to kill it - fun times, all good now
    kiwi39 likes this.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  8. #23
    Member Dynastar27's Avatar
    Join Date
    Jan 2014
    Location
    Papakura
    Posts
    1,060
    thats going to be awesome
    OPCz

    If in doubt double tap

  9. #24
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Fun and games with the slug today. Ended up spending the day working on the bike because the front base on my Omark developed a wobble, so no shooting in Hawke's Bay Champs for me this year...

    Replaced the front brake cable, and had the wheel off to check the brake shoes.
    Installed the replacement battery.
    Installed the after-market kill switch, and after a bit of trial and error found the correct wires to connect it to. Yeeeeha, no more stalling the bike to kill it !
    Removed the leads and bulbs for the speedo light and turn indicator light (these must have been stuffed into the headlight after the speedo was removed)
    When I started testing the neutral indicator wire, I discovered the clutch is sticking...

    So - oil drained (again), clutch cover off (farking philips bolts on the cover, had to use the impact driver on all of em). The clutch springs on the TF are held in by a cross pin, not bolted in like most other bikes.

    Going to have to wait till Tue to get Allen head replacements for all the clutch and magneto cover bolts.

    Ah well, at least I am getting to see most of the internals of the bike this way
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  10. #25
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,960
    A bit of clutch drag is pretty normal on older bikes, have a look at the fingers of the basket. The fiber plates tend to hammer into the basket making slight notches, this is enough to make them drag. File them off flat and check cable adjustment on reassembly.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  11. #26
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Tx VC, will check that out once I pull the clutch apart. Planning on giving the plain plates a once over on 1000 grit sheet.

    Sticking should be cheaper to fix than slipping
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  12. #27
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,960
    If its not slipping I wouldn't touch the plates,if it is slipping and the fiber plates are worn the cheapest easiest fix is often to add one extra steel plate.
    Also running ATF in the gearbox can help,there are two main types of ATF and I forget the designation but its the one that when you put a drop on your fingers and squeeze together and rub it feels "grippy"
    BRADS likes this.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.
