Thread: Suzuki LT250 quad

  1. #1
    Member G.I_Joel's Avatar
    Join Date
    Apr 2020
    Location
    Wellington
    Posts
    420

    Suzuki LT250 quad

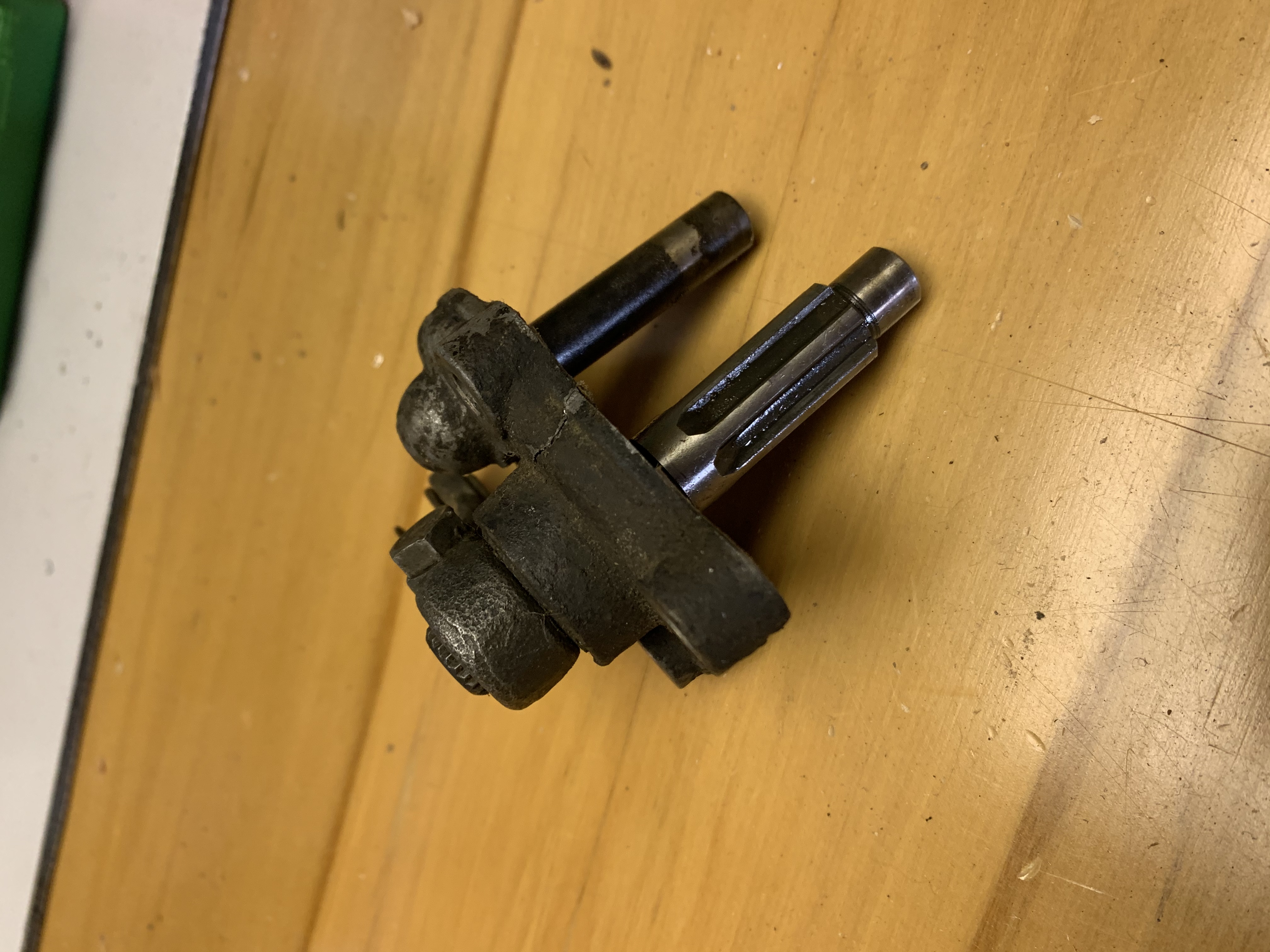

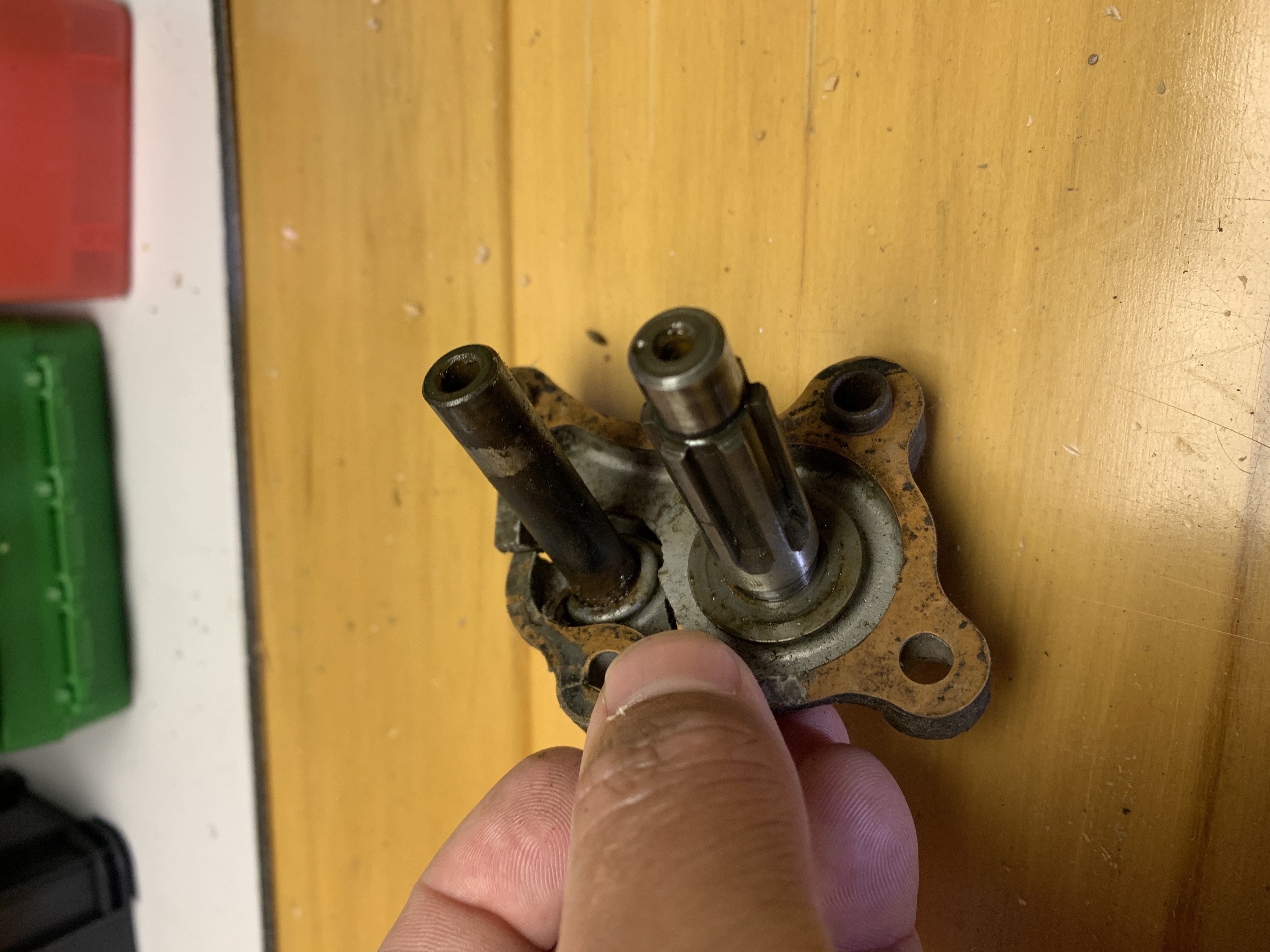

    She’s and oldie but a goodie, has carried plenty of deer in here life and just keeps on giving. But over the Xmas break I give her some tlc and noticed a crack on some housing on the front diff area. As mechanically minded as I am I removed the part but have absolutely no idea what it’s called. It joins the 4wd leaver to the front diff and I assume is responsible for engaging 4wd. If any of you forum gurus know what this part is called I would be much appreciative of your help. Thanks in advance.
    Attached Images Attached Images
    Go fast, Don’t suck

  2. #2
    Member bunji's Avatar
    Join Date
    Jul 2013
    Location
    South Island - Gods Own Country
    Posts
    944
    Have you tried looking up Selector ?If you sent those pics to a bike parts/wreckers with details on model/year & description they would tell you straight away.Good Luck they were still my favorite quad
    G.I_Joel likes this.

  3. #3
    Shootin the breeze.... Survy's Avatar
    Join Date
    Jan 2013
    Location
    Auckland
    Posts
    656
    I’m a noob period, but does this link help ?
    Looks like 28 maybe ?

    https://www.bike-parts-suz.com/suzuk...5833062/M/1948
    G.I_Joel likes this.
    Grouchy Smurf had it right all along...

  4. #4
    Member G.I_Joel's Avatar
    Join Date
    Apr 2020
    Location
    Wellington
    Posts
    420
    Quote Originally Posted by Survy View Post
    I’m a noob period, but does this link help ?
    Looks like 28 maybe ?

    https://www.bike-parts-suz.com/suzuk...5833062/M/1948
    @bunji I have found a few being wrecked on trade me and have given them my best description I could of the part, but if I knew exactly what it was called it would be easier, the fact I can’t sent them pictures makes it difficult.

    Yeah it is 28 and it calls it a cover haha. But that’s the best diagram I’ve seen so far and have saved that to my favourite links on my phone. Thanks for that. Also got sent a link where you write in the part number and it tells you what it is. Waiting to get home to see if it has a part number on it.
    Go fast, Don’t suck

  5. #5
    northdude
    Guest
    its a shaft lever holdy thingy
    G.I_Joel likes this.

  6. #6
    Member bunji's Avatar
    Join Date
    Jul 2013
    Location
    South Island - Gods Own Country
    Posts
    944
    Sorry did not realise the level of noob Try searching /asking for /describing as a Suzuki LT250 quad, front differential, 4 wd selector cover.

    Personally since you do not really know what you want/have l would ask/show a actual Suzuki dealers part section or real Bike Wreckers not just another noob on the end of the line/nett,that way at least ypu will get correct identification/part number to either purchase OEM or know what to search for S/H on TM etc .Can you send the pics from your phone to your email & then use that to email to a dealer /wrecker for correct ID/part number?

    I tried looking in the shed to see if l still had a old manual to look in & then send you, but it must be over a decade since l owned one of the old girls & it has been thrown out in a clean up .It might be worth while getting one of the cheaper Haynes etc manuals for her to help you working on her in the future. Good Luck .


    I converted your pics here to Imgur does that make it easier for you to share/send ? Also might help to take pic from other end ie showing how it looks as you are looking at it on bike Hope it helps

    https://i.imgur.com/hgeGU7v.jpg

    https://i.imgur.com/AG2SXP8.jpeg
    Last edited by bunji; 15-01-2021 at 06:47 PM.

  7. #7
    Member G.I_Joel's Avatar
    Join Date
    Apr 2020
    Location
    Wellington
    Posts
    420
    Haha yeah mate, it was just a matter of getting down to tss to ask them, I figured if someone knew before hand I wouldn’t have to go down to them. Even too them about 10mins to figure out exactly what it was and what parts I needed as it didn’t come as a whole but won in the end
    Go fast, Don’t suck

  8. #8
    Member bunji's Avatar
    Join Date
    Jul 2013
    Location
    South Island - Gods Own Country
    Posts
    944
    Quote Originally Posted by G.I_Joel View Post
    Haha yeah mate, it was just a matter of getting down to tss to ask them, I figured if someone knew before hand I wouldn’t have to go down to them. Even too them about 10mins to figure out exactly what it was and what parts I needed as it didn’t come as a whole but won in the end
    Good One mate glad you got it sorted ,l am going to do a shed clear out as soon as we get some steady clear weather for a few days so l can stack all the shit outside while l sort it,if l find the workshop manual for the old Suzuki LT250 quad l had do you want it ?

  9. #9
    Member G.I_Joel's Avatar
    Join Date
    Apr 2020
    Location
    Wellington
    Posts
    420
    Quote Originally Posted by bunji View Post
    Good One mate glad you got it sorted ,l am going to do a shed clear out as soon as we get some steady clear weather for a few days so l can stack all the shit outside while l sort it,if l find the workshop manual for the old Suzuki LT250 quad l had do you want it ?
    @bunji that would be bloody awesome mate. Let me know if you do find it. The old bike has got another 35 years in her I reckon!
    Go fast, Don’t suck

  10. #10
    Member bunji's Avatar
    Join Date
    Jul 2013
    Location
    South Island - Gods Own Country
    Posts
    944
    Quote Originally Posted by G.I_Joel View Post
    @bunji that would be bloody awesome mate. Let me know if you do find it. The old bike has got another 35 years in her I reckon!
    No Worries if l find it l will PM & arrange posting it .Like l say they were my favorite quad out of a 6 l have owned over the years ,probably do the clear out at the end of the month so if l find it or any spares that may be of use to you l will let you know.
    G.I_Joel likes this.

  11. #11
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,088
    Quote Originally Posted by bunji View Post
    No Worries if l find it l will PM & arrange posting it .Like l say they were my favorite quad out of a 6 l have owned over the years ,probably do the clear out at the end of the month so if l find it or any spares that may be of use to you l will let you know.
    While you are looking if you come across a suzi LT 400 eiger workshop manual I could rehome it.

  12. #12
    Member G.I_Joel's Avatar
    Join Date
    Apr 2020
    Location
    Wellington
    Posts
    420
    Quote Originally Posted by bunji View Post
    No Worries if l find it l will PM & arrange posting it .Like l say they were my favorite quad out of a 6 l have owned over the years ,probably do the clear out at the end of the month so if l find it or any spares that may be of use to you l will let you know.
    Bloody legend!
    Go fast, Don’t suck
