Thread: Show me your knives

  1. #1891
    Member hotbarrels's Avatar
    Join Date
    Aug 2012
    Location
    Auck
    Posts
    1,792

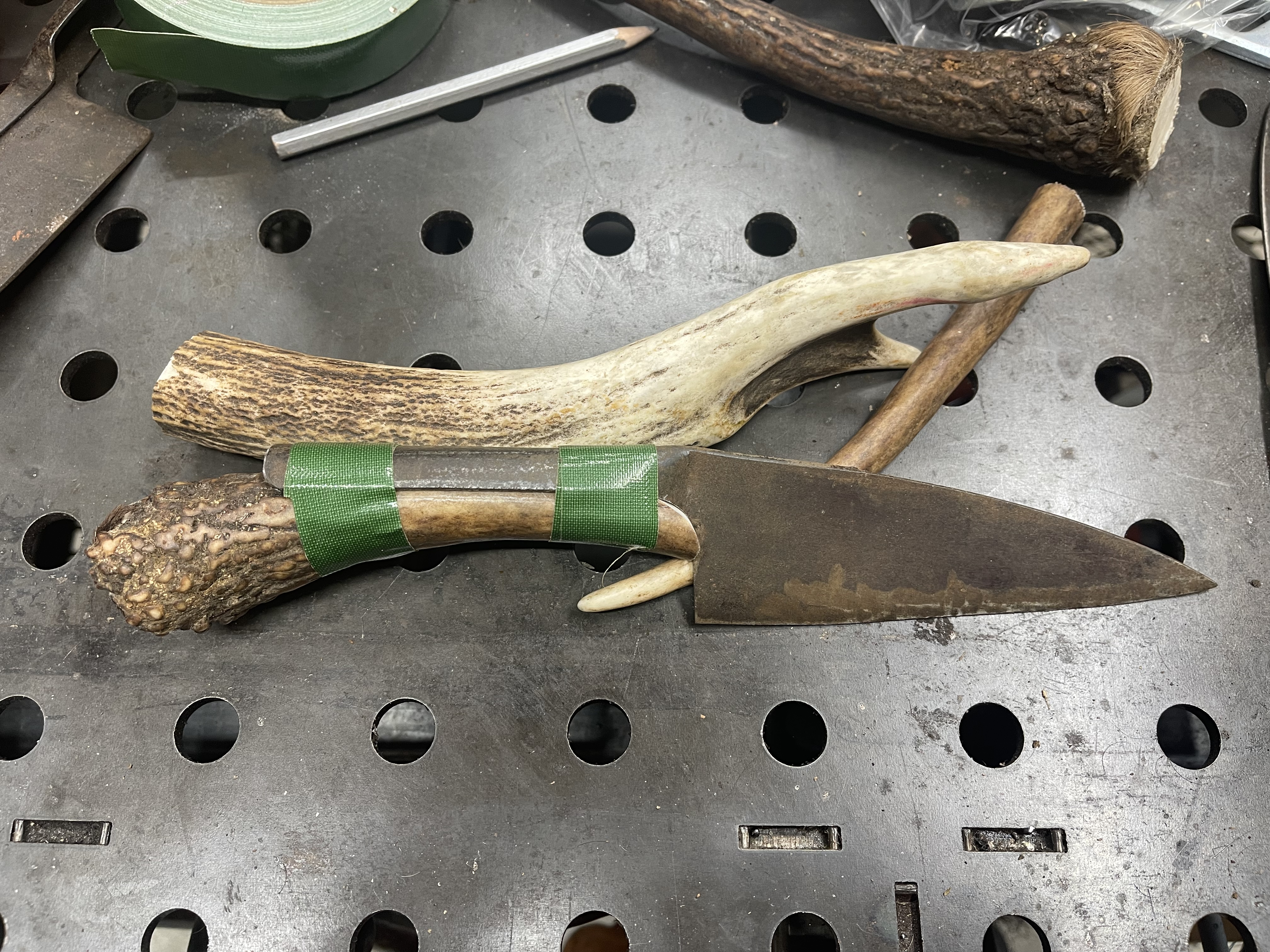

    Haven't been doing any knifemaking lately, but started this little project tonight.

    1x old set of sheep hand shears
    1x spiker antler (right hand)

    Just testing handle fit and balance before annealing the blade to straighten and remove the set, grind in the bevels, heat treat, fit the handle and sharpen.

    Should make a cool little kitchen knife for hunting expeditions

    Name:  2021-09-29 19.12.21.jpg
Views: 457
Size:  7.36 MB

    Name:  2021-09-29 19.12.44.jpg
Views: 469
Size:  7.40 MB
    NRT, Scouser, Shearer and 6 others like this.

  2. #1892
    Member diana2's Avatar
    Join Date
    May 2015
    Location
    Top of the south
    Posts
    692
    What a brilliant idea to use the old shears, looking forward seeing the next steps to something truly innovative and kreative,
    thanks for sharing !
    Or you can stay within 300 yards and keep life a lot simpler.

  3. #1893
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,908

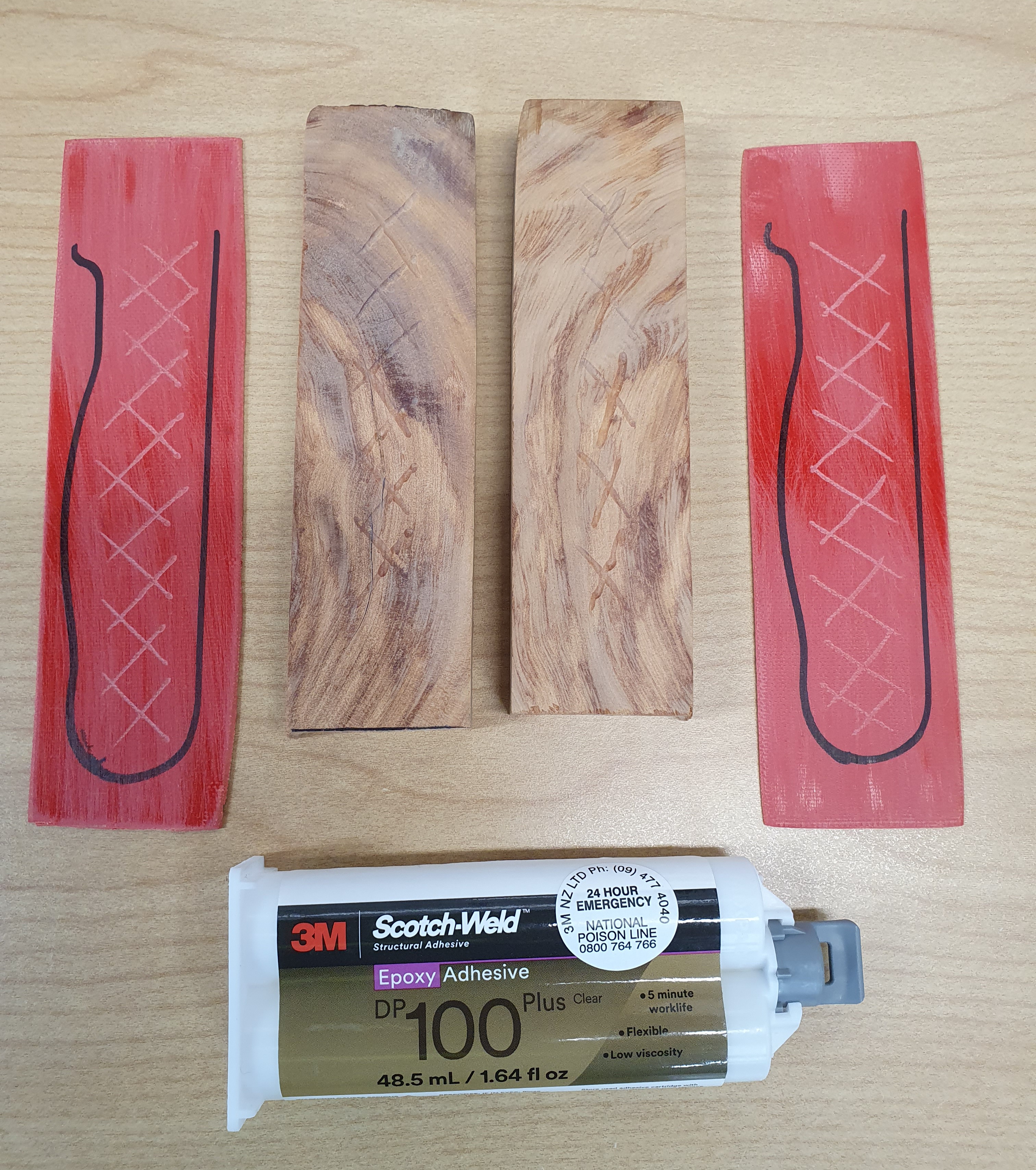

    Scouser’s Bushcraft Knife Project Phase 4

    Used a Dremel to ‘scuff’ up both the scales and liners for better epoxy adhesion

    Name:  1a.jpg
Views: 622
Size:  3.05 MB

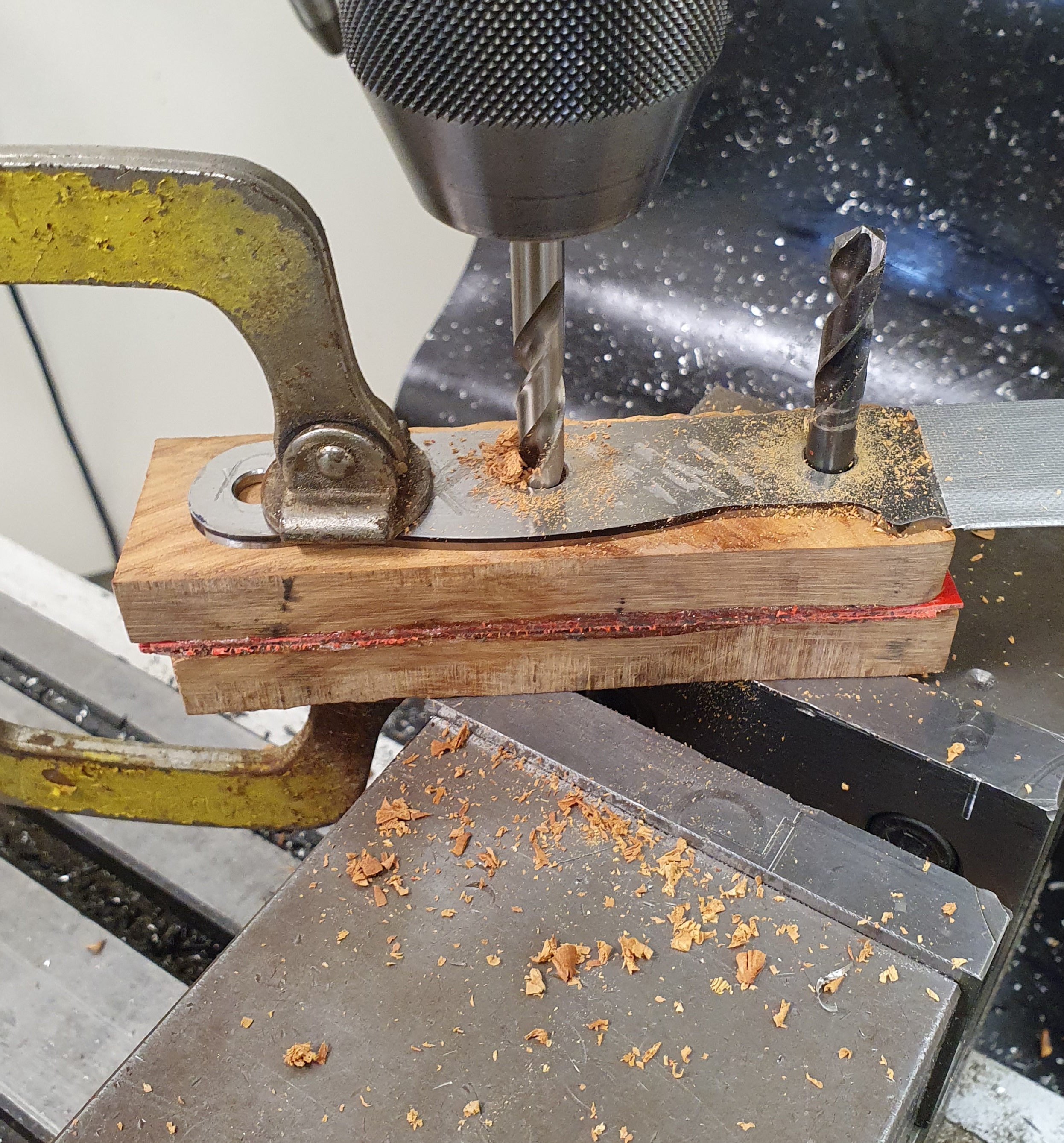

    Drilled through both using the knife blank as a guide

    Name:  2a.jpg
Views: 424
Size:  1.97 MB

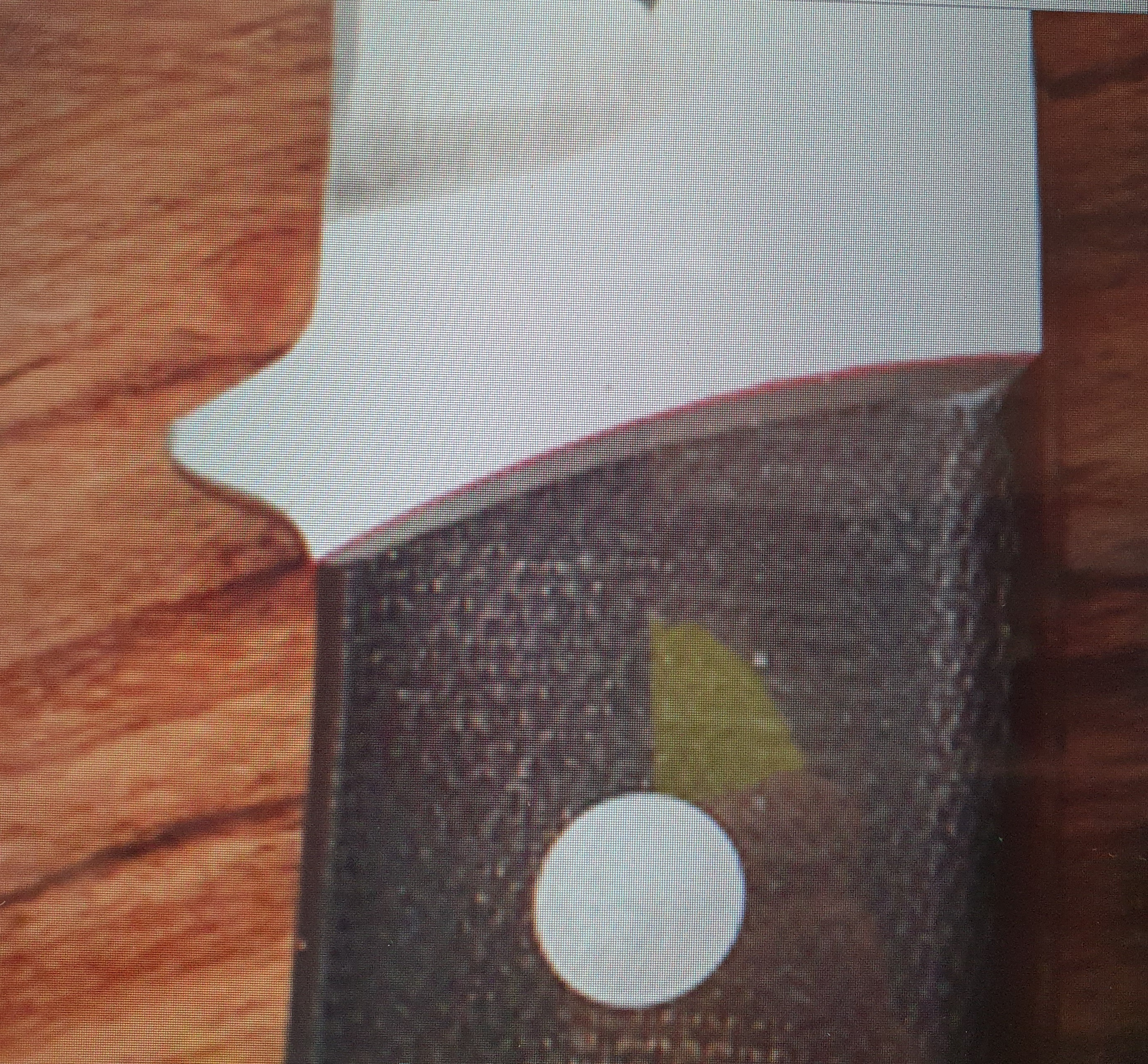

    Here's where I need some advice from the knife making gurus…..i know I have to finish the scales where the knife ends and the tang starts, shall I copy this example as its my 1st go….?

    Name:  20211001_113010.jpg
Views: 486
Size:  3.22 MB
    Micky Duck and terryf like this.
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  4. #1894
    Member
    Join Date
    Mar 2014
    Location
    Tauranga
    Posts
    3,003
    Quote Originally Posted by Scouser View Post
    Scouser’s Bushcraft Knife Project Phase 4

    Used a Dremel to ‘scuff’ up both the scales and liners for better epoxy adhesion

    Attachment 180221

    Drilled through both using the knife blank as a guide

    Attachment 180222


    Here's where I need some advice from the knife making gurus…..i know I have to finish the scales where the knife ends and the tang starts, shall I copy this example as its my 1st go….?

    Attachment 180223
    Yup that looks good.

    Use the pin holes to connect the scales together, this keeps the scales even, just work like it's one piece of material.

    Rough cut the radius first test fitting for looks. Once you are happy with the profile of the front scribe a line on the top of the scale both sides to set your chamfer. Shape your chamfer and then finish sand the ends. It's super hard to sand the scale end without scratching the blade so completely finish it before glueing the scale.
    Scouser likes this.

  5. #1895
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,908
    Quote Originally Posted by Nick-D View Post
    Yup that looks good.

    Use the pin holes to connect the scales together, this keeps the scales even, just work like it's one piece of material.

    Rough cut the radius first test fitting for looks. Once you are happy with the profile of the front scribe a line on the top of the scale both sides to set your chamfer. Shape your chamfer and then finish sand the ends. It's super hard to sand the scale end without scratching the blade so completely finish it before glueing the scale.
    Sweet cheers Nick
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  6. #1896
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,908

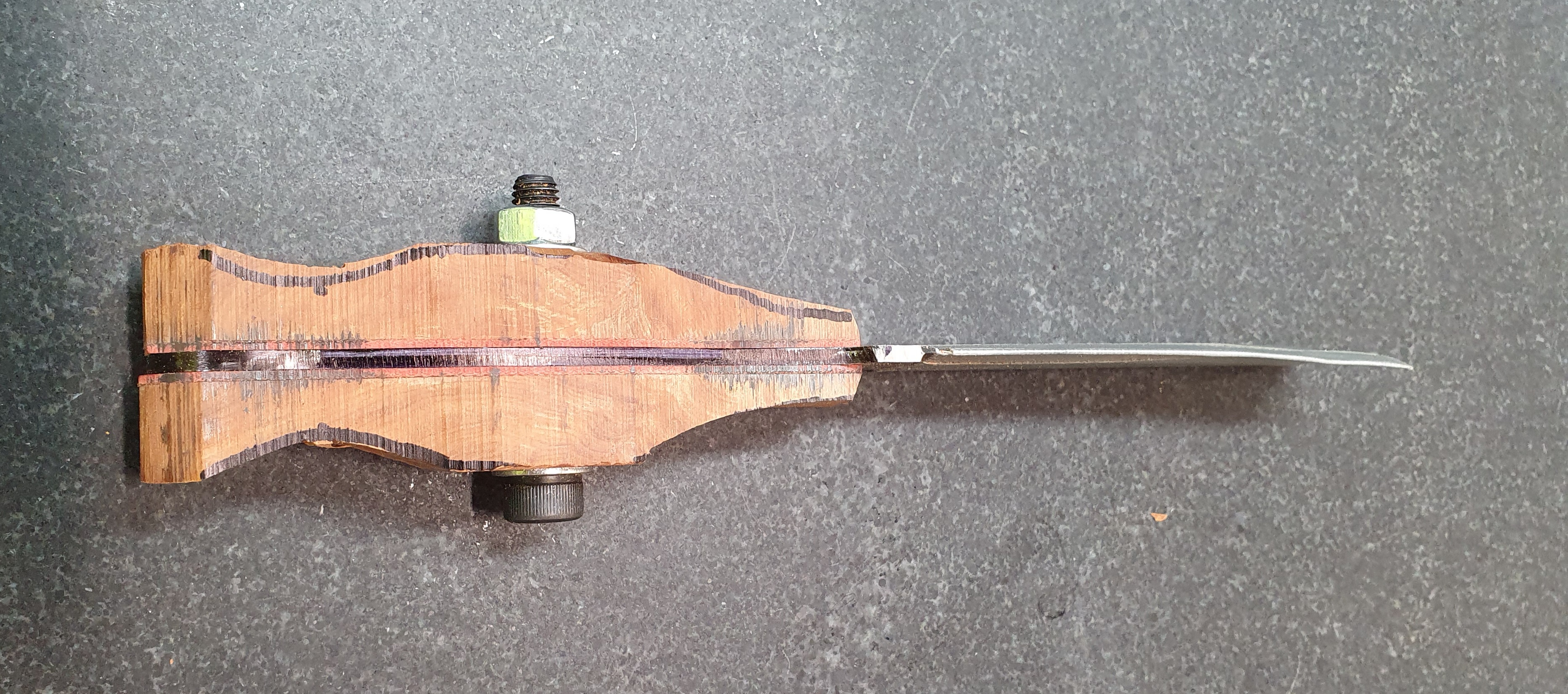

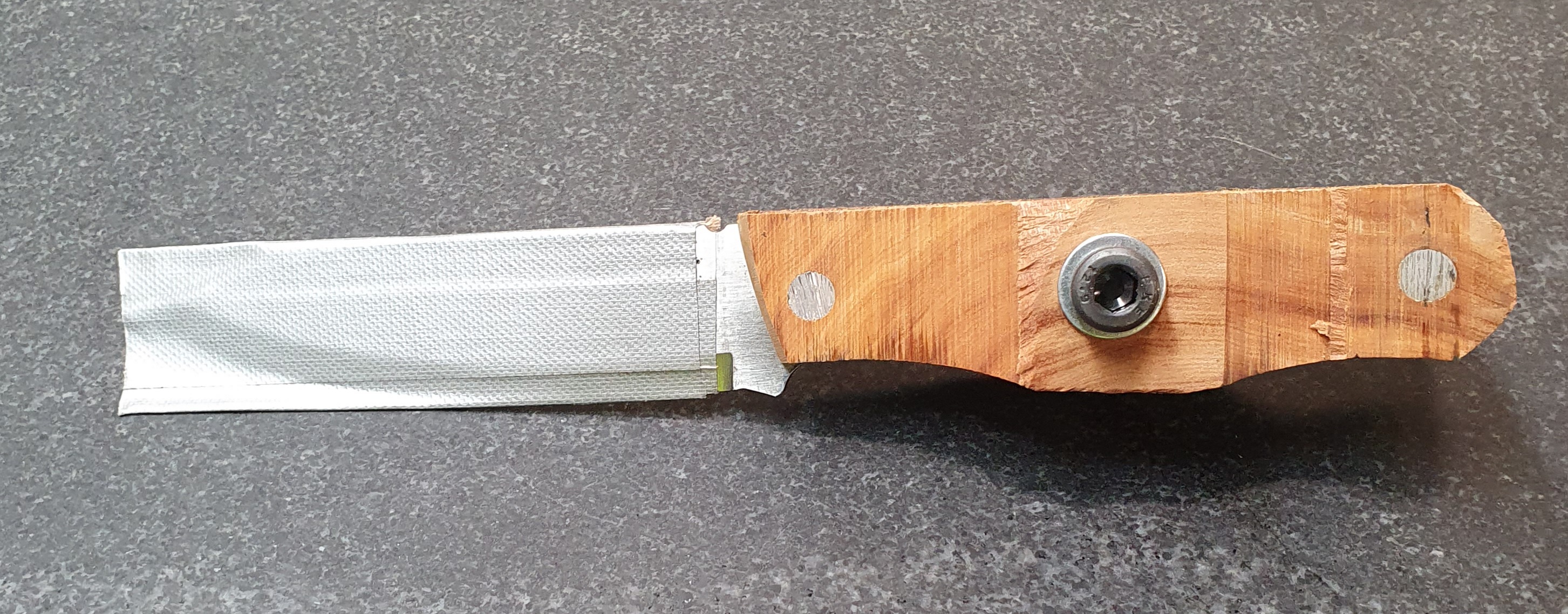

    Scouser’s Bushcraft Knife Project Phase 5

    Probably an unorthodox way of doing it, but the sander/linersher I have at work is not ideal & purpose built

    So ive cut out the excess on the bandsaw, plenty of meat on my ‘Coke Bottle’ shaped handle

    Fine finishing next on where the handle meets the blade….have to be careful now….

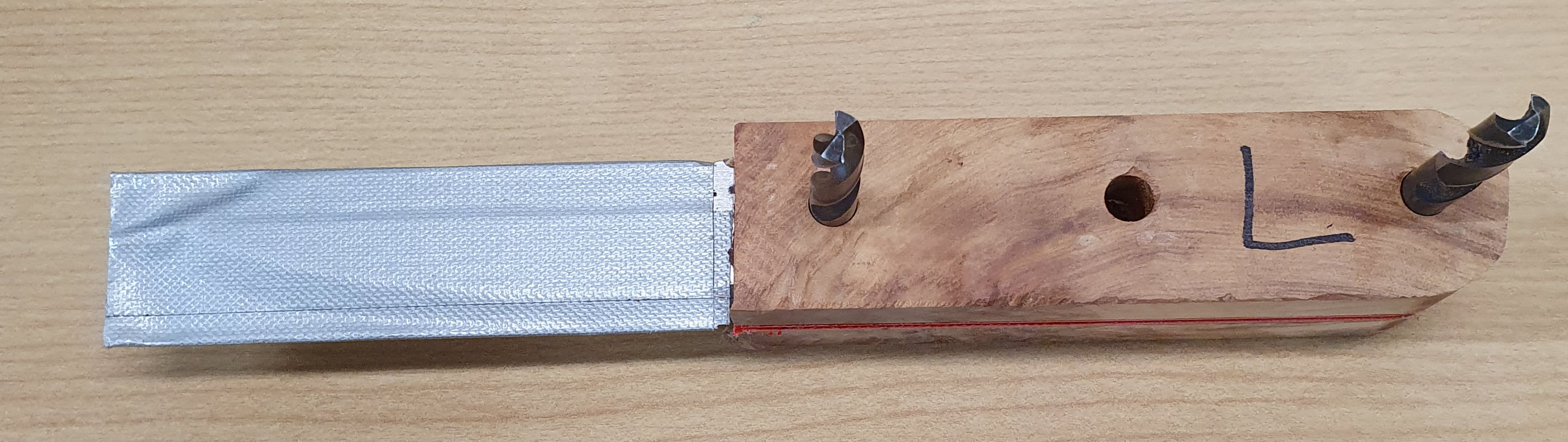

    Name:  3a.jpg
Views: 481
Size:  750.0 KB

    Name:  3b.jpg
Views: 536
Size:  2.07 MB

    Name:  3c.jpg
Views: 455
Size:  1.16 MB

    Name:  Lin 2.jpg
Views: 496
Size:  3.72 MB
    erniec, viper and Micky Duck like this.
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  7. #1897
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,908

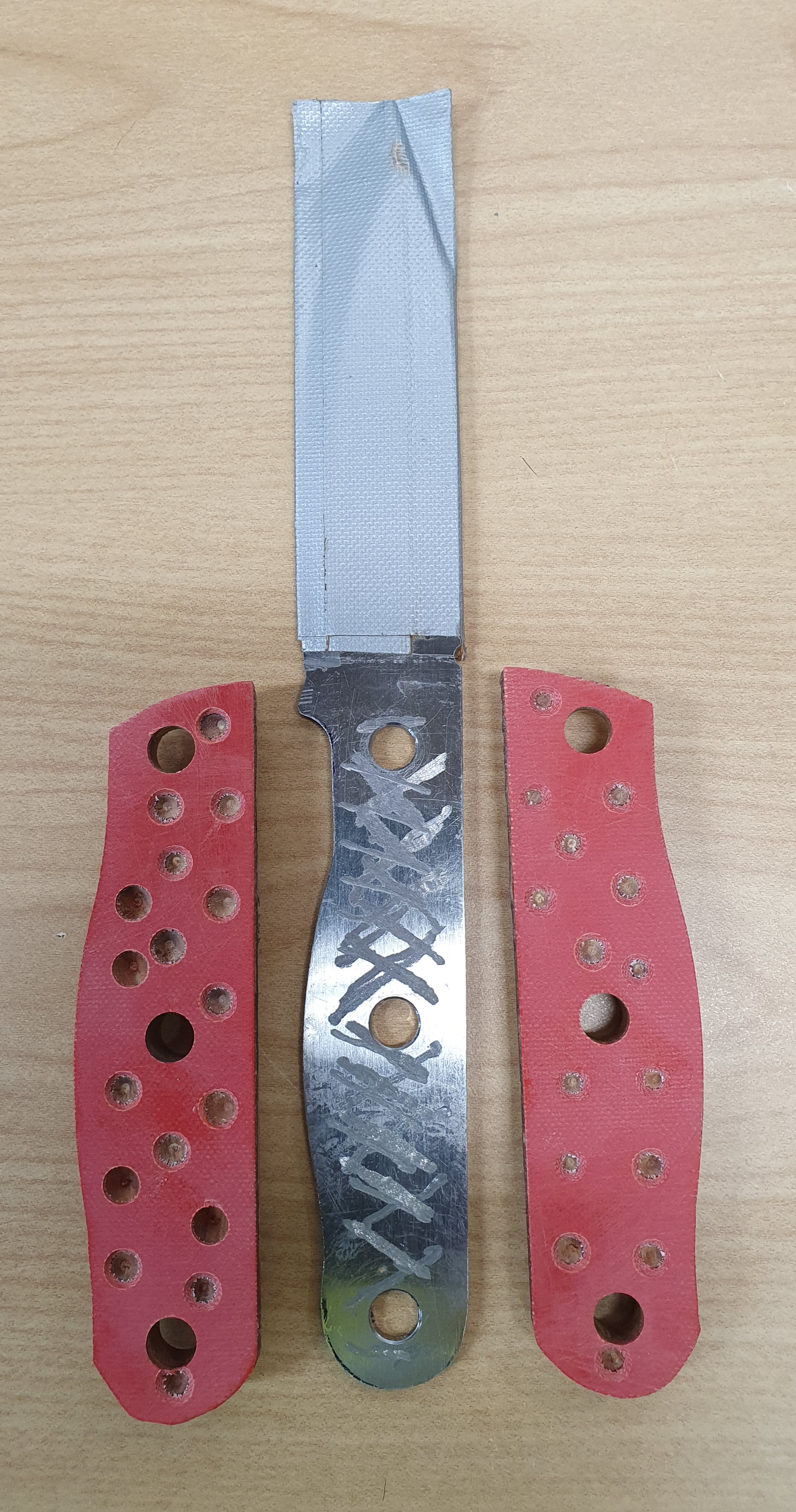

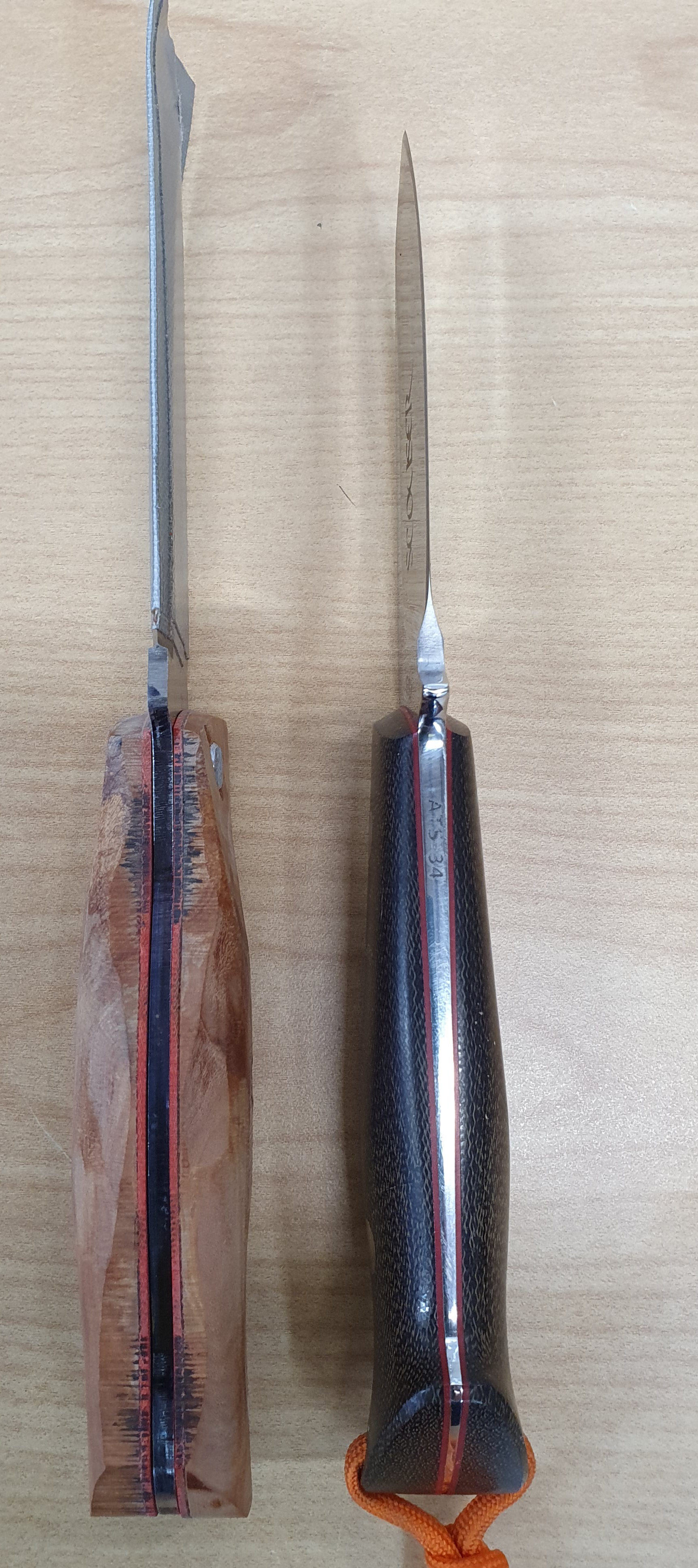

    Scouser’s Bushcraft Knife Project Phase 6

    Name:  A1 (2).jpg
Views: 424
Size:  2.31 MBName:  A2 (1).jpg
Views: 455
Size:  1.72 MB

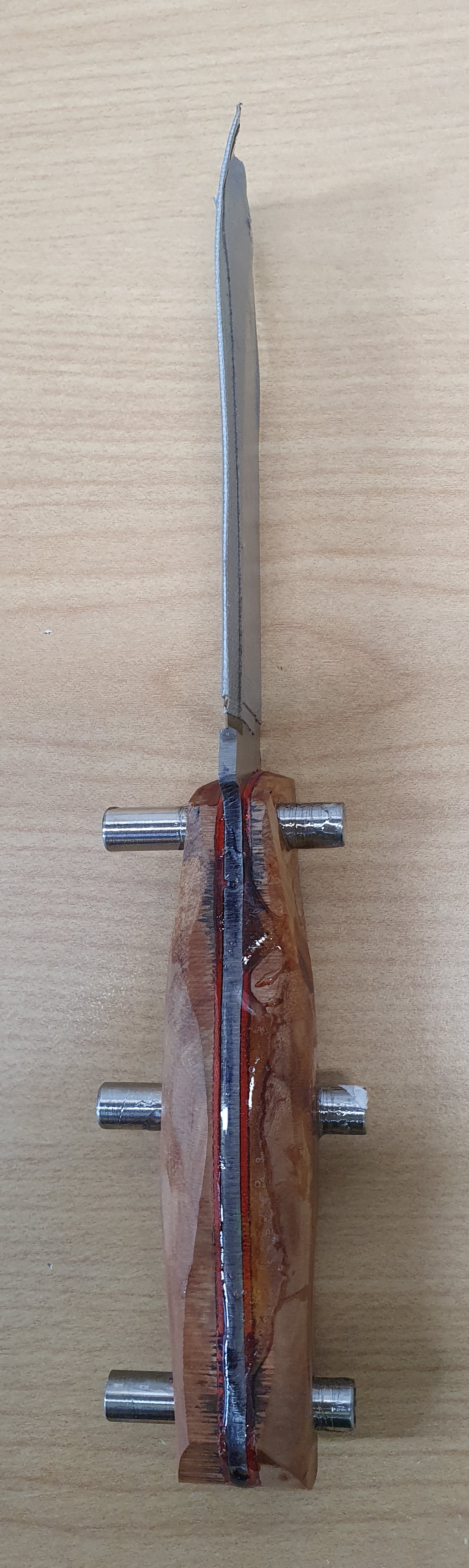

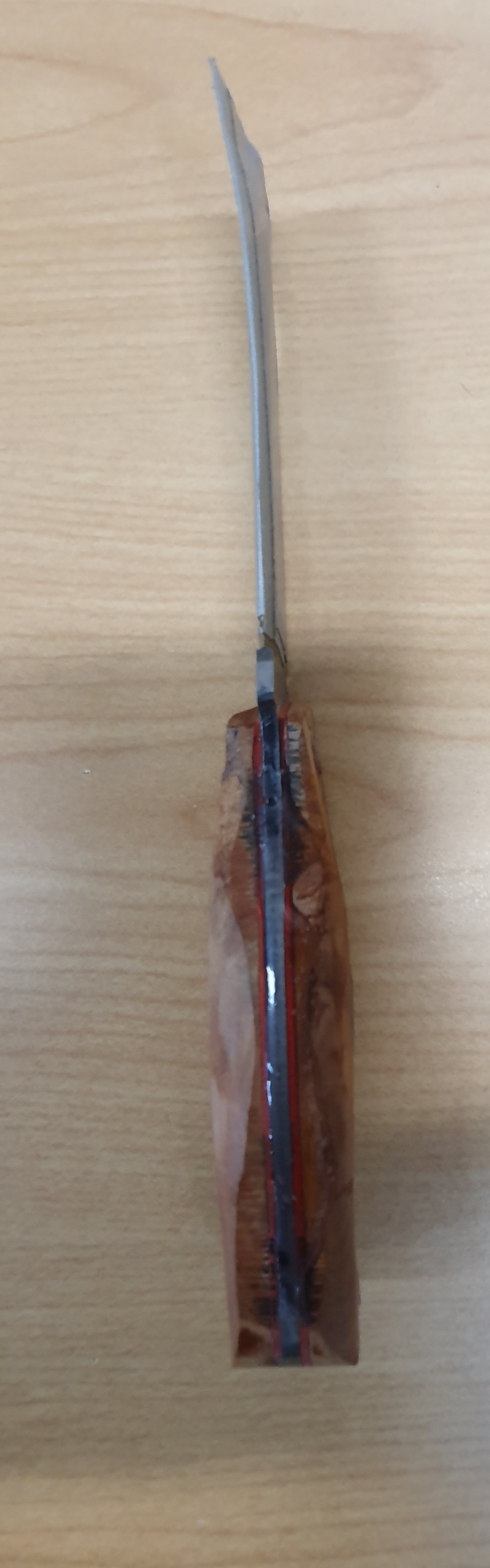

    Hi team, the scales are on, no drama, all went well......

    Name:  A3.jpg
Views: 385
Size:  1.29 MBName:  A4.jpg
Views: 418
Size:  861.1 KB

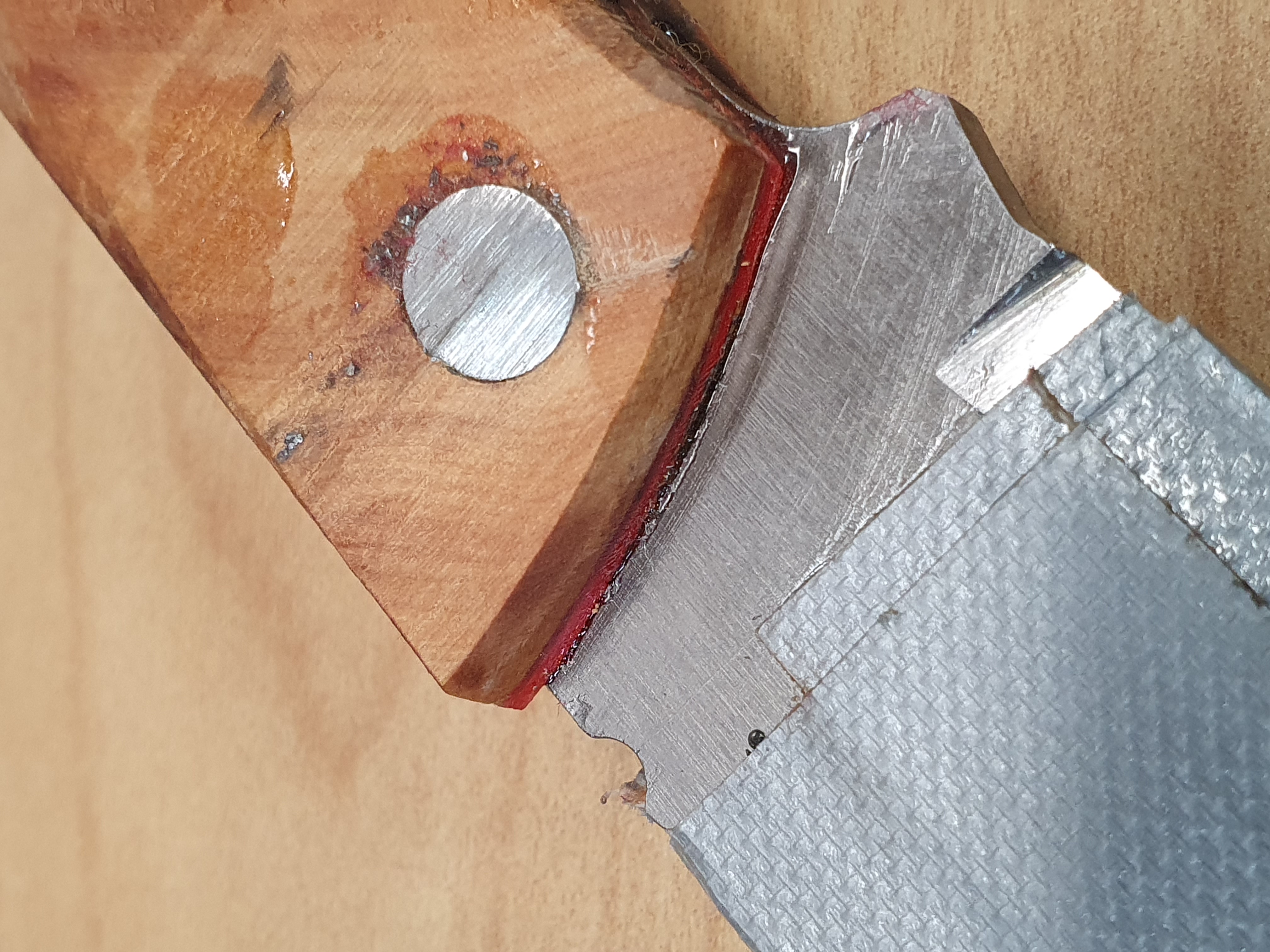

    ive finished rough sanding on the linisher,

    Name:  A5.jpg
Views: 440
Size:  2.15 MB

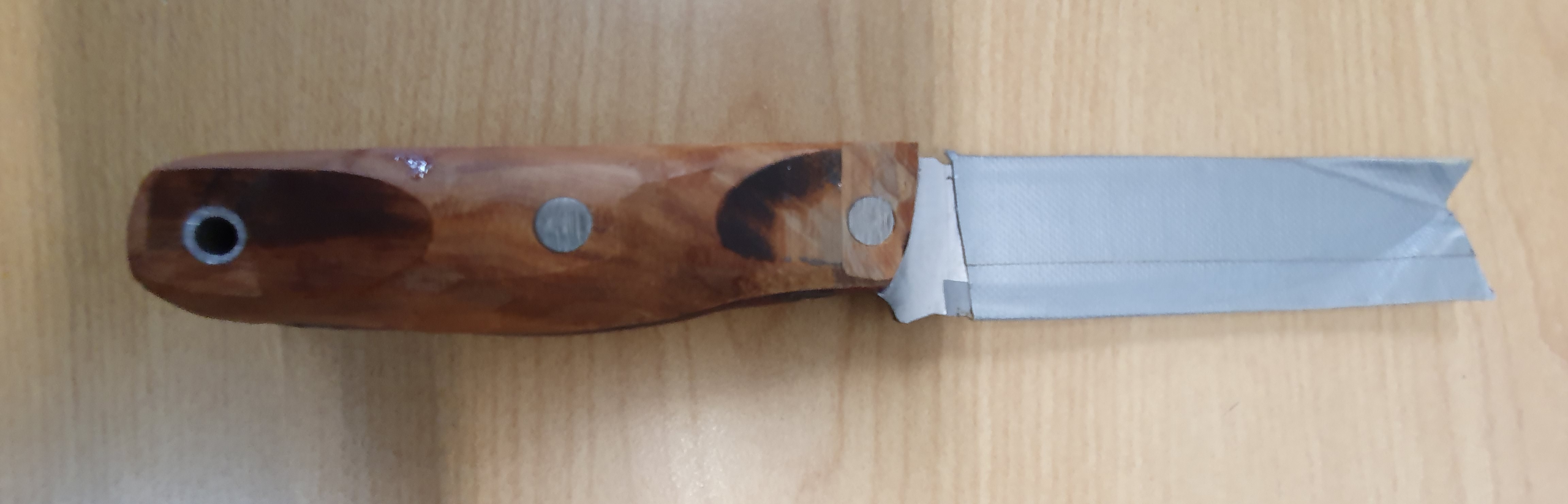

    now for fine grit sandpaper and give it the ‘old shoe shine’…….im well happy

    Name:  A6.jpg
Views: 411
Size:  851.3 KB
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  8. #1898
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,908

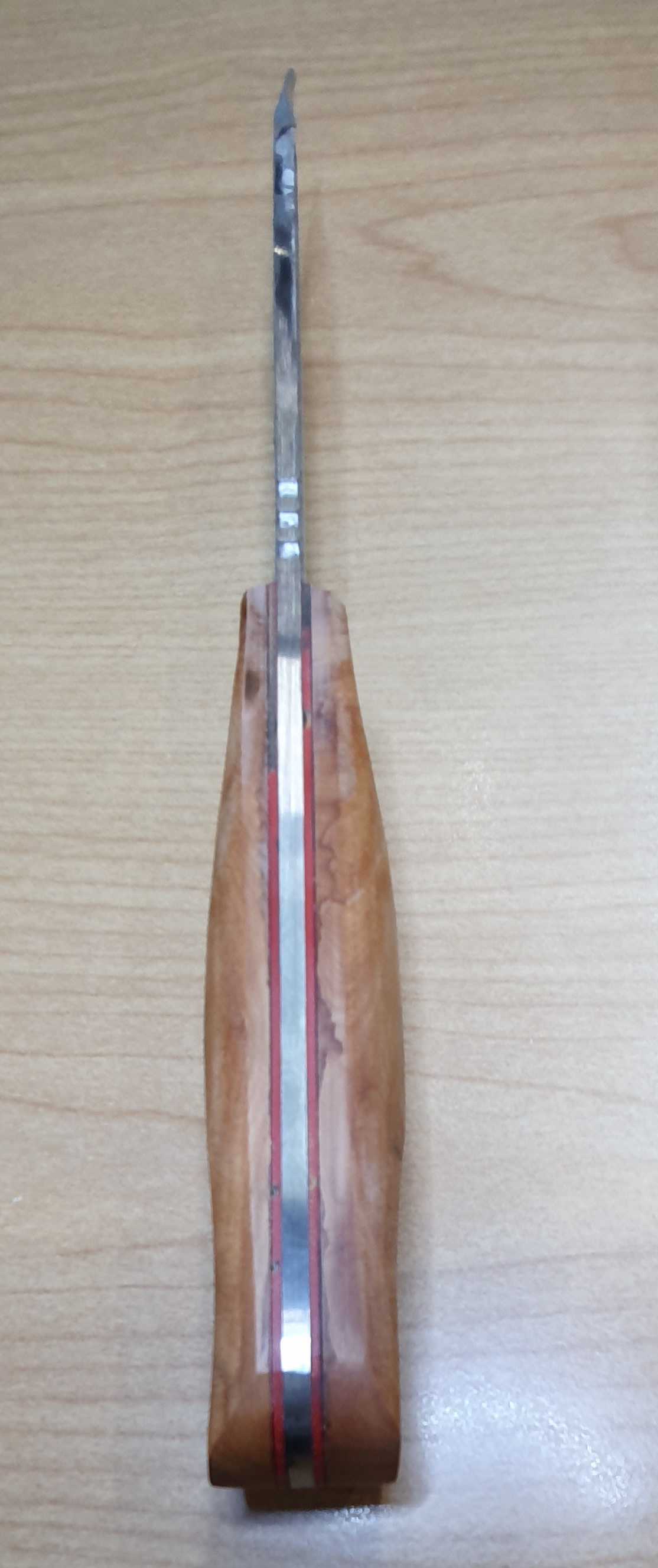

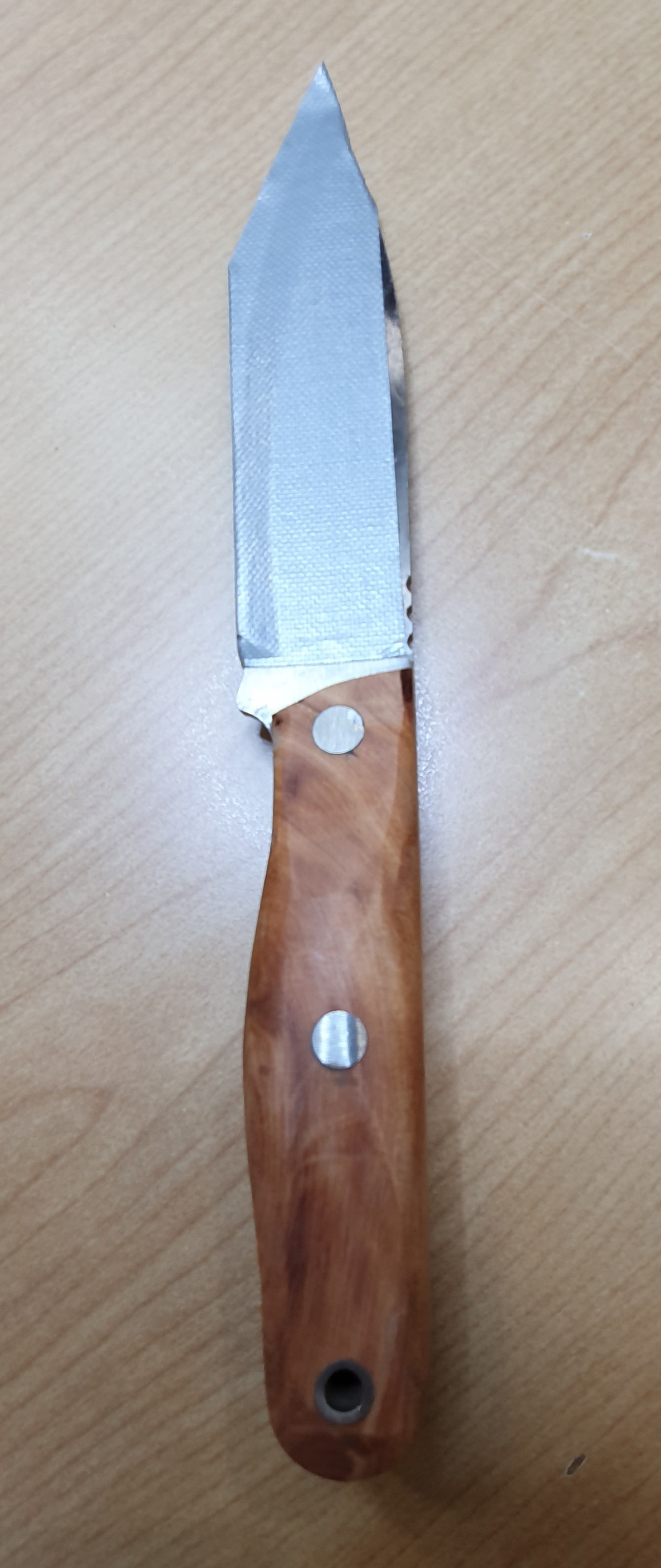

    @john worthington @viper @Nick-D @Shelley what 'wood oil' do you use?

    Name:  B1.jpg
Views: 488
Size:  489.4 KBName:  B2.jpg
Views: 511
Size:  661.4 KB
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  9. #1899
    Member viper's Avatar
    Join Date
    Feb 2015
    Location
    Rabbitvegas
    Posts
    2,619
    For me all the timbers I use are stabilized. So the up take of oils is pretty limited. When I do use it I use Scaffold oil, spelt wrong sorry, but it's a gun stock oil with various oils infused. It works well. It is only one part of the process for me as there are other stages I do also
    Scouser likes this.

  10. #1900
    Member
    Join Date
    Mar 2014
    Location
    Tauranga
    Posts
    3,003
    Quote Originally Posted by Scouser View Post
    I use wax mainly man, but same as Viper using stabilised timbers.

    I wax and polish with 0000 steel wool. Gives a nice almost buffed finish that still has a little grip.

    Danish oil and blo are popular. I've heard of people getting good results wet finishing with ca glue as well. Ive used Danish oil and it was a nice finish, but I prefer the wax and steel wool
    Scouser and viper like this.

  11. #1901
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,908

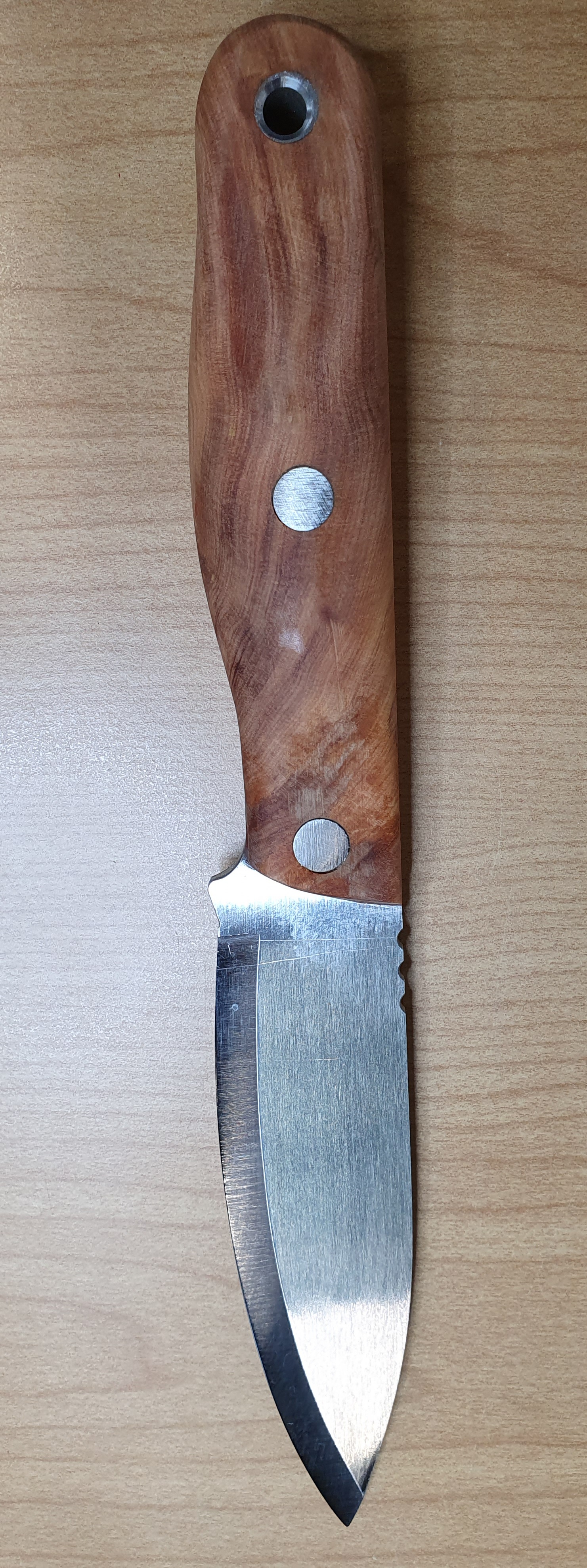

    Scouser’s Bushcraft Knife Project Phase 7

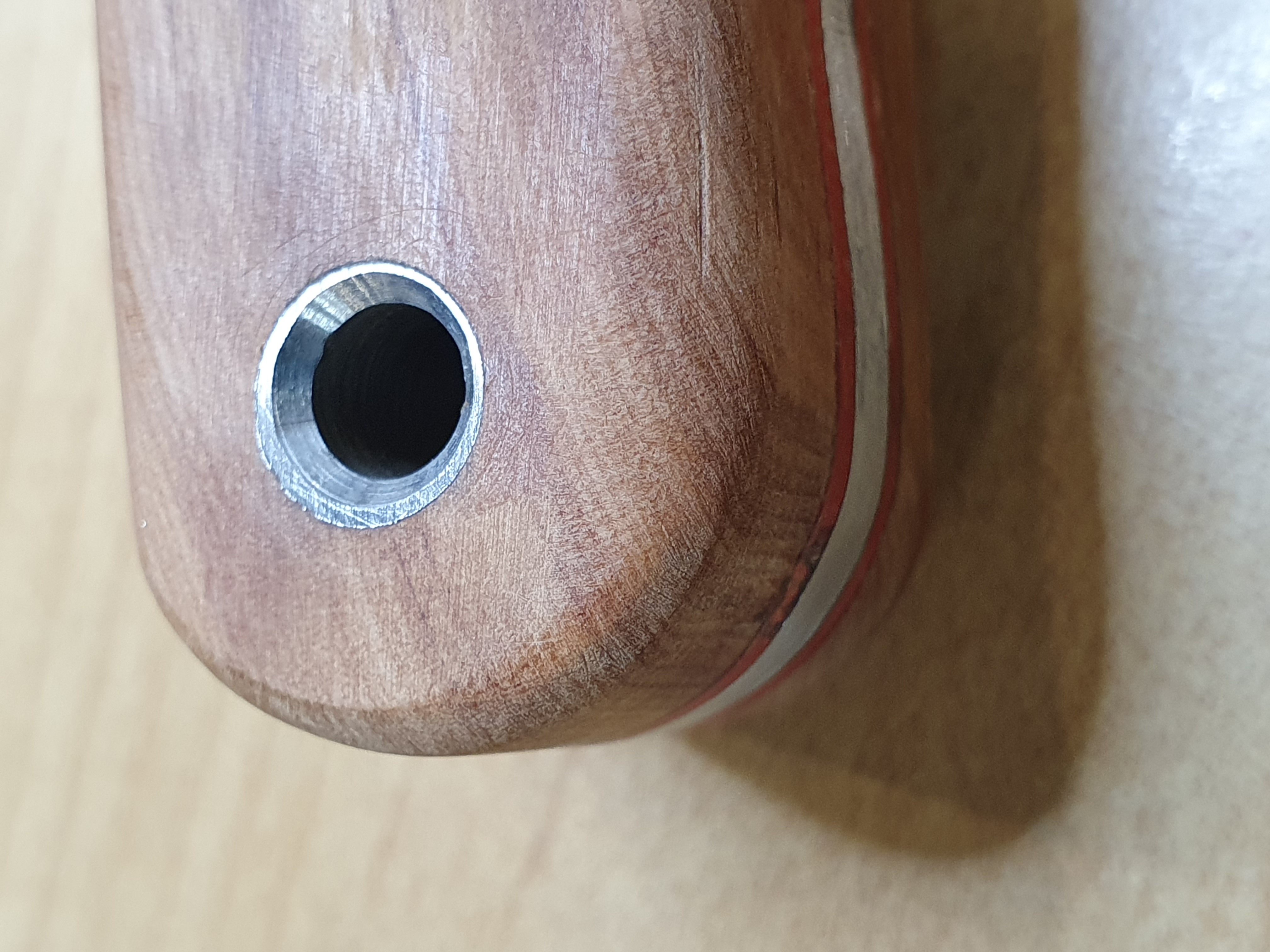

    Done team, im absolutely rapt with it....finished doing the final sanding by hand and counter sunk the lanyard hole.....just the oiling to do

    ive really enjoyed this project, i looked at making a knife from scratch ages ago, but when i saw all the hand grinding involved (old file, saw blade) i put it in the 'NAR' file

    its a true 'one off', as i customized the blank and its made for a right hander as the scales are not symmetrical (intended, not a linisher mistake).......

    Name:  C1.jpg
Views: 461
Size:  1.88 MB

    Name:  C2.jpg
Views: 456

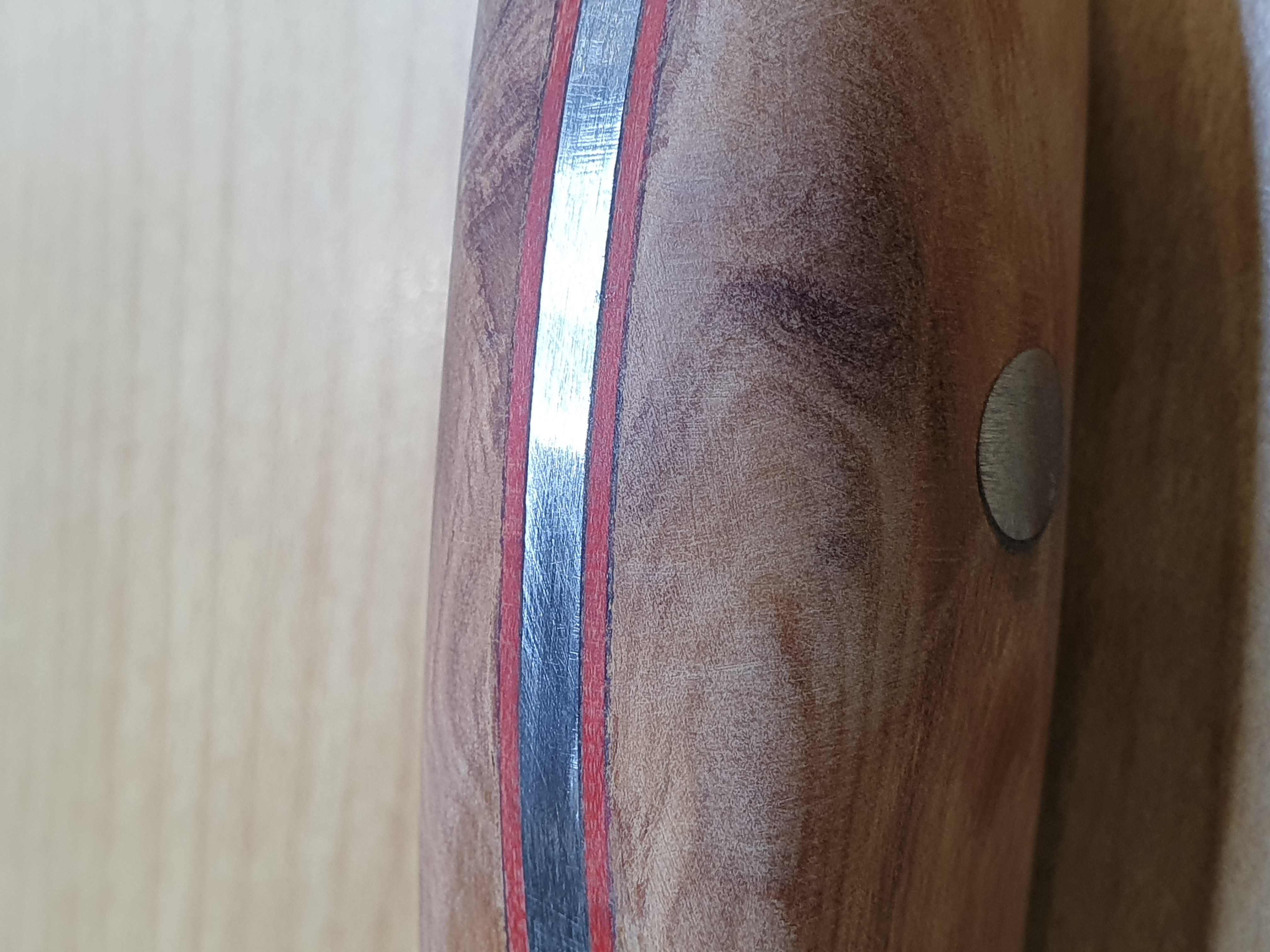

Size:  1.94 MBName:  C4 (1).jpg
Views: 479
Size:  2.13 MB

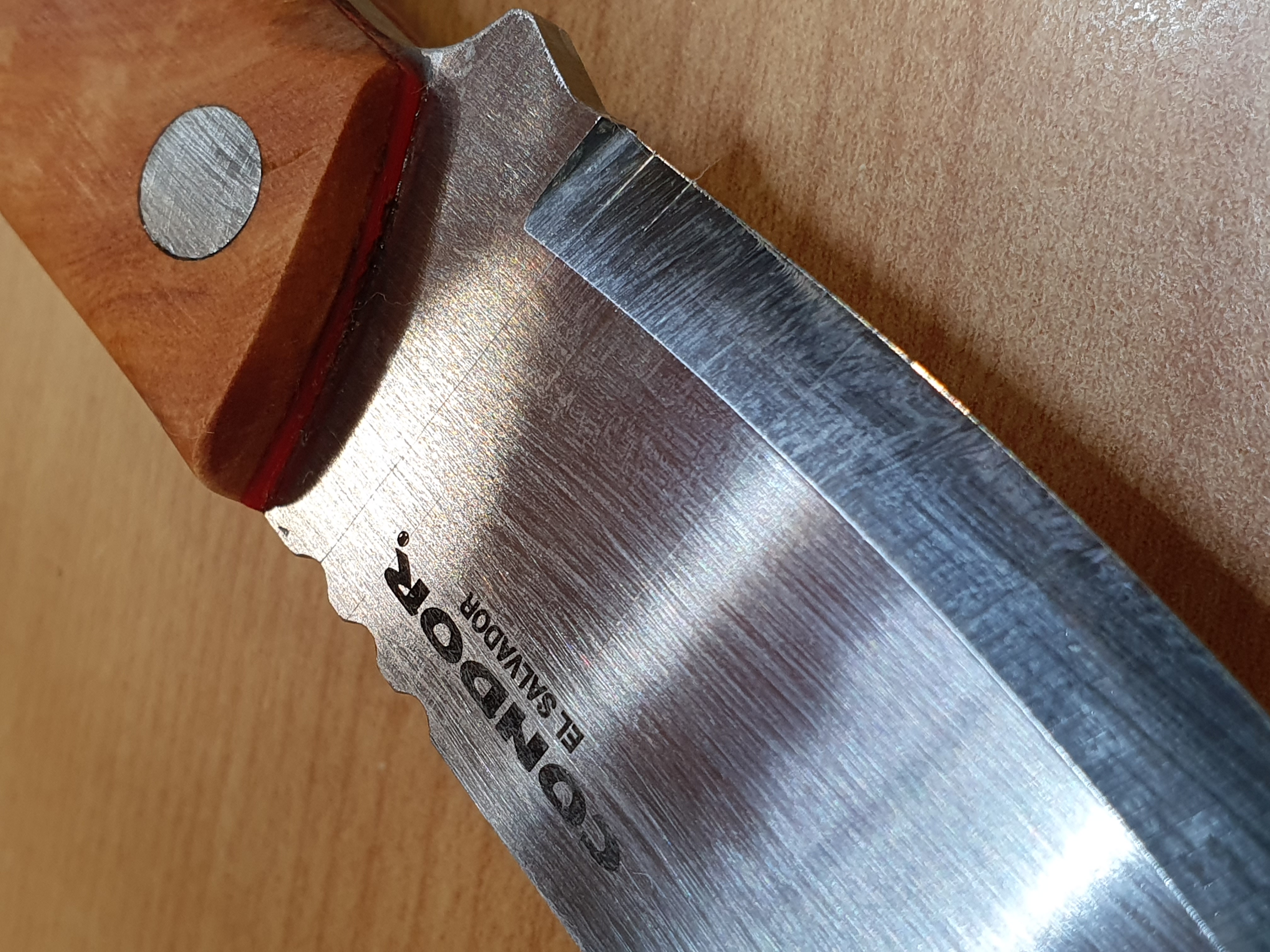

    Name:  C4 (2).jpg
Views: 476

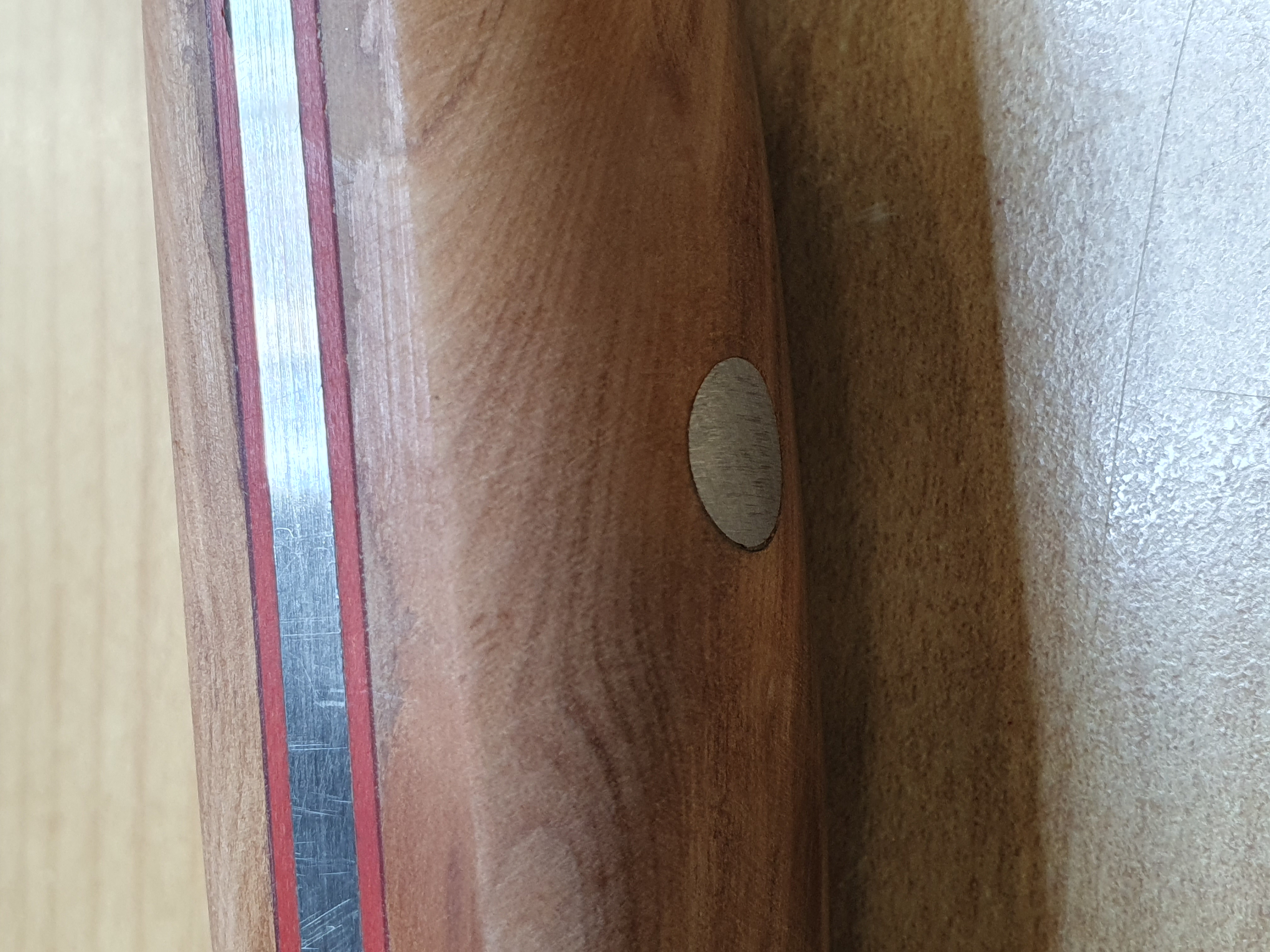

Size:  2.34 MBName:  C5.jpg
Views: 495
Size:  2.51 MB
    Tahr, Taff, Friwi and 7 others like this.
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  12. #1902
    Member john worthington's Avatar
    Join Date
    Dec 2011
    Location
    clyde
    Posts
    431
    hey scouser i would just give the handle a bit more of a sand with 320 grit or so make all the scratch marks go the length of the handle and the a rub with cooking oil will be all it needs
    cheers john
    Scouser and Micky Duck like this.

  13. #1903
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,908
    Quote Originally Posted by john worthington View Post
    hey scouser i would just give the handle a bit more of a sand with 320 grit or so make all the scratch marks go the length of the handle and the a rub with cooking oil will be all it needs
    cheers john
    Sweet, thanks for the advice mate, will do.....
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  14. #1904
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,908

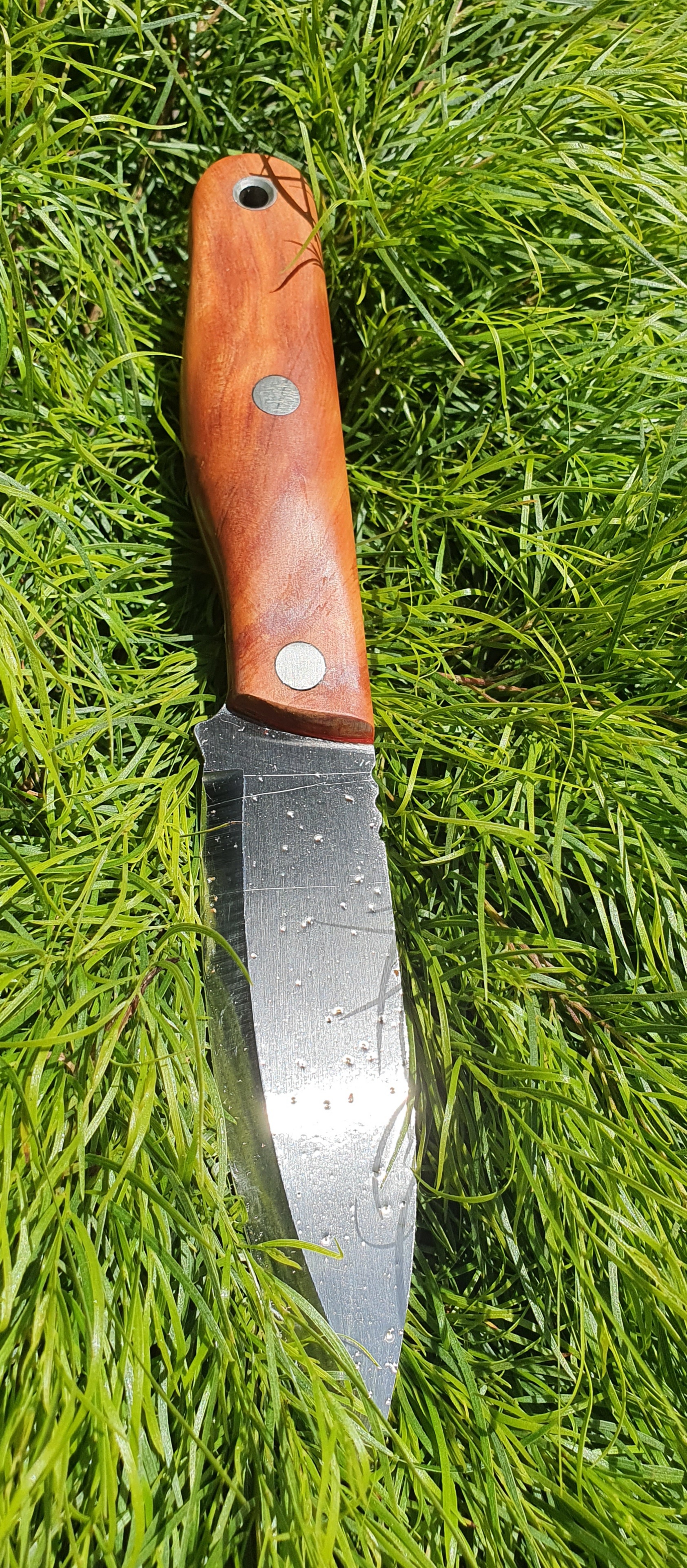

    320 grit sanding and 5 coats of Danish oil later.....
    Name:  20211016_125846.jpg
Views: 535
Size:  2.64 MB
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  15. #1905
    Member
    Join Date
    Mar 2014
    Location
    Tauranga
    Posts
    3,003
    Quote Originally Posted by Scouser View Post
    320 grit sanding and 5 coats of Danish oil later.....
    Attachment 181272
    Looks great man. Lovely warmth to the timber scales. Next one do the blade too! Start with thin-ish stock and it's really not to bad to bevel by hand
    Scouser likes this.
