Thread: 300m targets - where to get

  1. #16
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    6,087
    Just curious, is the 300m range target half as big again as a 200? IE how wide are the bull and circles on the 200 and is the 300 1.5x larger?

    If that is the case and you know what sizes you are after if you get a 200m target and enlarge it by half then print it out in portions on a normal printer and stick it to a piece of card or paper, you could make your own.

    Or draw your own one out using the sizes, cut it into A4 size pieces, scan each and print them out, tape them together and viola...or get them copied at somewhere like warehouse stationary in A3.

  2. #17
    Member
    Join Date
    Apr 2016
    Location
    Rotorua
    Posts
    474
    Bob, here are some dimensions (in inches) for a 300 yard target if you have no luck with NRANZ you may be able to get a local printer with a A0 sized printer to print some for you.
    300 Yard Targets

    SR-3 - Enlarged aiming black for use in 300 yard rapid fire matches only. Scoring rings the same as the SR target, with the 8-ring in the aiming black.
    X ring 3.00
    10 ring 7.00
    9 ring 13.00
    8 ring 19.00
    7 ring 25.00
    6 ring 31.00
    5 ring 37.00

    Link for more info here

  3. #18
    JWB
    JWB is offline
    Banned
    Join Date
    Jan 2017
    Location
    erehwon
    Posts
    196
    Quote Originally Posted by winaa View Post
    Bob, here are some dimensions (in inches) for a 300 yard target if you have no luck with NRANZ you may be able to get a local printer with a A0 sized printer to print some for you.
    300 Yard Targets

    SR-3 - Enlarged aiming black for use in 300 yard rapid fire matches only. Scoring rings the same as the SR target, with the 8-ring in the aiming black.
    X ring 3.00
    10 ring 7.00
    9 ring 13.00
    8 ring 19.00
    7 ring 25.00
    6 ring 31.00
    5 ring 37.00

    Link for more info here
    This is something quite different from the topic which is 300 metre targets. These dimensions that you have posted are used no where else in the world except that septic sore on the planet, the Nazi states of America.
    Every other country uses the ICFRA target for international competition and may use another for domestic competition. The ICFRA target dimensions can be downloaded from their website.ICFRA - Home Page
    The ISSF 300 metre target, which is used worldwide (and possibly by a few enlightened souls in the US), has an aiming mark 600mm in diameter. The x ring is 50mm in diameter and the 10 ring is 100mm in diameter. The other scoring rings ripple out in 100mm gains so that the rings are spread exactly 50mm apart.

    224
    EDITION 2017 | Second Print V1.1 01/2018
    Copyright: ISSF
    6.3.4 Official ISSF Targets
    6.3.4.1 300m Rifle Target
    10 Ring 100 mm (±0.5 mm ) 5 Ring 600 mm (±3.0 mm )
    9 Ring 200 mm (±1.0 mm ) 4 Ring 700 mm (±3.0 mm )
    8 Ring 300 mm (±1.0 mm ) 3 Ring 800 mm (±3.0 mm )
    7 Ring 400 mm (±3.0 mm ) 2 Ring 900 mm (±3.0 mm )
    6 Ring 500 mm (±3.0 mm ) 1 Ring 1000 mm (±3.0 mm )
    Inner Ten = 50 mm (±0.5 mm).
    Black from 5 to 10 rings = 600 mm (±3.0 mm).
    Ring Thickness: 0.5 mm to 1.0 mm.
    Minimum visible size of target card: 1300 mm x 1300 mm (or minimum 1020 mm
    x 1020 mm providing the background on which the target is mounted is the same
    colour as the target).
    Scoring ring values 1 – 9 are printed in the scoring zones, in diagonal lines at
    right angles to each other.
    The 10-point zone is not marked with a number.

  4. #19
    JWB
    JWB is offline
    Banned
    Join Date
    Jan 2017
    Location
    erehwon
    Posts
    196
    Name:  18558985_1306546649461632_8401724388901025217_o.jpg
Views: 432
Size:  269.7 KBName:  18620575_1306546559461641_8757608135652188115_o.jpg
Views: 316
Size:  410.8 KB

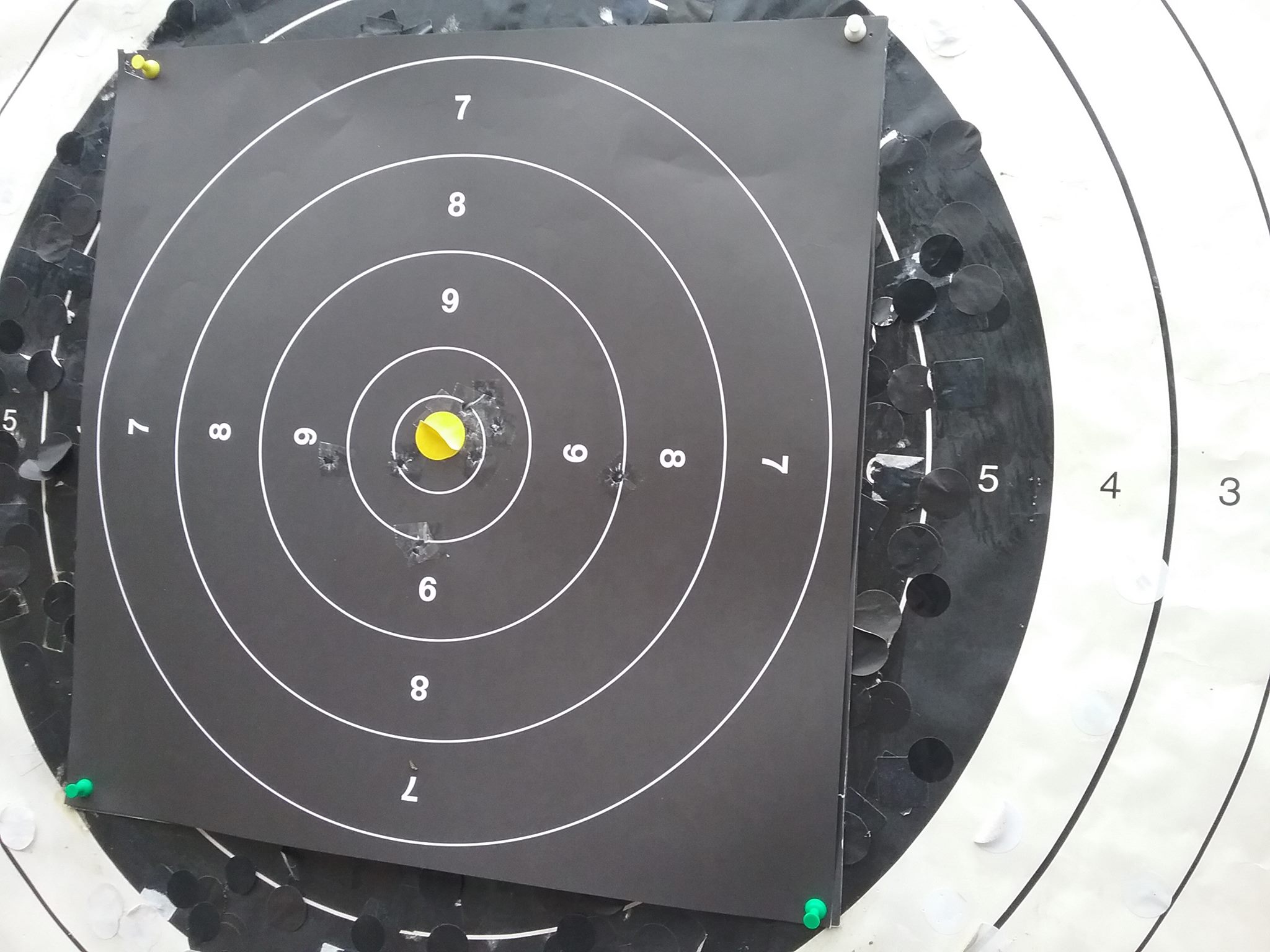

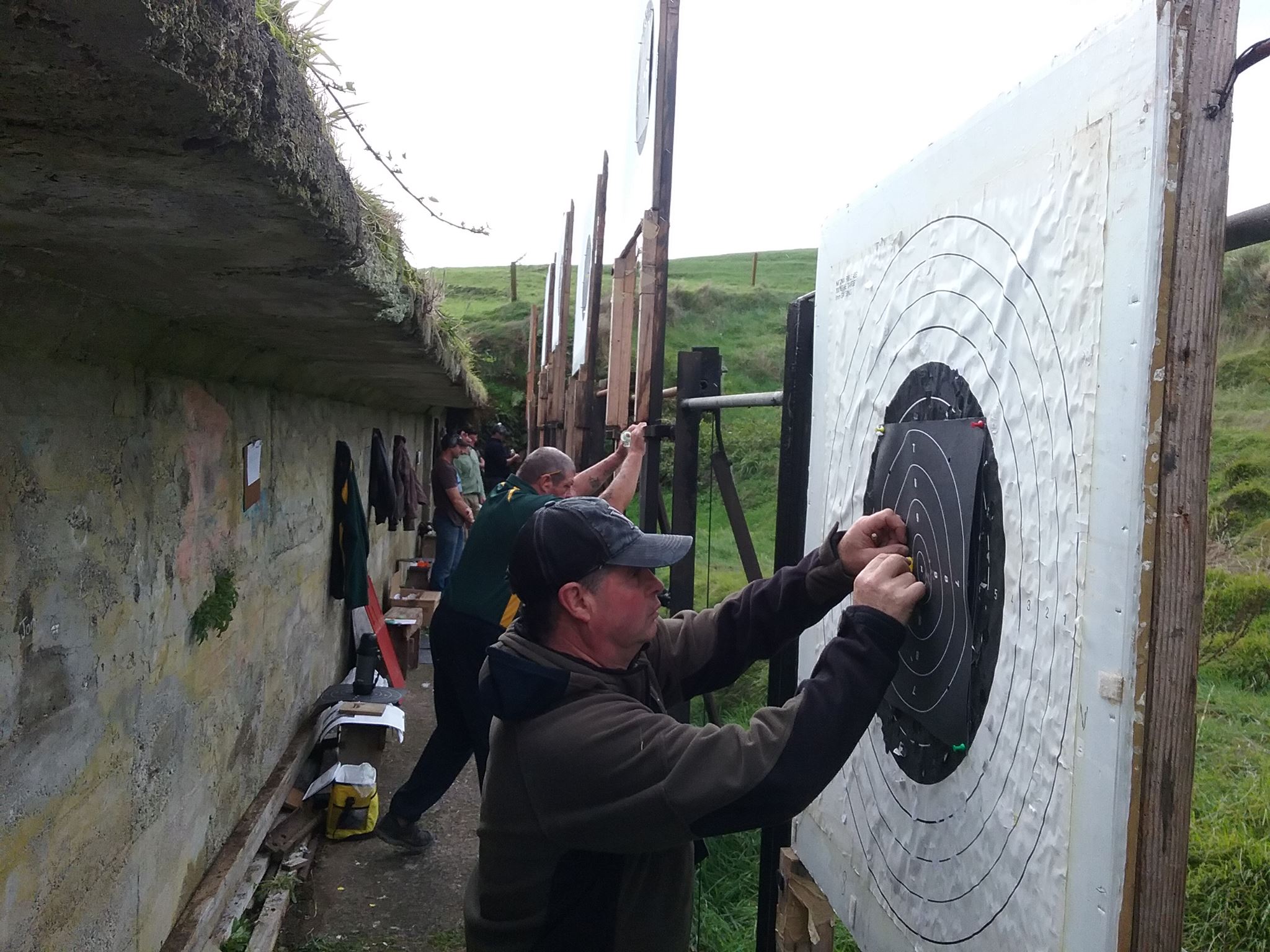

    300 metre targets in use at Te Puke rifle club.
    The yellow sticker is the shot marker so the shooter can see the position of their last fired shot when the target is raised.

  5. #20
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,088
    Thats a fun job when someone ploughs up the top of the bank.
