Thread: American long rifle

  1. #16
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235
    Got an hour on it early before contractors arrived for a job

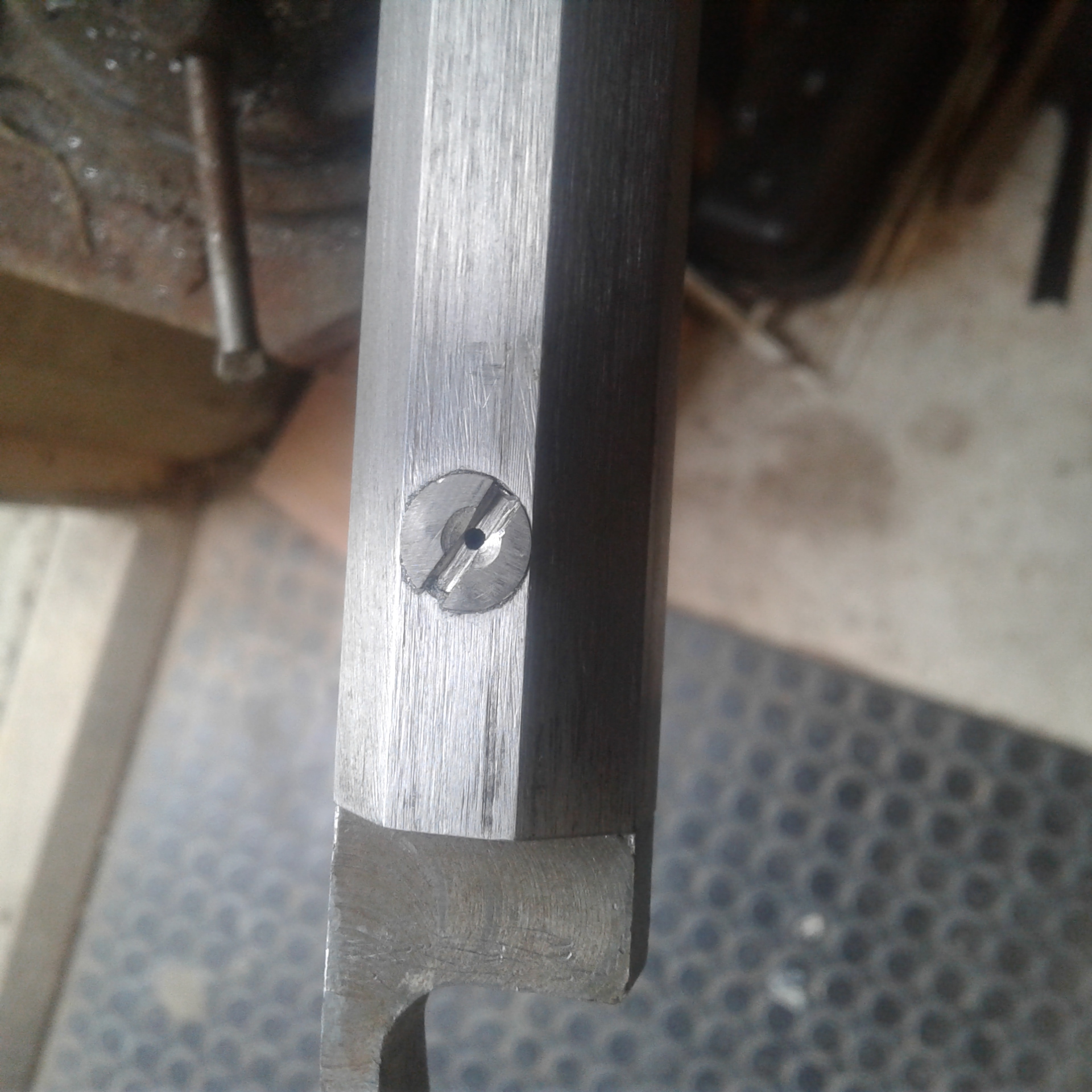

    Made a touch hole liner
    1/4-28 high tensile bolt
    Made the shaped inner on the lathe
    But has to free hand the touch hole because the 1mm drill was to small for my lathe chuck
    Name:  20210215_083925.jpg
Views: 164
Size:  921.6 KB
    So now I have something to line the lock flash pan up with

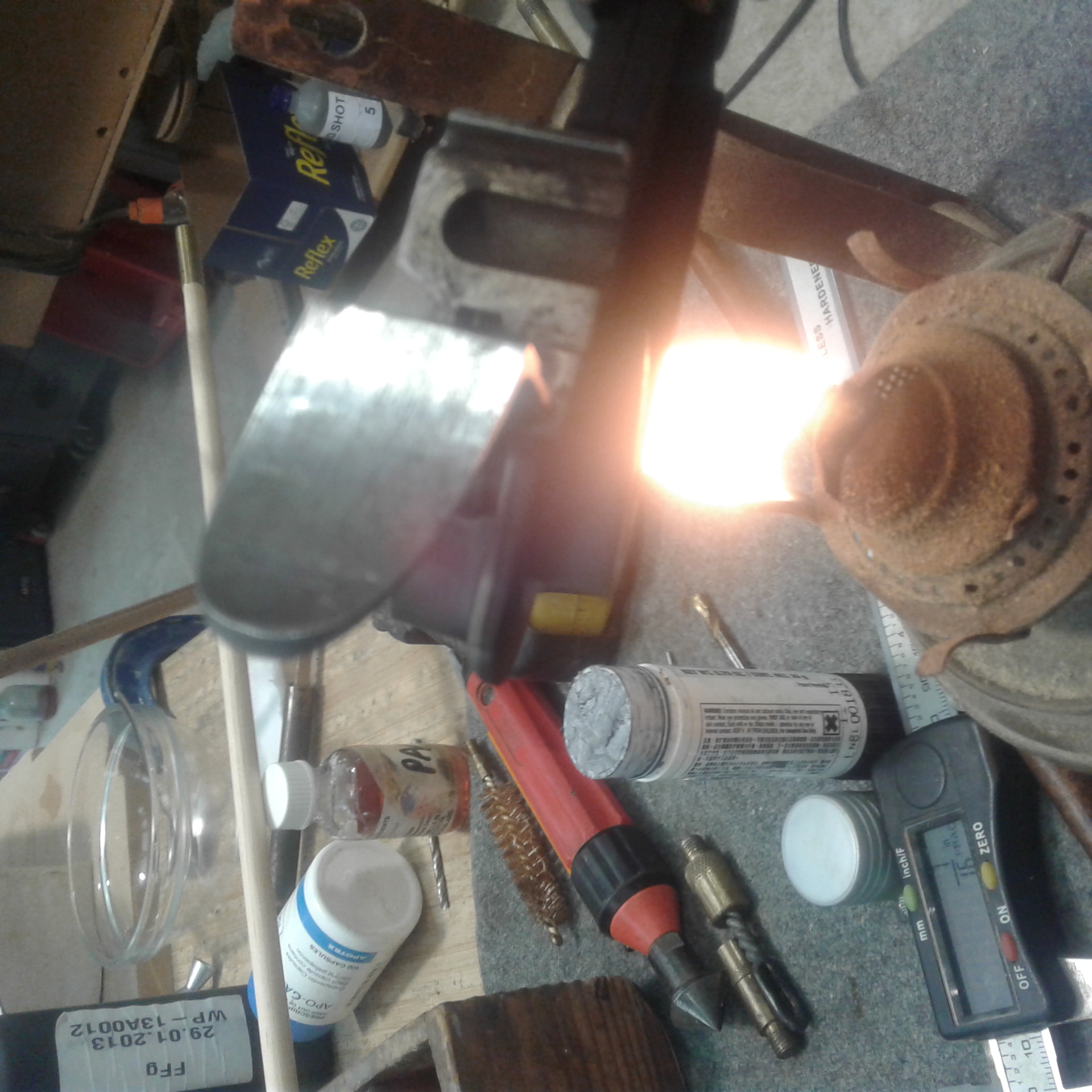

    Clearly the guy that started this didn't know what soot or layout black was
    Because the inlet areas were clean

    So smoked up the lock and on to that

    Name:  20210215_084527.jpg
Views: 153
Size:  982.6 KB

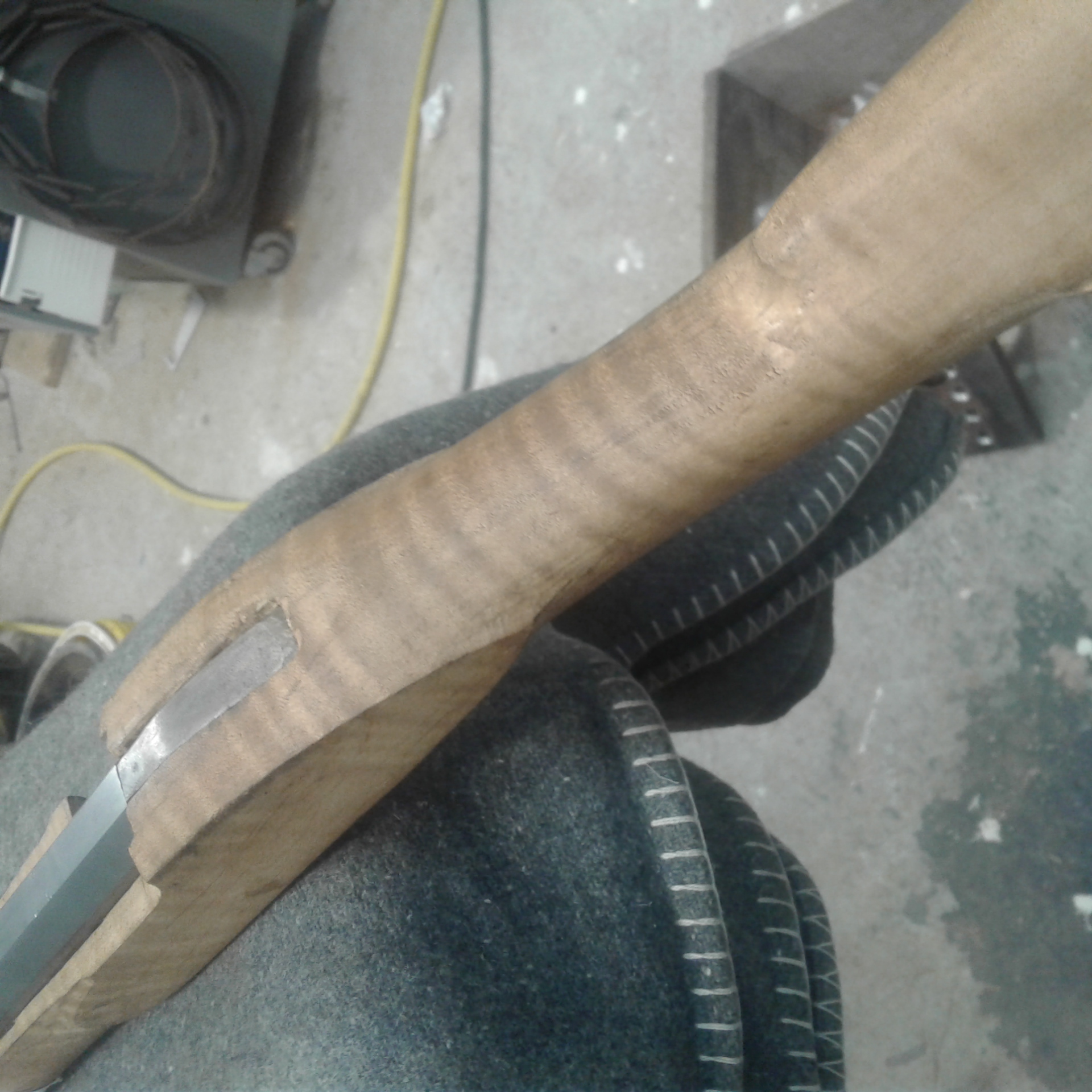

    Now that I have had my grubby hands on it you can see more of the curly coming through in the wrist and butt

    Name:  20210215_084734.jpg
Views: 152
Size:  874.8 KB

    And then I got interrupted

  2. #17
    Banned
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    5,462
    Regarding the buggered stock, would it be possible to put inlays of some different timber such as Rosewood / Rata etc on it rather than making a whole new stock and without it looking 'tacky' like a Weatherby stock ? Brass inlay plates ?

  3. #18
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235

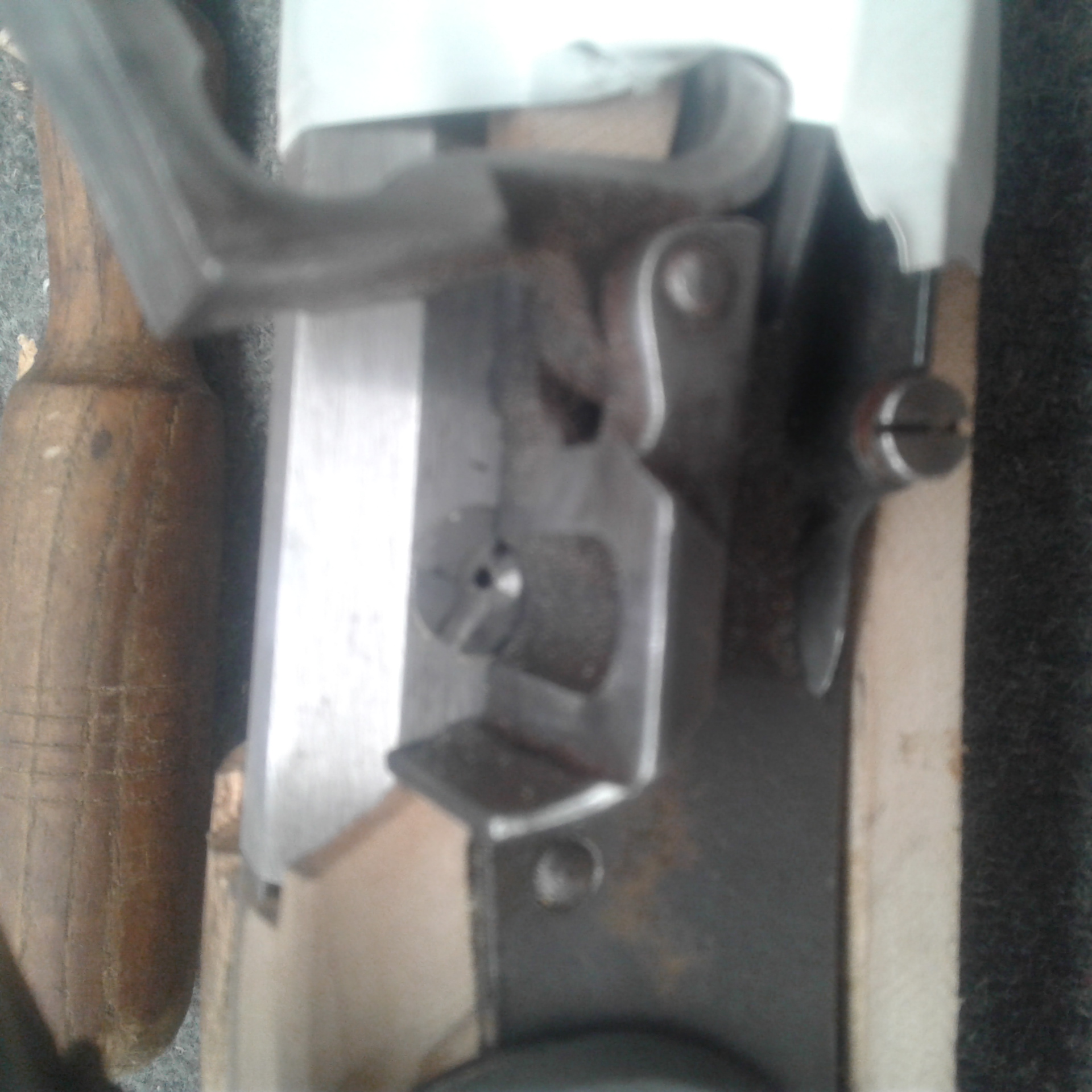

    Fitted the lock and trigger plate as best I could in the gapping holes

    Name:  20210215_121738.jpg
Views: 138
Size:  782.4 KB

    Put some FFFG in the pan after I dressed the flint edge
    Good ignition
    So did it again with loose Powder down the barrel and it worked just fine

    Now i need to find the right ball mold among my tonnage
    Micky Duck likes this.

  4. #19
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235
    Quote Originally Posted by Moa Hunter View Post
    Regarding the buggered stock, would it be possible to put inlays of some different timber such as Rosewood / Rata etc on it rather than making a whole new stock and without it looking 'tacky' like a Weatherby stock ? Brass inlay plates ?
    I have a cunning plan for that
    Micky Duck likes this.

  5. #20
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235
    Put 5 rounds through it this evening
    Need to set up the flint a bit better and was using FFFG because I don't have FFFFG
    But it went bang and put 3 shots into 3" at 30 yards off hand
    40 grains FFG and a tight patched .490 bullet
    And that is with the sights sticky taped onto the barrel

    Now I'm cleaning the barrel and man is it tricky with a 3 1/2 foot barrel and a 4 foot cleaning rod
    Only just fits under the kitchen ceiling

    Need to find a glue that will hold onto the metal

  6. #21
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland (Dunedin)
    Posts
    5,531
    Quote Originally Posted by akaroa1 View Post
    @norsk the stock is about grade 1 curly maple with about 30% curly figure
    But it's fucked with the bad inletting


    I have a plan and can get well seasoned curly maple in Christchurch and will go look at the quality and figure next time I'm in town
    Even if I have to sort through tons of boards to find that one stock I need
    If the inletting is made too big for the item you wish to place in the inlet ... simply enlarge the item to be inletted.

    Seems the less hassly way to go about it. Either manufacture a bigger plate, or think of some wood/brass beading.
    An itch ... is ... a desire to scratch

  7. #22
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,235

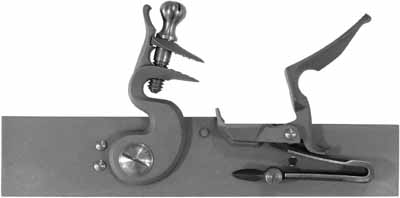

    This would work to take up the bad lock inletting
    It would take some time to get it re profiled and fitted but at least I could create a shelf to support the lock plate

    Name:  lock-os-fl-rh_1.jpg
Views: 98
Size:  7.7 KB

    Then some contrasting wood inlays around the tang and trigger plate to take up those bubba moments

    American long rifles often had deep relief carving and stock inlays anyway
    So if a sprinkle in some other inlays it could look like it was meant to be
    Cordite likes this.

  8. #23
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland (Dunedin)
    Posts
    5,531
    @akaroa1

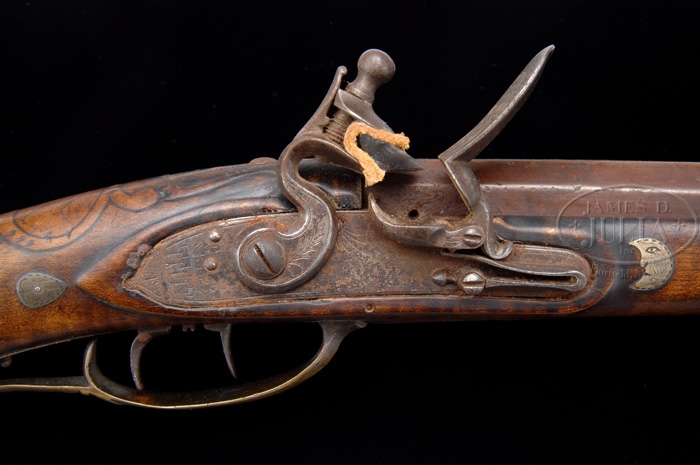

    Also some merit in just beveling all edges around the inlay at 45 degrees and rounding them.

    Name:  37387x10.jpg
Views: 125
Size:  160.1 KB
    An itch ... is ... a desire to scratch
