Thread: Baikal single shot rebarrel - Anyone done this?

  1. #16
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,662
    yes but no...you still use ammunition like normal...but for ejection rather than weaken area around rim I left it pretty much intact...drop wee rod (guts of double ended automotive screwdriver) down bore and it hits inside of case and pops empty out......well known trick for shotgun with dodgy extraction....

  2. #17
    Member SixtyTen's Avatar
    Join Date
    Dec 2015
    Location
    Auckland
    Posts
    524
    Quote Originally Posted by Micky Duck View Post
    did you recieve my PM???
    I did, thanks for the info. I will likely be picking your brain some more once I get further along with this project.
    Micky Duck likes this.

  3. #18
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,662

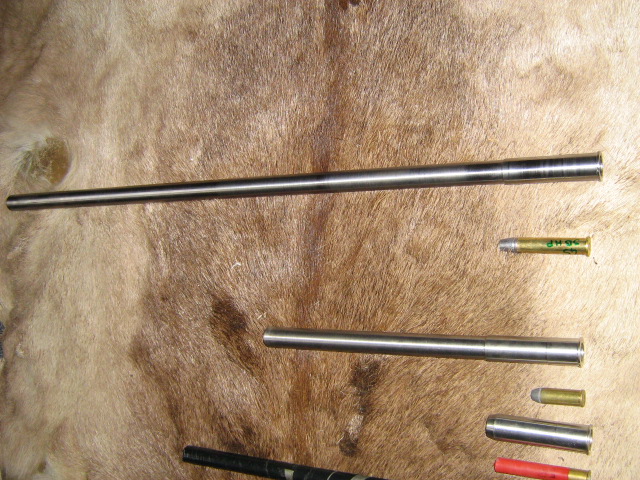

    Name:  IMG_0002.JPG
Views: 626
Size:  162.5 KB
    SixtyTen and Finnwolf like this.

  4. #19
    Member SixtyTen's Avatar
    Join Date
    Dec 2015
    Location
    Auckland
    Posts
    524

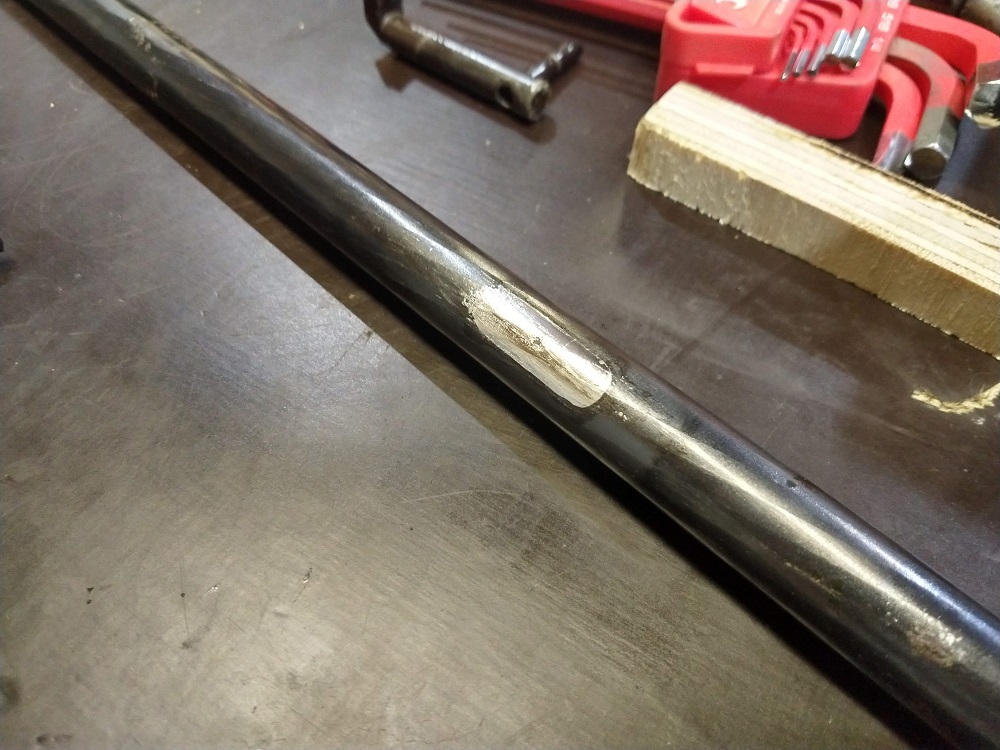

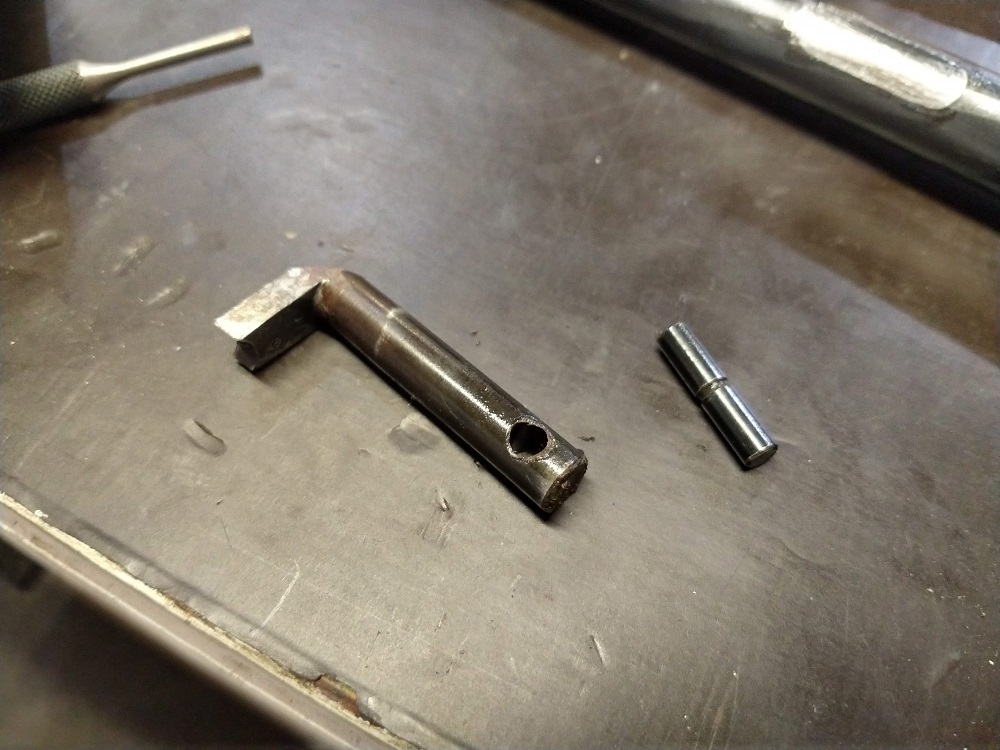

    So it turns out the barrels are soldered in. I was trying to heat up the barrel shank to break the threads/press fit free and noticed the smell of solder flux and then with a bit more heat, had little balls of solder appearing in the back join. So I kept heating it up and tapping with a wooden mallet and eventually it slid off nice and easy. I had to remove the sling mount (which was also soldered) to get the barrel adapter off.

    Its all low temp solder, maybe very low silver solder.

    Name:  IMG_20210525_172119235_HDR.jpg
Views: 794
Size:  249.5 KB
    Name:  IMG_20210525_172126166_HDR.jpg
Views: 795
Size:  194.6 KB
    Name:  IMG_20210525_172146892_HDR.jpg
Views: 787
Size:  197.2 KB
    Name:  IMG_20210525_172205805_HDR.jpg
Views: 791
Size:  167.7 KB
    Name:  IMG_20210525_172210405_HDR.jpg
Views: 786
Size:  229.0 KB
    Name:  IMG_20210525_172215394_HDR.jpg
Views: 620
Size:  233.0 KB
    Name:  IMG_20210525_172225005_HDR.jpg
Views: 611
Size:  209.1 KB
    ebf, 300CALMAN, Moa Hunter and 2 others like this.

  5. #20
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,662
    holy smoke,that makes it piece of piss then..... good work.

  6. #21
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,662
    Rifle - ADI World Class Powders and Ammunition

    these are good load info...its the bottom tier...the lower pressure loads for trapdoor type rifles...I FIGURE shotgun action must be here somewhere....maybe into the lower end of next tier...you will see if compare the trail boss loads to smokeless,the pressure is LOWER with smokeless...
    SixtyTen likes this.

  7. #22
    Member 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    NZISTAN
    Posts
    5,232
    Quote Originally Posted by SixtyTen View Post
    So it turns out the barrels are soldered in. I was trying to heat up the barrel shank to break the threads/press fit free and noticed the smell of solder flux and then with a bit more heat, had little balls of solder appearing in the back join. So I kept heating it up and tapping with a wooden mallet and eventually it slid off nice and easy. I had to remove the sling mount (which was also soldered) to get the barrel adapter off.

    [COLOR=#222222][FONT=Verdana]Its all low temp solder, maybe very low silver solder.
    Wow! So contour the chamber area of the other barrel, cut the extractor and head space.

    A simple but quite clever attachment method.

    I have a Baikal under over rifle, wounder if it's done the same way?

  8. #23
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,662
    30/06 or 45/70 ???? always dreamt of one of them for a bush rifle......

  9. #24
    Member SixtyTen's Avatar
    Join Date
    Dec 2015
    Location
    Auckland
    Posts
    524
    First off, sorry if the images are huge, I am trying to post from my phone and can't work out how to resize them.

    I have been working on putting a new barrel on this rifle

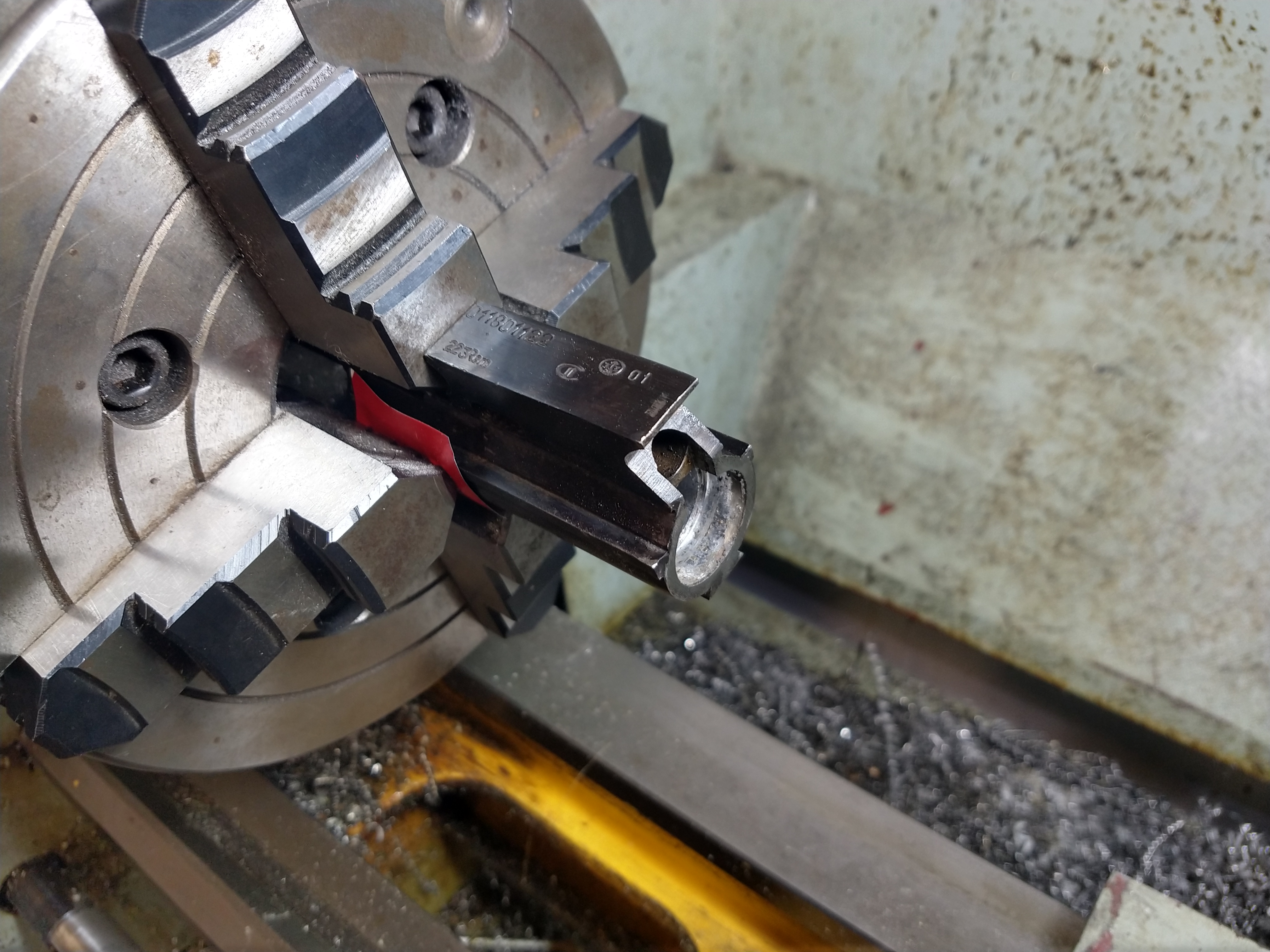

    Once I had the old barrel out, I started by cleaning up the barrel adaptor. It was full of solder and was pretty rough machining underneath that. I also wanted to make the hole a little bigger so I could keep the barrel a bit larger. I bored it out from 19 to 20mm and cleaned up the other faces.

    Name:  IMG_20210530_103107649_HDR.jpg
Views: 629
Size:  3.27 MB

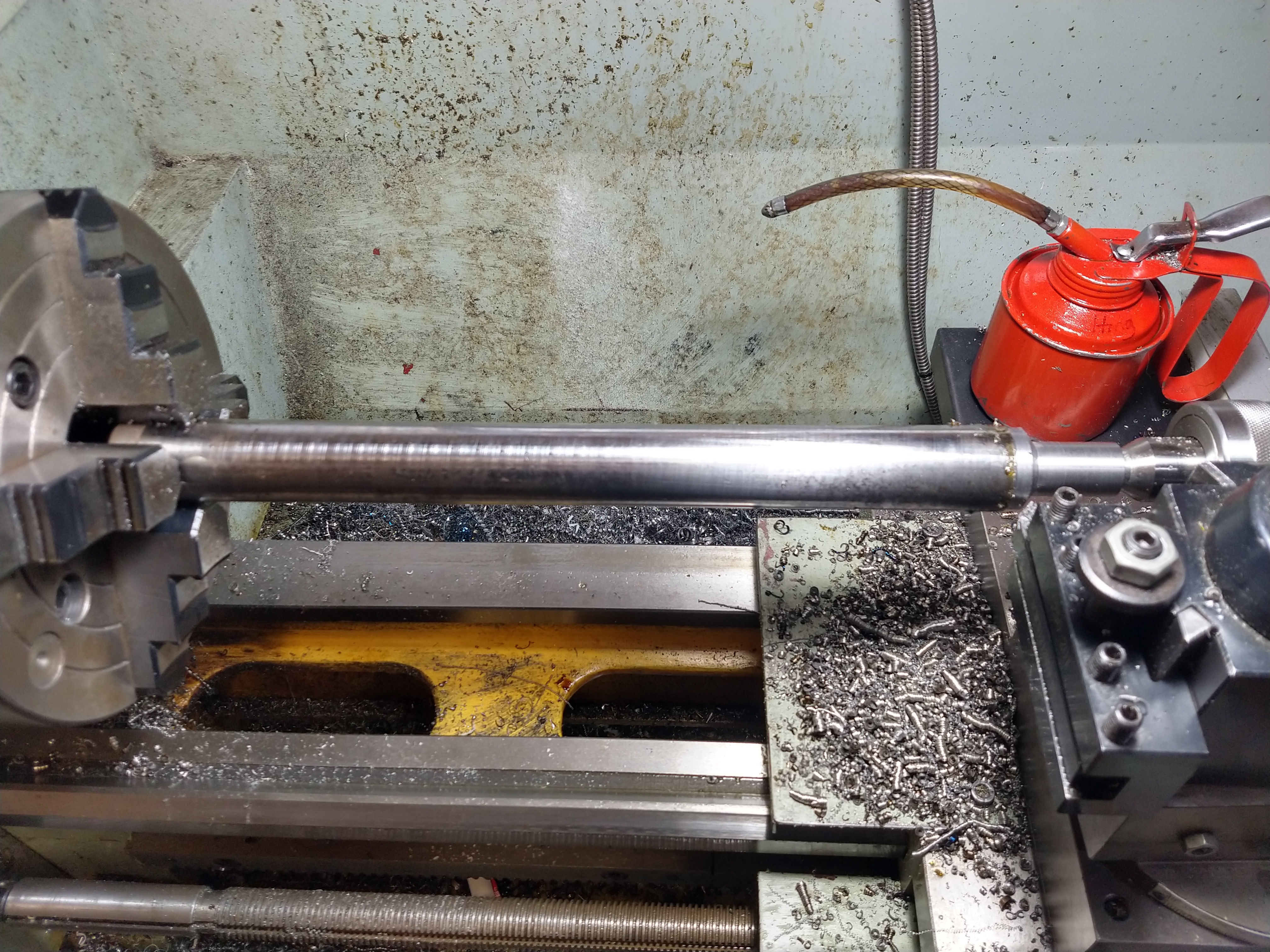

    I then cut the barrel blank to 360mm and got to removing a whole lot of metal. This is slow going on a lathe like mine, with a depth of cut at about 1mm max and each pass taking about 8min, going from 38mm to 20mm took a while.

    Name:  IMG_20210530_181401851_HDR.jpg
Views: 661
Size:  4.45 MB

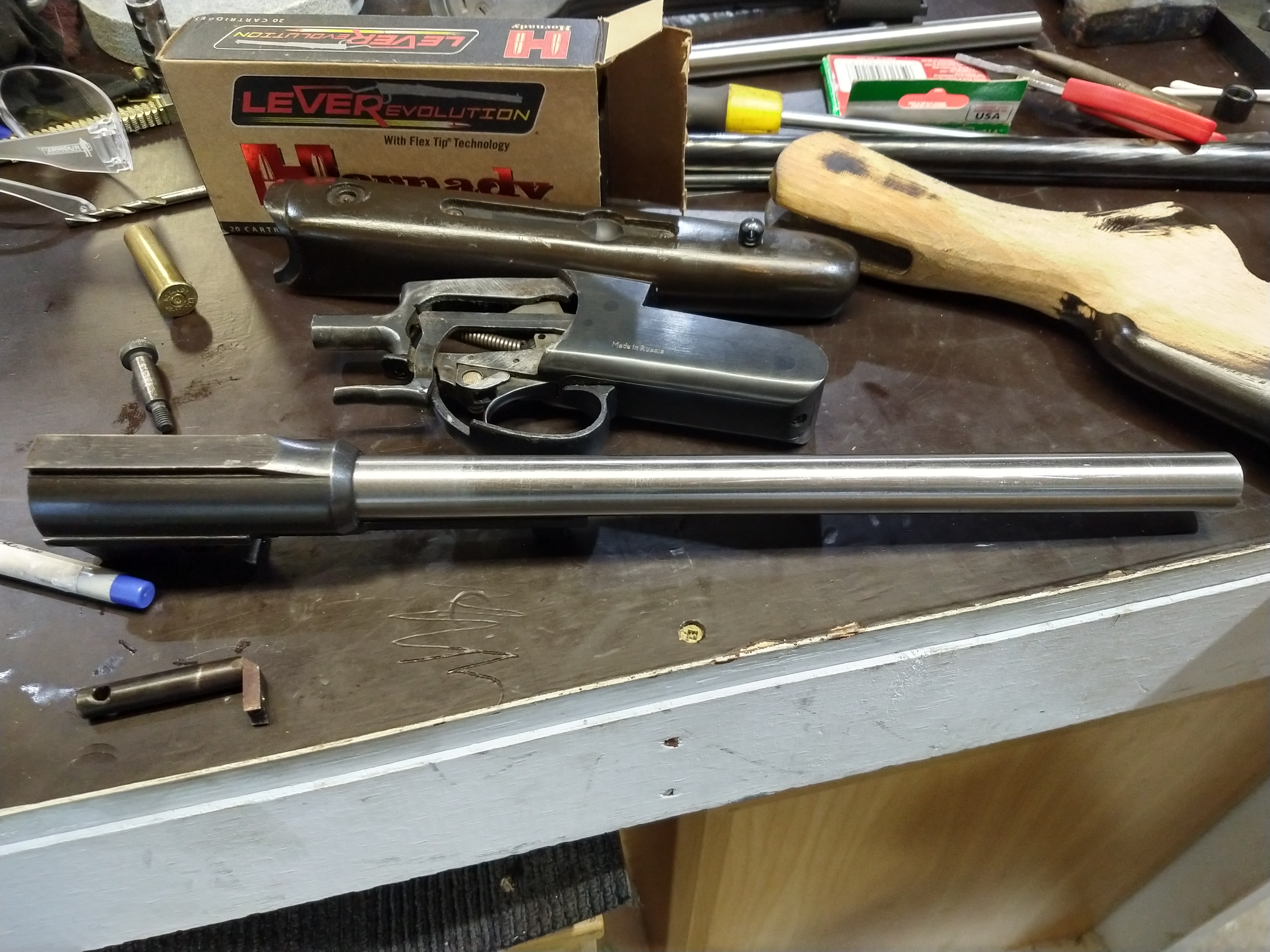

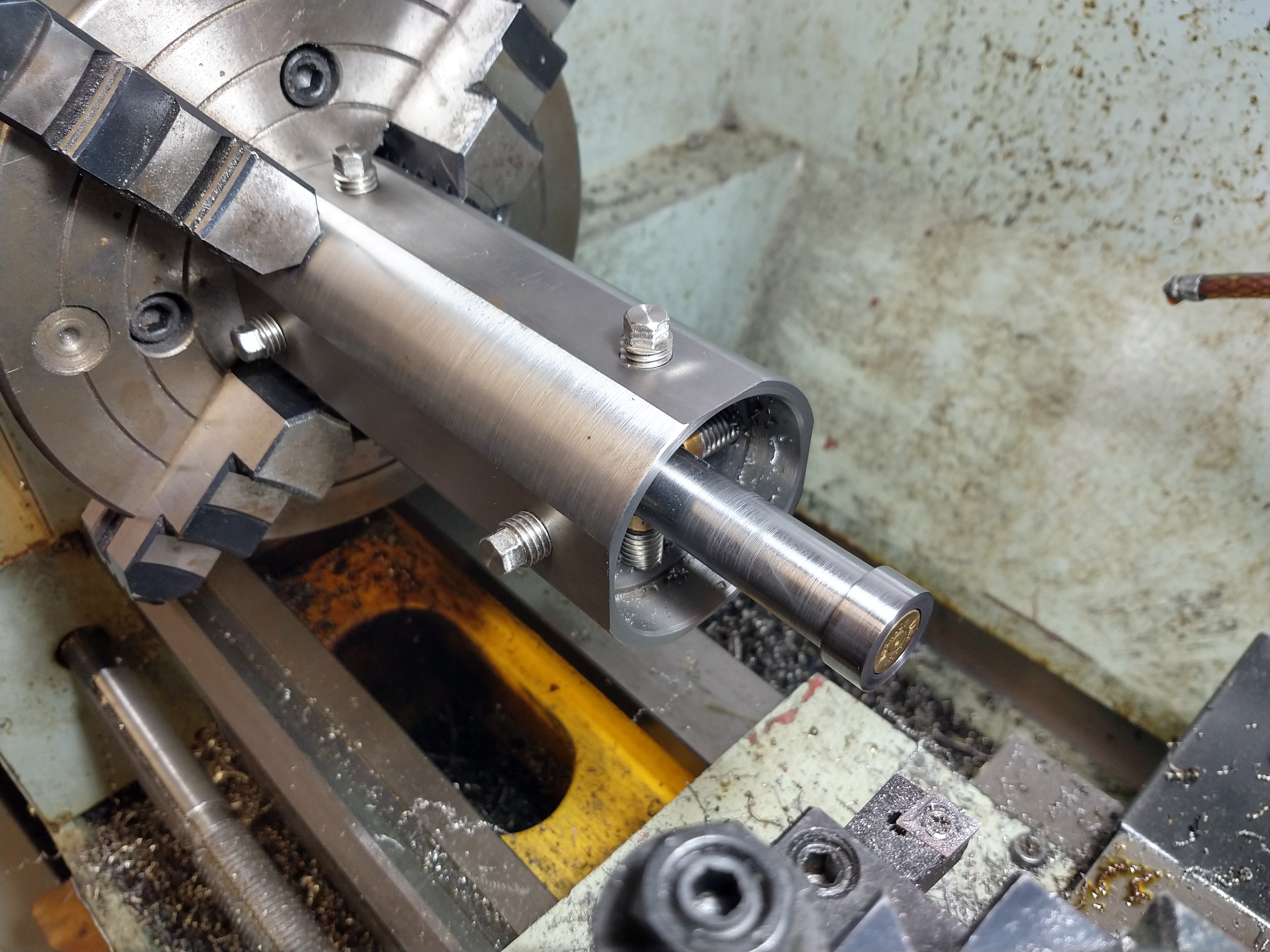

    Once I had the barrel mostly profiled, I turned it around and mounted it in my action truing jig, which I have actually used way more for working on short barrels. I decided to tighten up the headspace a little, as it was a little deep for my liking. I then turned the shoulder thickness down to match the barrel adaptor.

    Name:  IMG_20210601_164938171_HDR.jpg
Views: 635
Size:  3.46 MB
    Name:  IMG_20210601_172447167_HDR.jpg
Views: 630
Size:  3.69 MB

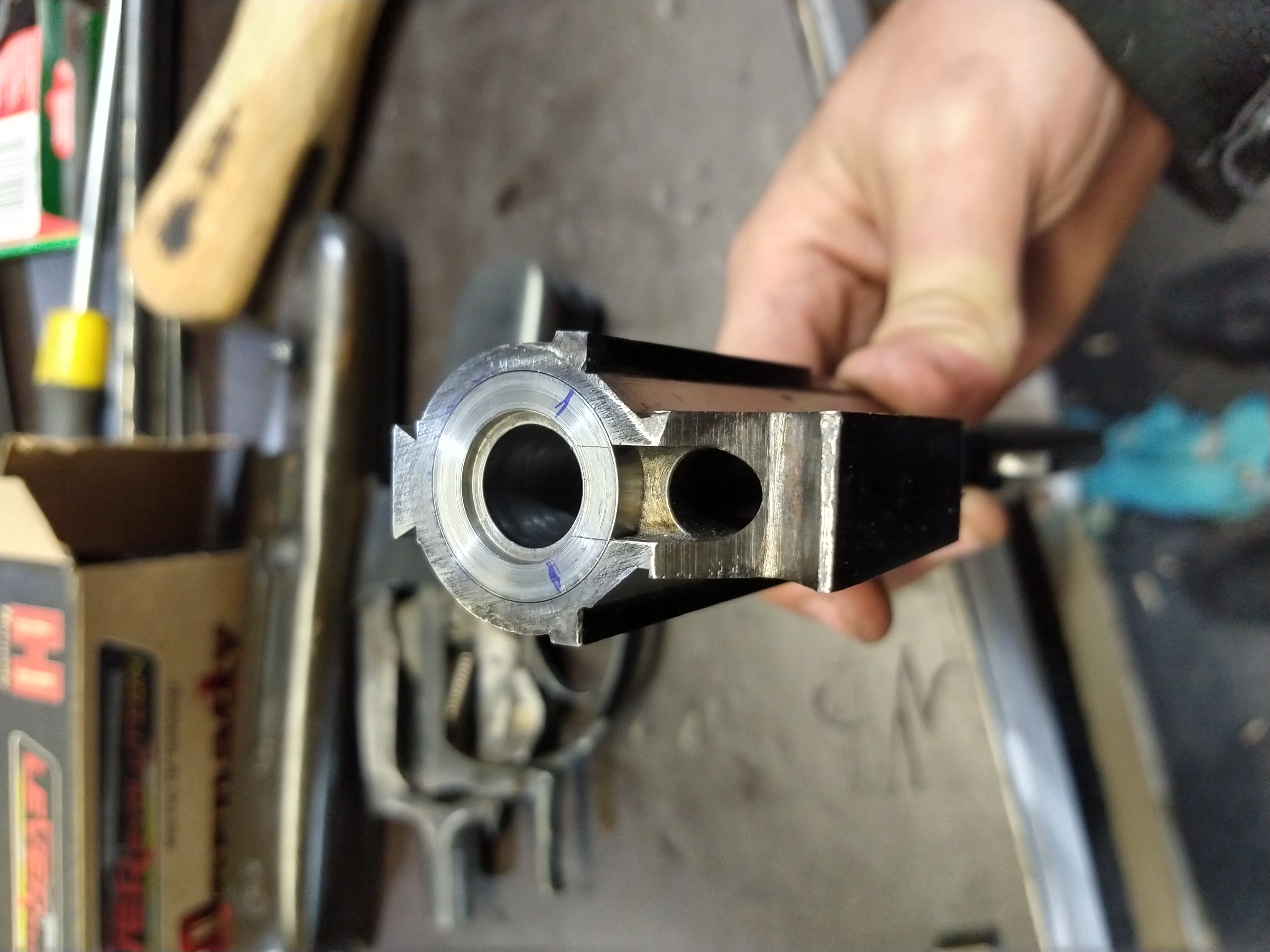

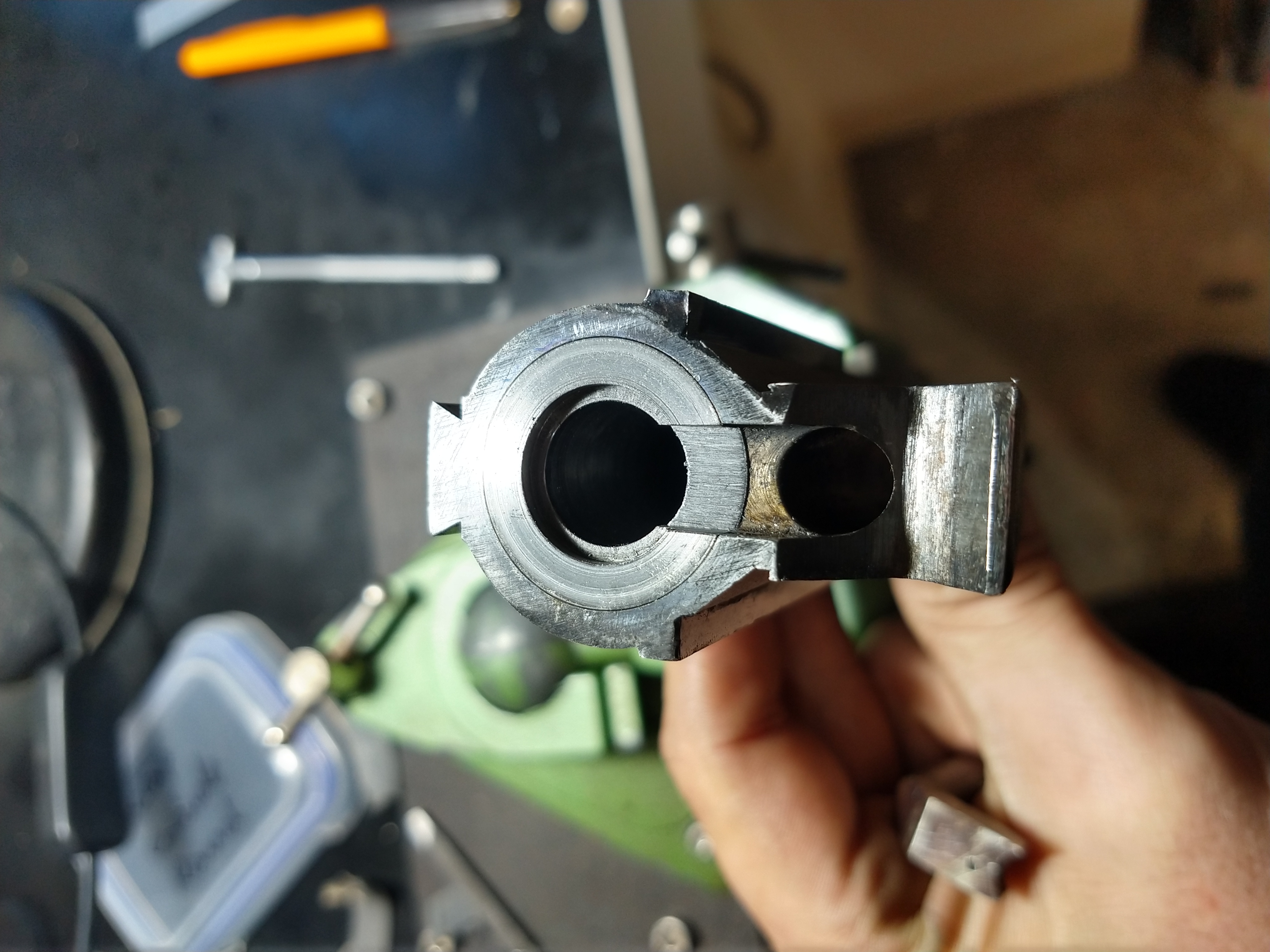

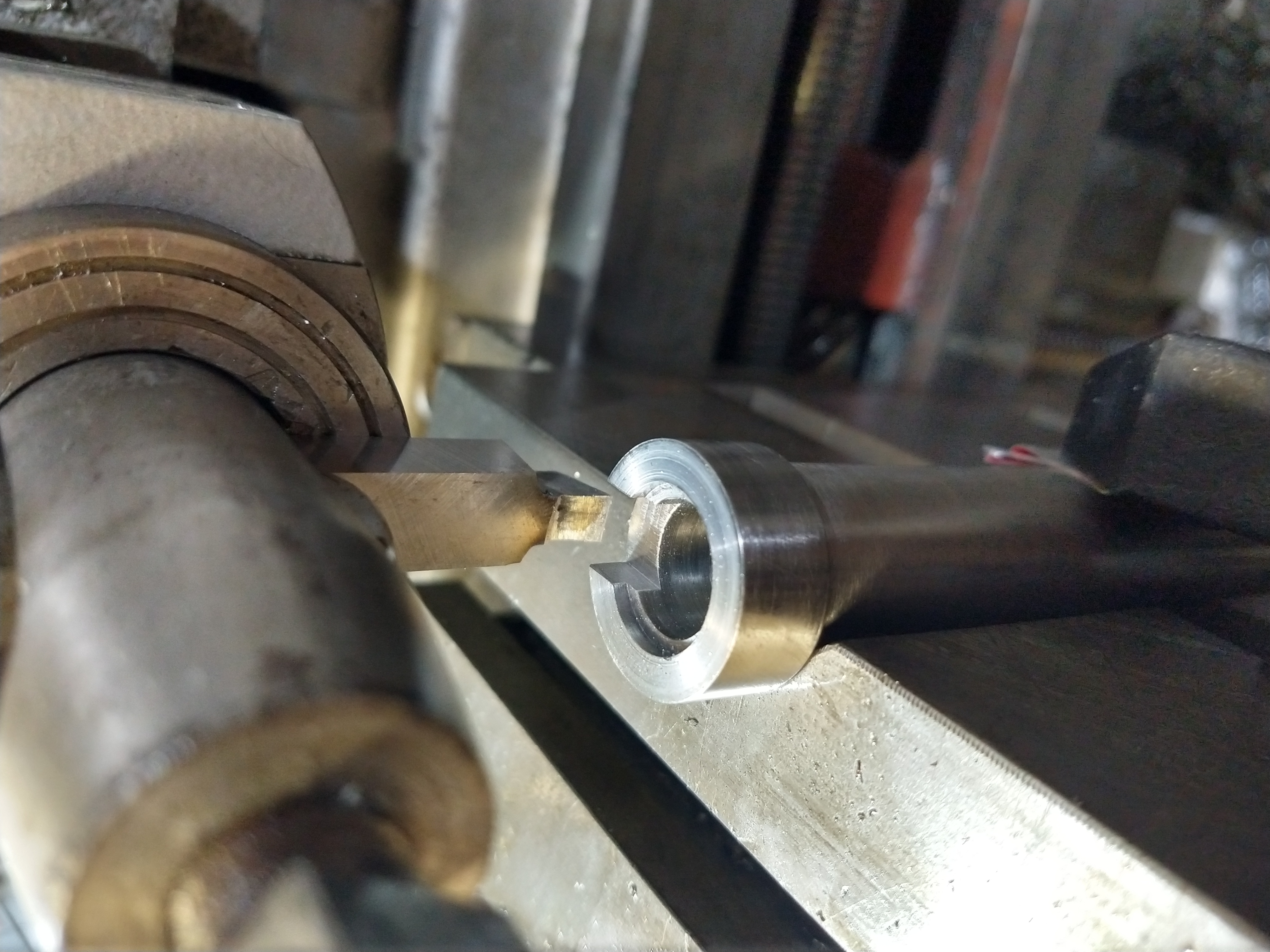

    The next job was to cut the slot for the extractor. I was not sure how to do this, as I could not get the barrel into my mill for this job. I considered fixing the barrel to the cross slide of the lathe, with the cutter in the spindle, a technique brilliantly shown by Homebrew.357 in his rolling block thread. Then I realised I could clamp it to the v slot on the side of my little shaper machine. I ground a couple of cutters to cut the slot, and had at it. I left a very small amount of material for hand fitting with a file.

    Name:  IMG_20210601_172458740_HDR.jpg
Views: 605
Size:  3.35 MB
    Name:  IMG_20210601_180145819_HDR.jpg
Views: 628
Size:  3.74 MB
    Name:  IMG_20210601_190503227_HDR.jpg
Views: 606
Size:  3.47 MB
    Name:  IMG_20210601_190817785_HDR.jpg
Views: 589
Size:  3.11 MB

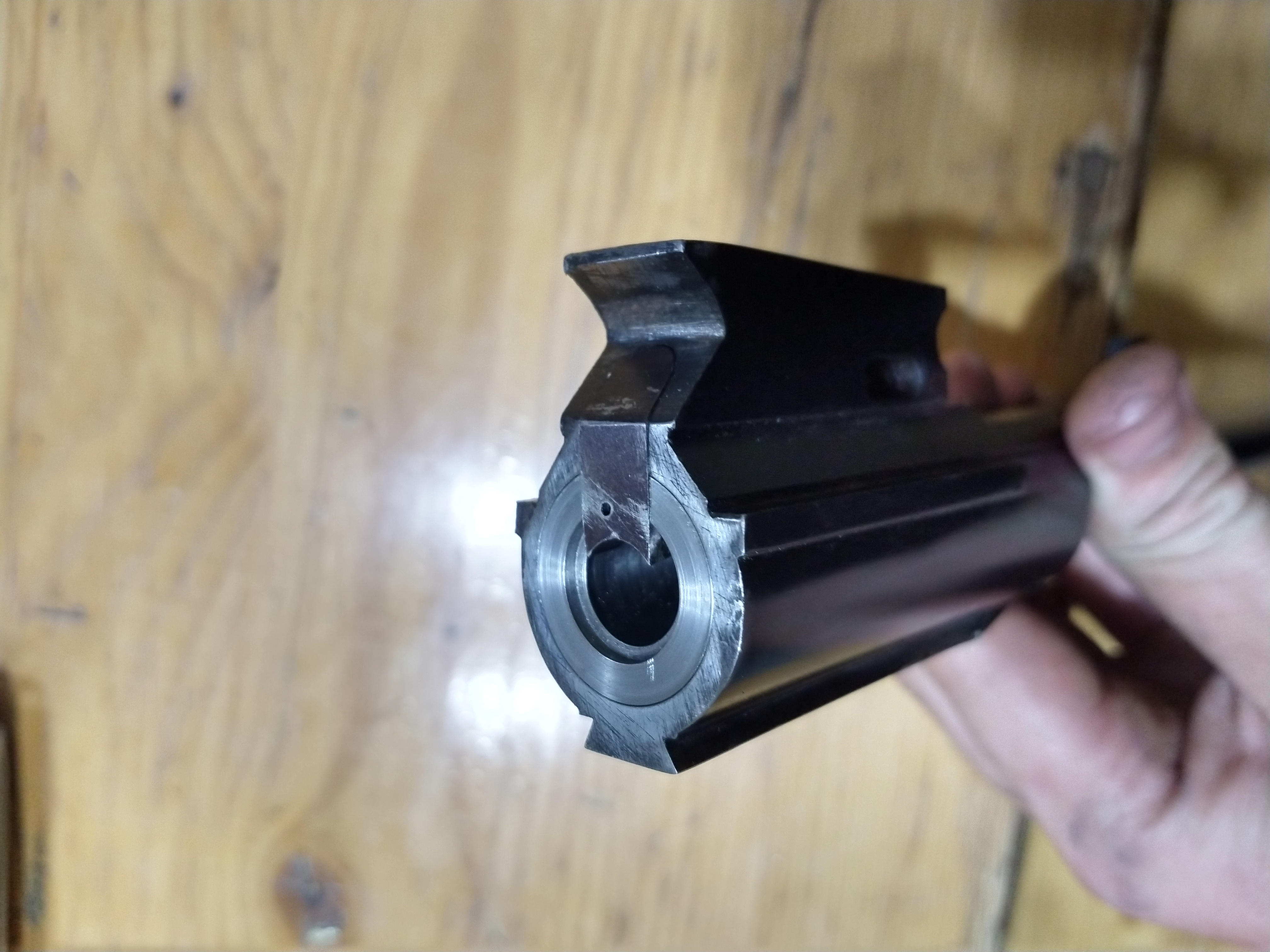

    A little more hand fitting and it will be perfect.

    Name:  IMG_20210601_191754355_HDR.jpg
Views: 577
Size:  3.08 MB

    Now I have to machine the extractor to match the chamber and rim. I'm thinking of assembling it all temporarily and fixing the extractor in place with a tiny shim behind it, then doing it in the lathe. That way I can dial the chamber in and match each face perfectly. Any other method would involve a lot of guesswork.

    Im tossing up whether to put open sights on this rifle, or a low profile red dot. I will likely put a scope on for working up a load, but I want this to be handy and easy to pack down, so the scope will likely not stay.
    Tuidog, Puffin, ebf and 14 others like this.

  10. #25
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Awesome work
    SixtyTen likes this.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  11. #26
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,662
    holy smoke that is great work........ really makes a bloke think.......look forward to seeing how it shoots.... might have to pull finger and sort some decent sights for mine LOL.

  12. #27
    Member SixtyTen's Avatar
    Join Date
    Dec 2015
    Location
    Auckland
    Posts
    524

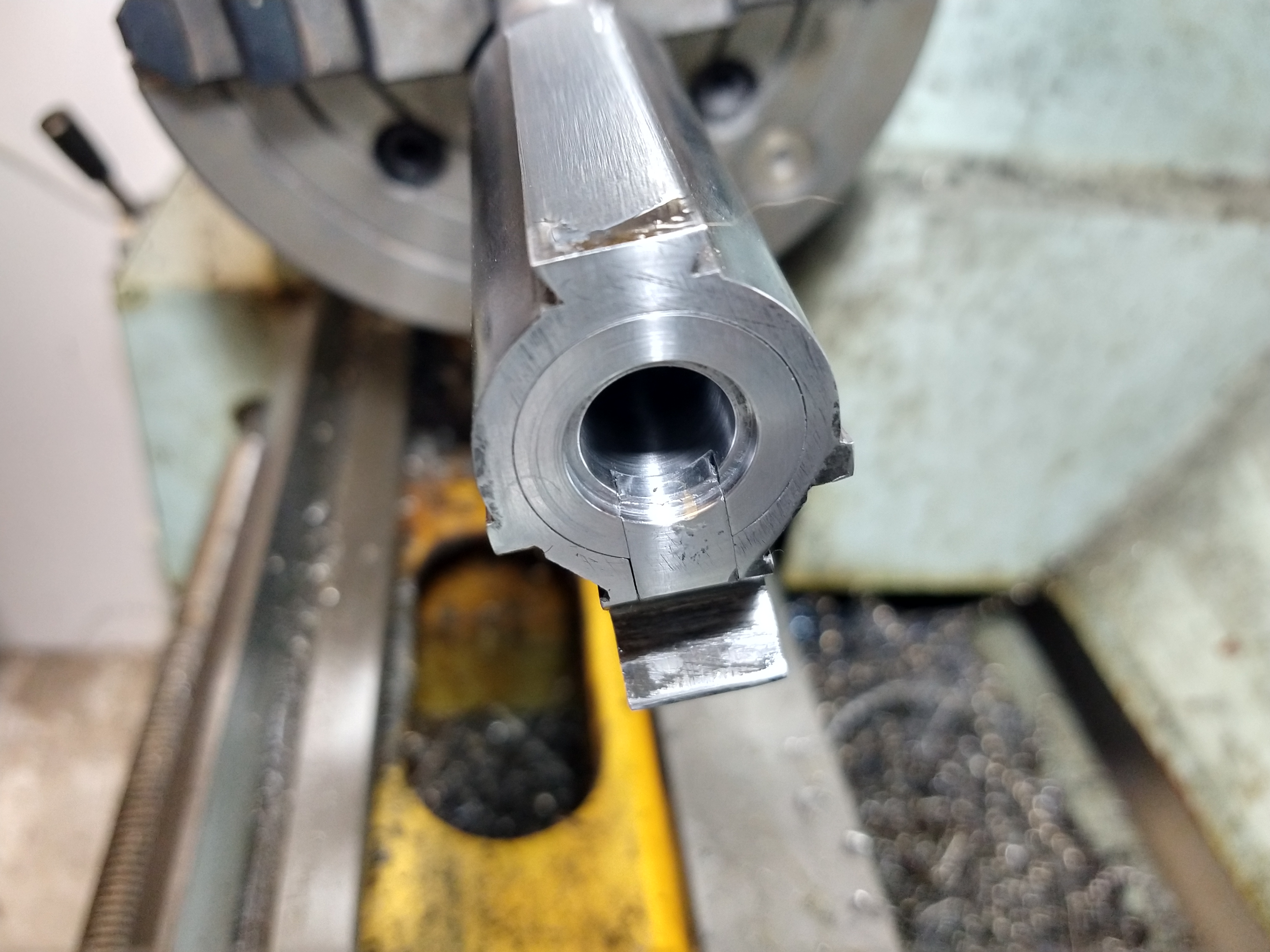

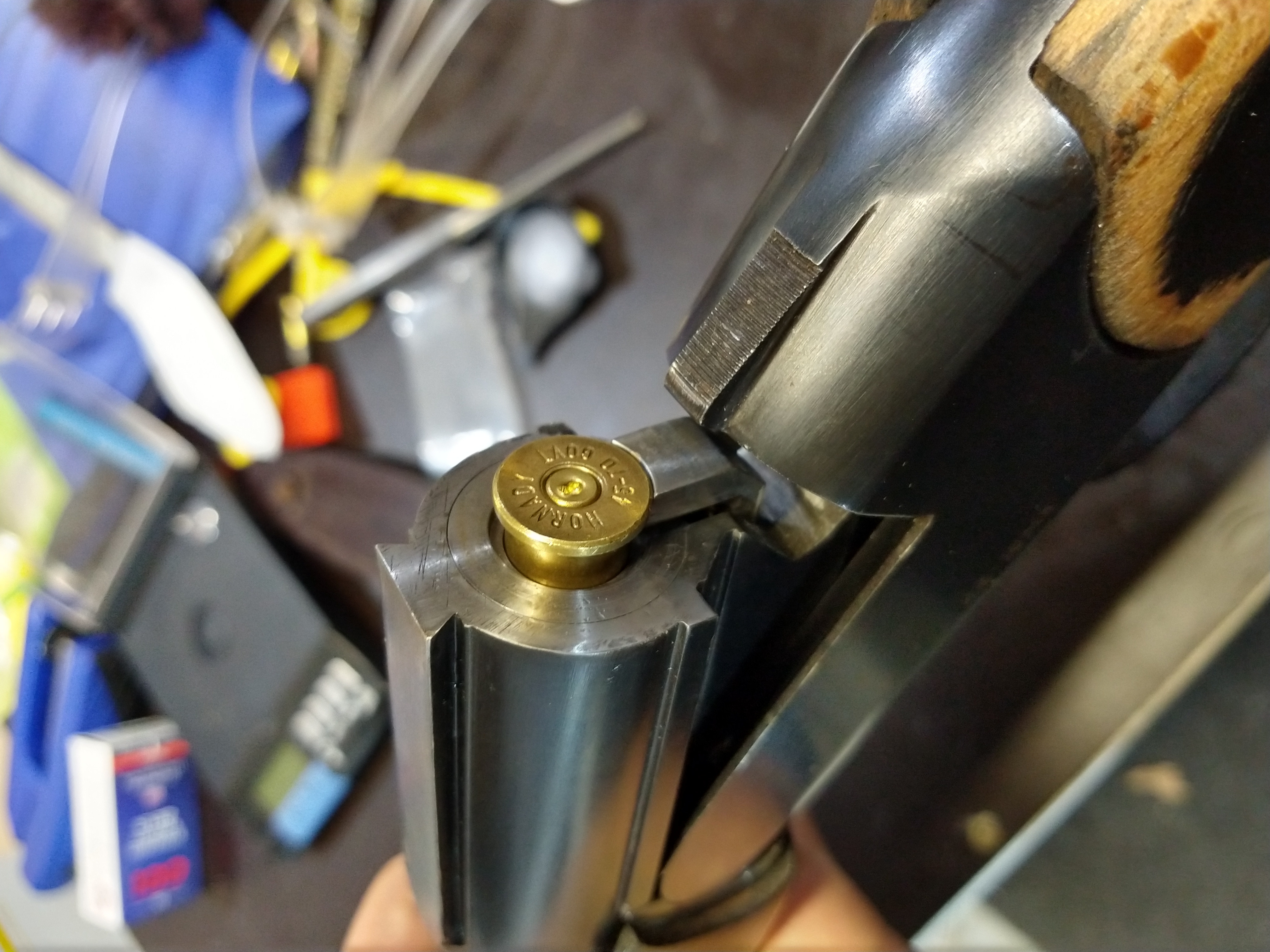

    I managed to cut the extractor for the rim by supergluing it to the barrel and taking gentle cuts. Came out quite nice I think. It doesn't fling the cases at your face like it did when it was a 223, rather a nice easy extraction.

    Name:  IMG_20210603_182216435_HDR.jpg
Views: 508
Size:  3.14 MB
    Name:  IMG_20210603_185158129_HDR.jpg
Views: 498
Size:  3.41 MB

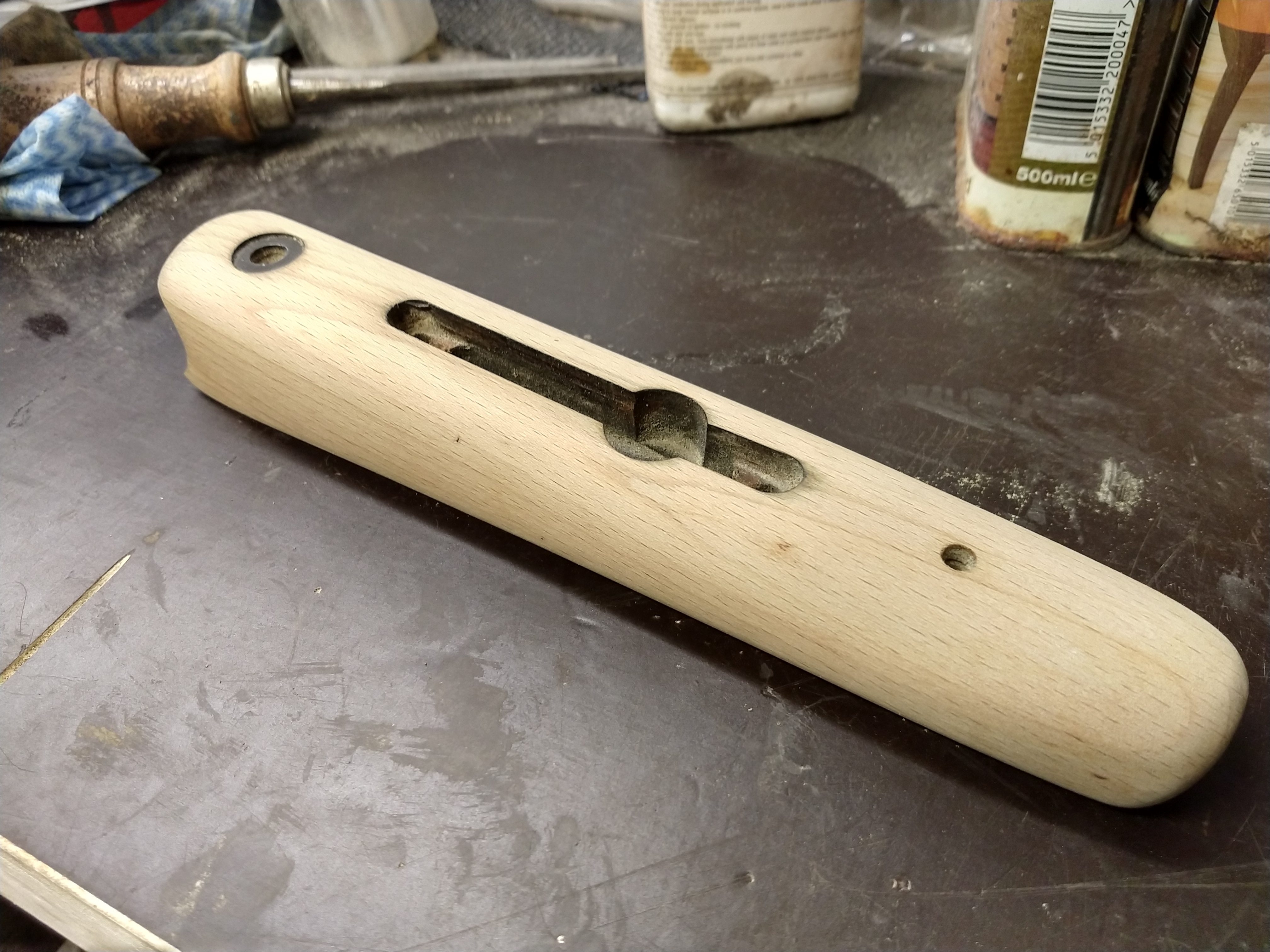

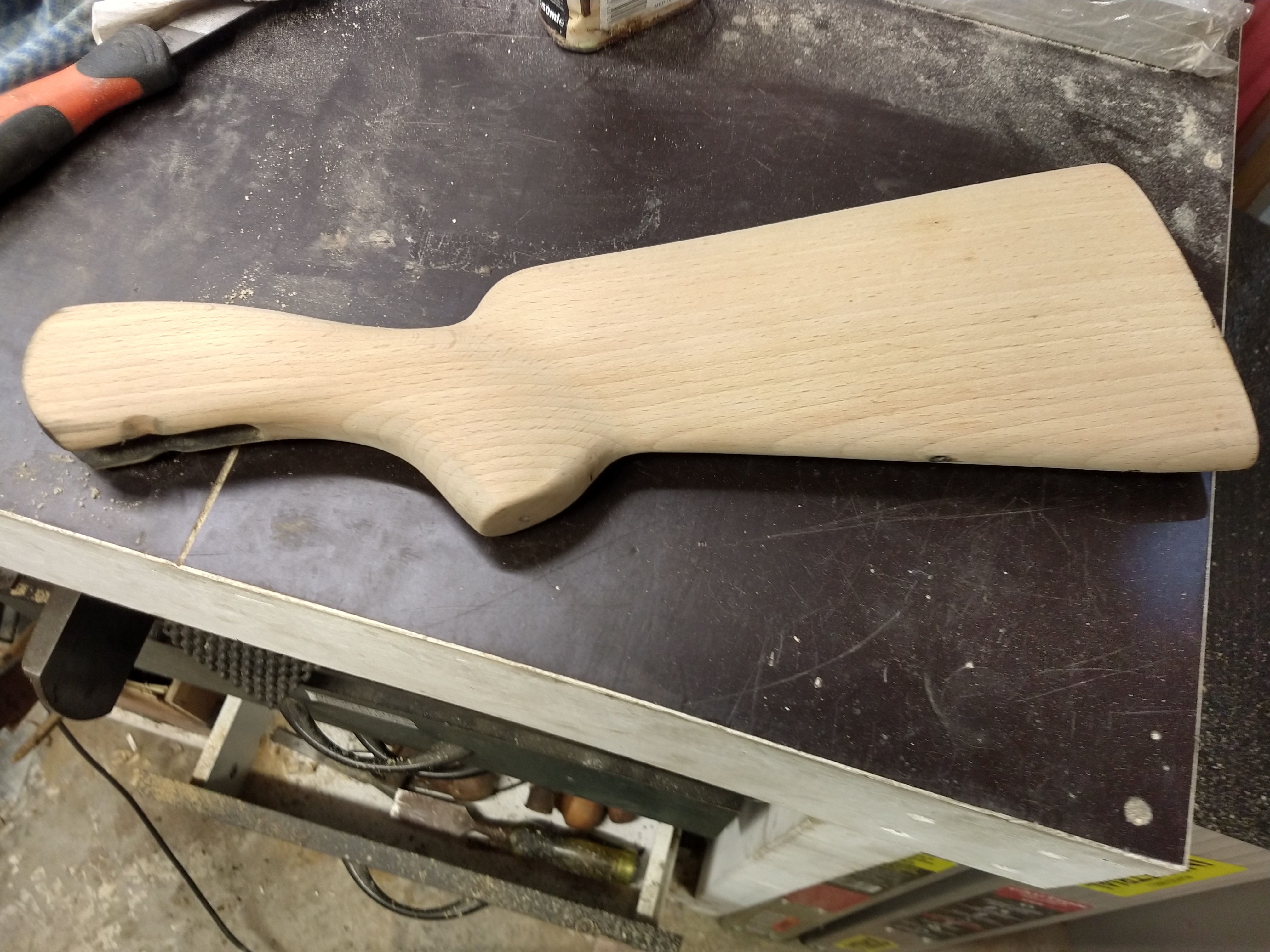

    I have also been working on "de-russia-ing" the stock a bit. I have brought the wood down flush with the action and added some shape to the wrist area.
    I then sanded what seemed to be fence paint off and rubbed it down to 220g.

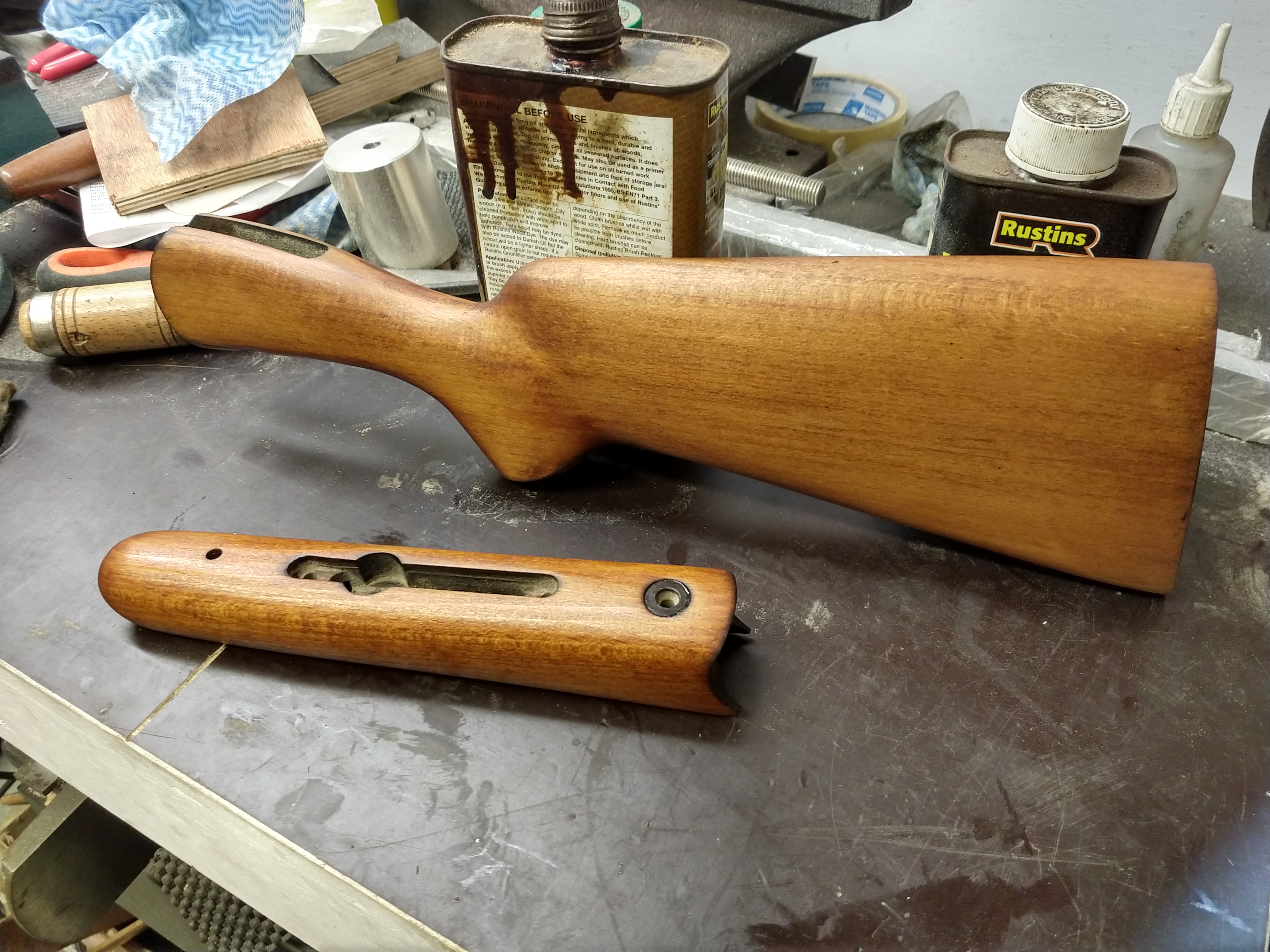

    I stained it with a rimu color stain and now am in the process of selling the stock up with Danish oil. This takes a long while.

    I'm not going all out with this finish, as I have many other projects on the go and can't sink too many hours into it. Plus I don't want to feel as bad when it inevitably gets dinged and scratched being carted around.

    Name:  IMG_20210605_170359695_HDR.jpg
Views: 508
Size:  3.48 MB
    Name:  IMG_20210605_170410706_HDR.jpg
Views: 492
Size:  3.30 MB
    Name:  IMG_20210605_172751055_HDR.jpg
Views: 496
Size:  3.47 MB
    Name:  IMG_20210605_173647149_HDR.jpg
Views: 491
Size:  3.87 MB

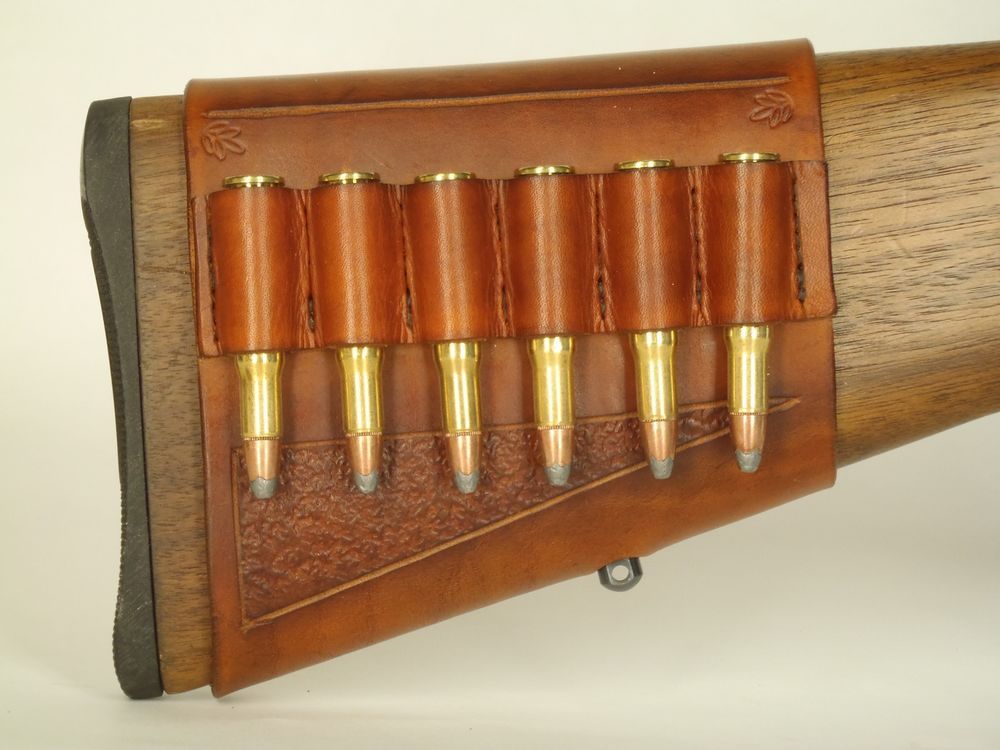

    I am thinking about making a leather buttstock wrap that holds 5 or 6 cartridges. I have a bunch of leftover leather and all the gear from my knifemaking days. Has anyone done this themselves or have any design tips? Anyone know a neater way to hold them in place than lacing them on?

    Name:  Handmade Custom Marlin 336 Leather Buttstock Shell Holder 30-30 Win Saddle Tan #Handmade.jpeg
Views: 433
Size:  86.9 KB
    Moa Hunter likes this.

  13. #28
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,662
    45/70 you wont be needing 5-6 cartridges LOL.
    get in habit of carrying round loose in left hand when game is being approached...reloading is quite quick that way,quick being relative.you could go all NDN and use brass tacks....but that might look.........wait for it.........tacky BOOM BOOM BOOM LOL

  14. #29
    Member
    Join Date
    Nov 2019
    Location
    North Canterbury
    Posts
    502
    Just fitting a .22lr barrel onto my Baikal 12g a nice simple single shot.
    Micky Duck likes this.

  15. #30
    Member canross's Avatar
    Join Date
    Jan 2017
    Location
    Chch
    Posts
    603
    Funny that you're doing this project.... this has been on my mind

    Quote Originally Posted by SixtyTen View Post

    I am thinking about making a leather buttstock wrap that holds 5 or 6 cartridges. I have a bunch of leftover leather and all the gear from my knifemaking days. Has anyone done this themselves or have any design tips? Anyone know a neater way to hold them in place than lacing them on?

    Attachment 169468
    In terms of avoiding lacing, if you don't mind making it a tight fit, check if a sewn-to-fit mocked up cartridge holder will slip over the pistol grip on the stock from the front - either entirely over the action or with the stock off. Sling swivel can be used to retain the holder from slipping forwards if it's well reinforced. Hardened/waxed leather will be less prone to relaxing and getting loose over time/repeated wetting, but do test runs first, waxed leather doesn't behave the same way as unwaxed.
    SixtyTen likes this.
