Thread: Blank barrel

  1. #16
    Member
    Join Date
    May 2018
    Location
    Porirua
    Posts
    1,336
    Legend. In fact such a legend that Richy Mcaw says you're a legend.

  2. #17
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830

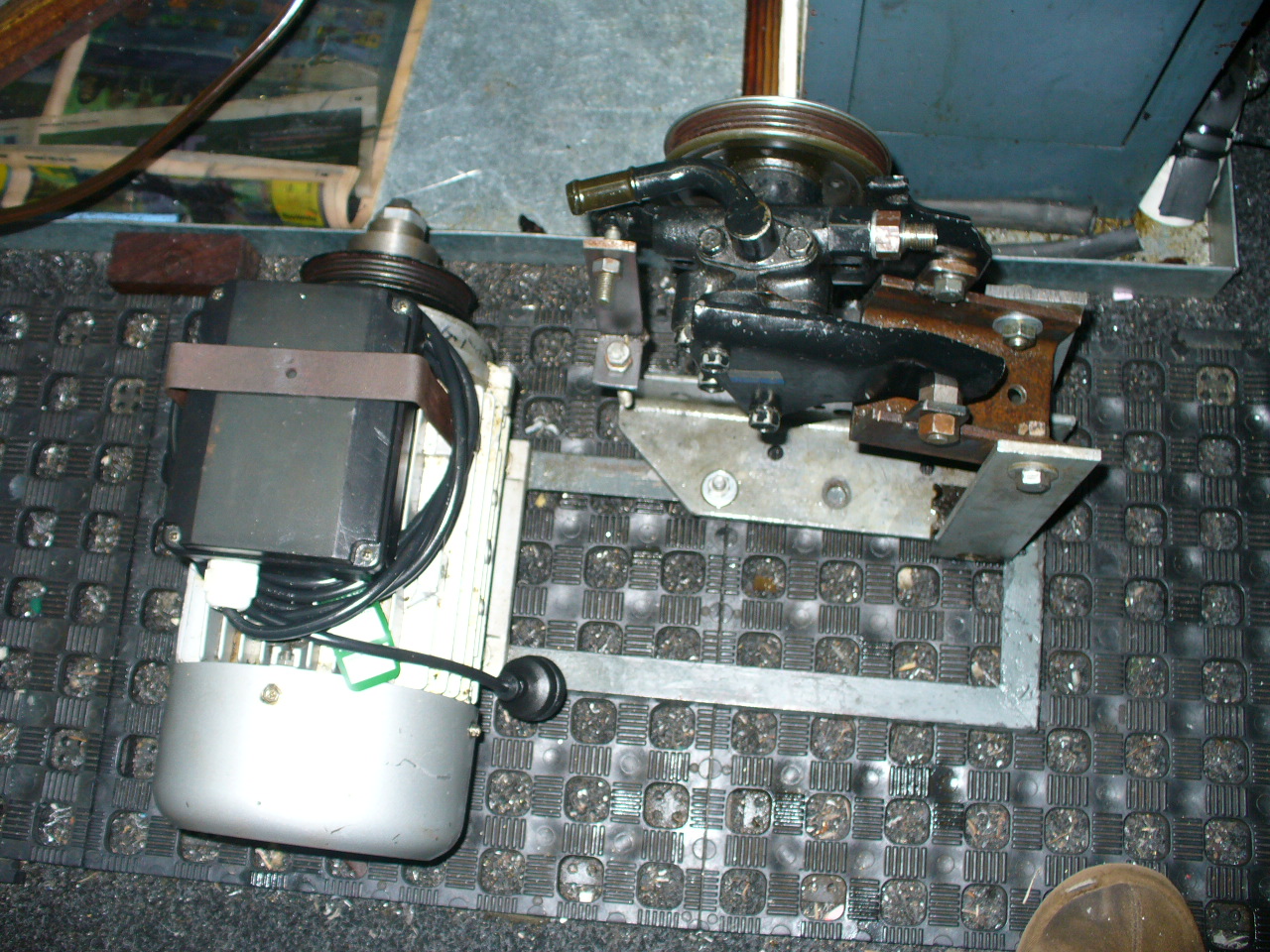

    Ricky`s the man, but if he say`s so right , I`m a legend, clever bugger and all the bits in-between. Production has ground to a halt, hope fully I've got dibs on a steering pump, looks like I`m one short, but as long as there is T R D me, no problem.
    Name:  P1030094.JPG
Views: 430
Size:  531.8 KB, My pump assembly

  3. #18
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,797
    so???? you could make a two groove barrel (like a long tom) simply by only cutting rifling on say 1 and 4??? or a three groove ?????? it would cut down your machining time and give a greater grip on projectile.......
    csmiffy likes this.

  4. #19
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    No, I would feel weird looking up a barrel with only two groves, there`s something about six groves spiralling off in a barrel that says it`s a barrel.
    I know it`s hard work but someone has to do it, think of all the poor guys looking for a 45-70 barrel, Pssst, my oil pumps are up and running so guess what I`m doing. Now this one I plan to have a bore of .450", so the reaming is done, rifled .004" deep to .458" and it will be chambered, yep you guessed it; .45-70,

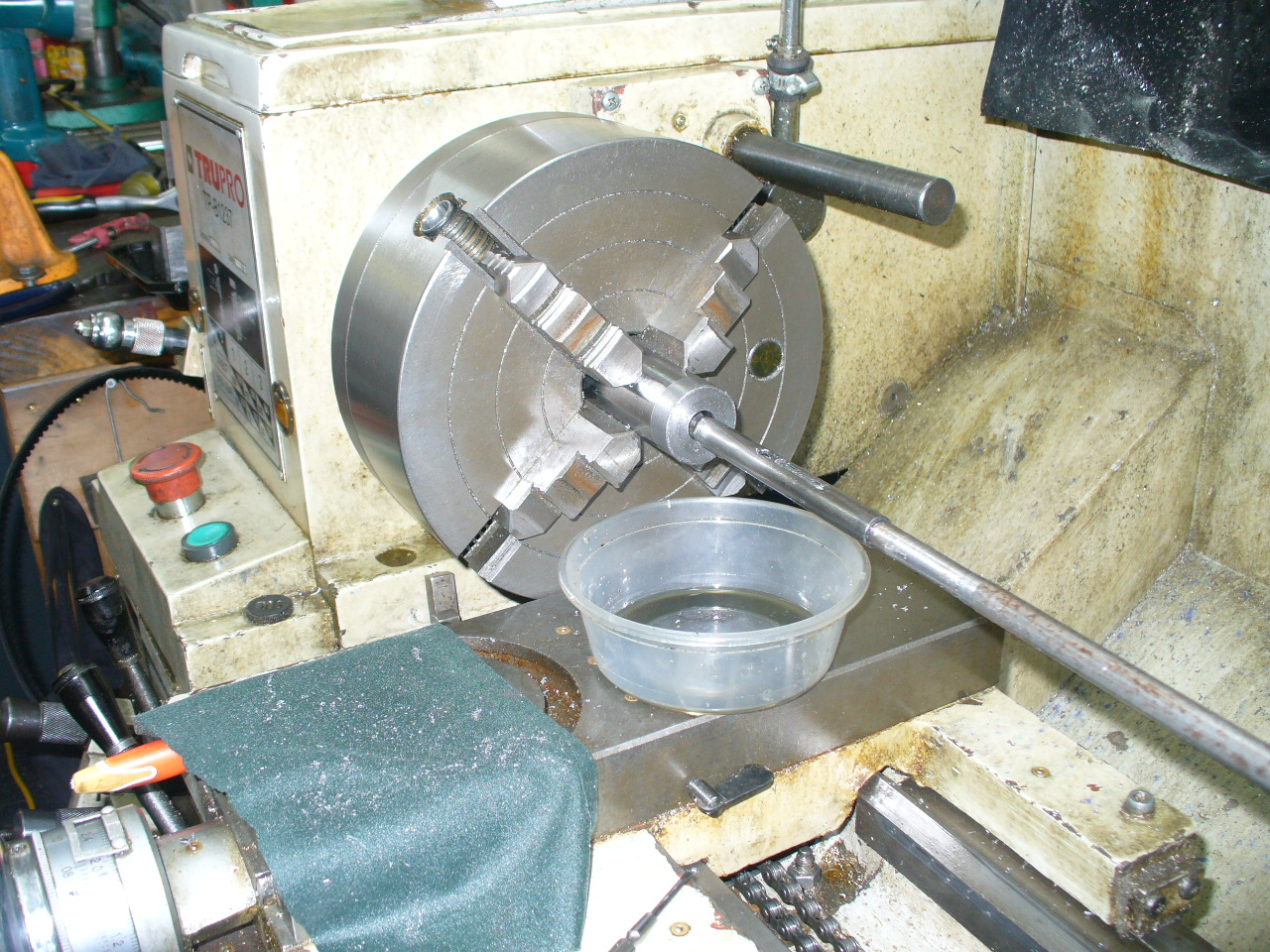

    Name:  P1030125.JPG
Views: 400
Size:  558.1 KB, muzzle end, rifling cutting.
    Name:  P1030127.JPG
Views: 399

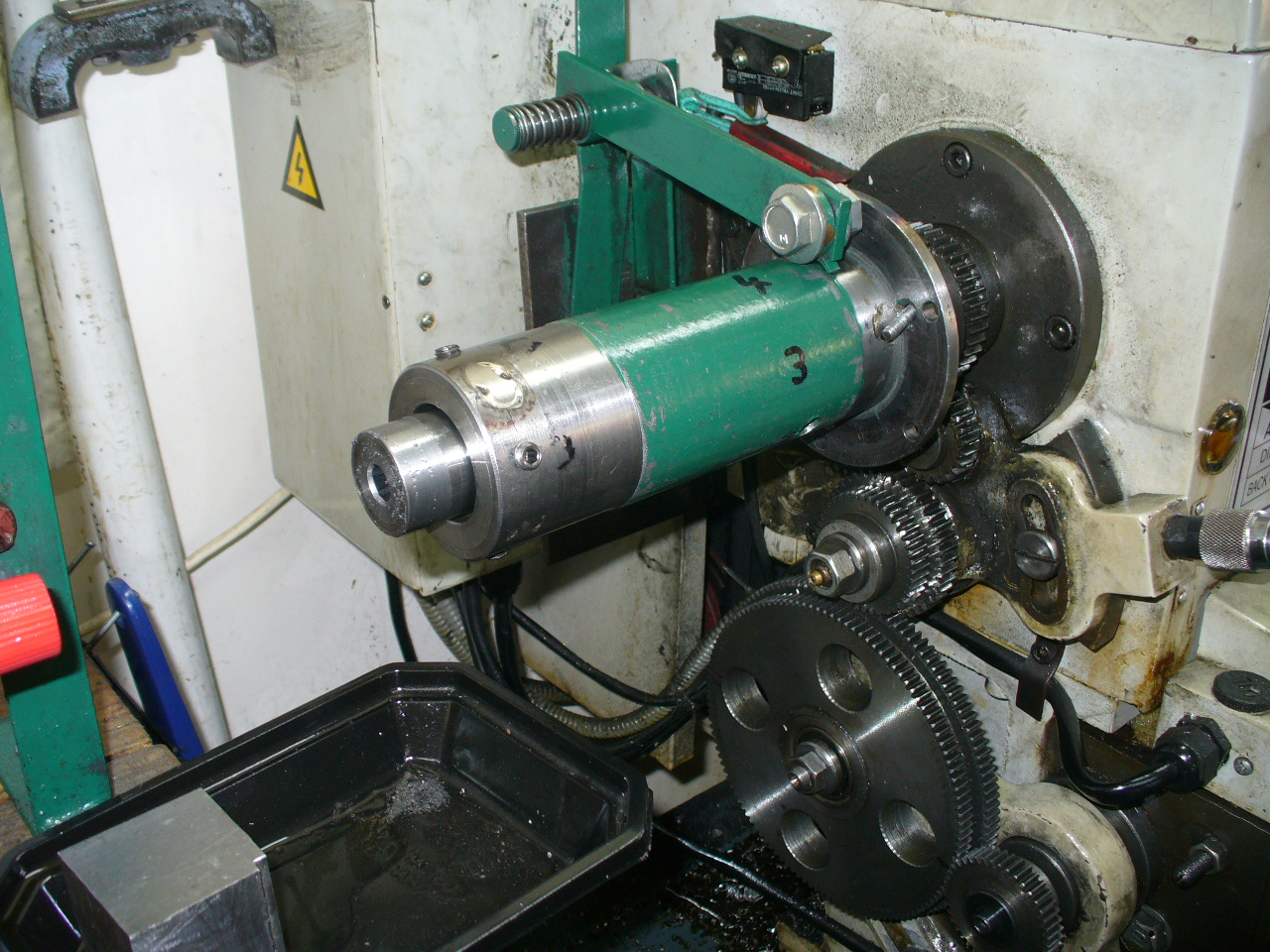

Size:  599.1 KB, breech end, rifling register for six of the best.
    Name:  P1030126.JPG
Views: 369

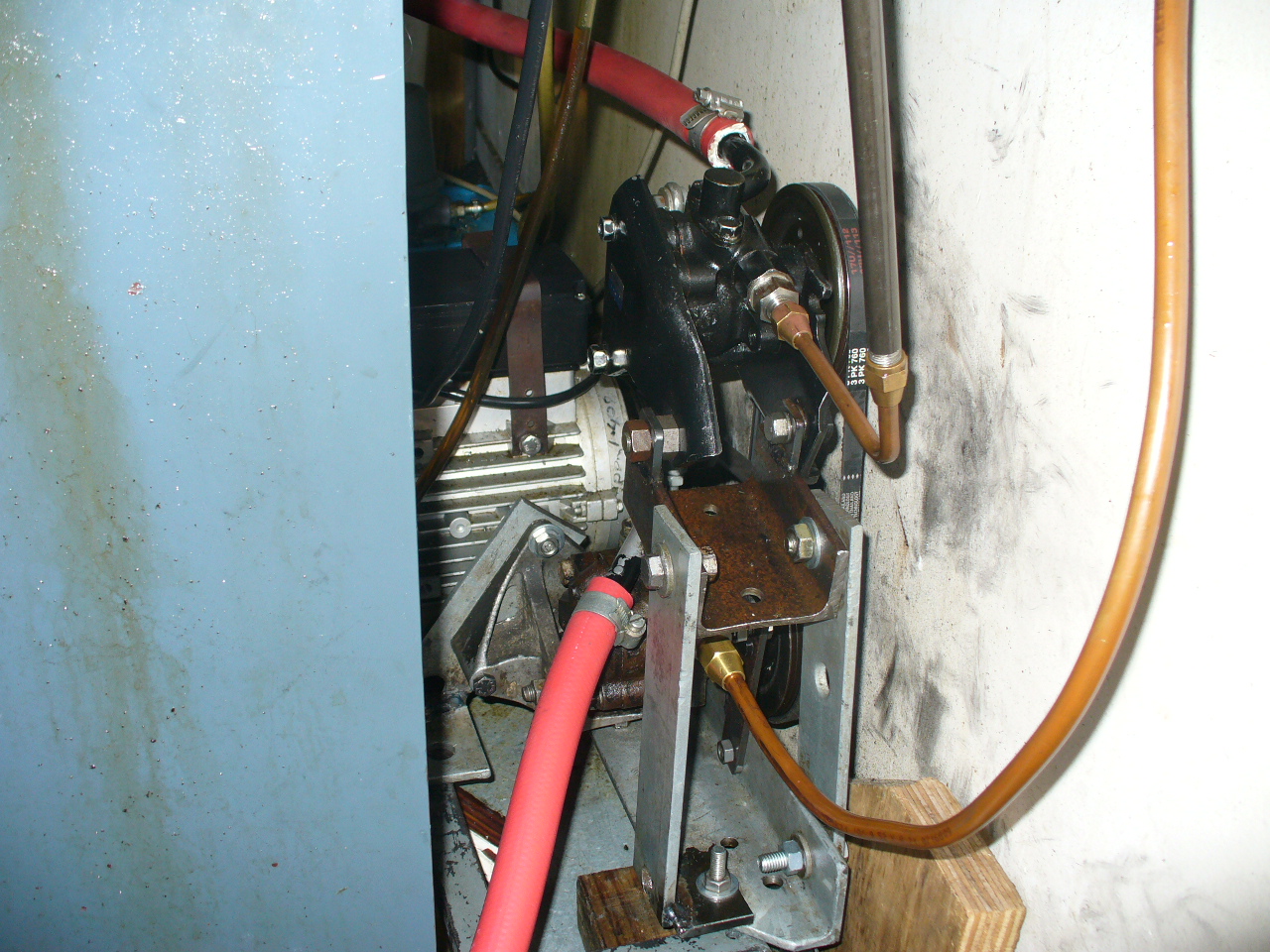

Size:  626.2 KB, New improved two pumps, put out 400psi. spits out the chips nicely .
    Micky Duck and Mathias like this.

  5. #20
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    I was slowly cutting the six grove rifling and I`m making this one on speck , there must be some looking for a 27" 45-70 barrel. Well I get this email from a guy, "Hi, I like your barrels, can I order one", he had build a rolling block action so needed a barrel, so it`s wrapped up ready to go to it`s new life. I hope it shoots straight.

  6. #21
    Member mucko's Avatar
    Join Date
    May 2012
    Location
    Tauranga
    Posts
    12,627
    you plan on making other barrels like 5R 6.5mm
    Muckos Shooting accessories and engineering https://www.facebook.com/aimnzengineering/

  7. #22
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    No Mucko, I've only got three gun drills, they drill holes of , .420", .443", and .500". Its ok drilling holes this size with the setup I have but if you go to smaller holes you need a lot more oil pressure and it`s to hard to make a rifling cutter head for the small sizes. It takes me about 12/13 days to finish a barrel. My homebrew supply is getting low so no more barrels till I put down a few kits, one must get the priorities right,

  8. #23
    Member
    Join Date
    Feb 2013
    Location
    spreydon christcurch.
    Posts
    6,985
    Brew ya old bugger ,kotuku here,hows that howitzer barrel coming on???GSPF informs me jan 14 is opening of a special parrie season in our area so keen to bowl a couple .just shifted house so have a few nuts bolts waikato cans etcetc to drop down the barrel and hopefully knock em out.
    bloody good to see youre staying out of here indoors hair,secret to many a happy marriage according to my better half!!
    Merry Xmas to you and yours and all forum users .stay safe and may santys sack contain a loud one for ya!!

  9. #24
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    Hi Mate, hope the move went ok, you can get rid of a lot of stuff when you move and find a lot. Good luck with the parrie`s , hope you are practicing a lot, if not here is a way to get close up and personal. Pic #1.

    Now here`s the latest and greatest duck terminator, just poke it up in the sky and let fly, your bound to hit something. Cheers, have a good xmas.Name:  shooting-ducks-barrel-3386954[1].jpg
Views: 404
Size:  28.7 KB, Close range stuff.
    Name:  th[10].jpg
Views: 303
Size:  13.6 KB, Long range stuffer upper.

  10. #25
    Member
    Join Date
    Jan 2019
    Location
    South Canterbury
    Posts
    1,522
    So for all you guys and girls admiring how much of a legend homebrew is (and this includes myself). After this I will be up to 5 posts and add some pics. Micky Duck brought the barrel and asked his good mate ( Me ) if I could chamber and machine to fit as an insert in a single barrel 12g he has. How bad could it go I thought. So into work and onto the lathe I went as time, family life, Xmas/new year, actual work, hunting etc allowed I slowly removed metal to get what we were after.

  11. #26
    Member
    Join Date
    Jan 2019
    Location
    South Canterbury
    Posts
    1,522

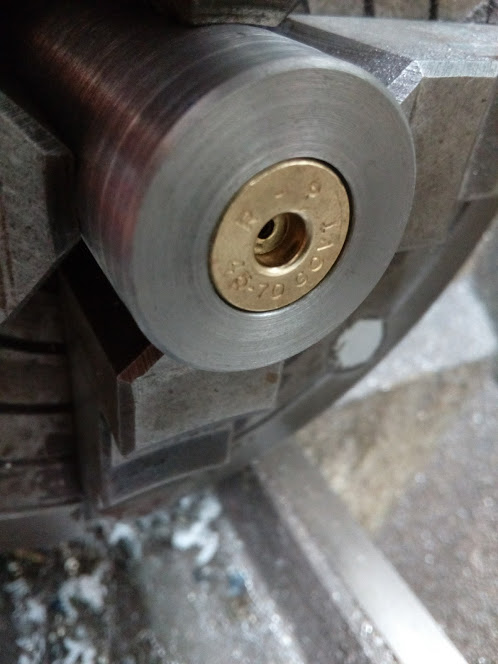

    Here is the barrel being chambered in lathe
    Name:  IMG_20181124_152444.jpg
Views: 255
Size:  55.3 KB

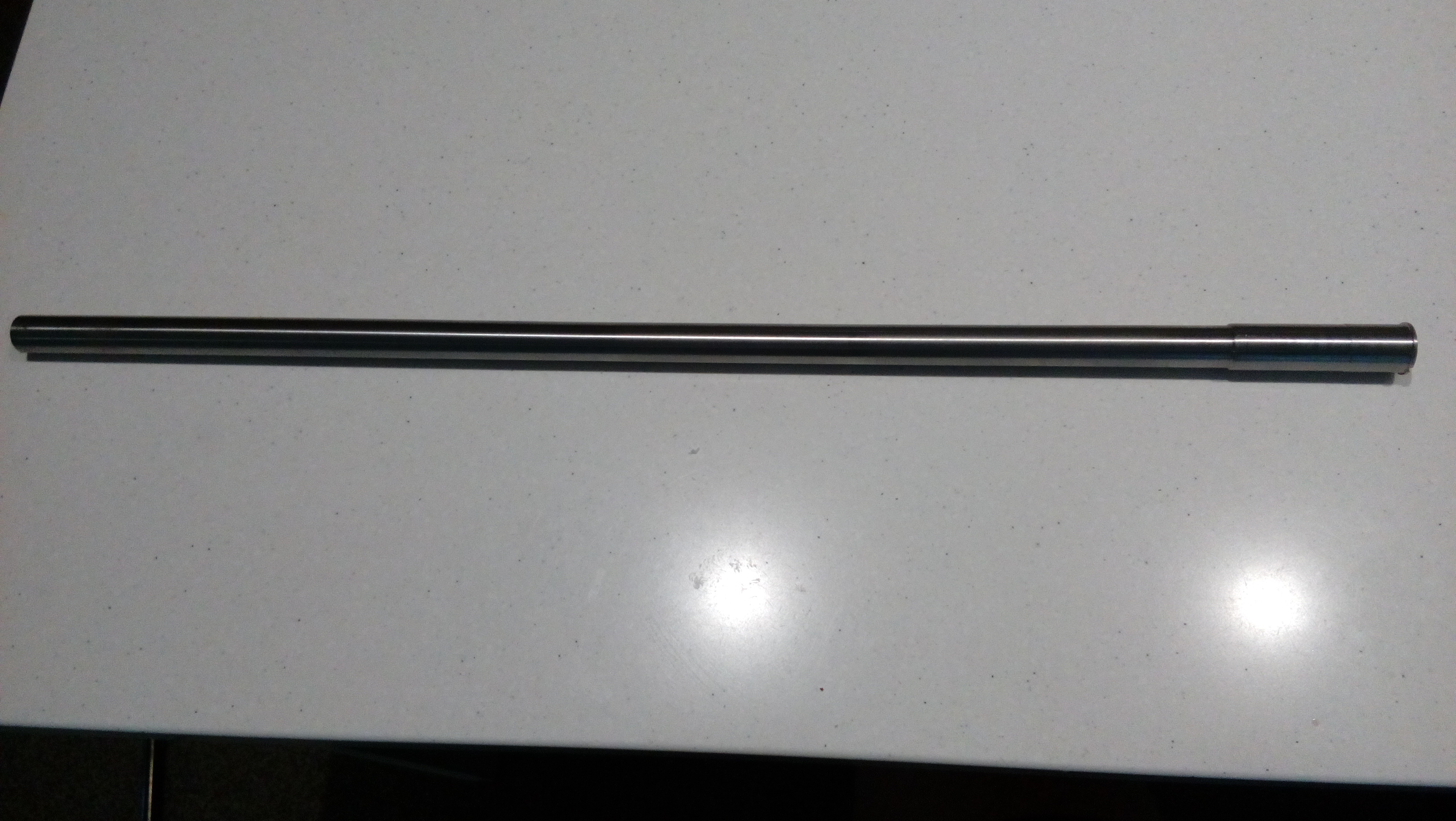

    This is the completed barrel machined to fit down the 12g barrel.
    Name:  IMG_20190129_185001.jpg
Views: 301
Size:  1.89 MB

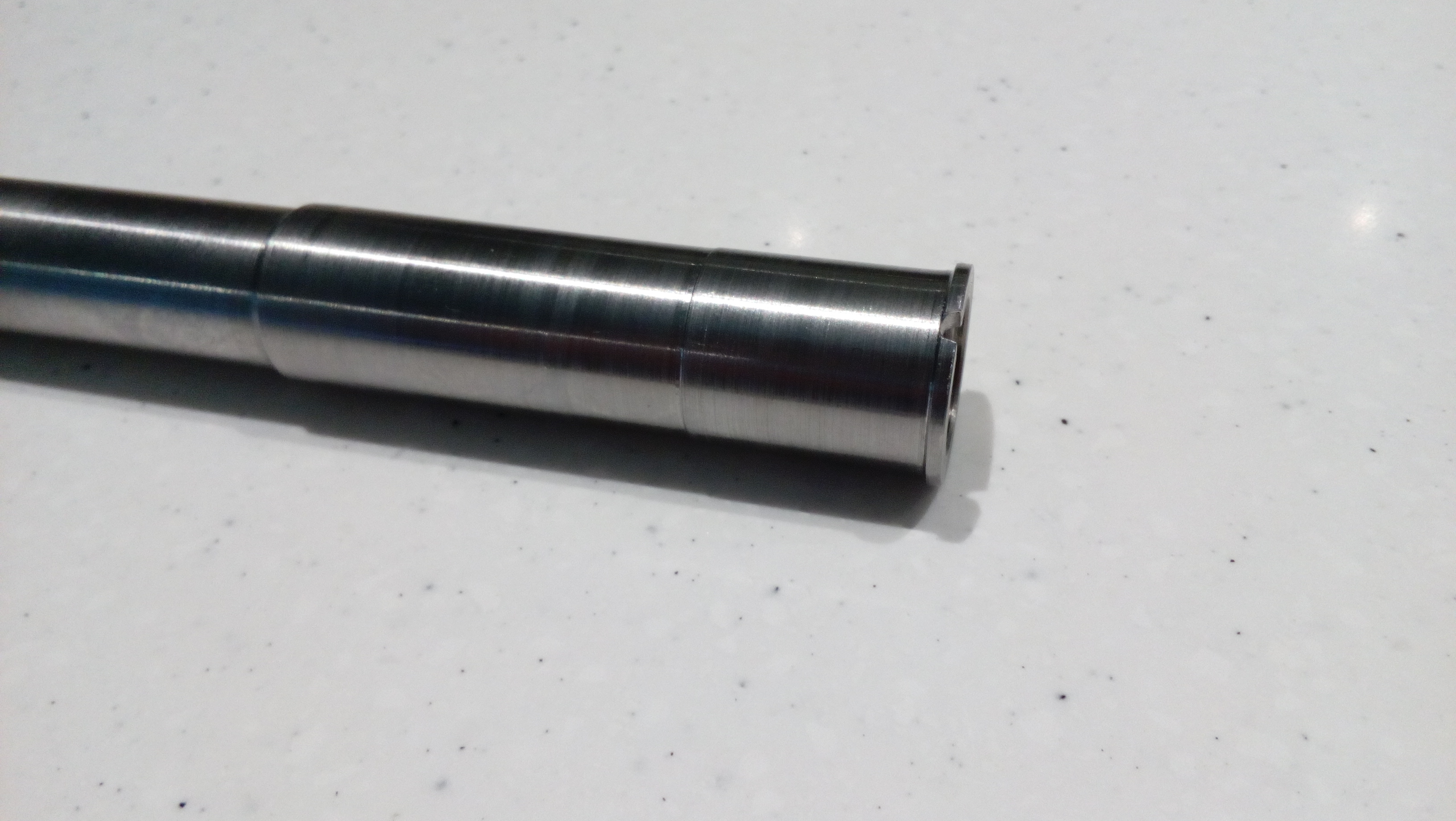

    Close up of chamber end.
    Name:  IMG_20190129_185037.jpg
Views: 311
Size:  1.57 MB

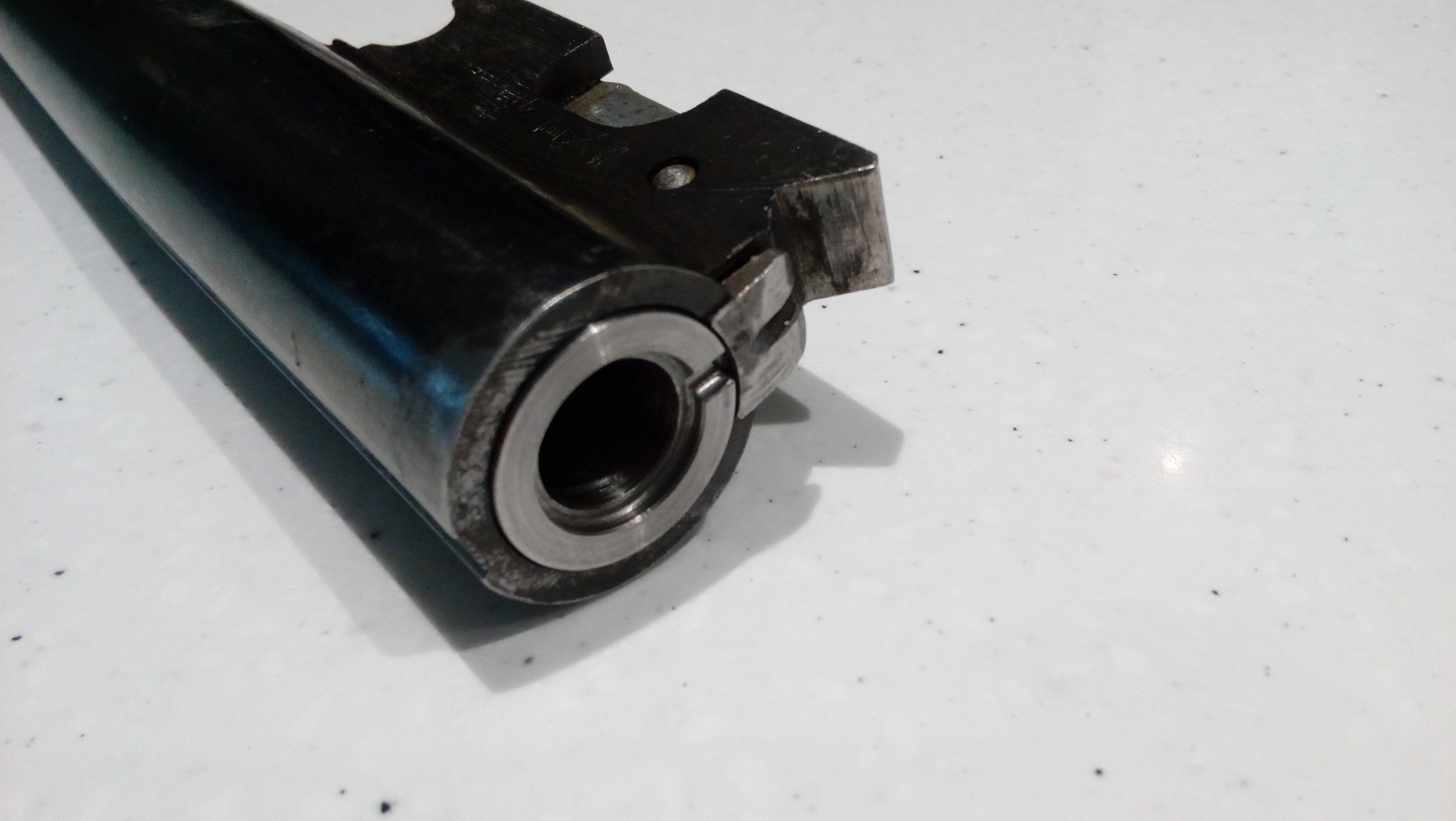

    Barrel fitted into 12g.
    Name:  IMG_20190129_185315.jpg
Views: 305
Size:  1.63 MB

    And best of all it actually works. Now to find some live animals.

    https://youtu.be/Edi9RNXpp0c

  12. #27
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Location
    UK
    Posts
    7,916
    Nice job! How much extra weight does it add?
    It's all fun and games till Darthvader comes along
    I respect your beliefs but don't impose them on me.

  13. #28
    Member
    Join Date
    Jan 2019
    Location
    South Canterbury
    Posts
    1,522
    Didn't actually weigh it, @Micky Duck might be able to chuck it on some scales one day. The thing is that the bore is about 11.5mm and to fit down the 12 guage it had to be just under 18.5mm so the wall thickness of barrel is only 3.5mm. About the same as a bit of 1/2" schedule 40 pipe.

  14. #29
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,797
    the weight is ok....sort of brings it up to a heavy barreled bolt action..the balance is great and the weight is in a good place,balance point is between the hands and it carries one handed nicely....we were managing to hit a 4" square piece of wood at 20 yards last weekend....so it should be good for 40-50yards on a deer.
    homebrew.357 and RUMPY like this.

  15. #30
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    Hi guys, just checking my thread, I`ve just seen this, bloody good stuff Rumpy. Sorry about all the machining you had to do but I dear say Micky will be keeping your beer supply up for a while. If you keep those slugs at 1,100 /1,300 fps should be ok and no leading and its a easy cartridge to load, I haven`t any loading dies for it but no problem, Doug.
