Thread: Howa 1500 S/A lightweight stock options

  1. #16
    Member
    Join Date
    Jan 2018
    Location
    Christchurch
    Posts
    703
    The Alpine stock is so light because it is a thin shell over foam filler or shaper. I know this as I took to the bedding area and start of the barrel channel to add bedding material to mine. A couple of over-enthusiastic moments with the metal burr cutter on the Dremel and I found the foam on the inside. I sanded the barrel channel back to free float the light #1 profile barrel - once past the paint and primer there's not a lot of fibreglass there. I would be hesitant even to try to fit the standard #2 profile barrel.

    I bedded the action in Terminal Ballistics bedding compound, making sure to squoosh (that's the technical term) into the holes I created. It's only a 223 so I'm not too concerned it will fall to bits. If I bought another one I wouldn't be so eager with removing material to bed the action.

    The pros for the stock are many - it's a lovely trim shape for a hunting rifle, thin through the wrist. The shape puts my thumb straight up the centre of the stock rather than wanting to wrap it over the top of the grip. Perhaps the nicest part is how much thinner and rounder it is around the magazine floor-plate area. Sits so much nicer in the hand than a chunky Hogue.

  2. #17
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,188
    Quote Originally Posted by Steelisreal View Post
    The Alpine stock is so light because it is a thin shell over foam filler or shaper. I know this as I took to the bedding area and start of the barrel channel to add bedding material to mine. A couple of over-enthusiastic moments with the metal burr cutter on the Dremel and I found the foam on the inside. I sanded the barrel channel back to free float the light #1 profile barrel - once past the paint and primer there's not a lot of fibreglass there. I would be hesitant even to try to fit the standard #2 profile barrel.

    I bedded the action in Terminal Ballistics bedding compound, making sure to squoosh (that's the technical term) into the holes I created. It's only a 223 so I'm not too concerned it will fall to bits. If I bought another one I wouldn't be so eager with removing material to bed the action.

    The pros for the stock are many - it's a lovely trim shape for a hunting rifle, thin through the wrist. The shape puts my thumb straight up the centre of the stock rather than wanting to wrap it over the top of the grip. Perhaps the nicest part is how much thinner and rounder it is around the magazine floor-plate area. Sits so much nicer in the hand than a chunky Hogue.
    Do you think it would be possible to take enough out of the channel to fit my carbon barrell ?
    #DANNYCENT

  3. #18
    Member
    Join Date
    Jan 2018
    Location
    Christchurch
    Posts
    703
    @dannyb - not a chance. I'll bust it out tomorrow and take pictures in the daylight. I suspect it's just not the right candidate to fit a fat barrel to.

    If you know someone who does composites work you might be able to do a modification to it, though I suspect it may end up looking like those stocks carved out for fully suppressed barrels.

    The length of pull might also be on the short side for someone as lanky as yourself.

  4. #19
    Member
    Join Date
    Dec 2018
    Location
    Christchurch
    Posts
    597
    I was about to post a similar thread!

    Been thinking of buying the lightweight barreled action in 223 below, which I suspect is a #1 contour.
    https://www.reloaders.co.nz/shop/Fir...+Threaded.html

    Wonder if it can be dropped straight into the alpine stock and be a perfect fit?
    dannyb likes this.

  5. #20
    Member
    Join Date
    Jan 2018
    Location
    Christchurch
    Posts
    703

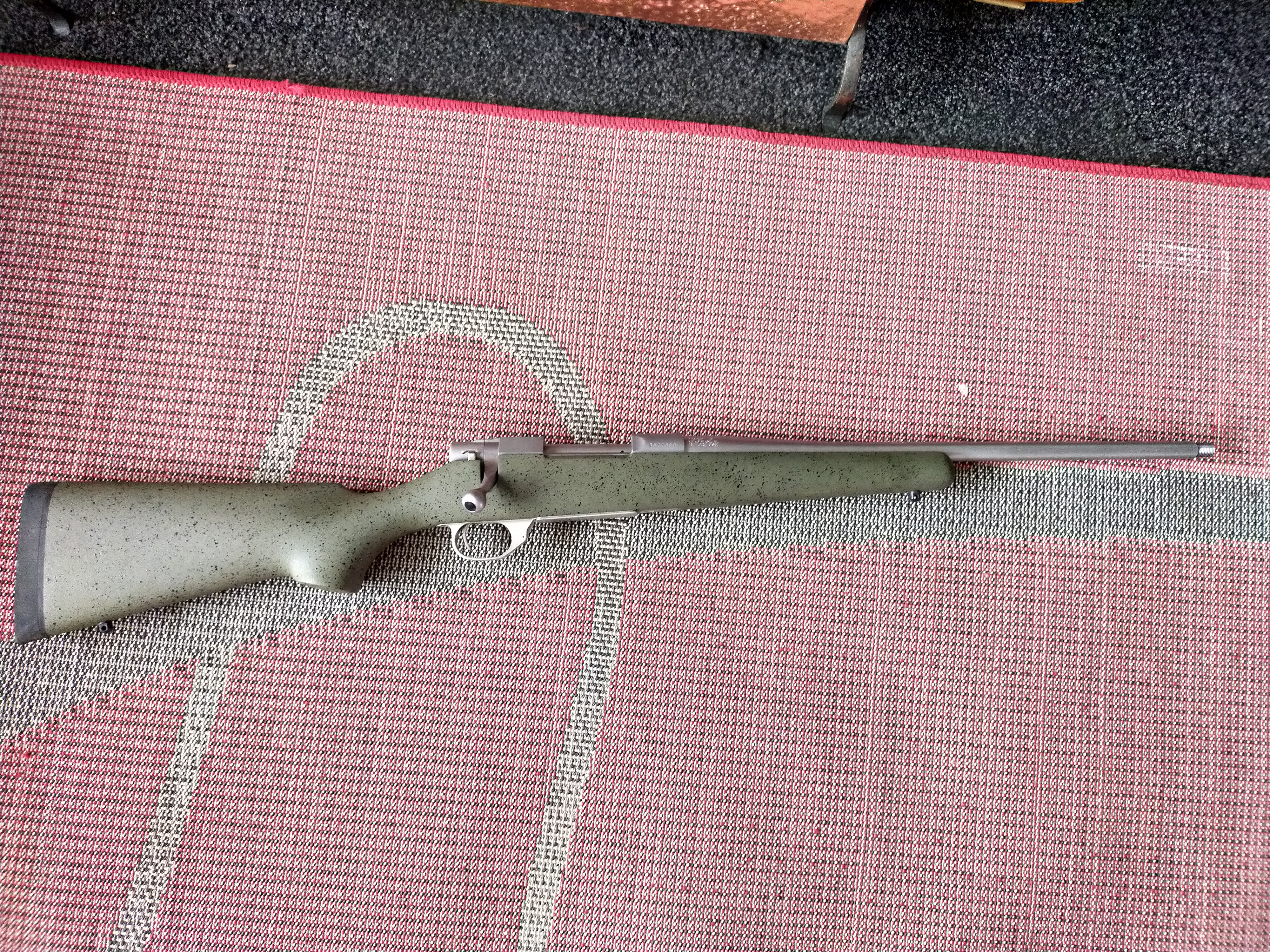

    Like this perhaps? ��
    Name:  IMG20200512155124.jpg
Views: 1364
Size:  8.68 MB
    Synthetic likes this.

  6. #21
    Member
    Join Date
    Jan 2018
    Location
    Christchurch
    Posts
    703
    Quote Originally Posted by Synthetic View Post
    I was about to post a similar thread!

    Been thinking of buying the lightweight barreled action in 223 below, which I suspect is a #1 contour.
    https://www.reloaders.co.nz/shop/Fir...+Threaded.html

    Wonder if it can be dropped straight into the alpine stock and be a perfect fit?
    You're correct, it is the #1 profile on the 20" lightweight. The Alpine was designed around this action and barrel profile.

    The stock I got had a fair bit of excess paint on the action bedding blocks (aluminium machined and bonded into the stock). There was even more in the underside where the bottom metal fits. Once this was tidied up it fitted okay, but certainly wasn't perfect. I shot it and it went okay bolted straight to the metal bedding inserts.

    I took it hunting just the once set up like this. A bit of time pushing through gorse and various other rubbish led to the rifle being very odd the next time I had it down the range trying to find out what sort of diet it liked. I pulled the stock off and a whole load of shit fell out of the area around the action - too much space for crap to wiggle in. So it got a bedding job as I knew it inevitably would and it's been great since.
    Synthetic and caberslash like this.

  7. #22
    Member
    Join Date
    Dec 2018
    Location
    Christchurch
    Posts
    597
    Quote Originally Posted by Steelisreal View Post
    You're correct, it is the #1 profile on the 20" lightweight. The Alpine was designed around this action and barrel profile.

    The stock I got had a fair bit of excess paint on the action bedding blocks (aluminium machined and bonded into the stock). There was even more in the underside where the bottom metal fits. Once this was tidied up it fitted okay, but certainly wasn't perfect. I shot it and it went okay bolted straight to the metal bedding inserts.

    I took it hunting just the once set up like this. A bit of time pushing through gorse and various other rubbish led to the rifle being very odd the next time I had it down the range trying to find out what sort of diet it liked. I pulled the stock off and a whole load of shit fell out of the area around the action - too much space for crap to wiggle in. So it got a bedding job as I knew it inevitably would and it's been great since.
    Thanks alot. This is exactly what I was wanting to find out for a long time.
    caberslash likes this.

  8. #23
    Member
    Join Date
    Feb 2020
    Location
    Scotland
    Posts
    1,207
    @dannyb

    https://www.pse-composites.com/produ...r-howa-1500-sa

    Having delt with PSE composites I can say they make some of the best aftermarket carbon stocks to be had.

    Your barrel will fit no problem in this rigid and lightweight stock, however, I suspect price wise they will be hefty once landed in NZ.

    If it's any consolation, I bought a secondhand Howa Alpine in .243 for £500 with a moderator too.

    The Bansner stocks are good, but not great. Crooked barrel channel, OK factory bedding and mine didn't have a blended loading/ejection port cutout.

    All the above can be rectified, but don't throw good money after bad.

    Howa have bought out their own carbon shell stocks, so maybe look at that?

  9. #24
    Member Happy Jack's Avatar
    Join Date
    Jan 2020
    Location
    Nelson/Tasman
    Posts
    3,863
    Quote Originally Posted by Micky Duck View Post
    you will have to lug me 22-250 around for a day......you will think your rifle is a matchstick afterwards.
    He picked mine up and nearly had a hernia
    Micky Duck and dannyb like this.

  10. #25
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,188
    Quote Originally Posted by Happy Jack View Post
    He picked mine up and nearly had a hernia
    No wonder your so fit lugging that around

    Trust me the howa is a pig, will go weigh it now
    Micky Duck and Happy Jack like this.
    #DANNYCENT

  11. #26
    Member
    Join Date
    Nov 2012
    Posts
    1,527
    Quote Originally Posted by Joe_90 View Post
    Hey Danny, this is my bastardised howa mini action stock. I took 60mm off the forend then put the factory end back on with epoxy.
    Attacked with belt sander and angle grinder to get rid of the stupid fat shape.

    I started building the first half of a mould this morning. When that's done it'll be carbon fibre layup time.

    Ultimately I want to get my 300blk mini action to 3kg carry weight (empty mag)

    Attachment 175354
    watch this space....
    Just weighed my mini .223 this morning and with a DPT and 3x9 swro and it's bang on 3kg it has a High tech carbon stock on it.

    Sent from my CPH1903 using Tapatalk
    Moa Hunter, Stocky and Joe_90 like this.

  12. #27
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,188
    Quote Originally Posted by dannyb View Post
    No wonder your so fit lugging that around

    Trust me the howa is a pig, will go weigh it now
    Just shy of 4.8kg but it is also quite cumbersome massive fore, the laminate stock is really more suited to prone shooting.
    #DANNYCENT

  13. #28
    Member Happy Jack's Avatar
    Join Date
    Jan 2020
    Location
    Nelson/Tasman
    Posts
    3,863
    Might weigh my 22-250 tomorrow, but despite what @dannyb says I reckon its a flyweight

  14. #29
    Member
    Join Date
    Mar 2014
    Location
    Tauranga
    Posts
    2,999
    Must be a whack of weight in that carbon barrel. A standard profile howa in a boyds stock will be 3.5ish kg.

    The boyds thumb hole stocks weigh about 1.1-1.2 kg
    If you can get the barrel to work you will have a stock that is about 400g lighter than now.

    At 4.4 kg it's still pretty heavy for a carry rifle.

    Not a great return for $$ in. The lighter carbon stocks will save you another 150g on that weight so still pretty heavy.

    For another hu dred bucks you can probably find a second hand howa mini or Ruger American etc that is way lighter and doesn't require faffing
    Moa Hunter likes this.

  15. #30
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,188
    Quote Originally Posted by Nick-D View Post
    Must be a whack of weight in that carbon barrel. A standard profile howa in a boyds stock will be 3.5ish kg.

    The boyds thumb hole stocks weigh about 1.1-1.2 kg
    If you can get the barrel to work you will have a stock that is about 400g lighter than now.

    At 4.4 kg it's still pretty heavy for a carry rifle.

    Not a great return for $$ in. The lighter carbon stocks will save you another 150g on that weight so still pretty heavy.

    For another hu dred bucks you can probably find a second hand howa mini or Ruger American etc that is way lighter and doesn't require faffing
    Sorry that is including a harris bipod I should also point out, rifle is a known good shooter. Under moa with cheap as chips fiocchi soft points at 100 yards
    #DANNYCENT
