Thread: Making a Rolling block rifle on my lathe.

  1. #16
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    I don`t know if I will build all the extra bits, have to see how hard it is or how lazy I am. The round bit is 3.900"dia, and yes I have fly cut a flat on one side, it was going to be the action for the Sharps but changed to a block of 4140, so its been sitting. Now it`s getting the hurry up . Tentman, I could post a pic of a drawing of the rolling block with all the goodies if you like , hang on I`ll get it sorted.

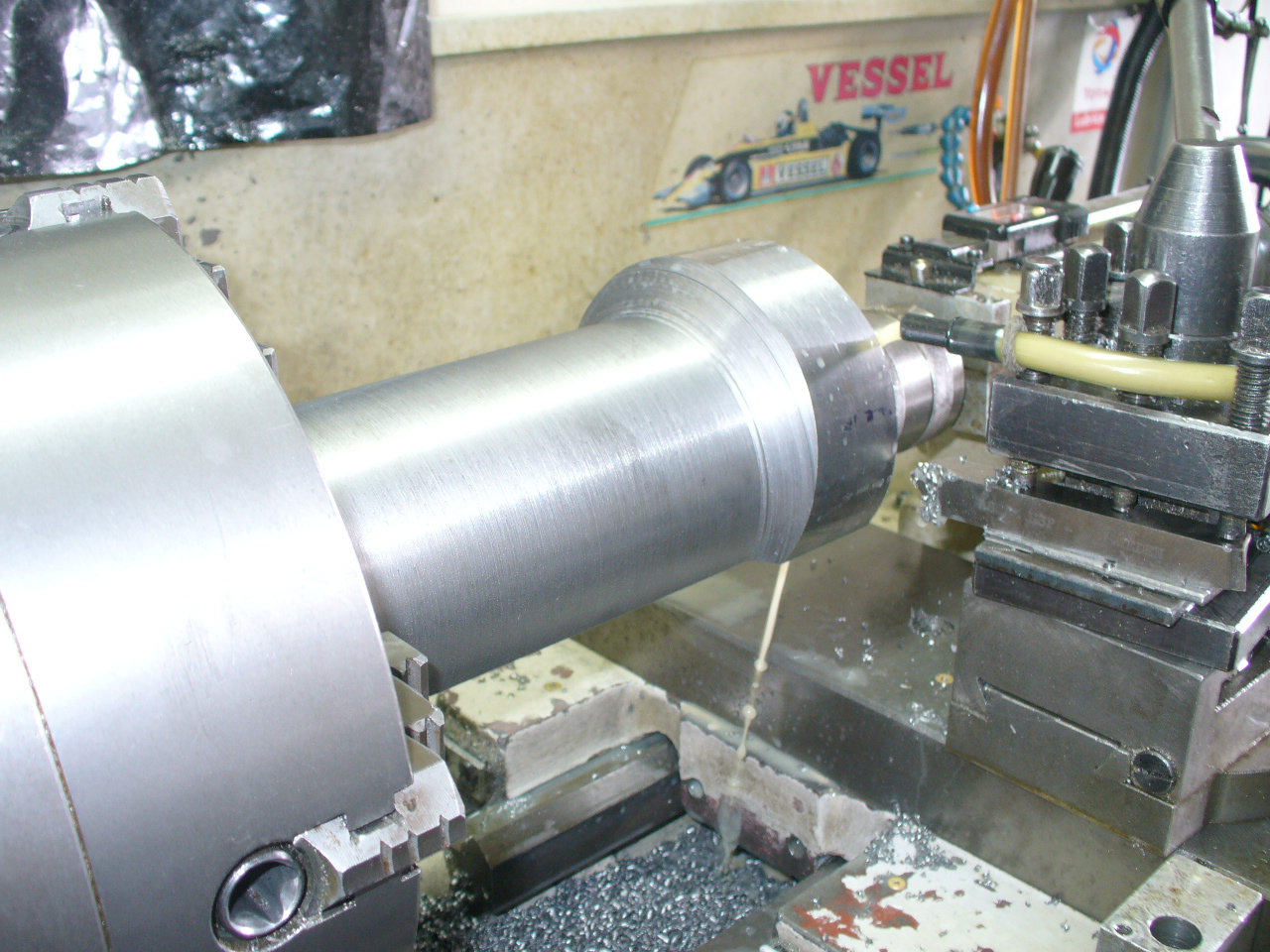

    Name:  P1030337.JPG
Views: 907
Size:  602.9 KB, I love machining.

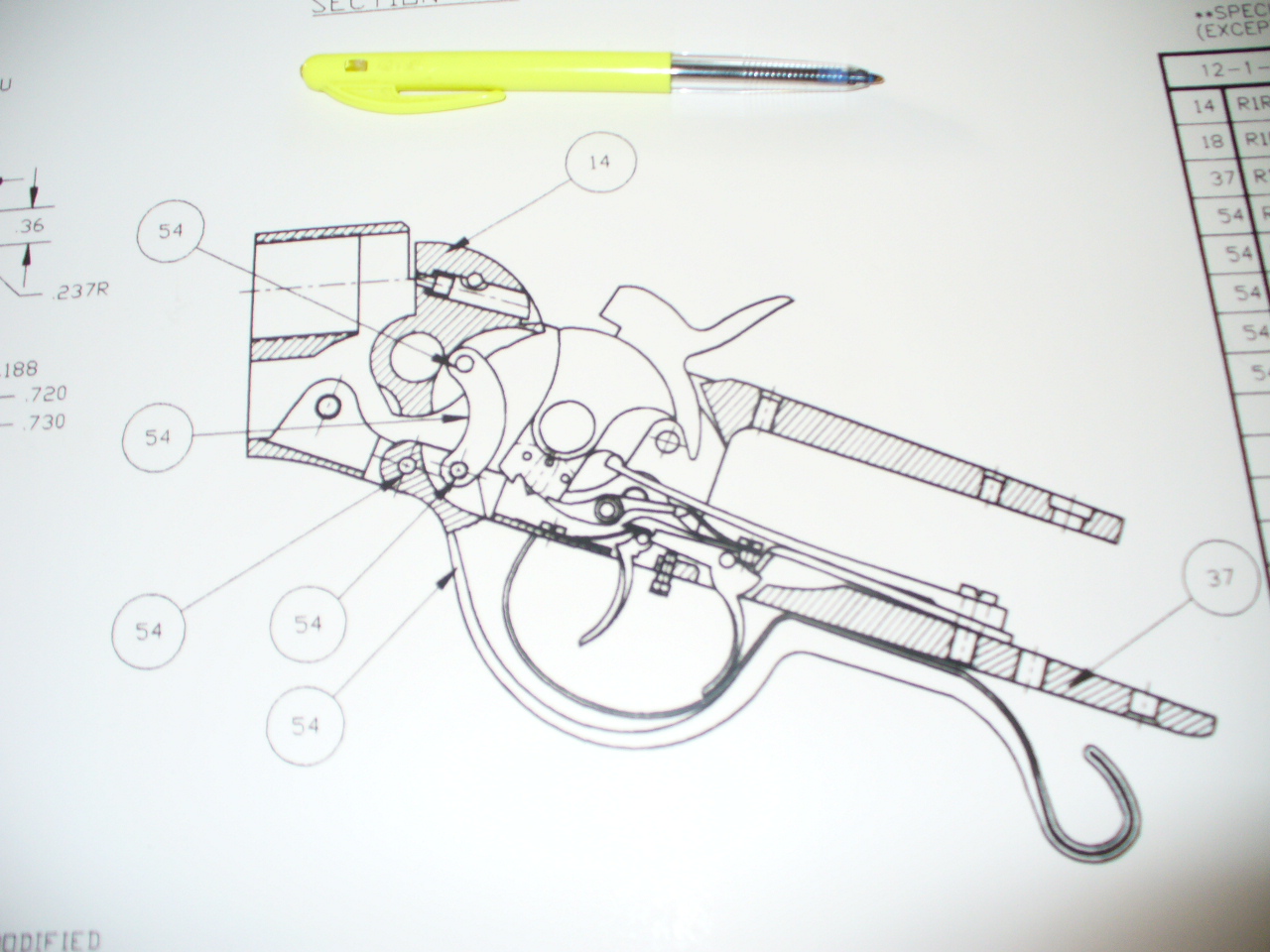

    Name:  P1030338.JPG
Views: 1646
Size:  367.0 KB, The under lever.
    Name:  P1030339.JPG
Views: 1427
Size:  490.8 KB, The guts of it with set triggers.

  2. #17
    northdude
    Guest
    i admire your skills
    norsk likes this.

  3. #18
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    7,118
    Quote Originally Posted by mimms2 View Post
    Would ruin any heat treat in the thing. Also encourages warpage, and is an order of magnitude less precise.
    Using a 1mm cut off wheel and nursing it through would be very doable. I've had to machine things that have had a useable end and a butchered mounted case cut end.
    The only way out was to snip the big lumpy slabby slagy encrusted part back closer to the needed part

  4. #19
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    It`s very pleasing when the guy I sold the .45-70 barrel to sent me a link to utube of him test firing his action with one of my barrels on it, I think he fired six shots of black powder loads with a pull string. The camera was right buy the gun and he was around a corner out of harms way, it works perfectly, great stuff. All I`ve done to improve my rifling is put a 5% back rake on the T/C cutter so it scrapes off the steel rather than cutting the steel with a forward angle that leaves scratches in the bore, yet to find out if it will work on 4140 steel. I have two lengths on order but will have to wait till it`s all clear for delivery, then will see how it goes and may be a new barrel for the Sharps. It`s all go.
    308, stevodog and takbok like this.

  5. #20
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    So the lump is losing a lot of weight, more than I can say about me as my homebrew fridge is in the workshop and I`m good at making tasty loafs of bread. Have setup the lump for what I call fly cutting , milling on the round to machine a flat on the other side, so slowly weaning it down.

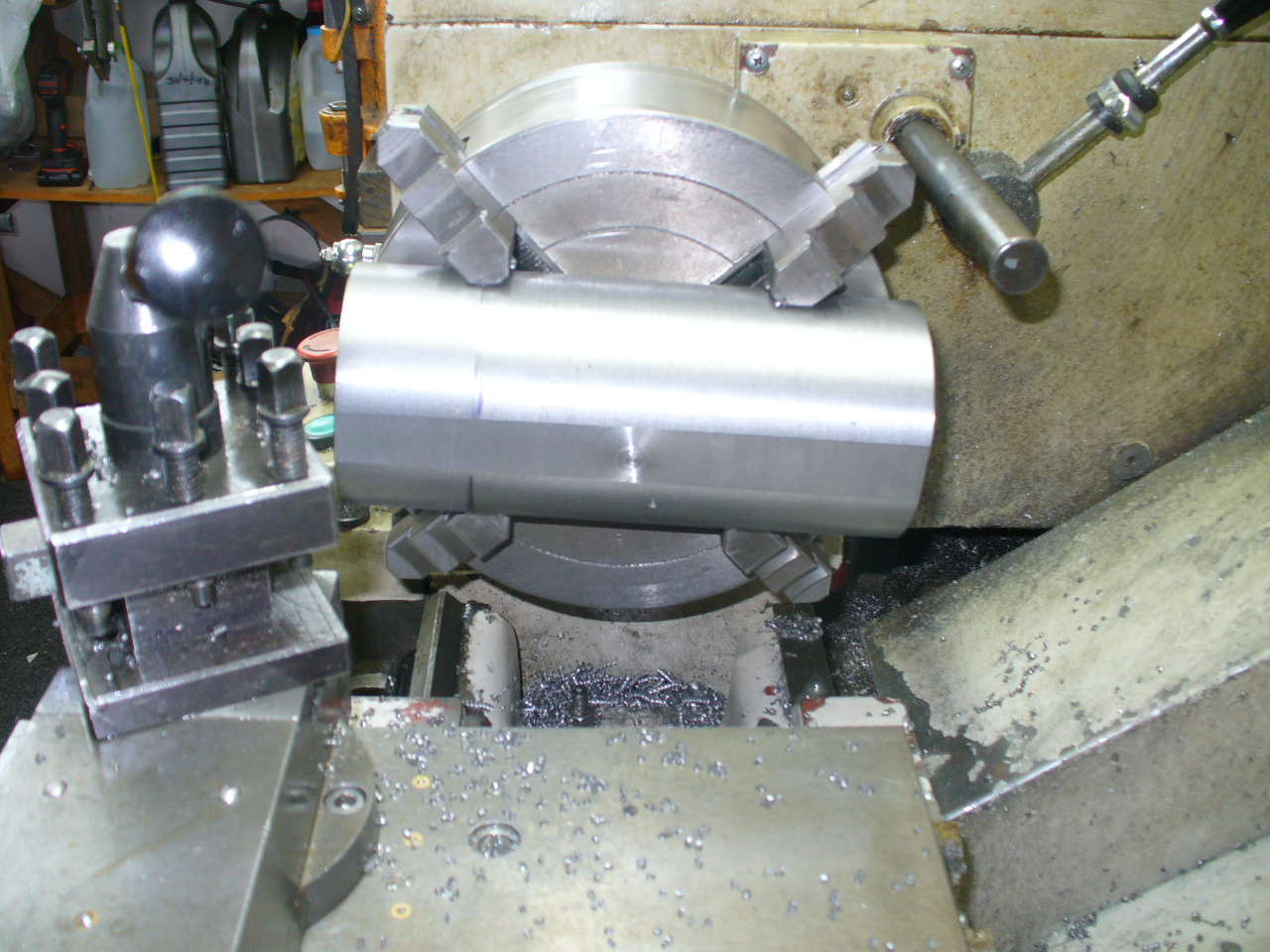

    Name:  P1030340.JPG
Views: 799
Size:  611.8 KB, In the four jaw chuck.

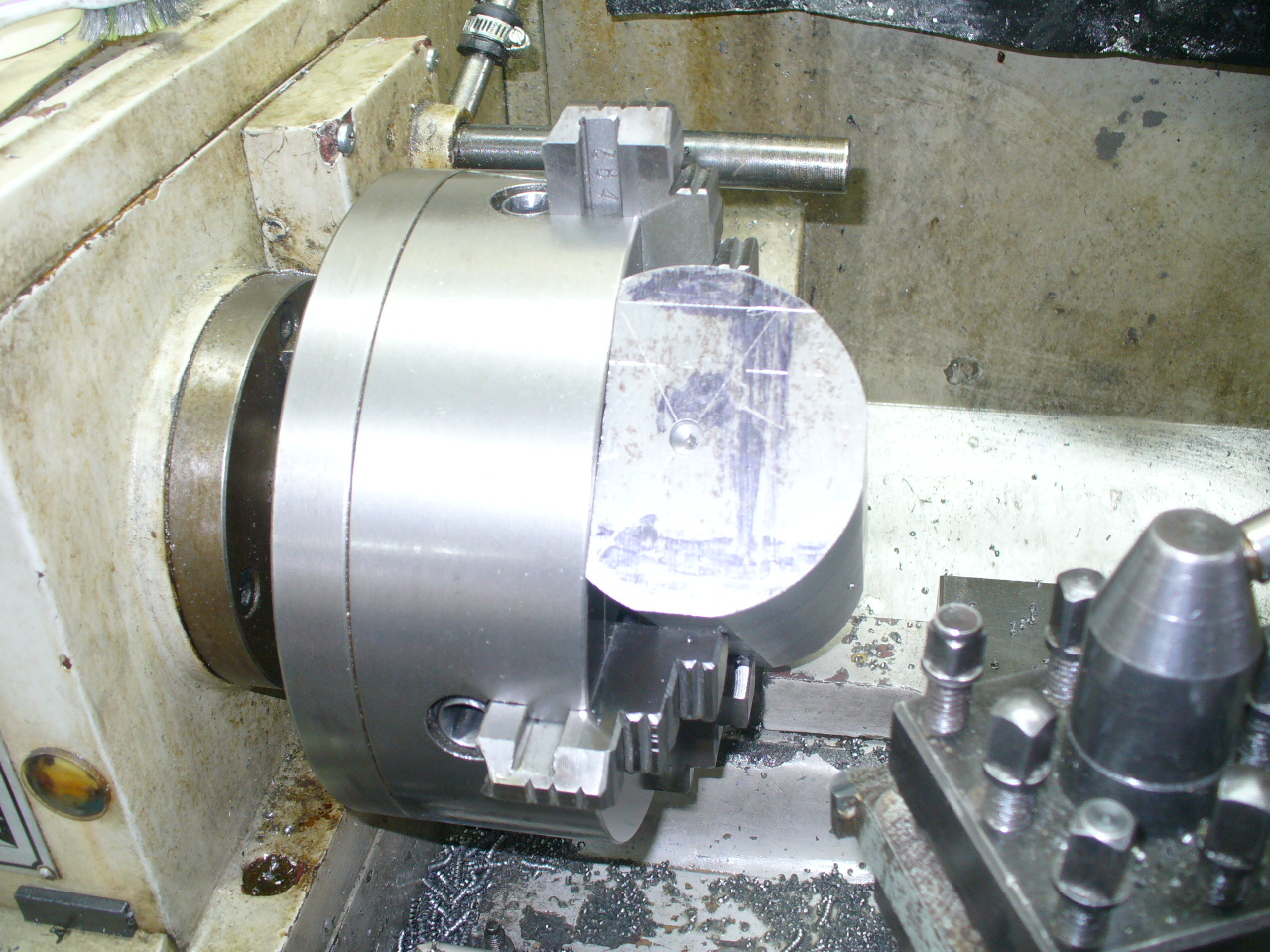

    Name:  P1030341.JPG
Views: 790
Size:  621.7 KB, I like the K I S S way.

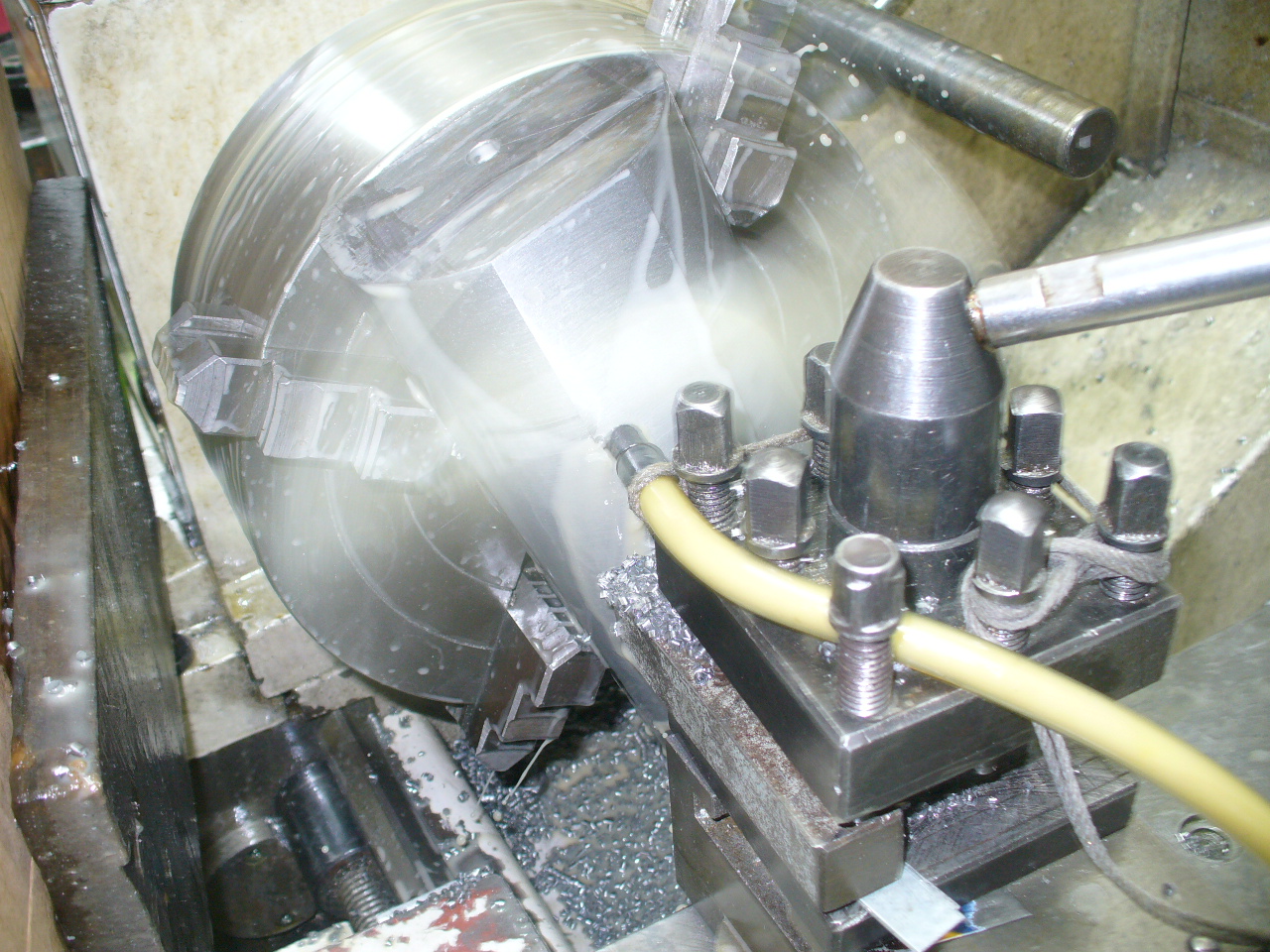

    Name:  P1030342.JPG
Views: 760
Size:  613.7 KB, Doing the job.

  6. #21
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,194
    Can you please set up a timer in shot to keep a track of how long its taken to knock this into shape ?

    Now you have an insight into why greenstone objects were so valuable to maori
    Seventenths and Micky Duck like this.

  7. #22
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,191
    Hey thanks for the pic, for some reason the Gove lever has always fascinated me, and I could never figure out how it might have worked - now I know.

    The "other" underlever rolling blocks, the Starr and the Nagant are beauties too.

  8. #23
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    Other fulling blocks, no never heard of them, Starr, Nagant, new to me. Have you heard of Walter B Mueller`s falling block rifle, that's new to me to.

  9. #24
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,191
    PM me your email address and I'll send you copies of the De Haas articles on them (the Starr and Nagant), They are true rolling blocks even though they have an under-lever . . .

  10. #25
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    I`m slowly, and I mean slowly cutting out the action assembly, so no time clock, it would probably die of old age or I could before this gets finished . The block is now slab sided to 1.230" thick, that's the size of the action and now setup for fly cutting the angle face of the action front. A lot more to do but it`s keeping me busy, specially cleaning up large amounts of swarf .,
    Name:  P1030345.JPG
Views: 756
Size:  591.7 KB, Starting to look different. .AAA hell, ignore the boots !
    Attached Images Attached Images
    Last edited by homebrew.357; 24-04-2020 at 08:14 PM. Reason: Trying to get rid of the boots.
    Tommy and SixtyTen like this.

  11. #26
    Member canross's Avatar
    Join Date
    Jan 2017
    Location
    Chch
    Posts
    603
    Quote Originally Posted by homebrew.357 View Post
    I`m slowly, and I mean slowly cutting out the action assembly, so no time clock, it would probably die of old age or I could before this gets finished . The block is now slab sided to 1.230" thick, that's the size of the action and now setup for fly cutting the angle face of the action front. A lot more to do but it`s keeping me busy, specially cleaning up large amounts of swarf .Attachment 137484, Starting to look different .
    Looks a lot different to me - you may be the first machinist to turn a block of steel into a pair of leather boots

    Quite enjoying the build-along. Cool to see a unique type of receiver getting built!
    ebf, Frogfeatures and SixtyTen like this.

  12. #27
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,194
    Quote Originally Posted by homebrew.357 View Post
    I`m slowly, and I mean slowly cutting out the action assembly, so no time clock, it would probably die of old age or I could before this gets finished . The block is now slab sided to 1.230" thick, that's the size of the action and now setup for fly cutting the angle face of the action front. A lot more to do but it`s keeping me busy, specially cleaning up large amounts of swarf .Attachment 137484, Starting to look different .
    Almost unrecognizable[/B]

  13. #28
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,194
    I'm going to send him a big round bale of hay and see if he can turn it into gold
    timattalon likes this.

  14. #29
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,194
    Friday night drinks ah !

  15. #30
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830

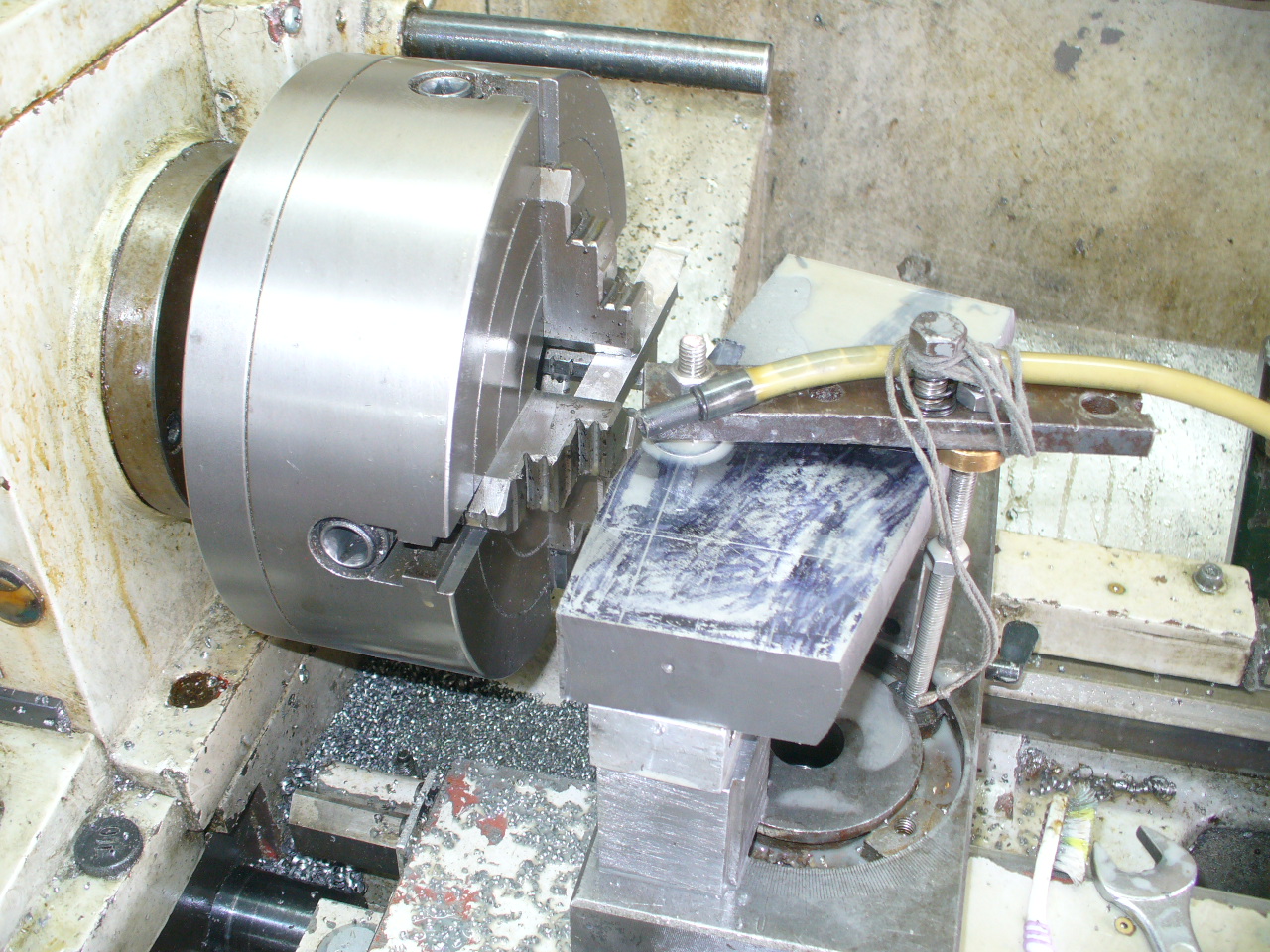

    Yer, just had a brew thanks, so with a bit of teko drawing I marked out the spots for top of the action, the two breech and hammer holes. Gives me a line on where to hack saw a lump off, saves a lot of milling time and then set up to fine fly cut the top of the action, well something like that.
    Here you go Cancross, Name:  P1030346.JPG
Views: 837
Size:  588.7 KB, Had to drill a hole through it to holed it in place.
    SixtyTen and canross like this.
